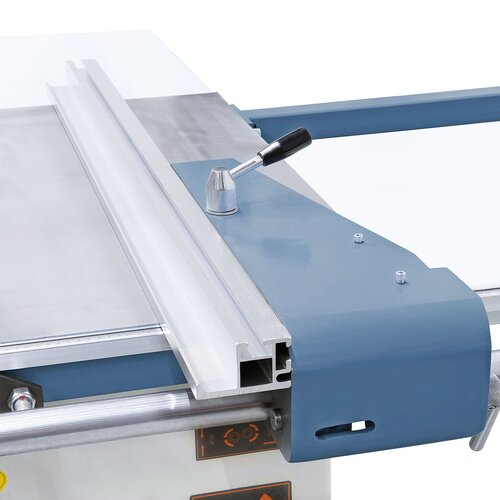

The uniqe profile of the anodized parallel fence allows reading of measurements no matter if the workpiece is held against the high or low guide.

Parallel fence with micrometric fine adjustment can be used for cutting widths up to 1200 mm.

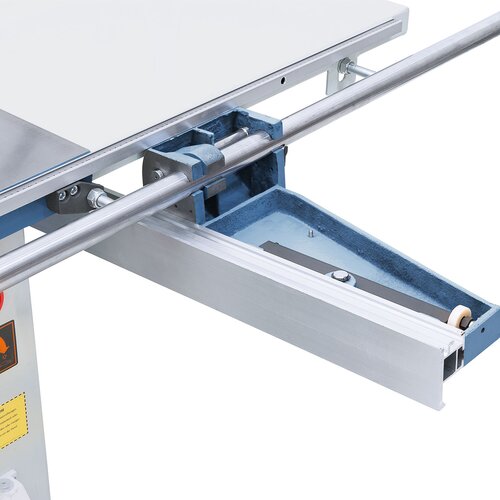

When cutting large pieces, parallel fence can be tilted down.

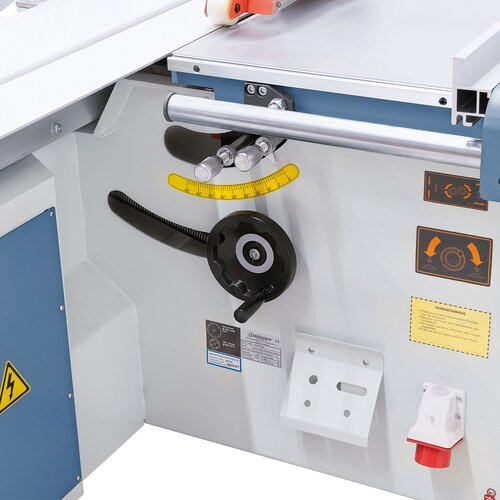

Solid saw unit features grey cast-iron tilting elements supported on both sides.

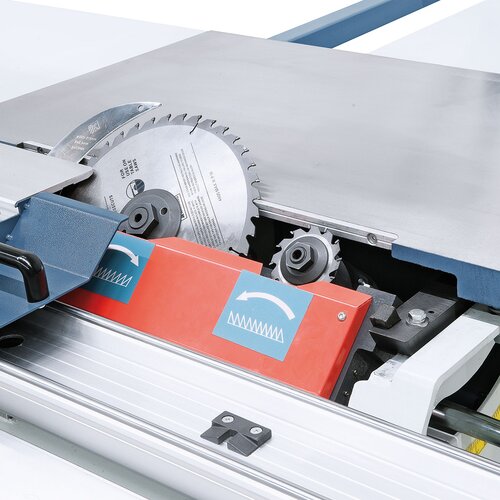

User-friendly height and side adjustment of scoring unit.

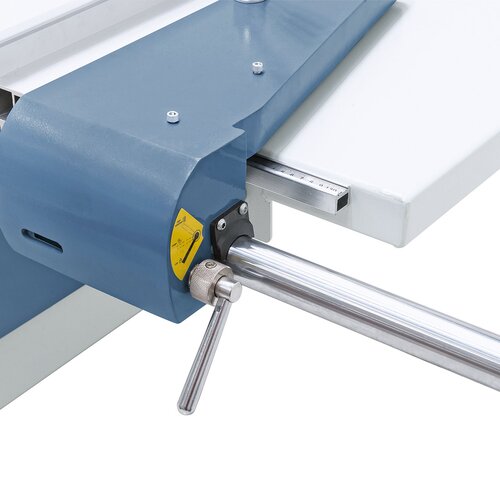

Parallel fence with quick and fine adjustment of cutting width (max. 1200 mm).

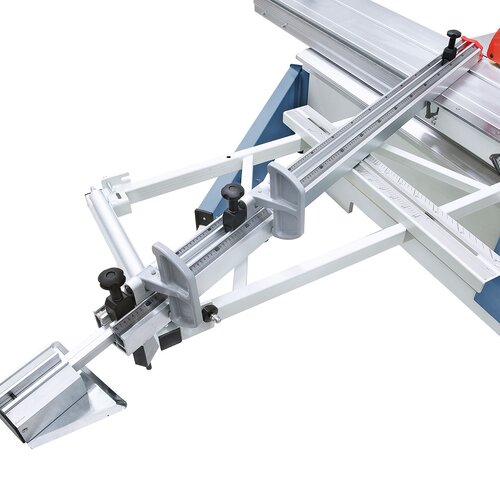

The steplessly tiltable (2 x 45º) telescopic fence can be mounted at front or rear of square table.

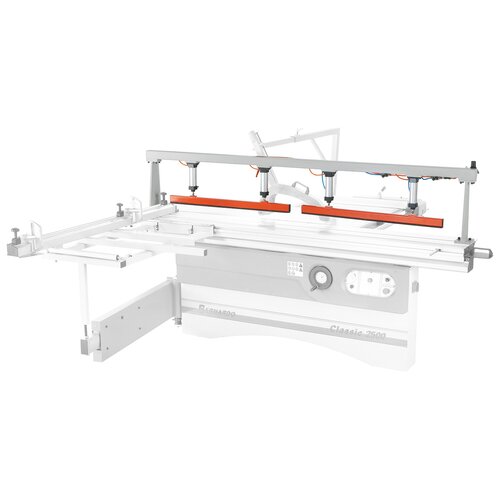

Picture shows optionally available pneumatic clamping device.

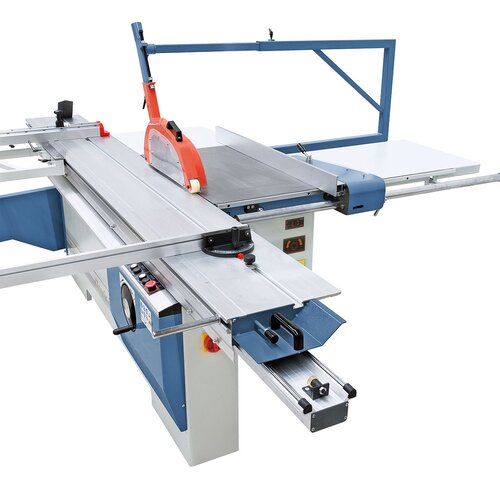

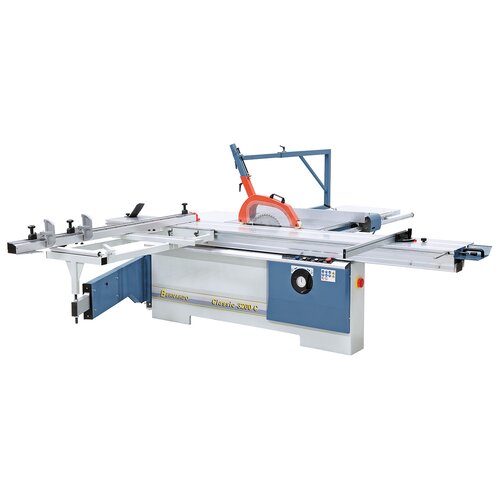

Sliding table saw Classic 3200 C *

Art.Nr.: 09-1175BXL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Classic 3200 C circular saw feature a tiltable sawblade, meet most demands of craftsmanship and is ideal model for price-conscious small to medium sized businesses. The robust construction and generous machine dimensions offer great working conditions when cutting solid timber and large material – even decorative panels can be cut by using the scoring unit (part of standard equipment).

€5,844.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Aluminium sliding table features hardened guide rails
Table extension and enlargement for supporting large panels come standard
Solid square table for machining of large, heavy panels without needing extra support
Powerful drive motor guarantees optimal cutting capacity even at continuous operation
User-friendly read of set angles directly at handwheel
Scoring unit with independent motor comes standard
Extractable telescopic fence (up to 3100 mm), mountable at front and rear of square table
Solid saw unit guarantees precise processing, free from vibrations
Torsion-free machine body is a combination of steel and grey cast-iron
Parallel fence with solid 40 mm round rod guide can be tilted away

Product Specifications

Table size	935 x 620 mm
Sliding table	3200 x 370 mm
Cutting length	3200 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	90 / 65 mm
Cutting width on rip fence	1295 mm
Table height	850 mm
Table extension	600 x 615 mm
Table enlargement	900 x 600 mm
Square table with roll	1210 x 860 mm
Speed main sawblade	4000 / 6000 rpm
Speed scoring sawblade	8000 rpm
Scoring sawblade	120 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	4,0 kW (5,5 HP)
Motor power input S₆ 40%	5,5 kW (7,5 HP)
Motor scoring unit	0,75 kW
Voltage	400 V
Machine dimension (W x D x H)	3445 x 3560 x 1570 mm
Weight approx.	710 kg
