When cutting large pieces, parallel fence can be tilted down.

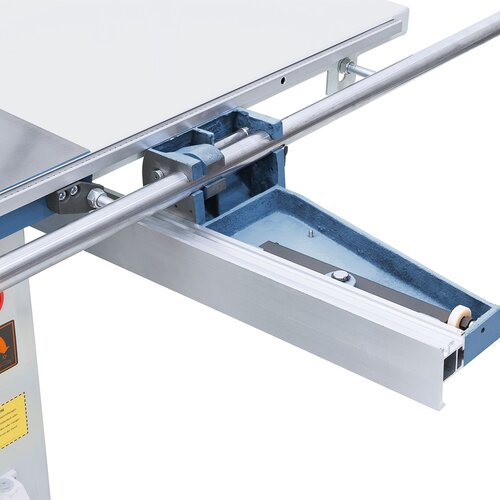

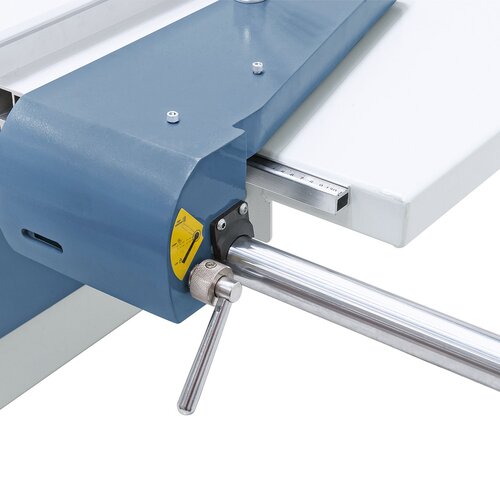

Parallel fence with micrometric fine adjustment can be used for cutting widths up to 1295 mm.

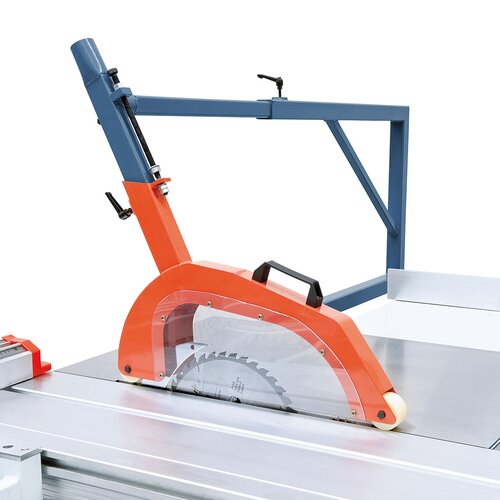

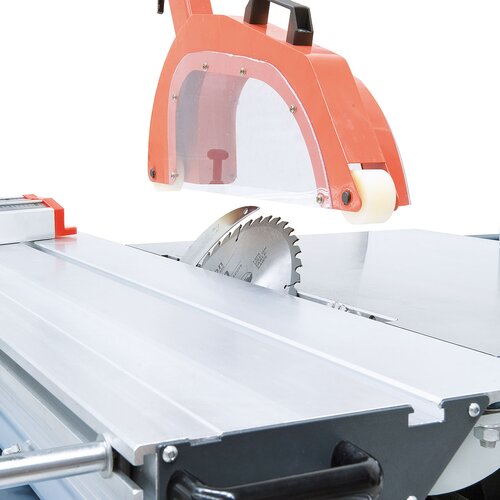

Sawblade cover, featuring integrated dust port, connected to riving knife. Standard equipment includes a scoring unit.

Longitudinal fence stop can be used on both sides for accurate setting of cutting width on telescopic fence.

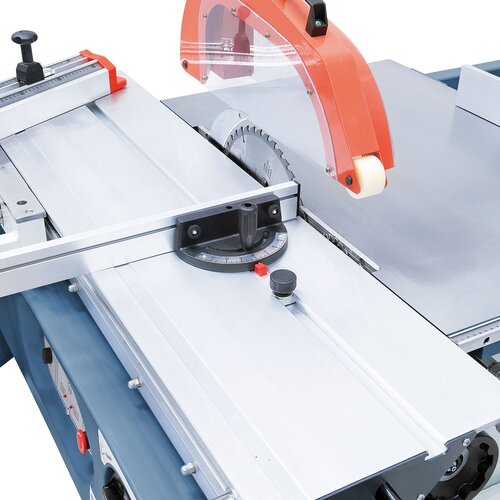

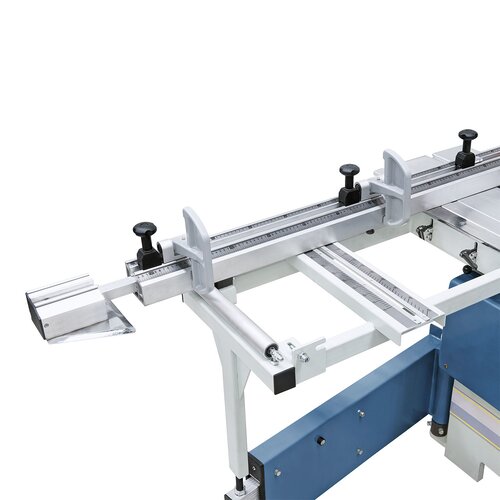

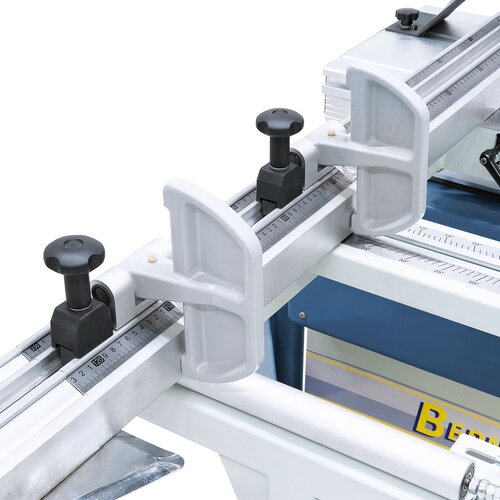

Square table can be moved along the entire sliding table length and taken off at any position. The telescopic fence, featuring 2 solid tiltable stops, allows precise adjustments.

The T-slot on sliding table allow for mounting of several accessories, such as end stop, eccentric clamp, telescopic fence etc.

Saw unit – tiltable up to 45º - can be adjusted by handwheel for cutting heights up to 90 mm.

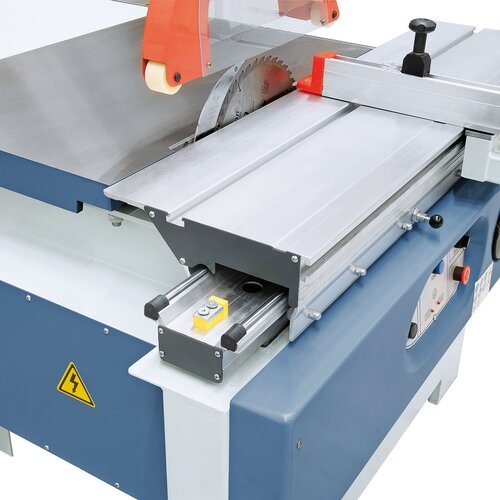

The amply sized sliding table runs smoothly and maintenance-free on hardened prism-shaped guide.

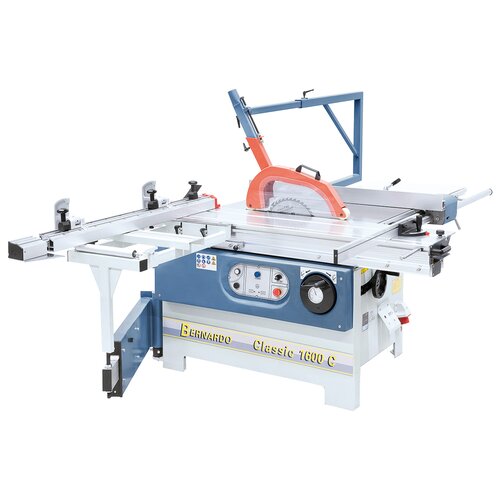

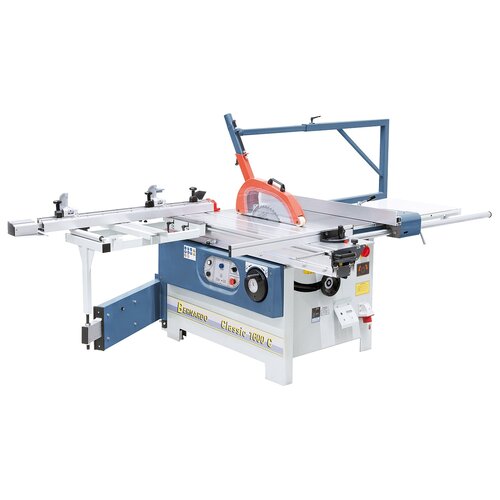

Sliding table saw Classic 1600 C *

Art.Nr.: 09-1165B

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Many cutting tasks require the use of small and precise circular saws. The machines are often used in addition to large sliding table saws and ask for the same requirements such as precision, high user comfort, short conversion time and versatility. The BERNARDO circular saw Classic 1600 C meet all these demands without sacrificing the aluminium sliding table which offers a lot of convenience when processing smaller workpieces.

€4,704.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Smoothly running, precise sliding table features hardened prism-shaped guide
Square table with roll ensures user-friendly operation of large workpieces
Powerful motor with high torque, designed for optimal cutting capacity

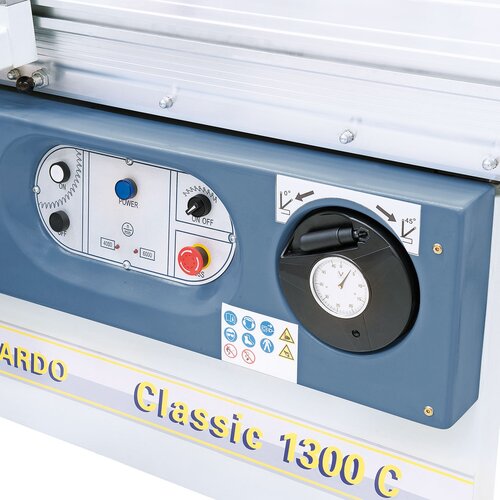

Handwheel features scale for sawblade tilt up to 45º
Telescopic fence complete with 2 end stops
Solid saw unit, featuring grey cast-iron tilting elements, supported on both sides
Table extension for cutting width up to 1295 mm part of equipment
Parallel fence can be folded down and includes micrometric fine adjustment (advantage for large panel)
Large, grey cast-iron table, designed and polished with high accuracy
Complete with independently driven scoring unit (0.75 kW motor)

Product Specifications

Table size	935 x 620 mm
Sliding table	1600 x 360 mm
Cutting length	1600 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	90 / 60 mm
Cutting width on rip fence	1295 mm
Table height	850 mm
Table extension	750 x 600 mm
Square table with roll	725 x 550 mm
Speed main sawblade	4000 / 6000 rpm
Speed scoring sawblade	8000 rpm
Scoring sawblade	120 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	4,0 kW (5,5 HP)
Motor power input S₆ 40%	5,5 kW (7,5 HP)
Motor scoring unit	0,75 kW
Voltage	400 V
Machine dimension (W x D x H)	1680 x 3000 x 1520 mm
Weight approx.	550 kg
