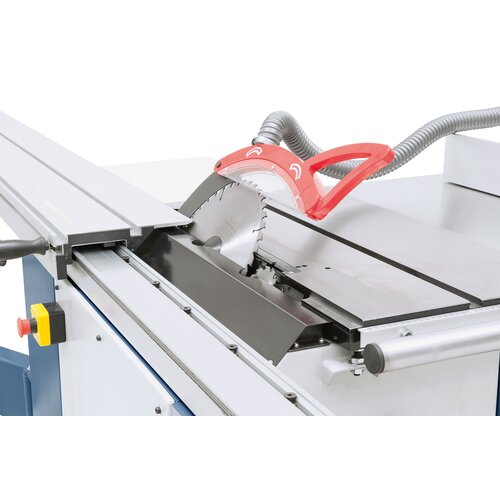

Complete with scoring unit for burr-free processing of panels.

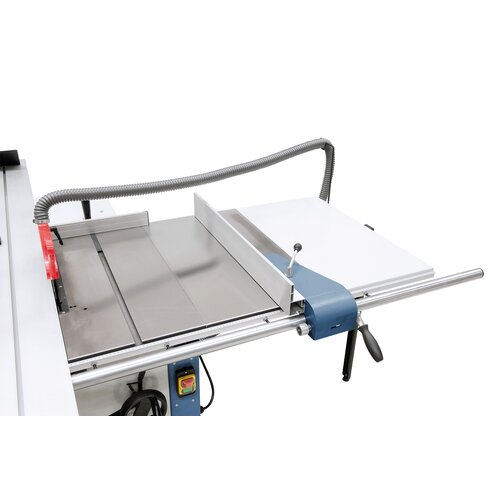

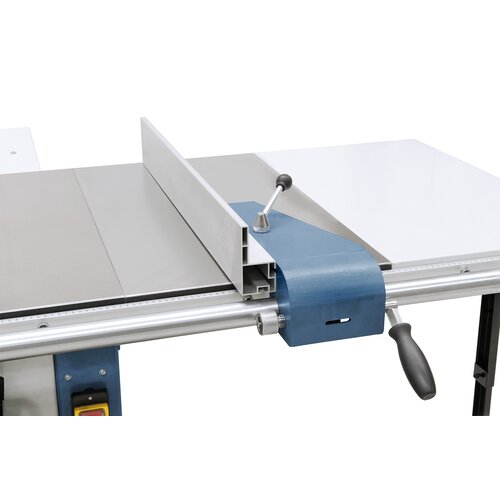

Parallel fence with solid round rod guide (40 mm) can be used for cutting width of up to 1200 mm.

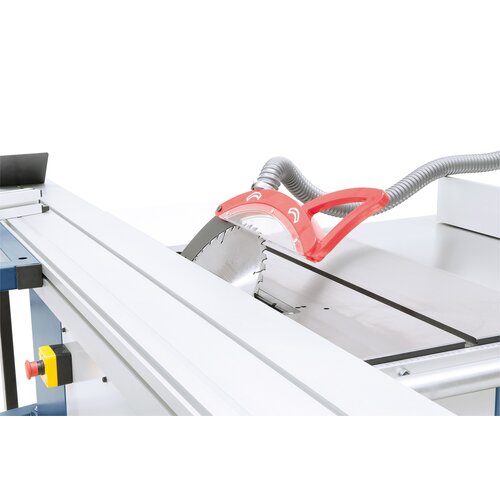

The up to 45º tiltable saw unit can be set for cutting heights of up to 100 mm by using the handwheel.

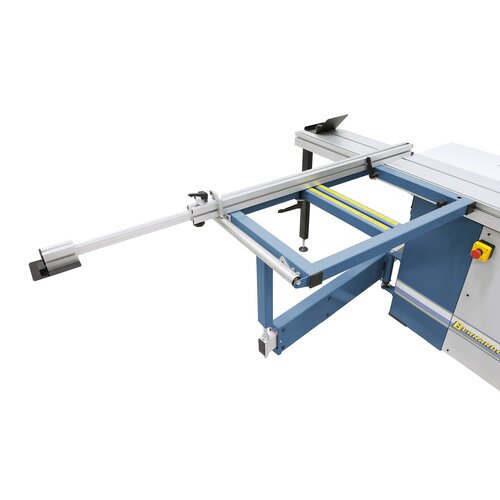

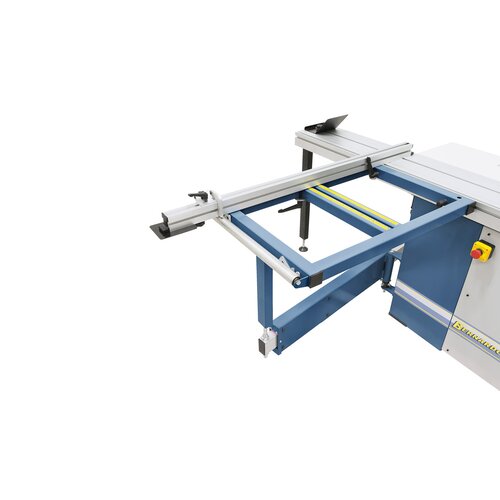

Extractable telescopic fence (up to 2260 mm) complete with precisely adjustable end stop.

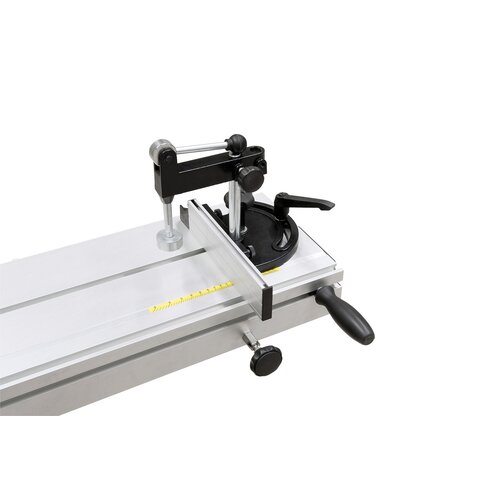

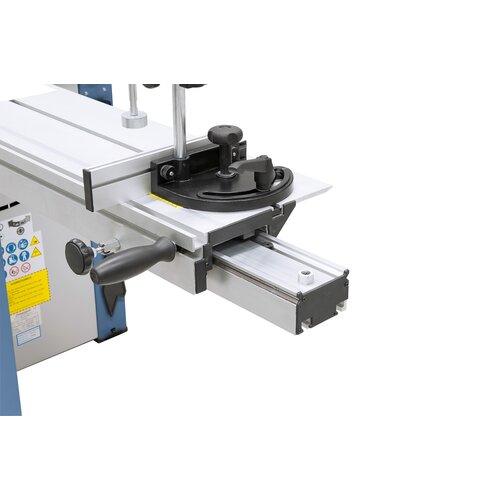

Mitre fence – featuring end stop and eccentric holder – movable along entire table length

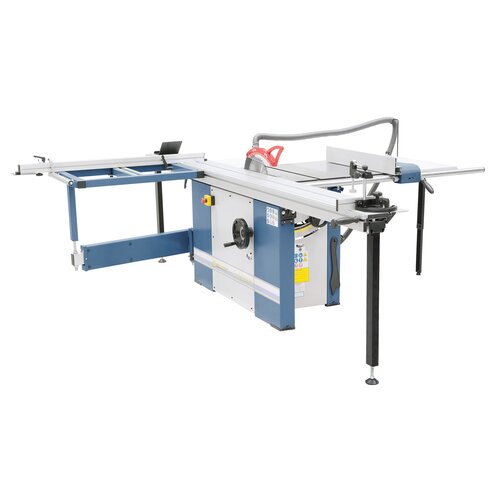

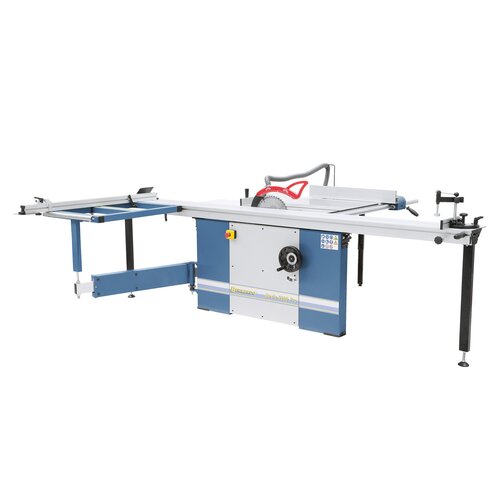

Sliding table saw Basic 3200 Pro / 400 V

Art.Nr.: 09-1132

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The sliding table saw Basics 3200 Pro feature a tiltable sawblade and come complete with a scoring unit to meet the high demands of professional users. Sophisticated technical aspects such as the high user comfort, powerful drive and the smoothly running sliding table make this model stand out.

€3,900.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Solid square table helps support large and heavy panels

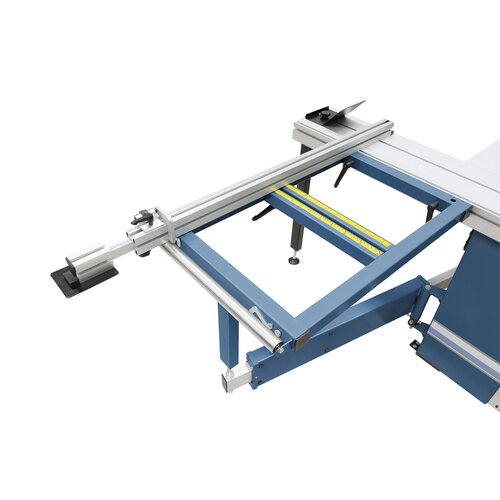

Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table
Powerful drive motor guarantees optimal cutting capacity even at continuous operation
Mitre fence and downholder can be moved along the entire sliding table length
Complete with table extensions and enlargement for better support of large panels

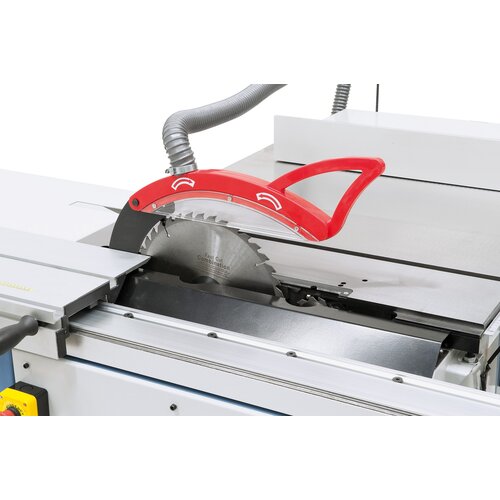

Solid saw unit guarantees accurate work free from vibrations
Aluminium sliding table features hardened guide rails
Machine body consists of torsion-free combination of steel and grey cast-iron
Large grey cast-iron table, designed with top precision and polished finish

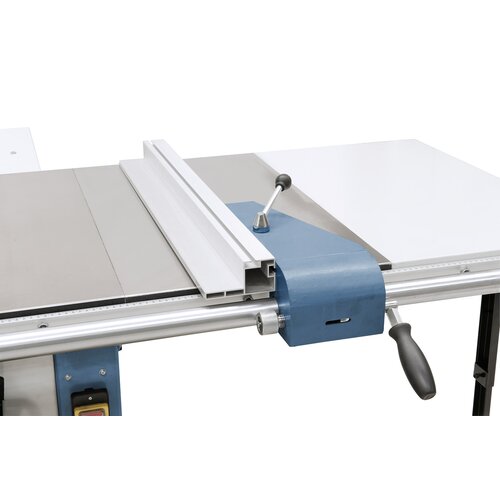

Parallel fence can be folded down and includes micrometric fine adjustment (advantage for large panels)
Handwheel and scale allows for sawblade tilt of up to 45º

Product Specifications

Table size	800 x 385 mm
Sliding table	3200 x 270 mm
Cutting length	3300 mm
Max. sawblade diameter	315 x 30 mm
Max. cutting height 90° / 45°	100 / 80 mm
Cutting width on rip fence	1200 mm
Table height	860 mm
Table extension	500 x 310 mm
Table enlargement	800 x 880 mm
Square table with roll	935 x 580 mm
Speed main sawblade	4000 rpm
Speed scoring sawblade	5800 rpm
Scoring sawblade	90 x 20 mm
Dust extraction outlet	100 mm
Motor power output S₁ 100%	3,8 kW (5,1 HP)
Motor power input S₆ 40%	5,3 KW (7,2 HP)
Voltage	400 V
Machine dimension (W x D x H)	3200 x 2990 x 1140 mm
Weight approx.	312 kg
