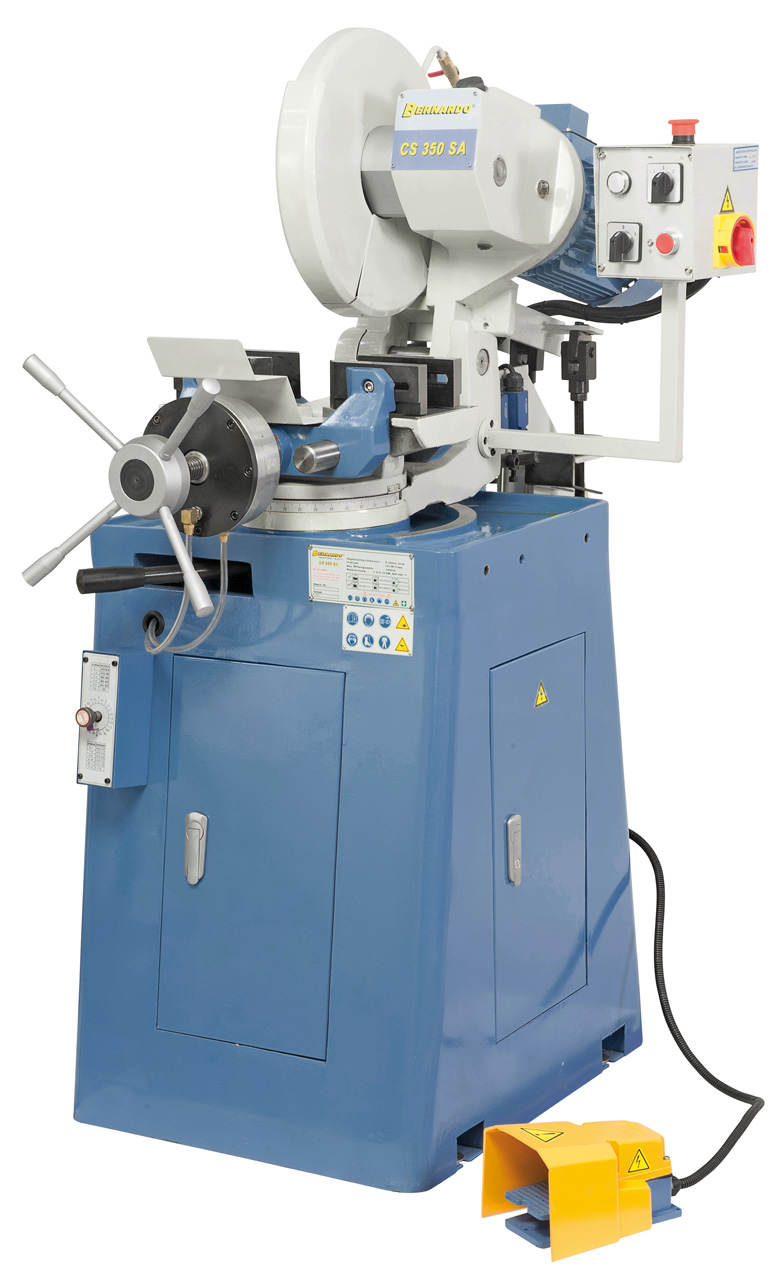

Semi automatic metal circular saw CS 350 SA
Art.Nr.: 04-1892The CS 350 SA semi-automatic metal circular saw is designed for economic production of single parts and small series. Hence, this machine is particulary convenient for workshops requiring a reliable machine for common sawing applications.
€4,524.00
incl. 20% VATAvailability
Product Properties

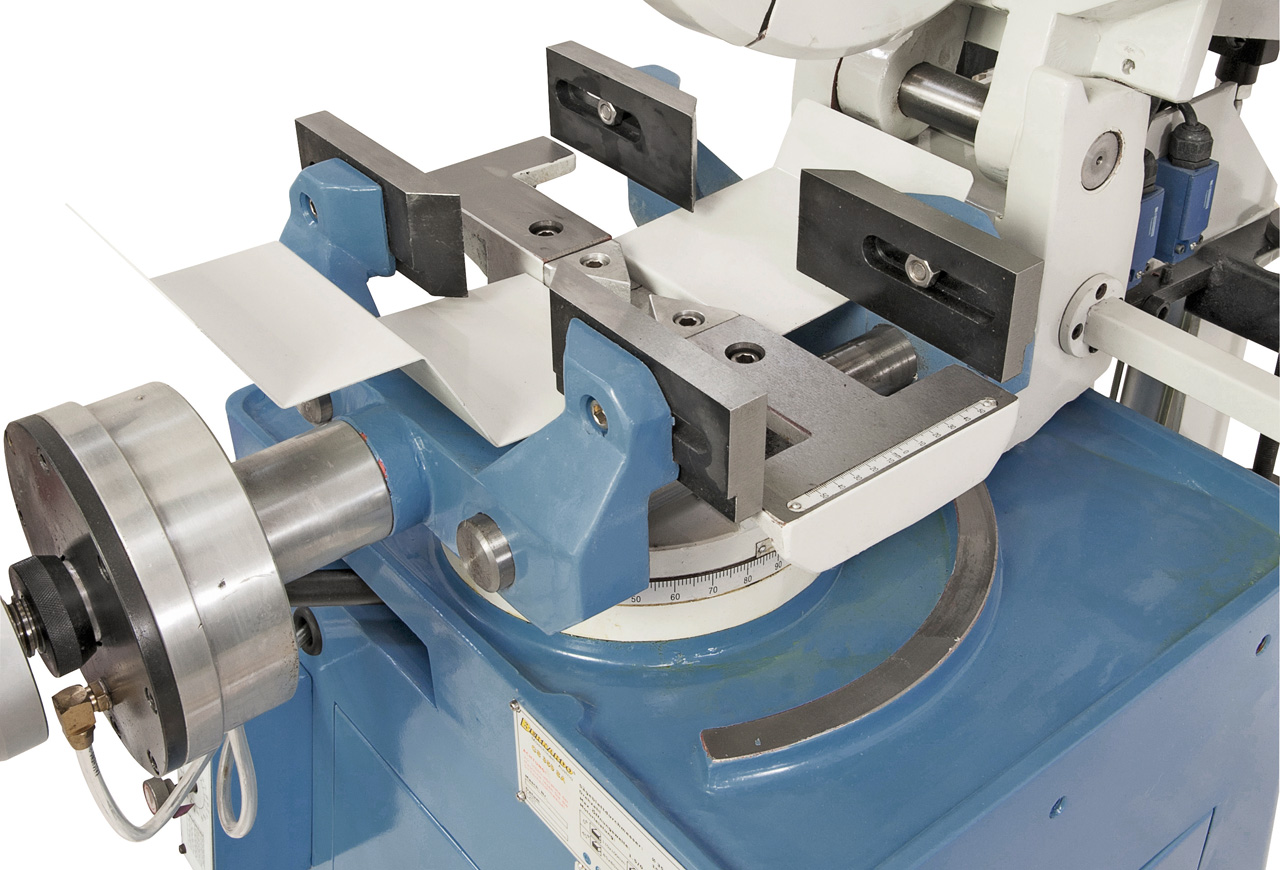

- Precise, self-centering double-clamping vice positioned on four guidings
- Protective cover opens automatically when cutting to maximise safety
- 2 speed settings - ideal for cutting profiles, pipes and solid iron, stainless steel and non-ferrous metals
- Heavy machine base designed to add various roller tables
- Gear unit features slip clutch to avoid sawblade breakage
- Powerful coolant tank integrated in solit machine base

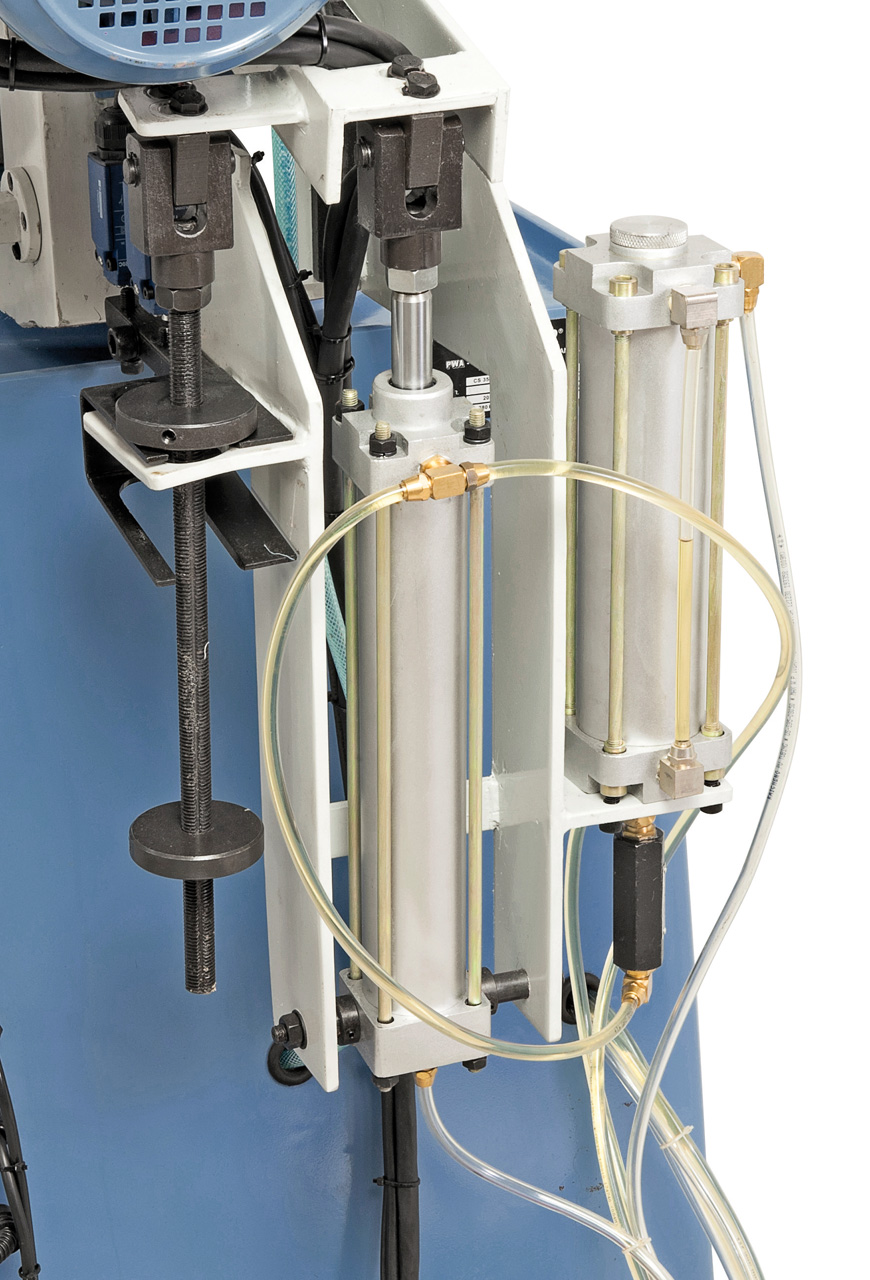

- Pneumatic lowering of saw unit features regulator to allow lowering and lifting speed
Semi-automatic mode:
- Pneumatic clamping of vice
- Pneumatic lowering of saw head
- Saw head lifts automatically at the end of the cut
- Pneumatic vice opens
Product Specifications
|
Sawblade dimensions |
350 x 40 mm |
|
Speeds |
19 / 38 rpm |
|
Max. opening |
150 mm |
|
Working height |
930 mm |
|
Motor power output S1 100% |
0,75 / 1,5 kW |
|
Motor power input S6 40% |
1,0 / 2,1 kW |
|
Voltage |
400 V |
|
Machine dimensions (L x D x H) |
750 x 1100 x 1400 mm |
|
Weight approx. |
270 kg |
|
|
Full rivet material round |
Pipe round |
Pipe square |
|
90° |
95 mm |
95 mm |
95 × 95 mm |
|
45° |
95 mm |
95 mm |
75 × 75 mm |
|
|
Full rivet material square |
Pipe rectangular |
Full rivet material rectangular |
|
90° |
95 × 95 mm |
100 × 90 mm |
100 × 90 mm |
|
45° |
75 × 75 mm |
100 × 75 mm |
100 × 75 mm |
Delivery Contents
- Coolant device with filter
- Pneumatic vice
- Foot pedal
- Stand
