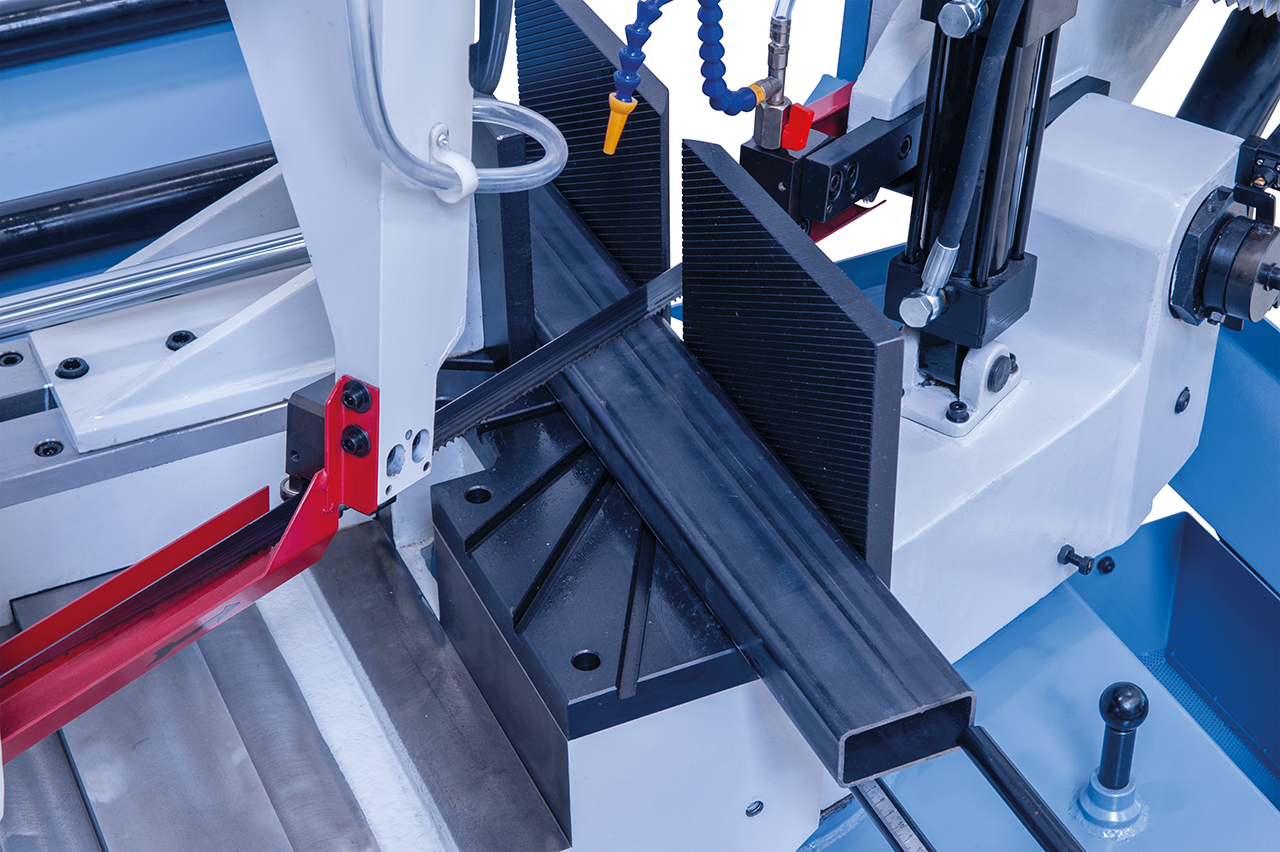

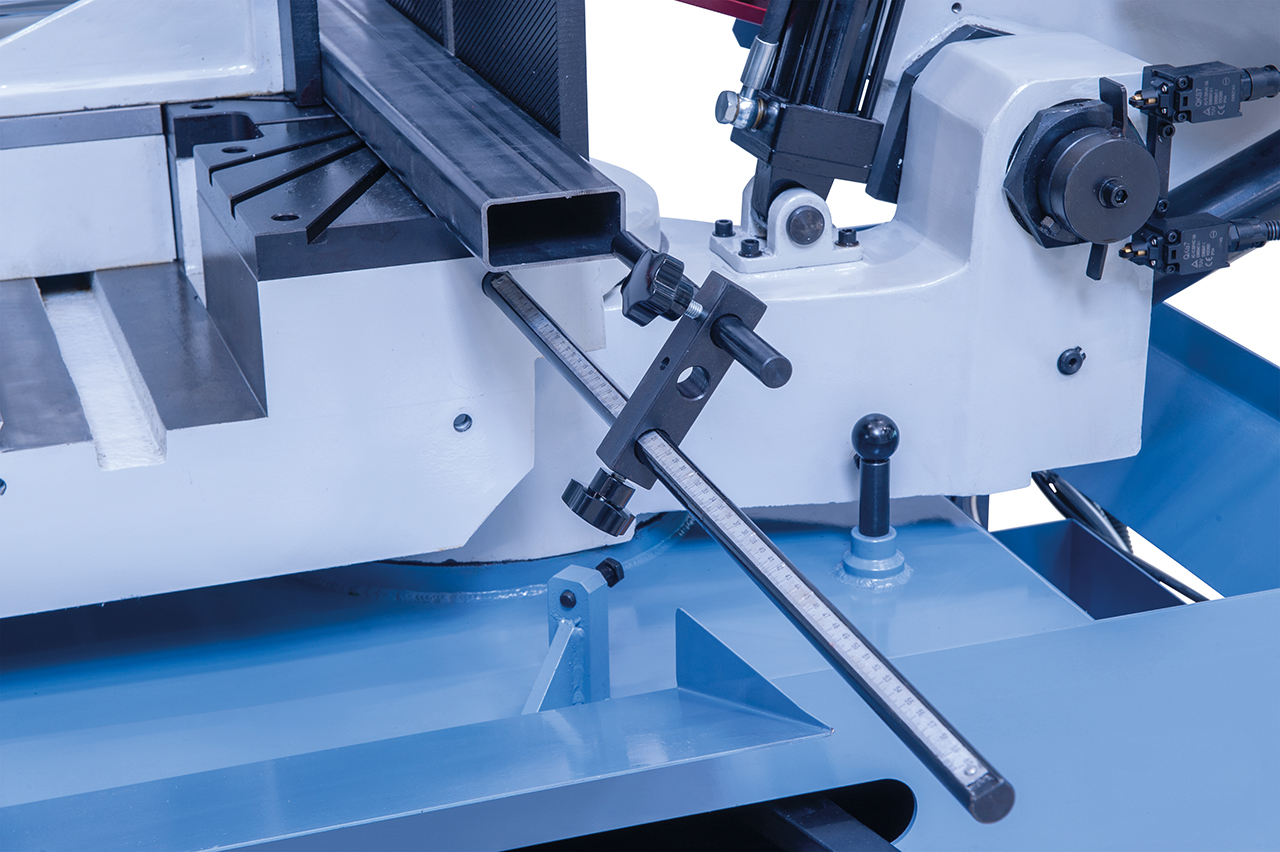

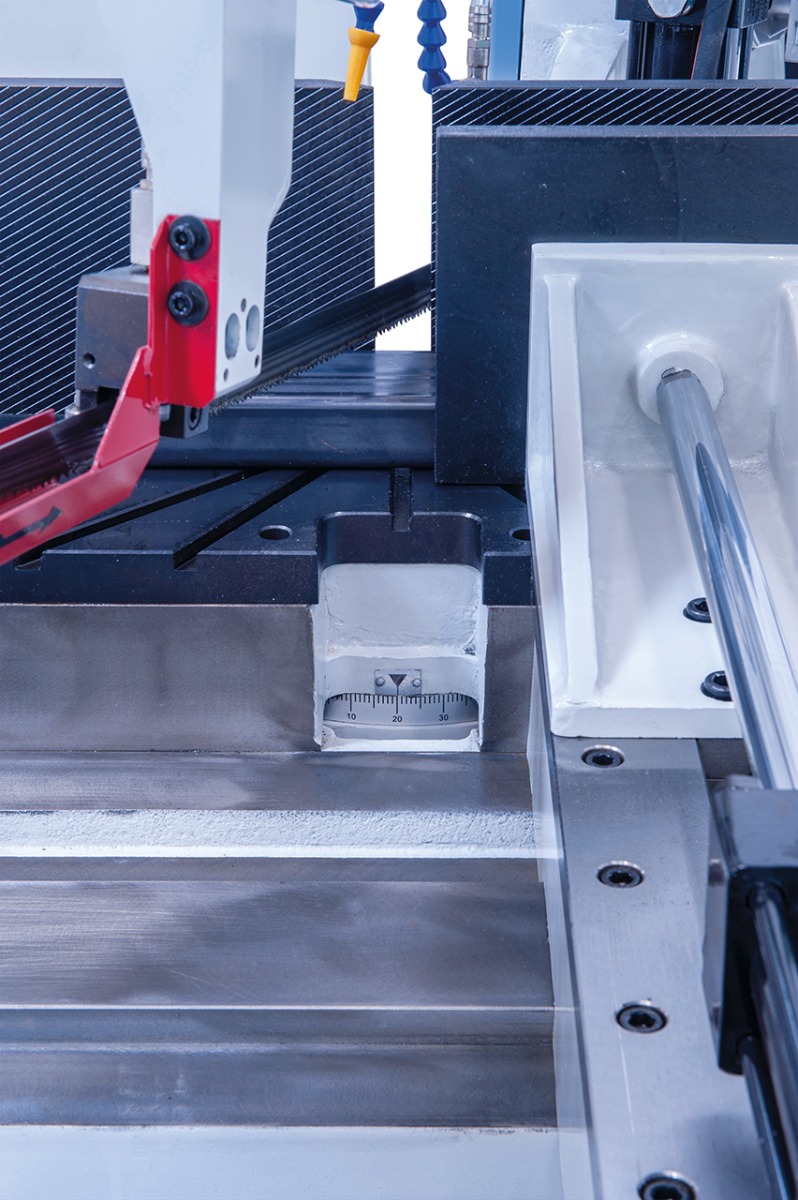

Quick clamping vice for double mitre cutting can be adjusted.

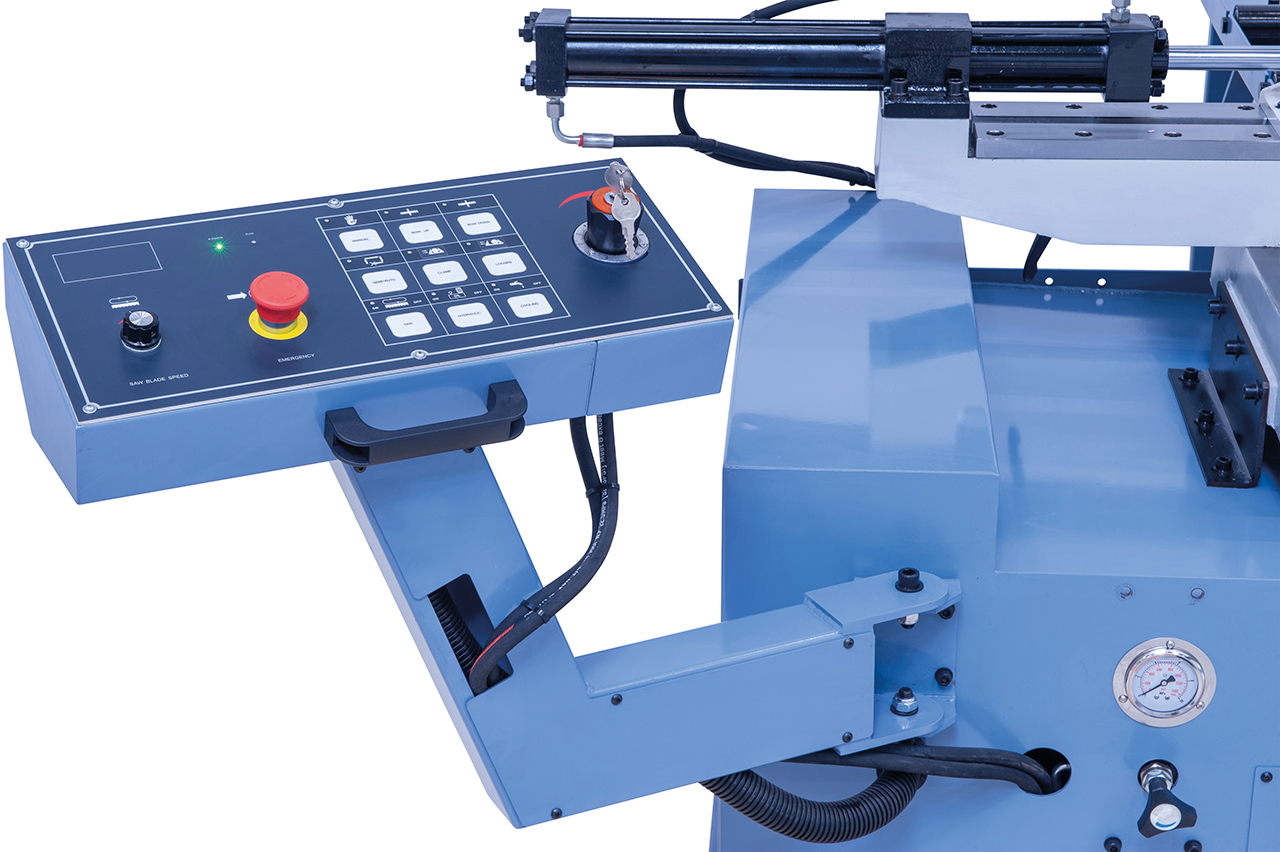

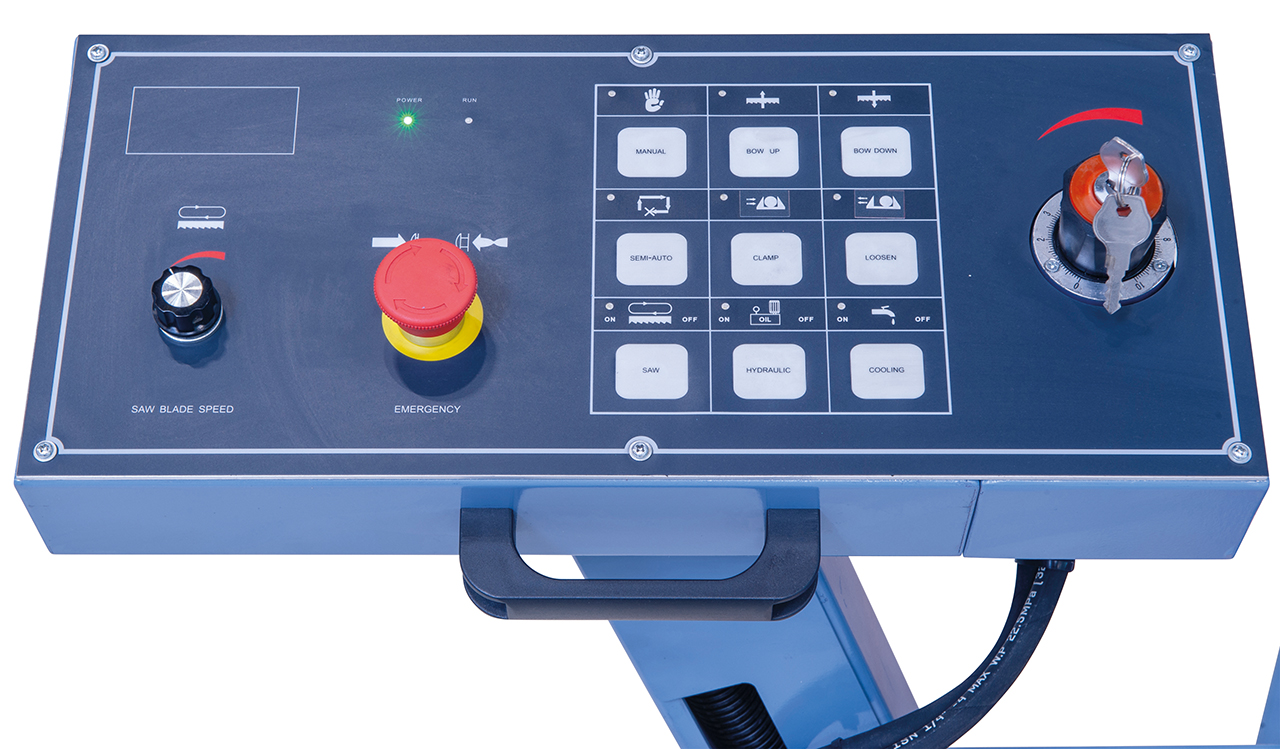

Ergonomically arranged control panel on front of the machine guarantees comfortable work environment.

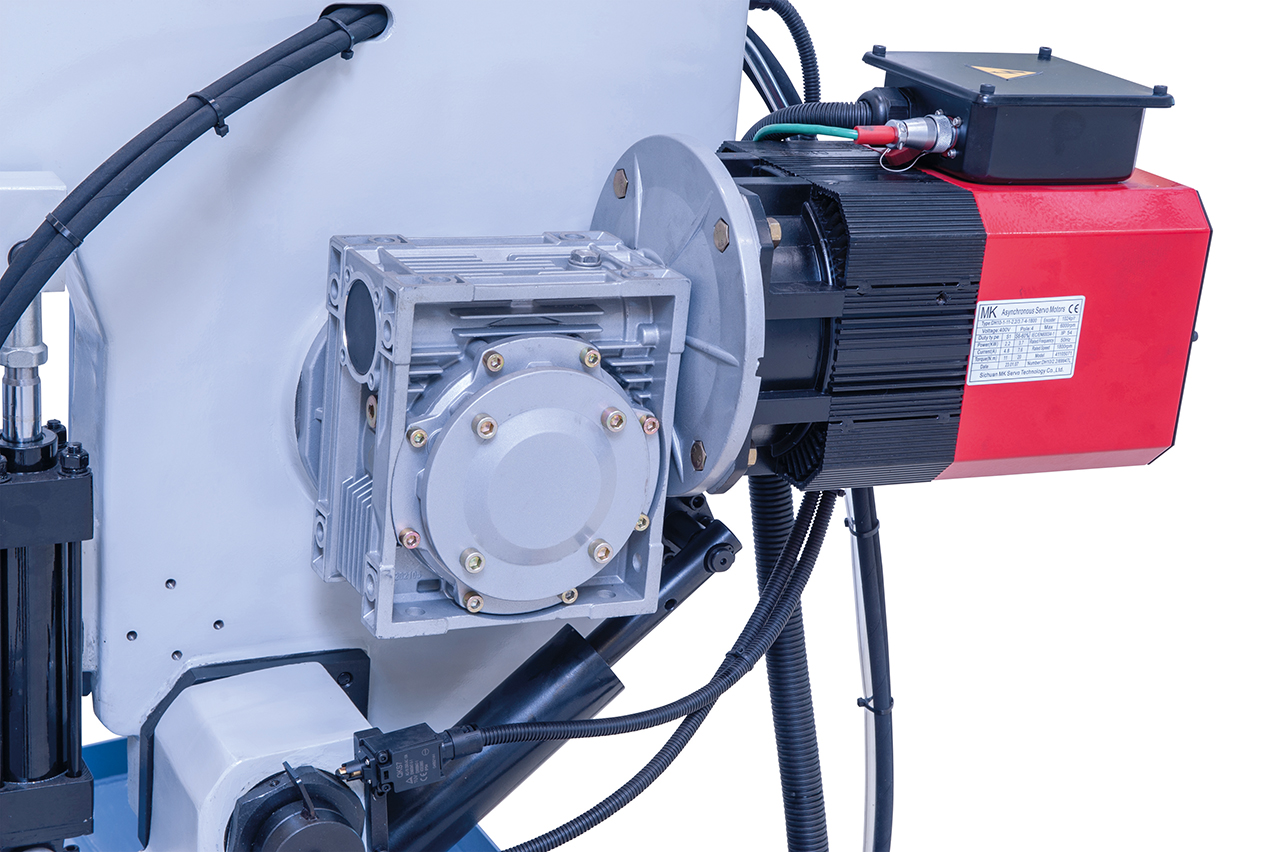

Stepless adjusteable cutting speed and high torque thanks to the powerful servo motor

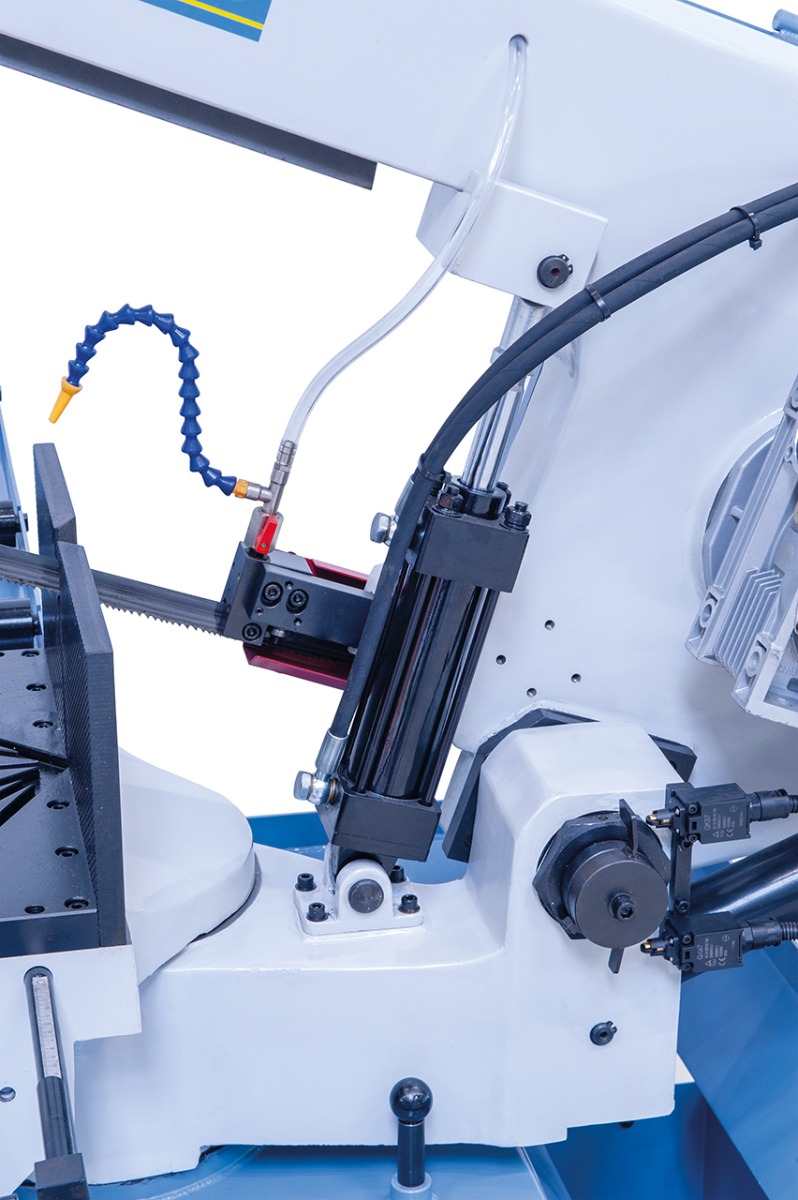

Serially with hydraulic lowering cylinder for stepless lowering of saw arm and automatic shut down at cutting end.

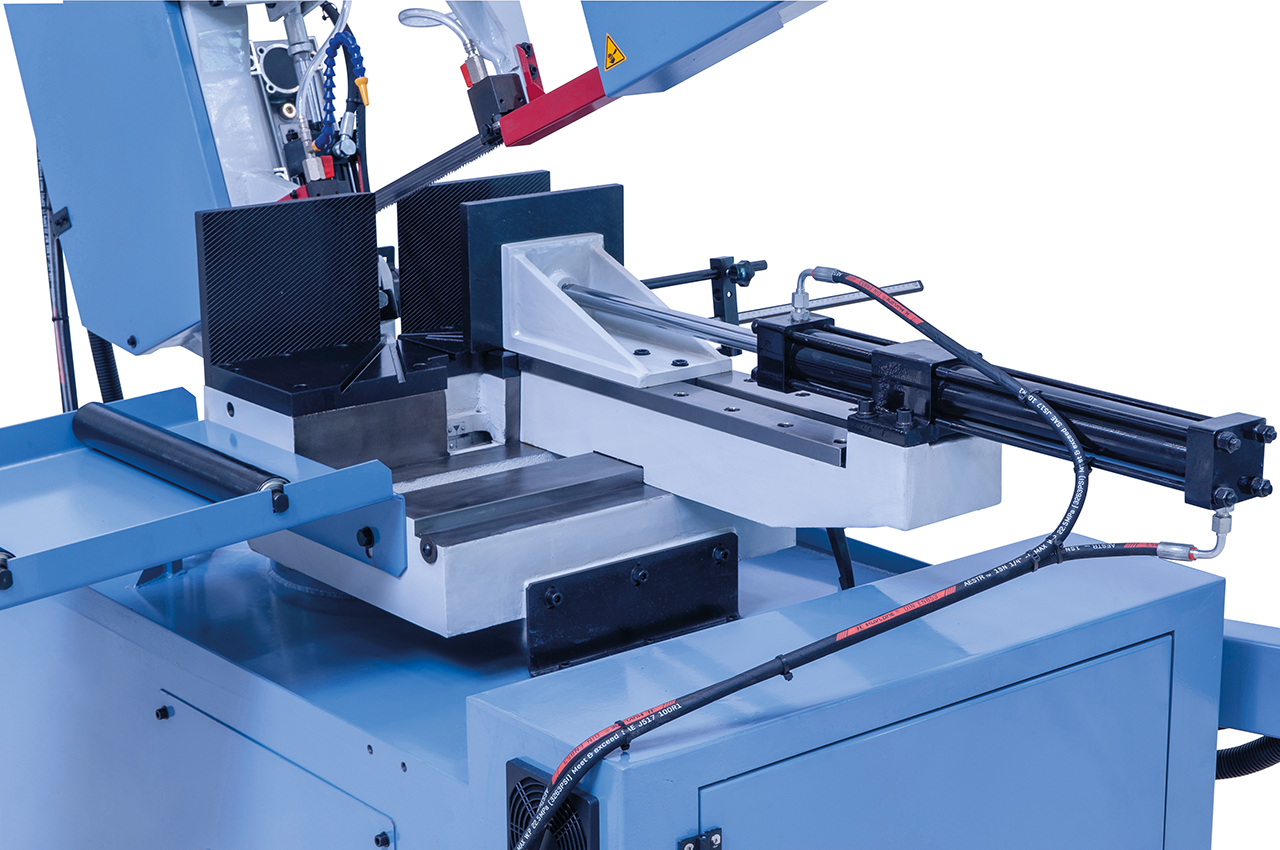

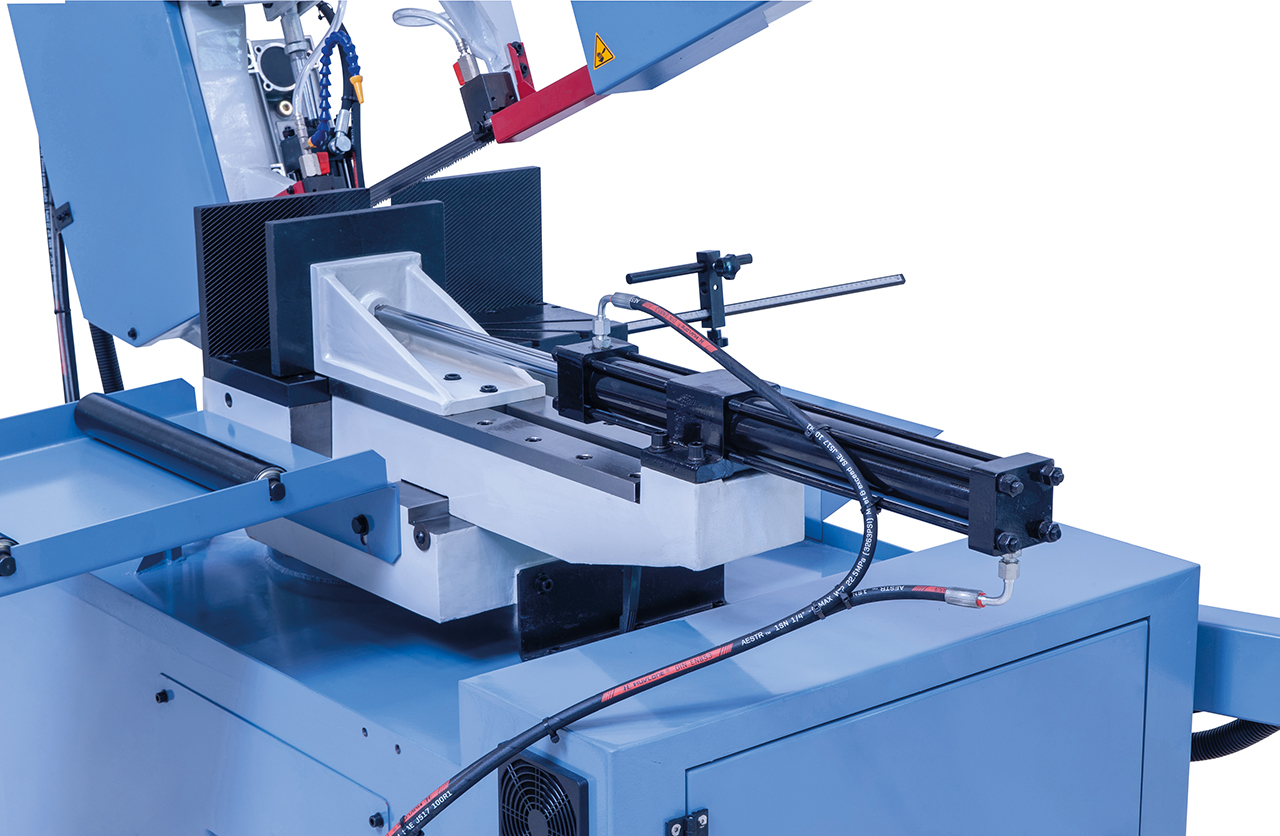

Robust, cast-iron vice with hydraulic clamp.

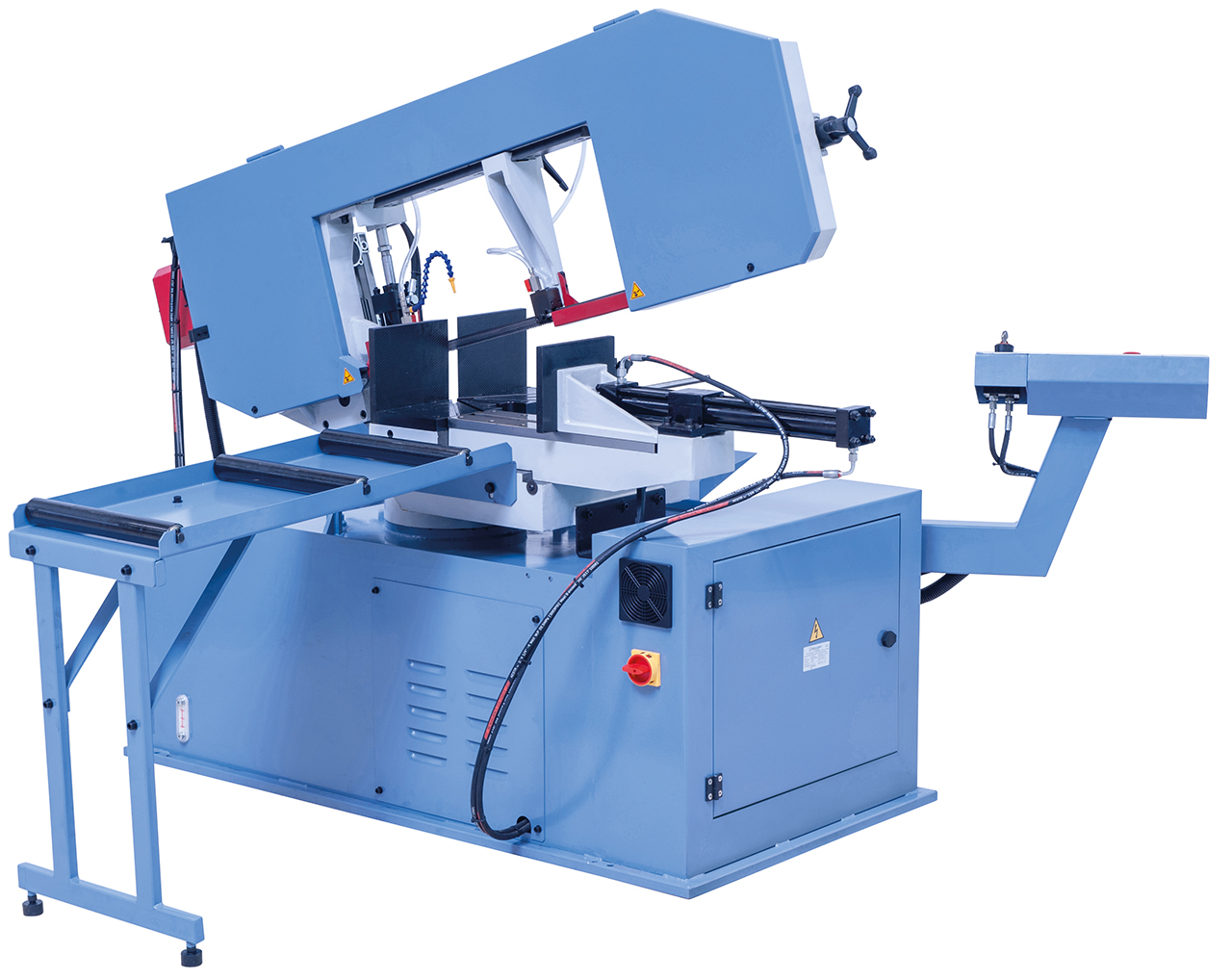

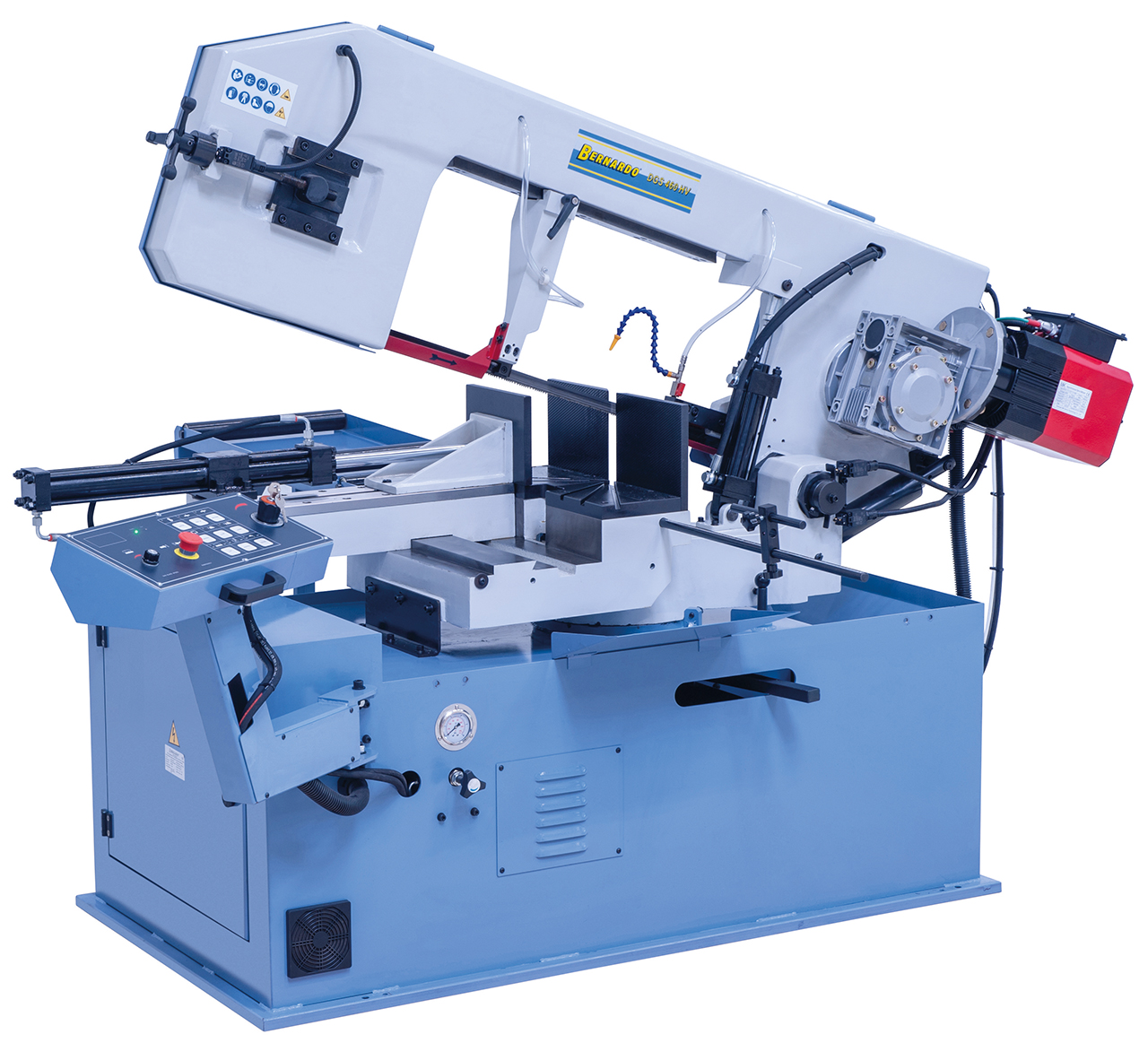

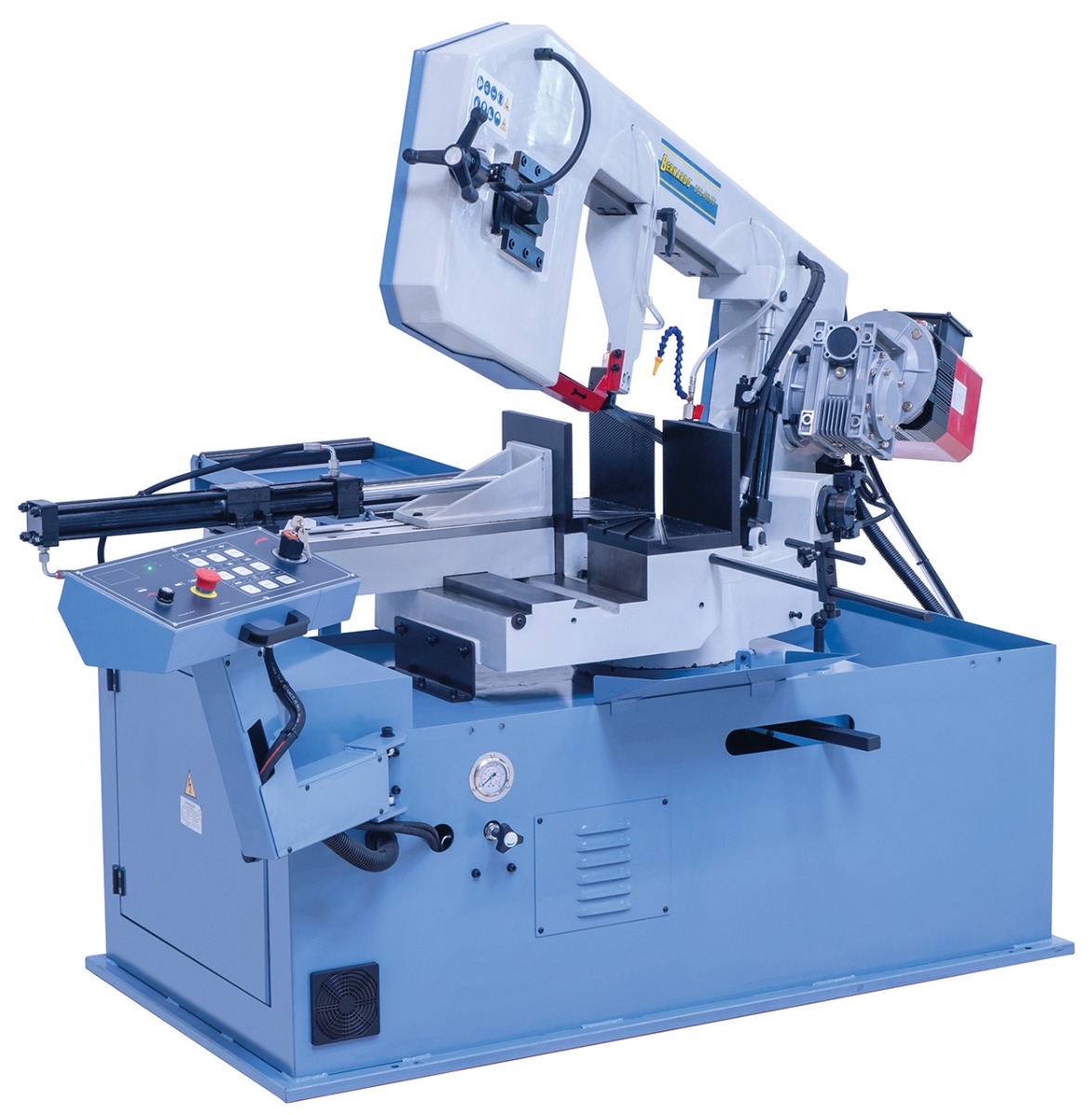

Semi-automatic double mitre bandsaw DGS 460 HV

Art.Nr.: 04-1763XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The DGS 460 HV is a cost-effective double mitre band saw for cutting of hollow profiles, solid materials, stainless steel, tool steel etc. The stepless cutting speed and the hydraulic vice ensure comfortable working. The semi-automatic function increases the productivity, making this model ideal for machine construction, mould-making and metalworking shops.

€11,736.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Semi-automatic function increases productivity significantly
Stepless cutting speed allows for ideal adjustment to each workpiece
Adjustable vice with hydraulic clamping
Smooth and vibration-free run guarantees cutting accuracy
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Torsion-free, strong spheroidal cast iron saw frame
Automatic shut-down at cutting end
Saw frame tilts left (-45°) and right (+60°) for double mitre cutting

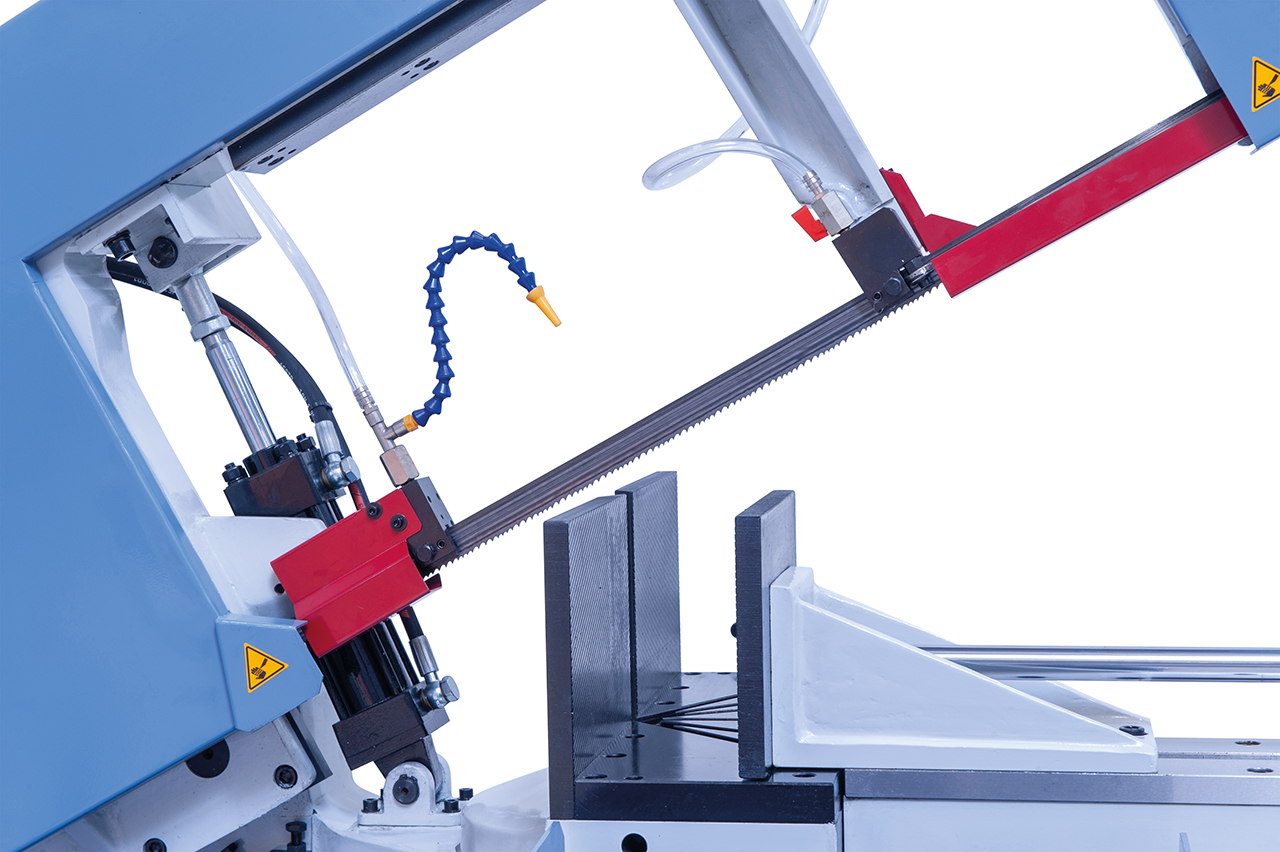

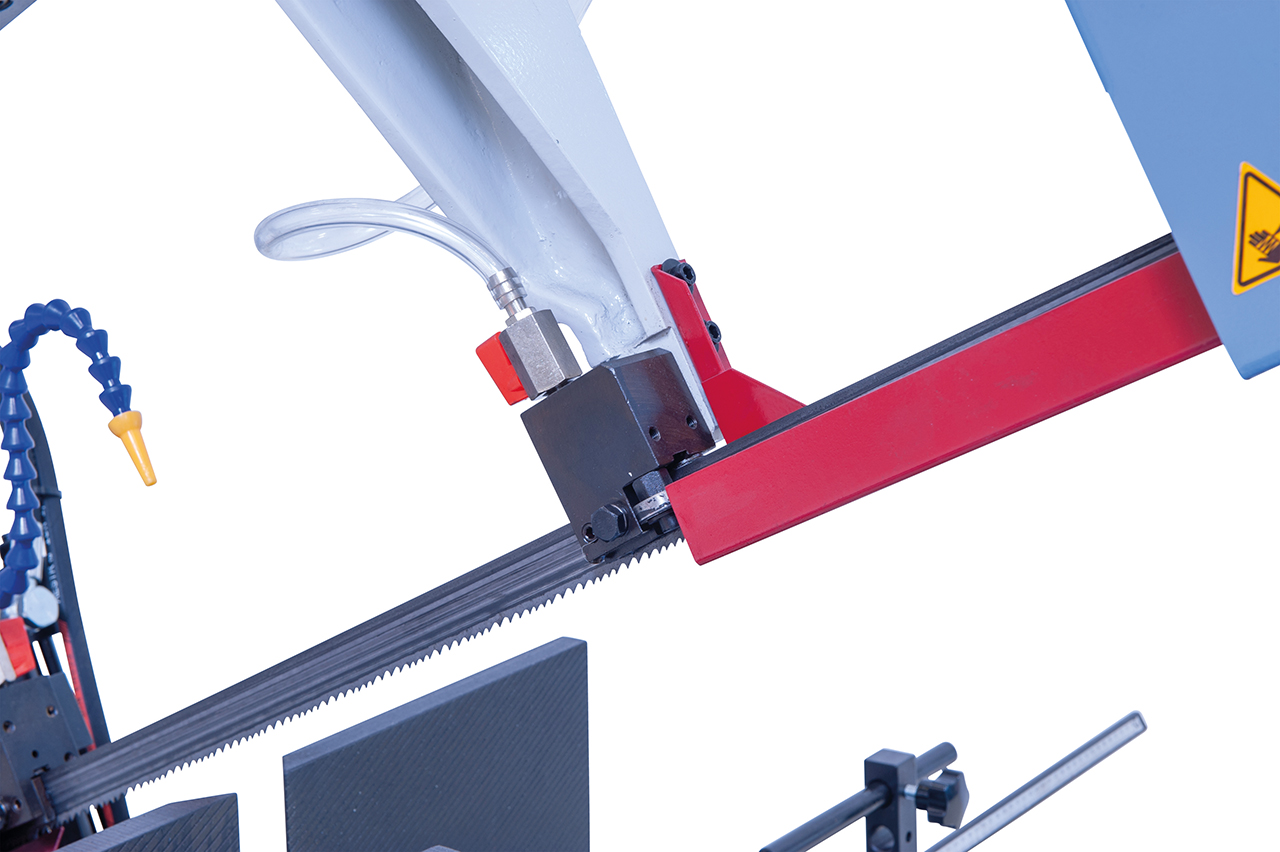

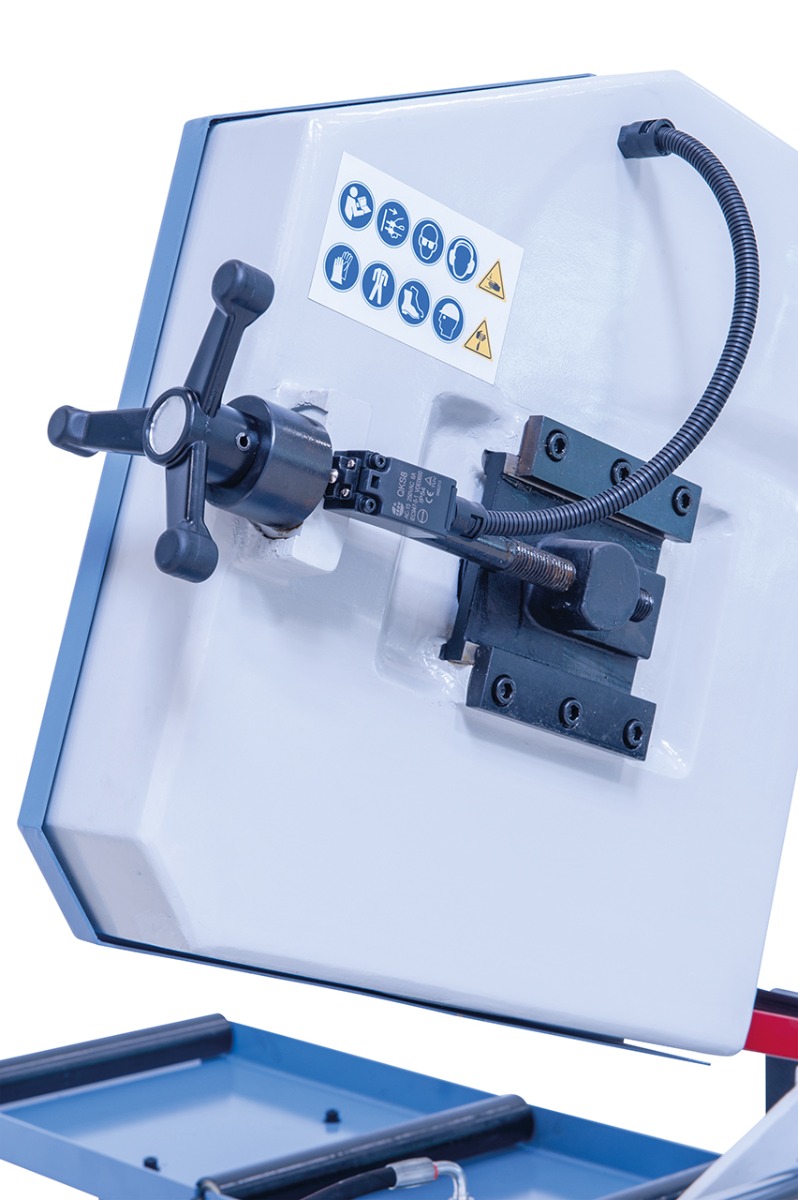

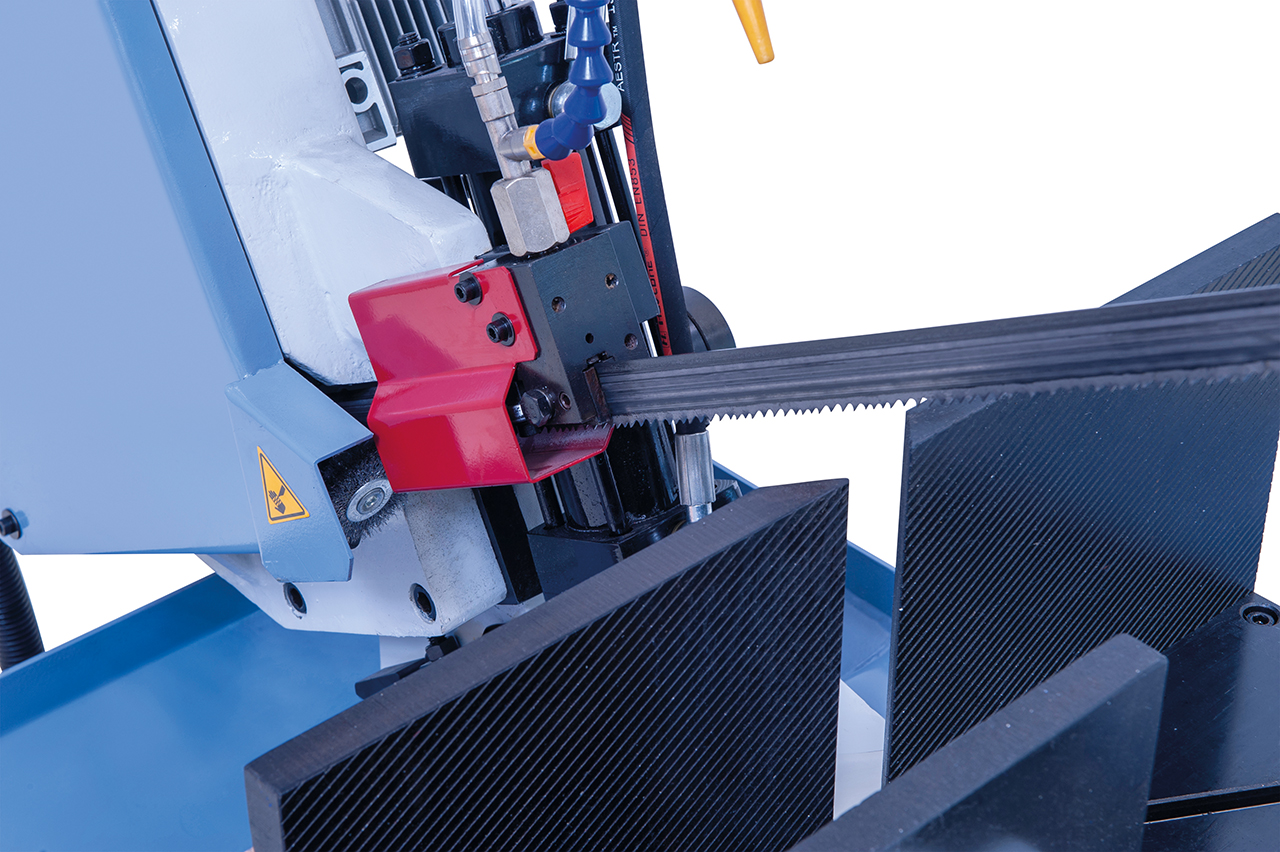

Ball bedded bandsaw blade guide with quick adjustment to the workpiece width guarantees optimal results

Semi-automatic operating mode:

Hydraulic clamping of the vice
Hydraulic lowering of the saw frame
Lifting of the saw frame

Product Specifications

Cutting capacity round / square 90°	340 mm / 280 x 280 mm
Cutting capacity flat 90°	460 x 250 mm
Cutting capacity round / square 45° R	320 mm / 280 x 280 mm
Cutting capacity flat 45° R	320 x 280 mm
Cutting capacity round / square 45° L	320 mm / 280 x 280 mm
Cutting capacity flat 45° L	320 x 280 mm
Cutting capacity round / square 60° R	205 mm / 205 x 205 mm
Working height	860 mm
Bandsaw blade dimension	3960 x 27 x 0,9 mm
Cutting speeds	19 - 94 m/min
Coolant pump	0,045 kW
Motor power	2,2 kW
Machine dimension (L x D x H)	2600 x 1350* x 1900 mm
Weight approx.	895 kg
