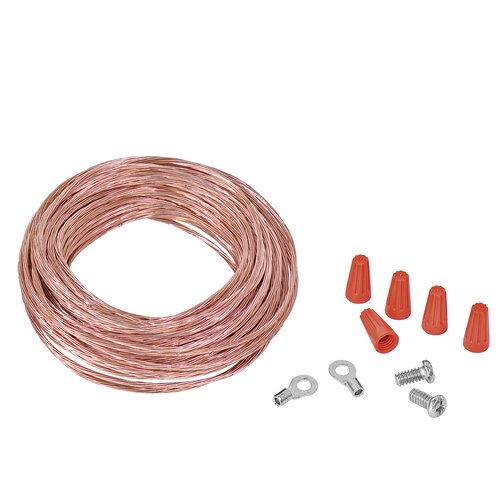

Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.

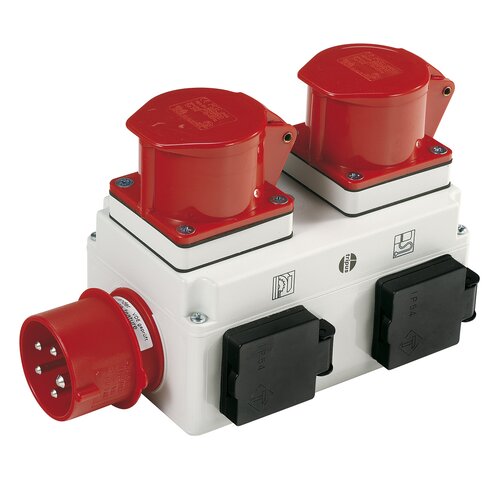

Automatic start-up system ALV 10 / 1M: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (option)

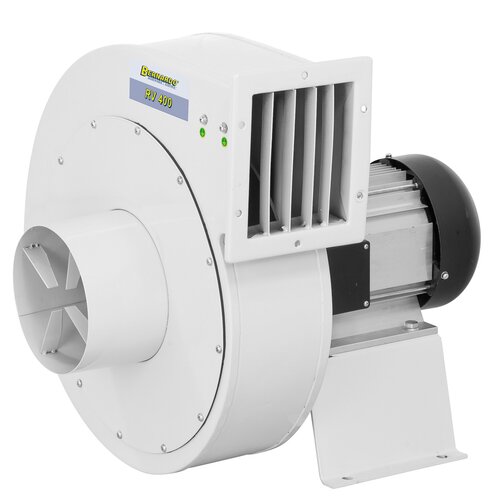

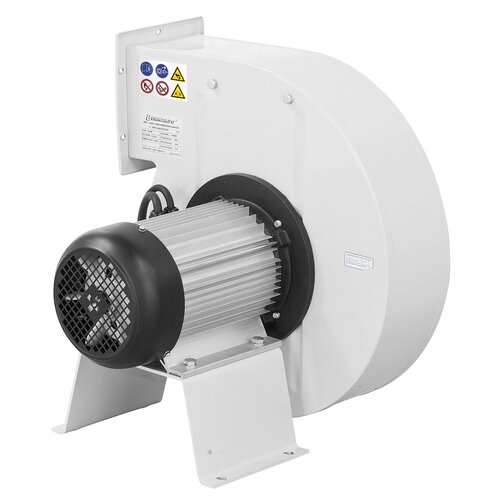

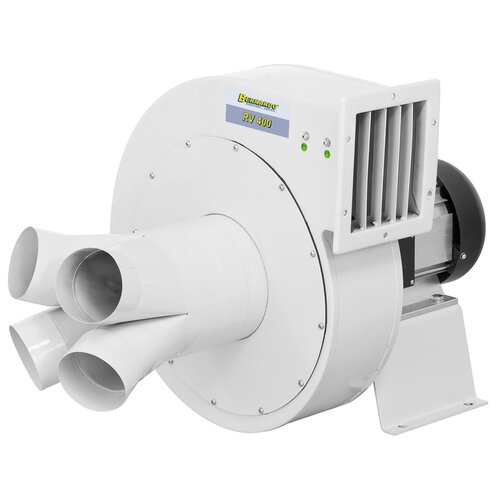

Radial collector RV 400 / 400 V

Art.Nr.: 12-2023

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The RV 400 radial collector features a powerful drive motor and optimally positioned fan wheels, making this model extremely quiet and highly efficient. It is commonly used for removal of fine waste (wood and plastic shavings, etc.) and highly suitable for aeration and ventilation purposes.

€744.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 20, 2025

Product Properties

Using radial collectors ensures ideal production conditions and clean air at the work place
High-quality powder coating creates scratch-resistant and shock-proof surface
Constant extraction force even during long operations
Optimal fan design guarantees top efficiency and smooth run
Statically and dynamically balanced steel fan wheels
High extraction performance with minimum space requirements

Product Specifications

Capacity max.	4800 m³/h
Low pressure max.	2400 Pa
Inlet diamter	175 mm
Outlet diameter	135 x 165 mm
Motor power	5,25 kW (7,0 HP)
Voltage	400 V / 50 Hz
Dimension (W x D x H)	520 x 570 x (800)* 540 mm
Weight approx.	46 kg
