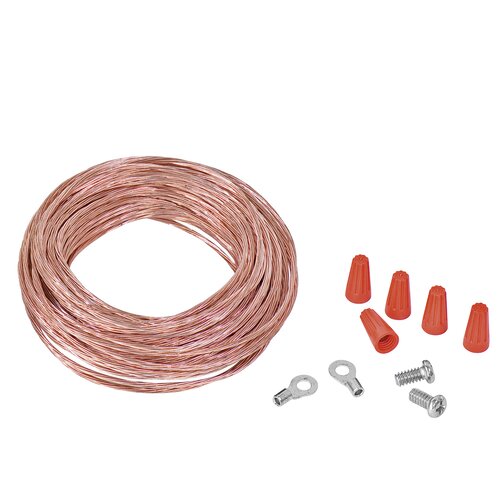

Grounding set ES 1 (optional extra): Attention! The dust collector must be grounded at all time to reduce the riskof fire and explosion.

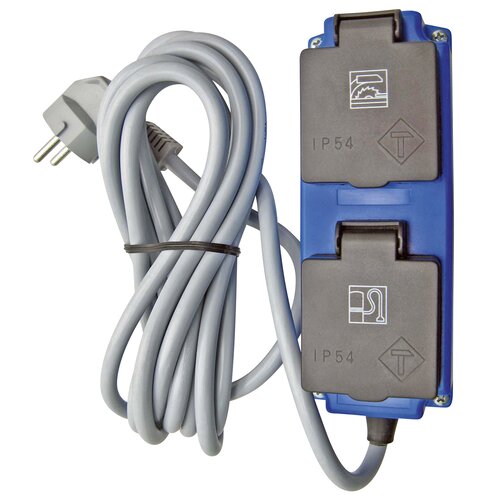

Automatic start-up ALV 2 / M 230 - 230 V: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional extra)

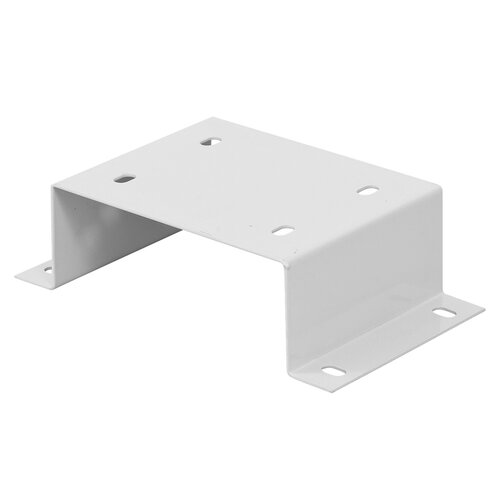

Bracket for wall and ceiling mounting

Picture with optional bracket for wall and ceiling mounting

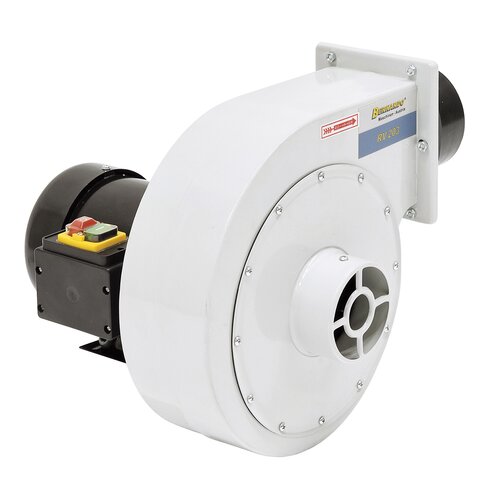

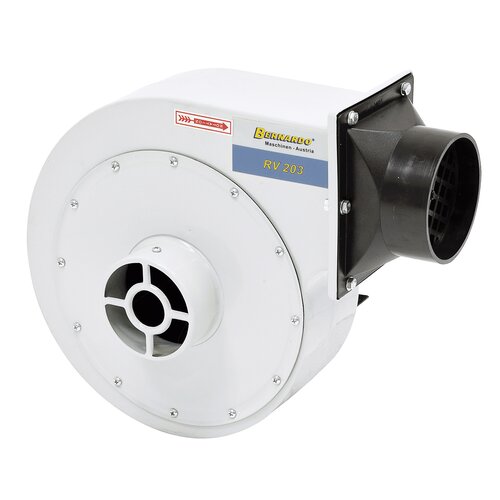

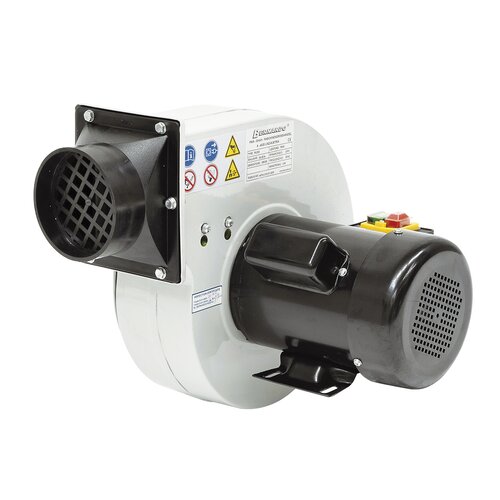

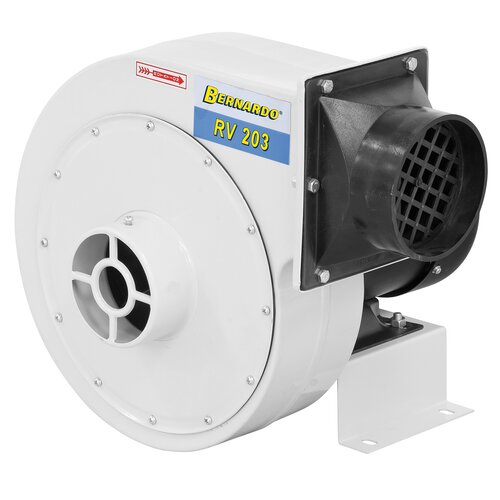

Radial collector RV 203 / 230 V

Art.Nr.: 12-2020

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The RV 203 radial collector is suitable for wall and ceiling installation with the optional console.

€243.60

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Using radial collectors ensures ideal production conditions and clean air at the workplace
Optimal fan design guarantees top effi ciency and smooth run
Statically and dynamically balanced steel fan wheels
High extraction performance with minimum space requirements
Unbelievable price-to-performance ratio

Product Specifications

Capacity max.	870 m³/h
Low pressure max.	1020 Pa
Inlet diameter	100 mm
Outlet diameter	115 mm
Motor power	0,75 kW (1,0 HP)
Voltage	230 V / 50 Hz
Dimension (W x D x H)	430 x 400 x 370 mm
Weight approx.	15 kg
