For clamping of irregular shaped work pieces, the machine can be equipped with a 240 mm independent chuck.
For clamping of irregular shaped work pieces, the machine can be equipped with a 240 mm independent chuck.

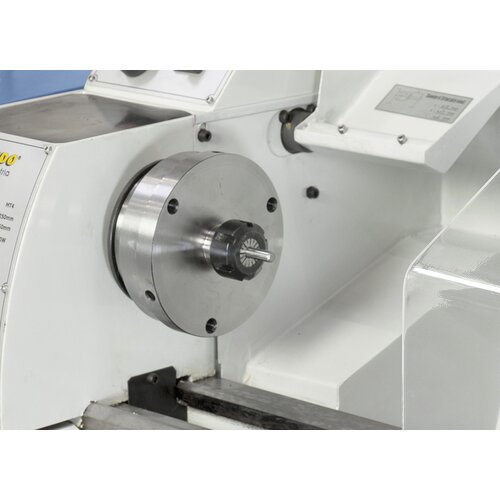

The collet chuck set ER 25 (1 - 16 mm) guarantees high centricity when clamping work pieces.
The collet chuck set ER 25 (1 - 16 mm) guarantees high centricity when clamping work pieces.

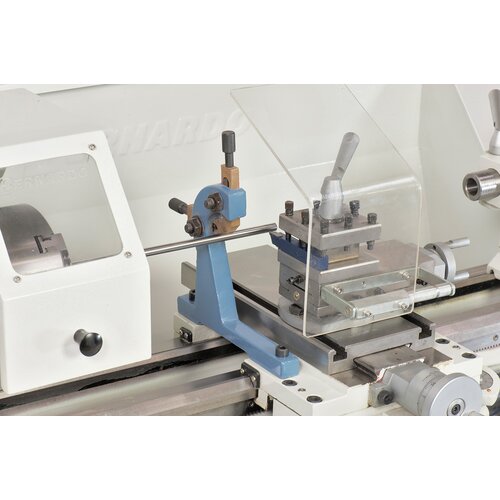

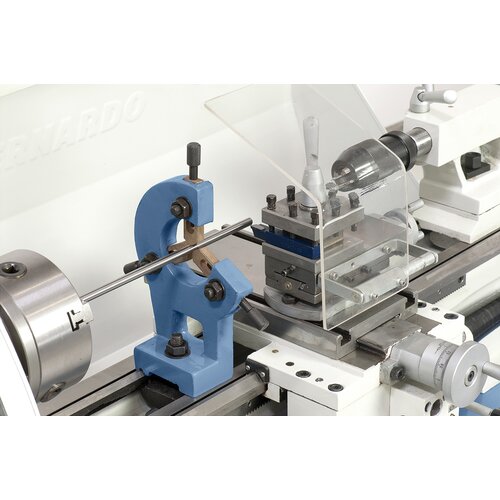

The follow rest eliminates bending of thin shafts.
The follow rest eliminates bending of thin shafts.
A live center type SMA incl. 7 exchangeable inserts is available for universal applications.
A live center type SMA incl. 7 exchangeable inserts is available for universal applications.

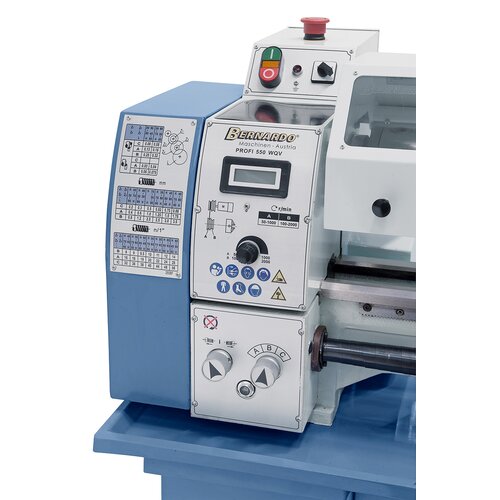

Electronic, stepless speed adjustment - easy readout on digital display.
Electronic, stepless speed adjustment - easy readout on digital display.

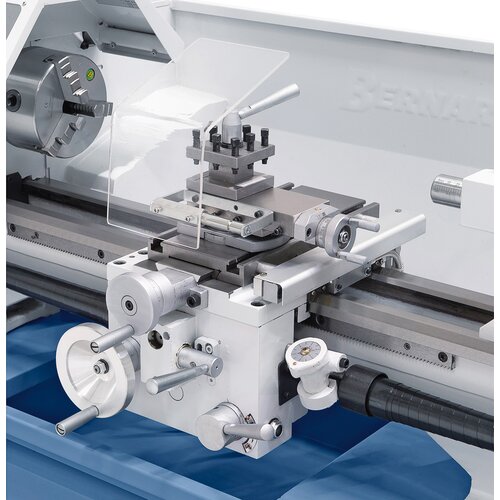

Ergonomically arranged control elements for easy adjustment of longitudinal and cross feed.
Ergonomically arranged control elements for easy adjustment of longitudinal and cross feed.
For clamping of irregular shaped work pieces, the machine can be equipped with a 240 mm independent chuck.
The collet chuck set ER 25 (1 - 16 mm) guarantees high centricity when clamping work pieces.
The follow rest eliminates bending of thin shafts.
A live center type SMA incl. 7 exchangeable inserts is available for universal applications.
Electronic, stepless speed adjustment - easy readout on digital display.
Ergonomically arranged control elements for easy adjustment of longitudinal and cross feed.

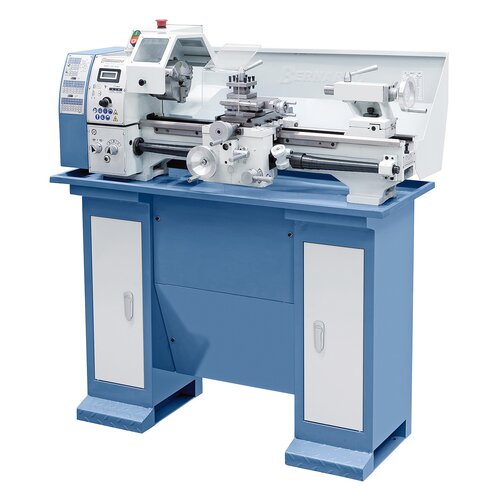

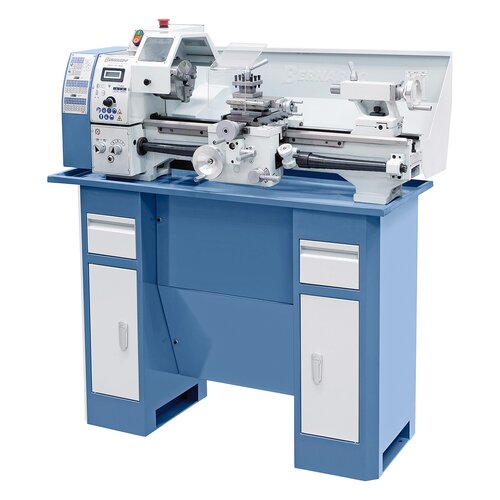

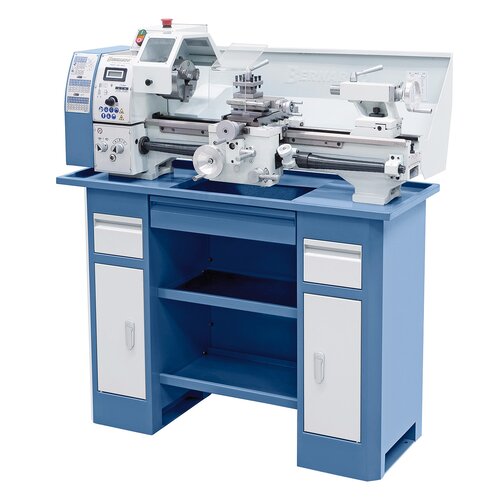

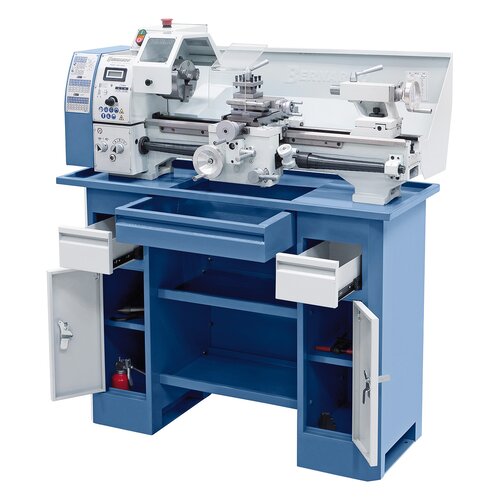

Precision lathe Profi 550 WQV / 230 V

Art.Nr.: 03-1140
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The Profi 550 WQV is a top-quality lead screw lathe constructed according to DIN-standards. Special features of these models include the large longitudinal feed with 6 settings and the cross feed. Furthermore, this model comes complete with an electronically adjustable speed setting.

€2,568.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Comes complete with lead screw for thread cutting and automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,015 mm)
  • Serially equipped with electronic stepless speed setting
  • Temperature monitoring incl. warning light protect motor against overload

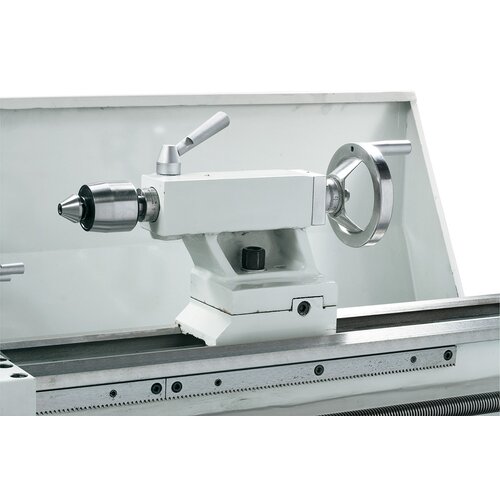

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Spindle features 2 adjustable tapered roller bearings (P5-quality)
  • Longitudinal and cross feed come standard
  • Protective switch with undervoltage release

Product Specifications

Distance between centers

550 mm

Center height

125 mm

Swing over bed

250 mm

Bed width

135 mm

Spindle bore

26 mm

Taper at spindle bore

MT 4

Speed range

Stepless, 50 - 1000 rpm

100 - 2000 rpm

Longitudinal feed

(6) 0,06 - 0,32 mm/rev

Range feed

(4) 0,03 - 0,075 mm/rev

Metric thread

(18) 0,2 - 3,5 mm

Inch thread

(21) 8 - 56 threads/1"

Travel of tailstock sleeve

70 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

0,75 kW / 230 V

Motor power input S6 40%

1,0 kW / 230 V

Machine dimensions (W x D x H)*

1210 x 610 x 450 mm

Weight approx.

120 kg




* without stand

Delivery Contents

  • 3-jaw chuck DK11-125 mm
  • Flange 125 mm
  • Cross slide with top support
  • Digital speed display
  • Dead centers
  • Thread dial

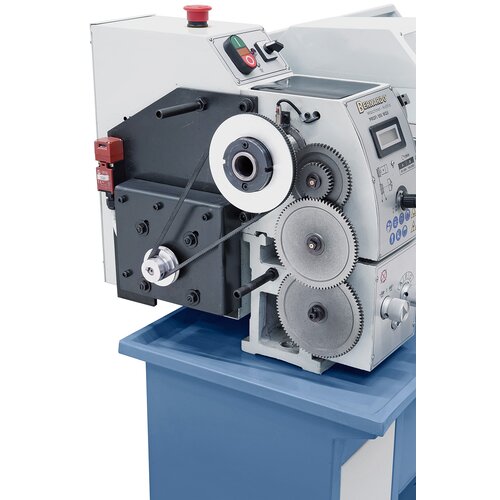

  • Change gears
  • 4-way tool post holder
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
