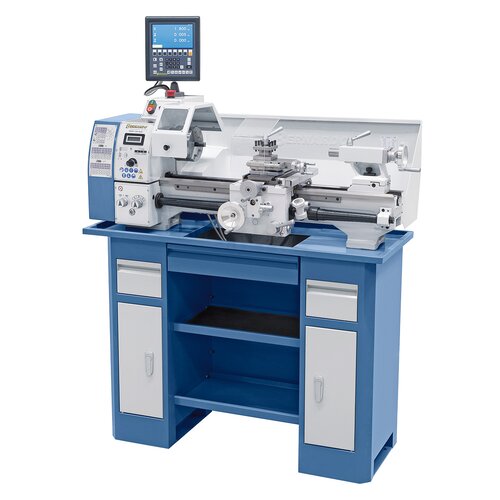

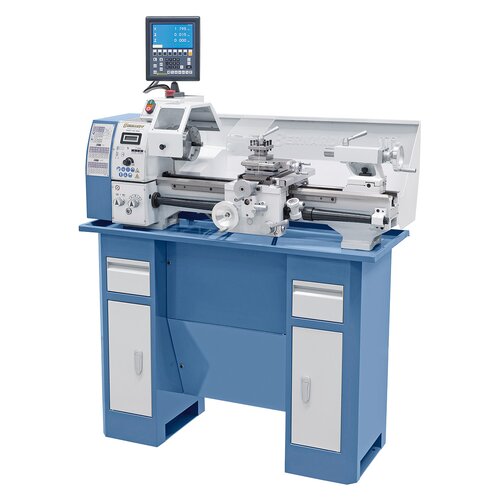

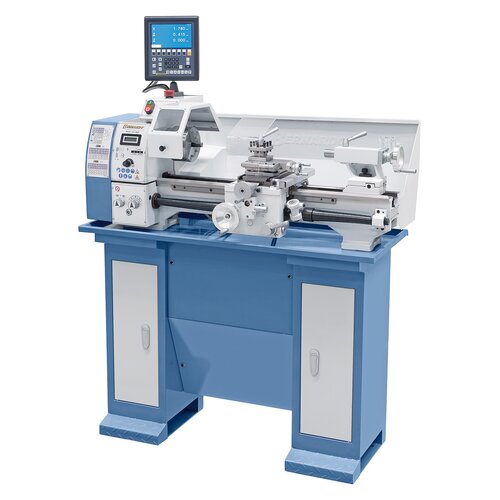

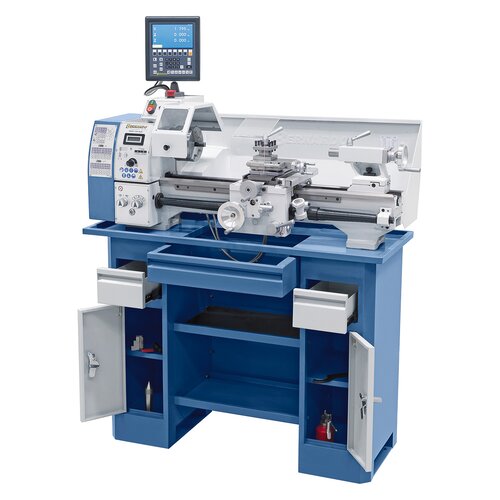

Precision lathe Profi 550 WQV / 230 V incl. 2-axis-digital readout ES-12 V
Art.Nr.: 03-1141BThe Profi 550 WQV is a top-quality leadscrew lathe constructed according to DIN-standards. Special features of this model include the large longitudinal feed with 6 settings and the cross feed. Furthermore, this model comes complete with an electronically adjustable speed setting as well as a 2 axis digital readout.
€3,216.00
incl. 20% VATAvailability
Product Properties
- Comes complete with leadscrew for thread cutting and automatic longitudinal feed
- Solid machine bed with inductively hardened and polished guides
- High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.015 mm)
- Serially equipped with electronic stepless speed setting
- Temperature monitoring incl. warning light protect motor against overload

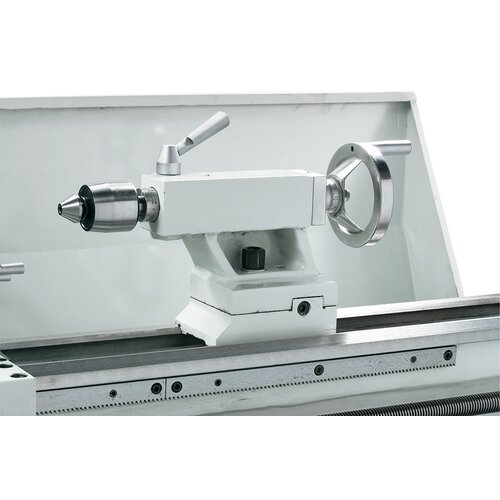

- Tailstock can be adjusted for taper turning
- User-friendly arrangement of control elements
- Guides adjustable via gibs
- Spindle features 2 adjustable tapered roller bearings (P5-quality)
- Longitudinal and cross feed come standard
- Protective switch with undervoltage release
Product Specifications
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range |
Stepless, 50 - 1000 rpm 100 - 2000 rpm |
|
Longitudinal feed |
(6) 0,06 - 0,32 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 450 mm |
|
Weight approx. |
120 kg |
* without stand
Delivery Contents

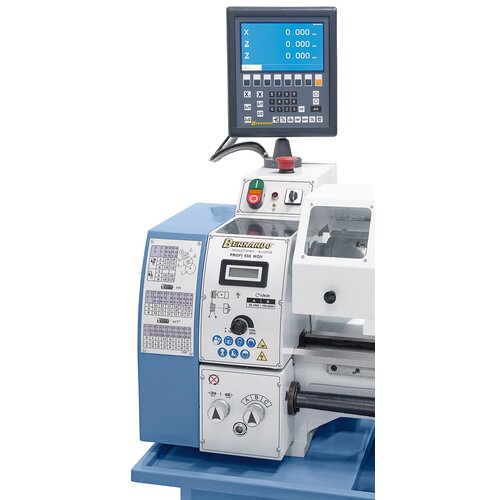

- 2-axis digital readout ES-12 V with LCD-display
- 3-jaw chuck DK11-125 mm
- Flange 125 mm

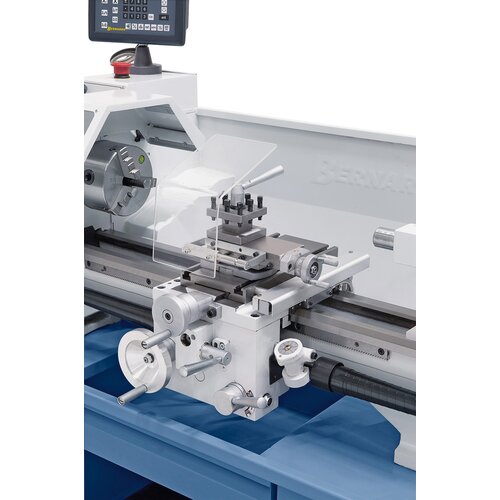

- Cross slide with top support
- Digital speed display
- Dead centers
- Thread dial

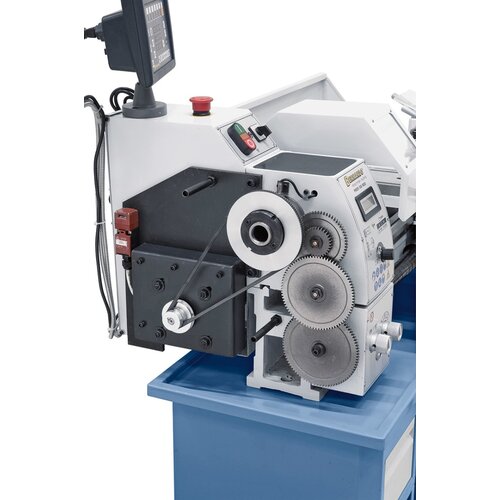

- Change gears

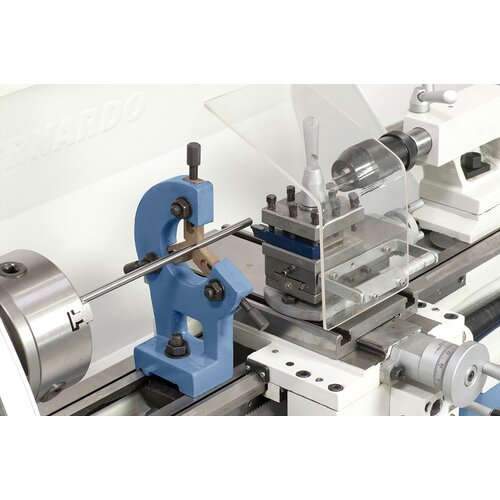

- 4-way tool post holder
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
