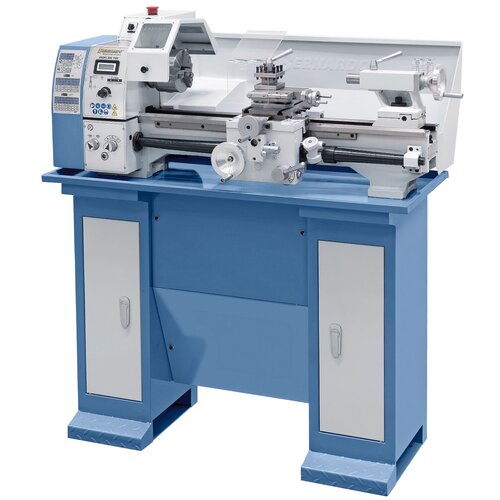

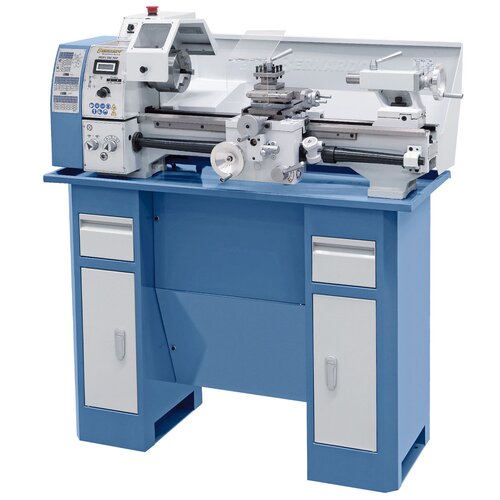

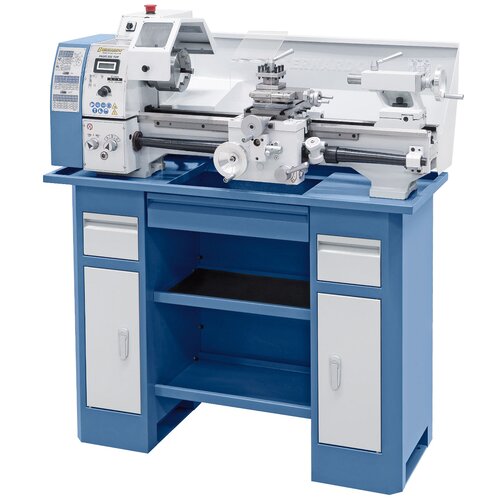

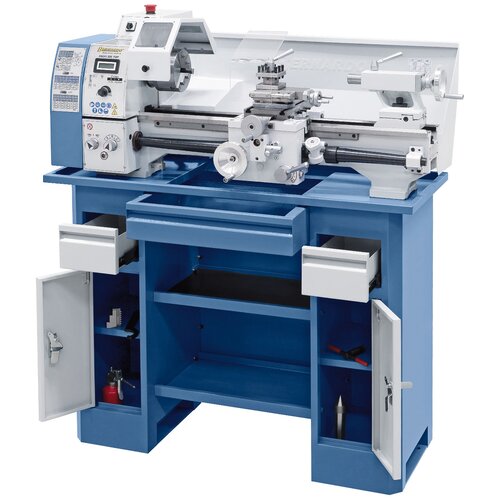

Precision lathe Profi 550 Top / 230 V
Art.Nr.: 03-1142The Profi 550 Top is the latest additions to our range of lathes. Come complete with high-quality Delta frequency inverters, resulting in significant advantages such as high torque in low speed range and the nearly constant speed at heavy workloads.
€2,952.00
incl. 20% VATAvailability
Product Properties
- Three -phase motor with frequency inverter for higher performance and high torque
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
- Feed settings are logically arranged, easy to control with top accuracy
- Suitable for processing of steel, non-ferrous metals and plastics
- Prism bed with large support surface, inductively hardened and polished
- Precise spindle bearing with two adjustable precision taper roller bearings
- High concentricity of spindle nose – better than 0.015 mm
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
Product Specifications
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
70 - 380 / 380 -2000 rpm |
|
Longitudinal feed |
(6) 0,06 - 0,32 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 450 mm |
|
Weight approx. |
137 kg |
* without stand
Delivery Contents
- Dead centers
- 3-jaw chuck DK11-125 mm
- Flange 125 mm

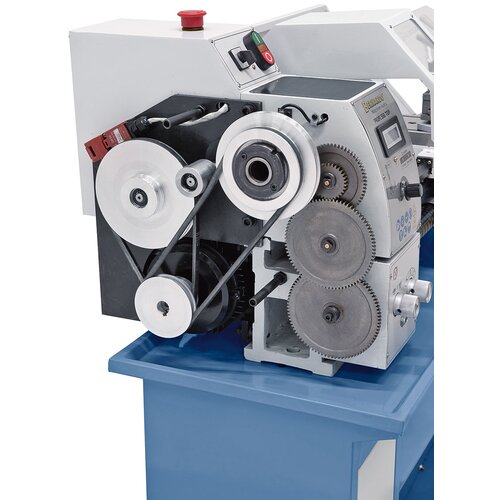

- Change gears

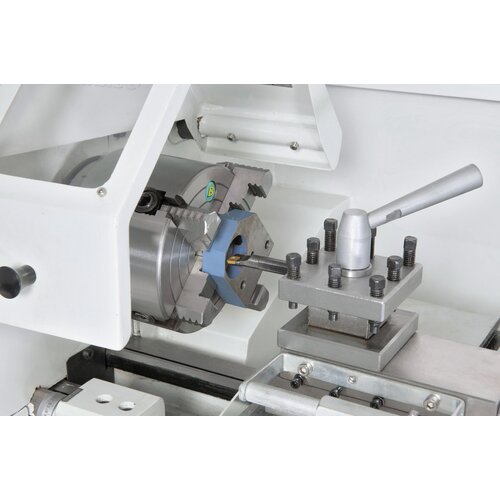

- 4-way tool post holder

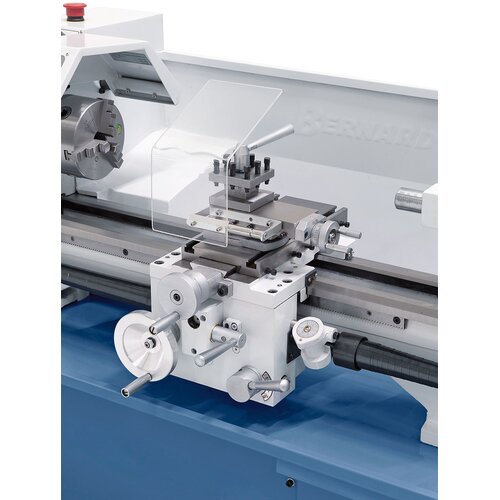

- Cross slide with top support
- Frequency inverter

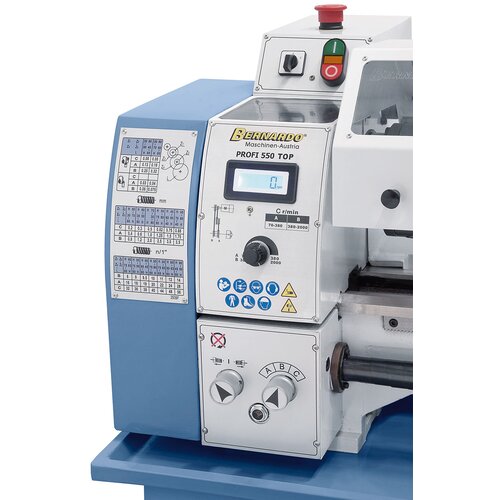

- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
