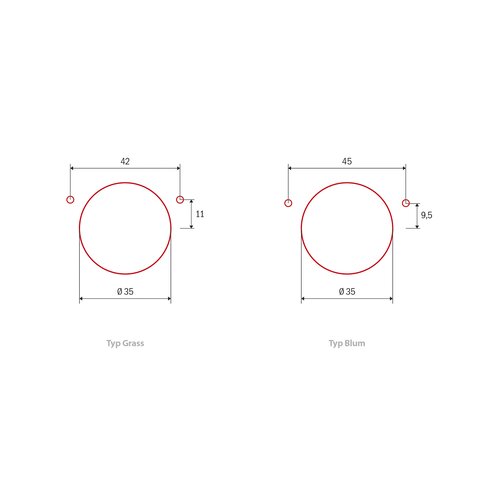

Type of hinges

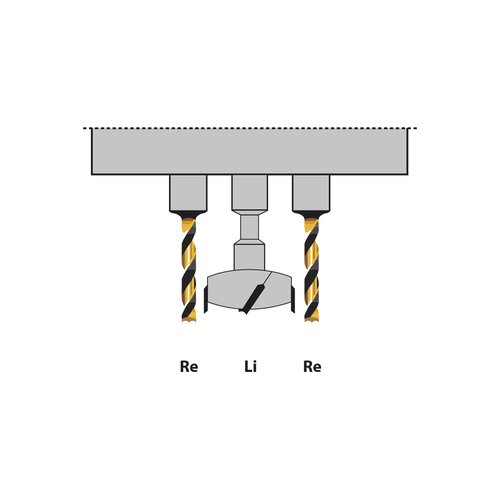

The middle hinge drill is left turning, the ones on the side are right turning.

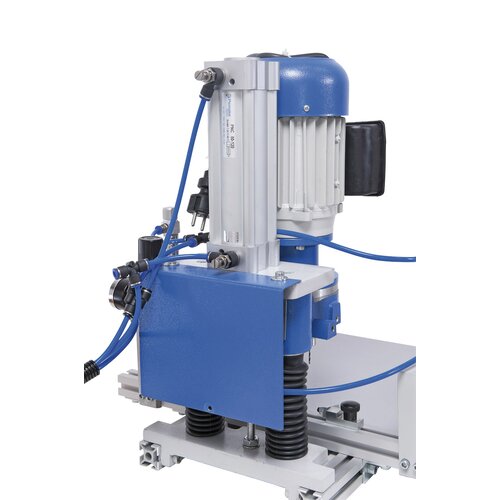

Maintenance–free aluminium feed cylinder.

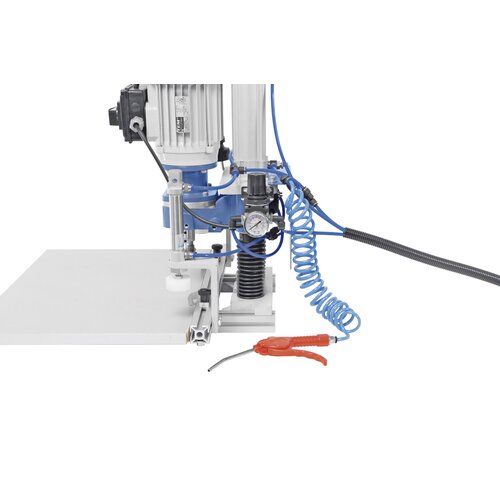

Complete with air pistol.

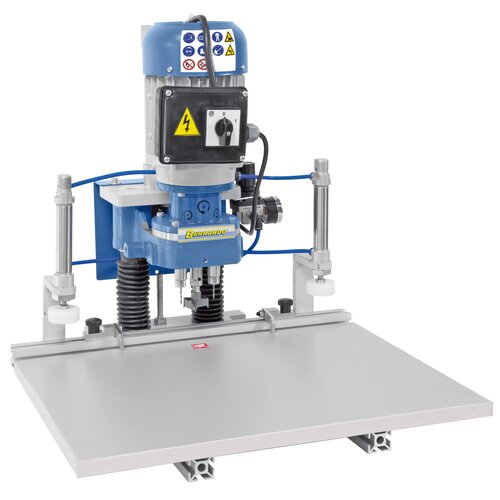

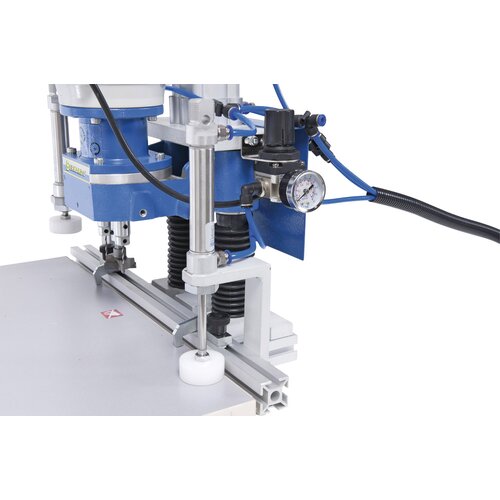

Pneumatic downholder allows for ideal clamping of workpiece.

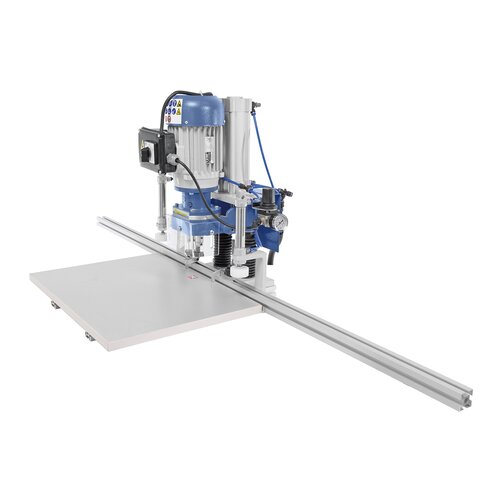

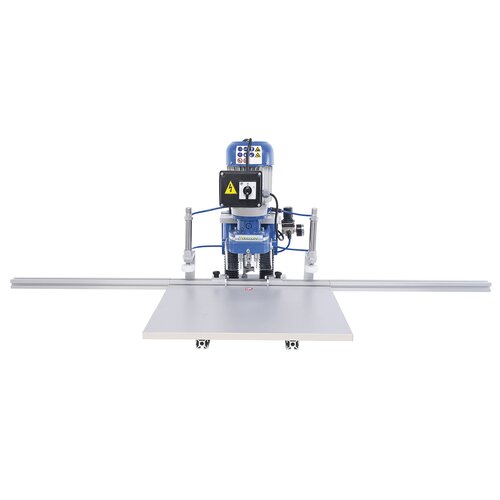

Comes complete with tiltable fences, ideal for repetitive operations.

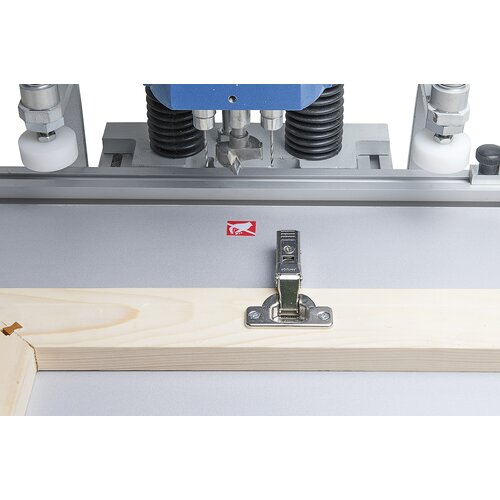

Efficient and cost-efficient fixing of hinges.

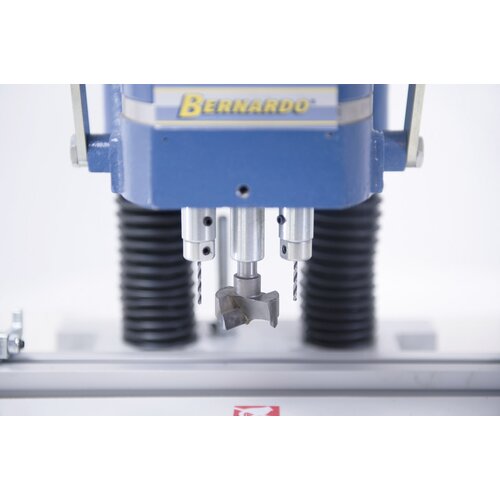

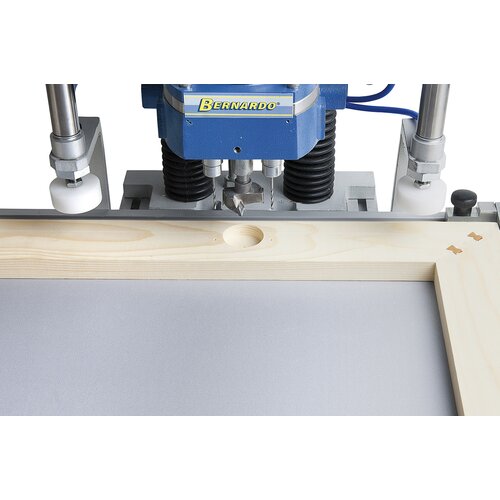

3-spindle drill unit with hinge drill of 35 mm left and 2x drill bits, each 2 mm in diameter right.

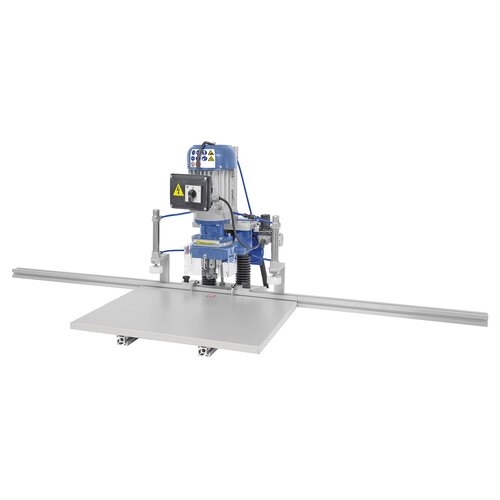

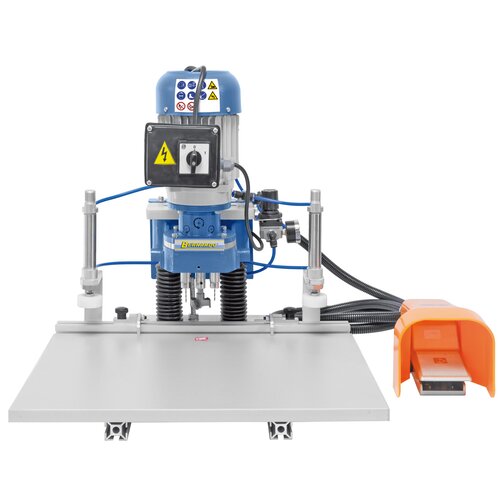

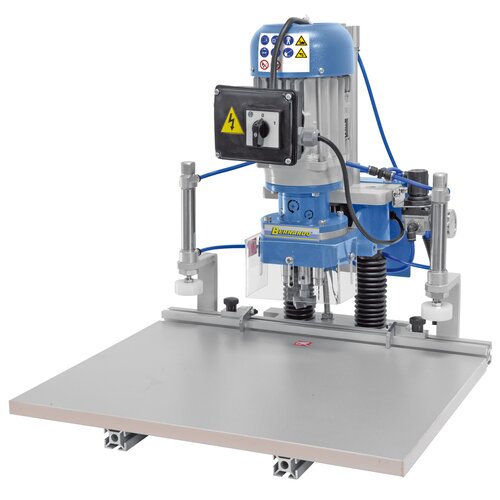

Pneumatic hinge drilling machine BBM 35 P - Grass

Art.Nr.: 10-1016

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The BBM 35 P hinge drill is equipped with a pneumatic drill feed. This model is suitable for the hinge systems of Blum or Grass, making this drill an ideal device for small businesses and craftsmen.

€1,188.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Comes complete with adjustable end stop depth of hole
Powerful motor (0.75 kW) designed for continuous operation
Excellent for drilling of hinges on furniture – Blum or Grass
Features an extensive range of accessories

Product Specifications

Drill diameter	35 mm
Quantity of spindles	3 pcs.
Control	pneumatic
Workpiece clamping	pneumatic
Distance table/spindle max.	85 mm
Distance table/drill max.	50 mm
Table size	500 x 350 mm
Table movable	105 mm
Fence length (incl. extension)	1500 mm
Necessary air pressure	6 - 8 bar
Speed	3000 rpm
Motor power	0,75 kW
Voltage	230 V
Machine dimension (W x D x H)	500 x 520 x 500 mm*
Weight approx.	25 kg
