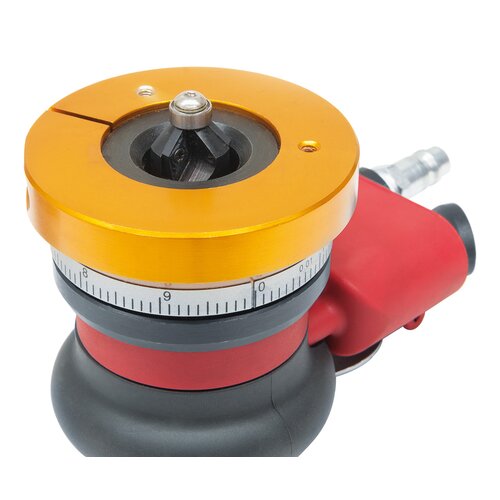

Stepless setting of bevel width with adjustable scale ring
Stepless setting of bevel width with adjustable scale ring
Easy handling due to handy design
Easy handling due to handy design

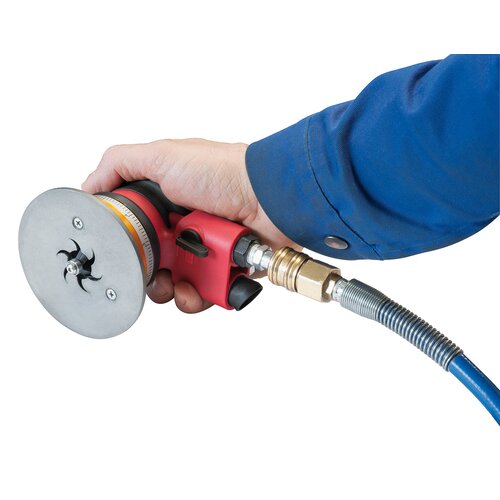

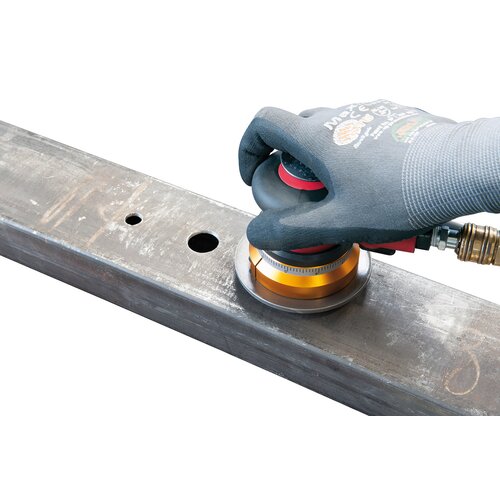

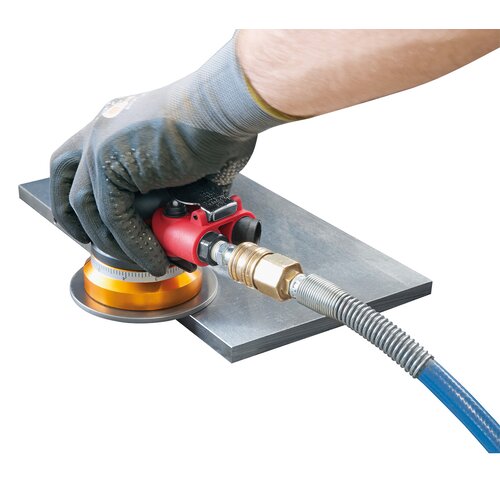

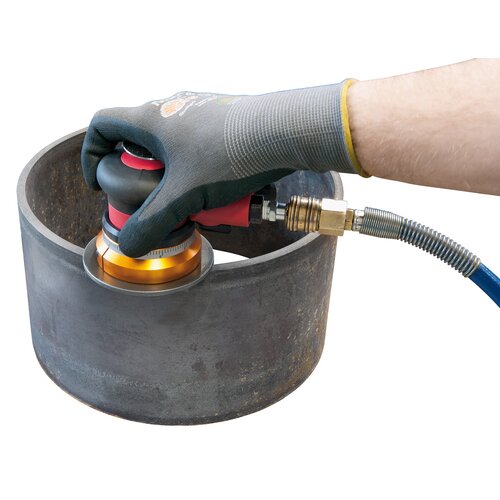

Examples of use
Examples of use
Examples of use
Examples of use
Examples of use
Examples of use
Stepless setting of bevel width with adjustable scale ring
Easy handling due to handy design
Examples of use
Examples of use
Examples of use

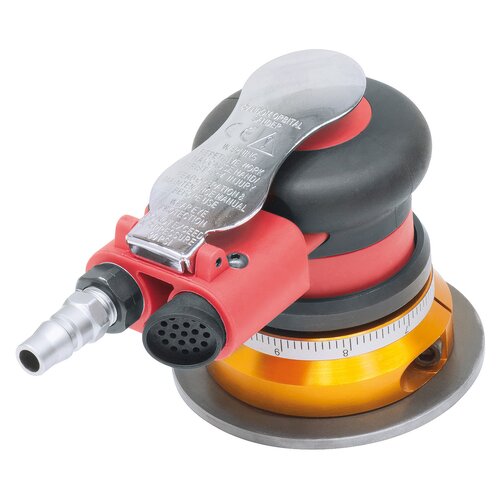

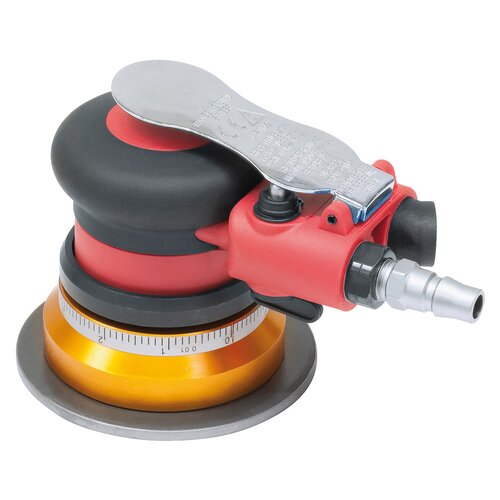

Pneumatic chamfering machine PKFM 100

Art. No.: 05-1643
Wishlist Comparison List

€372.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Powerful pneumatic-drive „Made in Japan“
  • Comfortable work due to low weight and handy design
  • Advantage of the pneumatic-drive: more insensitive and durable than an electric motor, therefore designed for continuous operation
  • Suitable for processing of steel, stainless steel, plastics and non-ferrous materials
  • For processing of differently shaped workpieces
  • Application area is directly on workpiece, ideal for processing of large boards

Product Specifications

Bevel angle

45°

Width of bevel

3 mm

Bevel dimension adjustable

0,1 mm

Smallest inner radius

10,5 mm

Quantity of inserts

2 pcs.

Speed

13.000 rpm

Air pressure

6 - 8 bar

Machine dimension (W x D x H)

170 x 100 x 120 mm

Weight approx.

1,4 kg



Delivery Contents

  • Milling head
  • Carbide inserts
  • Tool

Suitable accessories

Milling head for PKFM 100
Milling head for PKFM 100
Art. No. : 05-1679

€61.20

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Carbide inserts (10 pcs.) for PKFM 100
Carbide inserts (10 pcs.) for PKFM 100
Art. No. : 05-1682

€94.80

incl. 20% VAT

Out of Stock
