Rolls
Inklusive Fußpedal für den Rechts-Linkslauf.

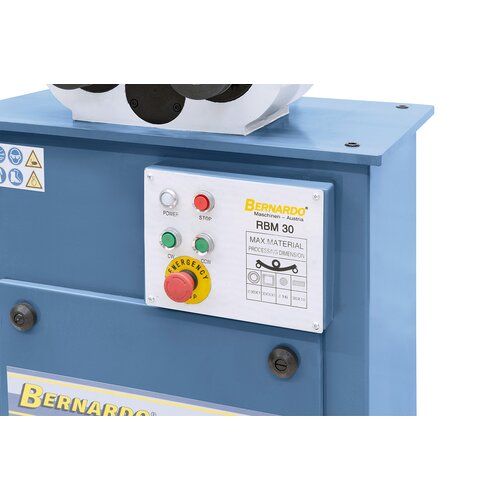

Clearly arranged controls elements on the front.

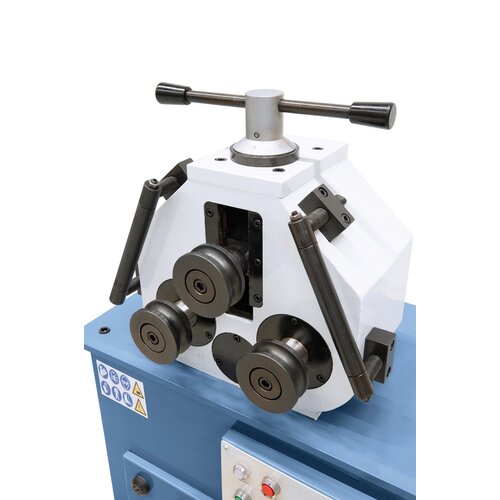

Guiding of the upper roll by precision ground guide rails.

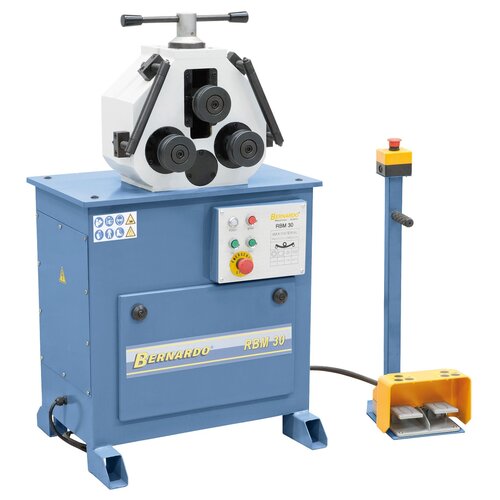

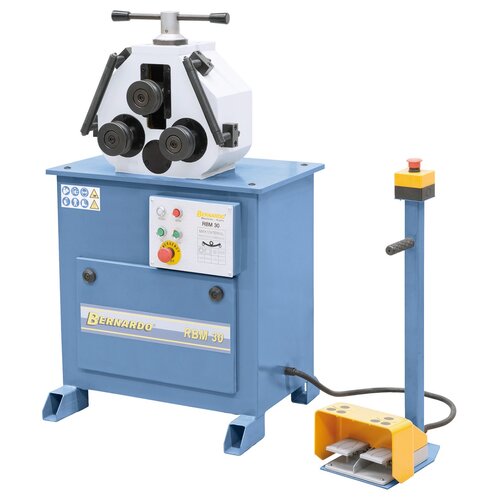

Motorized round bending machine RBM 30
Art.Nr.: 06-1190€2,394.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties

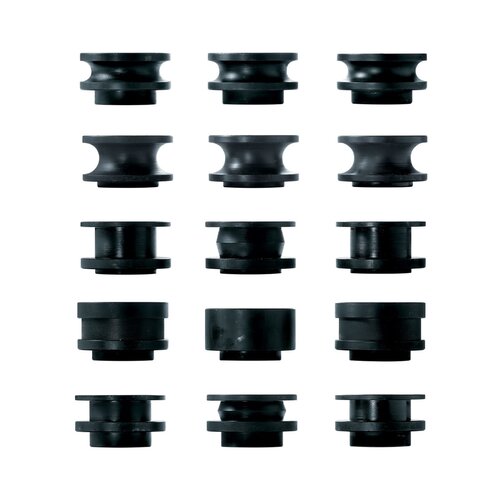

- Including 6 pairs of rolls, allowing you to work on a wide variety of profiles
- Lower rolls driven by a motor, the upper roll is mechanically fed
- Hardened and ground shafts made of special steel
- Easy-to-read mm-scale for fast reading of top roll setting

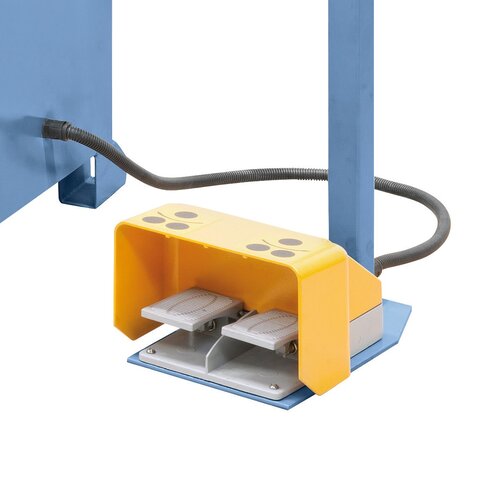

- Foot pedal for right-left rotation and integrated emergency stop included in delivery
Product Specifications
|
Pipe round* |
Ø 20 x 1 mm (500 mm**) |
|
Ø 30 x 1 mm (800 mm**) |
|
|
Solid material round* |
Ø 16 mm (400 mm**) |
|
Square pipe* |
20 x 20 x 1 mm (800 mm**) |
|
30 x 30 x 1 mm (900 mm**) |
|
|
Flat steel* |
20 x 10 mm (320 mm**) |
|
30 x 10 mm (320 mm**) |
|
|
Shaft diameter |
30 mm |
|
Bending speed |
3 m/min |
|
Motor power |
1,1 kW |
|
Voltage |
400 V |
|
Machine dimension (L x W x H) |
680 x 510 x 1100 mm |
|
Weight approx. |
180 kg |
|
* Yield strength 24 kg / mm2 |
|
|
** min. bending diameter |
Delivery Contents
- 6 pair set of rolls
- Lateral guide rolls
- Foot pedal with emergency stop
