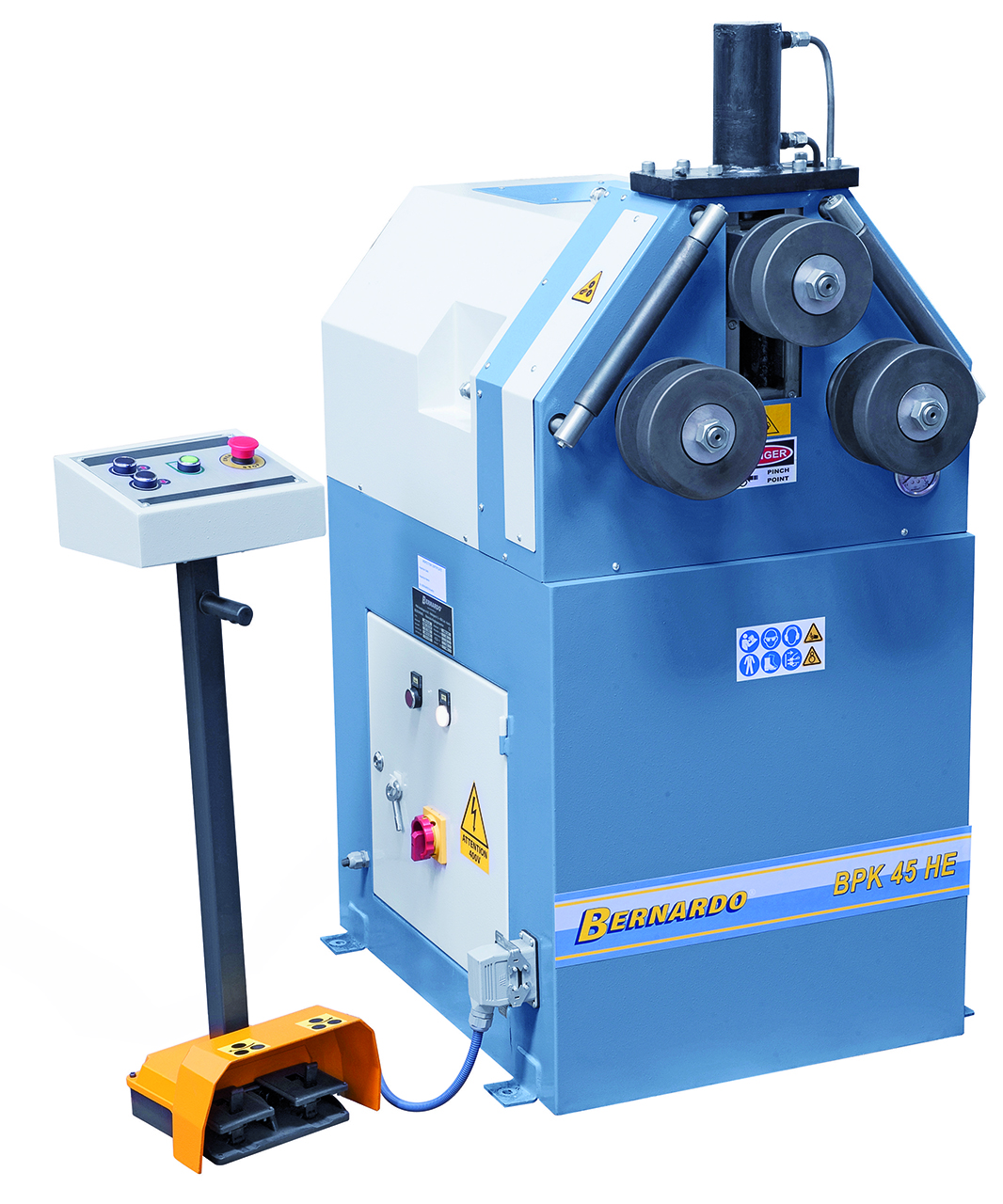

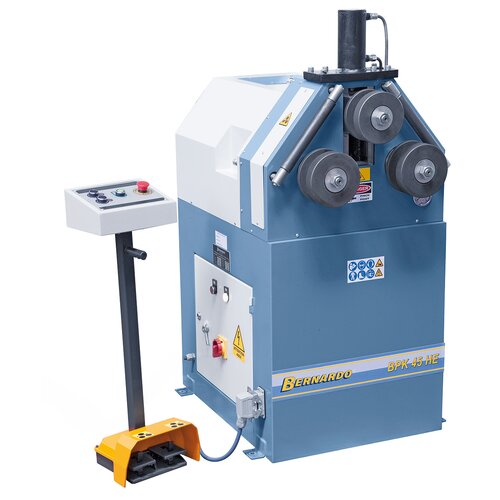

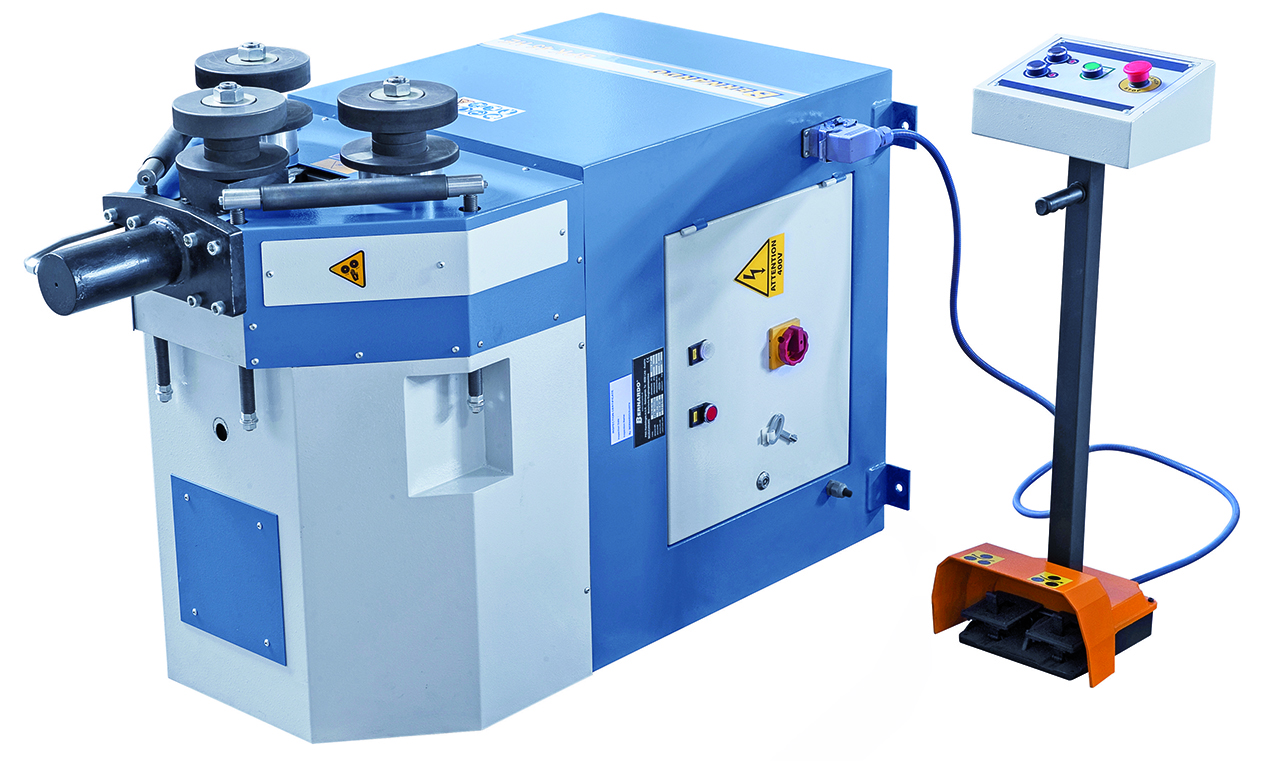

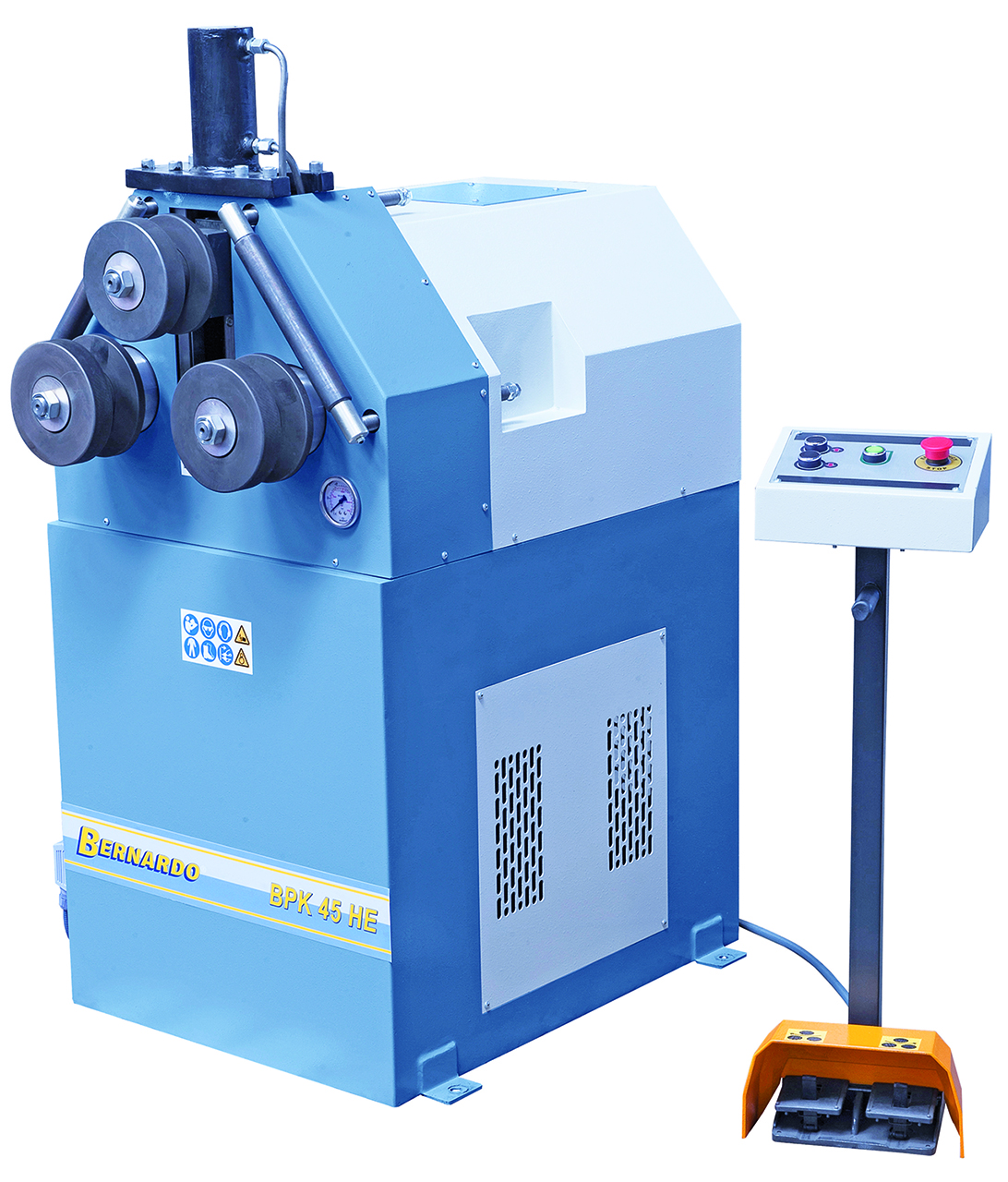

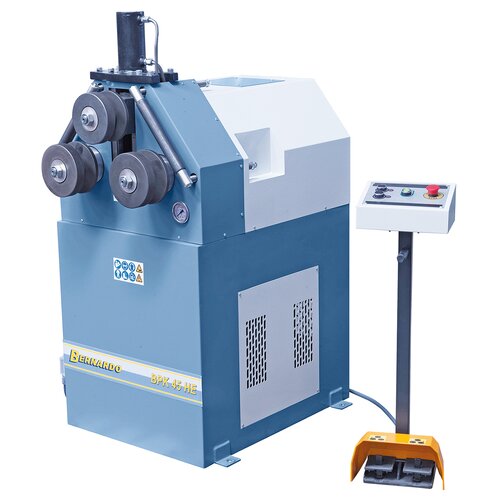

Motorized round bending machine BPK 45 HE **
Art. No.: 06-1204€7,404.00
Availability
In Stock
Deliverable in 2-3 business days
Product Properties
• Machine in stable welded steel construction for vibration-free working

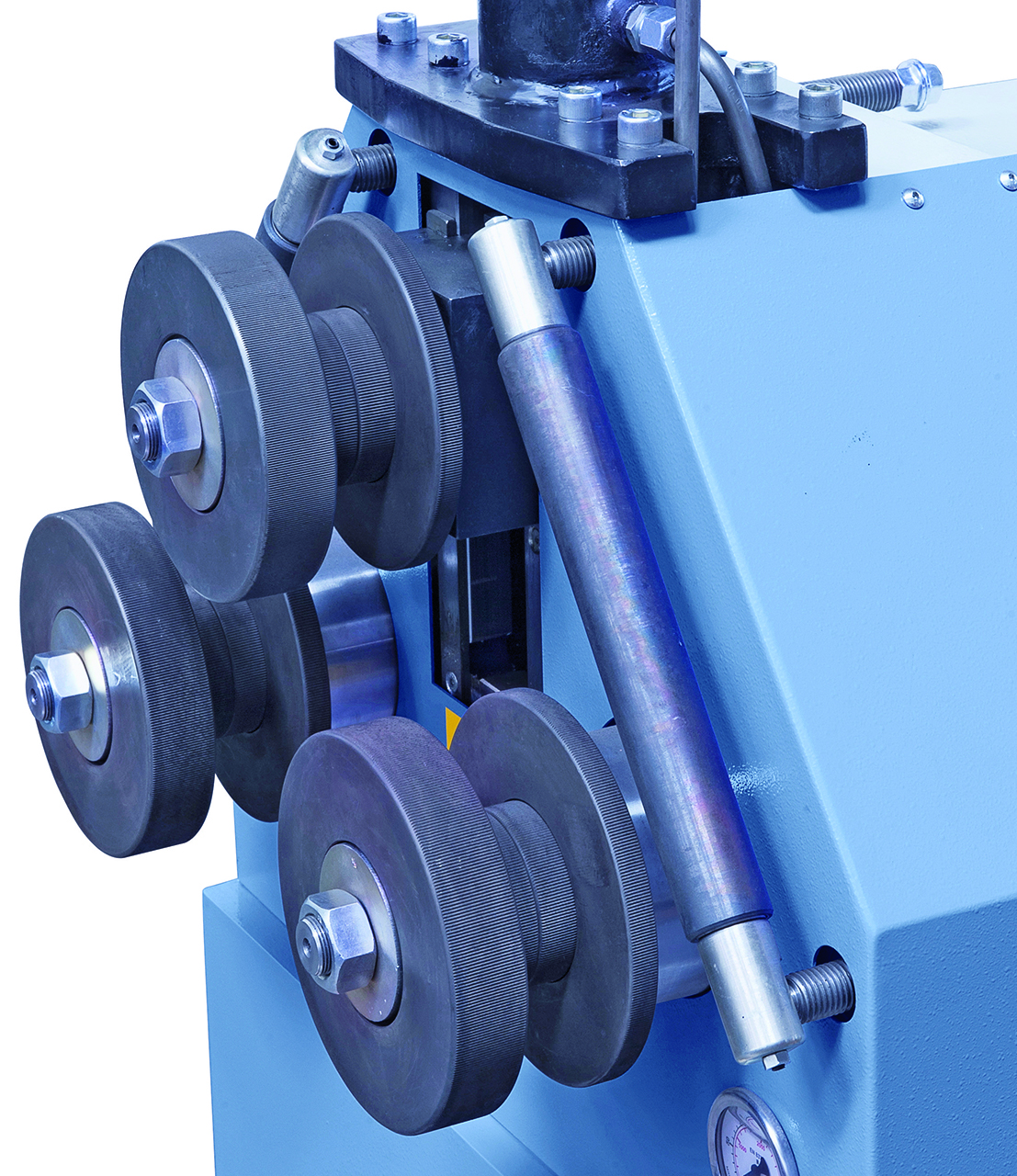

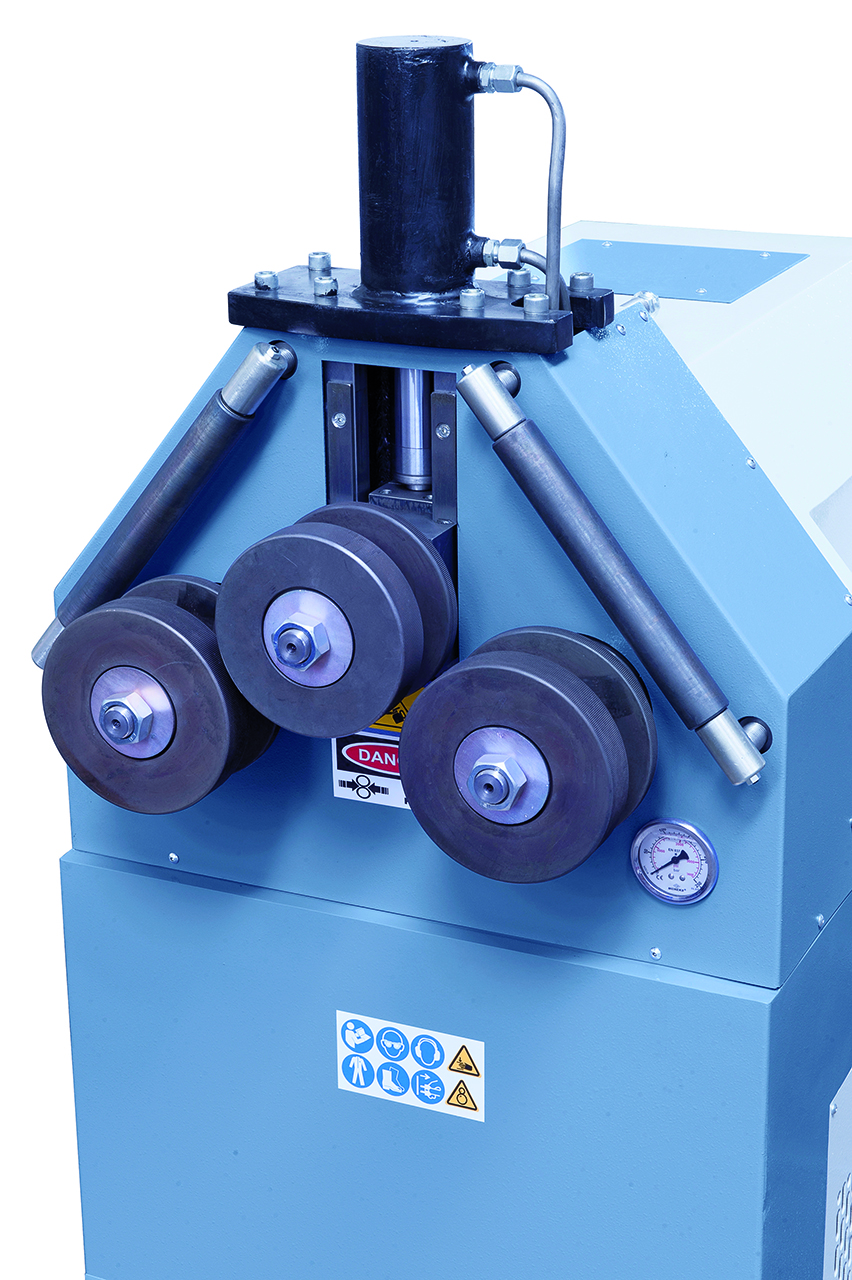

• 3 motor-driven rolls ensure precise bending

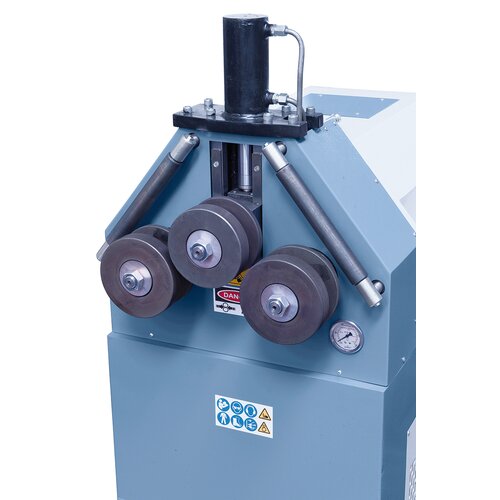

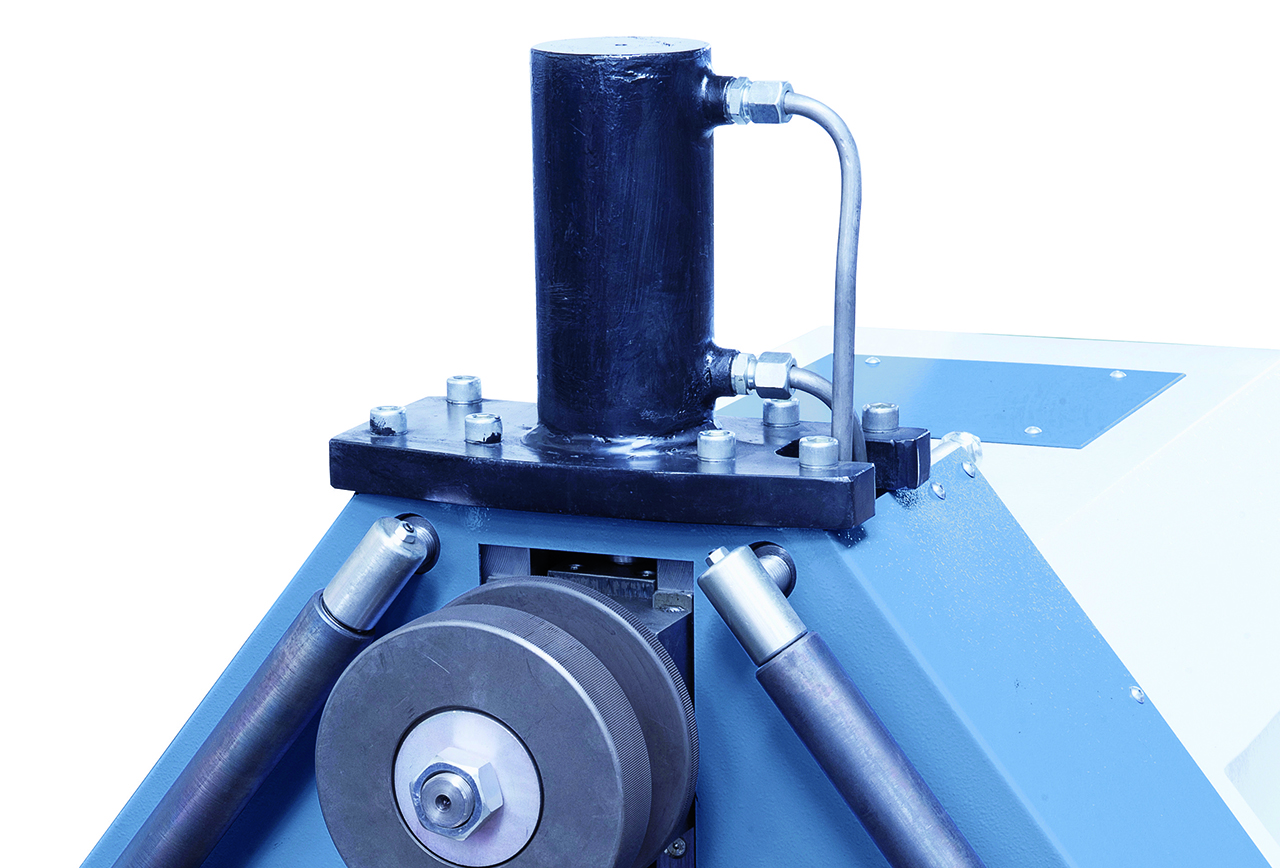

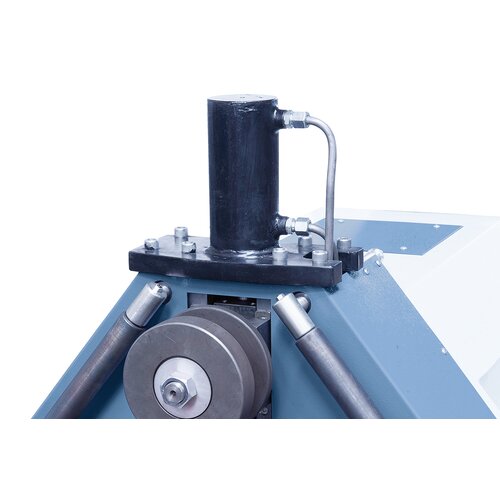

• Standard with hydraulic upper roll feed

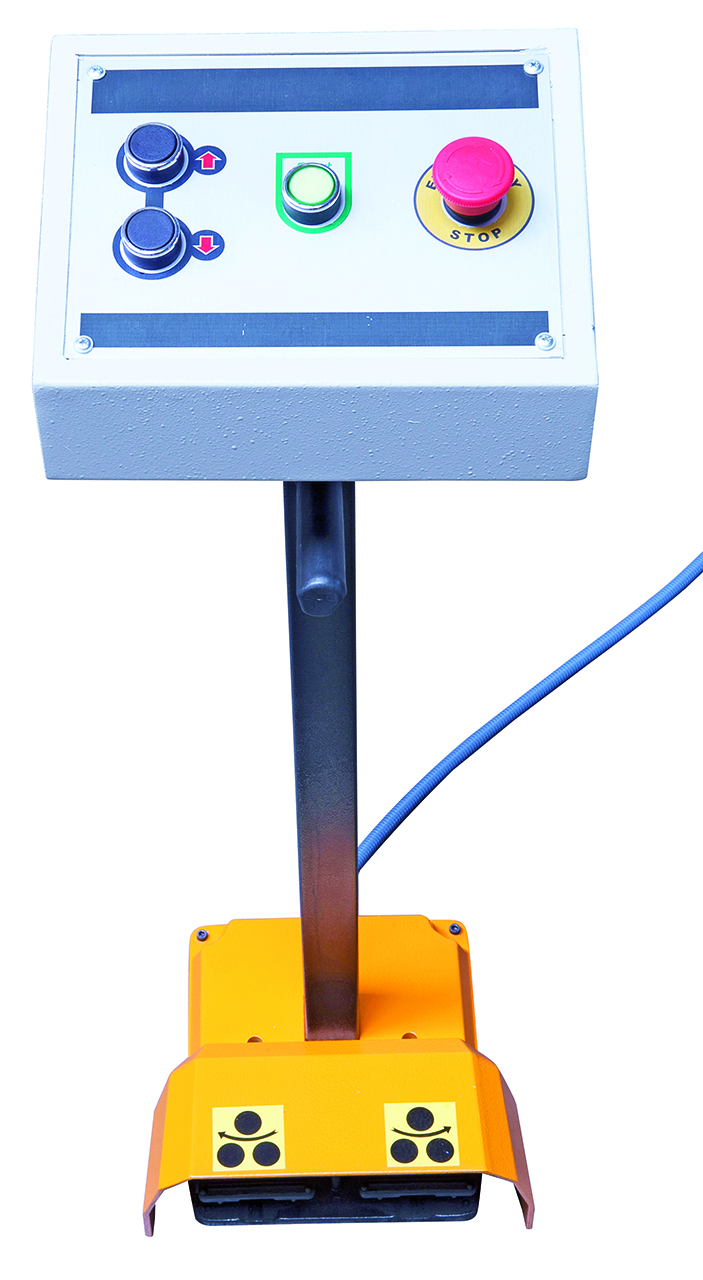

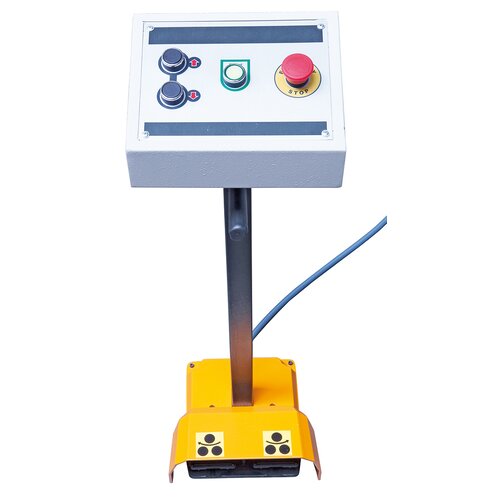

• All control elements on the mobile control panel
• Manually adjustable lateral guiding rolls

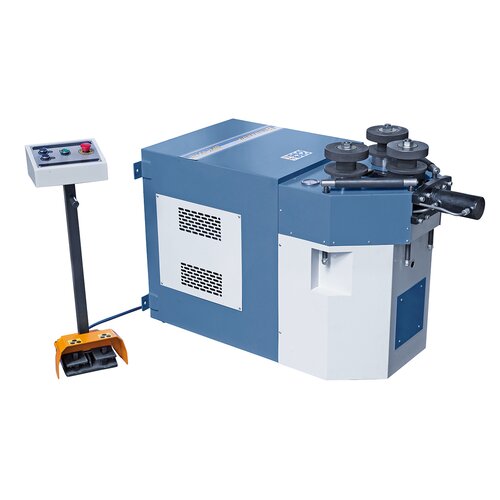

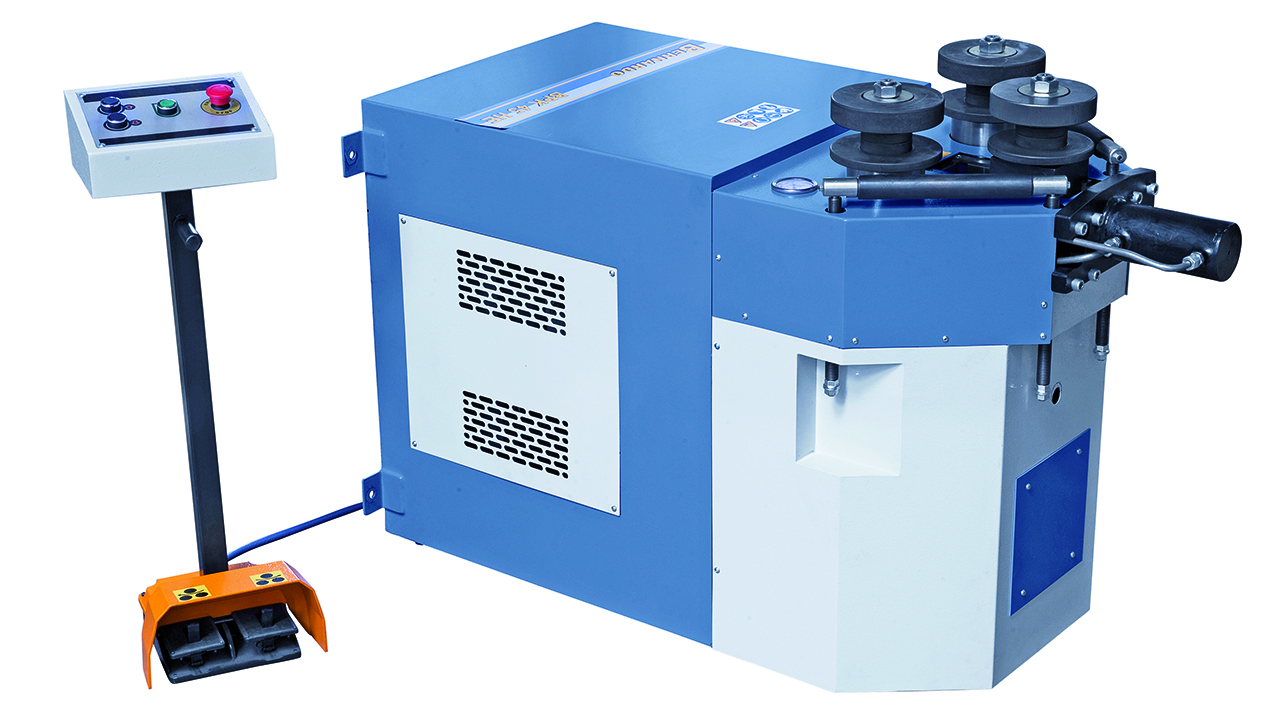

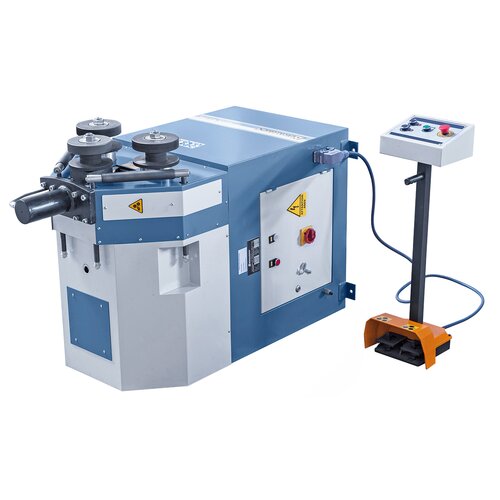

• Extended range of application due to the horizontal and vertical application possibilities
• Induction hardened and ground shafts and rolls made of special steel
Product Specifications
|
Shaft diameter top / bottom |
50 / 40 mm |
|
Upper roll diameter |
165 mm |
|
Lower roll diameter |
155 mm |
|
Bending speed |
10 m/min |
|
Motor power |
0,75 kW / 1,5 kW |
|
Depth |
660 mm |
|
Width |
940 mm |
|
Height |
1430 mm |
|
Weight approx. |
490 kg |
Delivery Contents

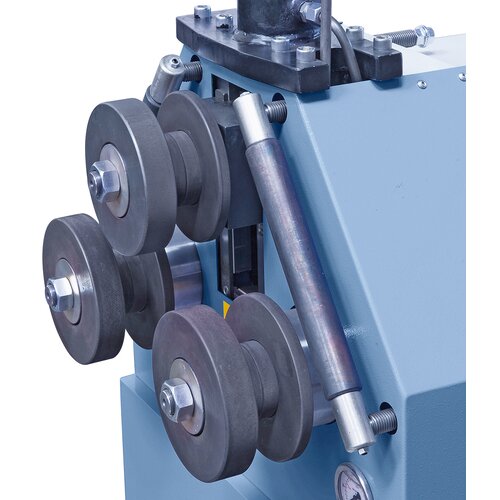

- Standard roll set
- Lateral guide rolls
- Control panel
- Hydraulic infeed of the upper roll
