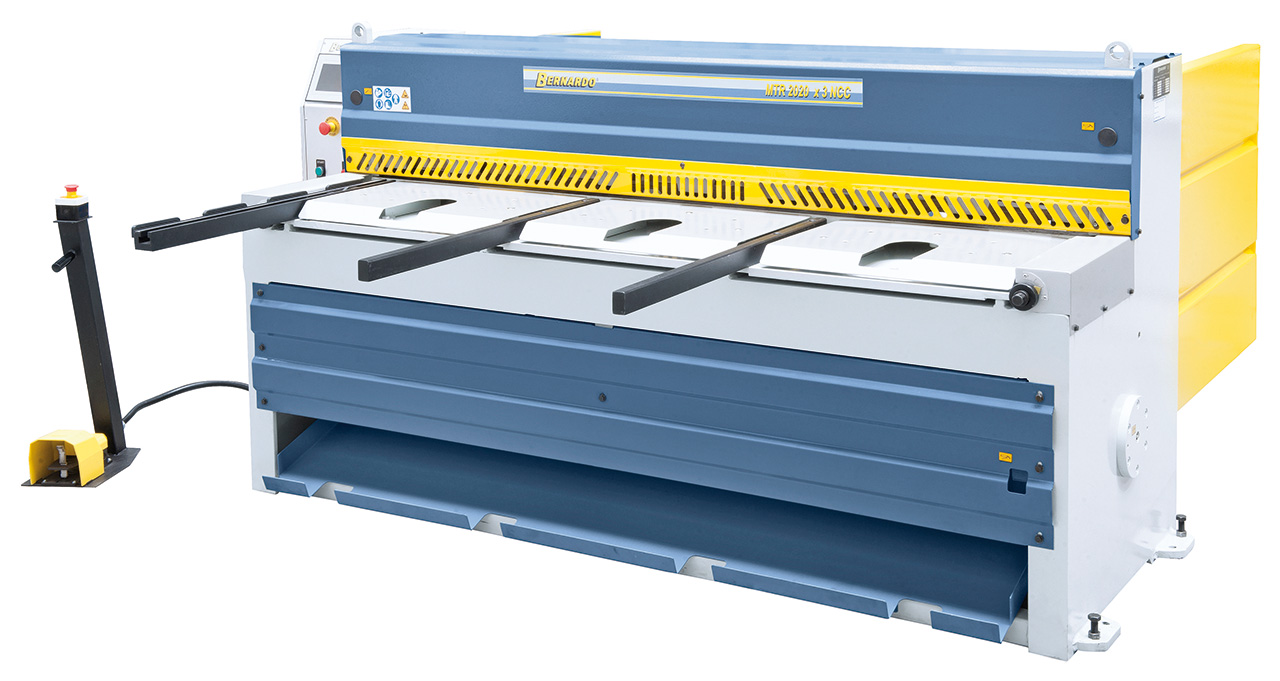

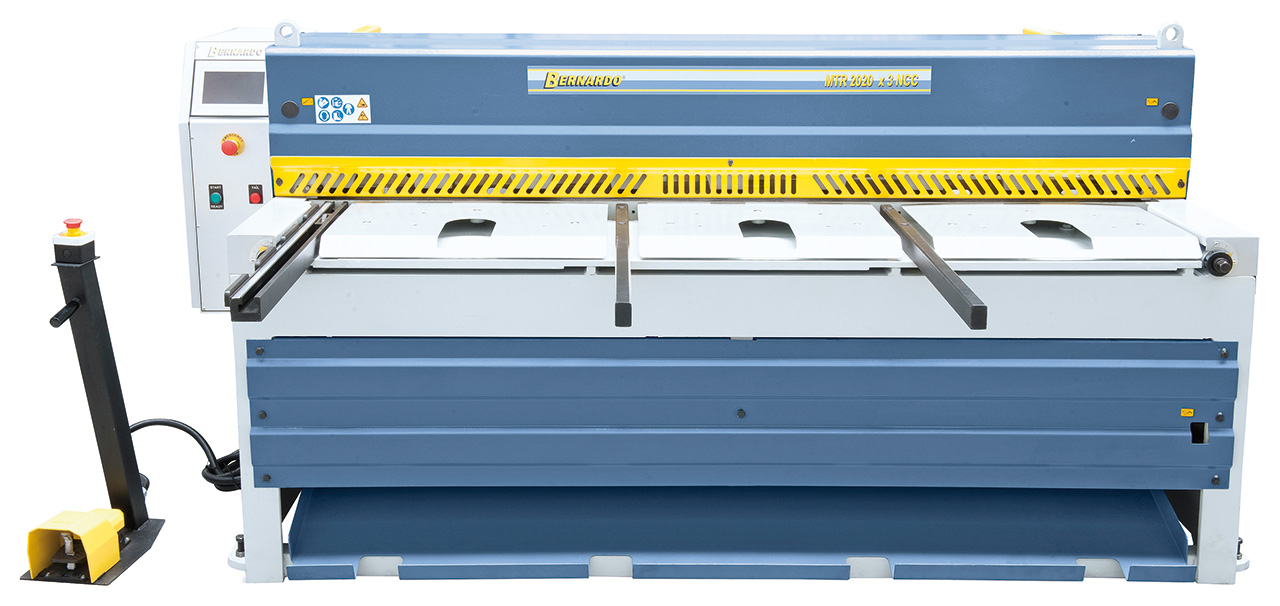

Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC

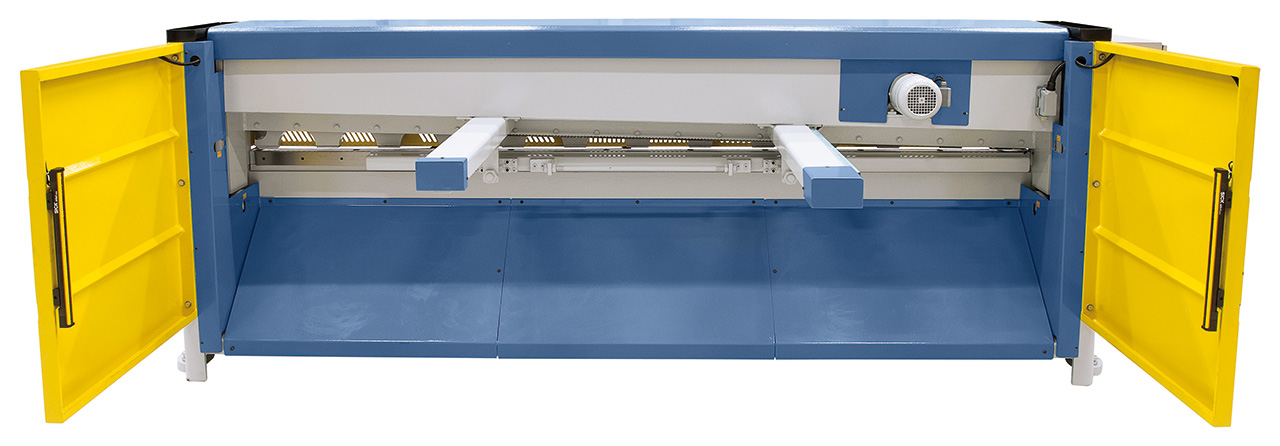

Rear view of machine with protective plate and photocells. (Photo of MTR 1360 x 3 NCC)
Rear view of machine with protective plate and photocells. (Photo of MTR 1360 x 3 NCC)
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC

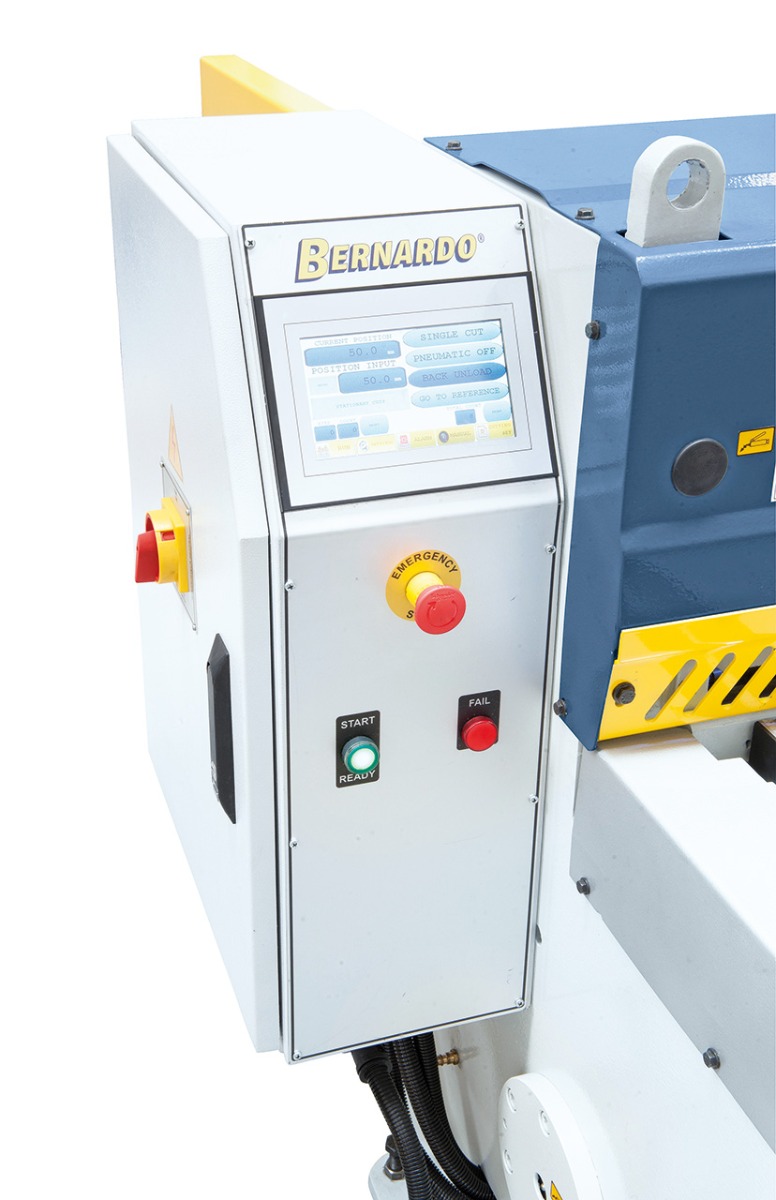

Control Fuji with touch screen comes standard.
Control Fuji with touch screen comes standard.

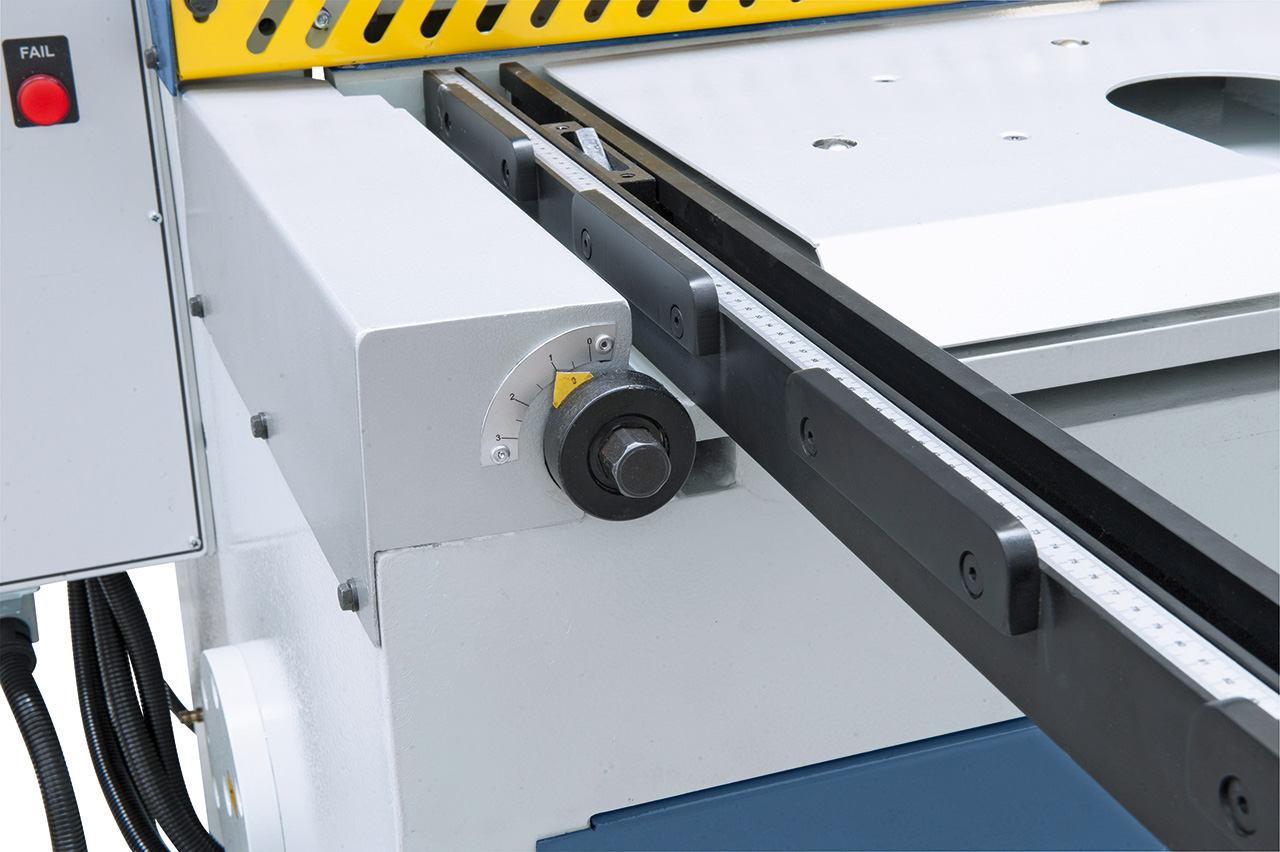

Quick and easy adjustment of the cutting gap on the frontside of the machine.
Quick and easy adjustment of the cutting gap on the frontside of the machine.

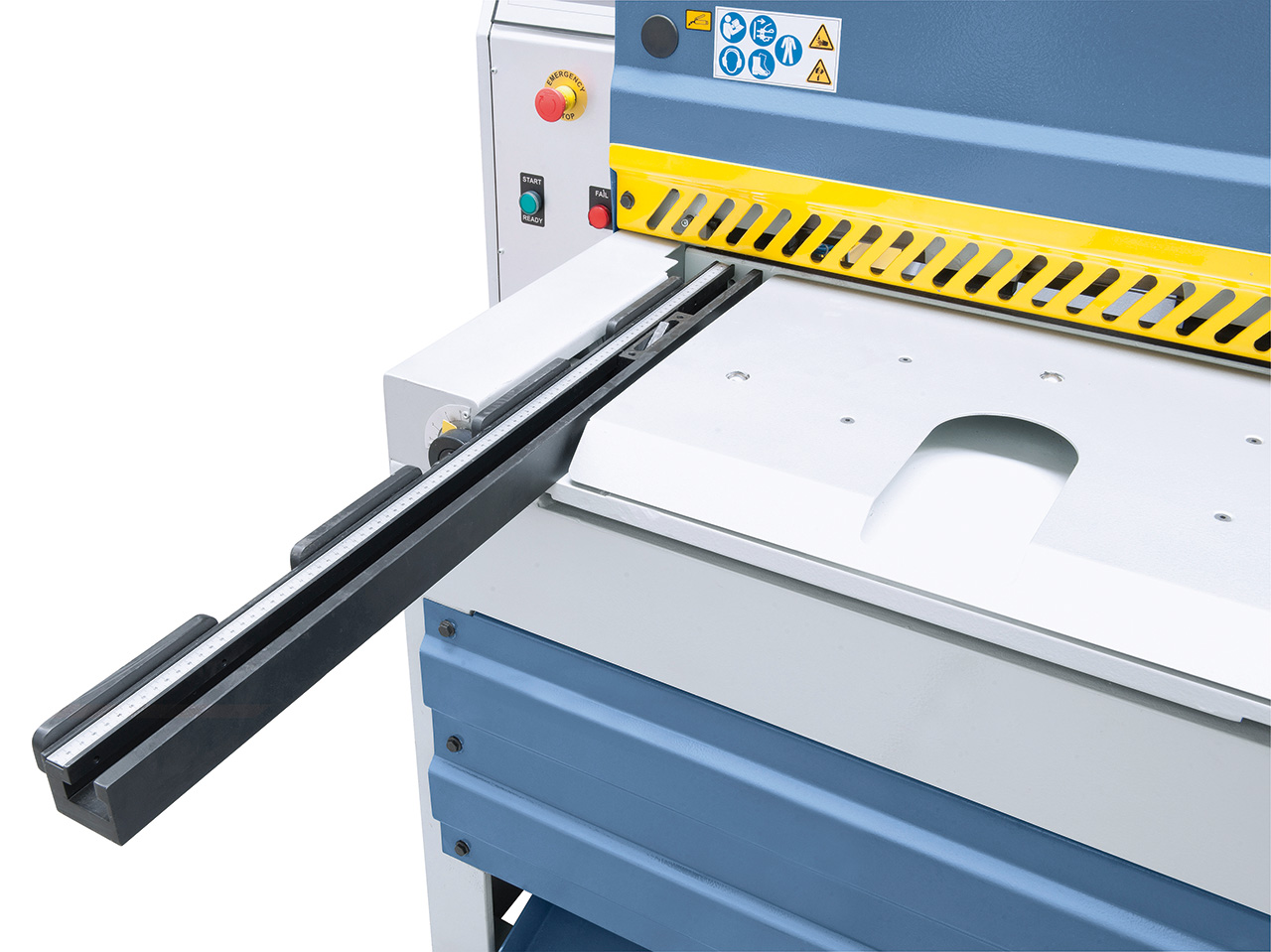

Side stop with scale, tilting cam and T-slot.
Side stop with scale, tilting cam and T-slot.

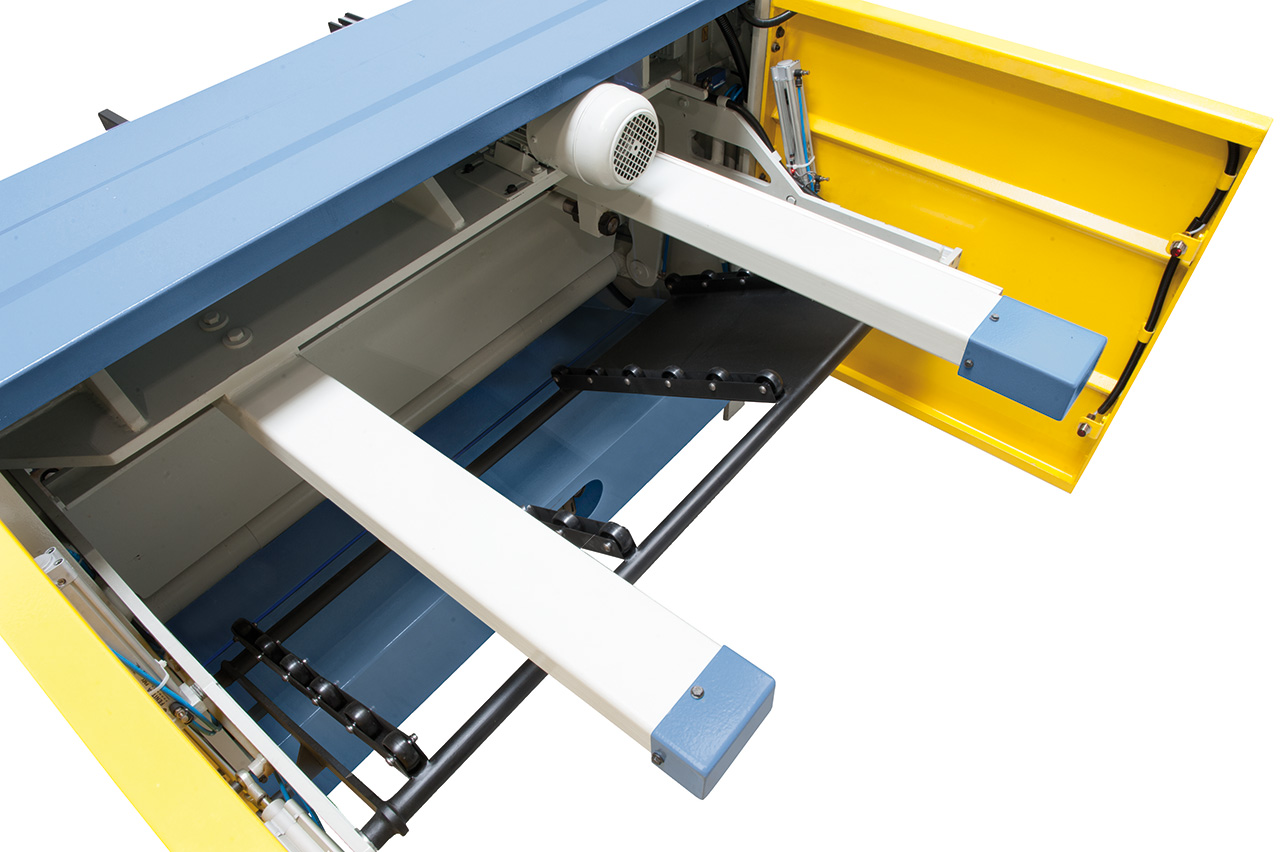

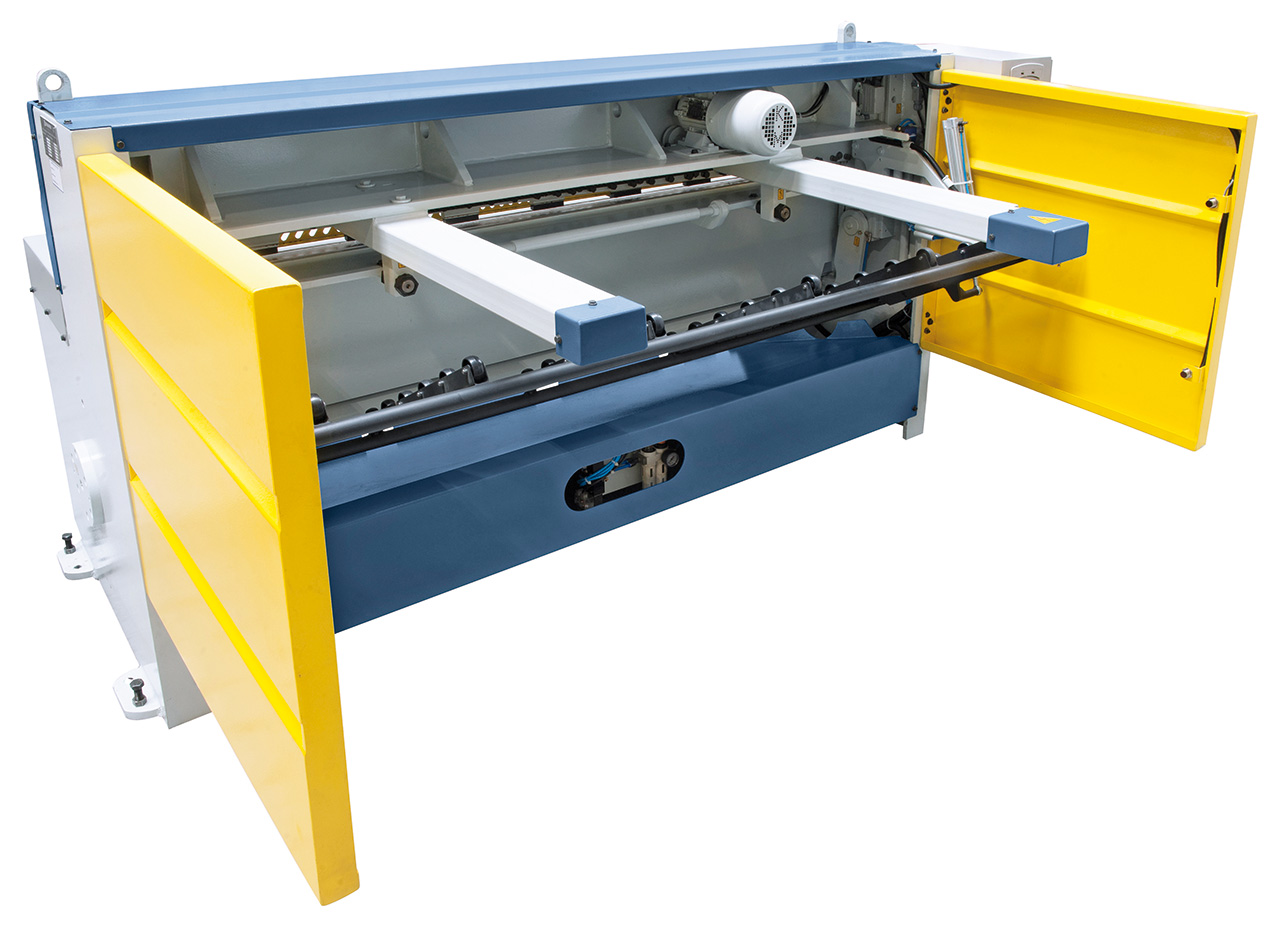

Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.
Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.
Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.
Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.

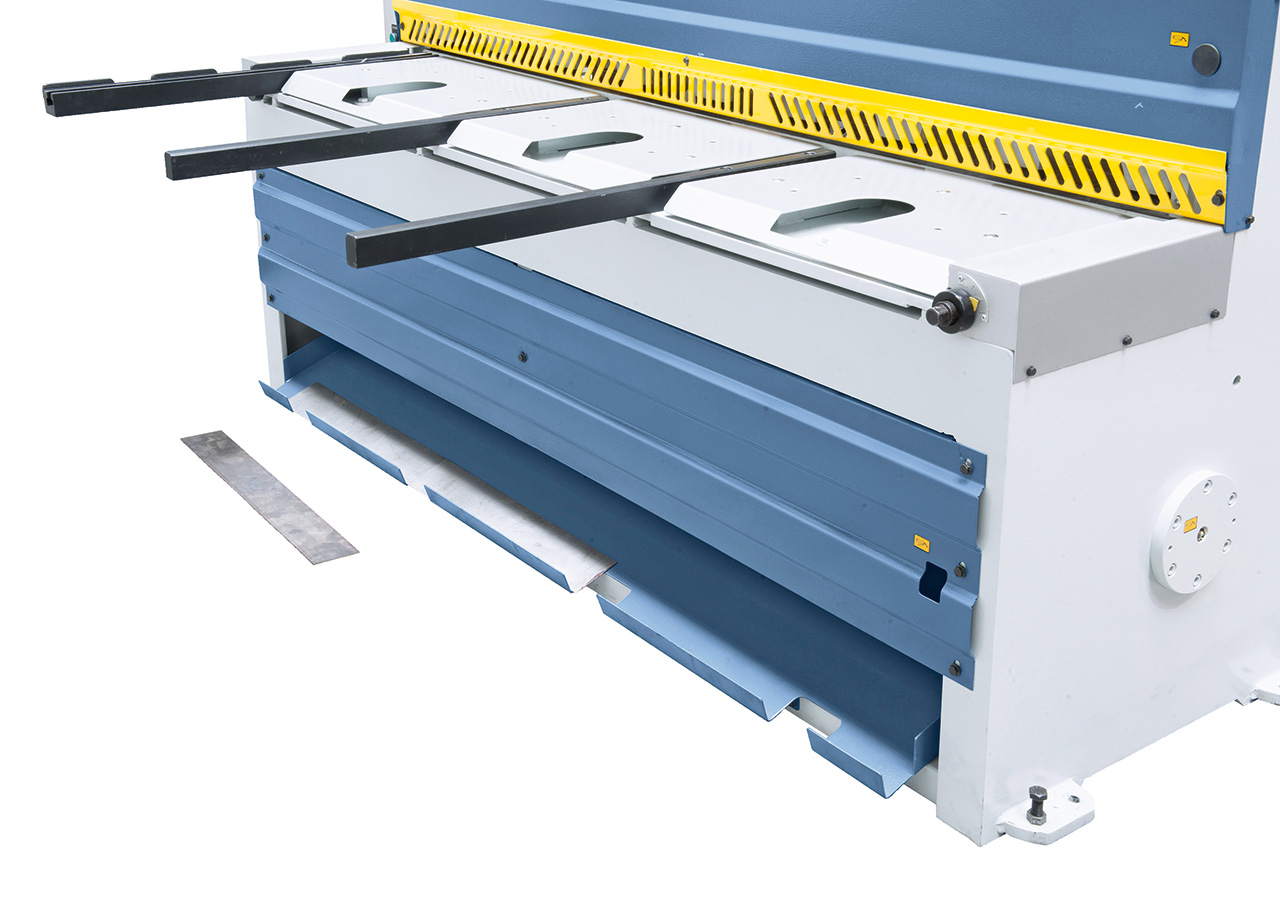

Collecting tray for the sections on the frontside of the machine.
Collecting tray for the sections on the frontside of the machine.

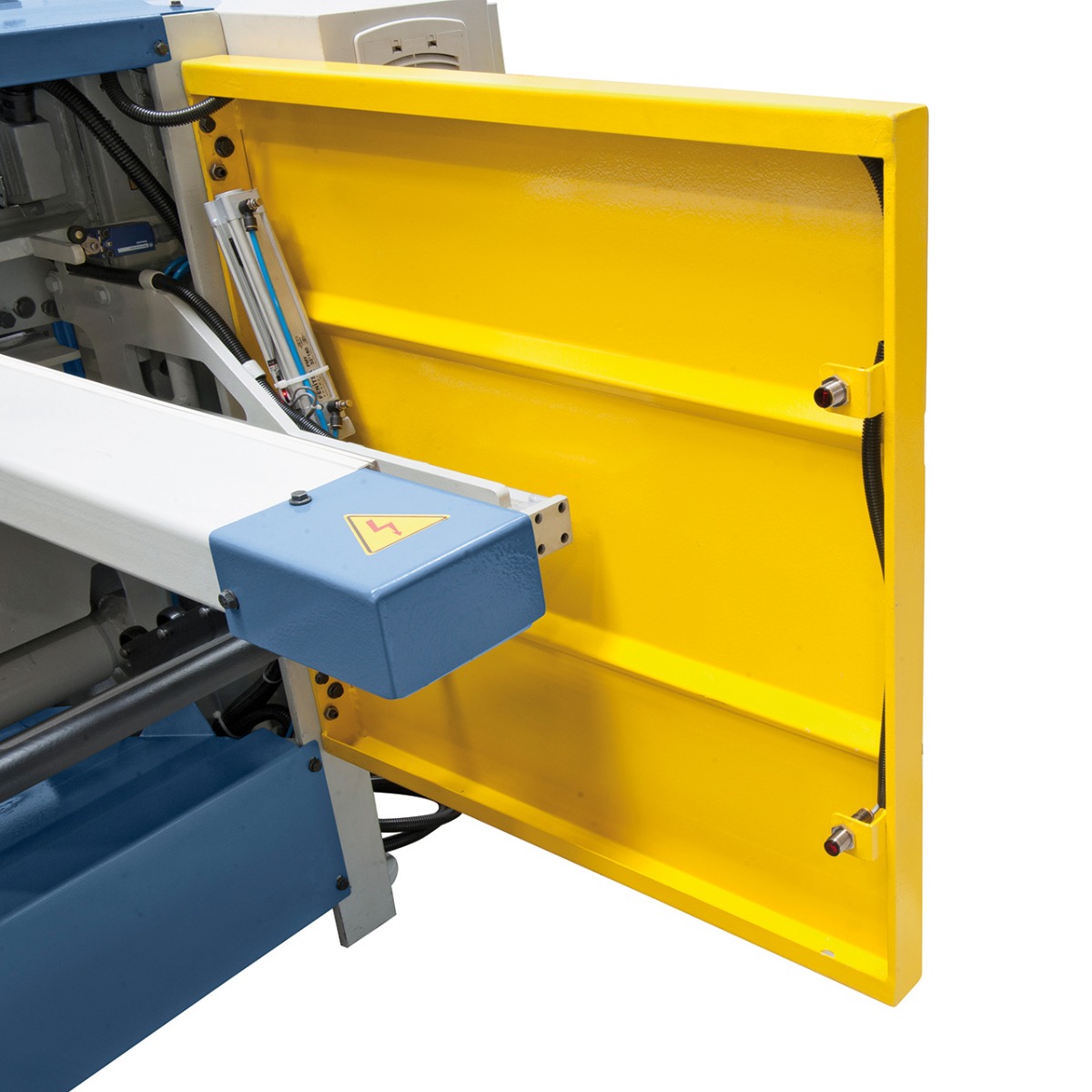

The side protective plate and photocells prevent interference in the running machine.
The side protective plate and photocells prevent interference in the running machine.
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Photo of MTR 2060 x 3 NCC
Rear view of machine with protective plate and photocells. (Photo of MTR 1360 x 3 NCC)
Photo of MTR 2060 x 3 NCC
Control Fuji with touch screen comes standard.
Quick and easy adjustment of the cutting gap on the frontside of the machine.
Side stop with scale, tilting cam and T-slot.
Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.
Pneumatic sheet support system, the user can optionally set the sheet ejection to the operator side or back of the machine.
Collecting tray for the sections on the frontside of the machine.
The side protective plate and photocells prevent interference in the running machine.

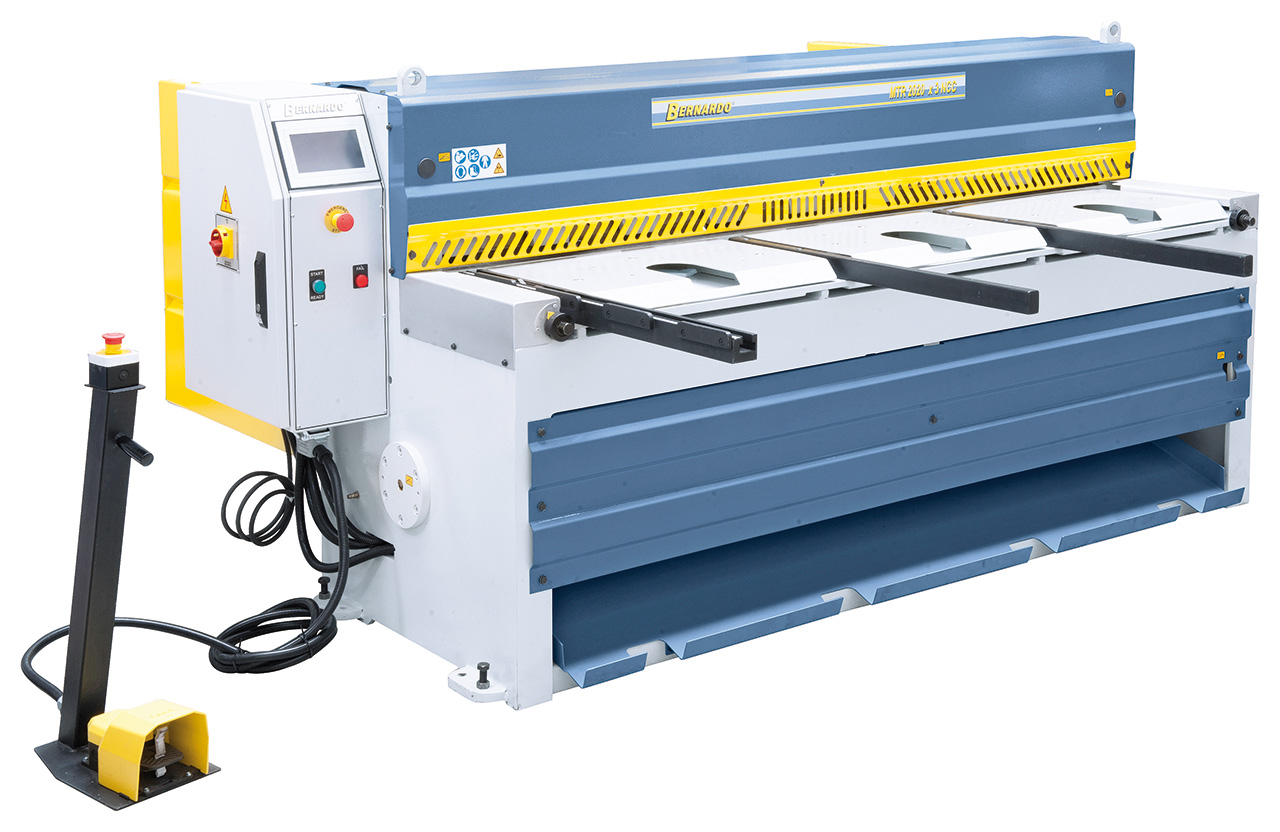

Motorized guillotine shear MTR 2560 x 2,5 mm NCC with pneumatic sheet support system *

Art. No.: 06-2053XL
Wishlist Comparison List

€29,700.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Sheet ejection is either on the front or back of the machine
  • Control Fuji with touch screen comes standard
  • Motorized sheet metal shears for cutting various materials, such as sheet steel, brass, aluminum, copper, ...
  • Backgauge with ball screws for increased safety
  • Support table with right-angled stop with scale, tilting cam and T-slot for the optional angle shearing device
  • Table surface with integrated rolls, ideal for large workpieces
  • Precise work thanks to integrated cutting line illumination with silhouette
  • Double-edged top and bottom blades made of quality steel guarantee a clean and burr-free cutting
  • Automatic downholder for fixing the sheet metal

Product Specifications

Cutting length

2520 mm

Sheet thickness max. *

2,5 mm

Cutting angle

1° 30‘

Strokes / min

31

Working height

810 mm

Backgauge

0 - 750 mm

Table width

390 mm

Motor power

4,0 kW

Width

3150 mm

Depth

2200 mm

Height

1280 mm

Weight approx.

2150 kg

* Material strength 400 N/mm²

Delivery Contents

  • Front cutting gap adjustment
  • Cutting line illumination
  • Motorized NC-backgauge
  • Front sheet metal support
  • Table surface with integrated rolls
  • Side stop with scale
  • Protective plate with photocells
  • NC-control Fuji with touch screen
  • Pneumatic sheet support system
  • Foot pedal with emergency stop
  • Knives made of tool steel

Suitable accessories

Back gauge 1000 mm for NCC-machines
Back gauge 1000 mm for NCC-machines
Art. No. : 06-1955

€3,480.00

incl. 20% VAT

Out of Stock
Angle shearing device 0 - 180 °
Angle shearing device 0 - 180 °
Art. No. : 06-1956

€649.20

incl. 20% VAT

Out of Stock
Light barrier (only in connection with machine)
Light barrier (only in connection with machine)
Art. No. : 06-1957

€1,176.00

incl. 20% VAT

Out of Stock
Set of knives for MTA 2560 x 2,5 / MTE 2560 x 2,5 / MTE 2560 x 4 / MTR 2560 x 2,5 / MTR 2560 x 4
Set of knives for MTA 2560 x 2,5 / MTE 2560 x 2,5 / MTE 2560 x 4 / MTR 2560 x 2,5 / MTR 2560 x 4
Art. No. : 06-6306

€2,196.00

incl. 20% VAT

Out of Stock
