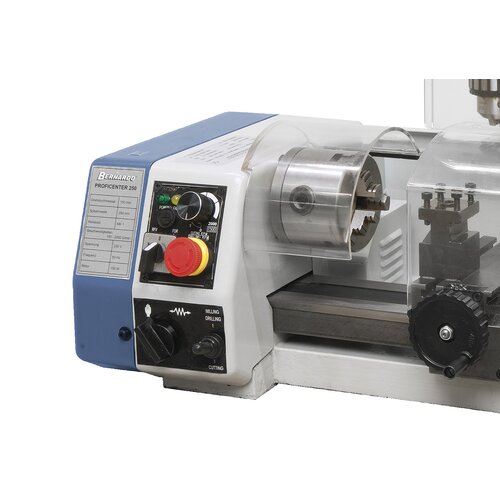

Machine controls, such as speed settings, feed adjustment, switches etc. are clearly arranged on headstock.
Machine controls, such as speed settings, feed adjustment, switches etc. are clearly arranged on headstock.

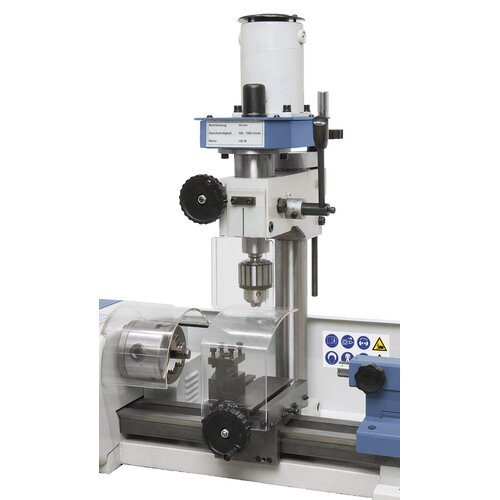

Milling attachment for drilling, milling and countersink comes standard.
Milling attachment for drilling, milling and countersink comes standard.

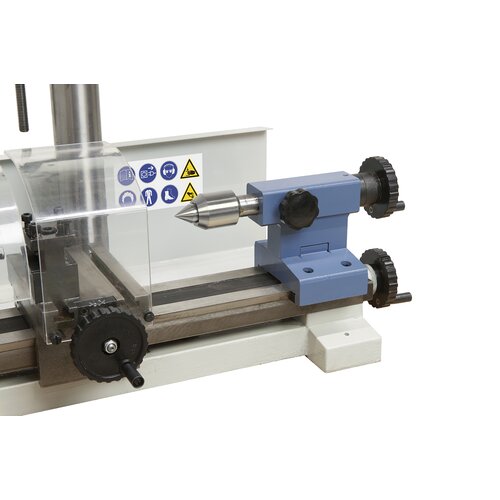

Tailstock with depth scale and optional available live center MT 1
Tailstock with depth scale and optional available live center MT 1

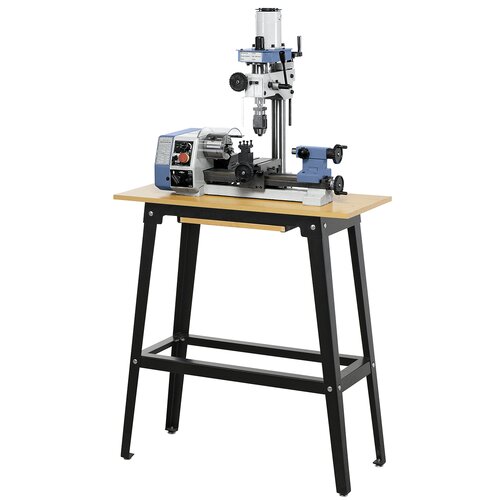

Proficenter 250 with optional stand and Keyless drill chuck
Proficenter 250 with optional stand and Keyless drill chuck
Machine controls, such as speed settings, feed adjustment, switches etc. are clearly arranged on headstock.
Milling attachment for drilling, milling and countersink comes standard.
Tailstock with depth scale and optional available live center MT 1
Proficenter 250 with optional stand and Keyless drill chuck

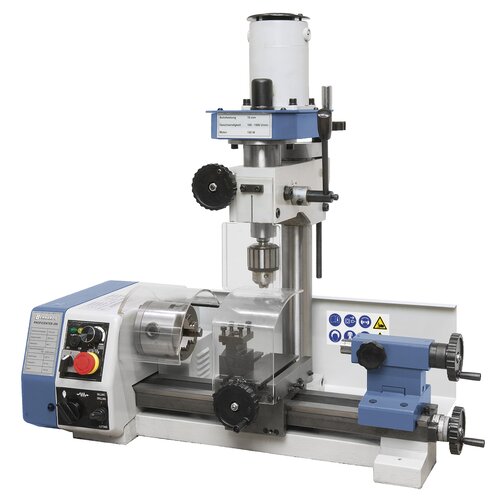

Mini lathe Proficenter 250 / 230 V

Art. No.: 03-1005
Wishlist Comparison List

The Proficenter 250 mini lathe comes complete with a milling attachment. Its compact construction ensures a smooth run and guarantees precise results, making this model particularly attractive for ambitious model-makers.



€980.00

excl. VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Electronic, stepless adjustable drive
  • High-quality ball bearings guarantee high concentricity
  • User-friendly arranged control elements
  • Straightforward speed change
  • Inductive hardened, polished machine bed
  • Leadscrew features automatic feed
  • Milling attachment includes precise fine adjustment
  • Spindle with clamp device ensures accurate results

Product Specifications

Turning lathe



Distance between centers

250 mm

Center height

75 mm

Swing over bed

150 mm

Spindle bore

10 mm

Speed range, stepless

100 - 2000 rpm

Metric thread*

(5) 0,5 - 1,25 mm

Inch thread*

(5) 16 - 24 threads/1“

Travel of tailstock sleeve

25 mm

Taper of tailstock sleeve

MT 1

Motor power output S1 100%

0,15 kW / 230 V

Motor power input S6 40%

0,20 kW / 230 V

Milling attachment



Drilling capacity in steel

10 mm

Face mill capacity max.

20 mm

Distance spindle to column

105 mm

Spindle speed, stepless

100 - 1000 / 100 - 2000 rpm

Spindle taper

MT 2

Spindle stroke

30 mm

Mill head height adjustable

130 mm

Motor power output S1 100%

0,15 kW / 230 V

Motor power input S6 40%

0,25 kW / 230 V

Machine dimension (W x D x H)

650 x 350 x 520 mm

Weight approx.

39 kg




* Option

Delivery Contents

  • 3-jaw chuck 80 mm
  • Chuck cover
  • 2-way tool post holder
  • Live center MT 1
  • Drill chuck 1 - 10 mm / B 12
  • Tools

Suitable accessories

Mill chuck set ER 25, MT 2, 4 - 16 mm, 8 pcs.
Mill chuck set ER 25, MT 2, 4 - 16 mm, 8 pcs.
Art. No. : 26-1002

€188.00

excl. VAT

In Stock
Deliverable in 2-3 business days
6 pcs. turning tools set incl. 1 pc. boring bar, 8 mm
6 pcs. turning tools set incl. 1 pc. boring bar, 8 mm
Art. No. : 44-2050

€155.00

excl. VAT

In Stock
Deliverable in 2-3 business days
4-jaw independent chuck 80 mm
4-jaw independent chuck 80 mm
Art. No. : 21-2501

€103.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Collet set 3 - 6 mm ( 4 pcs. ) f. Hobby 250 / Pro
Collet set 3 - 6 mm ( 4 pcs. ) f. Hobby 250 / Pro
Art. No. : 03-1525

€62.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Cutting kits thread (inch) f. Hobby 250 / Proficenter 250
Cutting kits thread (inch) f. Hobby 250 / Proficenter 250
Art. No. : 03-1521

€26.00

excl. VAT

In Stock
Deliverable in 2-3 business days

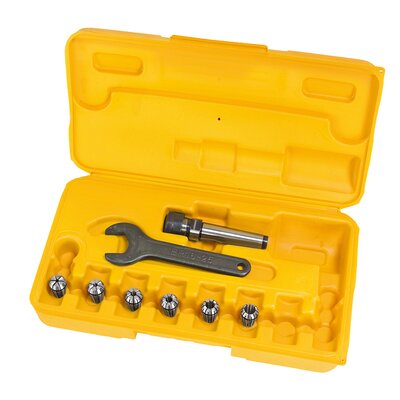

Mill chuck set ER 16, MT 2, 3 - 10 mm, 7 pcs.
Mill chuck set ER 16, MT 2, 3 - 10 mm, 7 pcs.
Art. No. : 26-1001

€181.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Economy live center Typ PC - MT 1
Economy live center Typ PC - MT 1
Art. No. : 22-1000

€42.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Turning and facing holder size 10
Turning and facing holder size 10
Art. No. : 23-1058B

€26.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Quick change set model Bernardo size 10, incl. 4 tips
Quick change set model Bernardo size 10, incl. 4 tips
Art. No. : 23-1055B

€169.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Stand f. Hobby 250 / Proficenter 250
Stand f. Hobby 250 / Proficenter 250
Art. No. : 56-1000

€105.00

excl. VAT

Out of Stock
Cutting kits thread (metric) f. Hobby 250 / Proficenter 250
Cutting kits thread (metric) f. Hobby 250 / Proficenter 250
Art. No. : 03-1520

€26.00

excl. VAT

Out of Stock
Follow rest f. Hobby 250 / Proficenter 250
Follow rest f. Hobby 250 / Proficenter 250
Art. No. : 03-1505

€40.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Steady rest f. Hobby 250 / Proficenter 250
Steady rest f. Hobby 250 / Proficenter 250
Art. No. : 03-1500

€49.00

excl. VAT

Out of Stock
Horizontal slider f. Hobby 250 / Proficenter 250
Horizontal slider f. Hobby 250 / Proficenter 250
Art. No. : 03-1515

€143.00

excl. VAT

Out of Stock
Ball head cutting set f. Hobby 250 / Proficenter 250
Ball head cutting set f. Hobby 250 / Proficenter 250
Art. No. : 03-1530

€72.00

excl. VAT

Out of Stock
Carbide tipped tool set 8 mm, 11 pcs.
Carbide tipped tool set 8 mm, 11 pcs.
Art. No. : 44-1011

€48.00

excl. VAT

In Stock
Deliverable in 2-3 business days

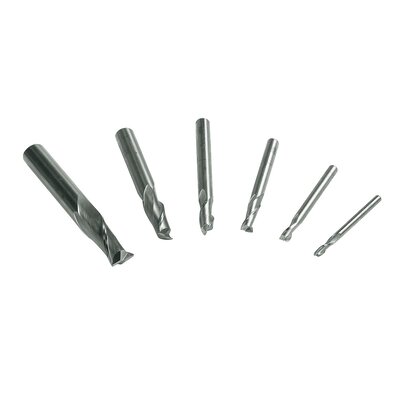

2 flute HSS end mill set, 3 - 10 mm, 6 pcs.
2 flute HSS end mill set, 3 - 10 mm, 6 pcs.
Art. No. : 42-1000

€51.00

excl. VAT

In Stock
Deliverable in 2-3 business days
Keyless drill chuck 1 - 10 mm / B 12
Keyless drill chuck 1 - 10 mm / B 12
Art. No. : 24-1080

€40.00

excl. VAT

In Stock
Deliverable in 2-3 business days

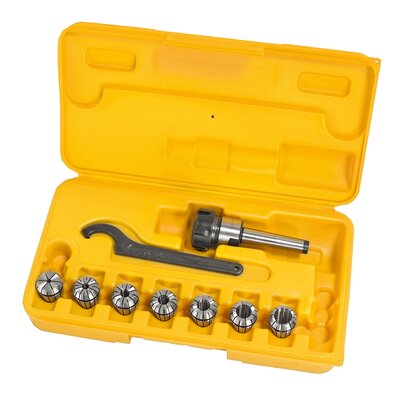

Mill chuck set ER 25, MT 2, 3 - 16 mm, 10 pcs.
