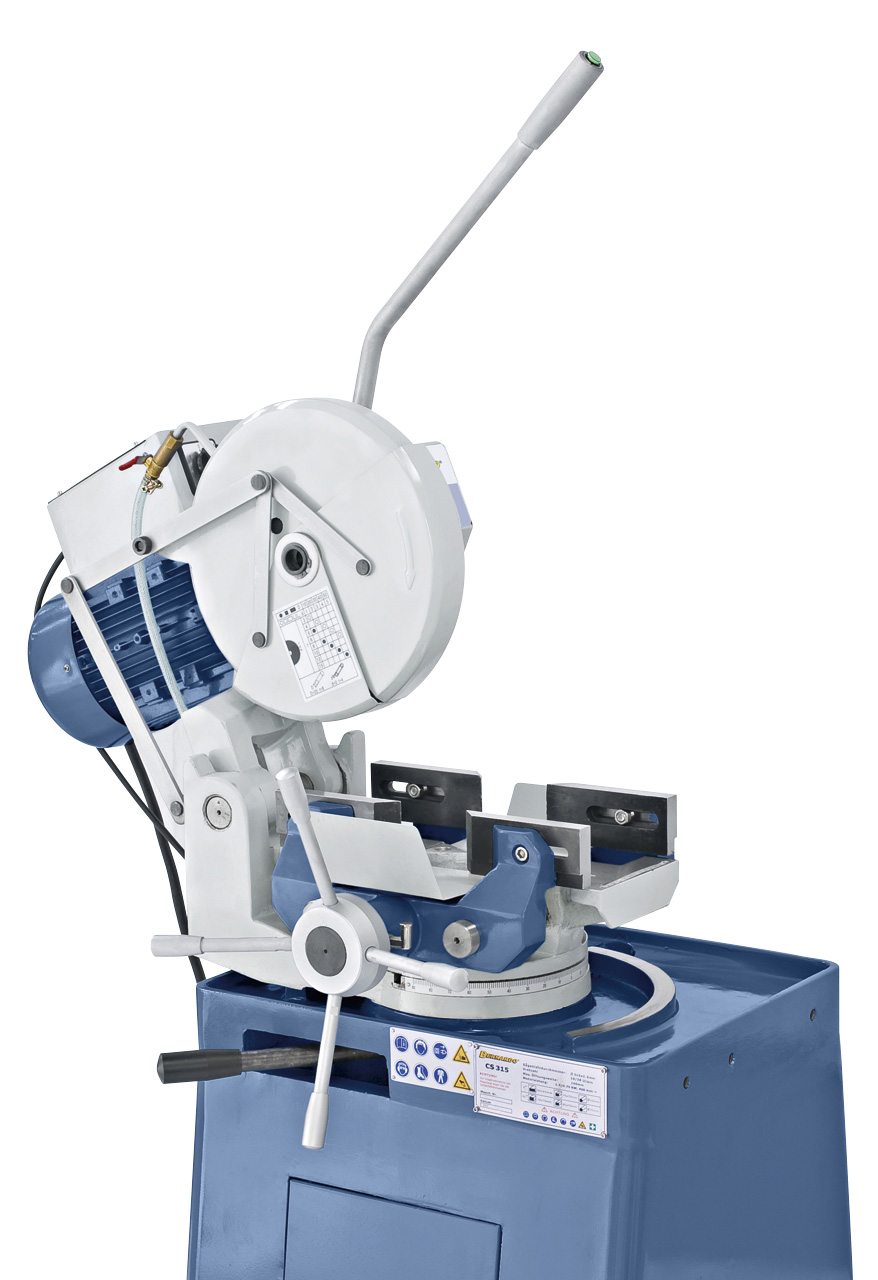

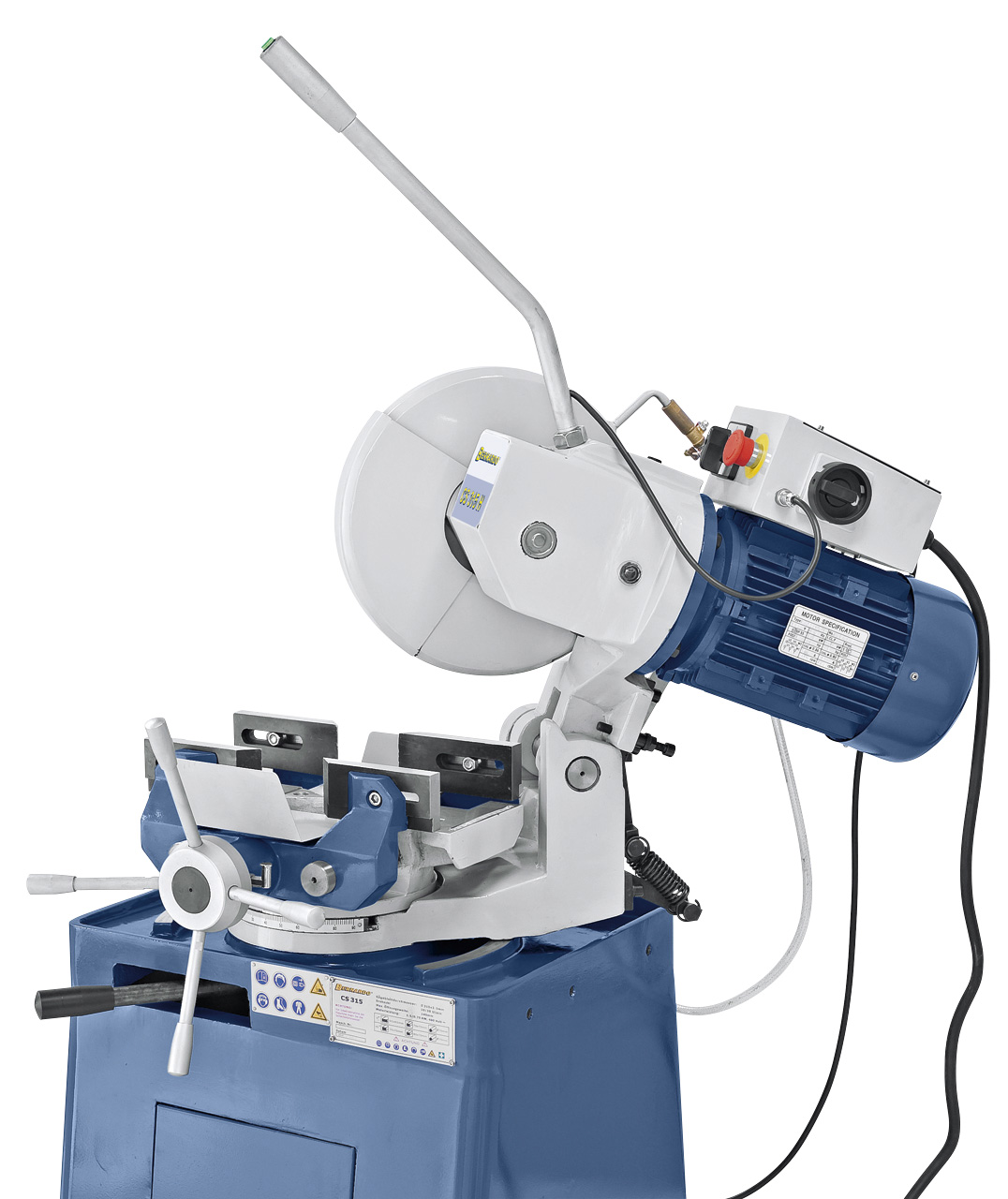

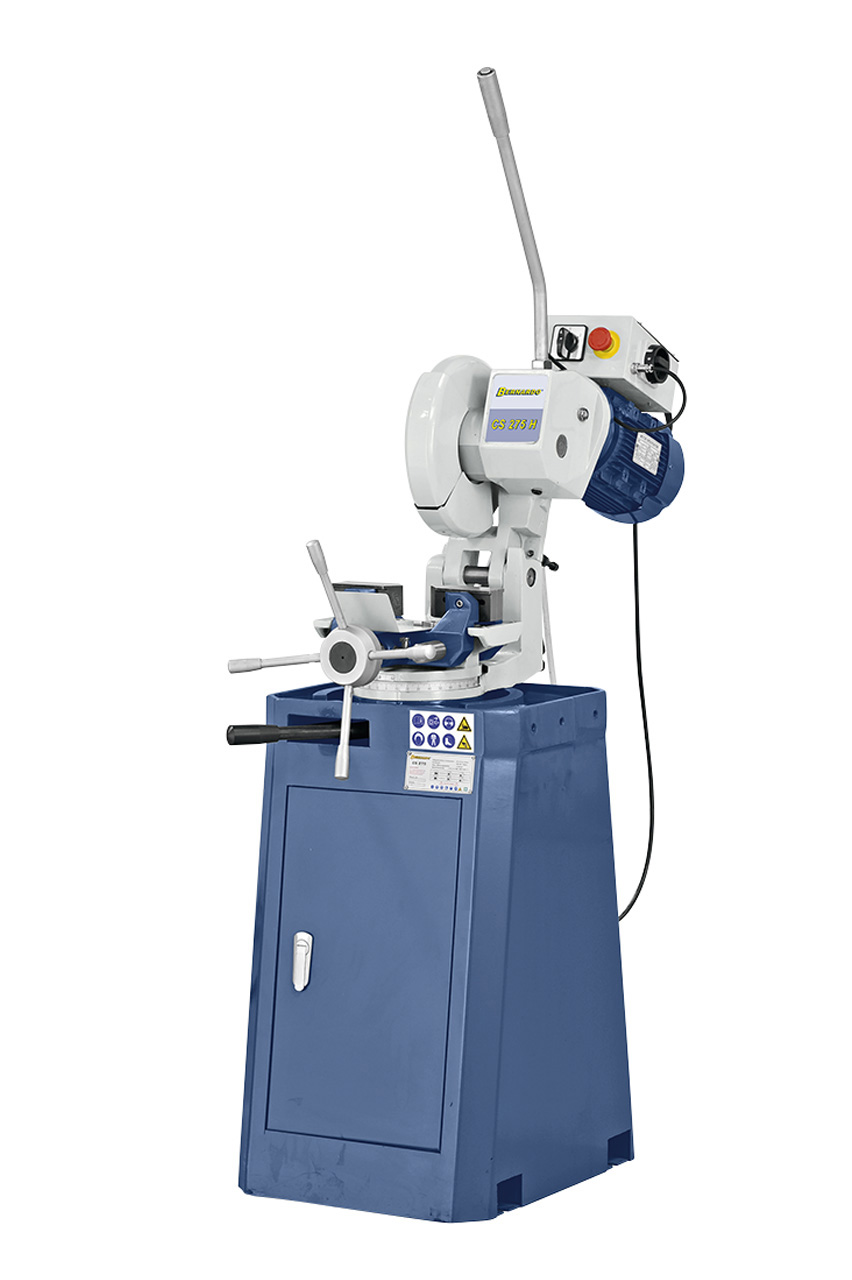

Manual metal circular saw CS 275 H
Art.Nr.: 04-1890The CS 275 H manual metal circular saws feature 2 speed settings, making them ideal models for sawing of profiles, pipes and solid iron, stainless steel and non-ferrous metal. The solid construction, precise cutting results and high user friendliness make these machines essential for metal workshops.
€2,448.00
incl. 20% VATAvailability
Product Properties
- Gear head swivels 90º to both sides for slotting

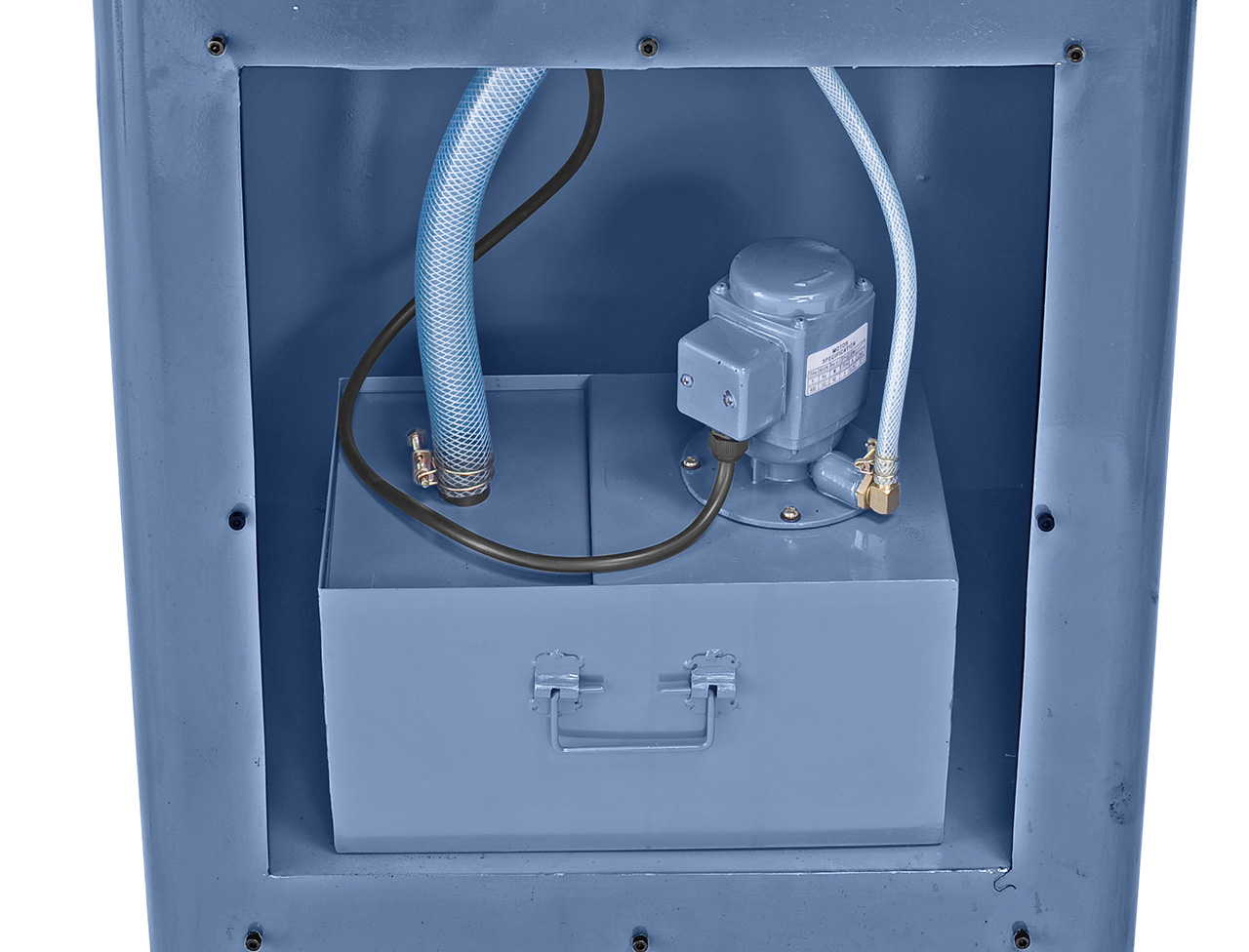

- Removeable coolant tank integrated in solid machine base
- Gear unit features hardened, polished worm shaft and bronze worm wheel
- Protective cover opens automatically when cutting

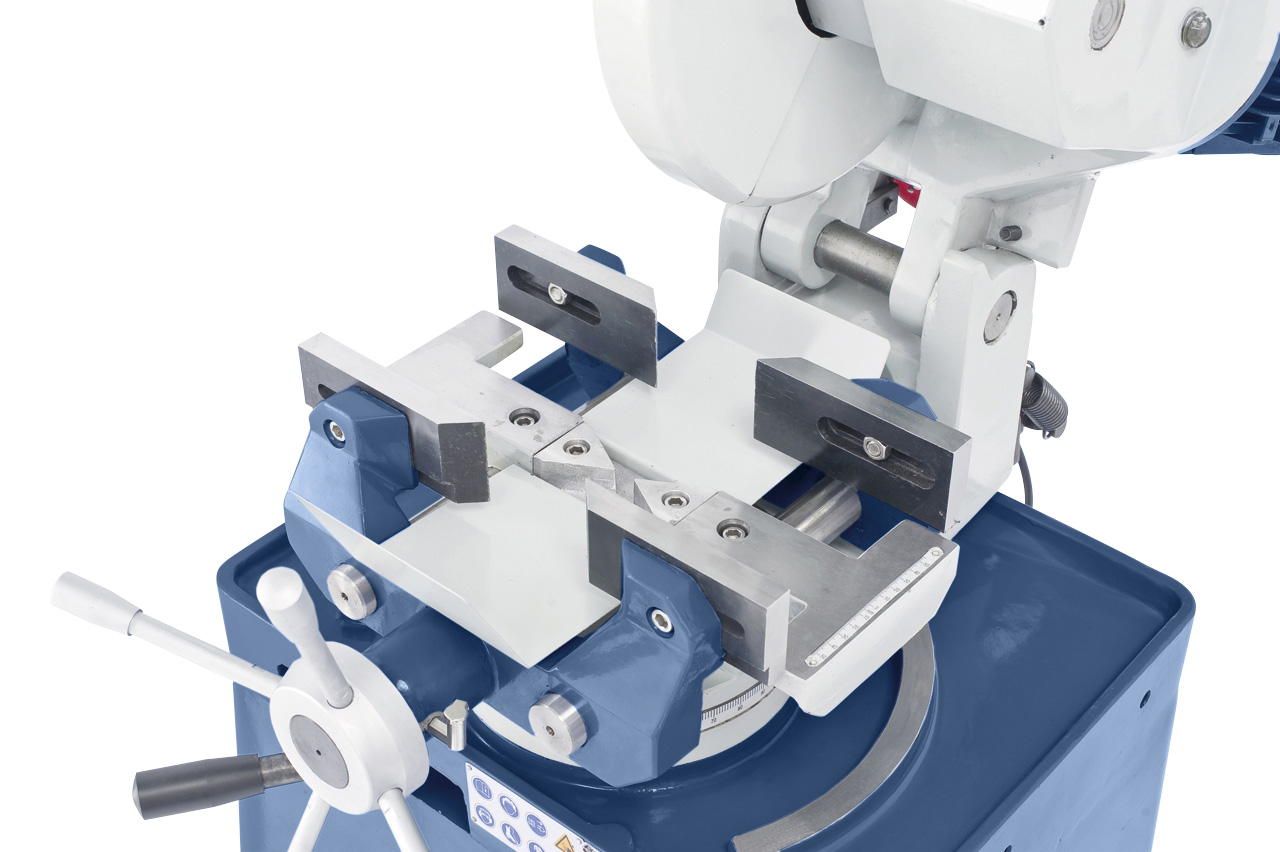

- Precise, self-centering double-clamping vice positioned on four guidings
- Ergonomically shaped handle with push button for high work comfort
- Reduction gear unit, quietly running in oil bath
Product Specifications
|
Sawblade dimensions |
275 x 40 mm |
|
Speeds |
48 / 96 rpm |
|
Max. opening |
110 mm |
|
Working height |
900 mm |
|
Motor power output S1 100% |
1,4 / 2,0 kW |
|
Motor power input S6 40% |
2,0 / 2,8 kW |
|
Voltage |
400 V |
|
Machine dimensions (L x D x H) |
460 x 840 x 1740 mm |
|
Weight approx. |
175 kg |
|
|
Full rivet material round |
Pipe round |
Pipe square |
|
90° |
70 mm |
70 mm |
70 × 70 mm |
|
45° |
60 mm |
60 mm |
60 × 60 mm |
|
|
Full rivet material square |
Pipe rectangular |
Full rivet material rectangular |
|
90° |
70 × 70 mm |
70 × 60 mm |
70 × 60 mm |
|
45° |
60 × 60 mm |
80 × 50 mm |
70 × 50 mm |
Delivery Contents
- Coolant device with filter
- Self-centering vice
- Stand
