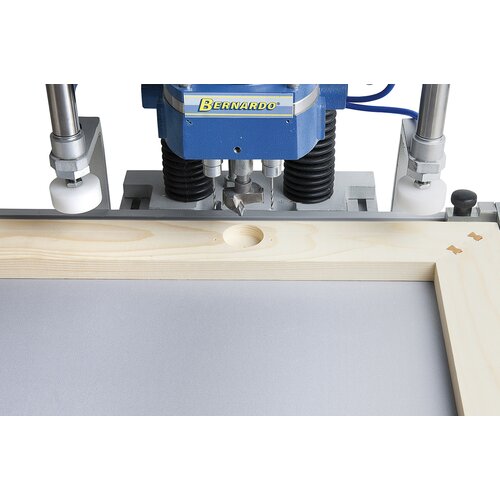

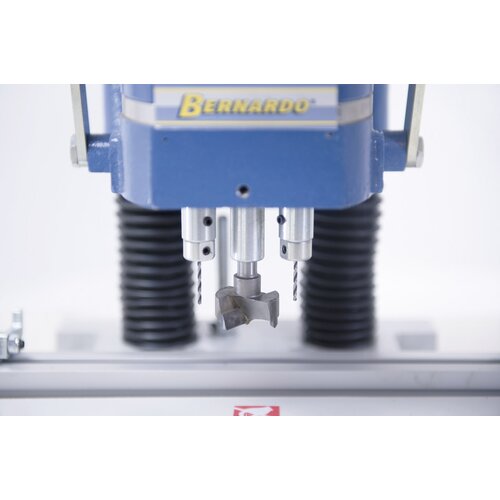

3-spindle drill unit with hinge drill of 35 mm left and 2x drill bits, each 2 mm in diameter right.

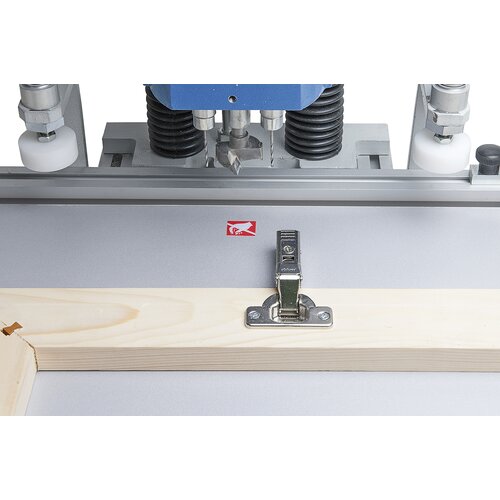

Efficient and cost-efficient fixing of hinges.

Comes complete with tiltable fences, ideal for repetitive operations.

Maintenance–free aluminium feed cylinder.

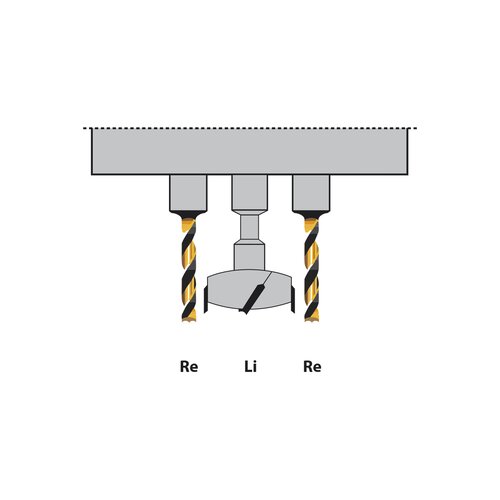

The middle hinge drill is left turning, the ones on the side are right turning.

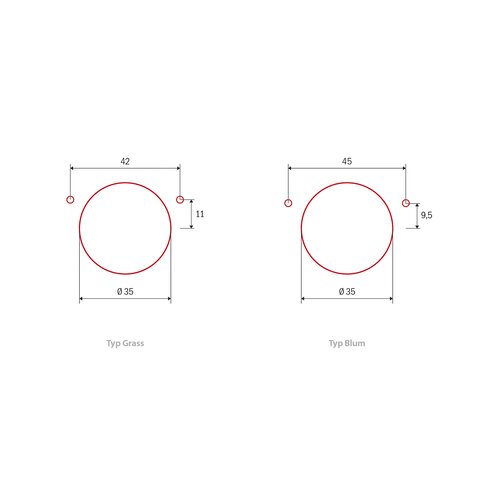

Types of hinges

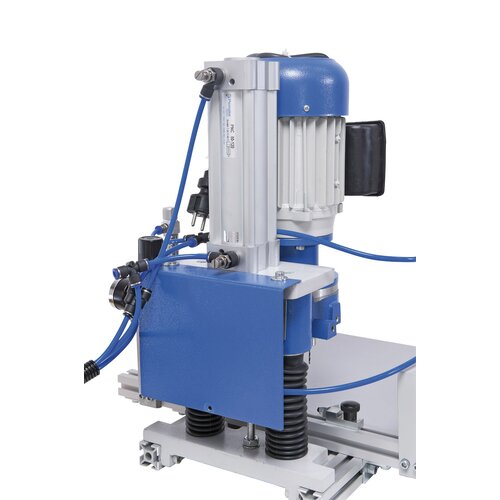

Manual hinge drilling machine Pneumatic hinge drilling machine BBM 35 M - Grass

Art. No.: 10-1015

Wishlist Comparison List

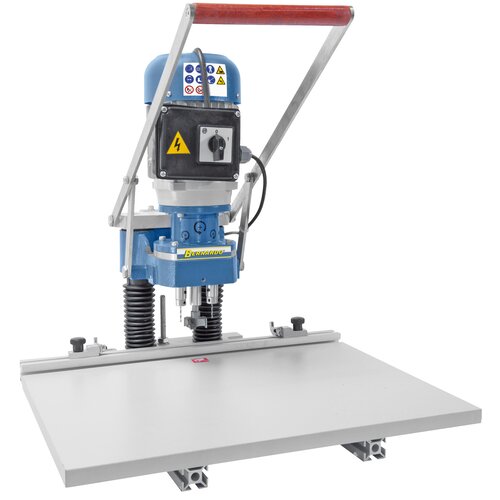

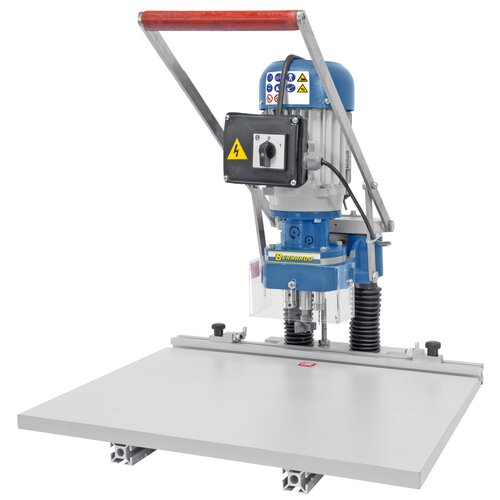

The BBM 35 M hinge drill is equipped with a manual drill feed. This model is suitable for the hinge systems of Blum or Grass, making this drill an ideal device for small businesses and craftsmen.

€888.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Comes complete with adjustable end stop depth of hole
Compact construction, suitable for transport between sites
Extremely user-friendly, no pressure required
Powerful motor (0.75 kW) designed for continuous operation
Excellent for drilling of hinges on furniture – Blum or Grass

Product Specifications

Drill diameter	35 mm
Quantity of spindles	3 pcs.
Control	manual
Workpiece clamping	manual
Distance table/spindle max.	85 mm
Distance table/drill max.	50 mm
Table size	500 x 350 mm
Table movable	105 mm
Fence length (incl. extension)	500 mm
Speed	3000 rpm
Motor power	0,75 kW
Voltage	230 V
Machine dimension (W x D x H)	500 x 500 x 520 mm
Weight approx.	19 kg
