Ergonomic carry handle allows for easy transport.
Protective saw blade cover in accordance with CE-standards closes automatically when lifting.
Suitable for straight and mitre cutting up to 45° left.

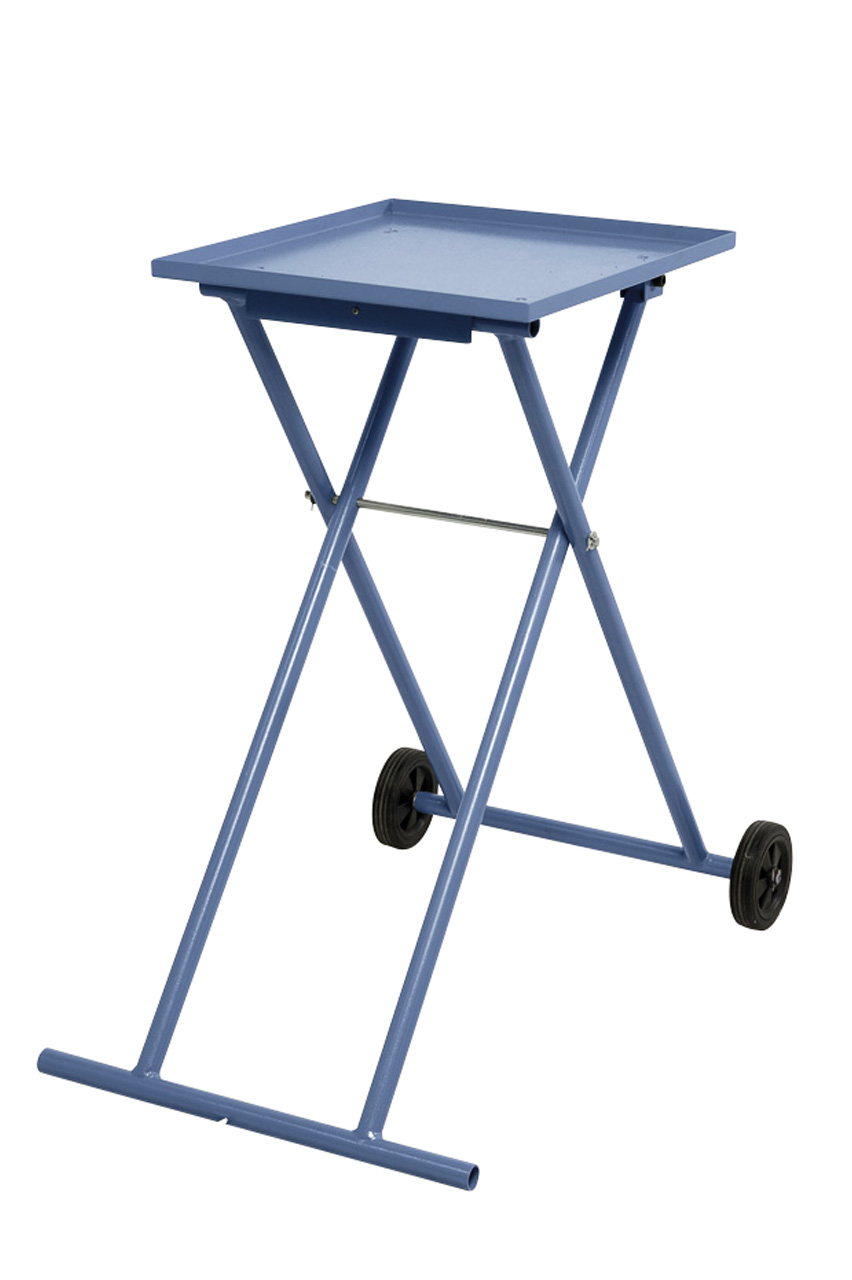

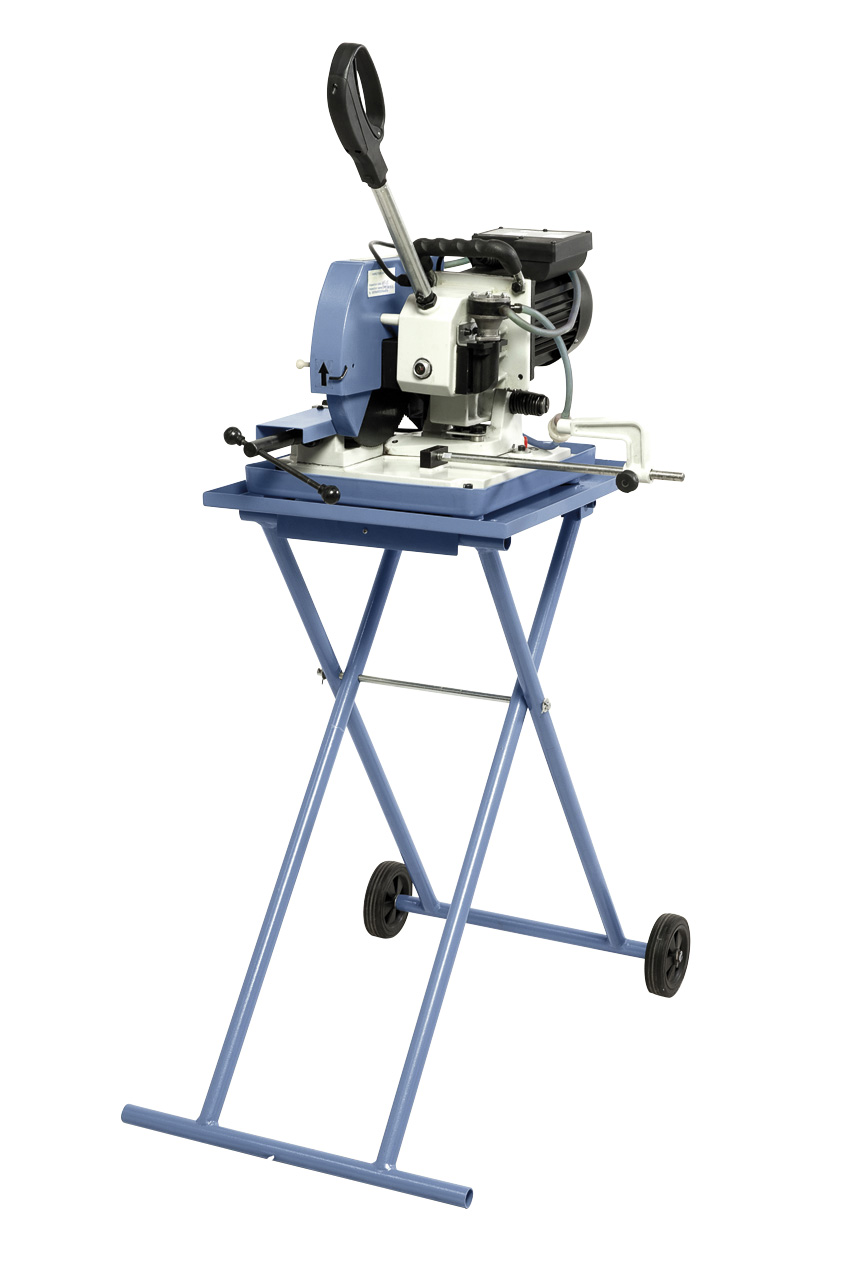

Picture with optionally available stand

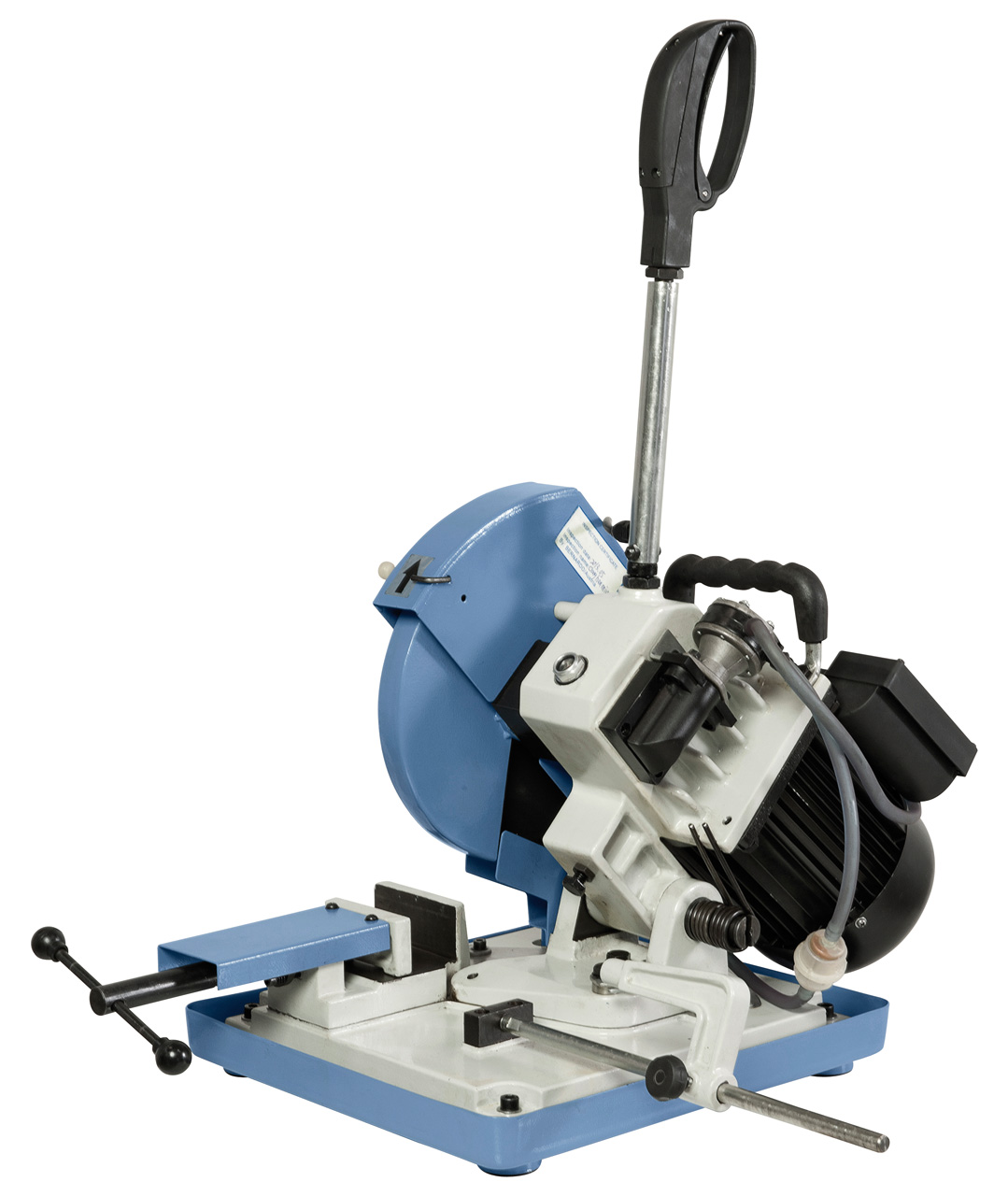

Manual assembling saw CS 225 / 230 V
Art.Nr.: 04-1839The CS 225 compact portable saw features a light-weight construction and practical size to make it ideal for the use at building sites and assembly works.
€816.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- Solid reduction gearbox running in oil bath
- Automatic coolant membrane pump comes complete with coolant filter
- Suitable for cutting of profiles, pipes and solid materials etc.
- Cast iron base features integrated coolant tank (approx. 1.5 l capacity)

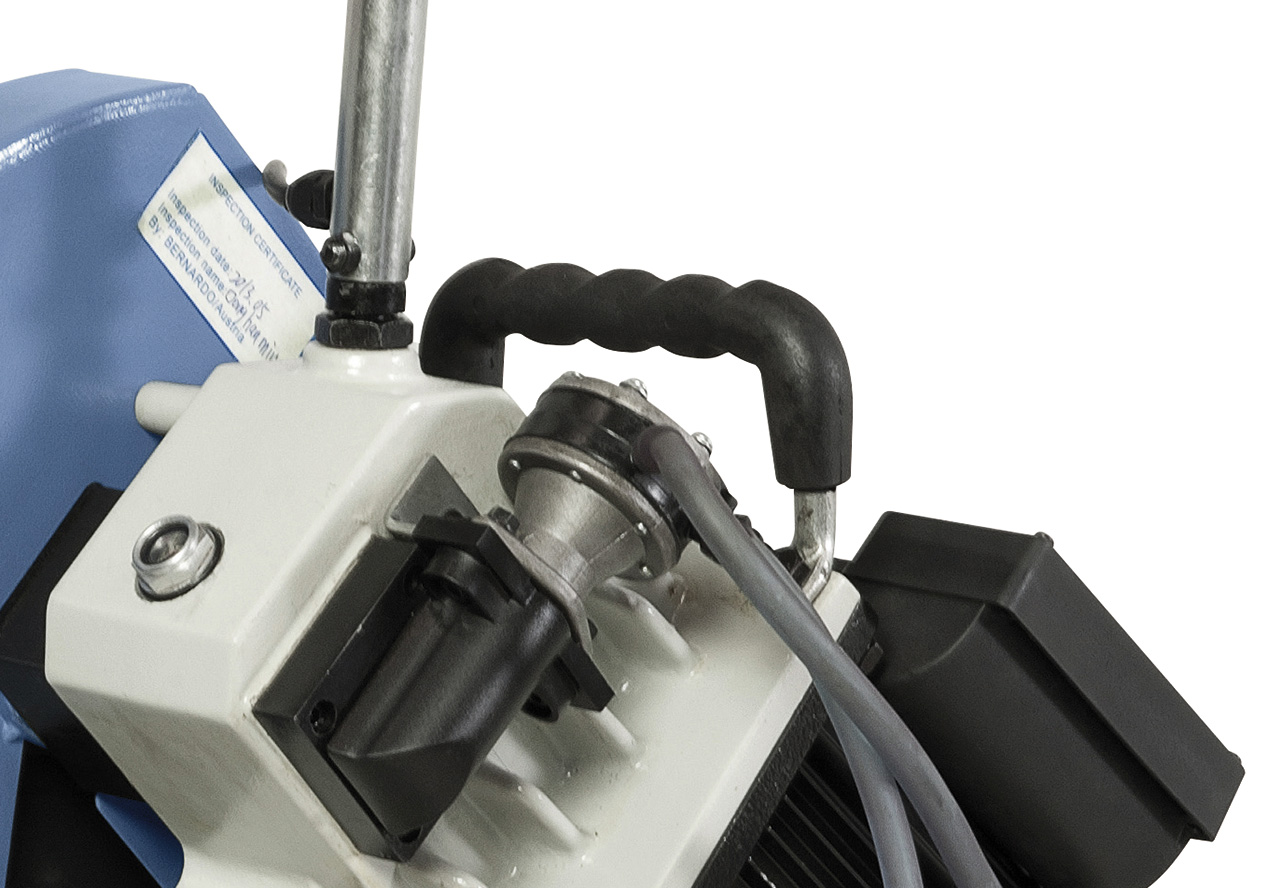

- Ergonomic control handle includes safety switch
- High-quality materials ensure smooth, vibration-free run
- Large range of applications guarantees optimal price-benefit ratio

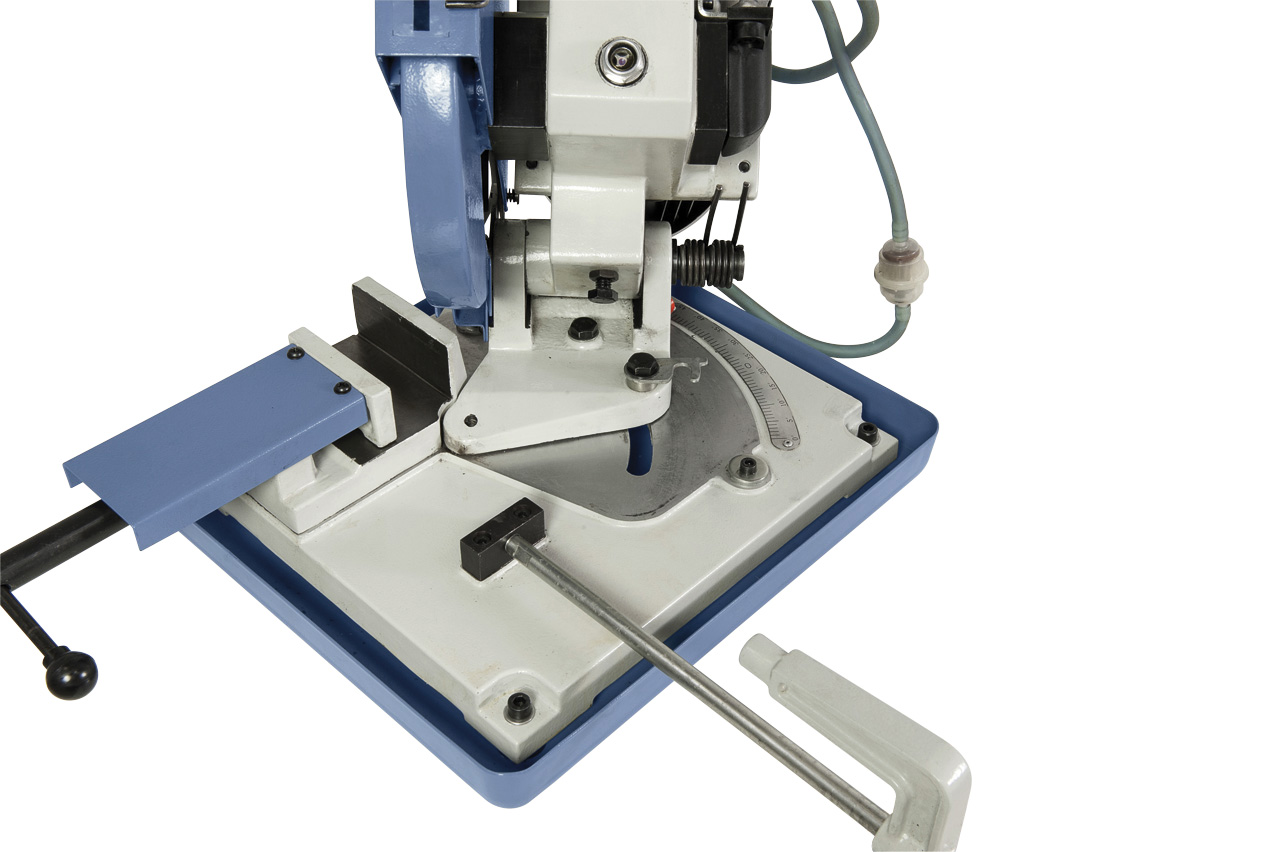

- Includes workpiece fence to increase efficiency
Product Specifications
|
Sawblade dimension |
225 x 32 mm |
|
Speed |
86 rpm |
|
Max. opening |
70 mm |
|
Coolant capacity approx. |
1,5 l |
|
Motor power output S1 100% |
1,1 kW |
|
Motor power input S6 40% |
1,5 kW |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
570 x 650 x 720 mm |
|
Weight approx. |
33 kg |
|
|
Full rivet material rectangular |
Full rivet material round |
|
|
90° |
40 × 40 mm |
45 mm |
|
|
45° left |
40 × 40 mm |
45 mm |
|
|
Pipe rectangular |
Pipe square |
Pipe round |
|
90° |
70 × 60 mm |
60 × 60 mm |
60 mm |
|
45° left |
70 × 55 mm |
55 × 55 mm |
60 mm |
Delivery Contents
- Sawblade HSS 225 x 2,0 x 32 mm, 150T
- Coolant device with filter
- Material fence
