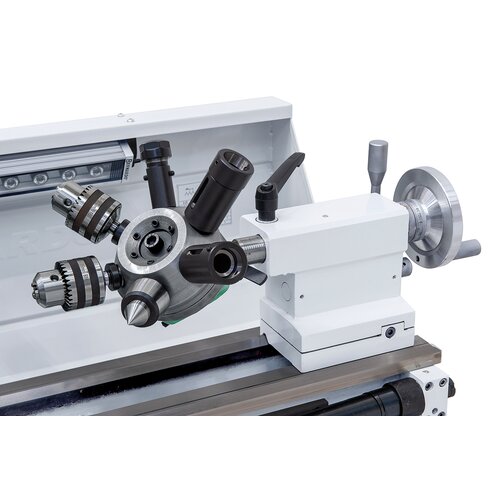

Machine can be equipped with revolving tailstock turret for economic operating

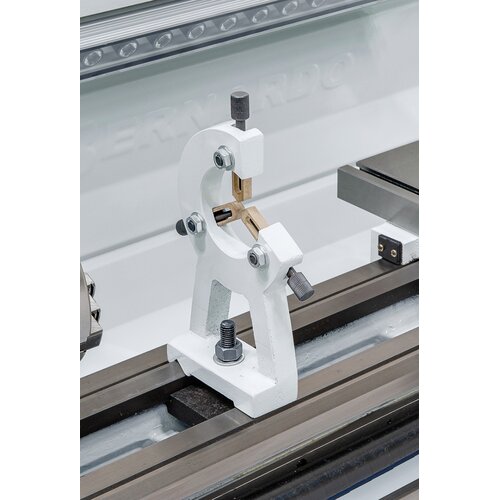

Steady rest with bronze guiding supports long workpieces.

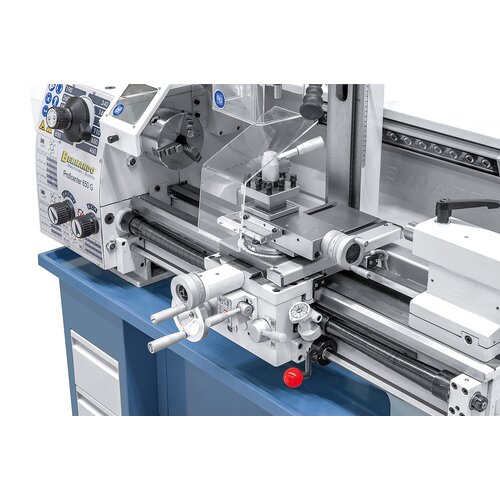

Smoothly-running apron with top support and 4-way tool post holder, handwheels with adjustable metric scale.

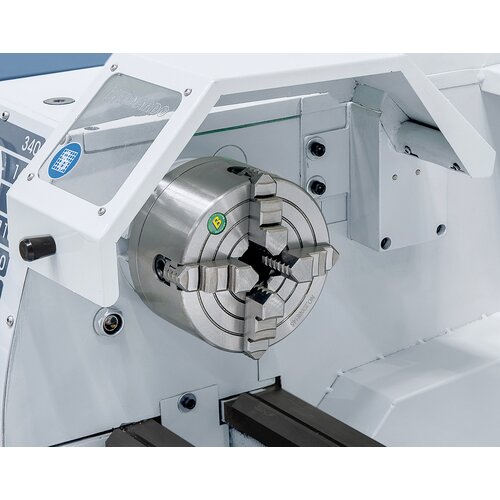

Independent chuck (optional accessory) allows clamping of irregular shaped workpieces.

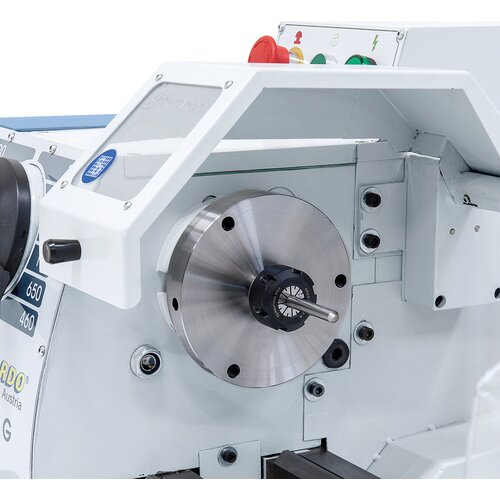

The collet chuck ER 25 guarantees high concentricity when clamping workpieces, clamping range 1 - 16 mm.

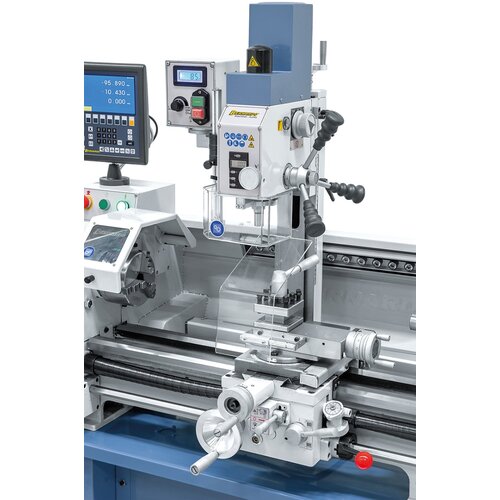

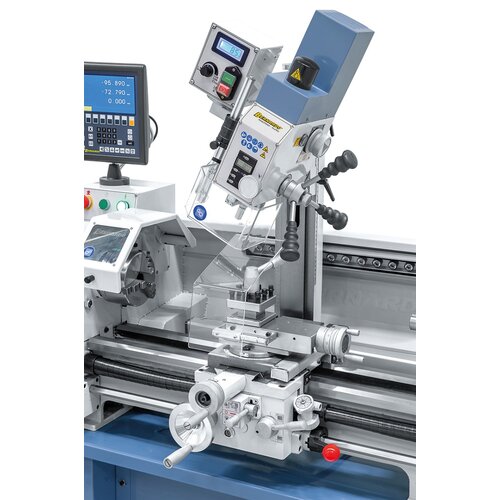

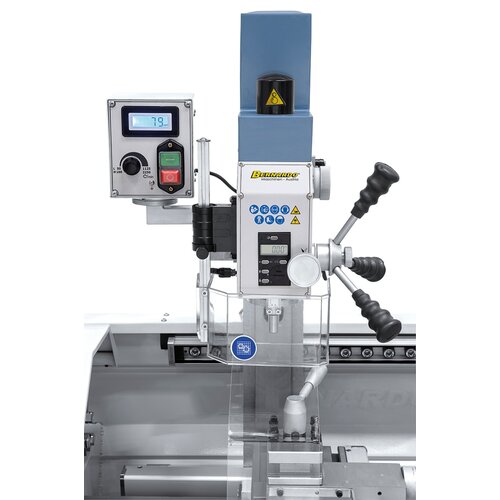

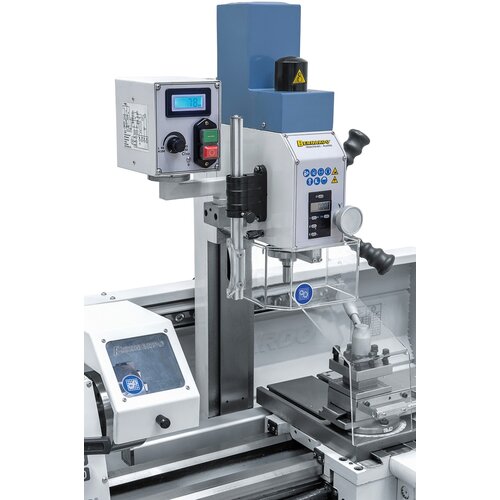

The tiltable mill head offers a variety of applications.

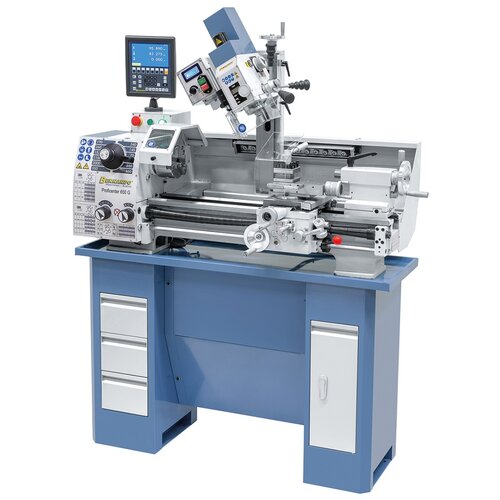

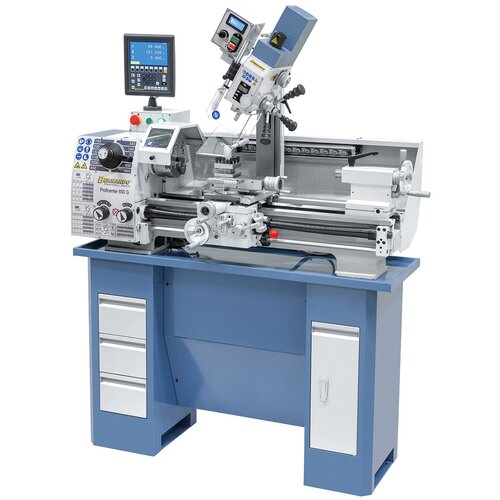

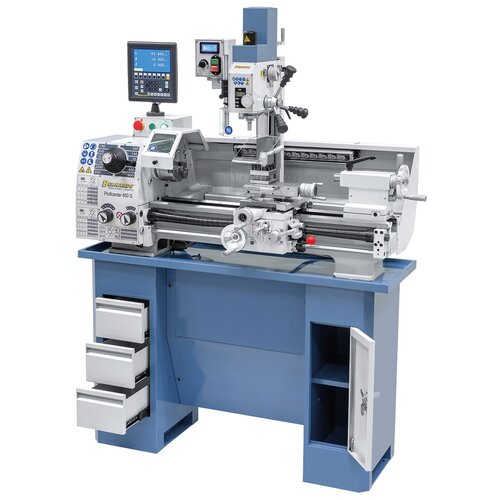

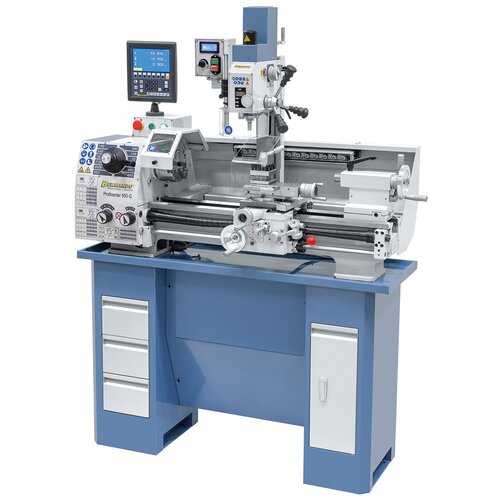

Machining centre Proficenter 650 G / 400 V incl. 2-axis digital readout ES-12 V

Art.Nr.: 03-1228

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The machining centre Proficenter 650 G is serially equipped with a leadscrew for thread cutting and the automatic longitudinal and cross feed. The 12-step control gear allow a quick adjustment of the speed – not belt change necessary. The machine is serially equipped with a Bernardo digital readout.

€4,788.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

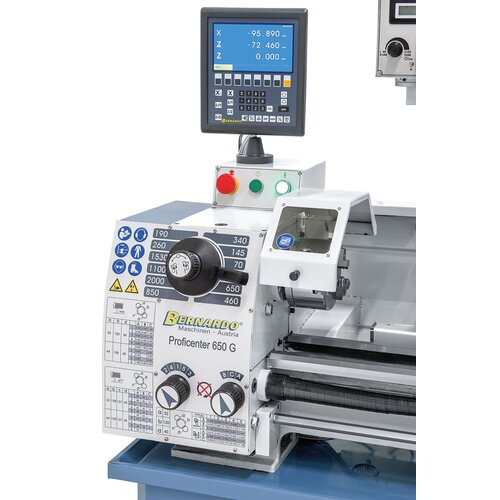

Control gear allows easy and quick speed change
High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,015 mm)
Powerful motor for high torque, speed range 70 – 2000 rpm
Wide range of applications: precision mechanics, training and education, etc.
Logically arranged feed setting allows easy, smooth adjustment

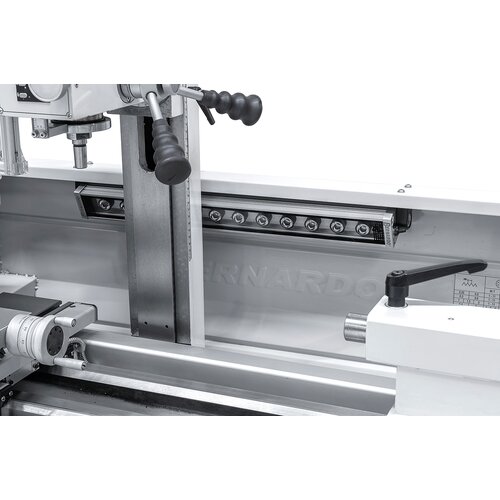

Solid machine bed with inductive hardened and polished guideways
Ideal for processing steel, non-ferrous metals and plastics
Comes complete with leadscrew for thread cutting and automatic longitudinal and cross feed

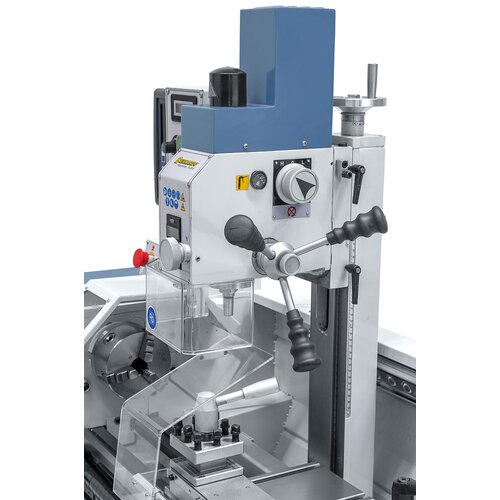

Mill head tilts to both sides allowing angular boring, milling of bevels etc.
Right and left milling spindle rotation comes standard
Handwheel allows fine spindle feed when milling

Product Specifications

Turning lathe
Distance between centers	650 mm
Center height	140 mm
Swing over bed	280 mm
Bed width	160 mm
Spindle bore	26 mm
Taper at spindle bore	MT 4
Speed range	(12) 70 - 2000 rpm
Longitudinal feed	(15) 0,036 - 0,364 mm/rev.
Cross feed	(15) 0,019 - 0,188 mm/rev.
Metric thread	(27) 0,25 - 5 mm
Inch thread	(20) 6 - 96 threads/1“
Travel of tailstock sleeve	105 mm
Taper of tailstock sleeve	MT 3
Motor power output S₁ 100%	0,75 kW / 400 V
Motor power input S₆ 40%	1,0 kW / 400 V
Milling attachment
Drilling capacity in steel	16 mm
Face mill capacity max.	50 mm
End mill capacity max.	16 mm
Distance spindle to column	150 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	195 mm
Motor power output S₁ 100%	0,50 kW / 230 V
Motor power input S₆ 40%	0,75 kW / 230 V

Machine dimension (W x D x H)*	1400 x 720 x 970 mm
Weight approx.	256 kg

* without stand

Delivery Contents

2-axis digital readout ES-12 V with LCD-display
3-jaw chuck 125 mm
Flange 125 mm
Drill chuck 1 – 13 mm / B 16
Drill chuck arbor MT 2 / B 16
Dead centers
Thread dial
LED machine light

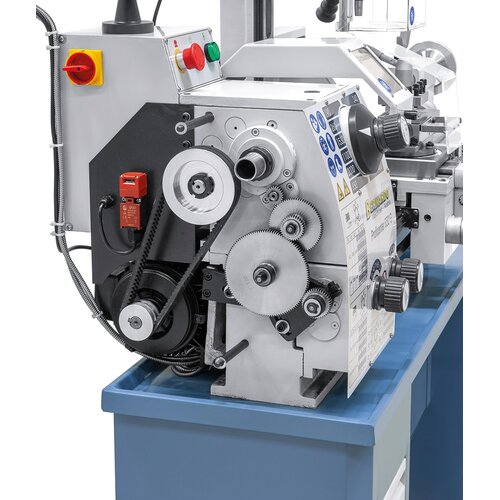

Change gears
4-way tool post holder
Cross slide with top support
Digital spindle stroke display
Digital speed display
Drawbar M 10
Chuck guard
Leadscrew cover
Splash guard
Tools
