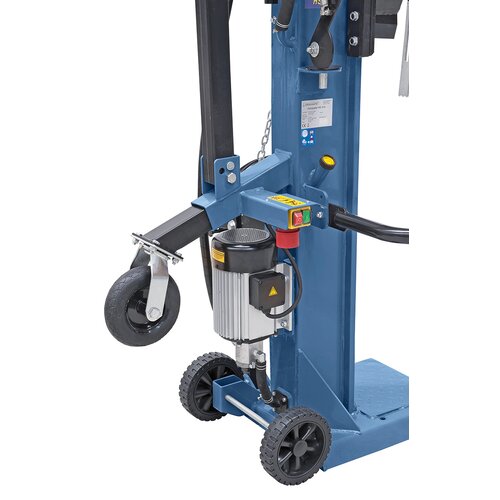

Powerful electro motor and high quality hydraulic pump.
Powerful electro motor and high quality hydraulic pump.

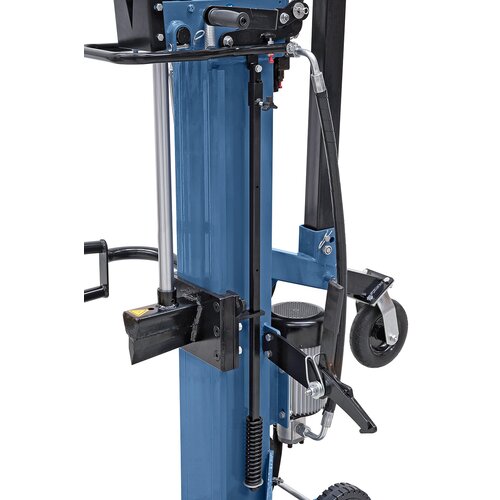

Large splitting wedge features solid, durable plastic guide.
Large splitting wedge features solid, durable plastic guide.

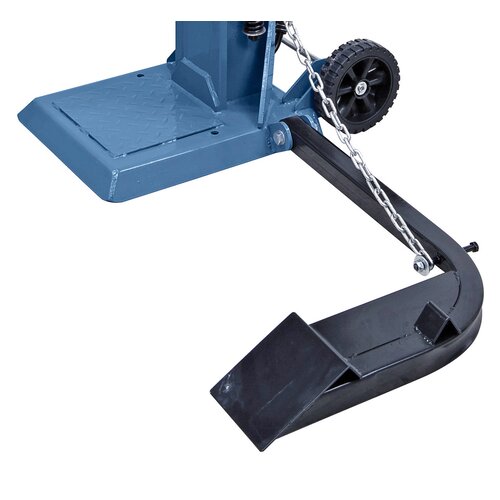

For raising of heavy logs complete with mechanic log lifter.
For raising of heavy logs complete with mechanic log lifter.
Powerful electro motor and high quality hydraulic pump.
Large splitting wedge features solid, durable plastic guide.
For raising of heavy logs complete with mechanic log lifter.

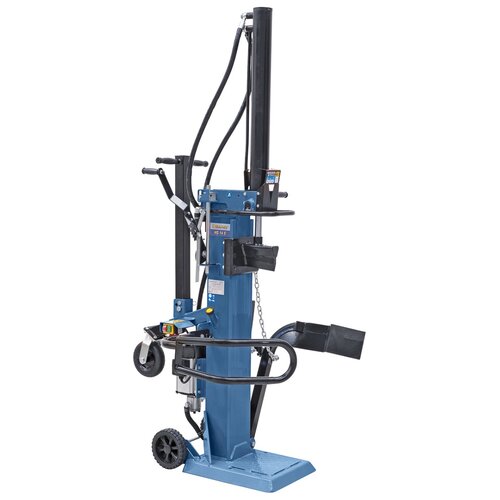

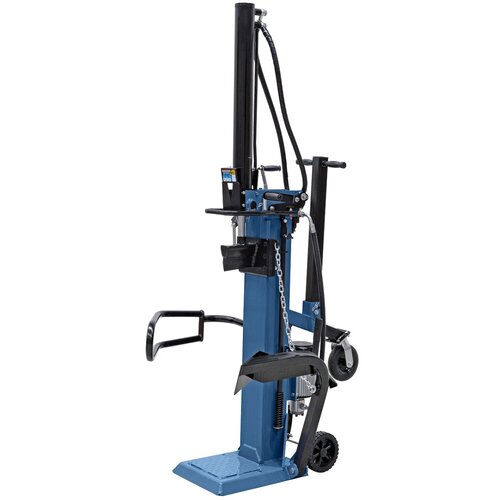

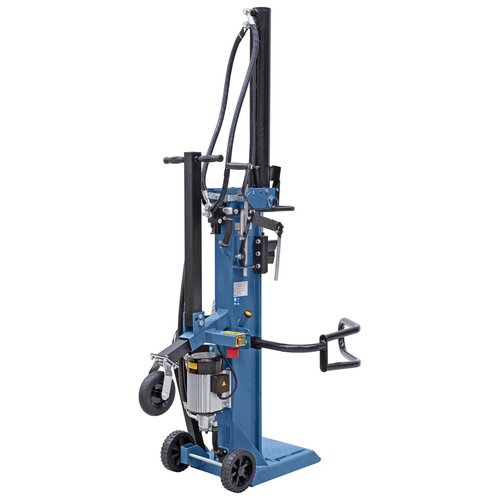

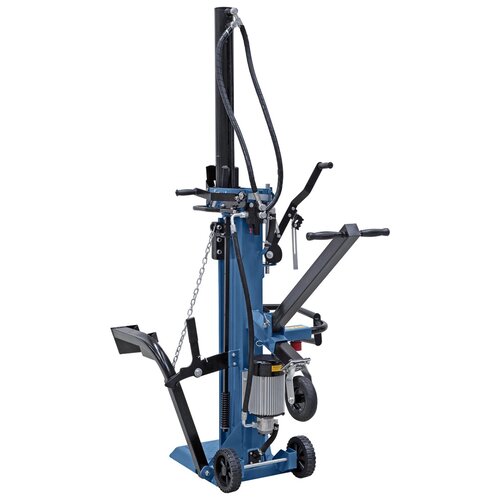

Log splitter HS 14 E *

Art. No.: 14-1207
Wishlist Comparison List

The HS 14 E log splitter features innovative technology, such as two-handed safety operation, fast cutting speed for high work efficiency, stepless adjustable splitting stroke as well as a log lifter as part of the standard accessories.

€1,074.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
  • Allows for cutting of short and long logs up to 1100 mm
  • High quality powder coating ensures scratch proof surface
  • Large splitting wedge features solid, durable plastic guide
  • Stepless adjustable cutting stroke allows for less time consumption
  • Low base plate with bevelled edge enables more convenient loading of large logs
  • Lowerable cylinder reduces space requirements and simplifies transport
  • Powerful hydraulic unit features high quality pressure hoses

Product Specifications

Max. capacity 14 to
Log length  560 – 1040 mm
Log diameter 100 – 300 mm
Ram travel max. 850 mm
Forward speed 21,8 cm/sec
Working speed 4,2 cm/sec
Return speed  5,2 cm/sec
Hydraulic pressure  24,6 Mpa
Hydraulic tank  7,5 l
Drive E-Motor
Motor power S6 40%  3,5 kW / 400 V
Machine dimension (L x W x H)  1200 x 1500 x 2300 mm
Weight approx. 185 kg

Delivery Contents

  • Two-handed safety operation
  • Log lifter
  • Switch-plug-combination
  • Oil filling
  • Carriage
  • Splitting wedge
