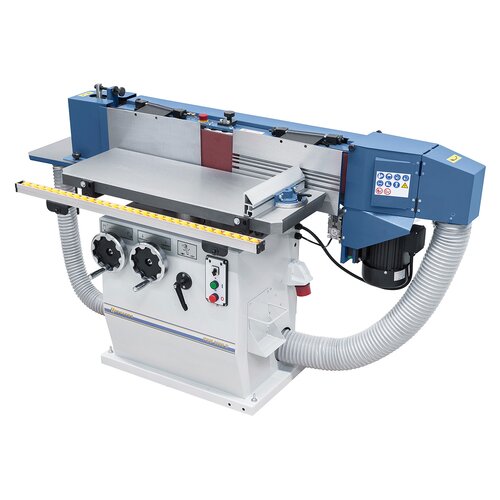

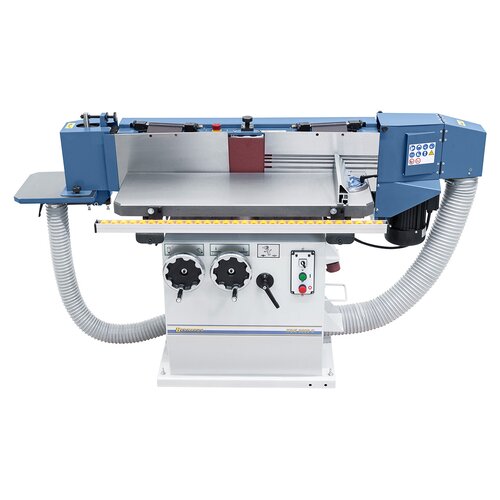

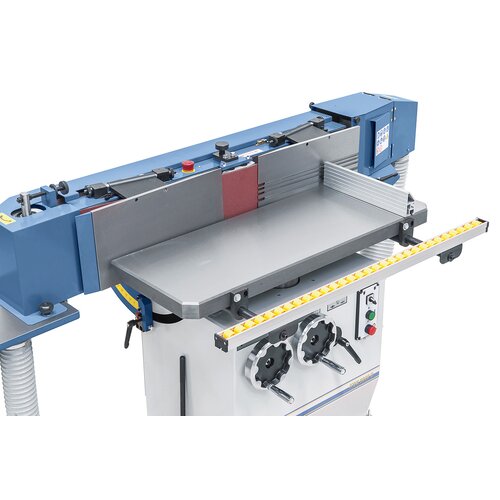

Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)

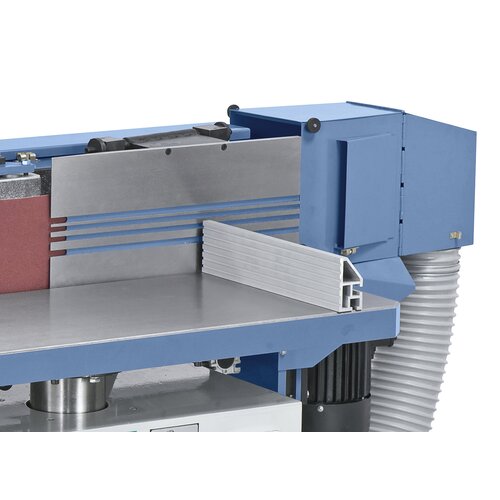

Grooved infeed ruler for excess veneer parts.
Grooved infeed ruler for excess veneer parts.

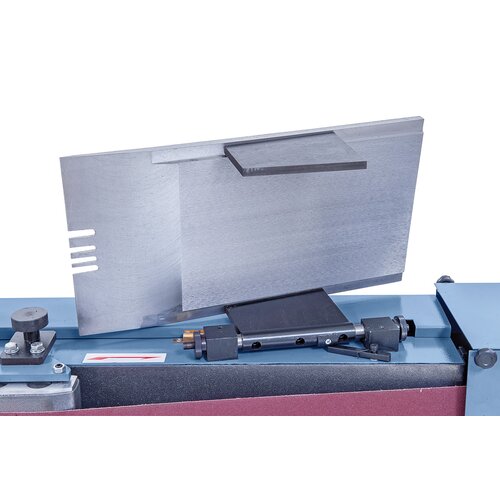

Sanding fence with fine adjustment and automatic locking mechanism.
Sanding fence with fine adjustment and automatic locking mechanism.

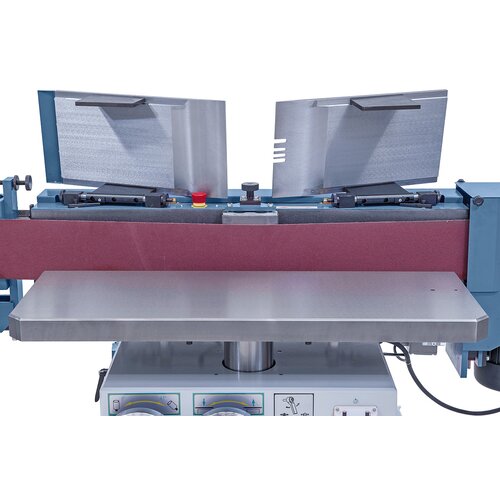

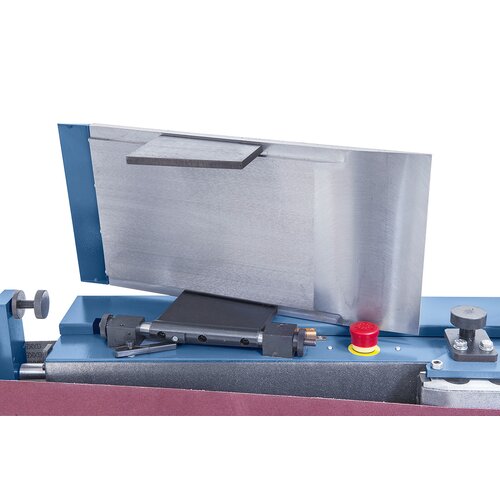

Quick folding up of sanding fences for sanding solid timber.
Quick folding up of sanding fences for sanding solid timber.

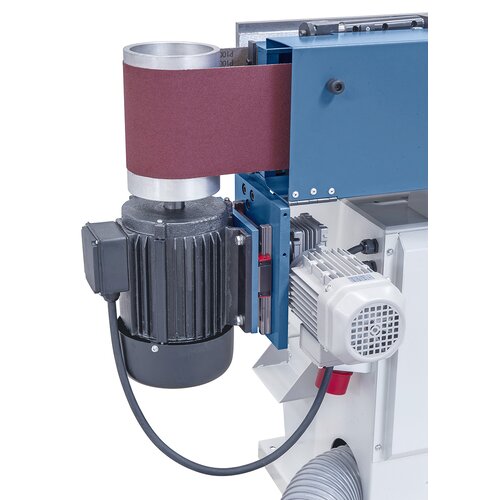

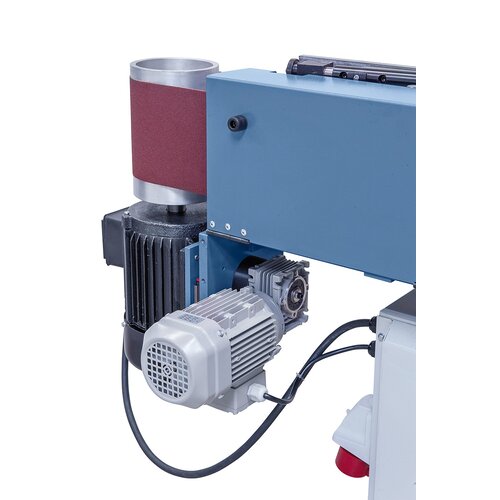

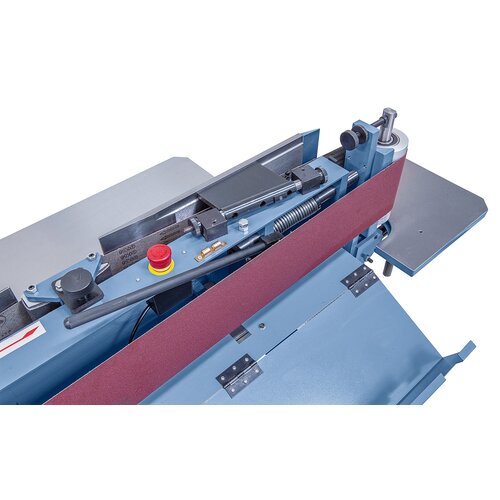

Sanding belt oscilliation with independent motor.
Sanding belt oscilliation with independent motor.
Oscillation stroke done by high-quality linear guide.
Oscillation stroke done by high-quality linear guide.

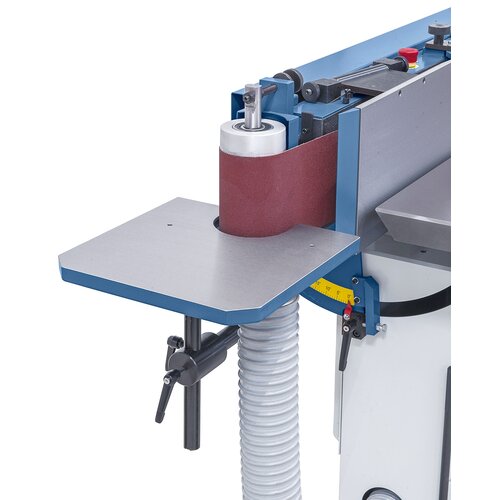

Height adjustable support table with extraction unit allows for sanding of contours at the reverse roller.
Height adjustable support table with extraction unit allows for sanding of contours at the reverse roller.

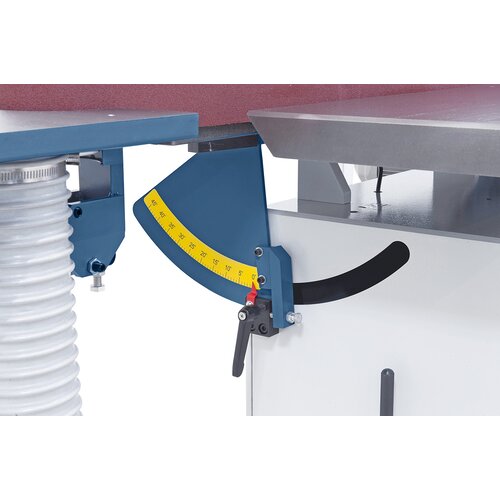

Tiltable sanding unit (90º to 45º) with adjustable end stop at 90º.
Tiltable sanding unit (90º to 45º) with adjustable end stop at 90º.

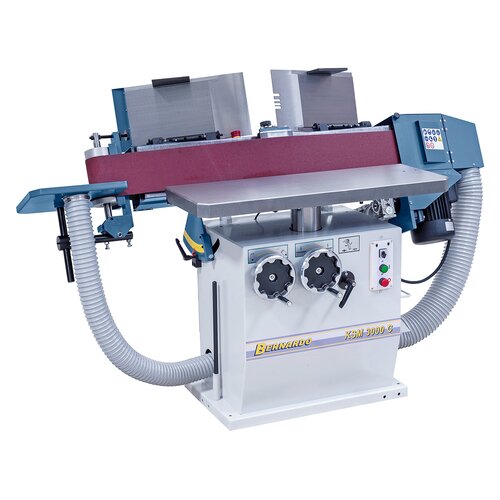

KSM 3000 C with tilted sanding unit and folded up veneer sanding fences.
KSM 3000 C with tilted sanding unit and folded up veneer sanding fences.
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Grooved infeed ruler for excess veneer parts.
Sanding fence with fine adjustment and automatic locking mechanism.
Quick folding up of sanding fences for sanding solid timber.
Sanding belt oscilliation with independent motor.
Oscillation stroke done by high-quality linear guide.
Height adjustable support table with extraction unit allows for sanding of contours at the reverse roller.
Tiltable sanding unit (90º to 45º) with adjustable end stop at 90º.
KSM 3000 C with tilted sanding unit and folded up veneer sanding fences.

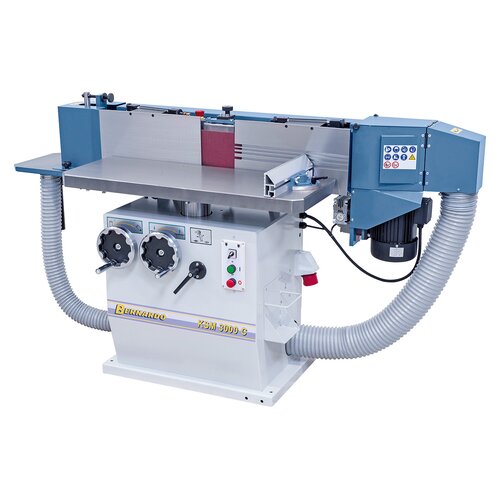

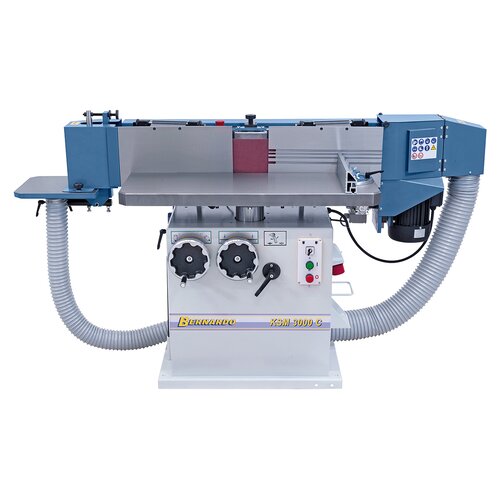

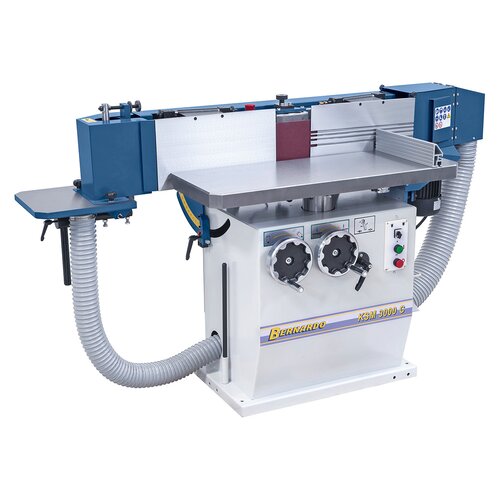

KSM 3000 C with veneer sanding device *

Art.Nr.: 11-4206
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KSM 3000 C solid edge sanding machine is equipped with a veneer sanding device, allowing for immediate conversion from veneer to solid timber. Most often this machine is used by experienced amateurs and industrial businesses.

€3,024.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • Heavy machine stand in torsion- and vibration-free construction, extremely solid
  • Grooved infeed ruler, optimal for sanding of excess veneer
  • Dust port 80 / 100 mm on both sides for optimal chip removal
  • Oscillating sanding belt guarantees sufficient removal and even results
  • Maintenance-free sanding belt oscilliation with seperate drive motor can be switched on
  • Height adjustable sanding table allows usage of entire sanding belt
  • Comes with veneer sanding device with fine adjustment
  • Quick conversion from veneer to solid timber sanding

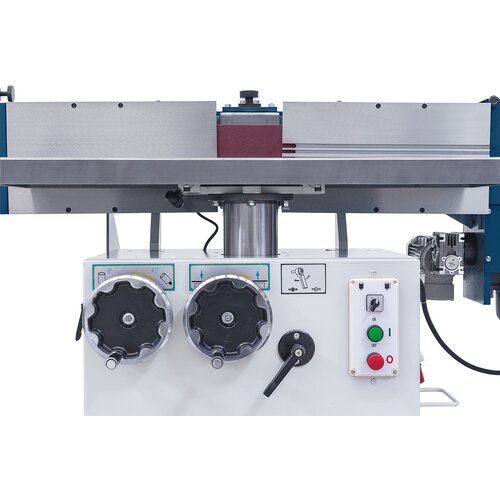

  • Handwheels allow for height adjustment of work table and tilting of sanding unit
  • Spring balanced belt tension ensures automatic adjustment of differences in sanding belt lengths
  • Height adjustable support table for sanding of a radius features dust extraction

Product Specifications

Work table

960 x 350 mm

Table height adjustment

210 mm

Belt length

3000 mm

Belt width

150 mm

Sanding table

1060 x 200 mm

Sanding unit tiltable

90° - 45°

Belt speed

20 m/sec.

Supporting table

330 x 330 mm

Oscillation stroke

20 mm

Oscillation motor

0,25 kW (0,34 HP)

Dust extraction outlet

120 mm

Motor power output S1 100%

3,0 kW (4,0 HP)

Motor power input S6 40%

4,5 kW (6,0 HP)

Machine dimension (W x D x H)

1910 x 840 x 1020 mm

Weight approx.

330 kg

Delivery Contents

  • Sanding belt 3000 x 150 mm - grit 100
  • Sanding belt oscillation
  • Veneer sanding device
  • Support table
  • Graphite coating
  • Mitre fence
  • Sanding pad
  • Tube
