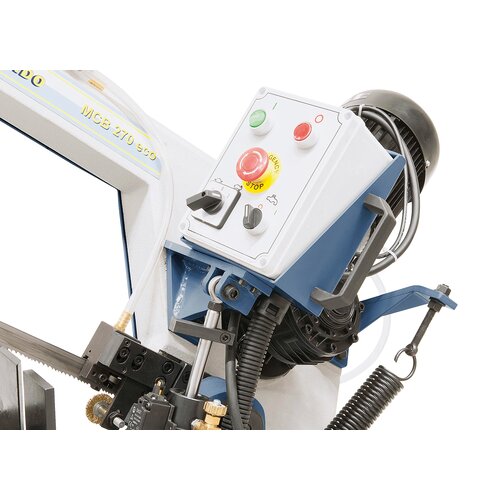

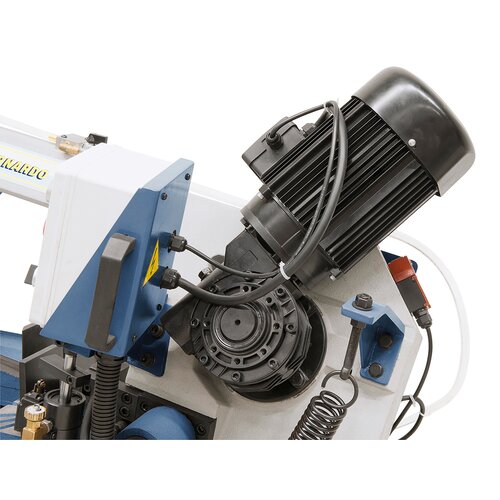

Powerful cast iron motor according to IP 54.
Powerful cast iron motor according to IP 54.

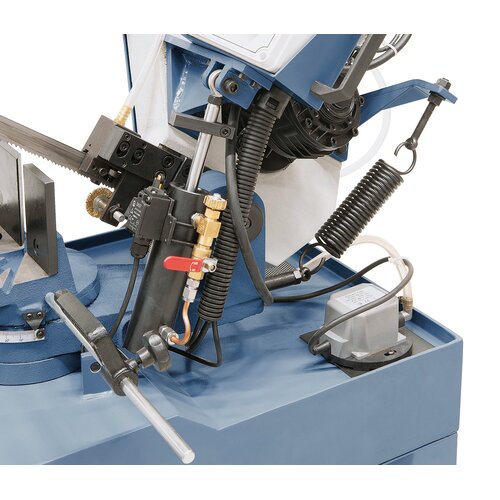

Hydraulic cylinder for stepless lowering of the saw frame.
Hydraulic cylinder for stepless lowering of the saw frame.

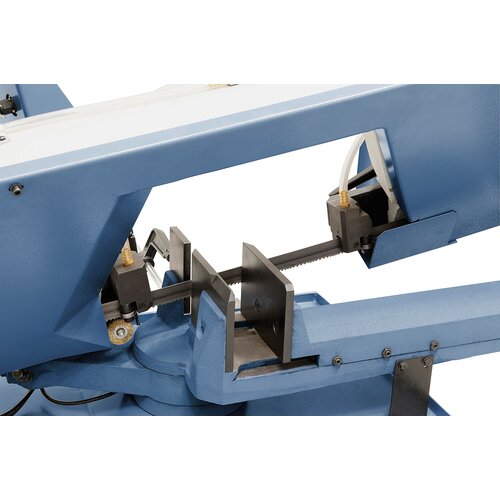

Bandsaw blade guides feature ball bearings for precise results
Bandsaw blade guides feature ball bearings for precise results

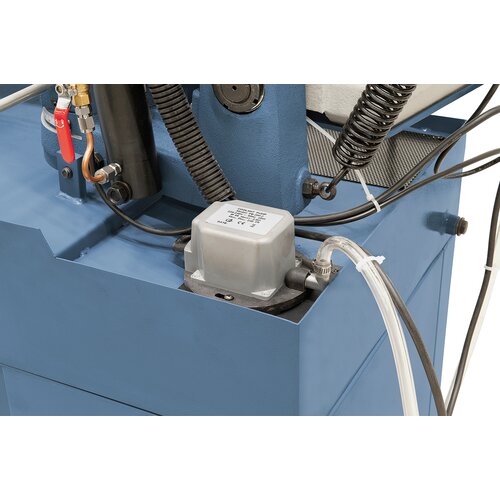

Coolant device comes standard.
Coolant device comes standard.

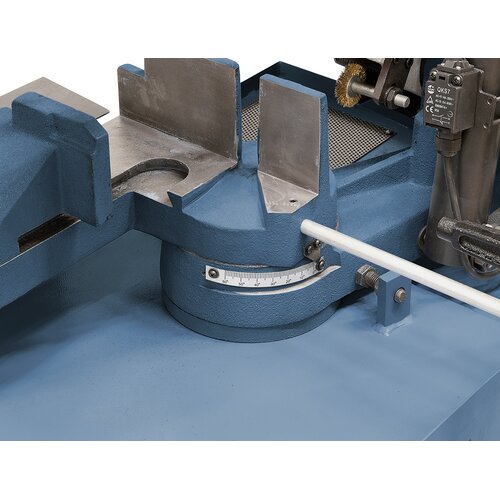

Tilting saw arm for mitre cuts up to 60º.
Tilting saw arm for mitre cuts up to 60º.

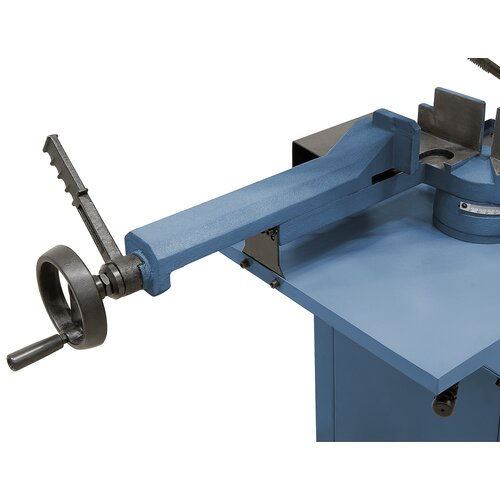

The large cast iron vice comes with quickadjustment - optimal for serial section.
The large cast iron vice comes with quickadjustment - optimal for serial section.
Powerful cast iron motor according to IP 54.
Hydraulic cylinder for stepless lowering of the saw frame.
Bandsaw blade guides feature ball bearings for precise results
Coolant device comes standard.
Tilting saw arm for mitre cuts up to 60º.
The large cast iron vice comes with quickadjustment - optimal for serial section.

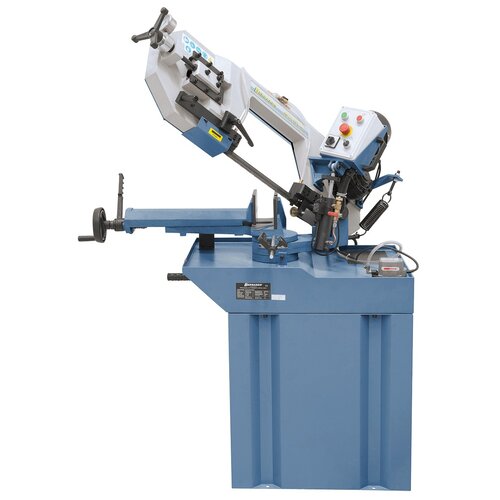

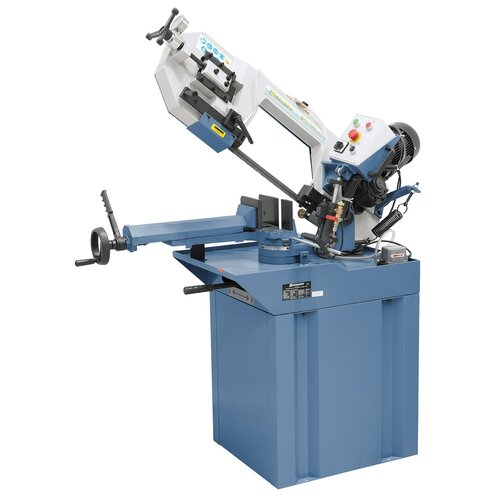

Horizontal bandsaw MCB 270 eco / 400 V

Art.Nr.: 04-1164
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MCB 270 eco model is a precise horizontal bandsaw for universal use. Major attributes of this machine include the hydraulic cylinder for sensitive lowering of the saw frame and the integrated coolant device.

€2,460.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • For mitre cutting the saw frame tilts up to 60°
  • Torsion-free, strong cast iron saw frame
  • 2 speed settings for optimal cutting results
  • Robust cast iron vice with quick adjustment
  • Automatic shut-down at cutting end
  • Robust construction, thereby smooth and vibration-free running
  • Stepless lowering of saw frame by hydraulic cylinder

Product Specifications

Cutting capacity round 90°

225 mm

Cutting capacity square 90°

180 x 180 mm

Cutting capacity flat 90°

265 x 120 mm

Cutting capacity round 45°

160 mm

Cutting capacity square 45°

160 x 160 mm

Cutting capacity round 60°

100 mm

Cutting capacity square 60°

100 x 100 mm

Working height

920 mm

Bandsaw blade dimension

2450 x 27 x 0,9 mm

Cutting speeds

37,5 / 75 m/min

Coolant pump

45 W

Motor power output S1 100%

1,1 / 1,5 kW

Motor power input S6 40%

1,5 / 2,2 kW

Voltage

400 V

Machine dimension (L x D x H)

1200 x 710 x 1490 mm

Weight approx.

219 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Stand

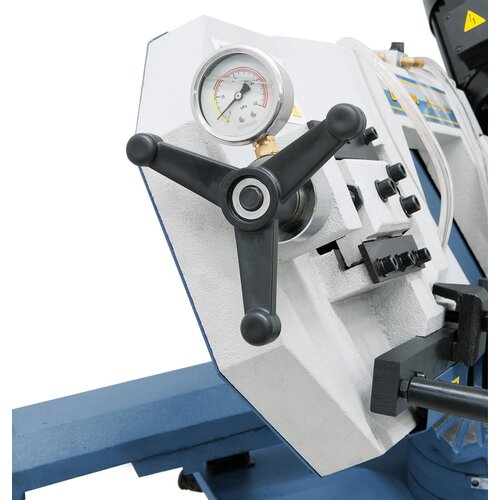

  • Manometer for blade tension
  • Vice with quick adjustment
  • Coolant device
  • Hydraulic cylinder
  • Motor with thermal protection
  • Automatic shut-down

Suitable accessories

Roller table RB 2000 A with fence
Roller table RB 2000 A with fence
Art.Nr. : 07-1510

€910.80

incl. 20% VAT

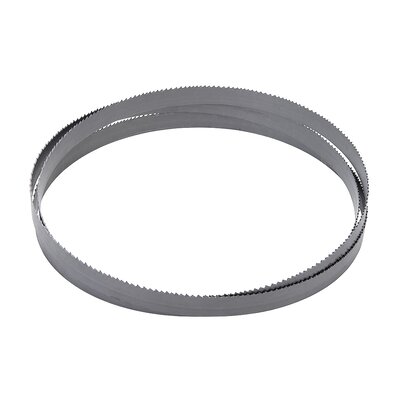

Saw band BiFlex 2450 x 27 x 0,9 - Vario 6/10 TPI
