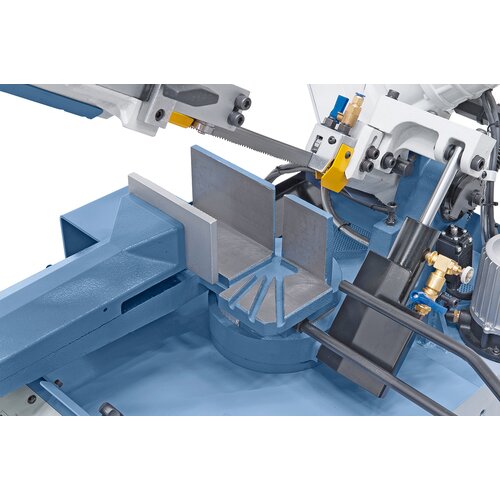

Large vice with quick clamping lever, ideal for serial section.

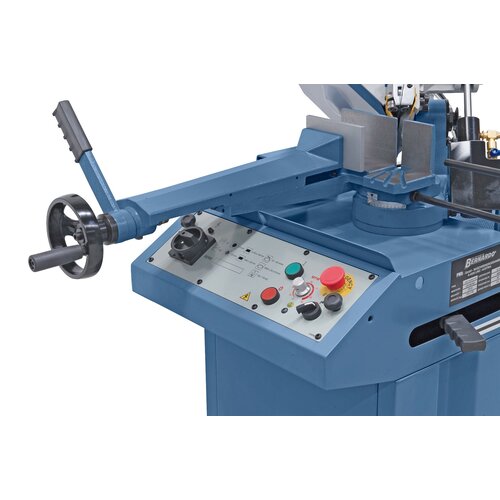

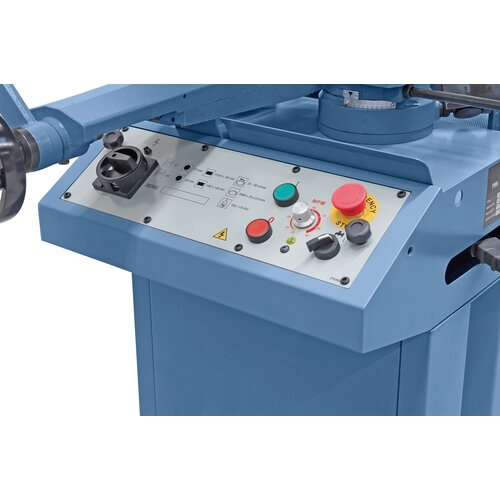

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

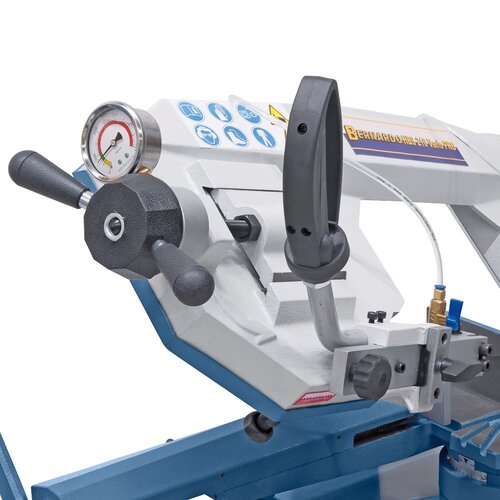

Optimal adjustment of the blade tension via a manometer.

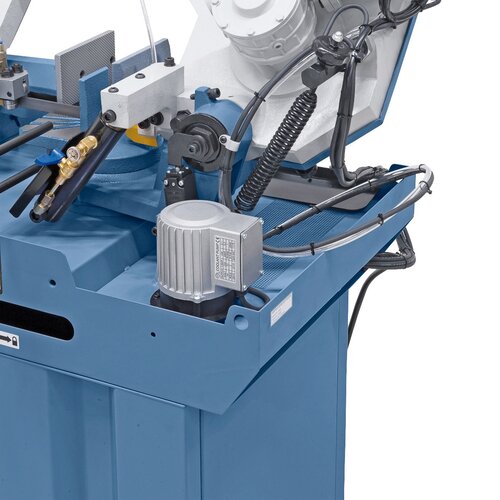

Powerful coolant pump included as a standard accessory.

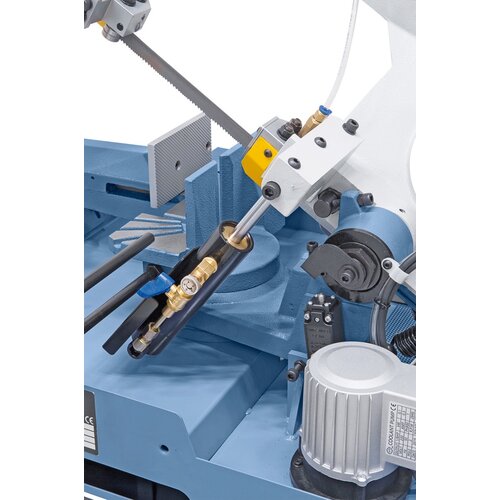

Hydraulic cylinder for stepless lowering of the saw frame.

Tilting saw arm for mitre cuts up to 45º.

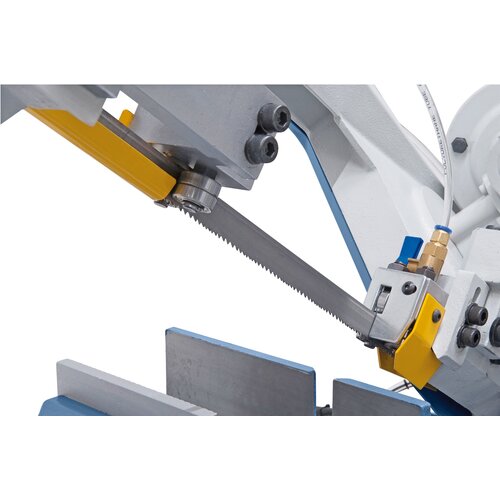

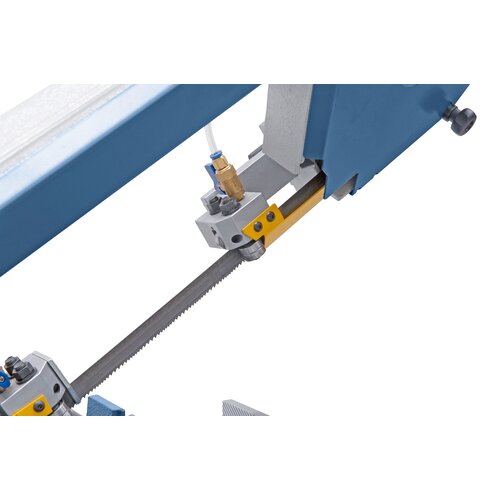

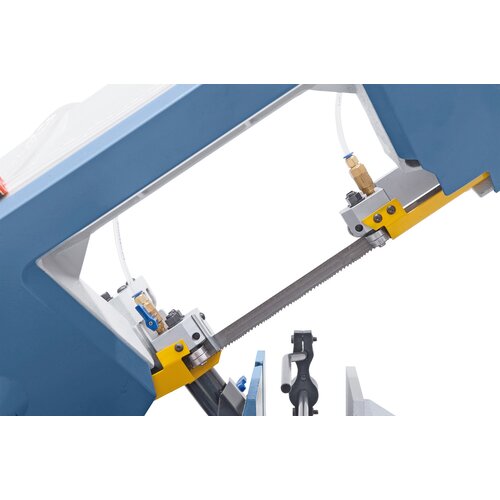

Bandsaw blade guides feature ball bearings for precise results

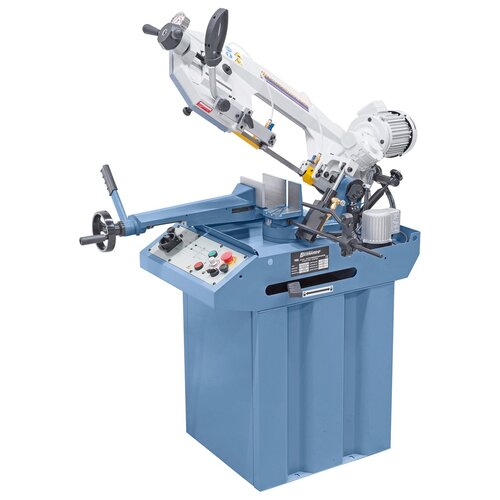

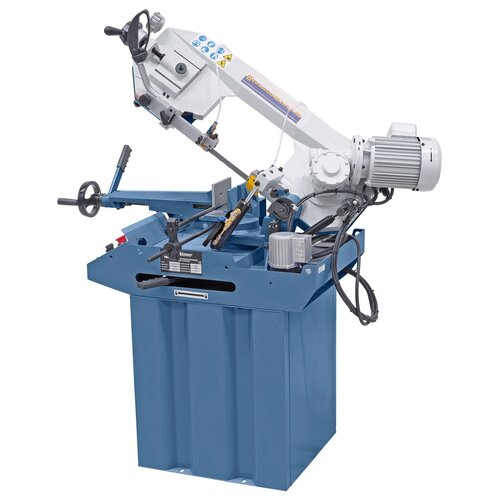

Horizontal bandsaw HBS 210 Vario PRO / 400 V

Art.Nr.: 04-1694A

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HBS 210 Vario PRO is fully equipped with variable cutting speed, allowing ideal adjustment to various materials. The application area is predominantly targeted at the professional user.

€2,868.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Optimal adjustment of the blade tension via a manometer
Stepless adjustable lowering via hydraulic cylinder with adjustable valve
Robust cast iron vice with quick adjustment and material fence
Stepless cutting speed for optimal adjustment to the workpiece
For cutting of hollow profile and full rivet material, stainless steel, tool steel, ...
Bandsaw blade guiding features double ball bearings for optimal blade run
Stable saw frame, thereby smooth and vibration-free run
Automatic shut-down at cutting end

Product Specifications

Cutting capacity round / square 90°	170 mm / 150 x 150 mm
Cutting capacity flat 90°	150 x 190 mm
Cutting capacity round / square 45°	125 mm / 95 x 95 mm
Cutting capacity flat 45°	95 x 120 mm
Working height	870 mm
Bandsaw blade dimension	2080 x 20 x 0,9 mm
Cutting speed, stepless	20 - 90 m/min
Coolant pump	100 W
Motor power output S₁ 100%	0,75 kW
Voltage	400 V
Machine dimension (L x D x H)	1120 x 810 x 1310 mm
Weight approx.	145 kg
