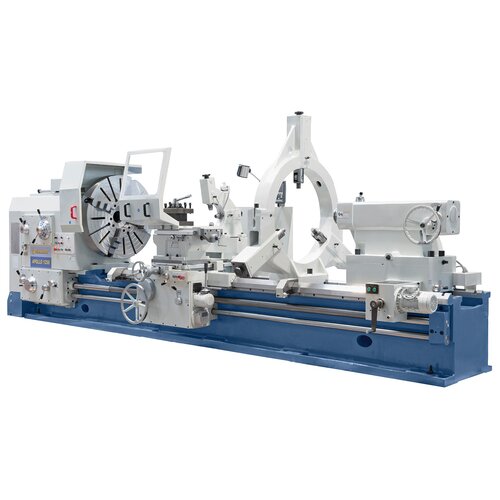

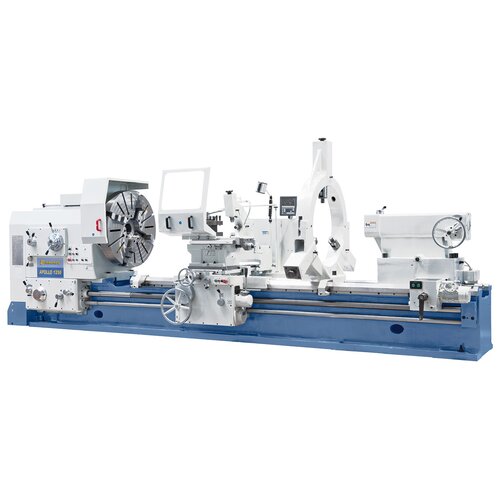

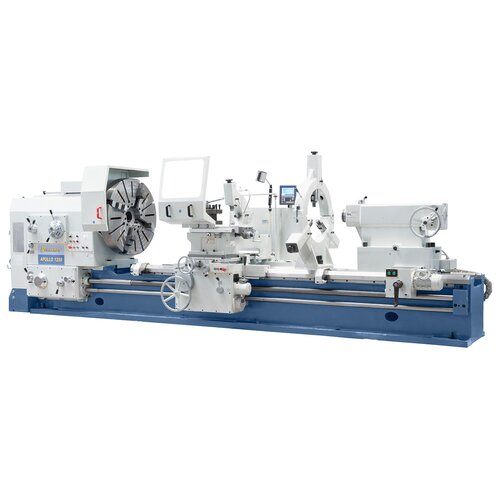

Picture show APOLLO 1250 x 3000 with optional steady rest

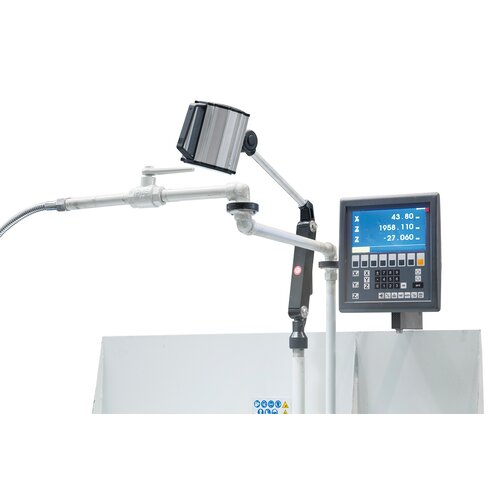

The digital display results in a significant productivity increase of up to 50 %.

The hardened main spindle with 130 mm spindle bore is bedded on tapered roller bearings and radial roller bearing.

Optional: Steady rest 500 - 1100 mm

Motorized adjustable tailstock.

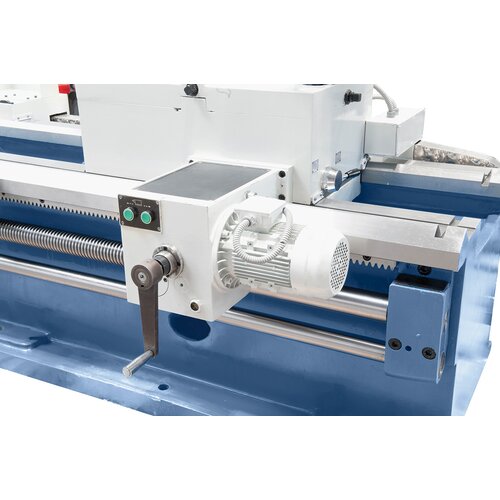

Complete with rapid feed to reduce downtime enormously.

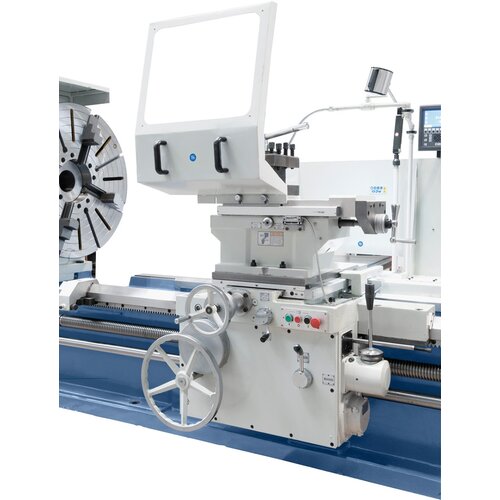

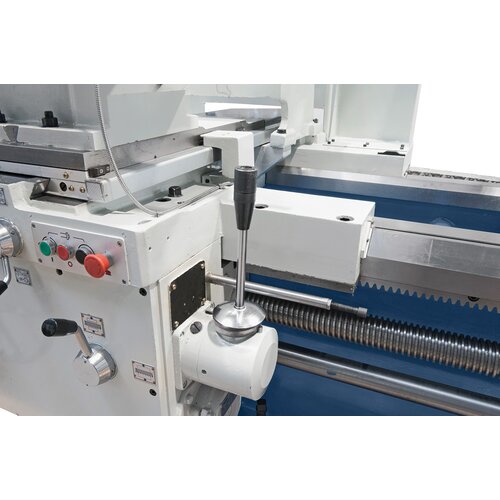

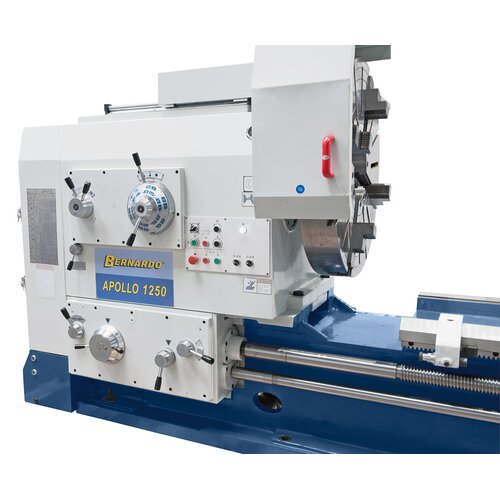

Ergonomically arranged control elements on gear head - hardened and polished gears allow for smooth run.

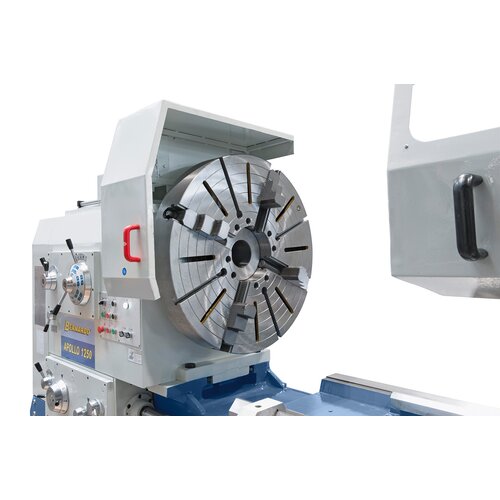

Optional available: 3-jaw chuck Ø 630 mm with mounting plate

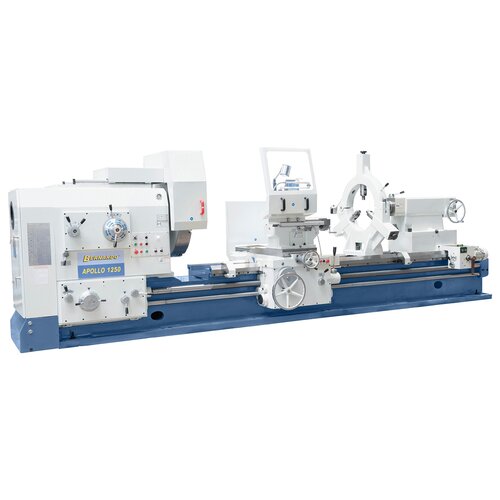

Picture show APOLLO 1250 x 3000 with optional steady rest

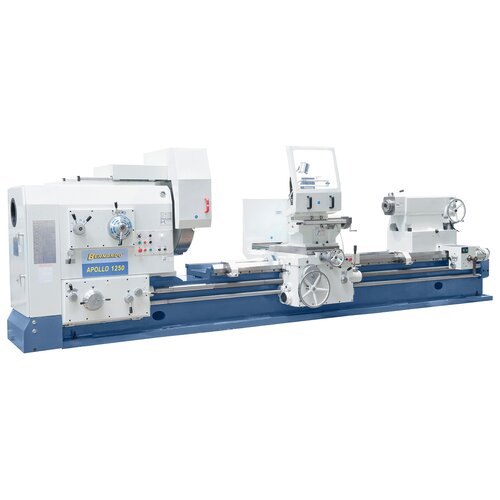

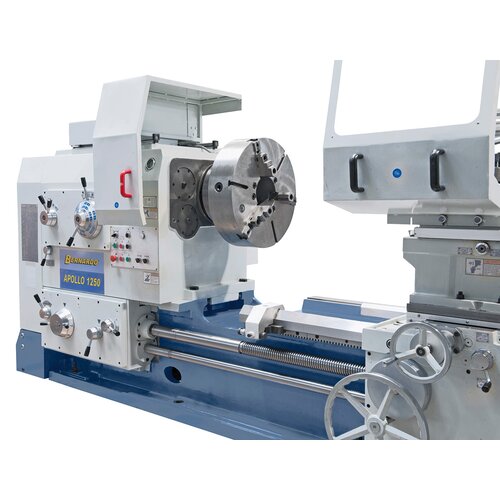

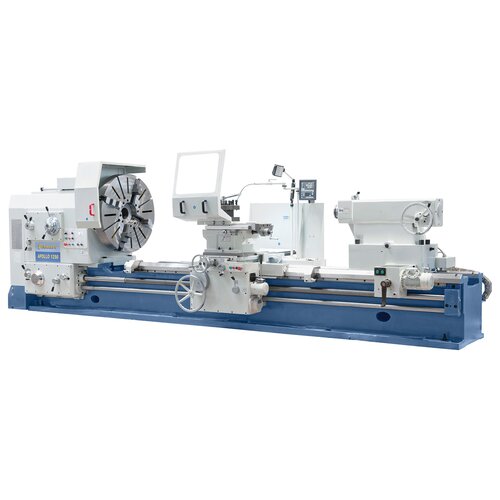

Picture show APOLLO 1250 x 3000

Picture show APOLLO 1250 x 3000 with optional steady rest

Picture show APOLLO 1250 x 3000

Heavy lathe Apollo 1600 x 5000 incl. 3-axis-digital readout **

Art.Nr.: 03-1383XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

Price on request

Request product now

Out of Stock

Machine bed features strong reinforcements to minimize oscillations and to stabilize bed guiding

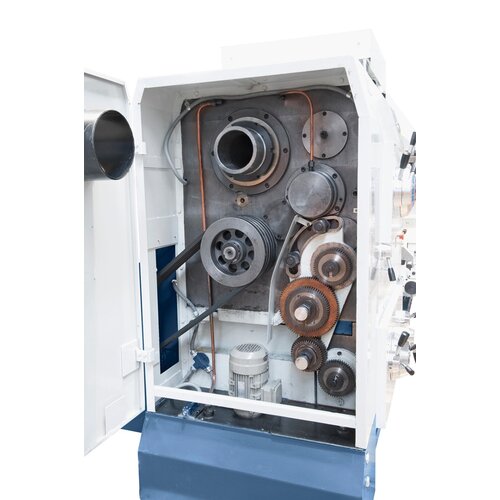

The transmission of the rotary motion (forwards / backwards) takes place via a drive shaft with hydraulic clutch
Large gear wheels, hardened and polished
The closed gearbox allows a large number of feeds and pitches
Large speed range with 33 speeds for machining a wide variety of workpieces
Mechanic coupling allows soft start of the main spindle

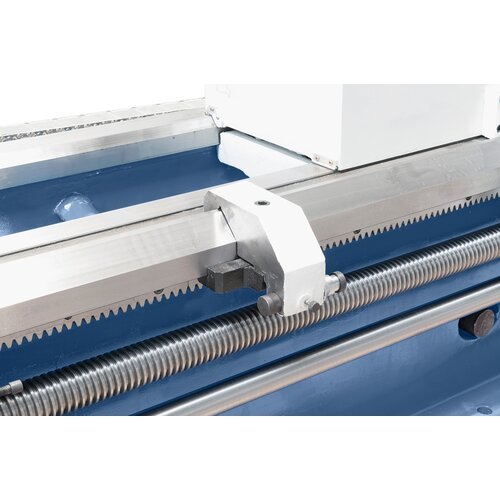

The large dimensioned guideways are inductively hardened and grounded

Distance between centers	5000 mm
Turning diameter
over bed	1600 mm
over support	1280 mm
Travel
x-axis	820 mm
z-axis	4800 mm
z1-axis	200 mm
Workpiece weight max.	6000 kg
Bed with	970 mm
Tilting range top slide	± 180°
Spindle speeds (forward / backward)	(21) 2,5 - 250 / (12) 3,15 - 250 rpm
Spindle bore	130 mm
Spindle nose fixture	ISO A2-15
Feed
x-axis \| z-axis \| z1-axis	0,064 - 12 mm/rev. \|0,032 - 6 mm/rev. \| 0,016 - 3 mm/rev.
Rapid feed
x-axis \| z-axis	1870 mm/min \| 3740 mm/min
Thread cutting
metric \| diametric	(45) 1 - 120 mm \| (42) 30 - 1/4 DP
Modul \| whitworth	(46) 0,5 - 60 mm \| (48) 0,5 - 60 GPZ
Tailstock sleeve taper / Ø	metric 80 / 160 mm
Tailstock sleeve stroke	300 mm
Tailstock cross adjustment	± 2,5 mm

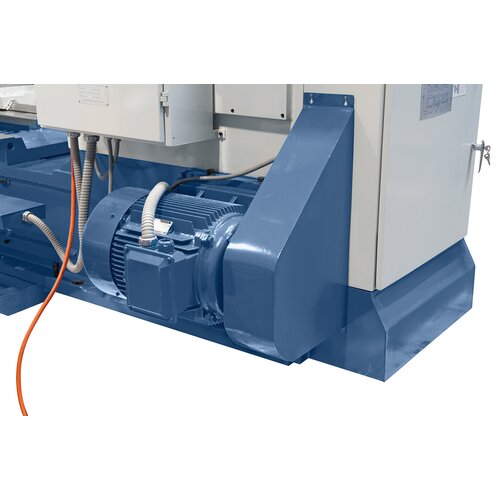

Motor power	22 kW
Length x Width	8,04 x 2,06 m
Height	2,23 m
Weight approx.	16.200 kg
