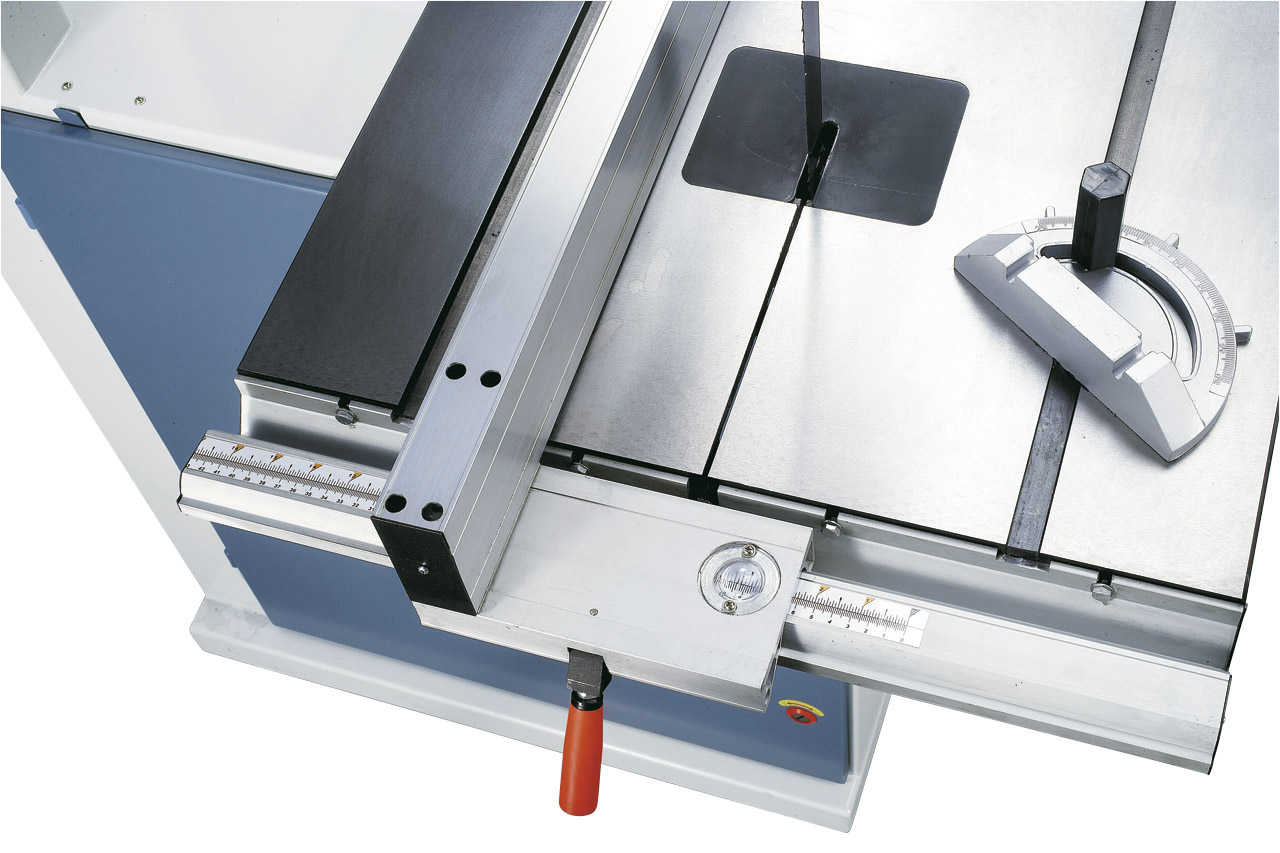

Easy adjustable aluminium rip fence with quick clampingsystem, read off the mm-scale by loupe.

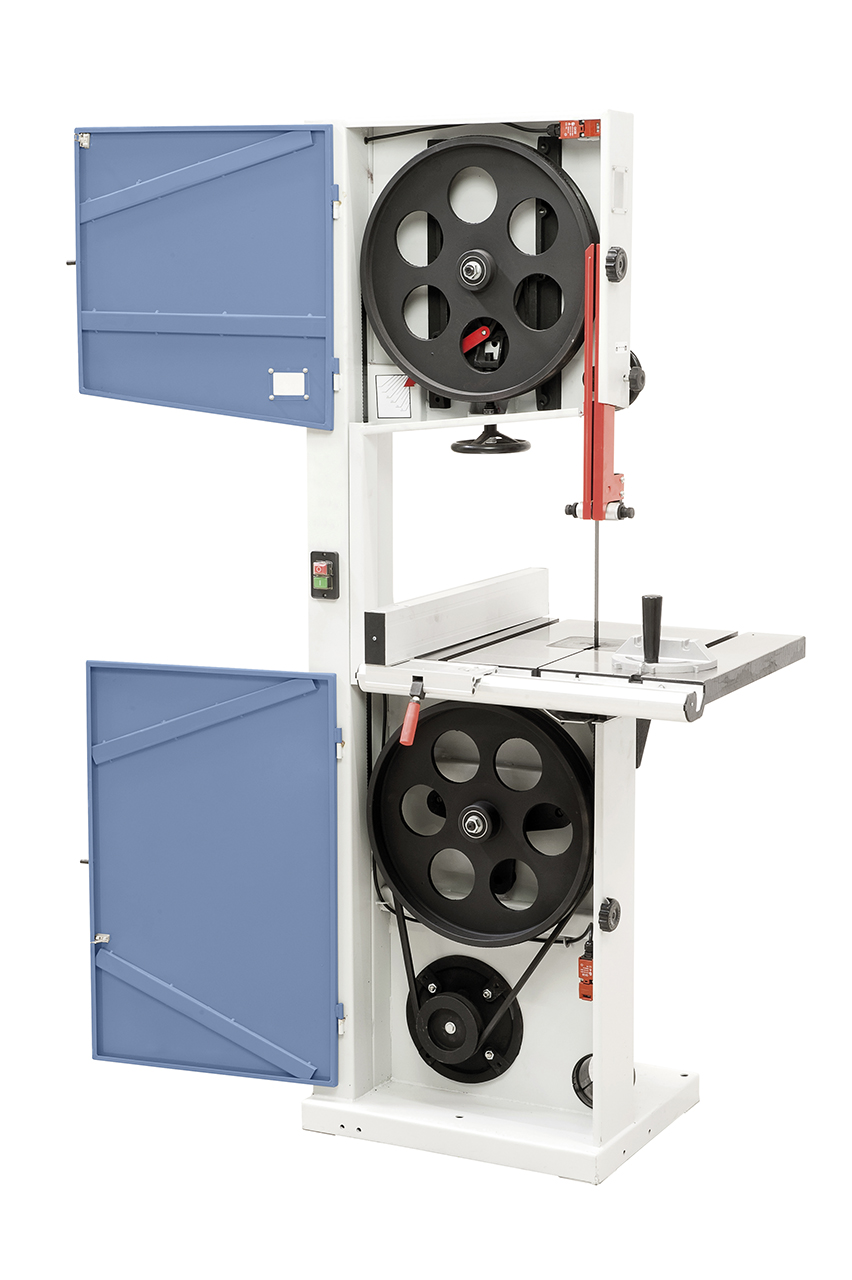

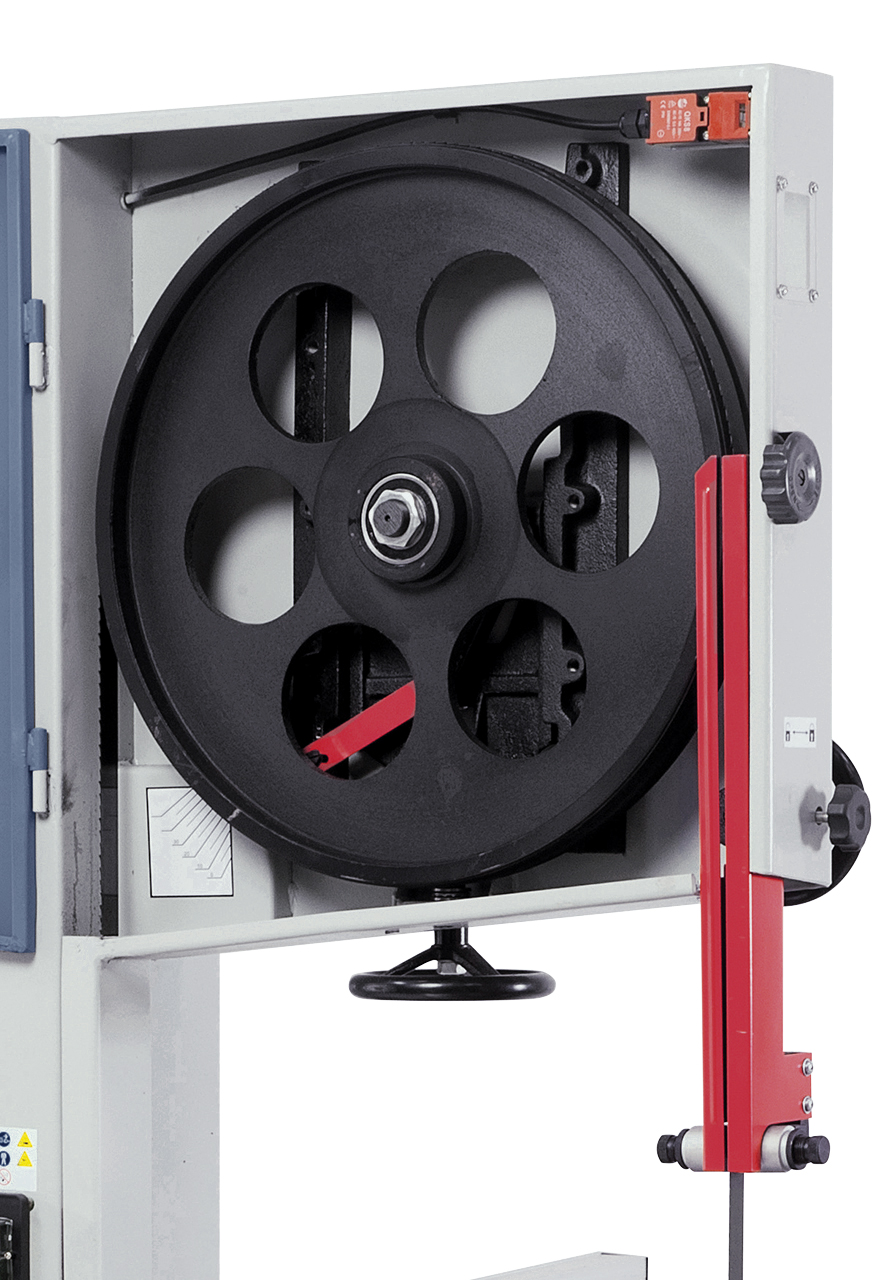

Dynamically balanced cast iron flywheels for smooth run.

The solid belt pulley and the high-quality V-belt ensure an optimal power transmission from the motor

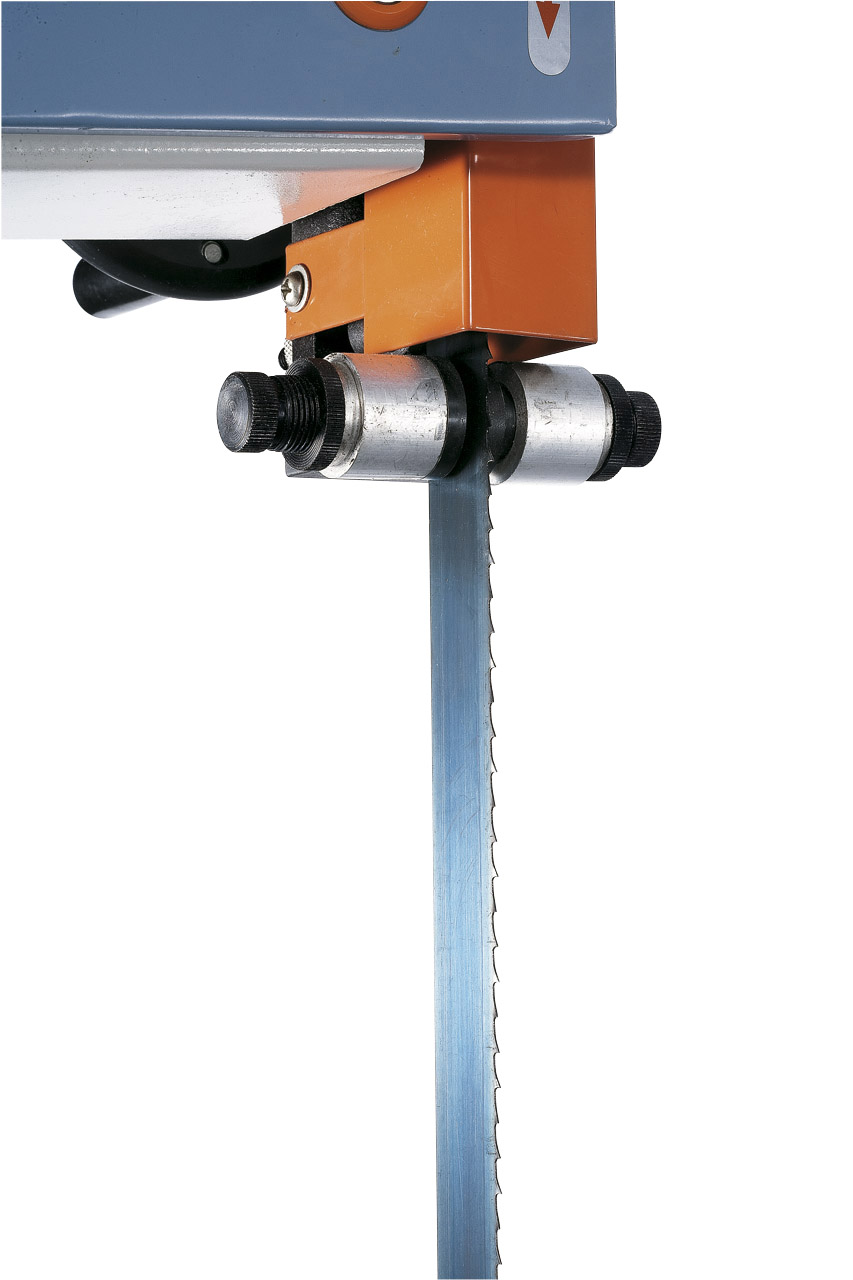

Maintenance-free precision roller guide for optimal guiding of the bandsaw blade.

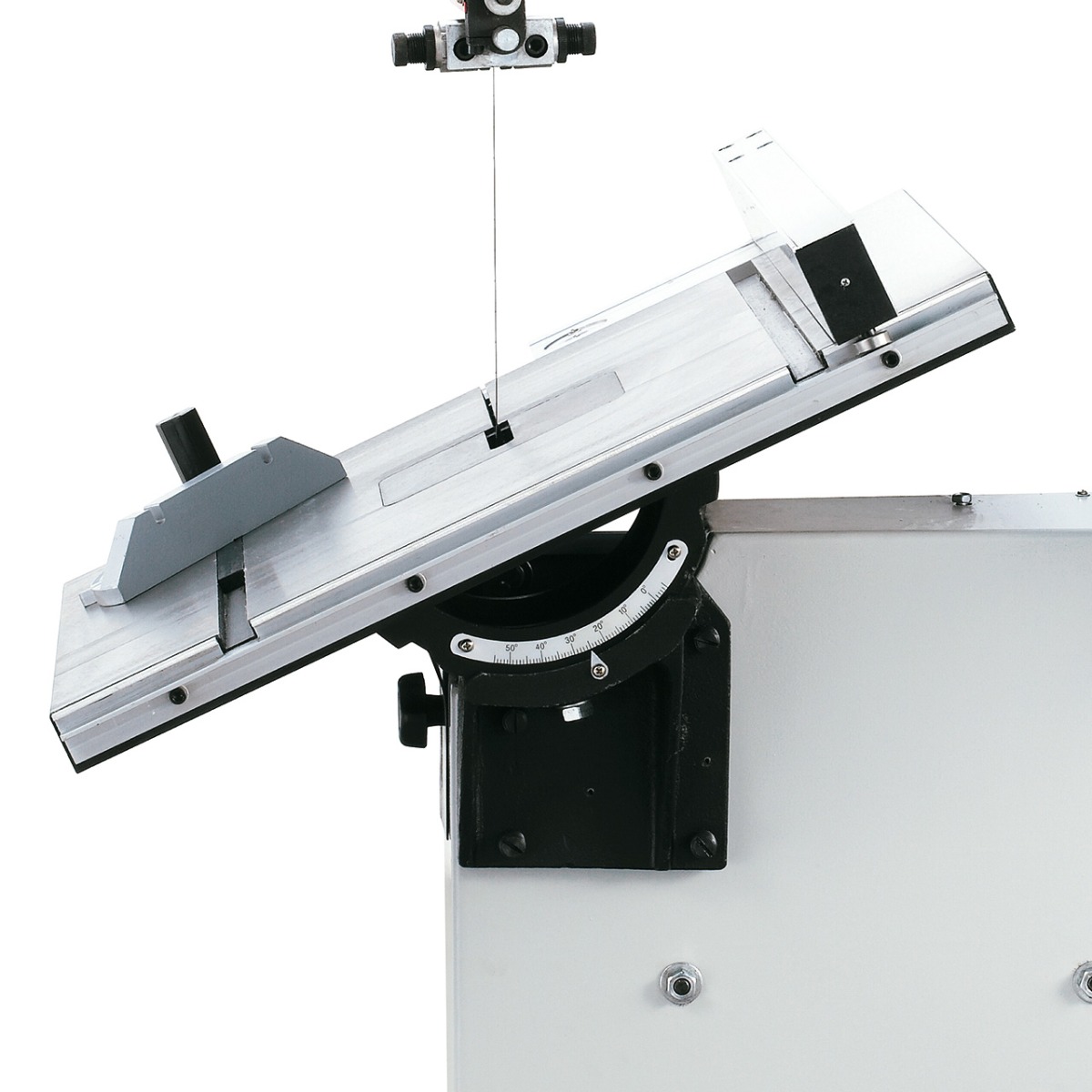

Tiltable working table from 0° to 45°, desired adjustment read off by a mm-scale

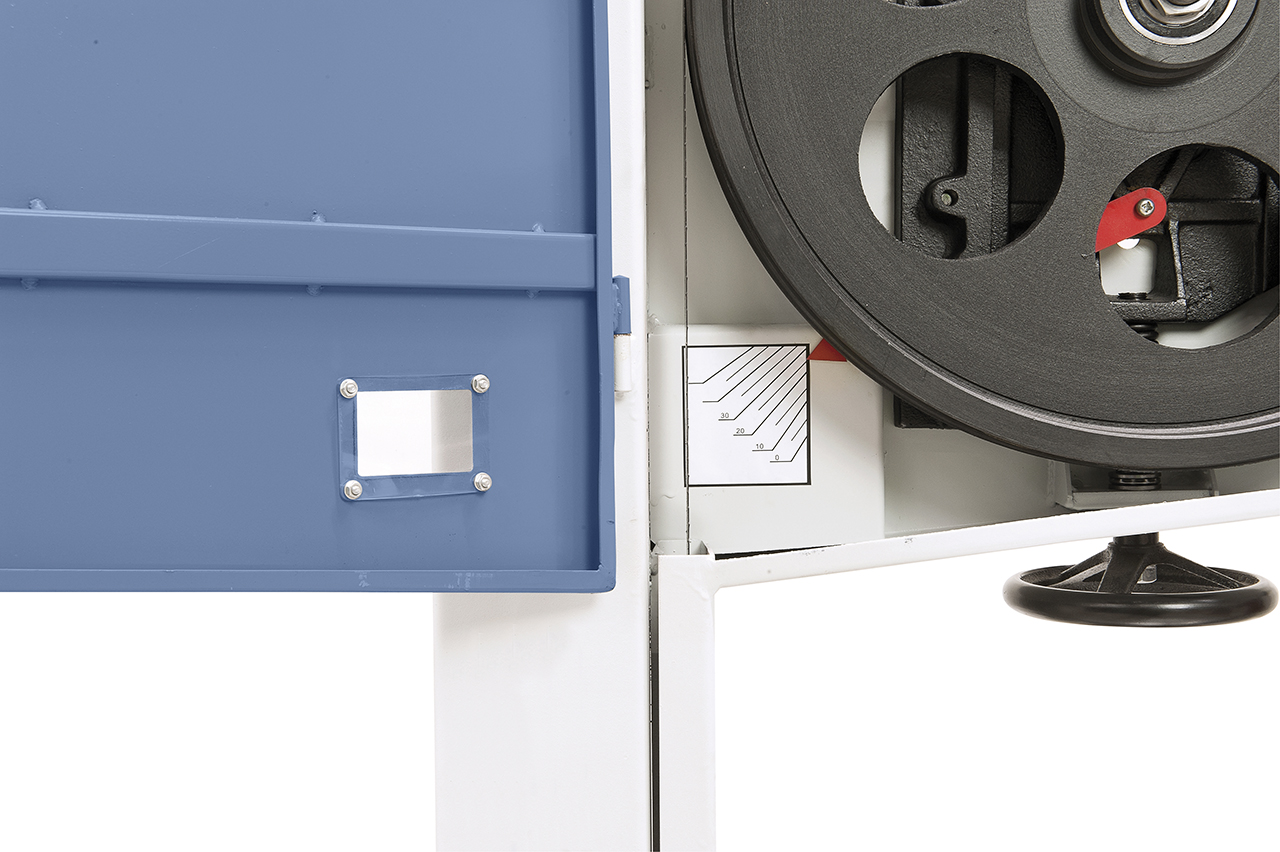

Ergonomically mounted handwheels for adjustment of the blade tension or cutting height on the backside.

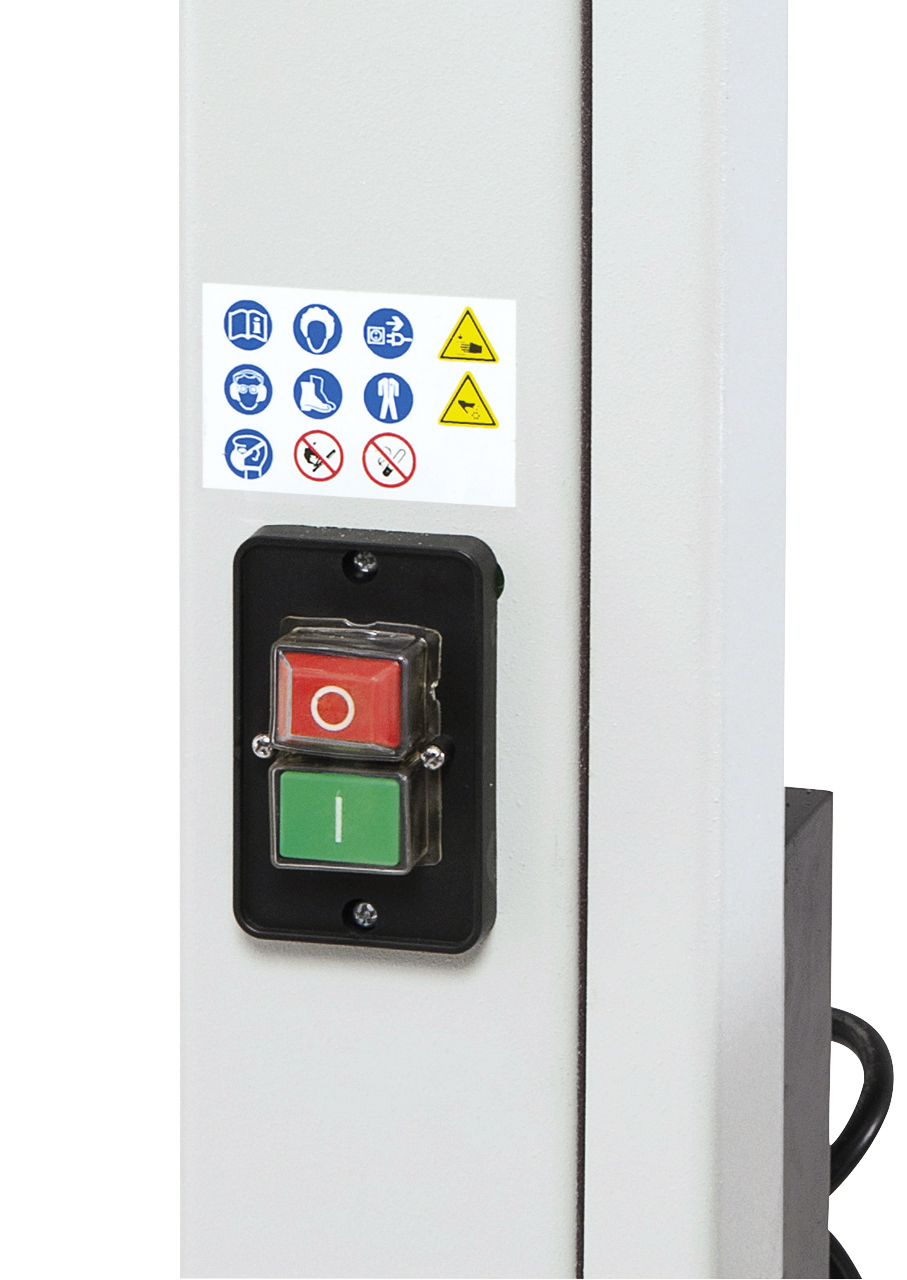

On/Off switch in accordance with the IP 54 standard with undervoltage release

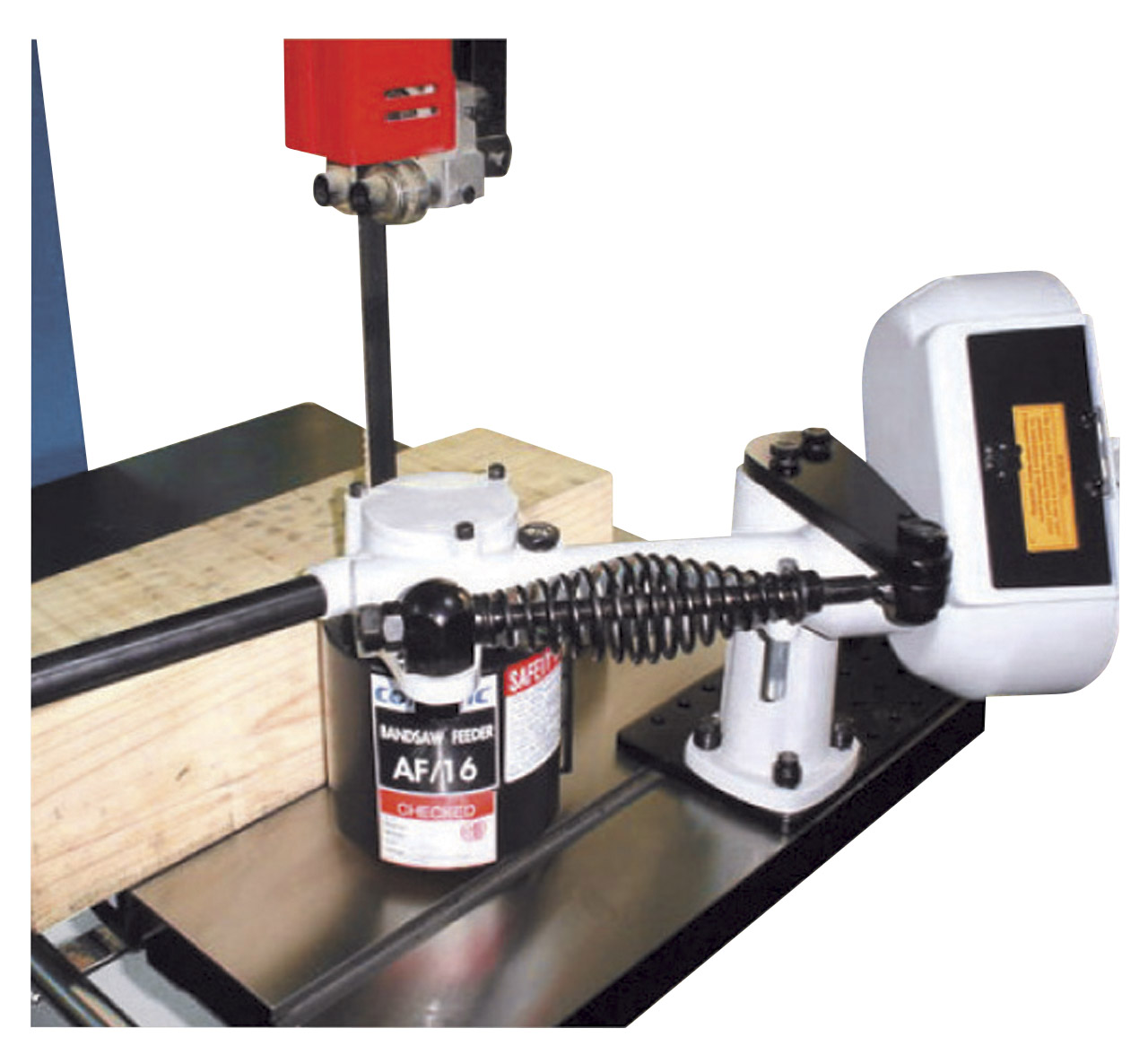

Optional available: CO-MATIC power feeder

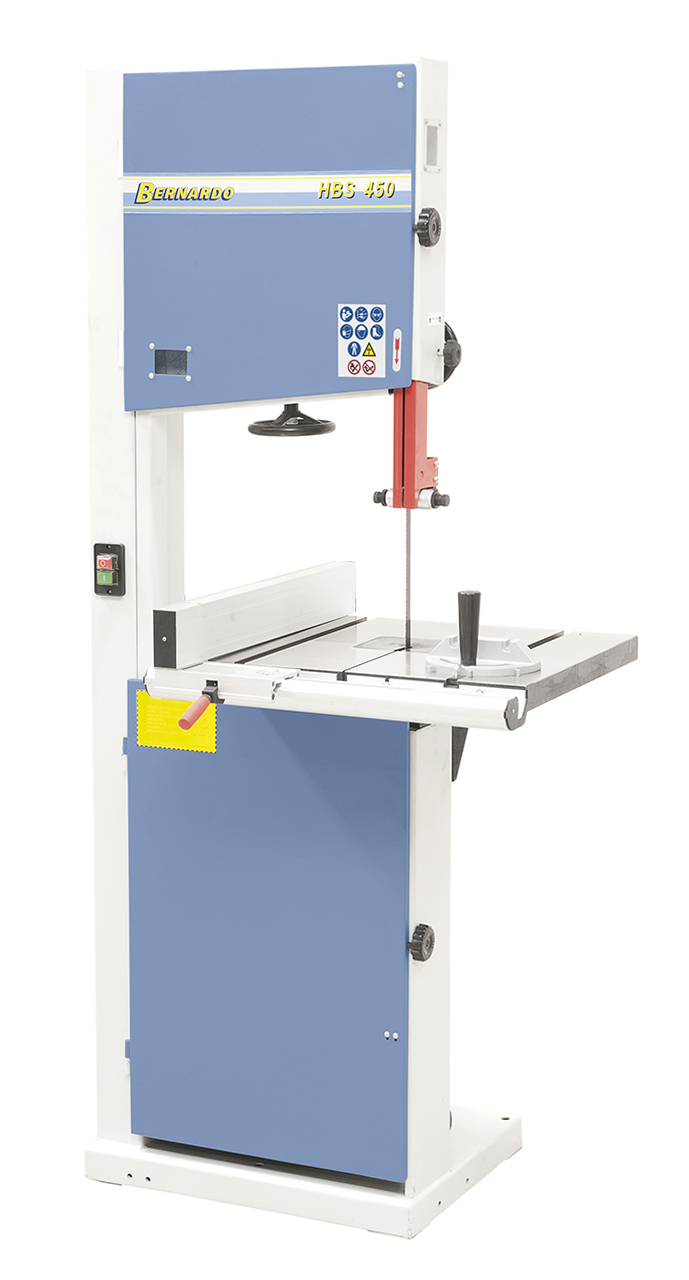

Wood bandsaw HBS 450 / 230 V

Art. No.: 11-4060B

Wishlist Comparison List

The wood bandsaw HBS 450 satisfy through the amply sized working table and the cast iron flywheels. For the cost-conscious amateurs is this machine the ideal equipment.

€1,788.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Amply sized working table with grounded surface and T-slot
Massive cast iron fl ywheels for smooth run
Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
Tiltable working table for mitre cuts from 0° to 45°
Upper and lower precision roller guiding for precise cuts
High quality V-belt for optimal power transmission
Including limit switch for automatic shut-down at opening of the upper blade covers

Product Specifications

Cutting width	440 mm
Cutting height	345 mm
Blade dimension	3430 x 20 x 0,6 - 4 TPI
Blade width	10 - 32 mm
Cutting speed	600 m/min
Table size	490 x 590 mm
Table height	940 mm
Tilting table	0° to 45°
Dust extraction outlet	100 mm
Motor power output S₁ 100%	2,2 kW (3,0 HP)
Motor power input S₆ 40%	3,0 kW (4,0 HP)
Voltage	230 V
Machine dimension (B x T x H)	930 x 880 x 1865 mm
Weight approx.	170 kg
