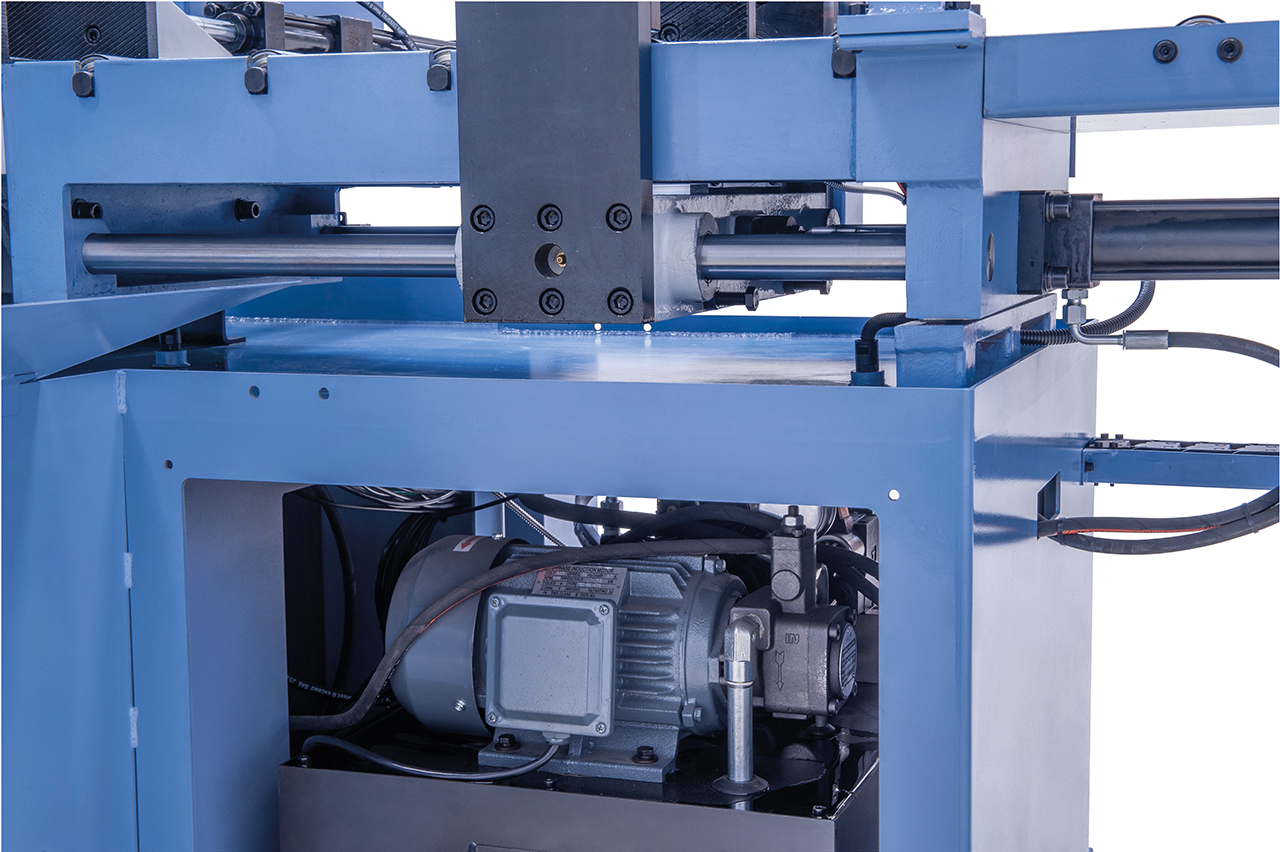

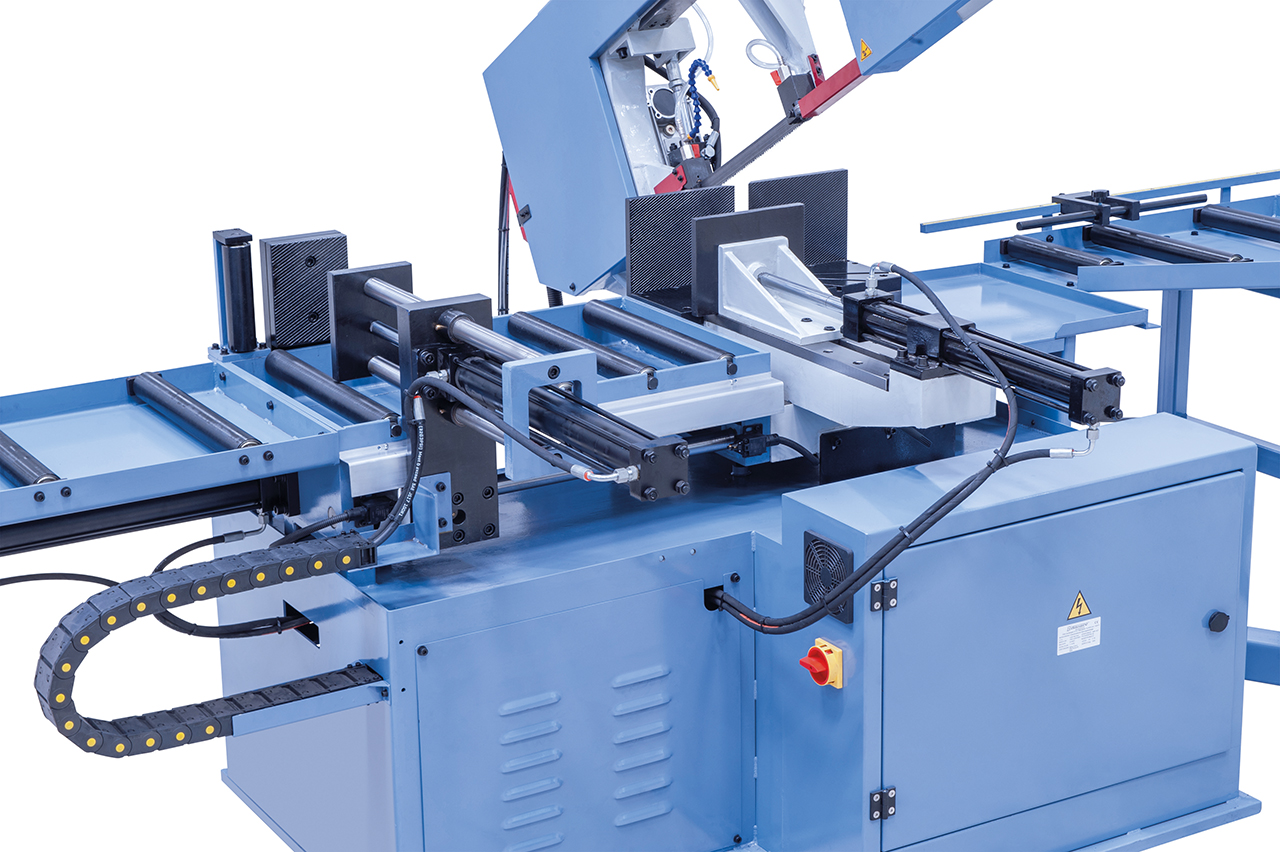

Hydraulic unit housed in the machine body to save space.

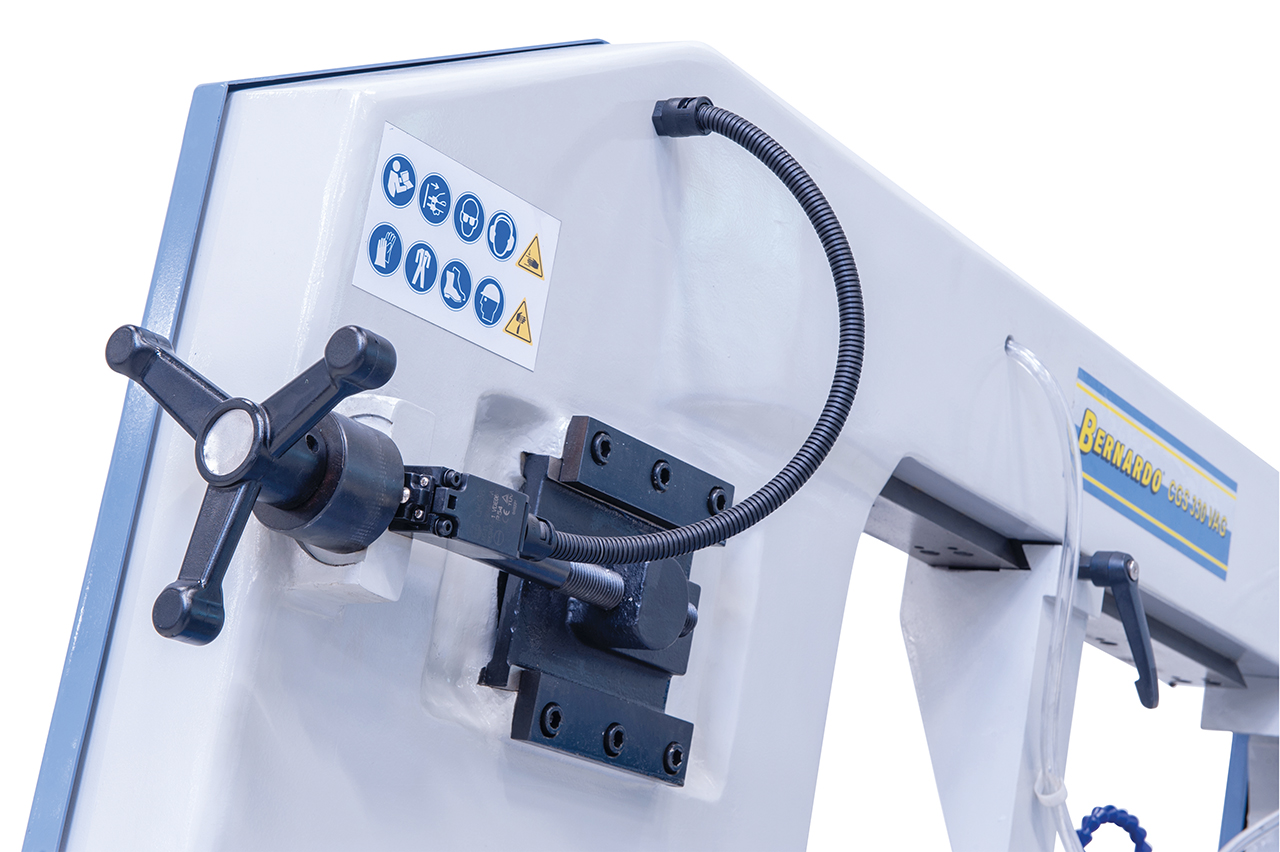

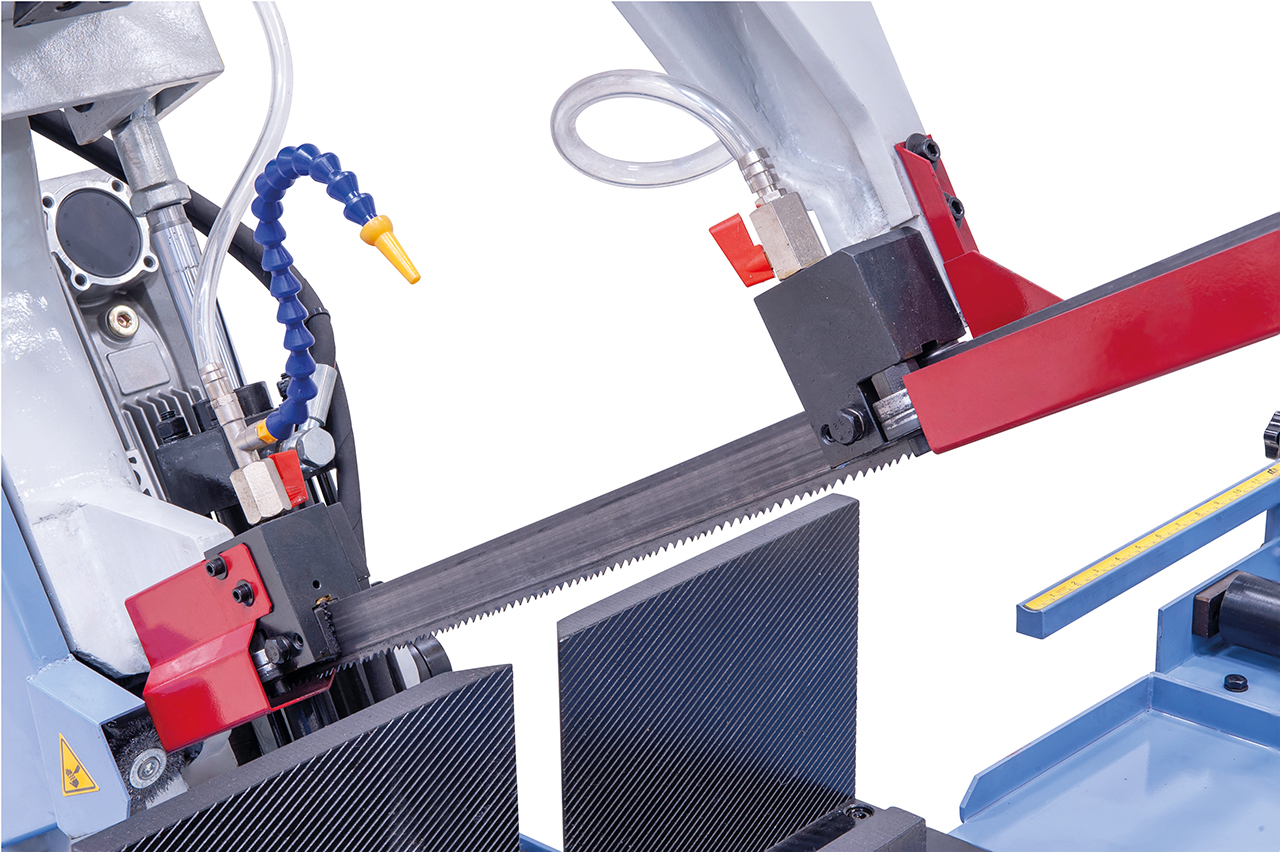

Bandsaw blade guide features quick adjustment to the width of the workpiece to ensure accurate results.

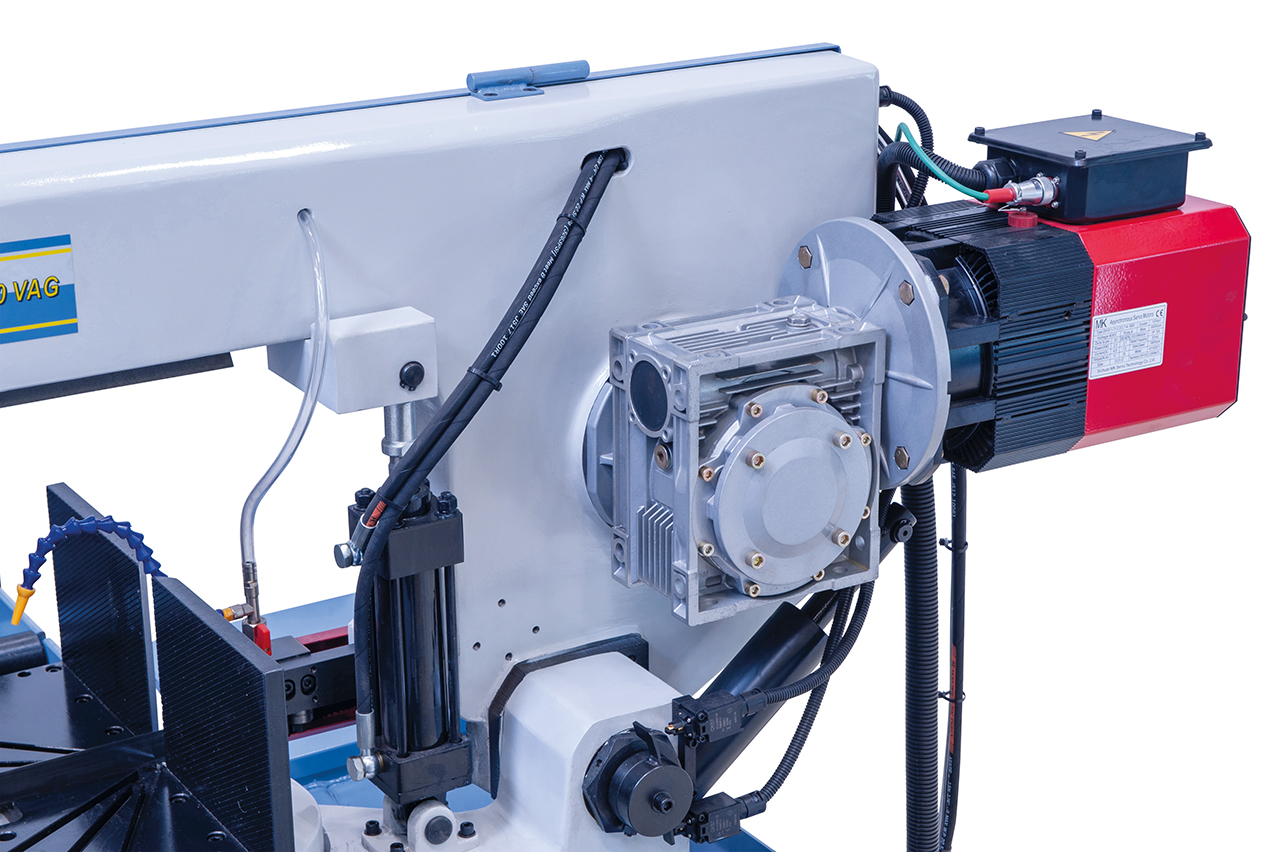

Stepless adjusteable cutting speed and high torque thanks to the powerful servo motor

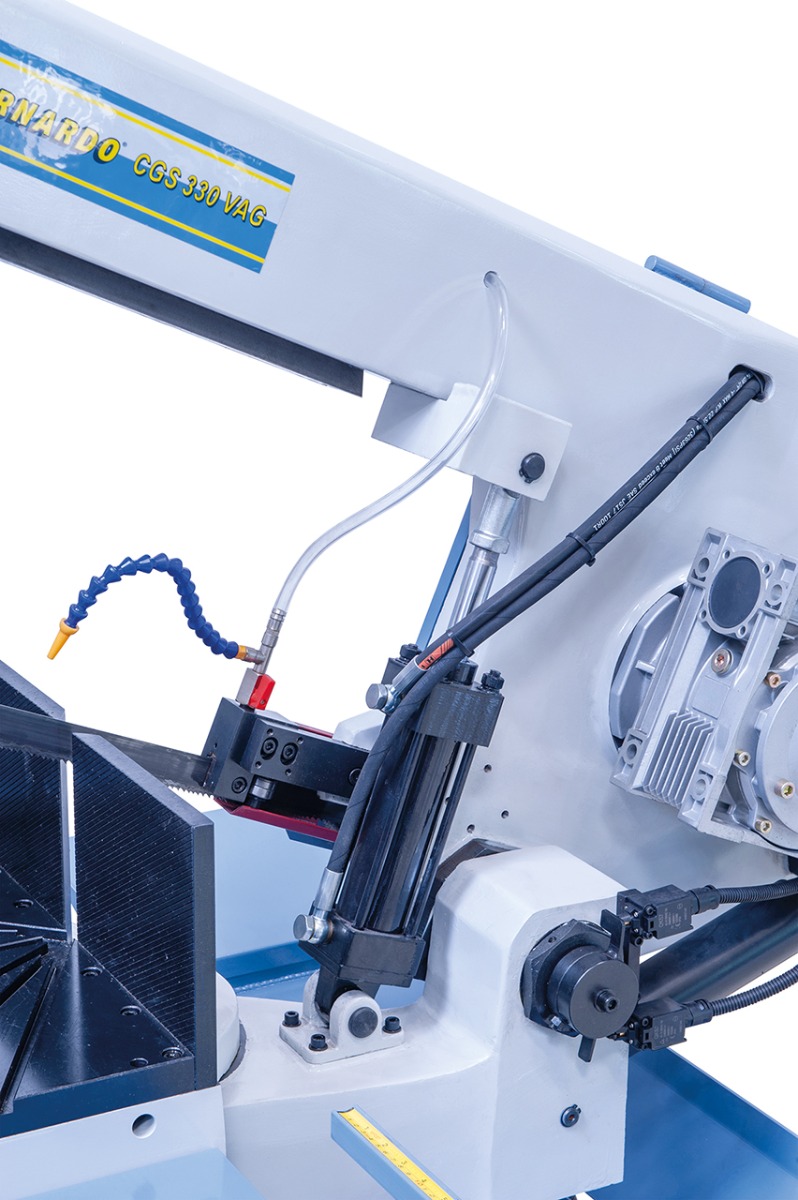

Strong hydraulic cylinder, designed for permanent operation.

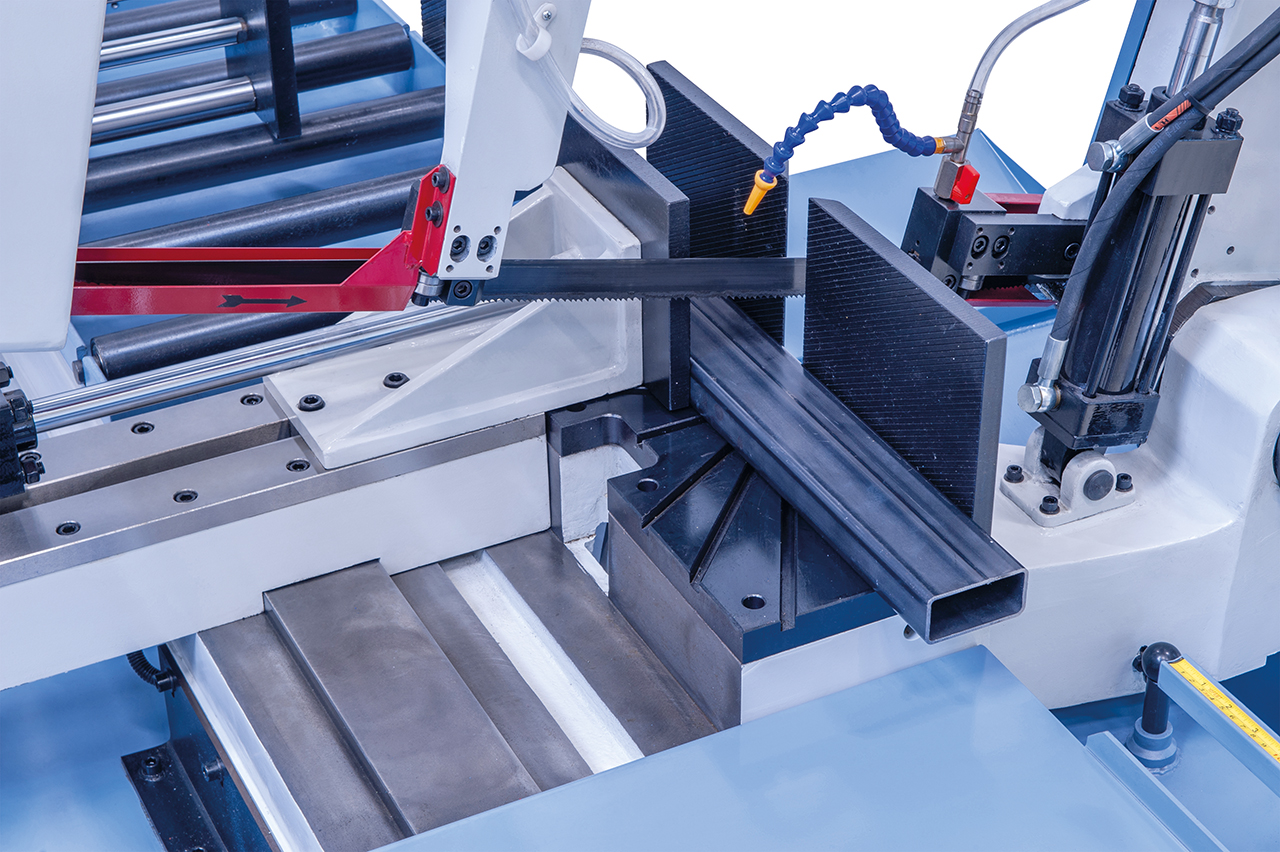

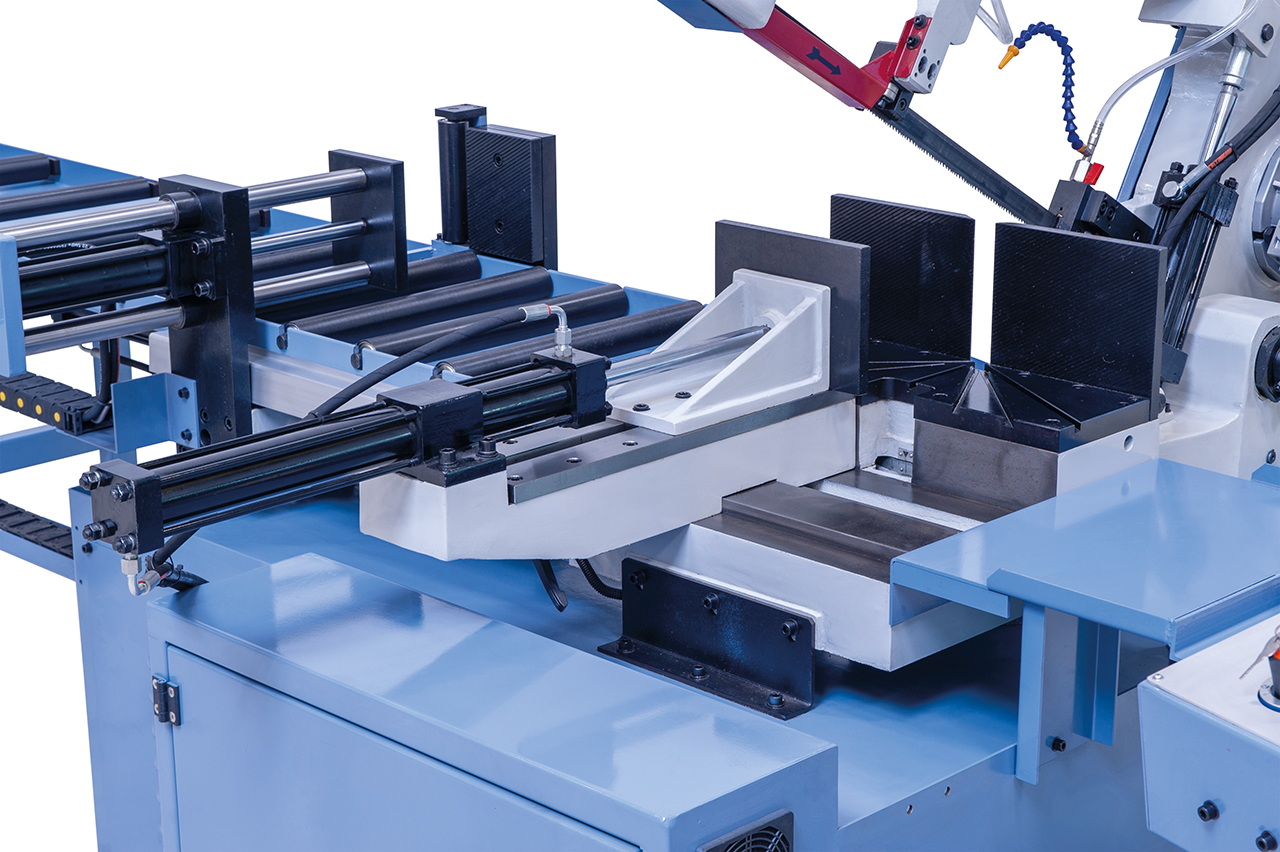

Hydraulic vice, moveable for mitre cutting

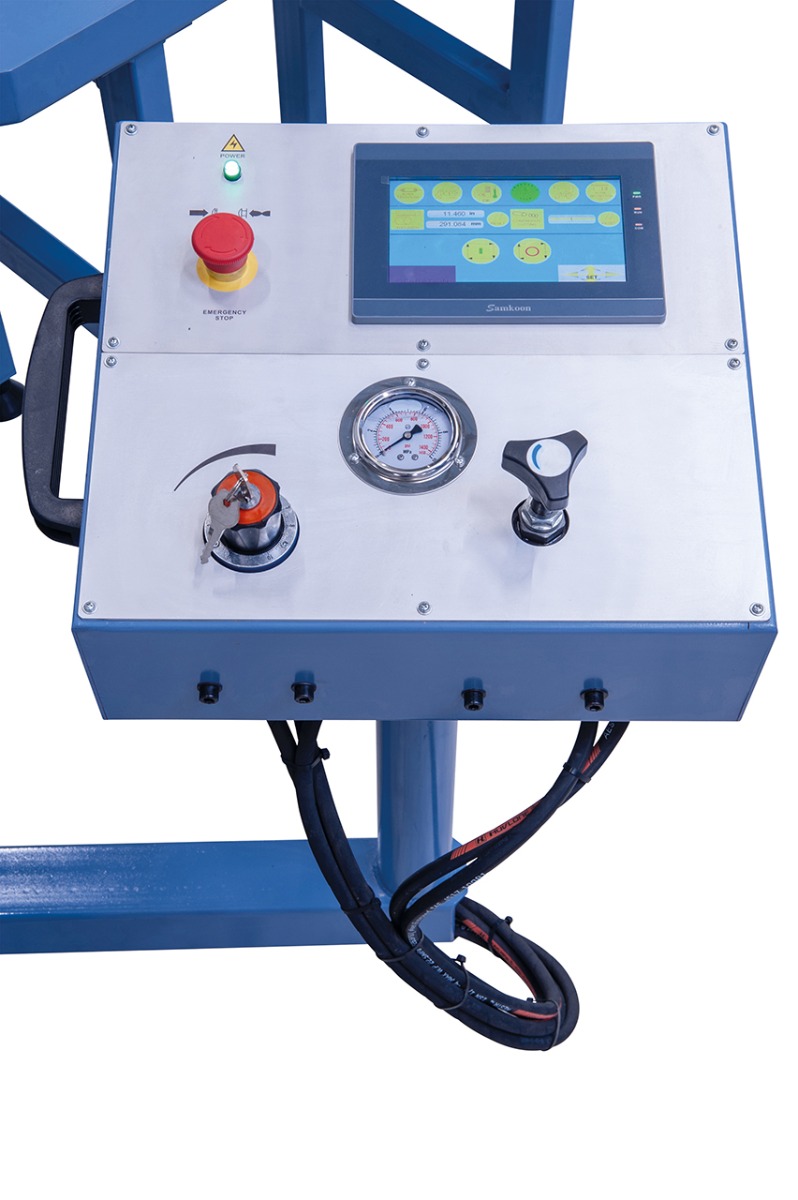

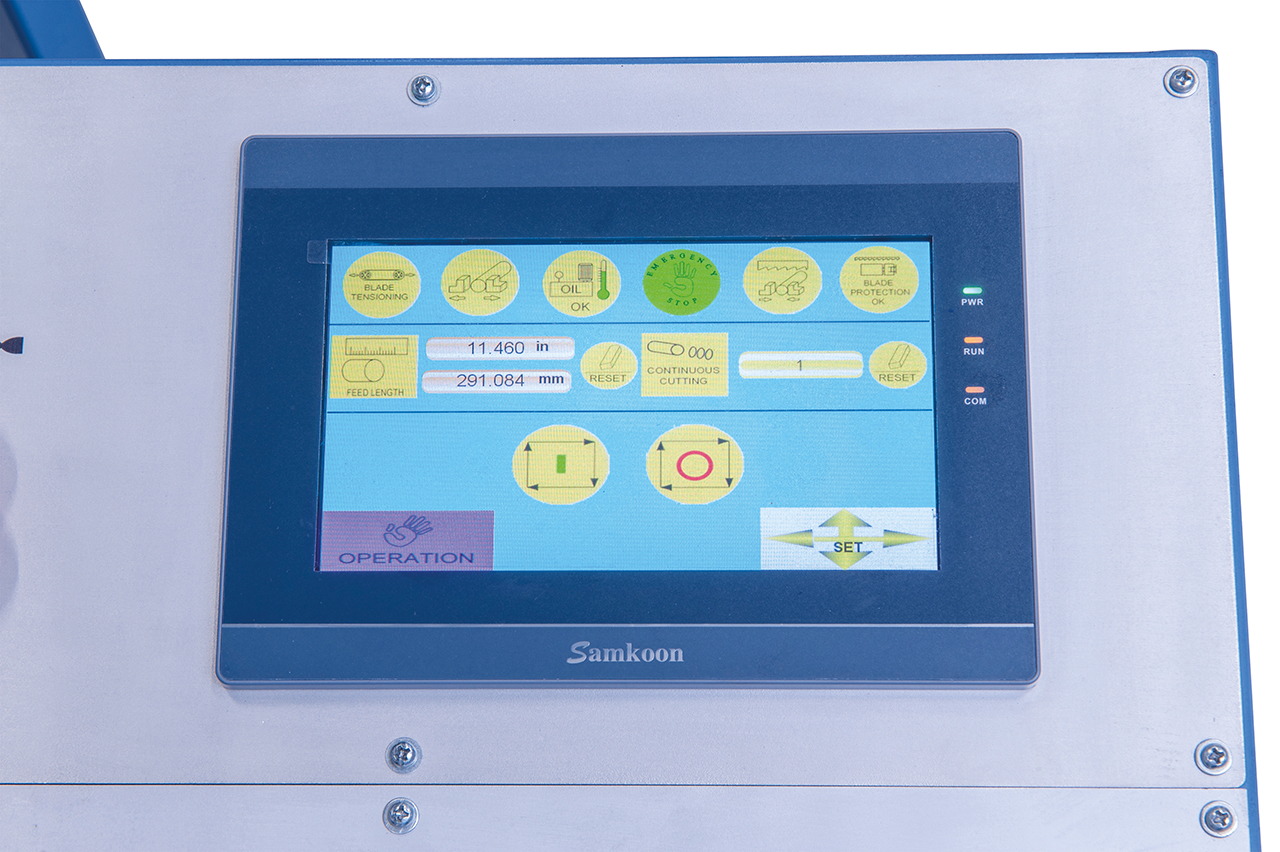

All settings are made via a clearly arranged PLC control.

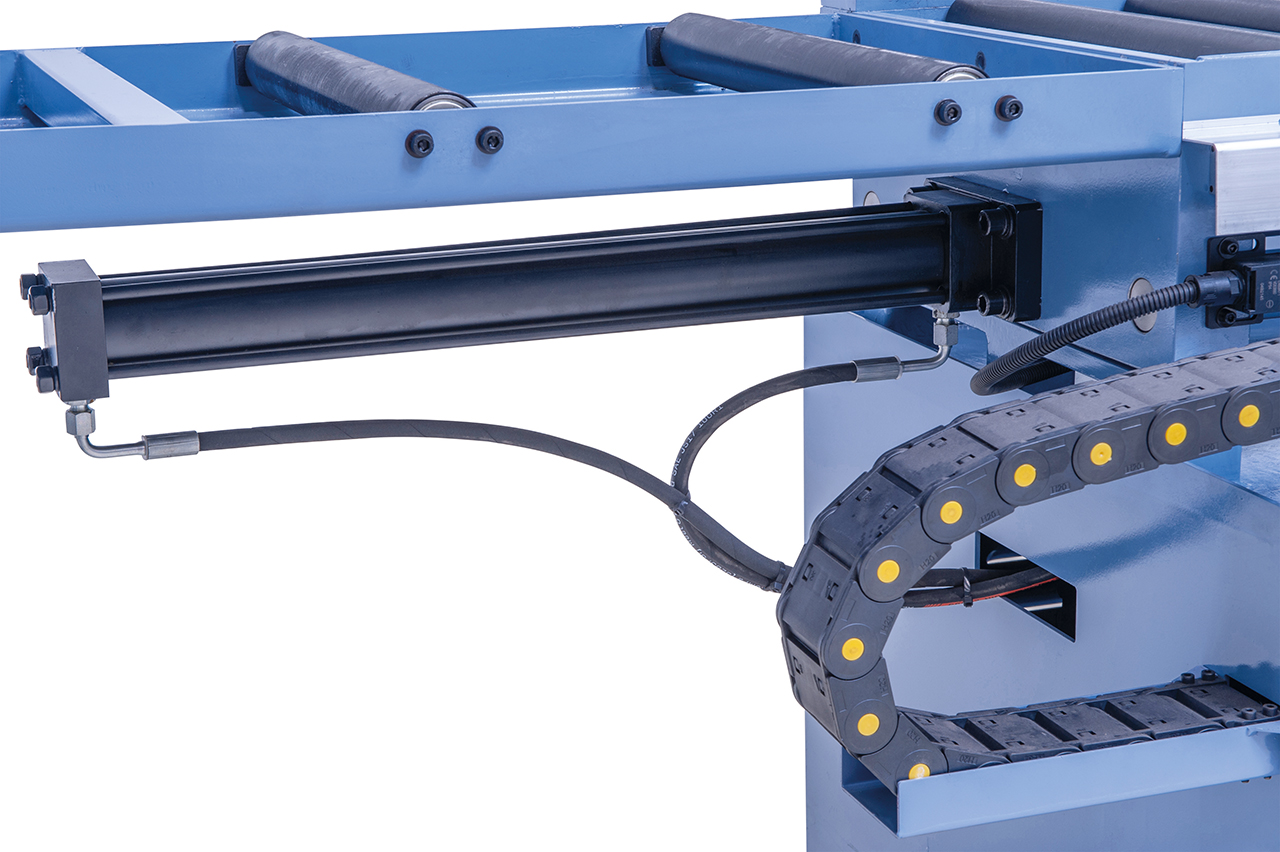

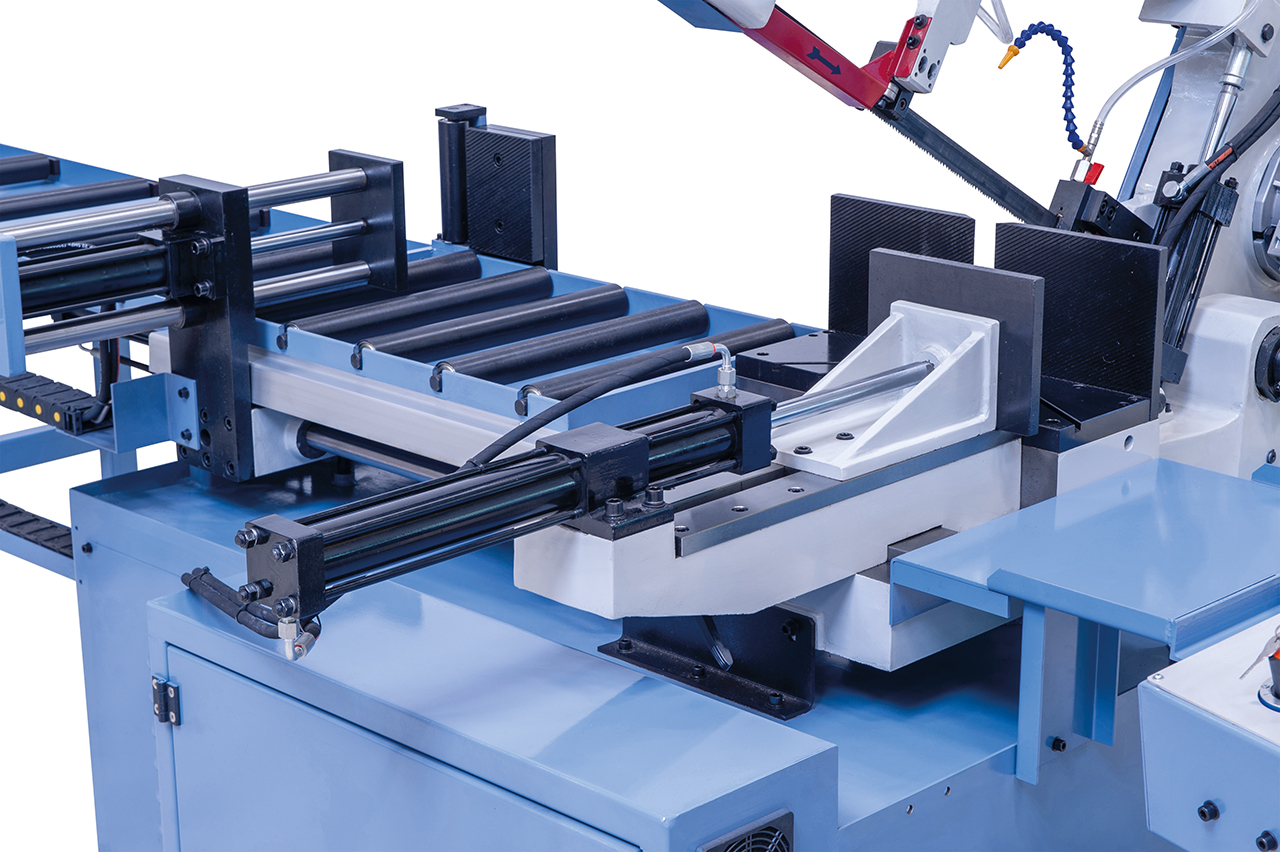

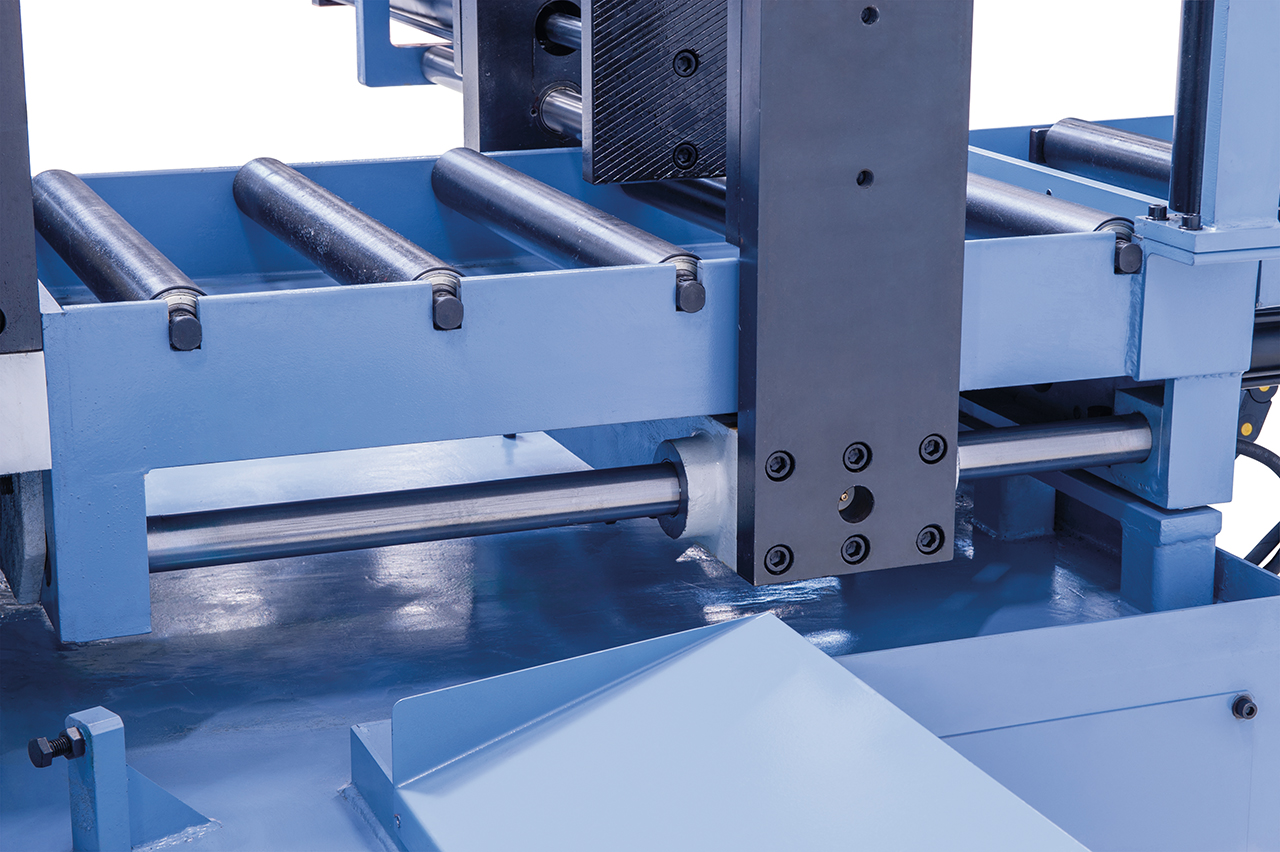

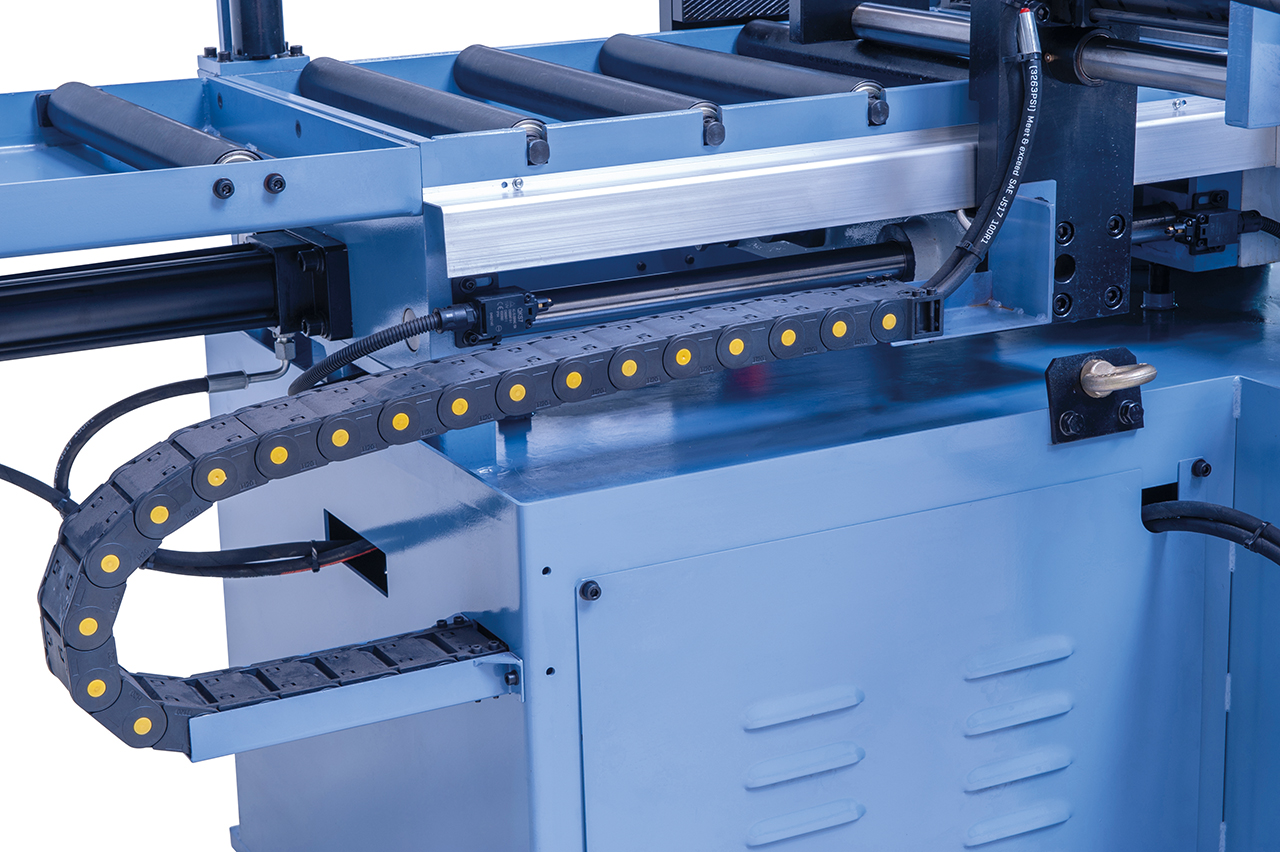

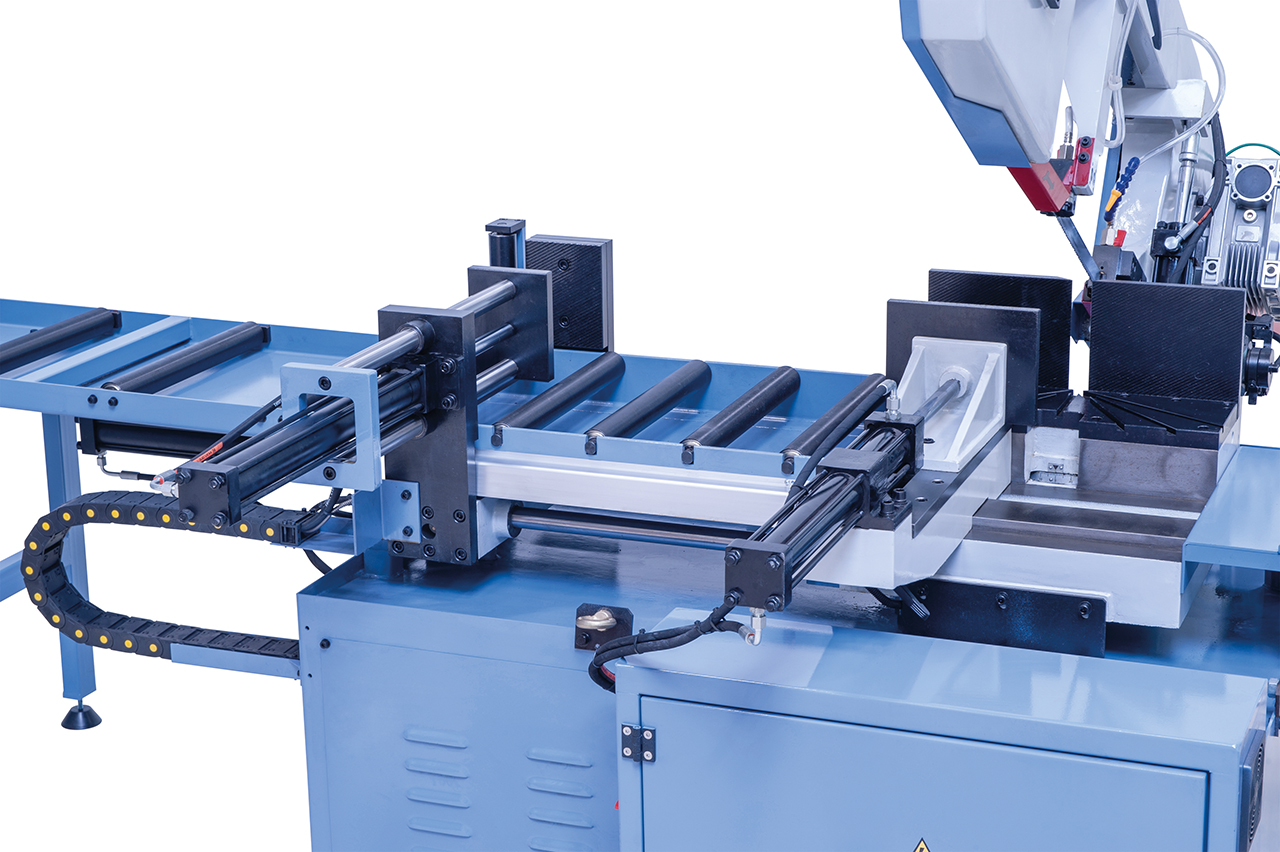

Precision guide and hydraulic drive for highest positioning accuracy of the workpiece.

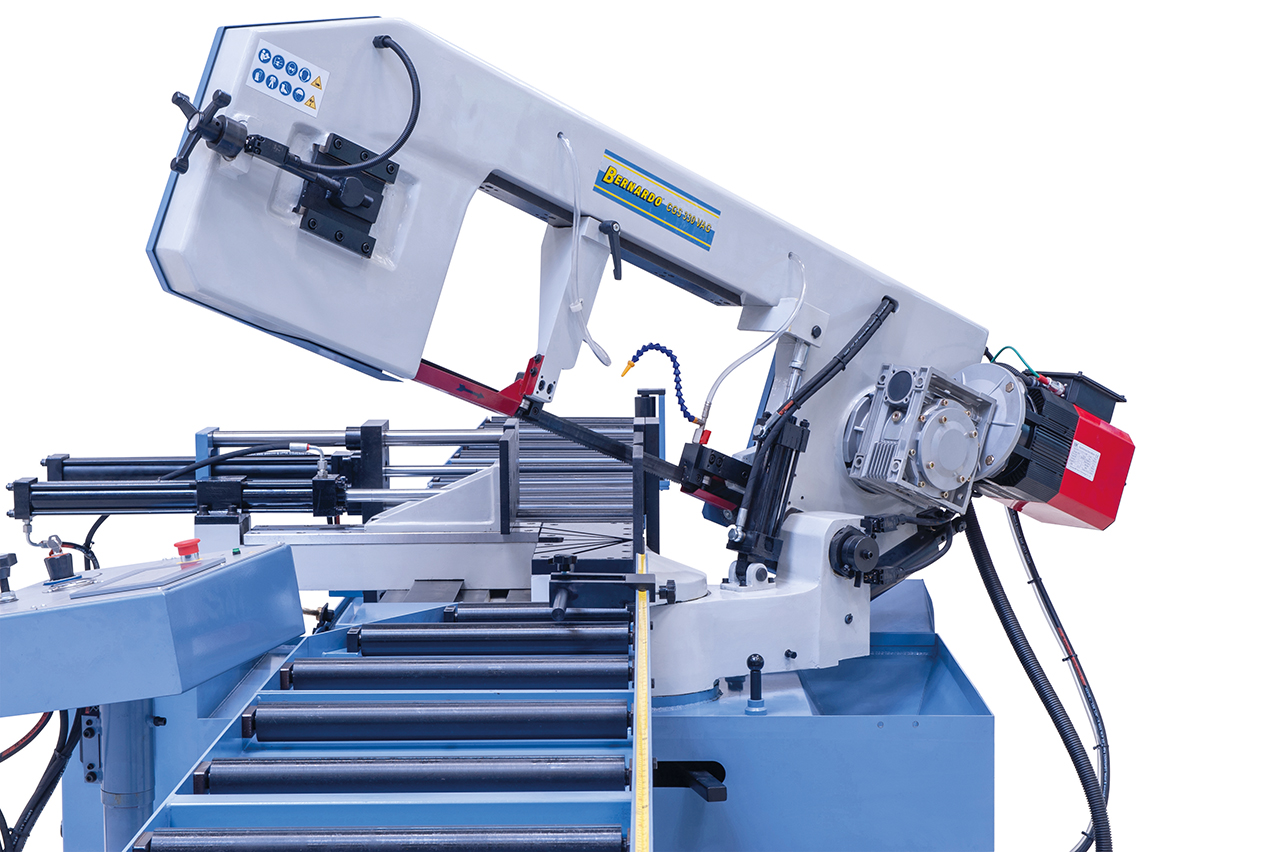

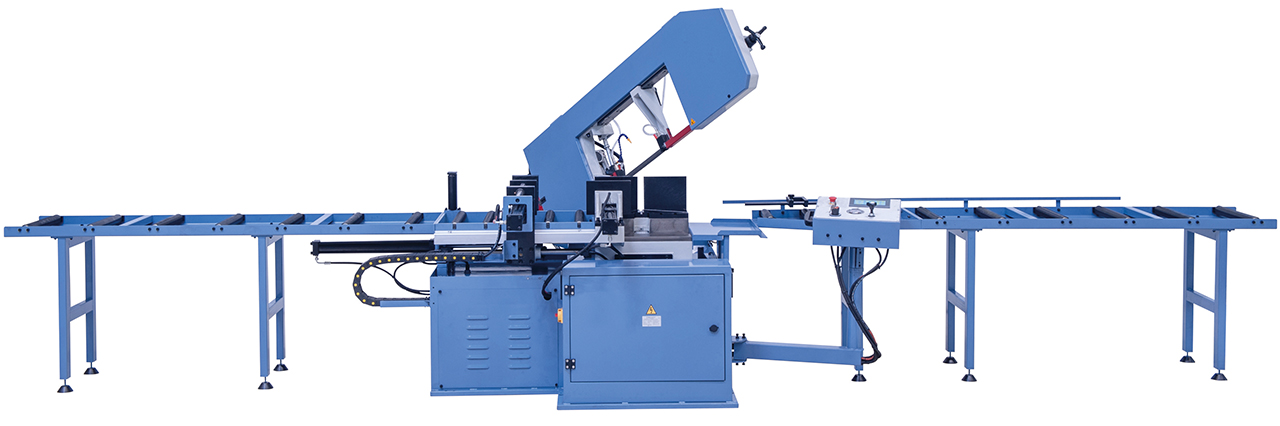

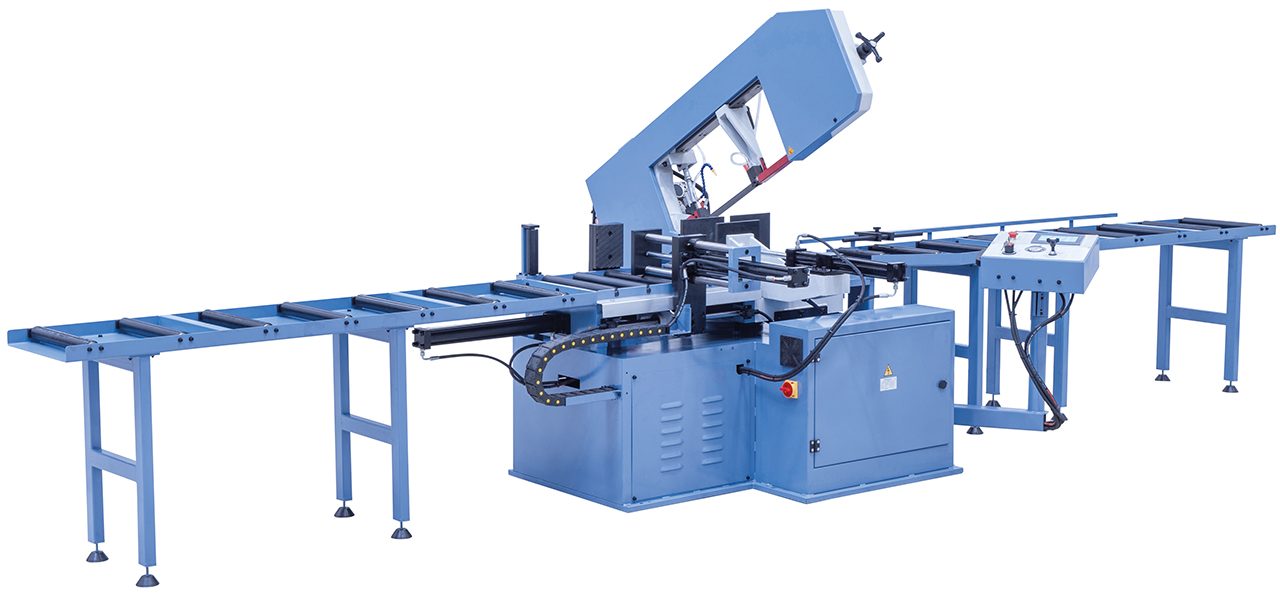

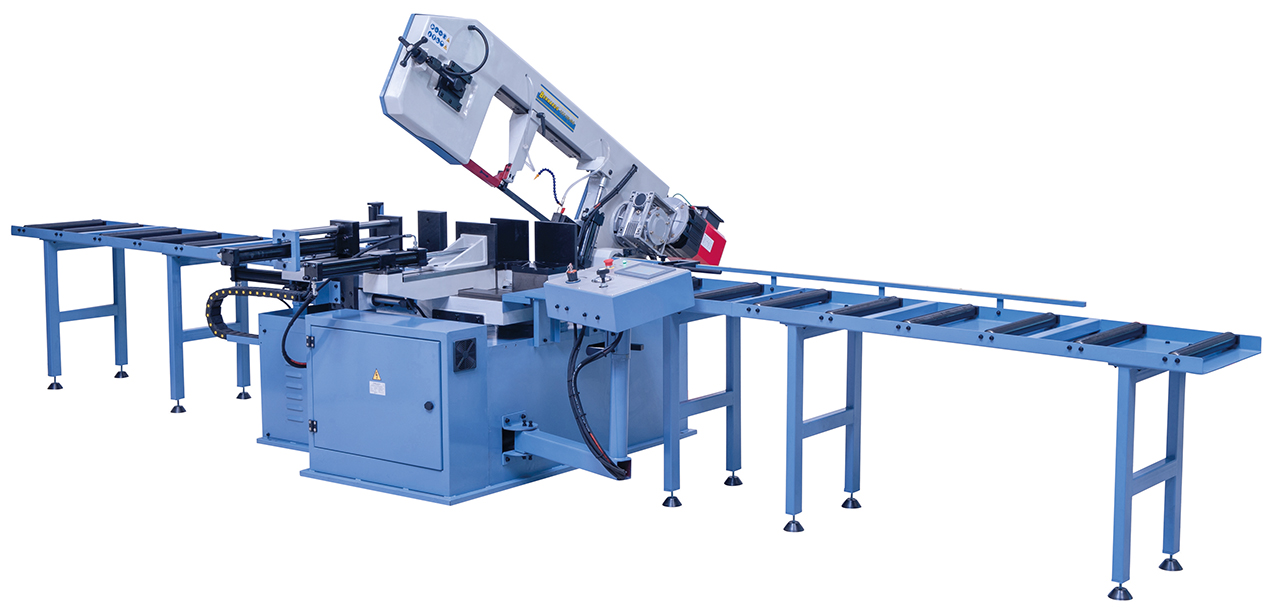

Fully automatic mitre bandsaw CGS 330 VAG *

Art.Nr.: 04-1731XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The model CGS 330 VAG is a fully automated mitre bandsaw (up to 60°) with a wide range of accessories (such as PLC-control, stepless cutting speed, automatic blade break control,….). The integrated PLC control allows you to predefine the required number of cuts and cutting length, which ensures economical serial production.

€15,120.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Fully automated model, including automatic lifting of saw arm
Torsion-free, strong saw frame for precise cutting

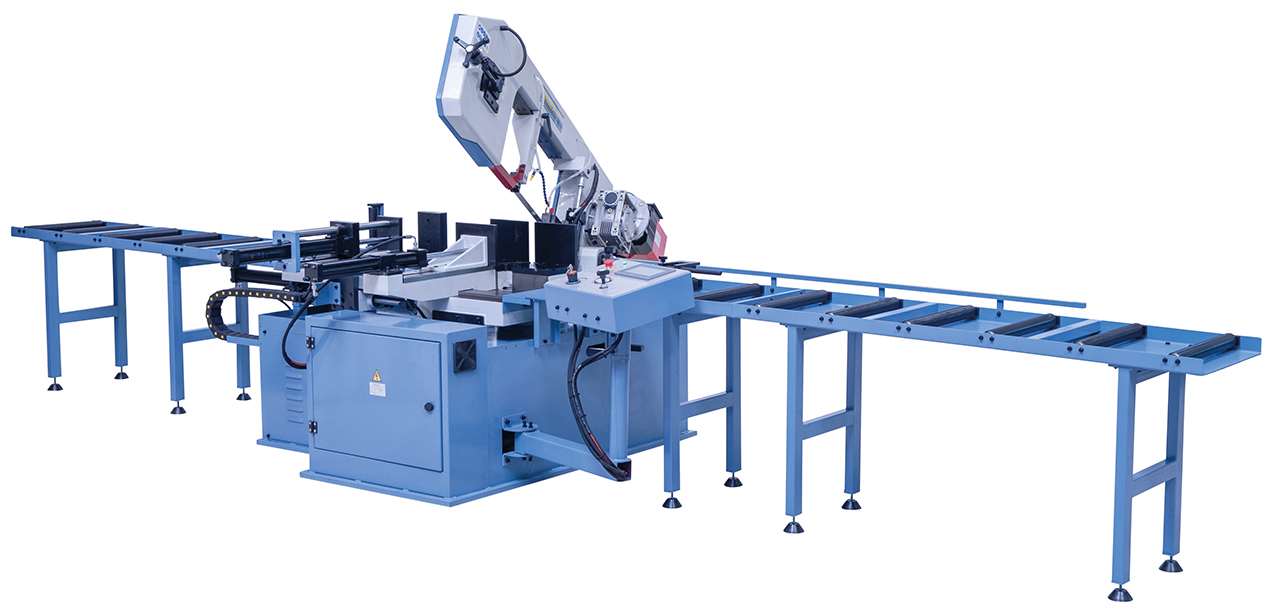

Saw frame tilts up to 60° for mitre cutting
PLC control with program memory locations for entering the required number of cuts and cutting length, with automatic shutdown at the end of the program
Cutting of profiles, pipes, full rivet iron and non-ferrous materials
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Optimal power transmission to the wheel via hardened and ground worm shaft and worm gear
Stepless adjustment of the cutting speed from 10 – 60 m/min by frequency inverter
Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
Automatic blade break control stops the machine if blade breaks

Product Specifications

Cutting capacity round / square 90°	330 mm / 250 x 250 mm
Cutting capacity flat 90°	460 x 250 mm
Cutting capacity round / square 45° R	305 mm / 250 x 250 mm
Cutting capacity flat 45° R	305 x 250 mm
Cutting capacity round / square 45° L	305 mm / 250 x 250 mm
Cutting capacity flat 45° L	305 x 250 mm
Cutting capacity round / square 60° R	205 mm / 205 x 205 mm
Cutting capacity flat 60° R	205 x 250 mm
Working height	860 mm
Bandsaw blade dimension	3960 x 34 x 1,1 mm
Cutting speed, stepless	10 - 60 m/min
Coolant pump	0,045 kW
Motor power	2,2 kW
Voltage	400 V
Machine dimension (L x D x H)	2380 x 1740* x 2000 mm
Weight approx.	1420 kg
