Pre-setting
Pre-setting
Grinding the point angle
Grinding the point angle
Grinding the cutting edge 1 and 3
Grinding the cutting edge 1 and 3
Grinding of the relief angle at 2-edged end mill
Grinding of the relief angle at 2-edged end mill
Grinding of the relief-angle at 3- or 4-edged end mill
Grinding of the relief-angle at 3- or 4-edged end mill

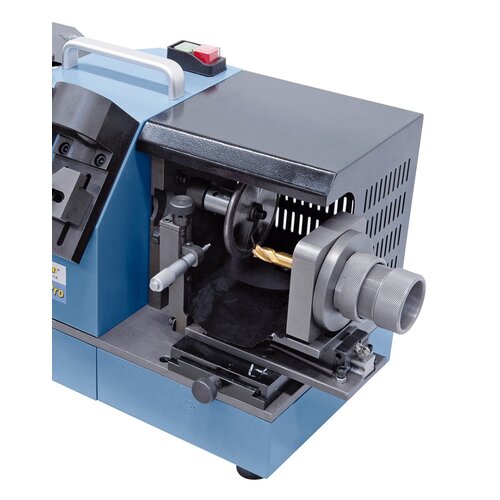

Grinding the outer spiral cutting edge
Grinding the outer spiral cutting edge
Pre-setting
Grinding the point angle
Grinding the cutting edge 1 and 3
Grinding of the relief angle at 2-edged end mill
Grinding of the relief-angle at 3- or 4-edged end mill
Grinding the outer spiral cutting edge

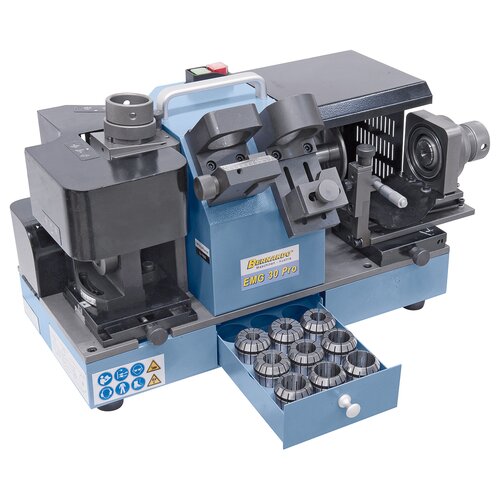

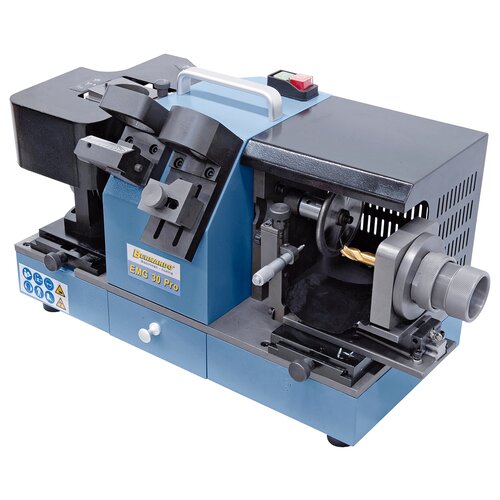

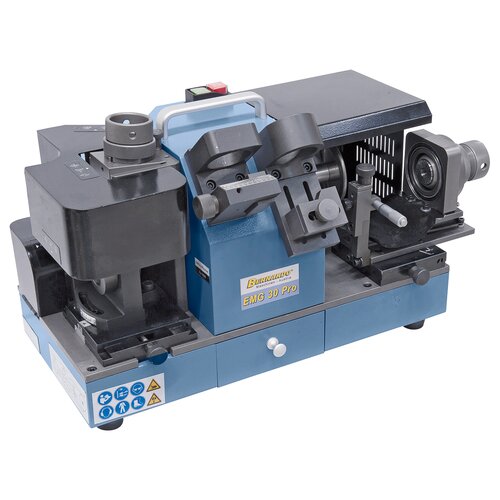

End mill grinder EMG 30 Pro

Art.Nr.: 05-1624
Wishlist Comparison List

€2,628.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

  • For face grinding of HSS and carbide end mills
  • Additional station for grinding the outer spiral cutting edge
  • For grinding of end mills with 2, 3 and 4 cutting edges, from diam. 12 mm with 6 cutting edges
  • Heavy machine construction and rubber feet minimize vibrations
  • Quick and precise working results through the easy handling
  • Rotor features precise ball bearings to guarantee smooth operation

Product Specifications

End mill diameter

12 - 30 mm

Point angle

0° - 5°

Speed

4400 rpm

Motor power

0,25 kW

Voltage

230 V

Length

550 mm

Width

300 mm

Height

360 mm

Weight approx.

39 kg

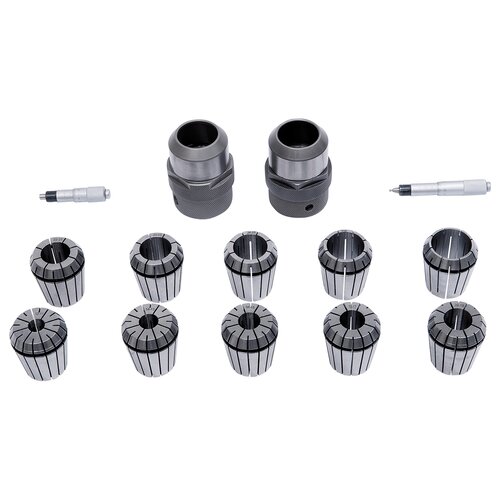

Delivery Contents

  • 2x grinding wheel CBN
  • Collets ER 40, 12 – 30 mm, 10 pcs. (12 / 14 / 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 mm)
  • Spannzangenhalter

Suitable accessories

Diamond grinding wheel SDC - side of end mill - f. EMG 30 Pro
Diamond grinding wheel SDC - side of end mill - f. EMG 30 Pro
Art.Nr. : 05-1727

€207.60

incl. 20% VAT

Grinding wheel CBN - side of end mill - f. EMG 30 Pro
Grinding wheel CBN - side of end mill - f. EMG 30 Pro
Art.Nr. : 05-1726

€207.60

incl. 20% VAT

Diamond grinding wheel SDC - face side of end mill - f. EMG 30 Pro
Diamond grinding wheel SDC - face side of end mill - f. EMG 30 Pro
Art.Nr. : 05-1725

€207.60

incl. 20% VAT

Grinding wheel CBN - face side of end mill - f. EMG 30 Pro
Grinding wheel CBN - face side of end mill - f. EMG 30 Pro
Art.Nr. : 05-1724

€207.60

incl. 20% VAT
