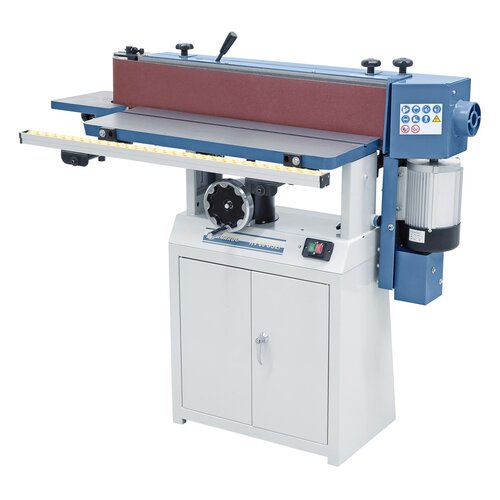

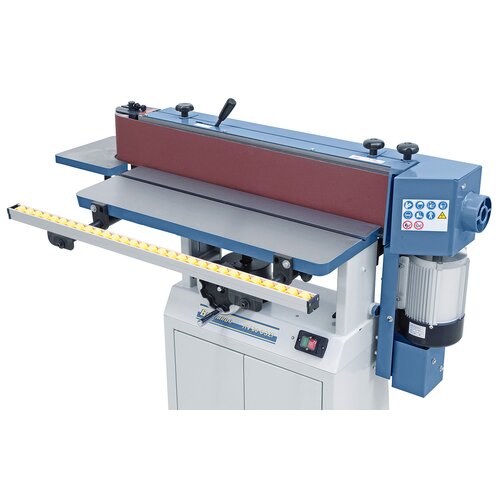

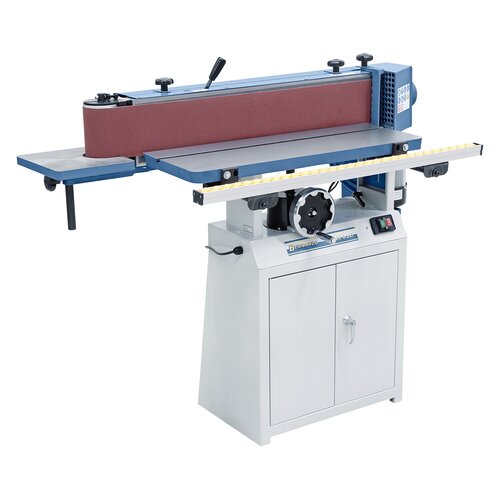

Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)

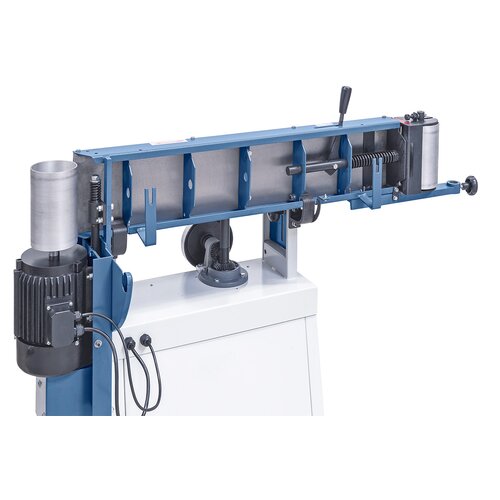

Linear guide of sanding unit in vertical direction (instead of tilting function) for flawless results.
Linear guide of sanding unit in vertical direction (instead of tilting function) for flawless results.

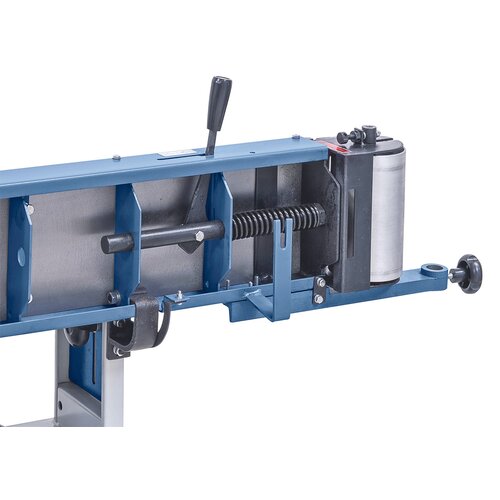

Spring balanced belt tension ensures for automatic elimination of differences in belt lengths.
Spring balanced belt tension ensures for automatic elimination of differences in belt lengths.

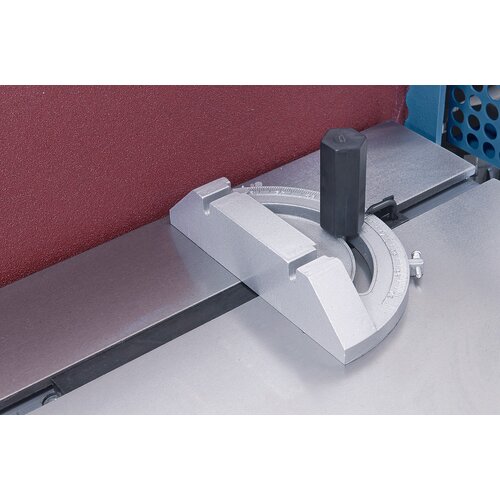

Complete with mitre fence and scale for precise sanding of angles.
Complete with mitre fence and scale for precise sanding of angles.

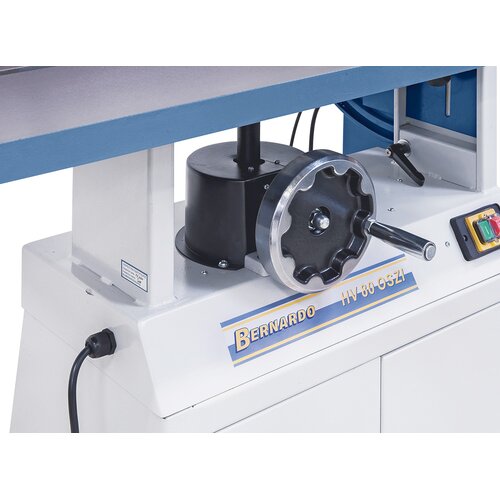

Ergonomically arranged handwheel on front of machine allows for convenient height adjustment of work table.
Ergonomically arranged handwheel on front of machine allows for convenient height adjustment of work table.

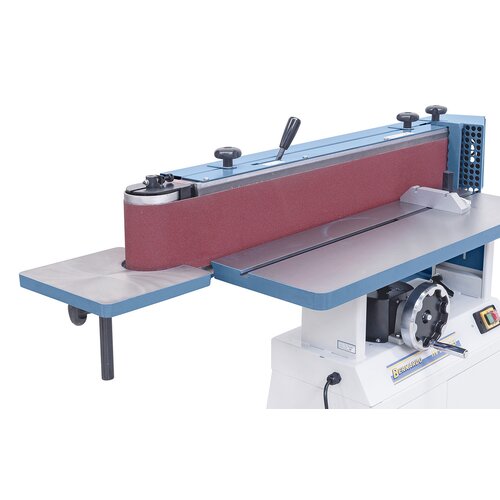

The height adjustable support table allows sanding of contours at the reverse roller.
The height adjustable support table allows sanding of contours at the reverse roller.

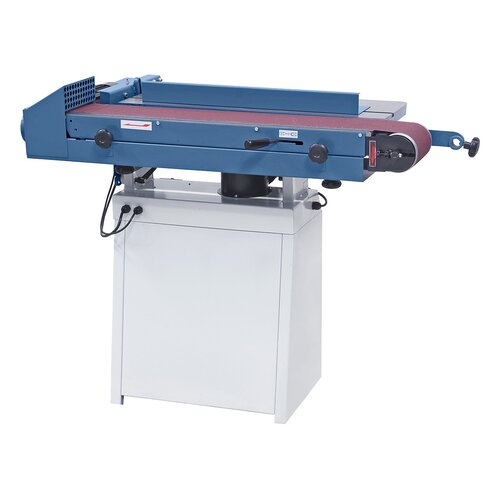

For an additional range of applications the sanding unit can be tilted into horizontal position.
For an additional range of applications the sanding unit can be tilted into horizontal position.
Sanding unit can be locked steplessly at any position from 0° to 90°
Sanding unit can be locked steplessly at any position from 0° to 90°
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Linear guide of sanding unit in vertical direction (instead of tilting function) for flawless results.
Spring balanced belt tension ensures for automatic elimination of differences in belt lengths.
Complete with mitre fence and scale for precise sanding of angles.
Ergonomically arranged handwheel on front of machine allows for convenient height adjustment of work table.
The height adjustable support table allows sanding of contours at the reverse roller.
For an additional range of applications the sanding unit can be tilted into horizontal position.
Sanding unit can be locked steplessly at any position from 0° to 90°

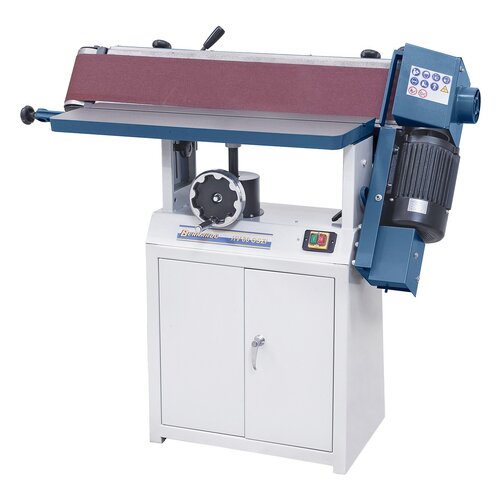

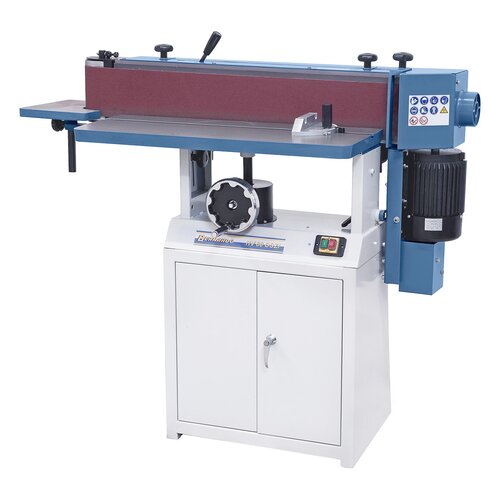

Edge sanding machine with oscillation HV 80 OSZI / 400 V

Art.Nr.: 11-4150
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The HV 80 OSZI is a powerful, universal edge sanding machine suitable for sanding of wood, glass, plastics and non-ferrous metals. When using fabric belts, metals can also be sanded. The stepless tilting function in vertical position increases the application area significantly.

€1,296.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Height adjustable, grey cast-iron table allows for sanding belt to be used along its entire width
  • Spring balanced clamping device guarantees even belt tension
  • Oscillation ensures optimal use of the sanding belt
  • Complete with mitre fence, adjustable from -45º to +45º
  • Clamping lever allows for quick and easy sanding belt change
  • Tool storage with shelving is part of standard equipment

Product Specifications

Work table

850 x 300 mm

Table height adjustment

90 mm

Belt length

2510 mm

Belt width

150 mm

Sanding table

950 x 200 mm

Sanding unit lockable

90° / 0°

Belt speed

16 m/sec.

Supporting table

300 x 250 mm

Dust extraction outlet

100 mm

Roller diam.

110 mm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

400 V

Machine dimension (W x D x H)

1400 x 680 x 1220 mm

Weight approx.

148 kg

Delivery Contents

  • Sanding belt 2510 x 150 mm - grit 100
  • Supporting table
  • Mitre fence
  • Sanding belt oscillation
  • Stop bar
  • Stand (with tool storage)
