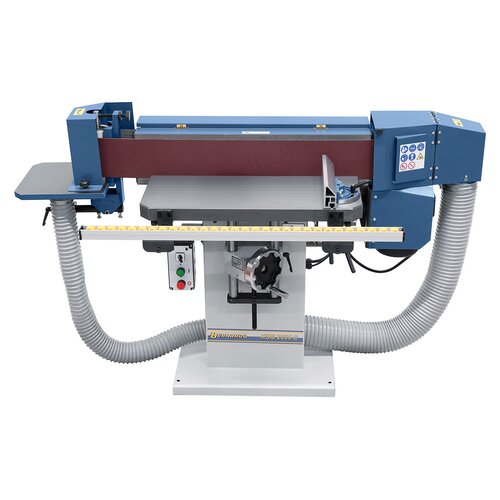

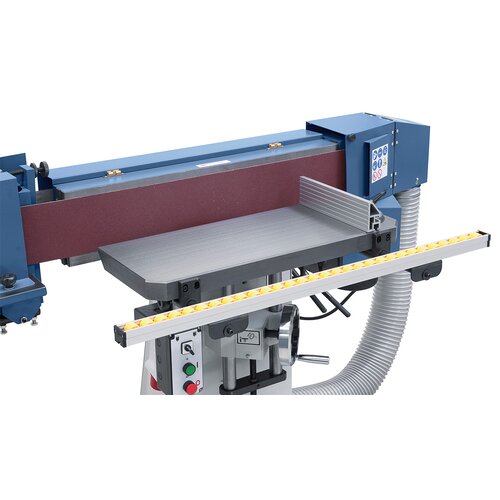

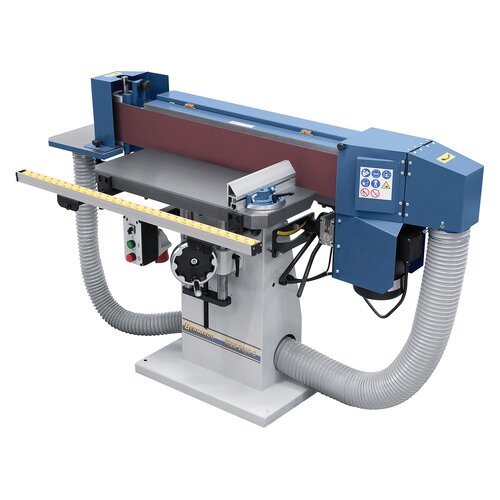

Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)

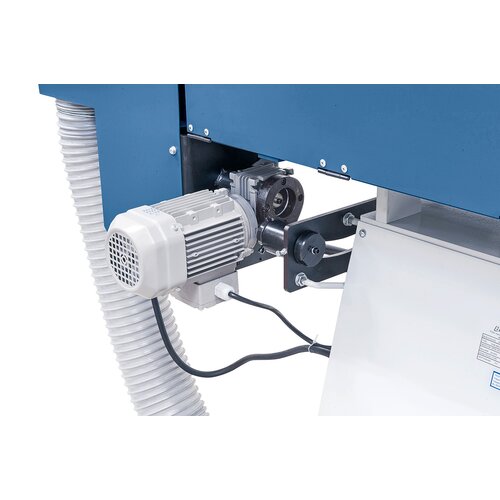

Maintenance-free drive motor allows for oscillation of sanding belt.
Maintenance-free drive motor allows for oscillation of sanding belt.

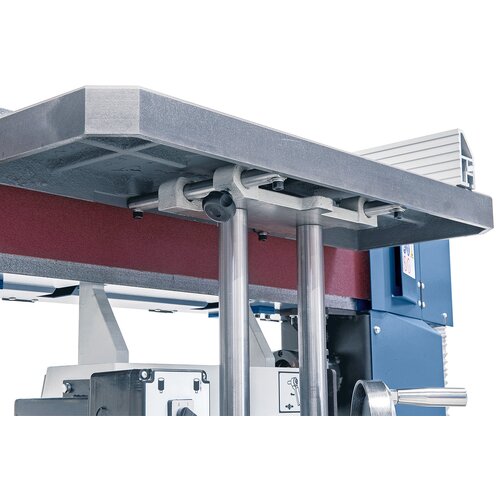

The height adjustable work table can additionally be moved from front to rear.
The height adjustable work table can additionally be moved from front to rear.

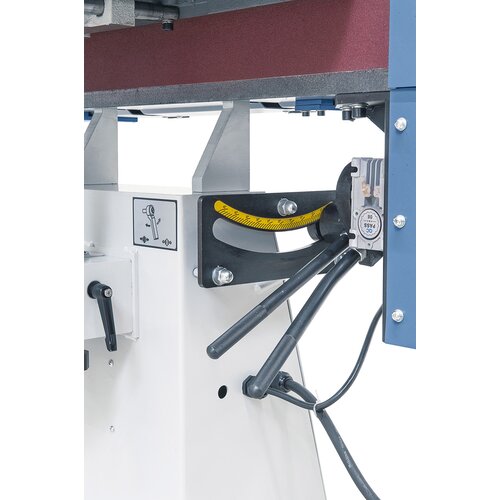

Quick clamping lever ensures quick bevelling and locking of sanding unit.
Quick clamping lever ensures quick bevelling and locking of sanding unit.

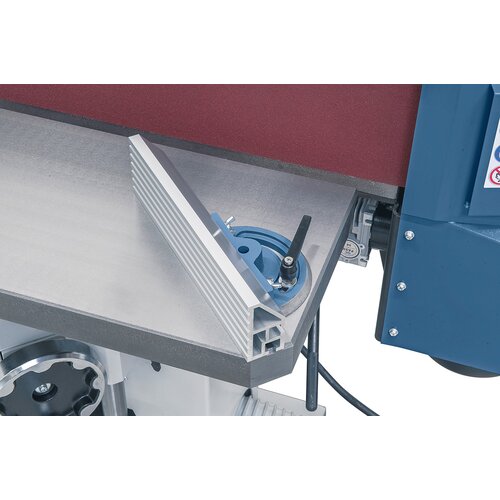

Adjustable mitre fence and moveable ruler come standard.
Adjustable mitre fence and moveable ruler come standard.

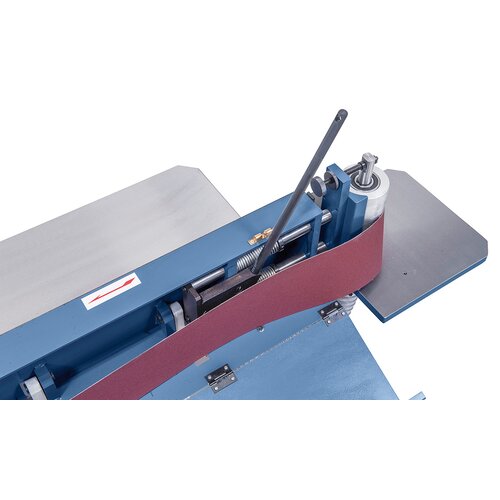

Quick clamping-device allows for user-friendly change of sanding belt.
Quick clamping-device allows for user-friendly change of sanding belt.

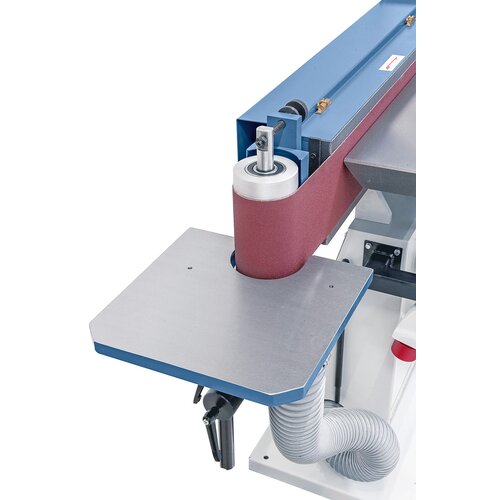

Rotary sanding table features dust port for ideal sanding of radius or contour.
Rotary sanding table features dust port for ideal sanding of radius or contour.

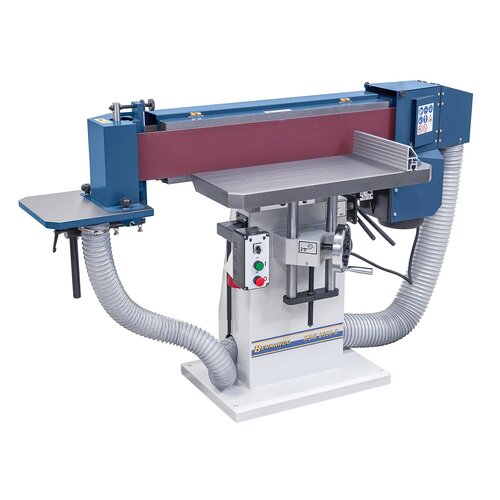

The up to 45º tiltable sanding unit and the rigid, horizontal position of the worktable makes processing of heavy workpieces significantly easier.
The up to 45º tiltable sanding unit and the rigid, horizontal position of the worktable makes processing of heavy workpieces significantly easier.

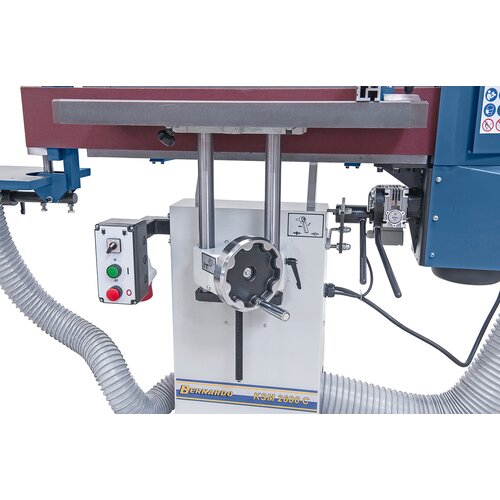

Height adjustable work table ensures optimal use of sanding belt width.
Height adjustable work table ensures optimal use of sanding belt width.
Height adjustable work table ensures optimal use of sanding belt width.
Height adjustable work table ensures optimal use of sanding belt width.
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Pictured with extractable table extension (Optional)
Maintenance-free drive motor allows for oscillation of sanding belt.
The height adjustable work table can additionally be moved from front to rear.
Quick clamping lever ensures quick bevelling and locking of sanding unit.
Adjustable mitre fence and moveable ruler come standard.
Quick clamping-device allows for user-friendly change of sanding belt.
Rotary sanding table features dust port for ideal sanding of radius or contour.
The up to 45º tiltable sanding unit and the rigid, horizontal position of the worktable makes processing of heavy workpieces significantly easier.
Height adjustable work table ensures optimal use of sanding belt width.
Height adjustable work table ensures optimal use of sanding belt width.

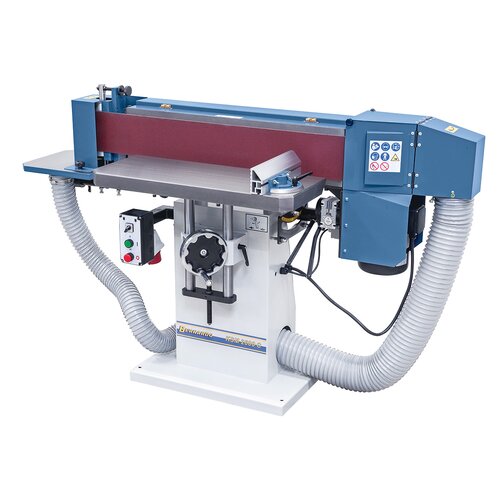

Edge sanding machine KSM 2600 C *

Art.Nr.: 11-4192
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The KSM 2600 C edge sanding machine features an oscillating sanding belt with independent drive motor. The sanding unit can quickly be adjusted from 90º to 45º and allows sanding of straight and bevelled edges.

€2,100.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Suitable for sanding of wood, plastics and similar materials
  • Oscillating sanding belt guarantees generous removal of material and smooth finish
  • Dust port on both sides (80 / 100 mm) for optimal dust removal
  • Oscillation of sanding belt with separate drive motor can be switched on
  • Spring balanced belt tension allows automatic adjustment of differences in sanding belt lengths
  • Handwheel ensures user-friendly height adjustment of work table
  • Torsion-free, steel-plate machine base eliminates vibrations

Product Specifications

Work table

750 x 290 mm

Table height adjustment

185 mm

Belt length

2600 mm

Belt width

150 mm

Sanding table

850 x 200 mm

Sanding unit tiltable

90° - 45°

Belt speed

20 m/sec.

Supporting table

330 x 330 mm

Oscillation stroke

20 mm

Oscillation motor

0,25 kW (0,34 HP)

Dust extraction outlet

120 mm

Motor power output S1 100%

3,0 kW (4,0 HP)

Motor power input S6 40%

4,5 kW (6,0 HP)

Voltage

400 V

Machine dimension (W x D x H)

1700 x 700 x 1080 mm

Weight approx.

180 kg

Delivery Contents

  • Sanding belt oscillation
  • Sanding belt 2600 x 150 mm - grit 100
  • Support table
  • Graphite coating
  • Mitre fence
  • Tube
