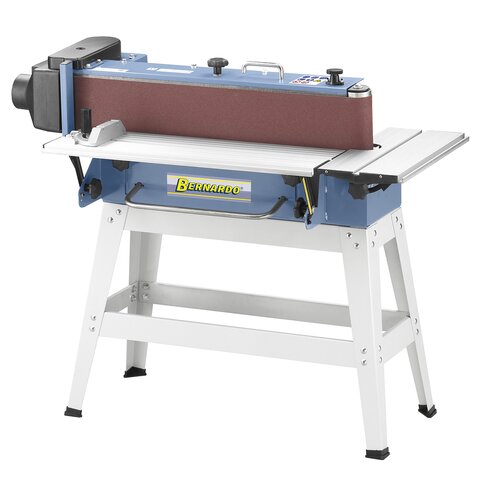

Edge sanding machine HV 70 / 230 V
Art.Nr.: 11-4140The HV 70 is a compact, versatile edge sanding machine that features two tiltable support tables and can be used both in horizontal and vertical position. The unbeatable price-to-benefi t ratio makes this model ideal for craftsmen.
€859.20
incl. 20% VATAvailability
Product Properties

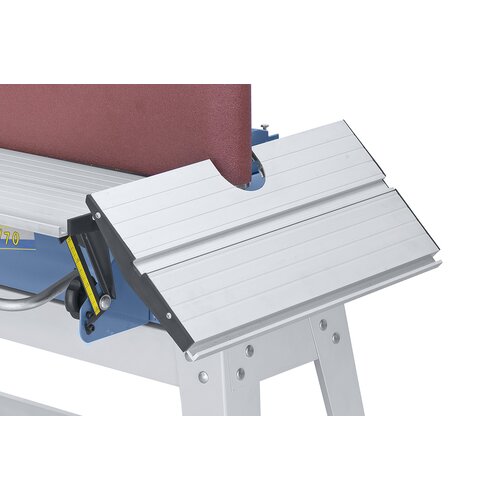

- Complete with angle adjustable support table for contour sanding
- Dust port and mitre fence are part of standard equipment
- Graphite coating on sanding table increase the sliding capcity of sanding belt
- Quick clamping device allows for easy change of sanding belt
- Fence for horizontal sanding comes standard

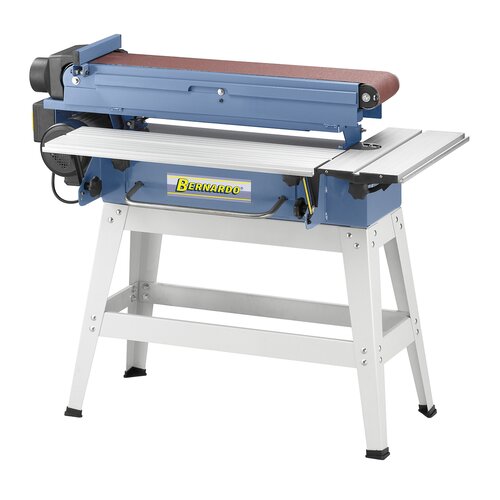

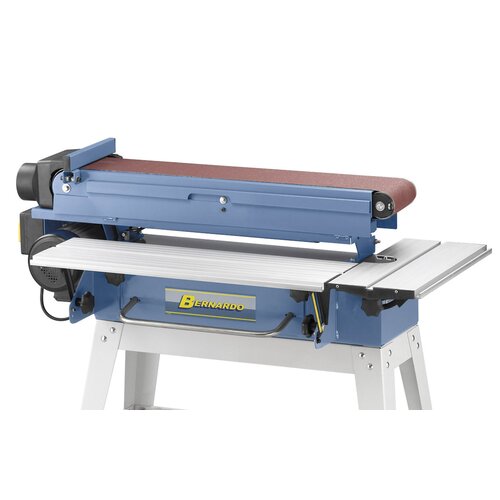

- Sanding unit can be used horizontally and vertically to increase the range of applications
Product Specifications
|
Work table |
780 x 220 mm |
|
Table height adjustment |
95 mm |
|
Belt length |
2010 mm |
|
Belt width |
150 mm |
|
Sanding table |
810 x 150 mm |
|
Sanding unit lockable |
90° / 0° |
|

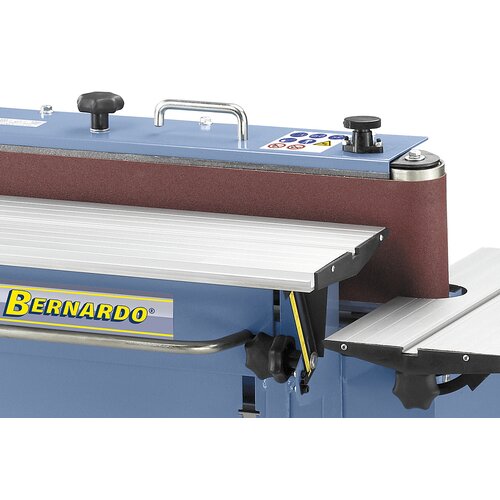

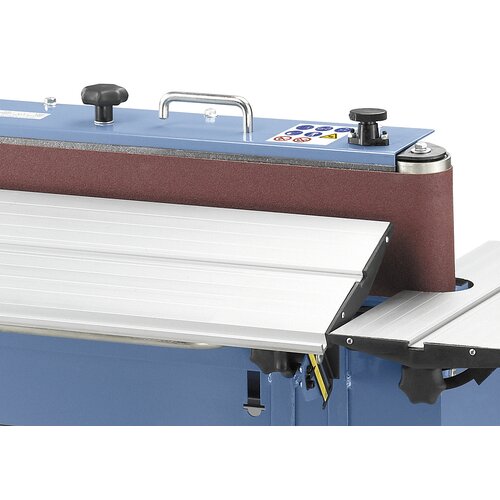

Tilting of work table |
0° - 45° |
|
Belt speed |
13 m/sec. |
|
Supporting table |
510 x 220 mm |
|

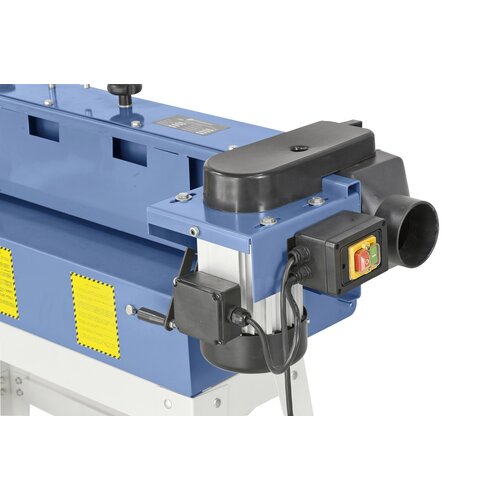

Dust extraction outlet |
100 mm |
|
Roller diam. |
70 mm |
|
Motor power output S1 100% |
1,1 kW (1,5 HP) |
|
Motor power input S6 40% |
1,65 kW (2,25 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1300 x 600 x 1000 mm |
|
Weight approx. |
86 kg |
Delivery Contents
- Supporting table
- Graphite coating

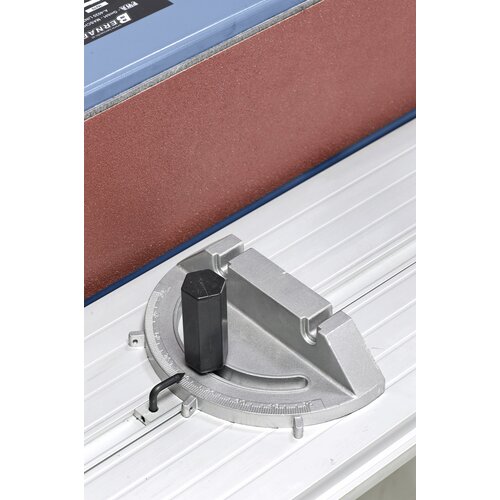

- Mitre fence
- Fence at sanding table
- Stand
- Sanding belt 2010 x 150 mm - grit 60
