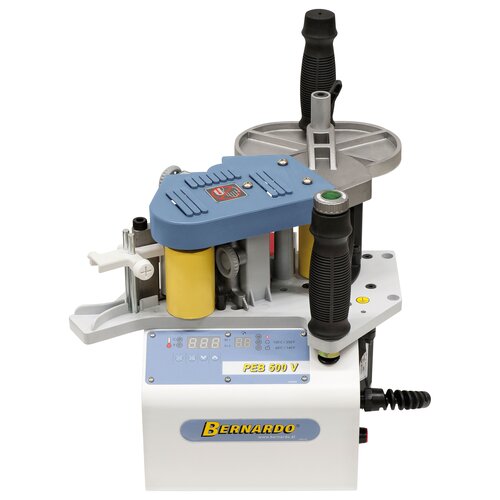

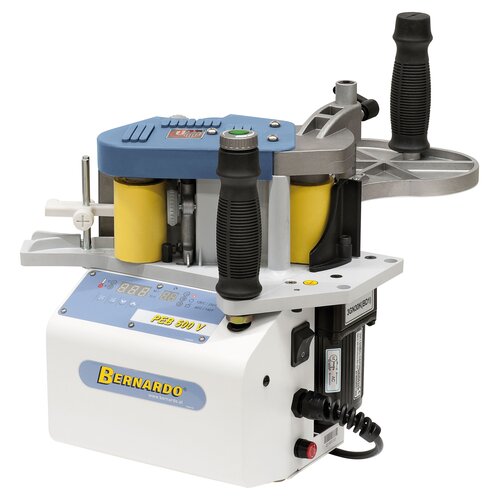

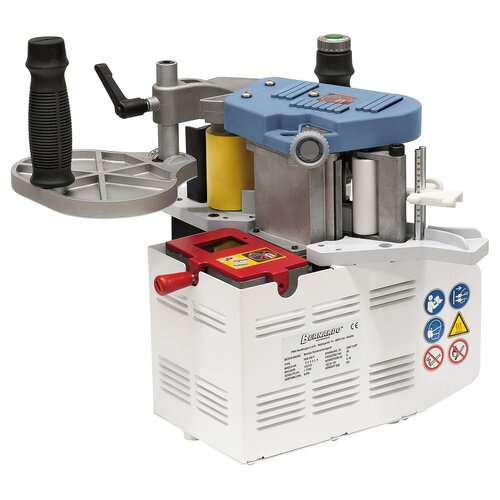

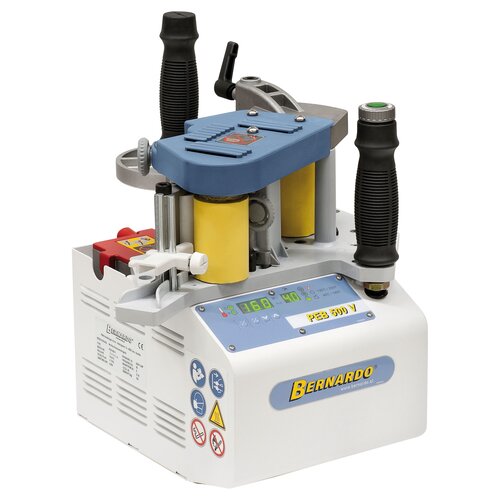

Edge bending set PEB 500 V-S
Art.Nr.: 14-2007The PEB 500 V mobile edge banding machine is ideal for applying adhesives to straight, curved or round workpieces. Along with the low purchase price and the compact construction, these models are suitable for all types of wood processing whether fixed in workshops or as a mobile device on location. Additional, this model offer a variable feed setting.
€1,836.00
incl. 20% VATAvailability
Product Properties

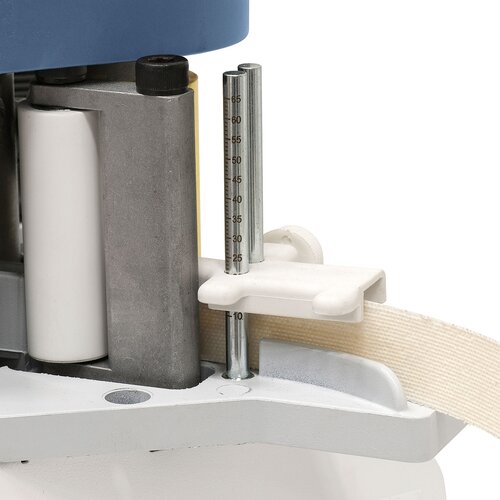

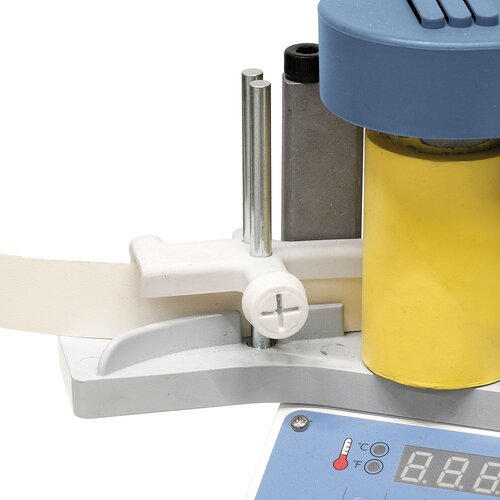

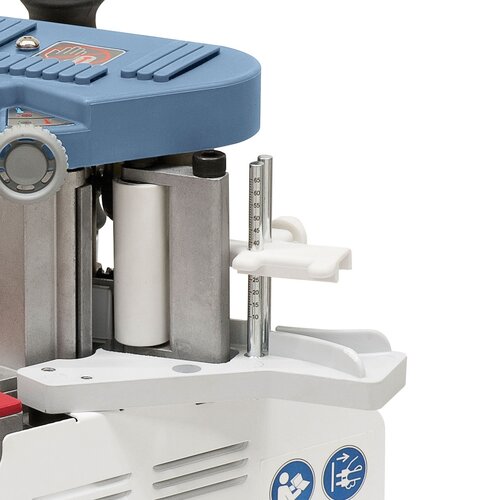

- Adjustable guide system for use of edge thicknesses of 0,3 - 3 mm or edge heights of 10 - 65 mm

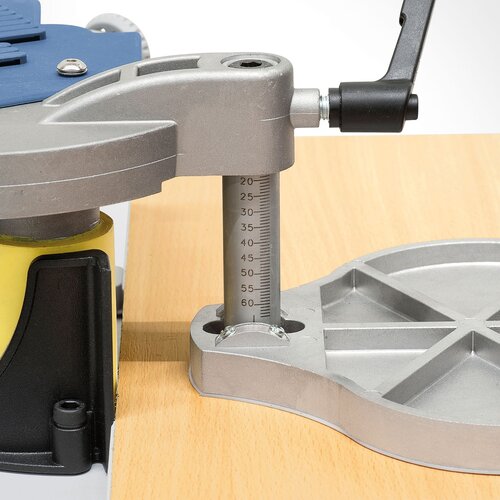

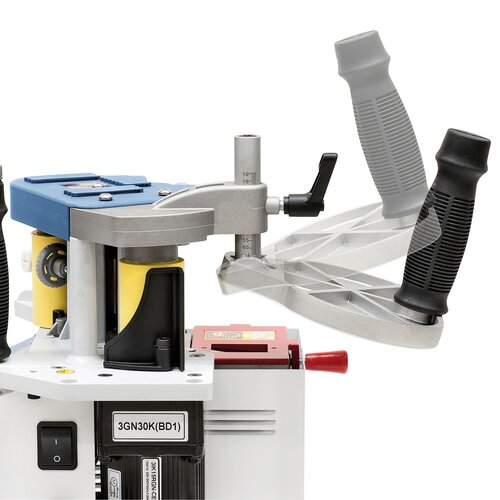

- 2 rubberized handles and a height-adjustable guide plate ensure effortless working
- Comfortable apply of the edge material through stepless adjustable feed speed

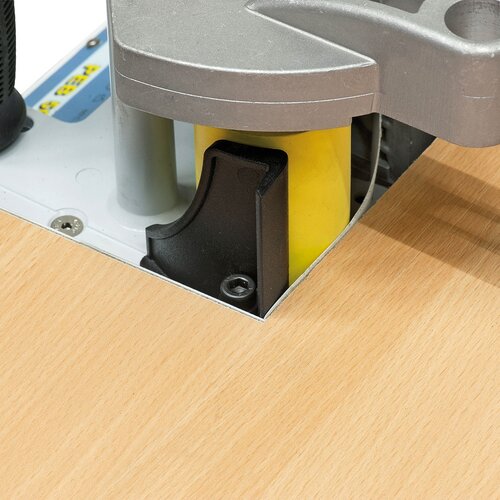

- Ideal for application of adhesives onto straight or curved workpieces, minimal inside radius 25 mm

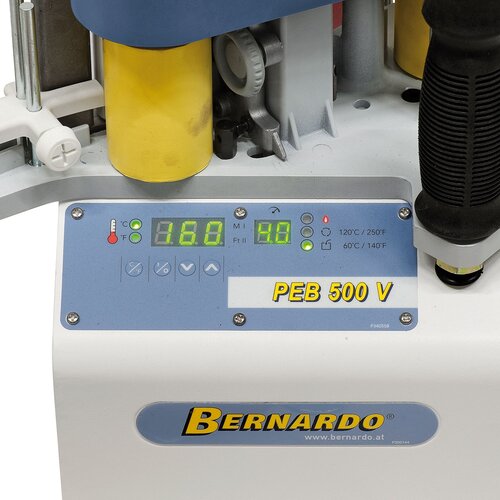

- Stepless temperature control and fast preheating allow for immediate and ease of use
- High efficiency, no edge material with advanced glue necessary
- Ideal for processing of ABS-, PVC-, melamine and veneer edges
Product Specifications
|
Edge thickness (PVC) |
0,3 – 3,0 mm |
|
Edge height min./max. |
10 – 65 mm |
|
Heating-up time |
4 min (120°) |
|
Working temperatur |
Mode 1: 120 – 200° |
|
|
Mode 2: 80 – 155° |
|
Glue tank |
400 ml |
|
Feed speed |
2 - 6 m/min |
|
Motor power |
855 W |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
340 x 300 x 350 mm |
|
Weight approx. |
8,1 kg |

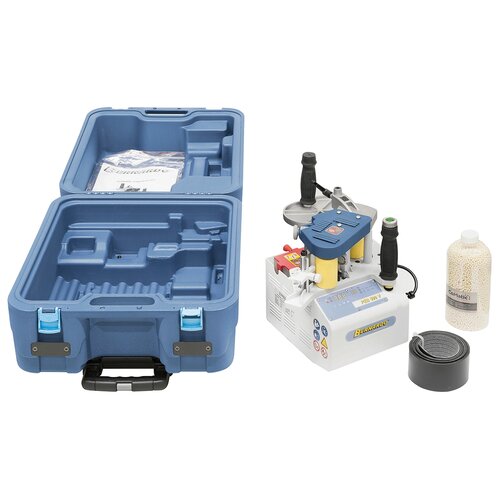

Delivery Contents
- Glue granulate 0,8 kg
- Stepless feed adjustment
- Digital temperature adjustment

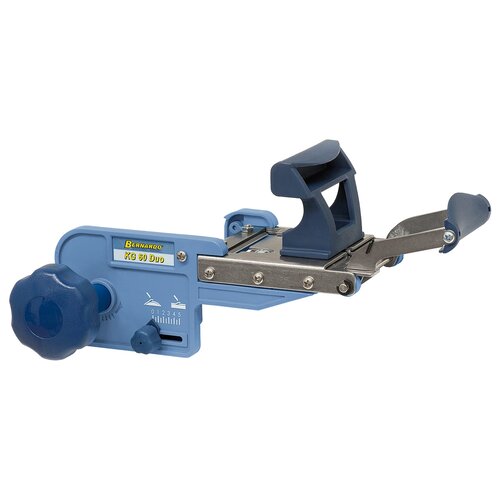

- Dual end cutter KG 60 DUO

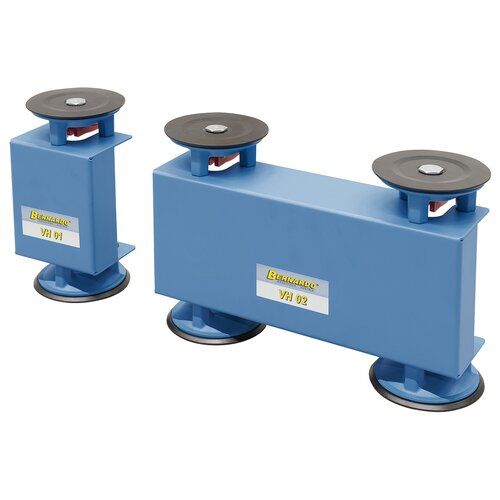

- Vacuum kit VH 03

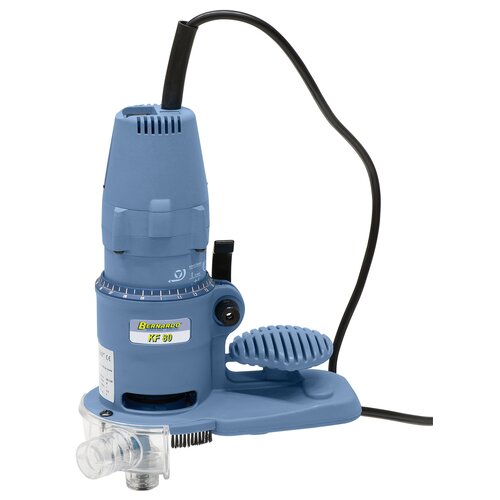

- Edgeband trimmer KF 80

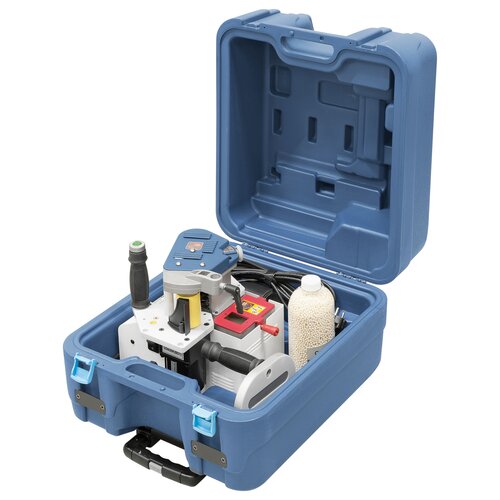

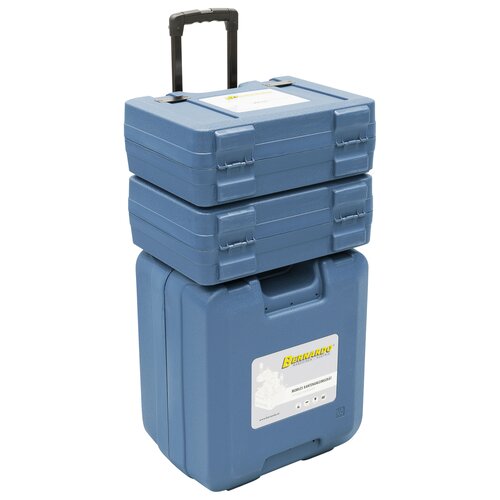

- 3x transport box

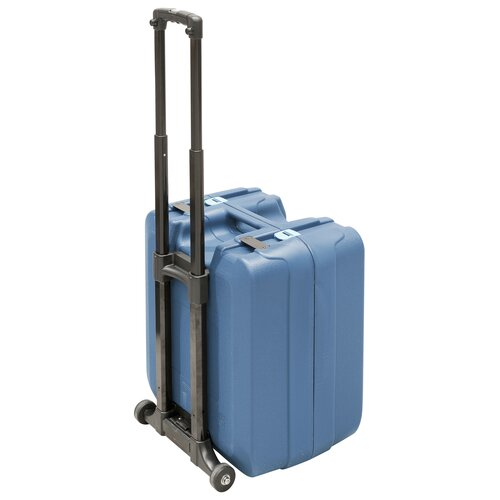

- Carriage
