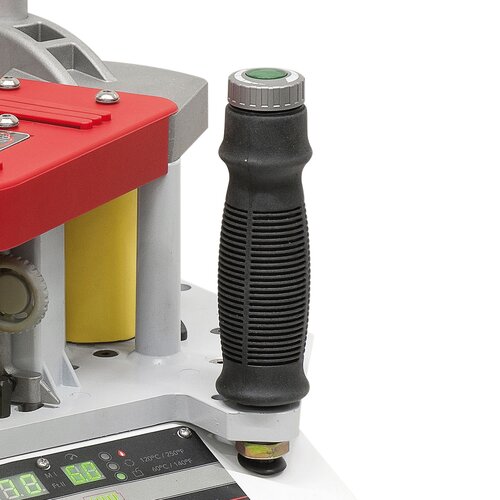

Convenient feed adjustment on handle from 2 – 6 m/min, ideal for processing of different workpieces

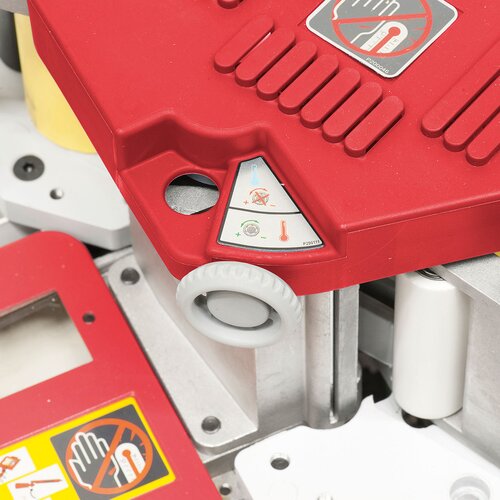

The supplied amount of glue can be set exactly via a rotary knob.

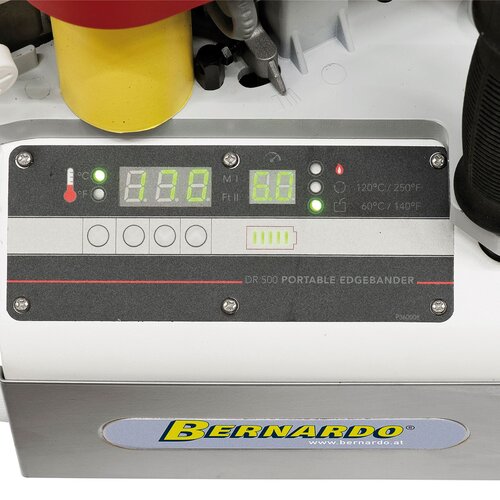

Clearly arranged control panel, operation via membrane keypad.

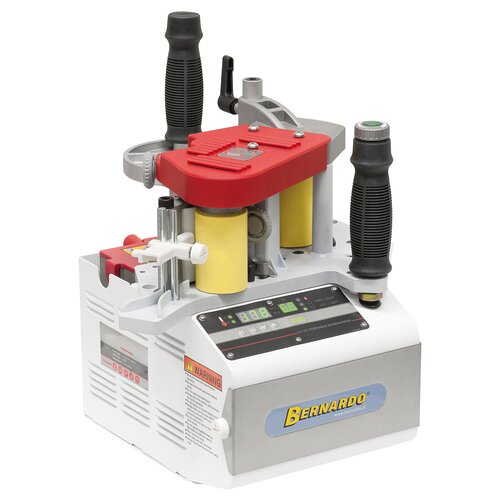

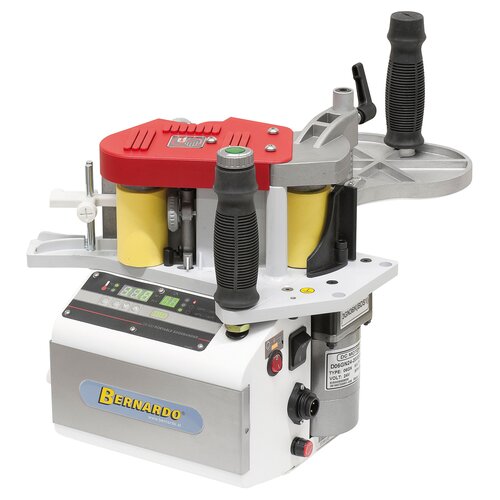

Edge bending set DR 500 S
Art.Nr.: 14-2012The model DR 500 offers a high level of user-friendliness, since the integrated rechargeable battery enables wireless operation. Due to the compact design, this model is suitable for all types of wood processing, whether fixes in workshops or as a mobile device on location.
€2,256.00
incl. 20% VATAvailability
Out of Stock
Product Properties
- Stepless temperature control and fast preheating allow for immediate and ease of use
- Ideal for application of adhesives onto straight or curved workpieces, whether concave or convex shapes
- Glue application adjustable by finely adjustable knob
- Ideal for processing of ABS-, PVC-, melamine and veneer edges

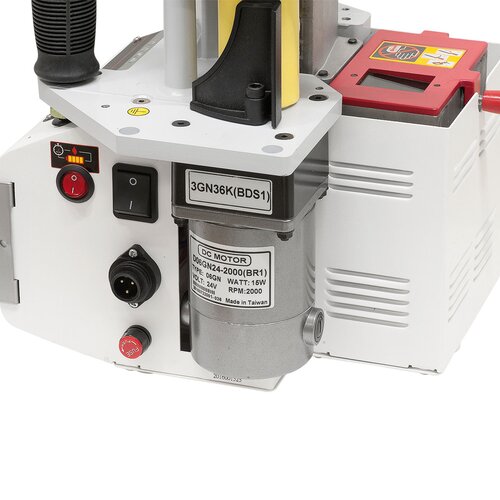

- Stepless adjustable feed speed directly on the handle
- Powerful drive motor ensures smooth running at every feed speed
- Ideal for mobile use, integrated battery for wireless operation
Product Specifications
|
Edge thickness (PVC) |
0,3 – 3,0 mm |
|
Edge height min./max. |
10 – 65 mm |
|
Heating-up time |
4 min (120°) |
|
Working temperatur |
Mode 1: 120 – 200° |
|
|
Mode 2: 80 – 155° |
|
Glue tank |
400 ml |
|
Feed speed |
2 - 6 m/min |
|
Motor power |
855 W |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
340 x 300 x 350 mm |
|
Weight approx. |
8,5 kg |

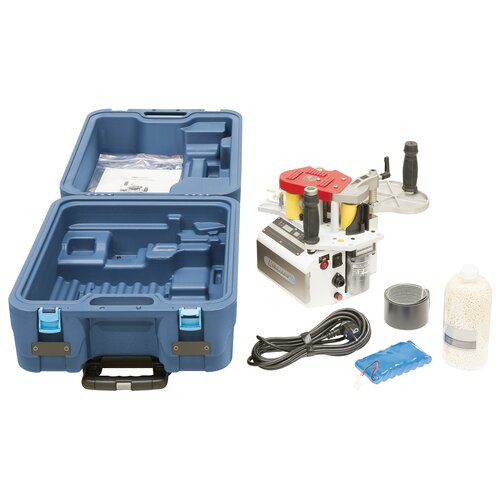

Delivery Contents
- Glue granulate 0,8 kg
- Stepless feed adjustment
- Digital temperature adjustment
- Edge banding machine

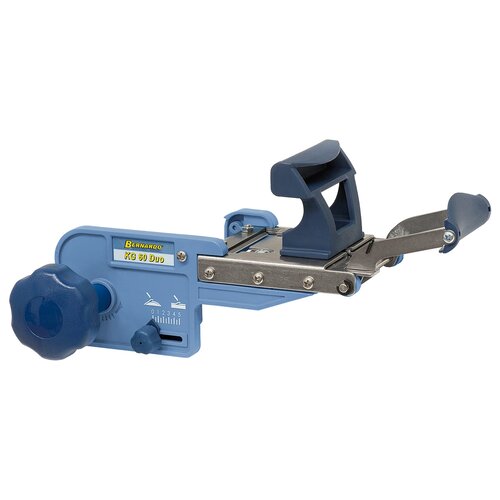

- Dual end cutter KG 60 DUO

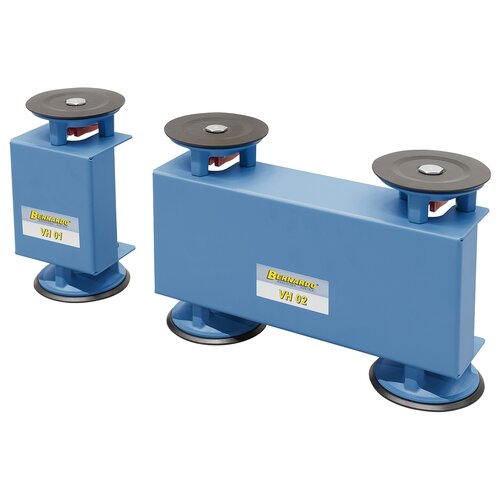

- Vacuum kit VH 03

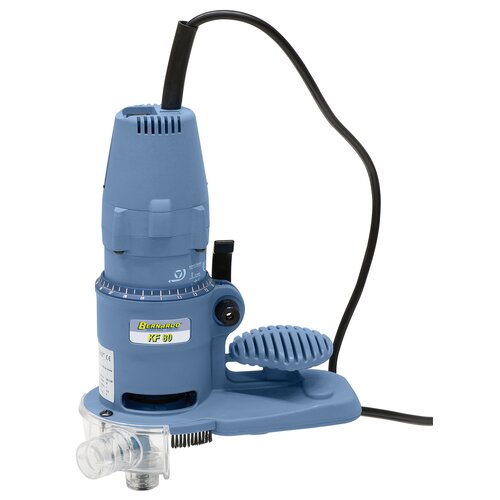

- Edgeband trimmer KF 80

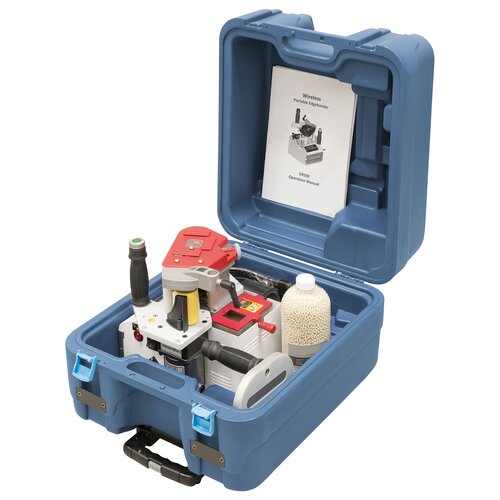

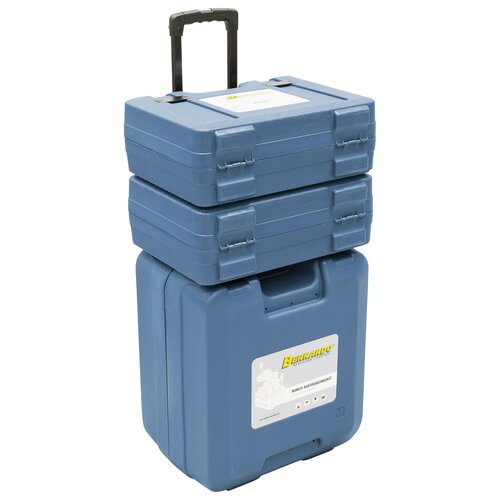

- 3x transport box

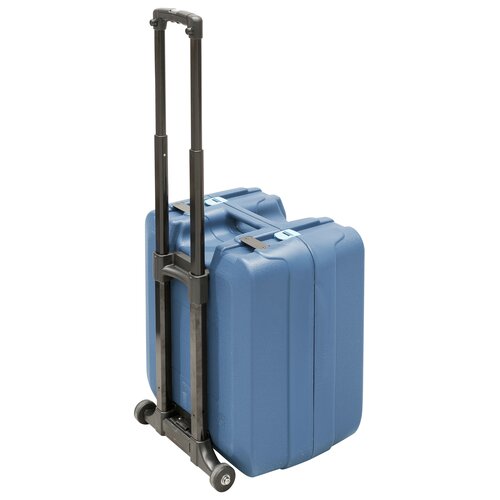

- Carriage
