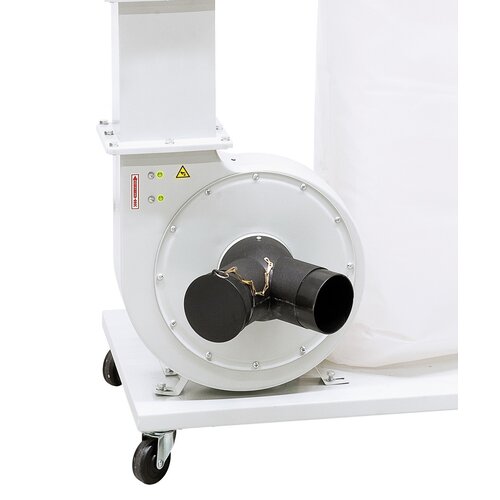

Includes Y-adapter for simultaneous operation of two machines.
Includes Y-adapter for simultaneous operation of two machines.

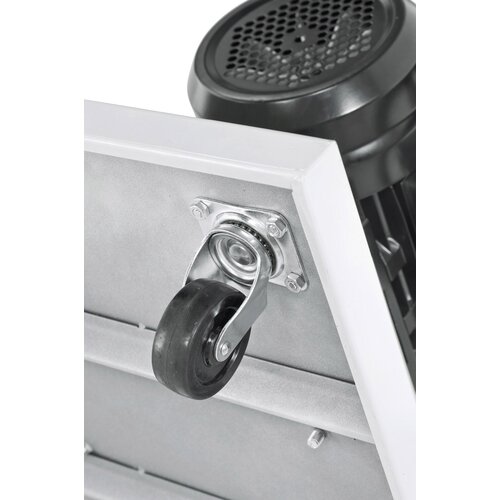

Carriage with castors comes standard.
Carriage with castors comes standard.

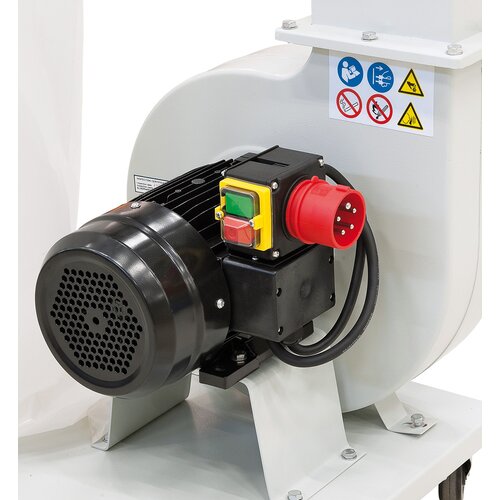

Powerful aluminium motor featuring overload protection.
Powerful aluminium motor featuring overload protection.

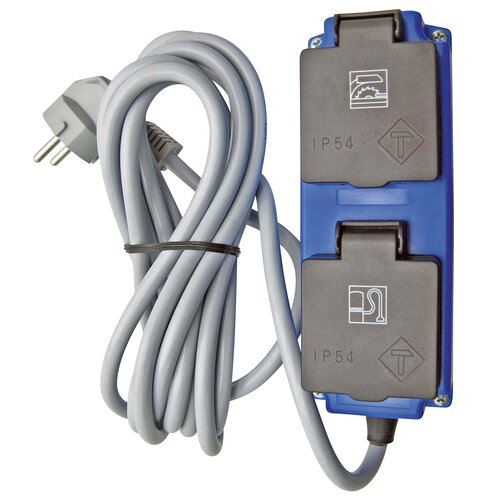

Automatic start-up ALV 2: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)
Automatic start-up ALV 2: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)

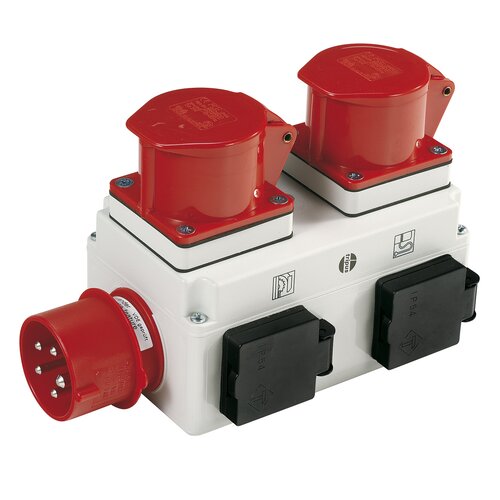

Automatic start-up ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)
Automatic start-up ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)

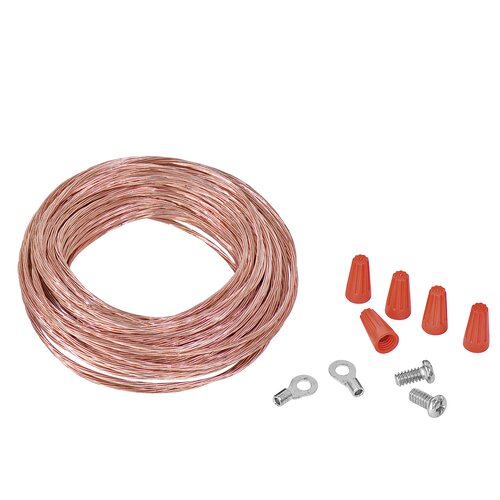

Grounding set ES 1 (optional extra): Attention: The dust collector needs to be grounded at all time to reduce the risk of fire and explosion.
Grounding set ES 1 (optional extra): Attention: The dust collector needs to be grounded at all time to reduce the risk of fire and explosion.

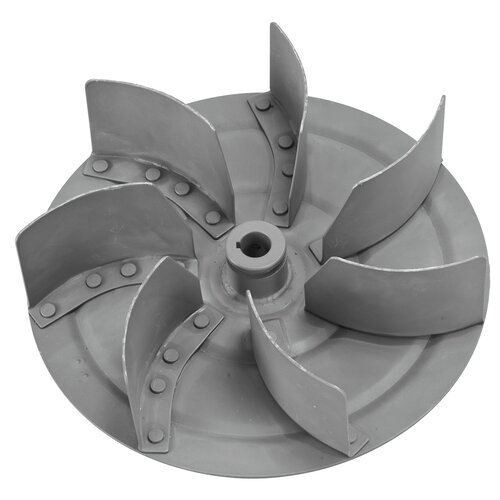

Aerodynamically shaped, steel plate fan wheel ensures large airflow.
Aerodynamically shaped, steel plate fan wheel ensures large airflow.
Includes Y-adapter for simultaneous operation of two machines.
Carriage with castors comes standard.
Powerful aluminium motor featuring overload protection.
Automatic start-up ALV 2: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)
Automatic start-up ALV 10: When switching the wood working machine on / off, the dust collector automatically turns on / off with delay. (optional)
Grounding set ES 1 (optional extra): Attention: The dust collector needs to be grounded at all time to reduce the risk of fire and explosion.
Aerodynamically shaped, steel plate fan wheel ensures large airflow.

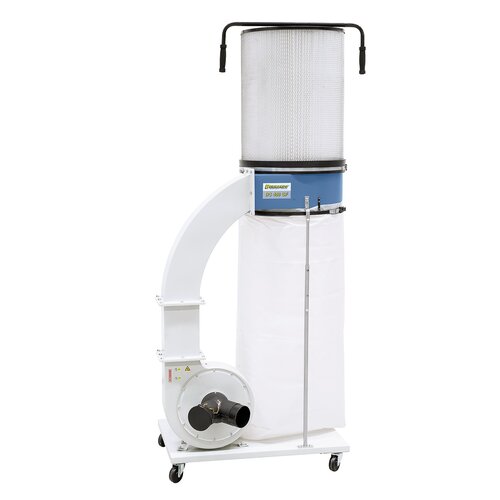

Dust collector with cartridge filter DC 450 CF / 230 V

Art.Nr.: 12-2094
Wishlist Comparison List

The DC 450 CF is a powerful, transportable dust collector with a standard cartridge filter FP 2 for such effective filtering of the air that even harmful fine dust in workshops can be kept at a minimum.

€835.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Complete with cartridge filter
  • Larger filter area allows for maximum airflow and improves extraction force
  • Connect to stationary or mobile wood working machines
  • Increases capacity of your wood working machines
  • Comes with carriage for easy transport
  • Constant extraction force, even at continuous operation

Product Specifications

Capacity

2800 m³/h

Filter area

4,0 m²

Low pressure max.

1800 Pa

Inlet diameter

1 x 130 / 2 x 100 mm

Waste bag volume

300 l

Idle speed

2950 rpm

Motor power output S1 100%

1,5 kW (2,0 HP)

Motor power input S6 40%

2,1 kW (2,8 HP)

Voltage

230 V / 50 Hz

Machine dimension (W x D x H)

860 x 670 x 2210 mm

Weight approx.

49 kg

Delivery Contents

  • Cartridge filter FP 2
  • Waste bag
  • Y-adapter 1 x 130 mm / 2 x 100 mm
  • Carriage

Suitable accessories

Cartridge filter FP 2 f. DC 300 / 400 / 500 / 600 / 700
Cartridge filter FP 2 f. DC 300 / 400 / 500 / 600 / 700
Art.Nr. : 12-1013

€297.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Cartridge filter FP 3 f. DC 300 / 400 / 500 / 600 / 700
Cartridge filter FP 3 f. DC 300 / 400 / 500 / 600 / 700
Art.Nr. : 12-1014

€408.00

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
10 % discount
PU-tube diam. 100 mm (6 m)
PU-tube diam. 100 mm (6 m)
Art.Nr. : 12-1077

€152.40

€137.16

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Grounding set ES 1
Grounding set ES 1
Art.Nr. : 12-1140

€38.40

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Automatic start-up system ALV 10 / 1 M
Automatic start-up system ALV 10 / 1 M
Art.Nr. : 12-1150

€200.40

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Waste bag diam. 540 x 1400 mm for DC 400 / 450 CF / 500 E / 550 CF / FT 302 N / DC 800 / DC 850 CF (10 pcs.)
Waste bag diam. 540 x 1400 mm for DC 400 / 450 CF / 500 E / 550 CF / FT 302 N / DC 800 / DC 850 CF (10 pcs.)
Art.Nr. : 12-1007

€27.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Automatic start-up system ALV 2 / M 230 - 230 V with 4 m cable
Automatic start-up system ALV 2 / M 230 - 230 V with 4 m cable
Art.Nr. : 12-1152

€117.60

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
Bag clamp f. FP 2 / FP 3 / DC 350 CF / DC 450 CF / DC 550 CF / DC 650 CF / DC 750 CF / DC 850 CF
Bag clamp f. FP 2 / FP 3 / DC 350 CF / DC 450 CF / DC 550 CF / DC 650 CF / DC 750 CF / DC 850 CF
Art.Nr. : 12-1119B

€19.20

incl. 20% VAT

In Stock
Deliverable in 2-3 business days
