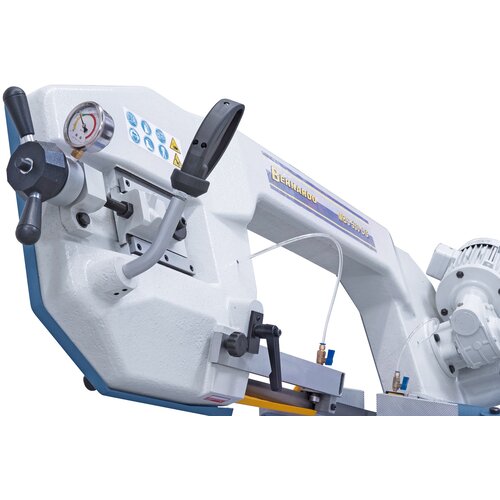

The manometer, as part of standard equipment, allows for optimal adjustmenst of bandsaw blade tension.

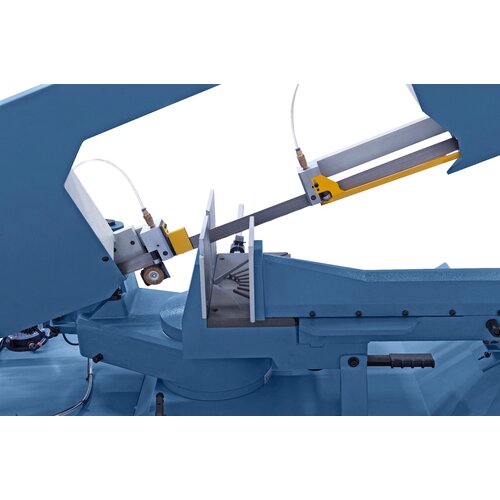

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts.

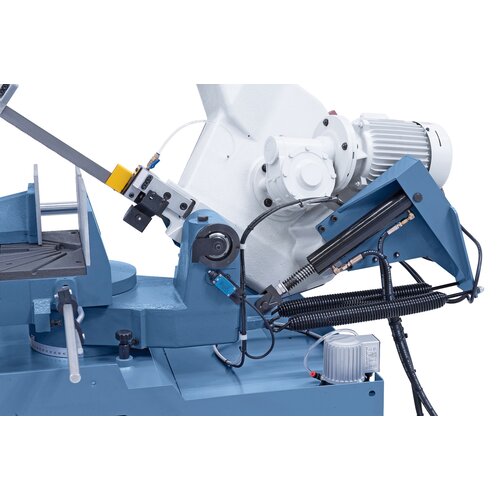

Serially equipped with hydraulic cylinder for sensitive lowering of the saw frame.

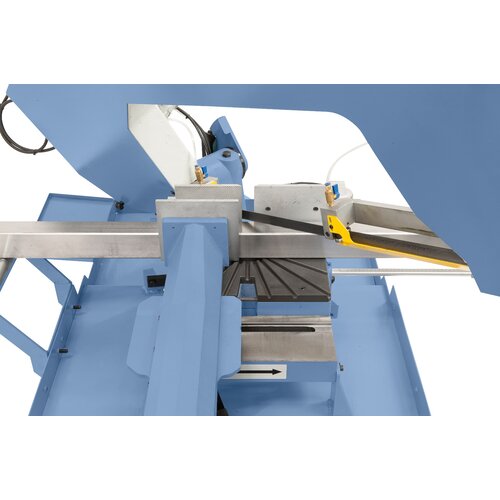

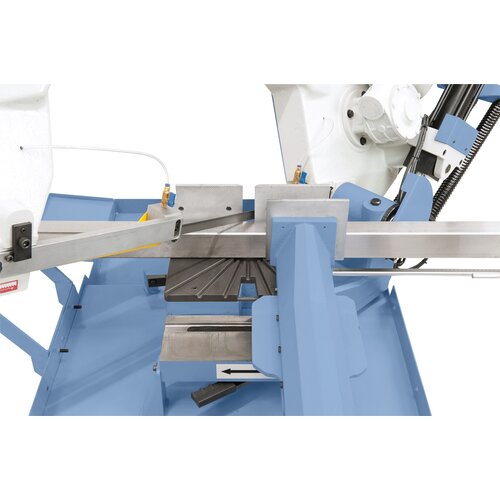

For double mitre cutting the position of the quick clamp vice can be changed.

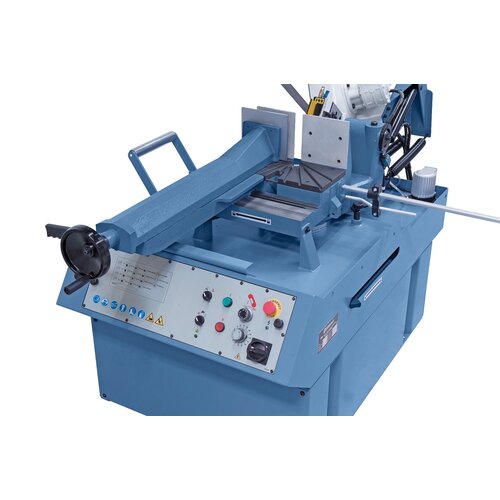

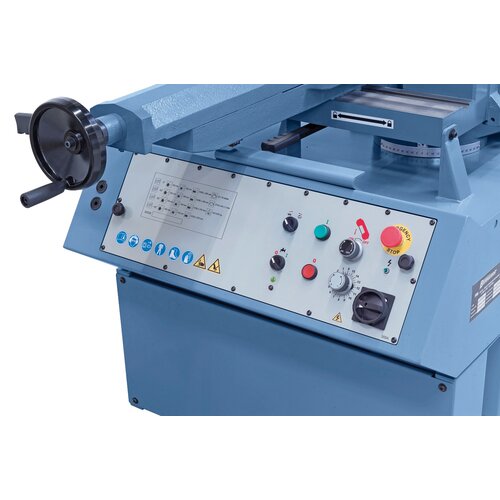

Clearly arranged switch box on the front of the machine, making operating very user-friendly.

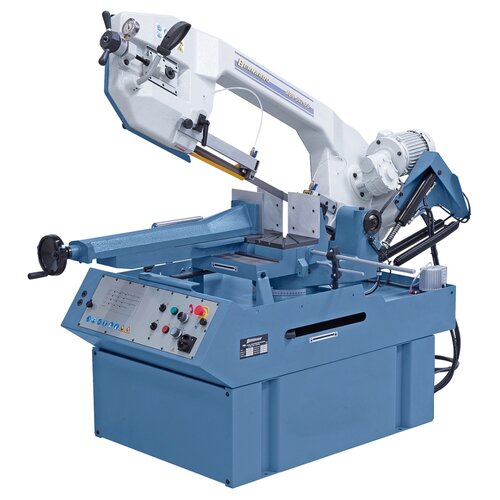

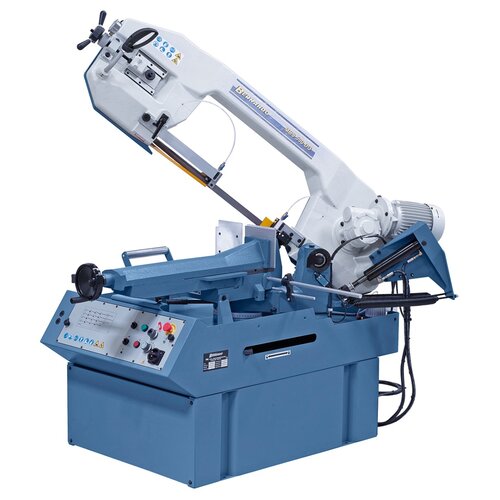

Double mitre bandsaw MBS 530 DG / 400 V

Art.Nr.: 04-1713

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The MBS 530 DG is a high-quality, universal bandsaw, featuring a tiltable saw frame for double mitre cuts from -45º to +60º and a hydraulic cylinder for sensitive lowering of the saw frame via a regulating valve. The application area of this machine is predominantly targeted at locksmith shops, repair shops and tool construction.

€9,372.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
For mitre cutting the saw frame tilts 45° to the left and 60° to the right
2 speed settings (35 / 70 m/min) for optimal cutting results
Robust construction ensures smooth, vibration-free run
Professional bandsaw with unbeatable price-to-performance ratio
Optimal power transmission to the wheel via hardened and ground worm shaft and bronze worm gear
Saw frame pressure regulated by adjustable hydraulic cylinder
Robust cast iron vice with material fence, ideal for serial section
Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals

Product Specifications

Cutting capacity round / square 90°	355 mm / 280 x 280 mm
Cutting capacity flat 90°	490 x 280 mm
Cutting capacity round / square 45° R	355 mm / 280 x 280 mm
Cutting capacity flat 45° R	340 x 280 mm
Cutting capacity round / square 45° L	300 mm / 270 x 270 mm
Cutting capacity flat 45° L	250 x 250 mm
Cutting capacity round / square 60° R	230 mm / 180 x 180 mm
Working height	870 mm
Bandsaw blade dimension	3770 x 34 x 1,1 mm
Cutting speeds	35 / 70 m/min
Coolant pump	100 W
Motor power output S₁ 100%	1,9 kW
Motor power input S₆ 40%	2,8 kW
Voltage	400 V
Machine dimension (L x D x H)	2200 x 1400 x 1500 mm
Weight approx.	555 kg
