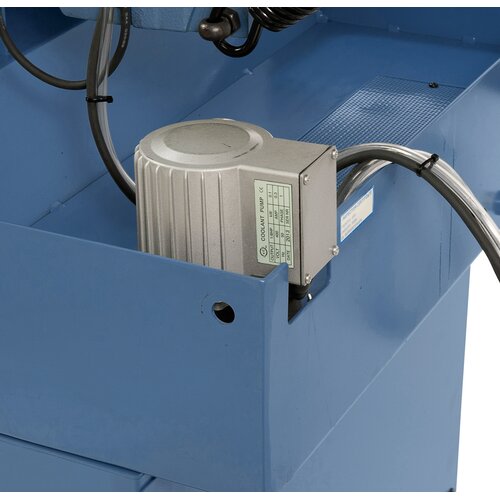

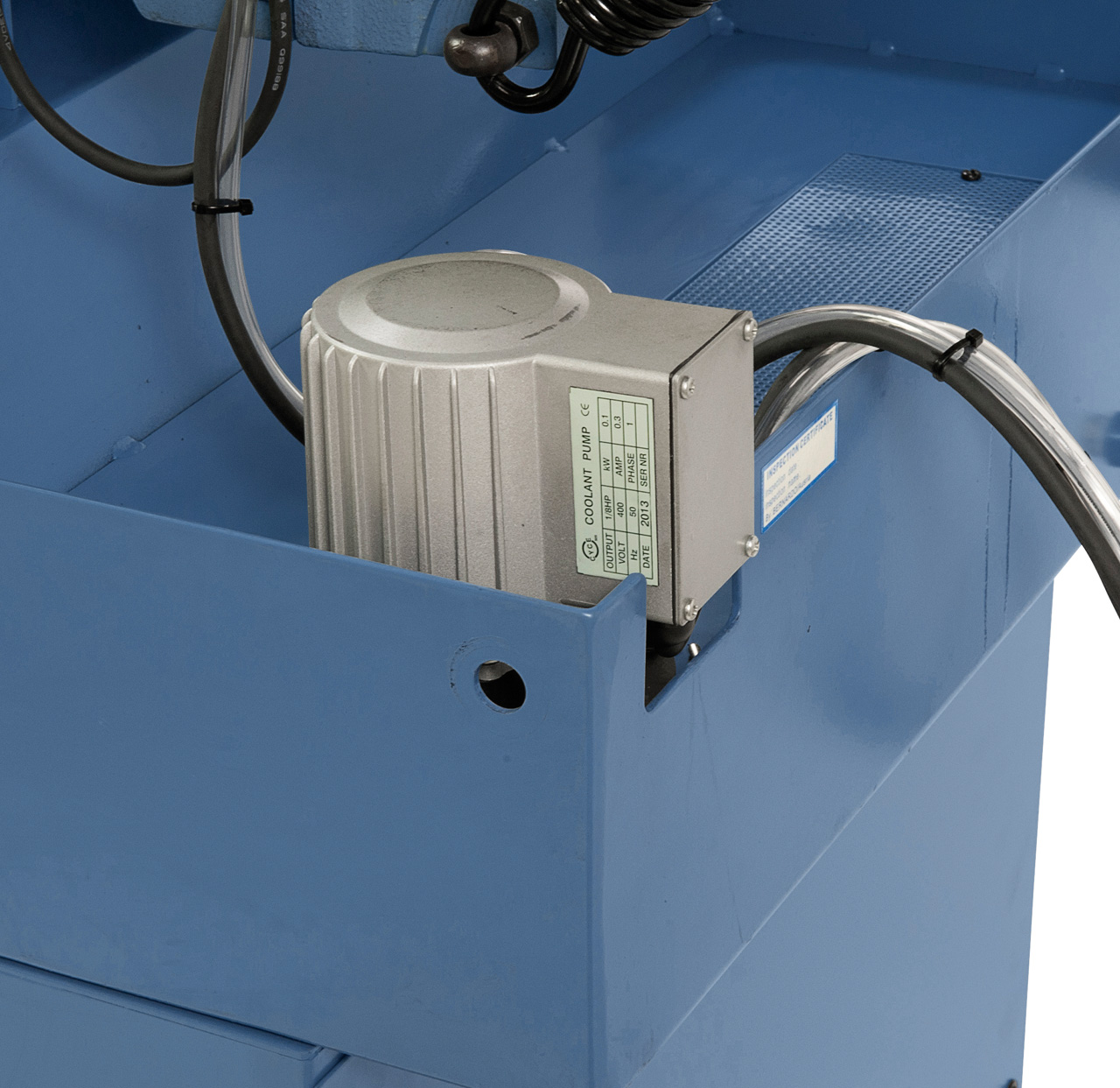

Powerful coolant pump included as a standard accessory.

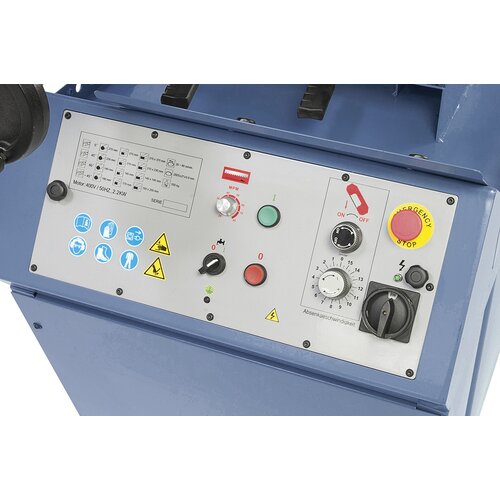

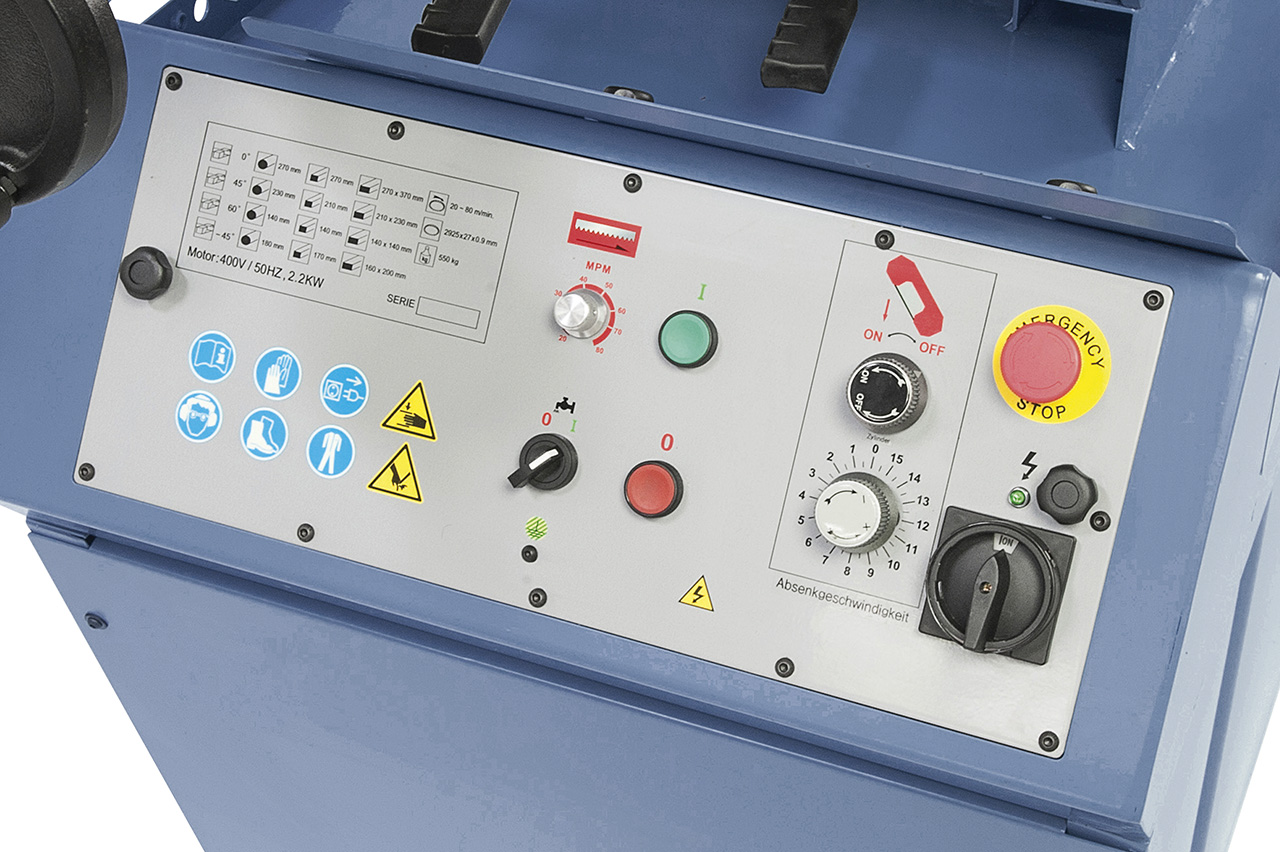

Straightforward control of switches on electronic panel.

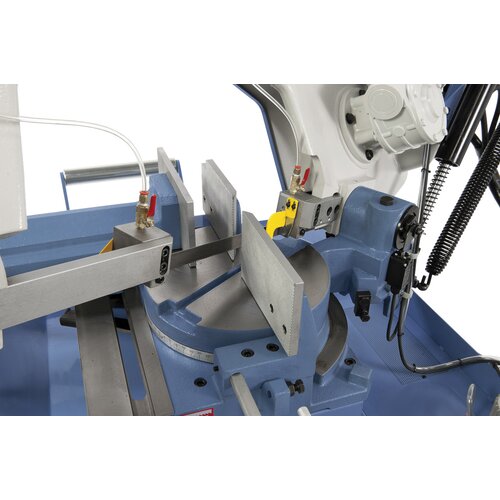

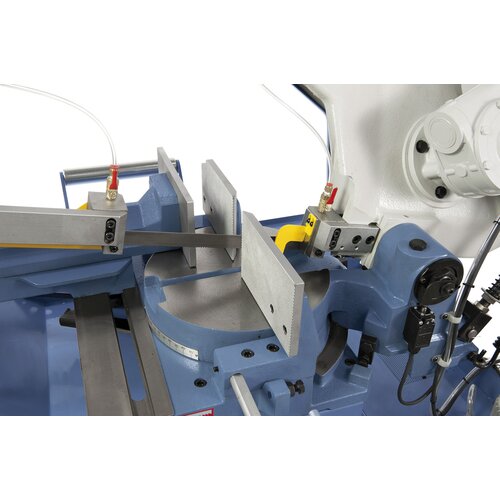

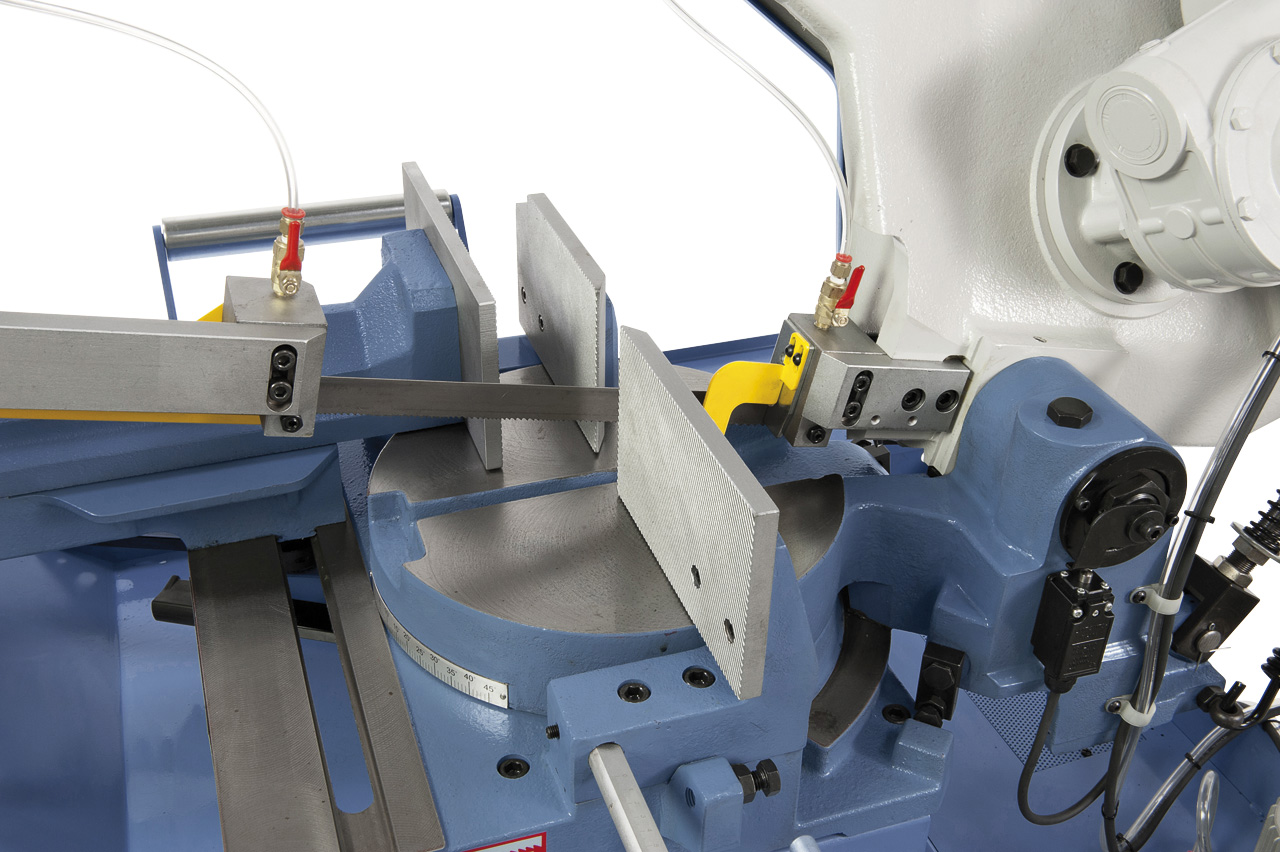

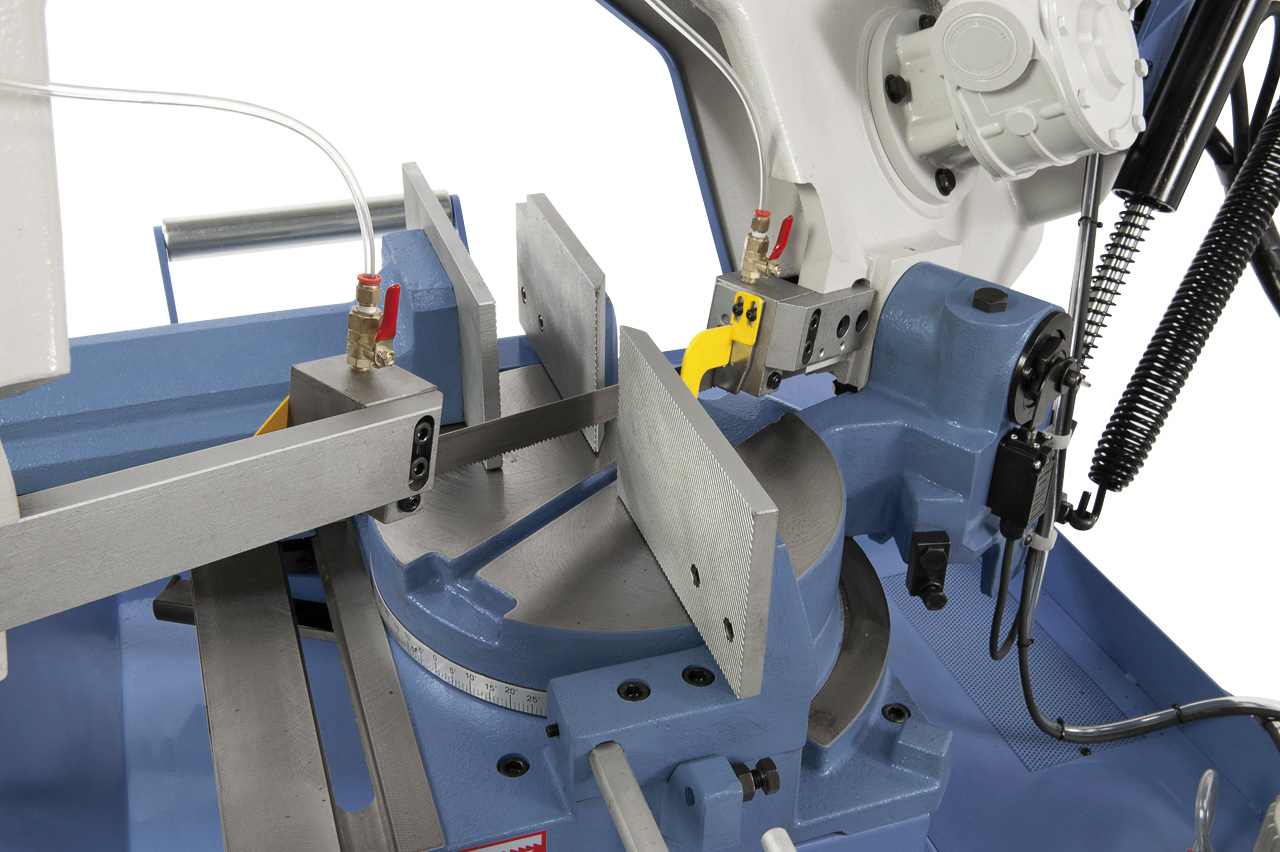

The cutting groove on the turning plate moves simultaneously to the saw arm.

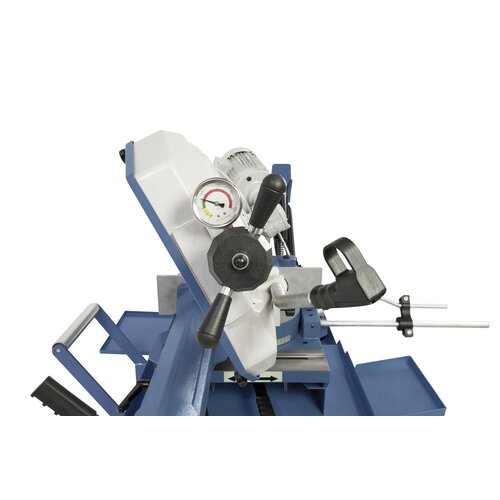

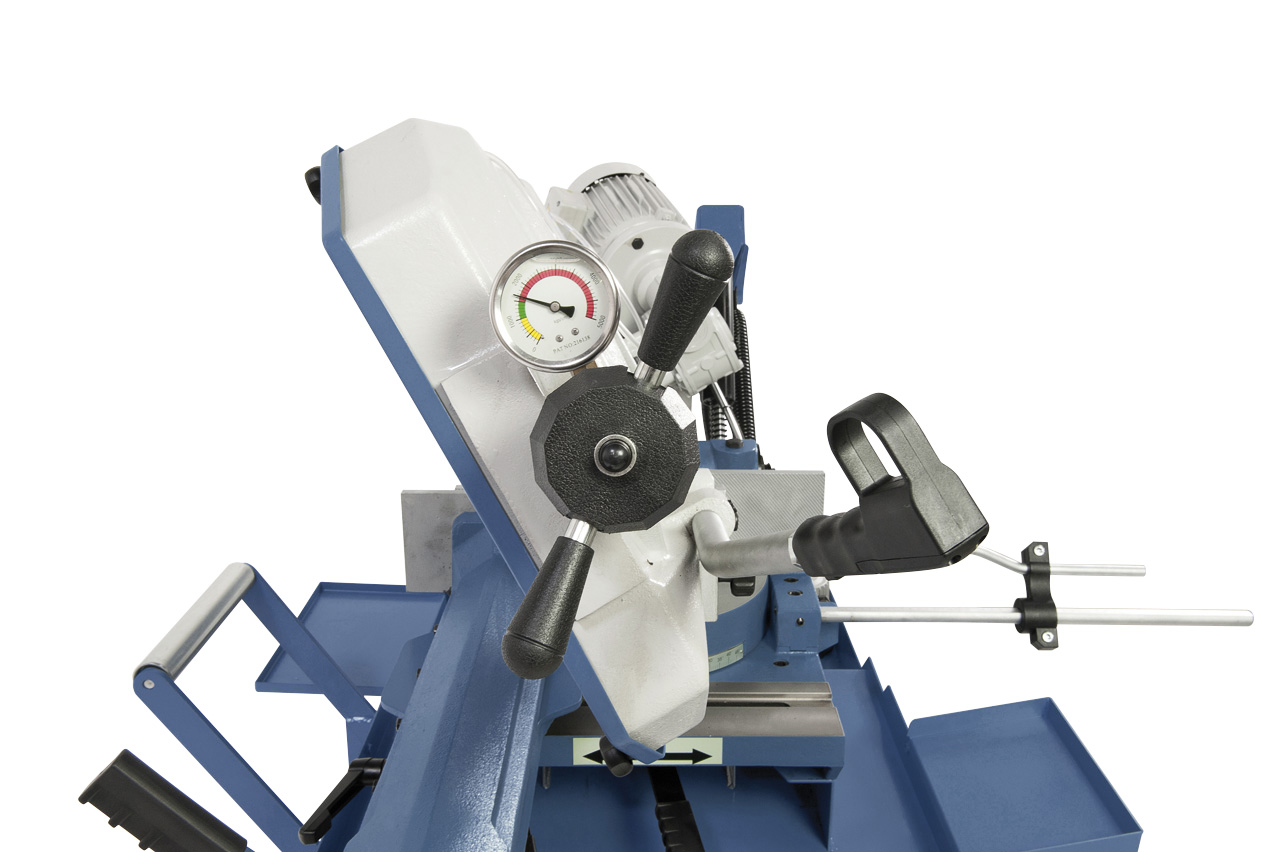

The serial manometer ensures optimal adjustment of the saw blade tension.

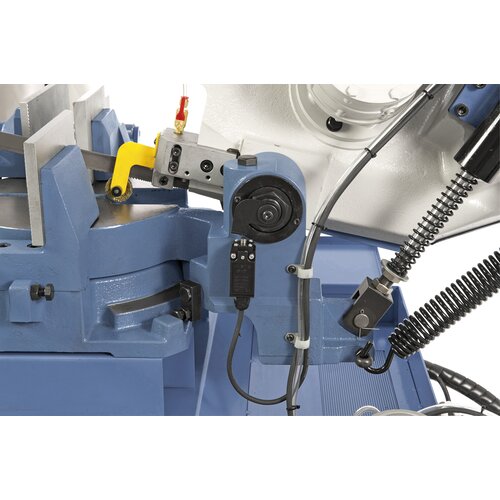

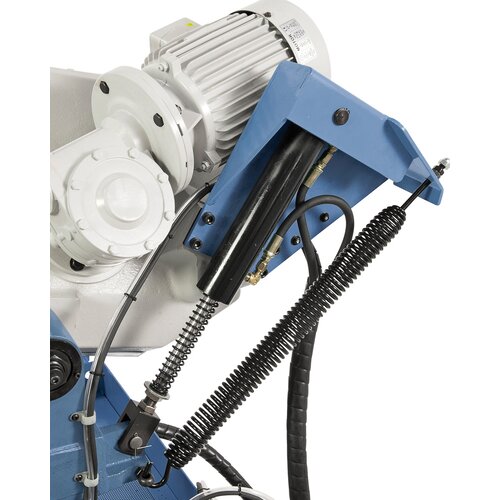

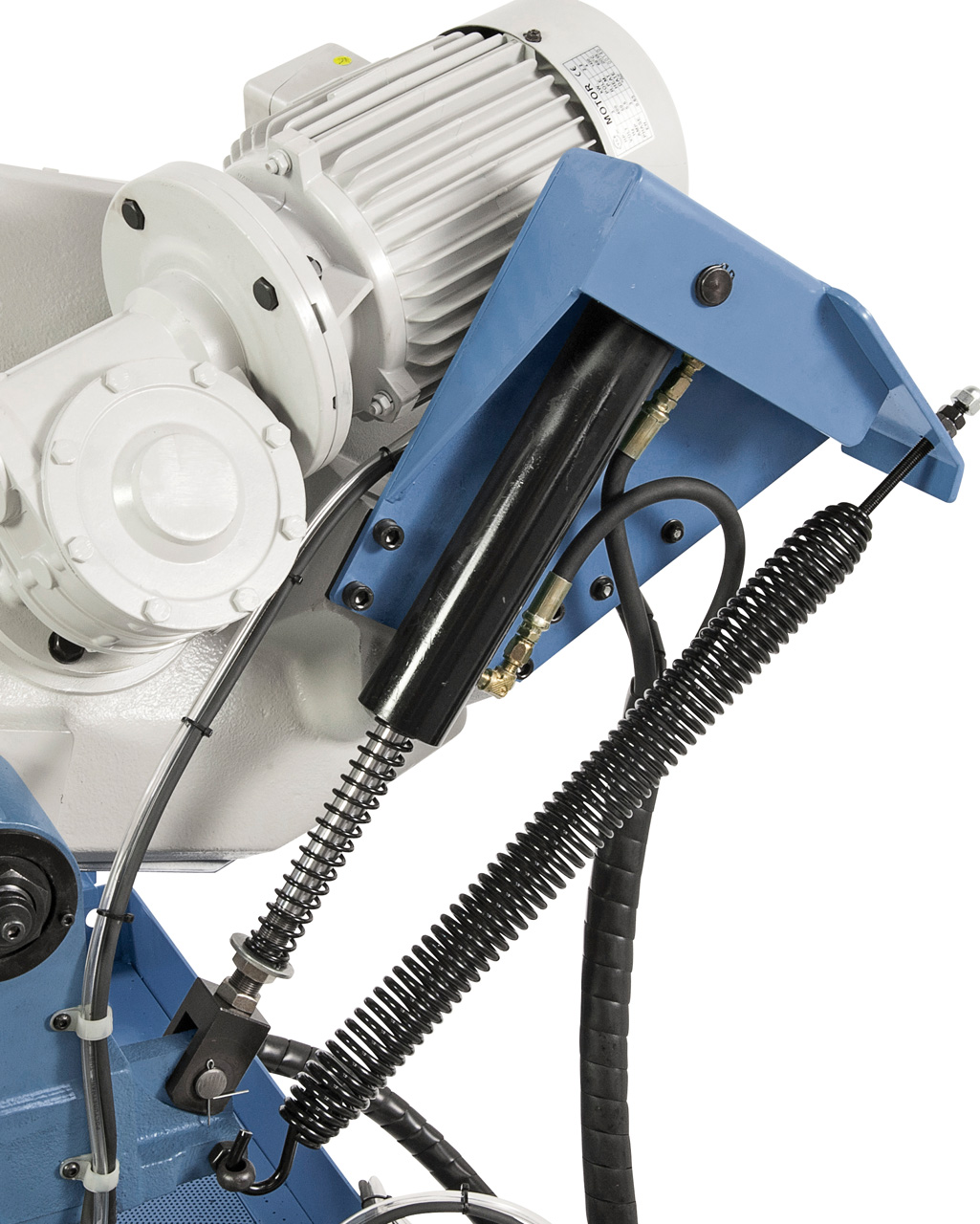

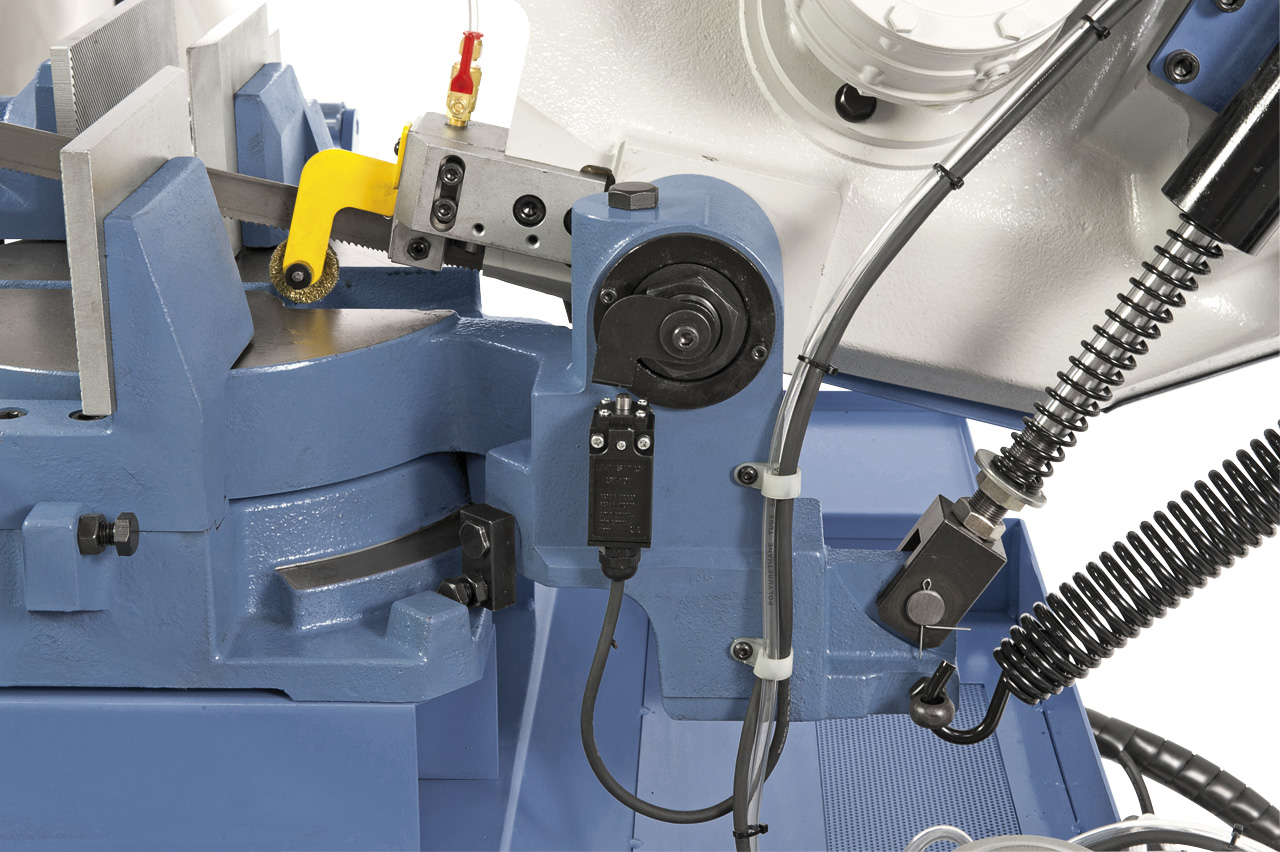

Serially equipped with hydraulic cylinder for sensitive lowering of the saw frame.

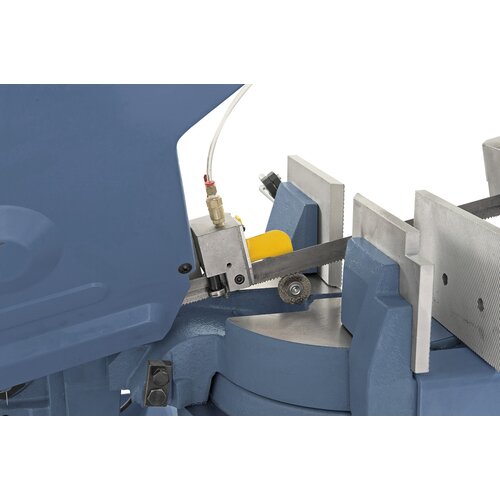

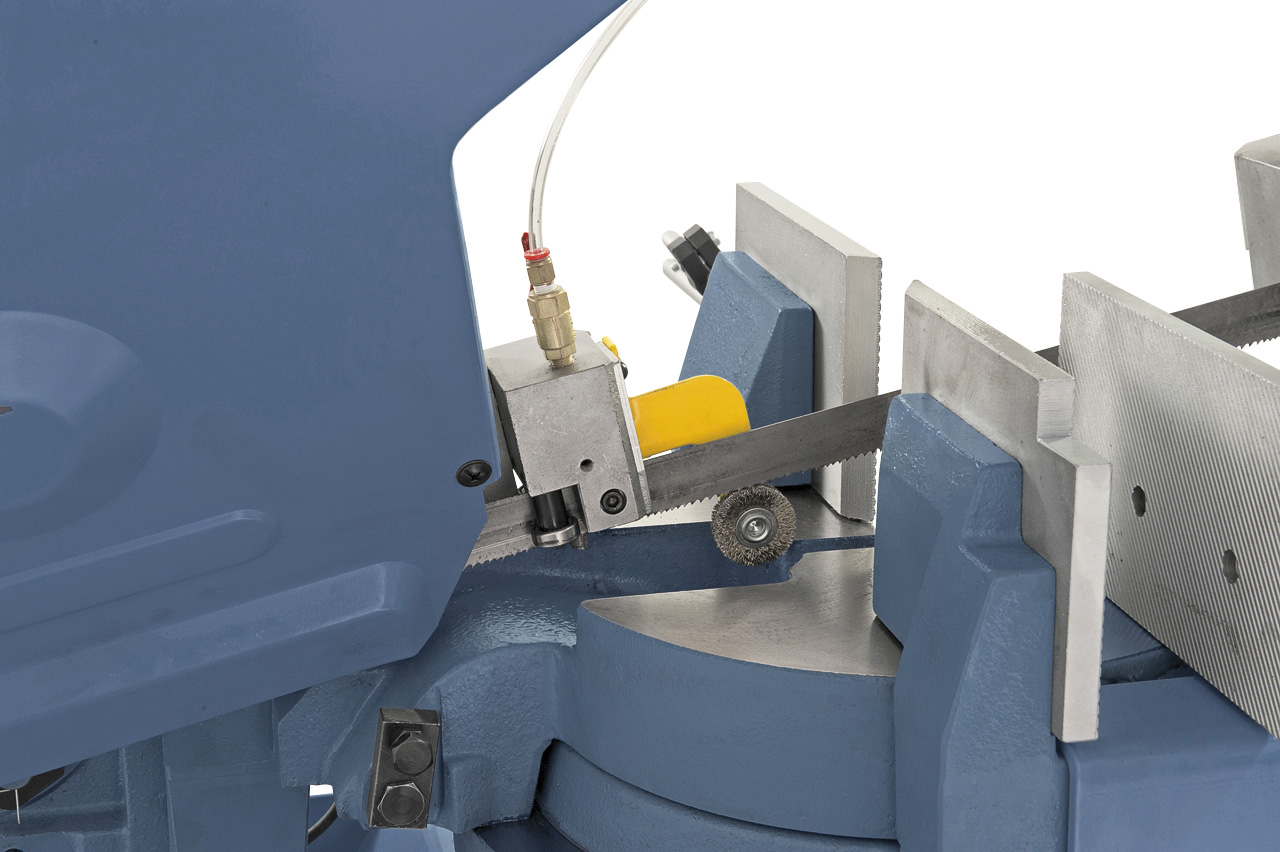

Combined roll-carbide guiding prevents excessive wear of the bandsaw blade

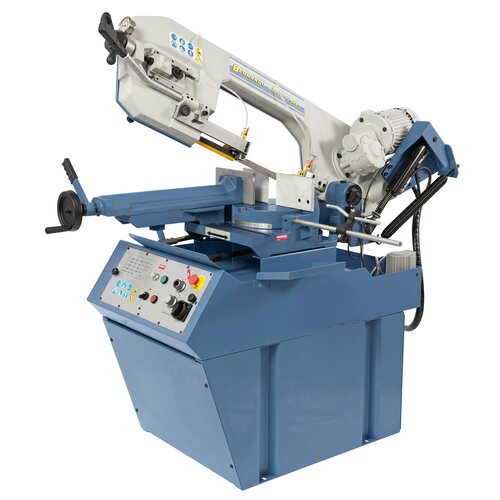

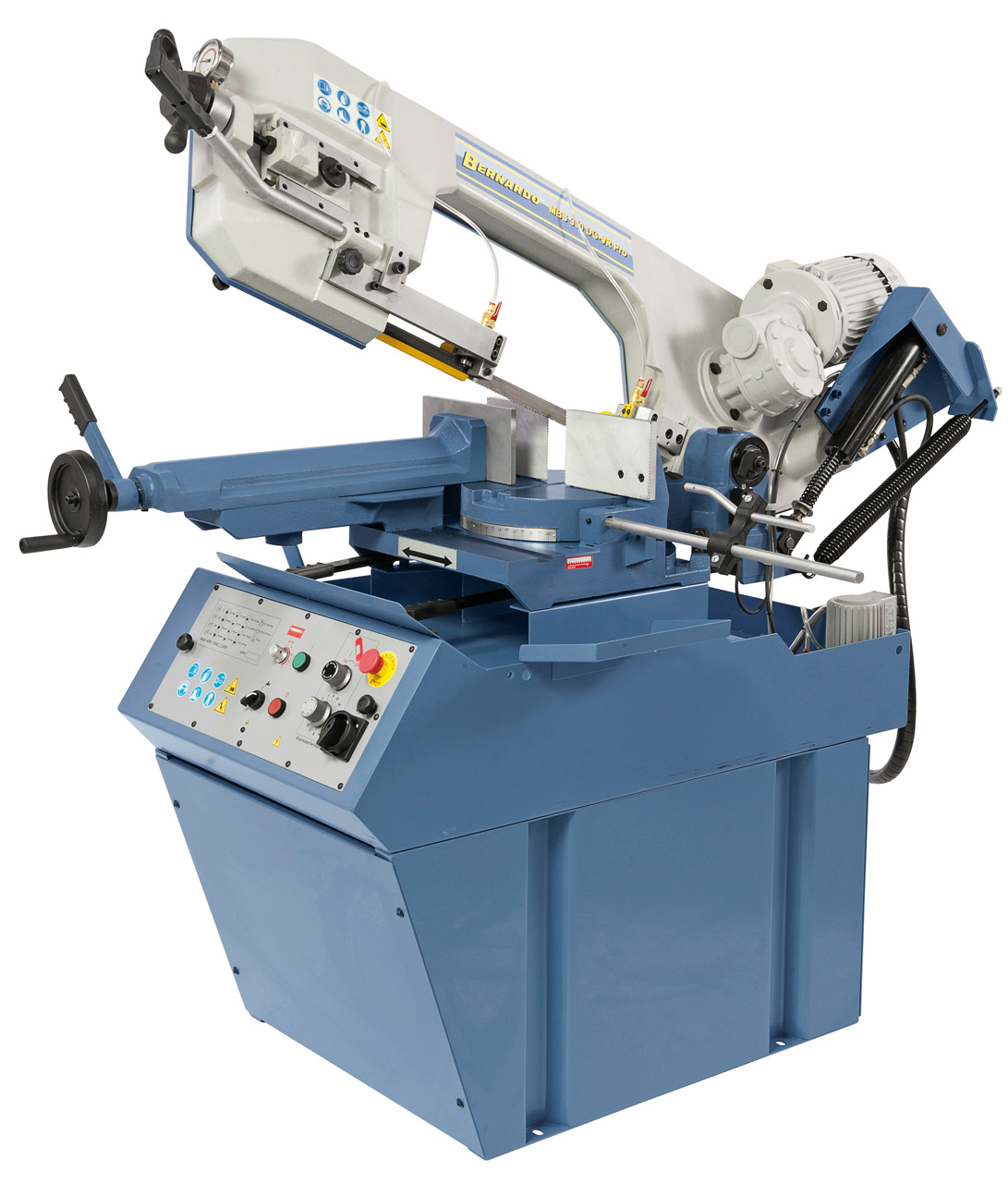

Double mitre bandsaw MBS 350 DG-VR PRO / 400 V

Art.Nr.: 04-1711

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The model MBS 350 DG-VR PRO is a precise horizontal bandsaw for universal use. The features include the tiltable saw frame for double mitre cutting from -45° to +60°, the turnable vice as well as the stepless cutting speed.

€7,908.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Professional bandsaw for locksmith shops, engine construction, tool shops, ...
Torsion-free, strong spheroidal cast iron saw frame
Stepless cutting speed allows for ideal adjustment to each workpiece (20 - 80 m/min)
The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles
Bandsaw blade guiding via combined roll-jaw guide system with carbide inserts
Robust construction ensures smooth, vibration-free run
Stepless lowering of saw frame via hydraulic cylinder
Gear unit complete with hardened, polished worm shaft and bronze worm gear

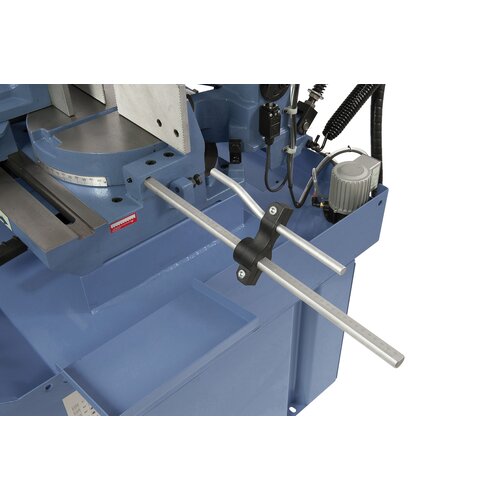

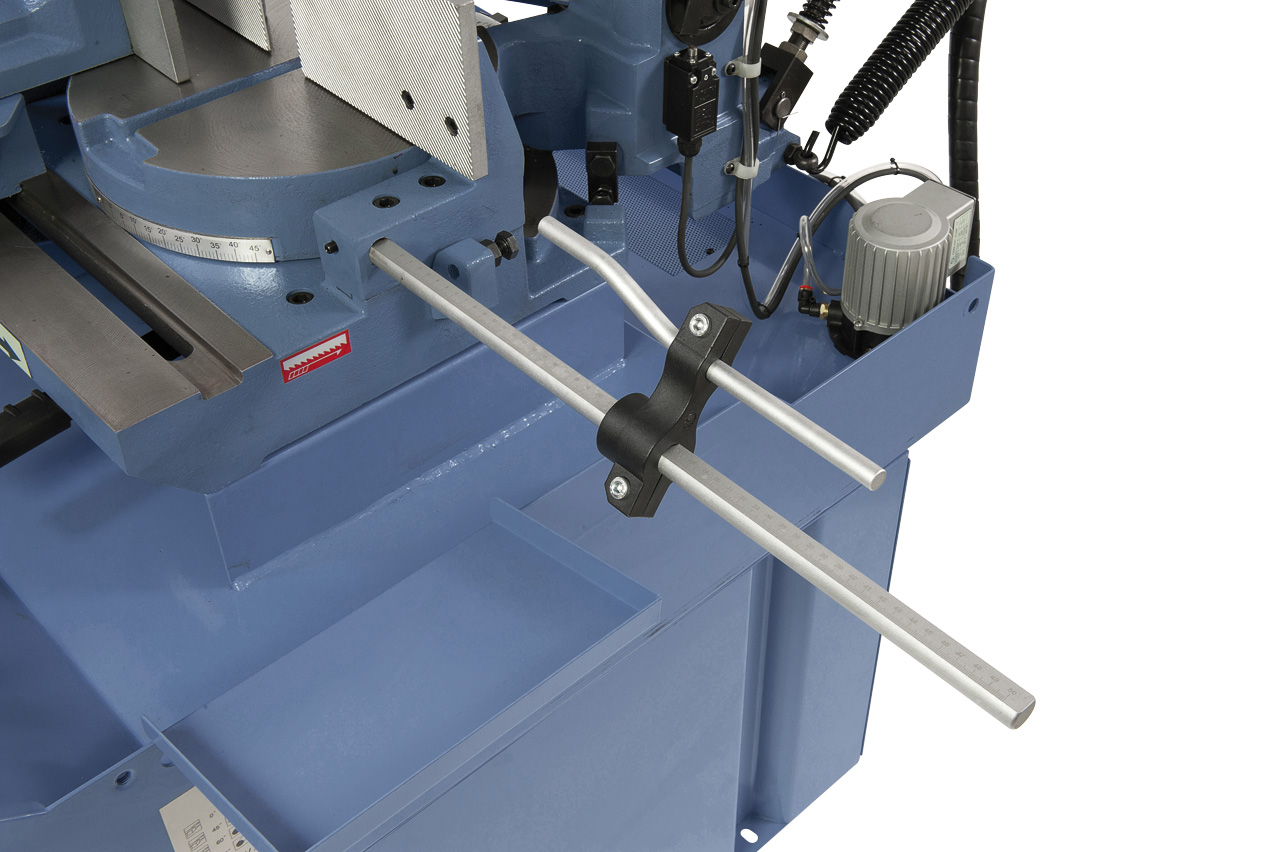

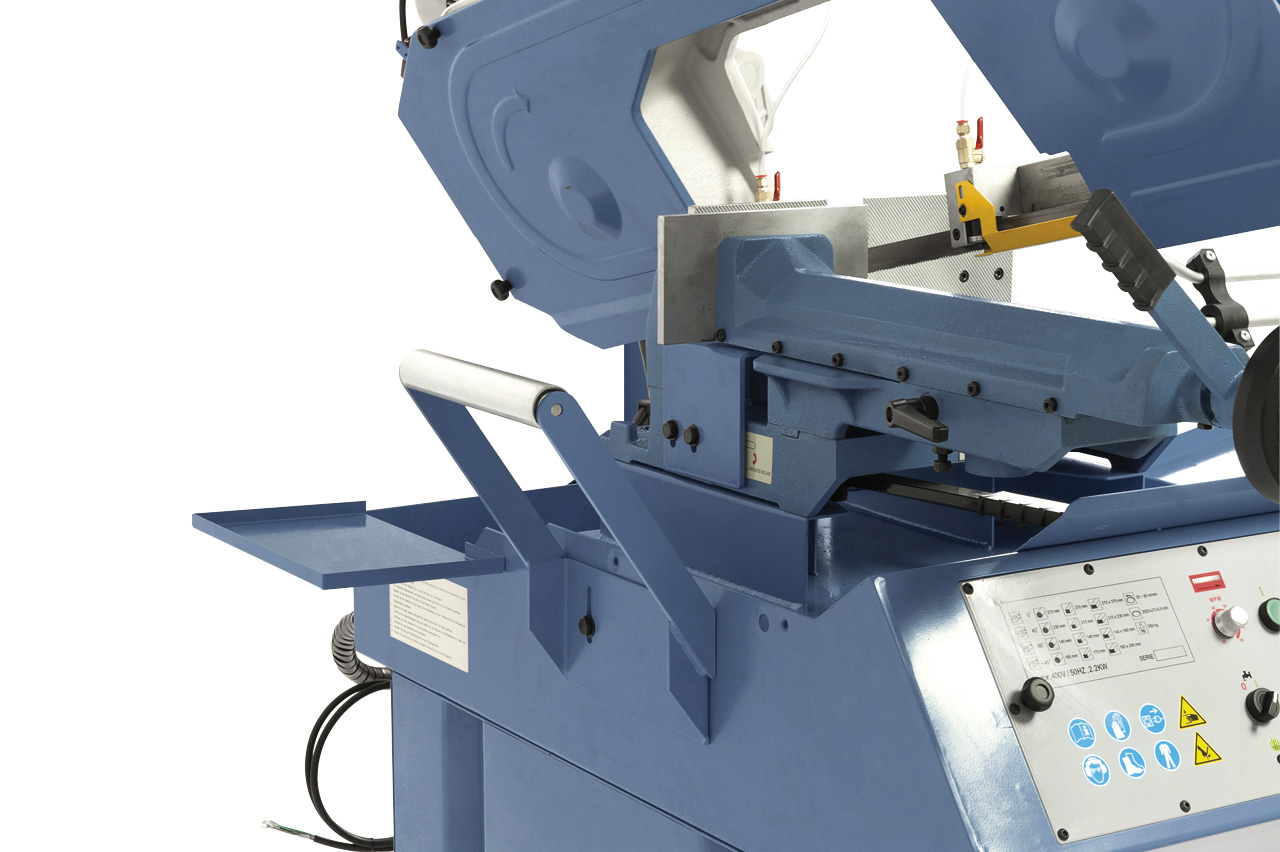

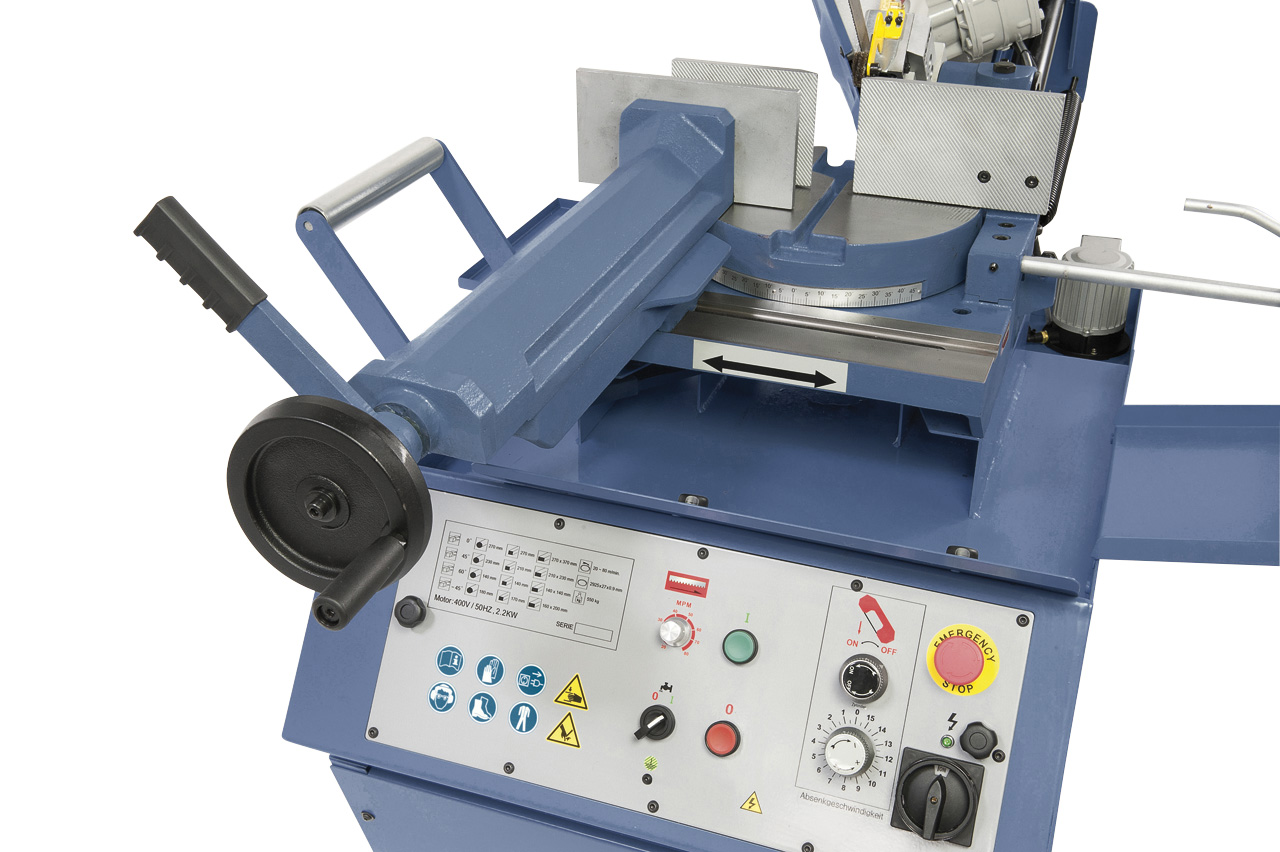

Robust cast iron vice with material fence, ideal for serial section
Automatic shut-down at cutting end
For mitre cutting the saw frame tilts 45° to the left and 60° to the right

Product Specifications

Cutting capacity round / square 90°	270 mm / 260 x 260 mm
Cutting capacity flat 90°	350 x 240 mm
Cutting capacity round / square 45° R	230 mm / 210 x 210 mm
Cutting capacity flat 45° R	230 x 150 mm
Cutting capacity round / square 45° L	200 mm / 170 x 170 mm
Cutting capacity flat 45° L	200 x 140 mm
Cutting capacity round / square 60° R	140 mm / 140 x 140 mm
Working height	975 mm
Bandsaw blade dimensions	2925 x 27 x 0,9 mm
Cutting speeds	20 - 80 m/min
Coolant pump	100 W
Motor power output S₁ 100%	1,9 kW
Motor power input S₆ 40%	2,8 kW
Voltage	400 V
Machine dimensions (L x D x H)	2000 x 1300 x 2000 mm
Weight approx.	550 kg
