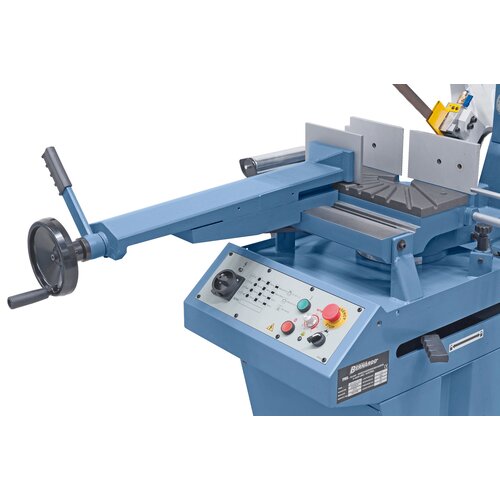

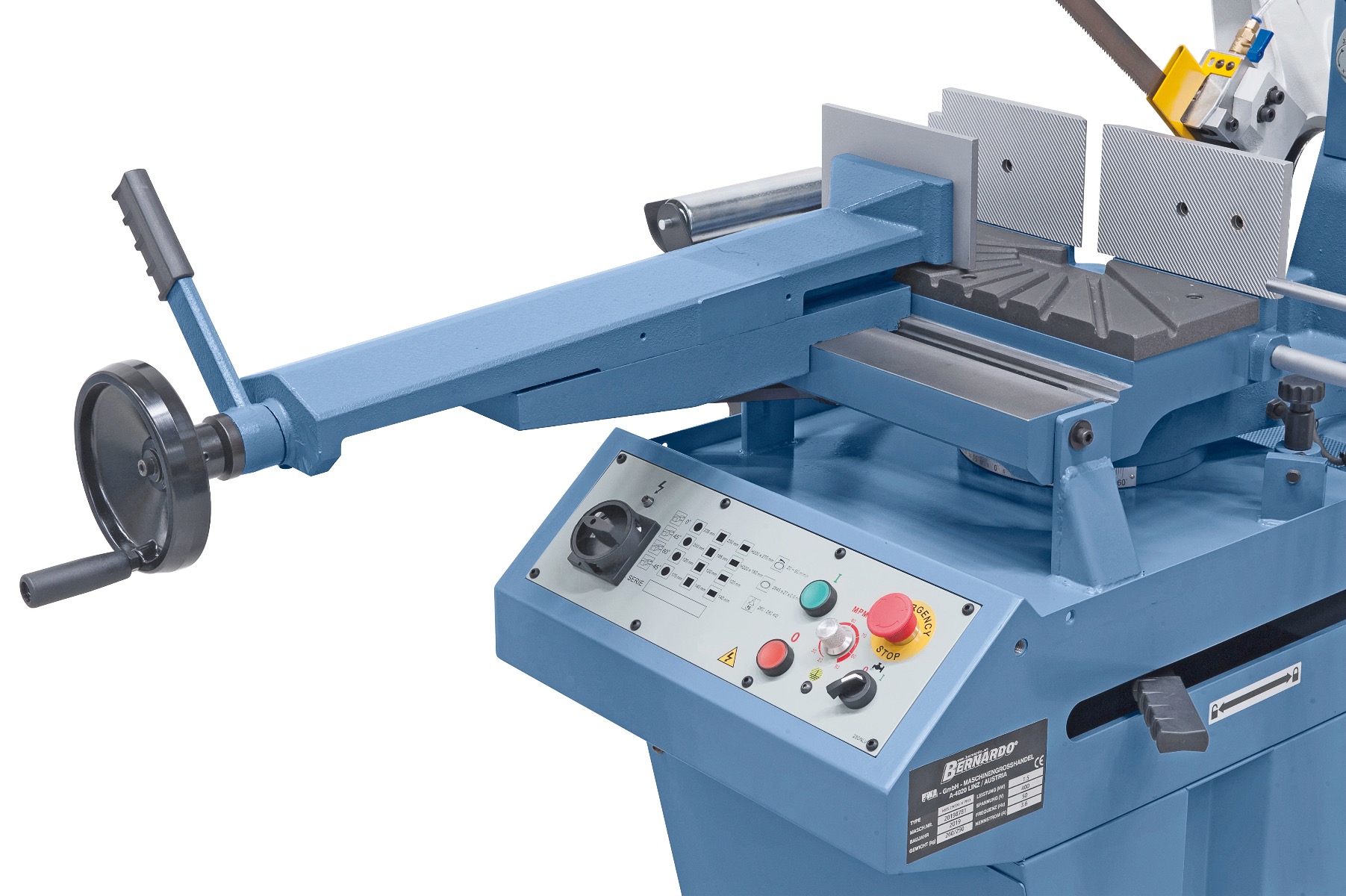

Large vice with quick clamping lever and material support - ideal for section cutting.
Large vice with quick clamping lever and material support - ideal for section cutting.

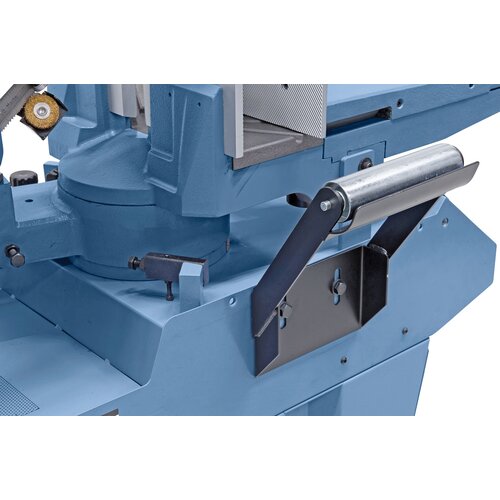

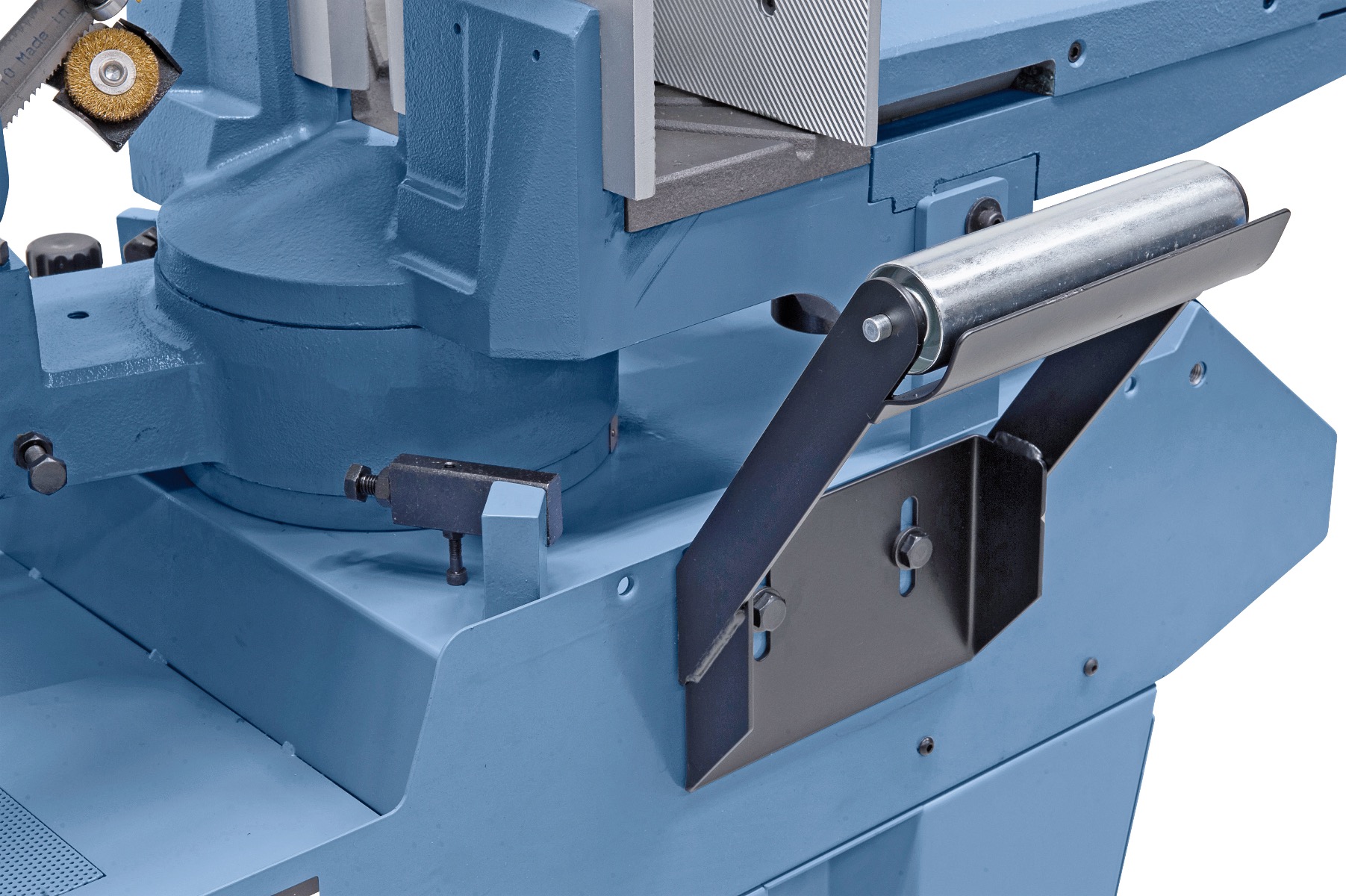

Serially with roller support for holding up workpieces
Serially with roller support for holding up workpieces

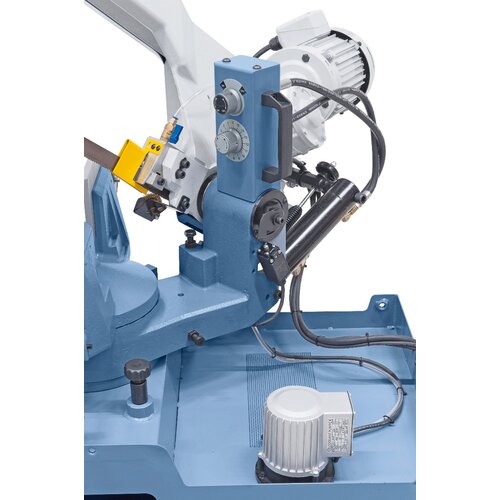

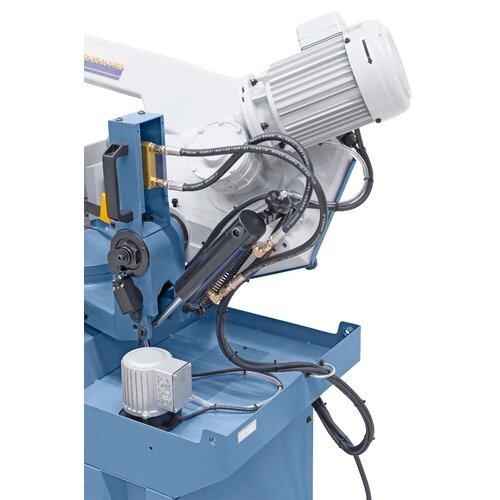

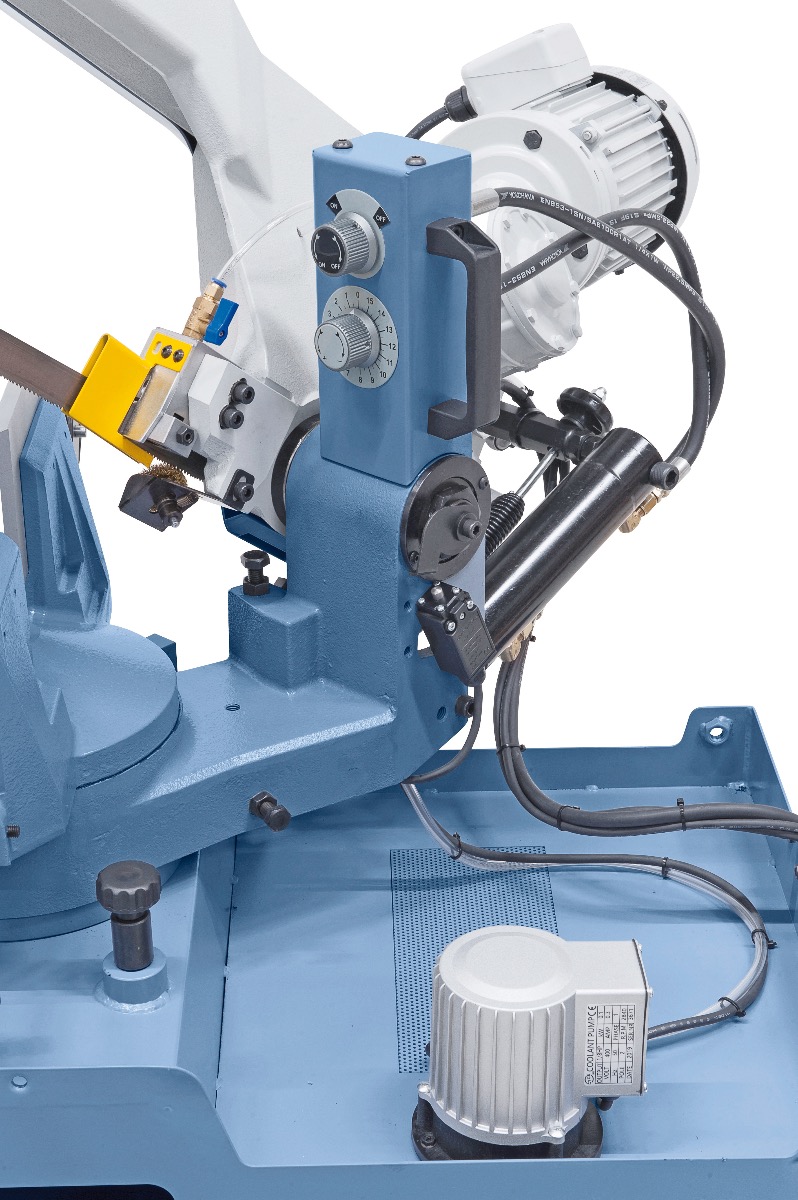

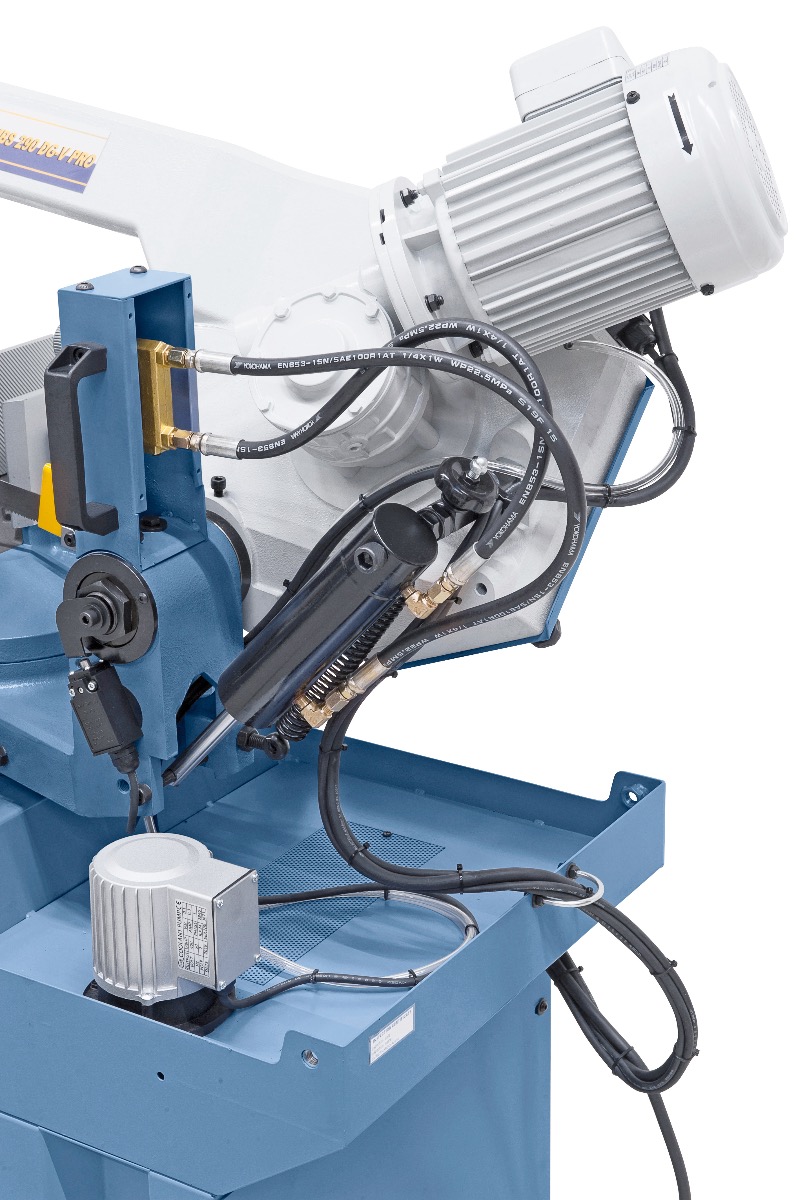

Stepless lowering of the saw frame via regulating valve.
Stepless lowering of the saw frame via regulating valve.

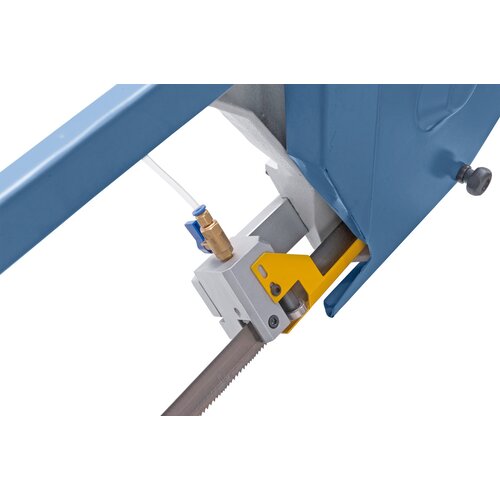

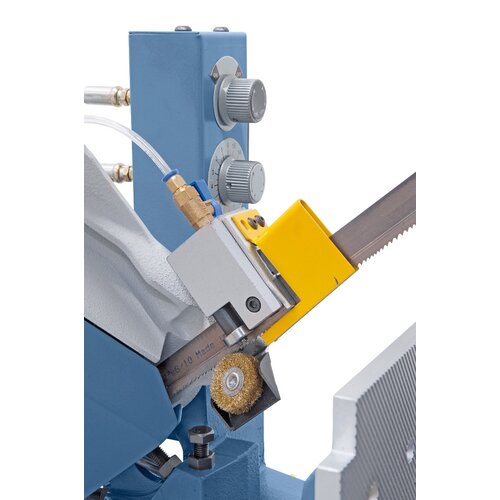

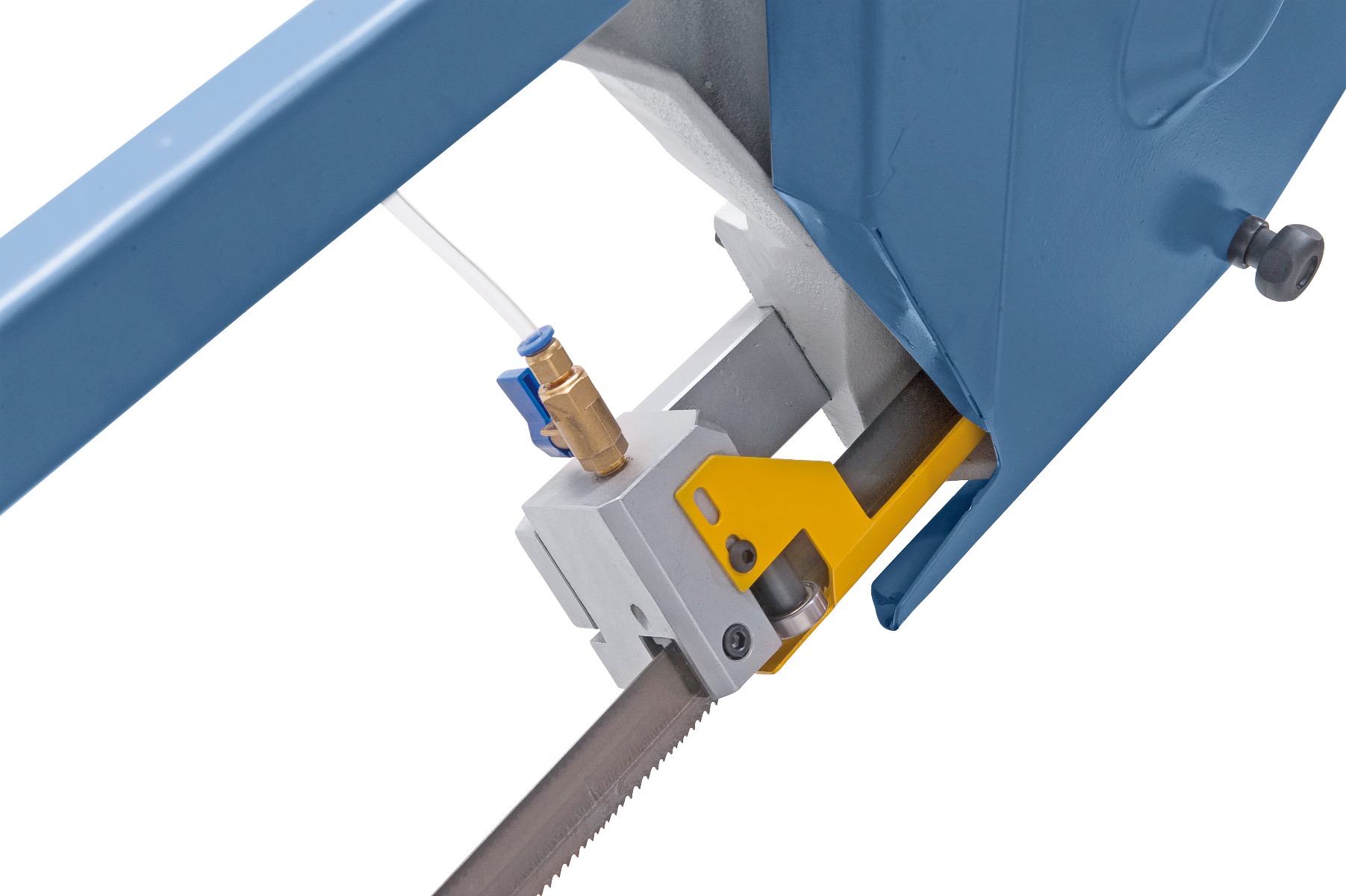

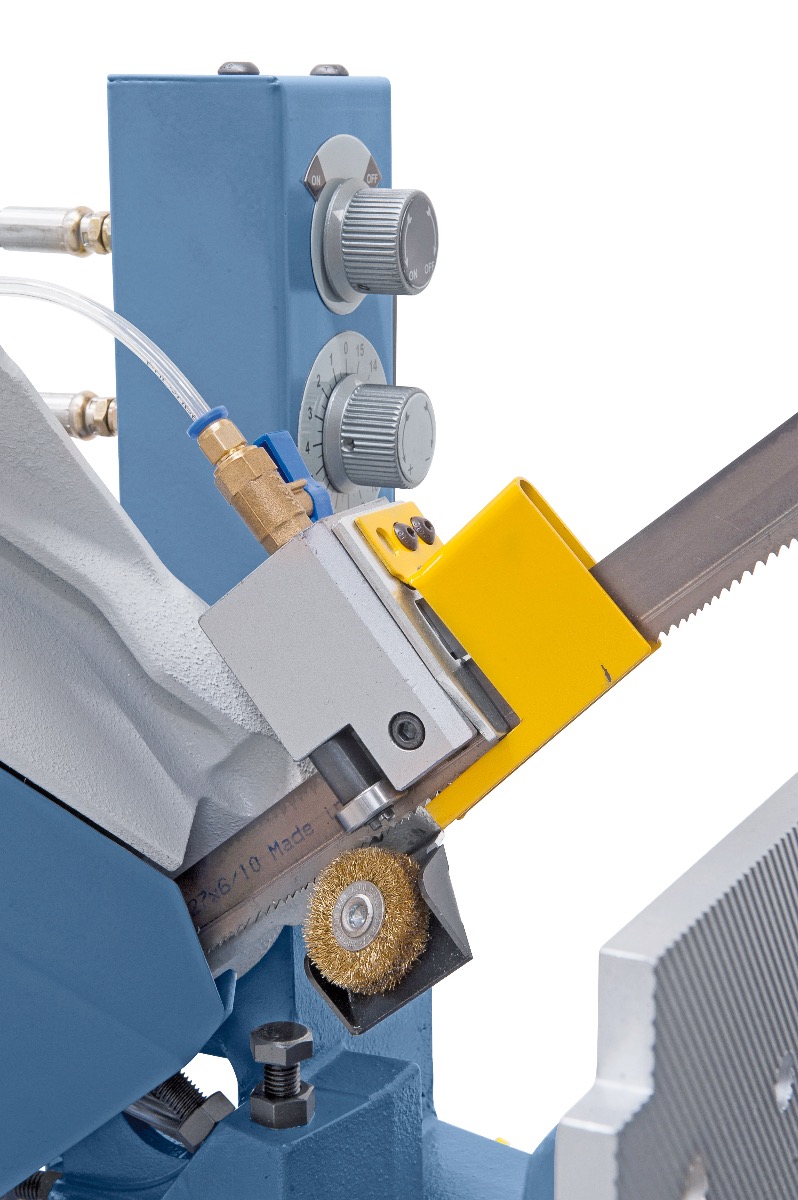

Combinded roll-carbide guiding prevents excessive wear of the bandsaw blade.
Combinded roll-carbide guiding prevents excessive wear of the bandsaw blade.
Large vice with quick clamping lever and material support - ideal for section cutting.
Serially with roller support for holding up workpieces
Stepless lowering of the saw frame via regulating valve.
Combinded roll-carbide guiding prevents excessive wear of the bandsaw blade.

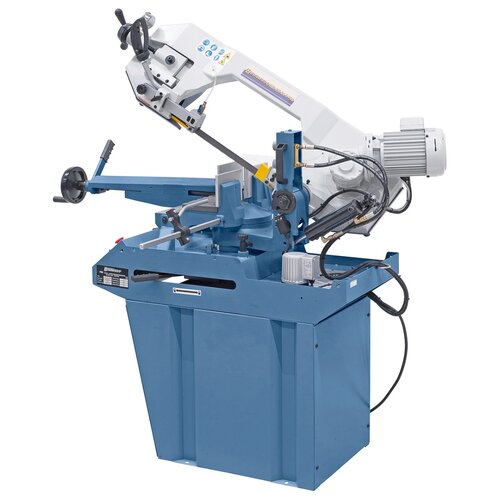

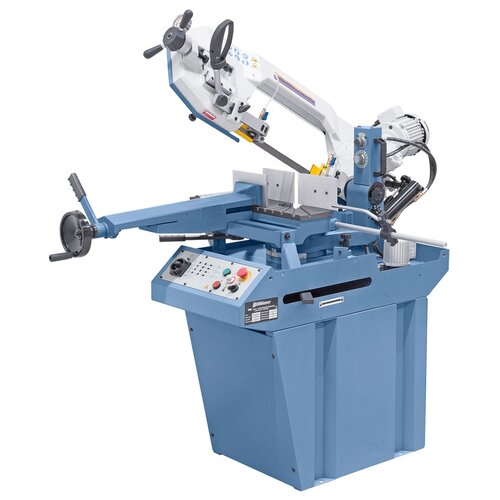

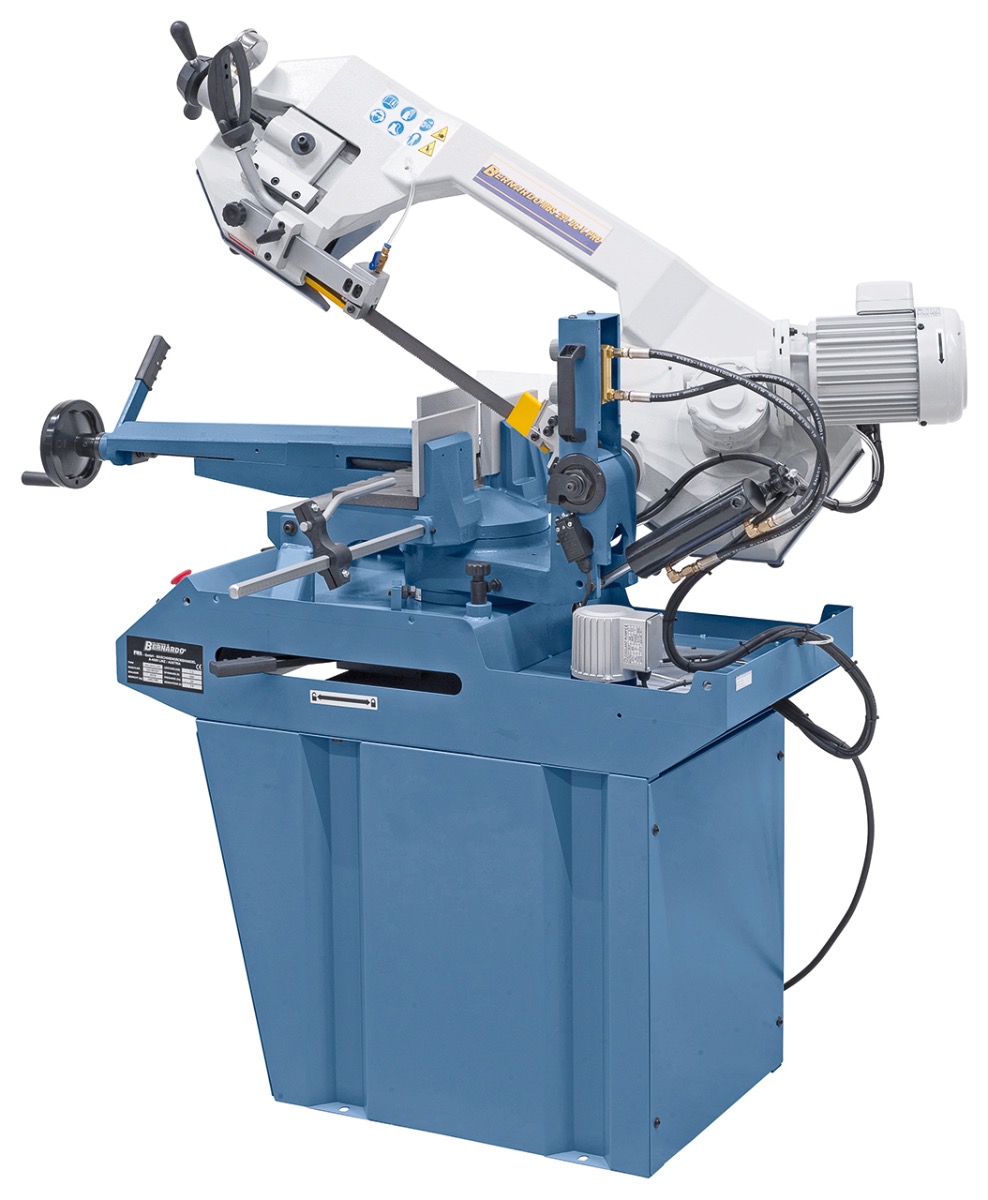

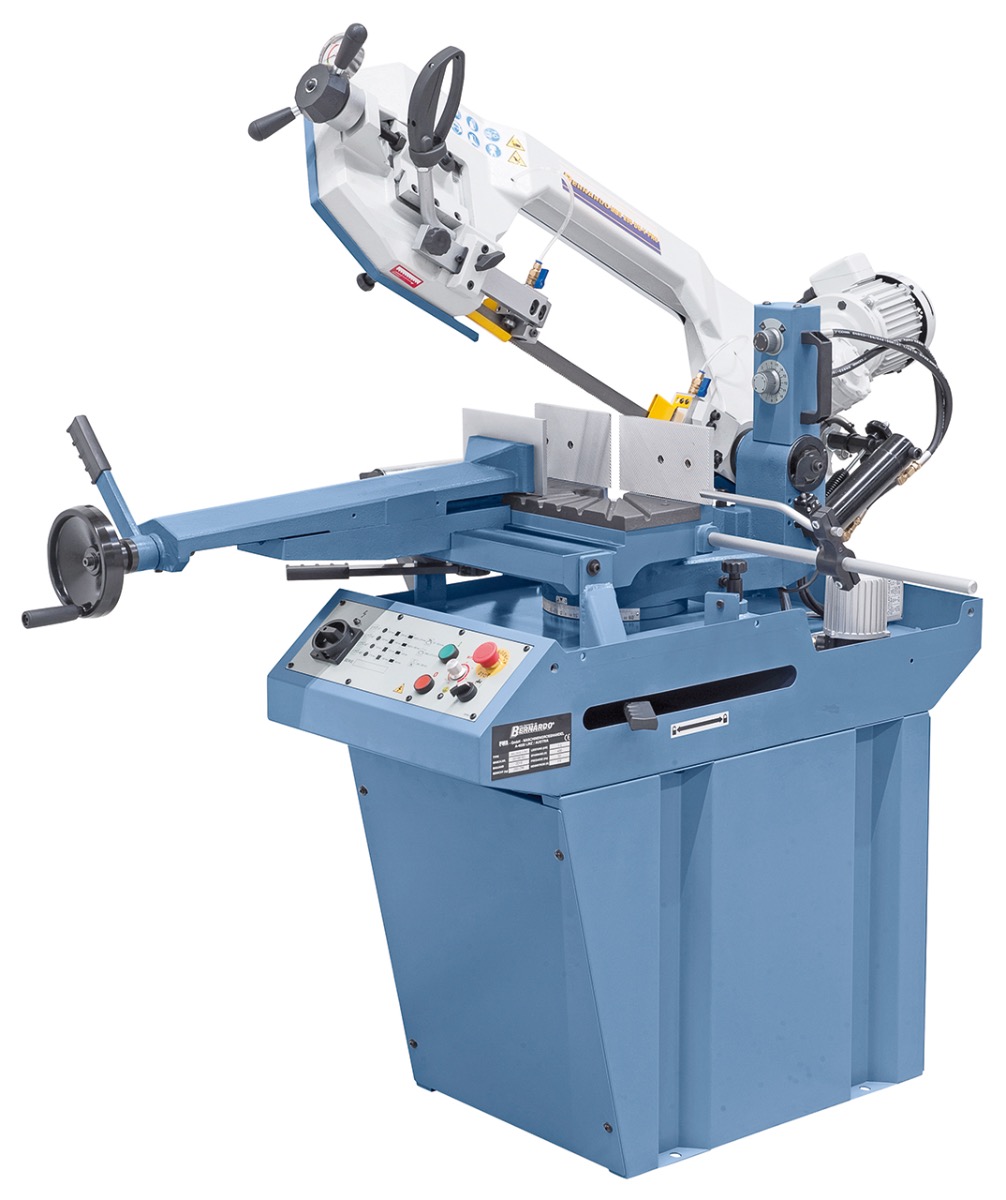

Double mitre bandsaw MBS 290 DG-V PRO / 400 V

Art.Nr.: 04-1719
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

These double mitre bandsaws offer a larger cutting area compared to the MBS 280-series. Due to the solid construction, a precise cut is guaranteed when cutting hollow profiles, solid materials, stainless steel, tool steel etc. Furthermore, the model comes complete with a steplessly adjustable cutting speed, which ensures an optimal adjustment to the workpiece.

€4,812.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Torsion-free, strong spheroidal cast iron saw frame
  • Bandsaw blade guiding via combined roll-jaw guide with carbide inserts
  • Robust construction ensures smooth and vibration-free run
  • Stepless lowering of saw frame via hydraulic cylinder
  • Gear unit complete with hardened, polished worm shaft and bronze worm gear
  • Robust cast iron vice with material fence, ideal for serial section
  • Complete with stand and coolant device
  • Automatic shut-down at cutting end
  • Saw frame tilts left (-45°) and right (+60°) for double mitre cutting

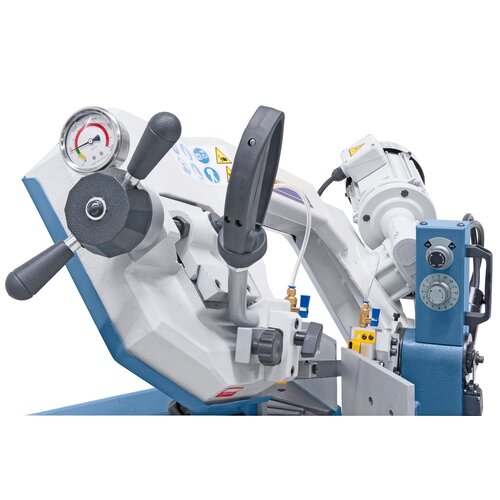

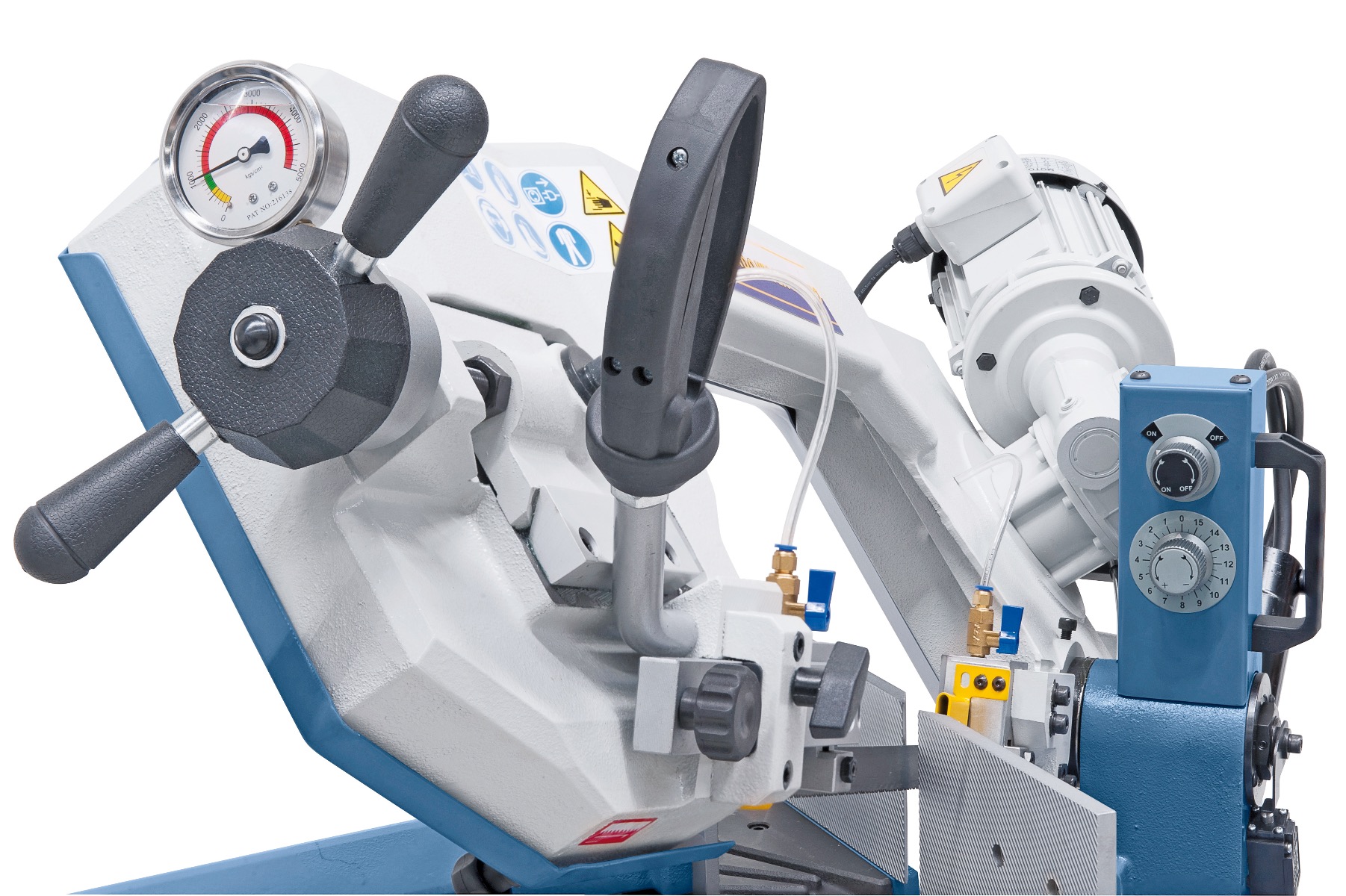

  • Includes a manometer for ideal blade tension

Product Specifications

Cutting capacity round / square 90°

235 mm / 235 x 235 mm

Cutting capacity flat 90°

270 x 200 mm

Cutting capacity round / square 45° R

200 mm / 185 x 185 mm

Cutting capacity flat 45° R

220 x 180 mm

Cutting capacity round / square 45° L

175 m / 140 x 140 mm

Cutting capacity flat 45° L

200 x 140 mm

Cutting capacity round / square 60° R

120 mm / 120 x 120 mm

Cutting capacity flat 60° R

120 x 115 mm

Working height

990 mm

Bandsaw blade dimension

2645 x 27 x 0,9 mm

Cutting speeds

20 - 90 m/min

Coolant pump

100 W

Motor power output S1 100%

1,5 kW

Voltage

400 V

Machine dimension (L x D x H)

1600 x 1100 x 1500 mm

Weight approx.

260 kg

Delivery Contents

  • Bandsaw blade
  • Material fence
  • Stand
  • Manometer for blade tension
  • Bandsaw blade guiding with carbide inserts
  • Quick clamping vice
  • Coolant device
  • Hydraulic cylinder
  • Motor protective switch
  • Automatic shut-down
