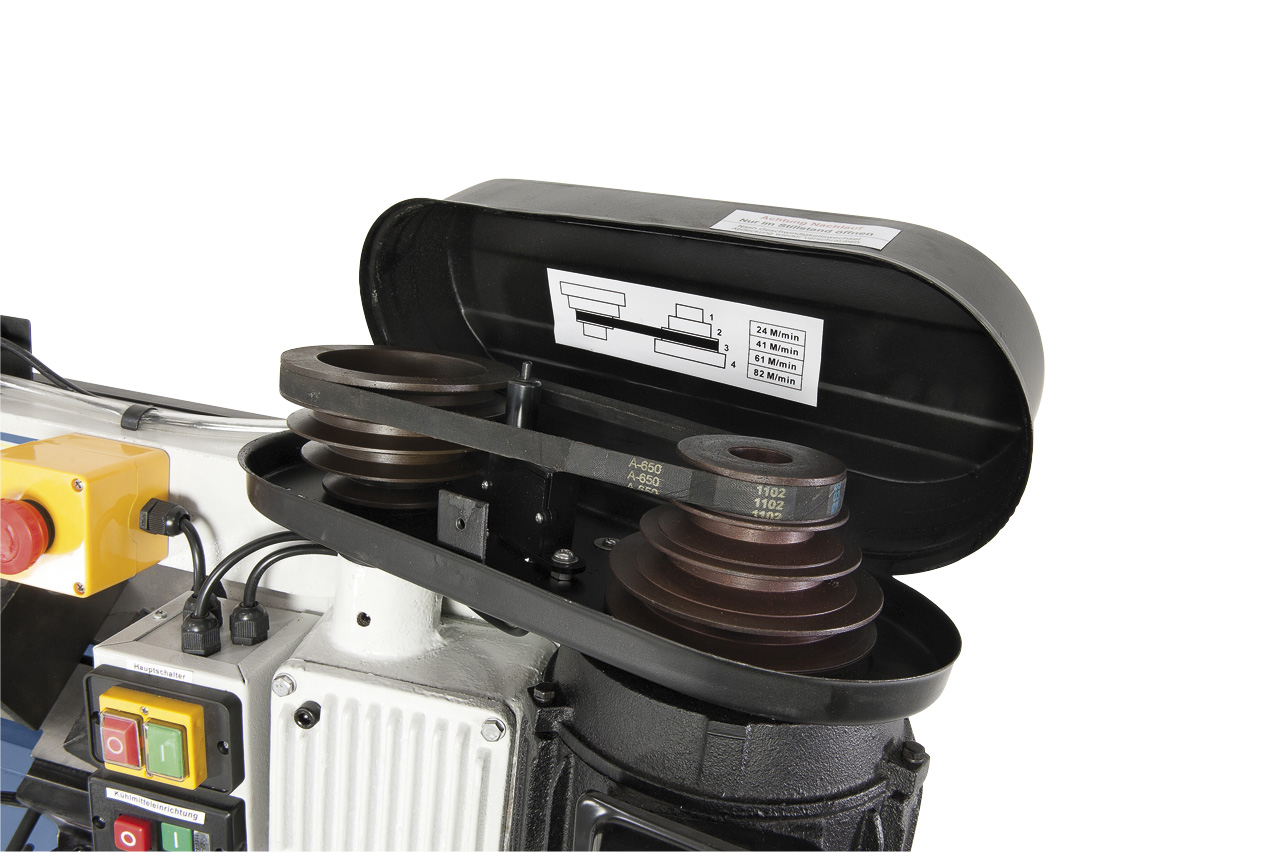

V-belt allows easy and quick speed change.

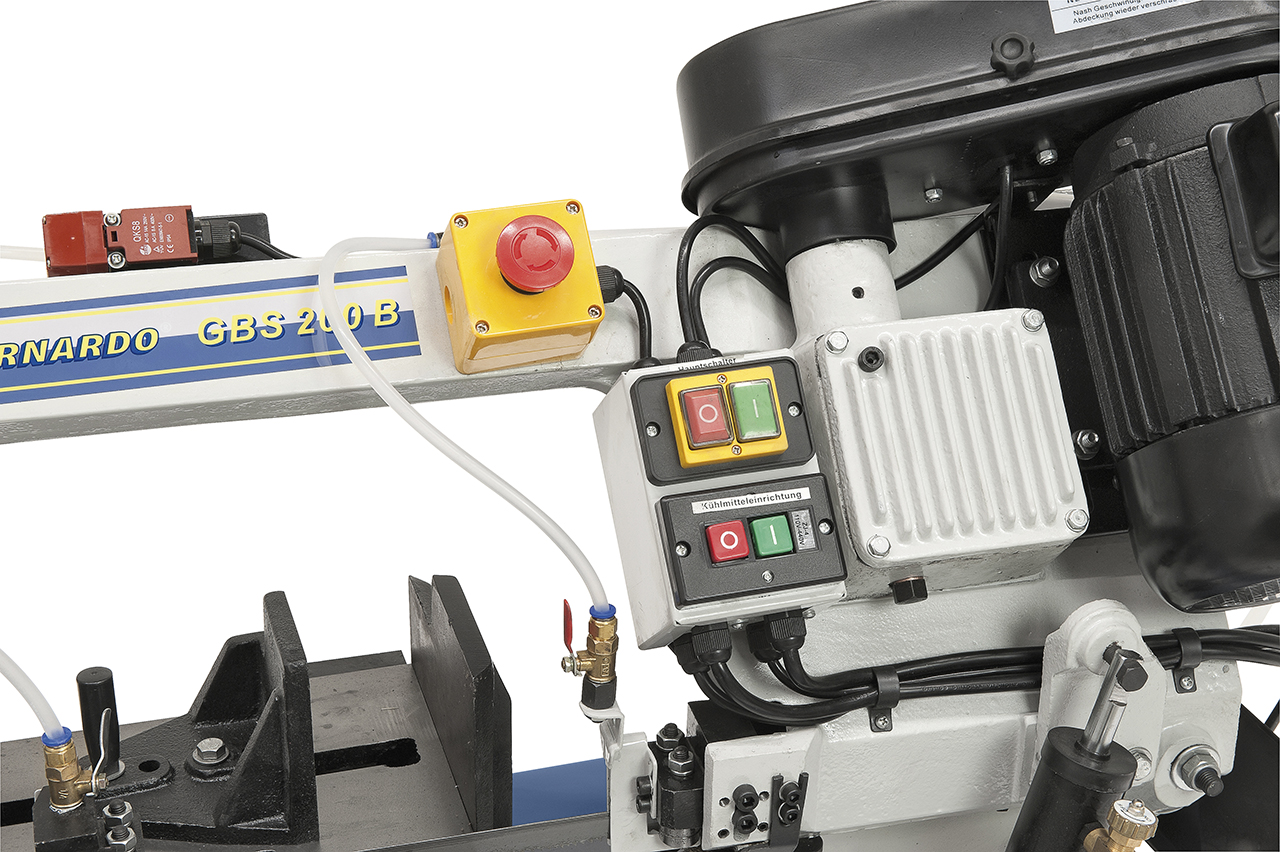

Clearly arranged control elements on the saw frame.

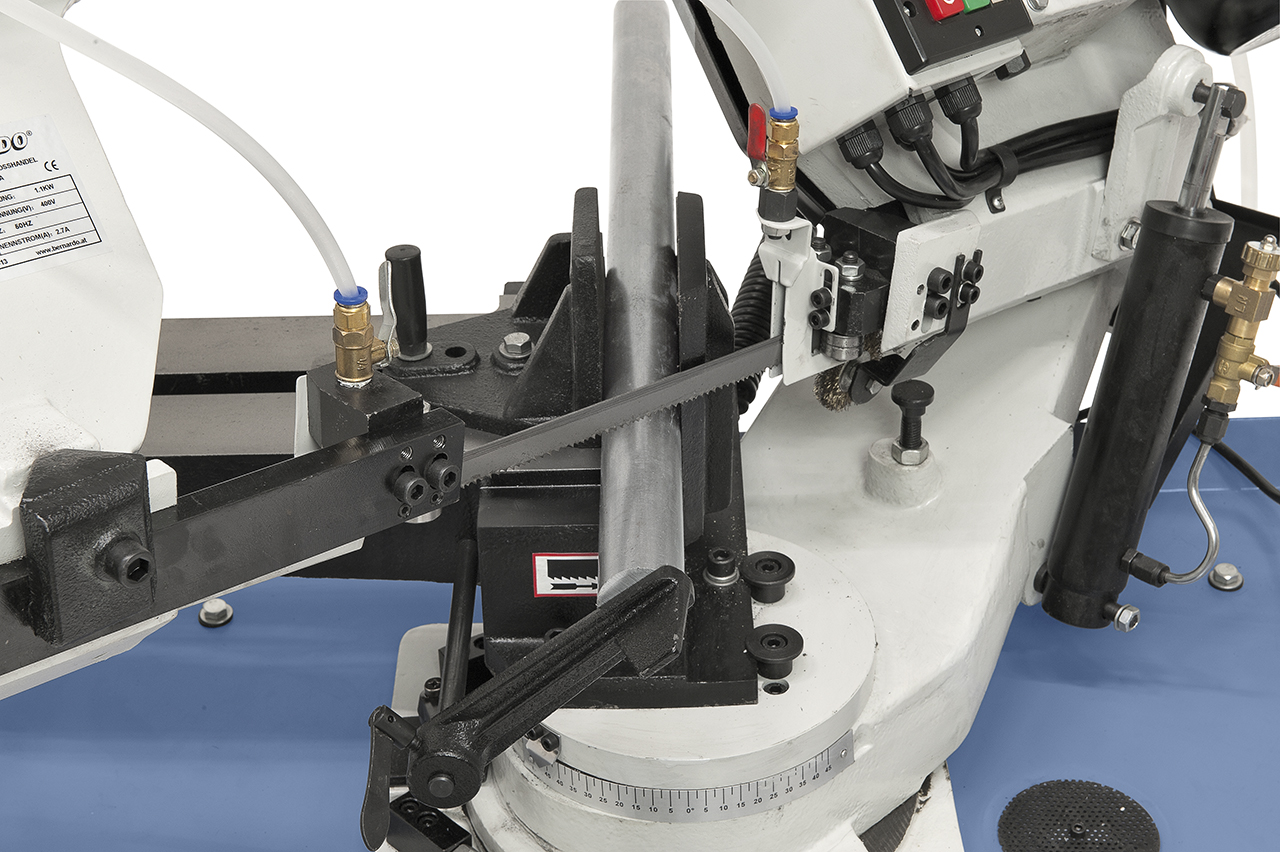

Saw frame tilts from -45° to +45° for mitre cutting.

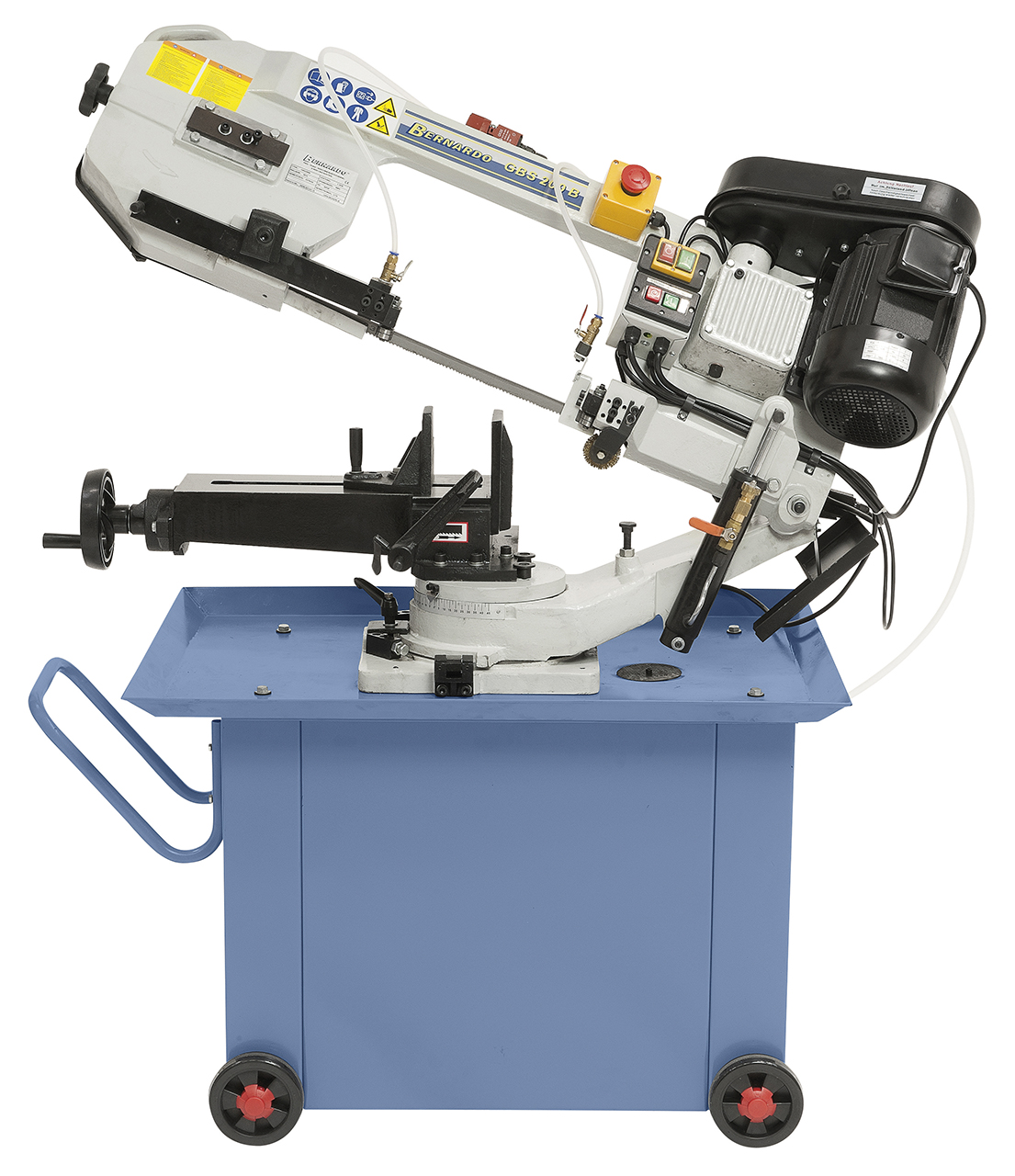

Double mitre bandsaw GBS 200 B / 400 V

Art.Nr.: 04-1155

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The double mitre bandsaw GBS 200 B featuring a tilting saw arm, keeping space requirements to a minimum as there is no need to change the position of the material when mitre cutting. The optimal cutting capacity and the adjustable cutting speeds make this model unbeatable for DIY and craftsmen.

€2,220.00

incl. 20% VAT

Availability

Deliverable Soon

Deliverable by Jul 11, 2025

Product Properties

Saw frame tilt up to ± 45º for mitre cutting
4 speed settings allow ideal adjustment to each workpiece
Suitable for cutting of profiles, pipes, full materials, non-ferrous materials and plastics
High-quality materials ensure a quiet, vibration-free run
Saw frame pressure can be regulated by hydraulic valve
Attractive price-to-performance ratio for ambitious craftsmen

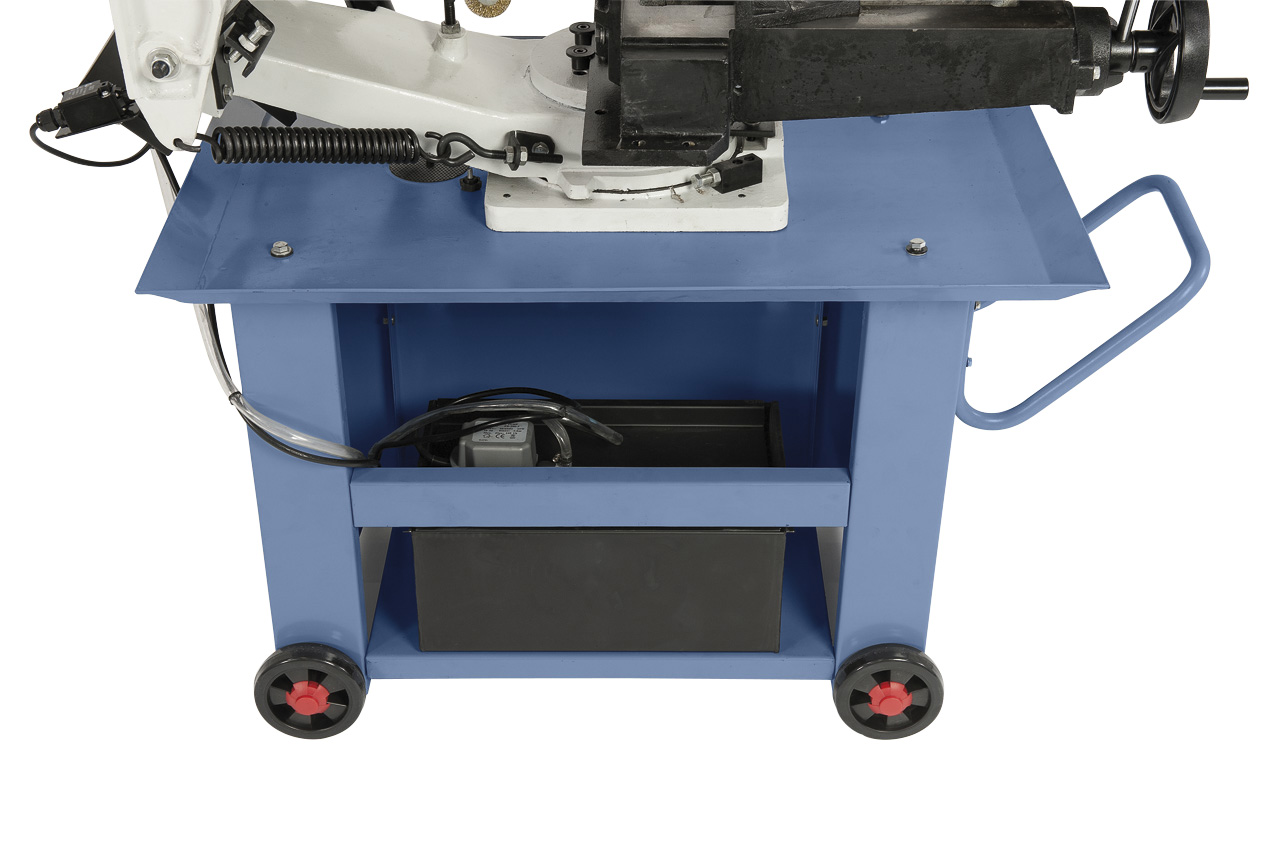

Includes coolant device, which is stored inside the machine frame, requiring minimum space

Product Specifications

Cutting capacity round 90°	205 mm
Cutting capacity flat 90°	215 x 205 mm
Cutting capacity round 45° L/R	140 mm
Cutting capacity flat 45° L/R	140 x 115 mm
Working height	820 mm
Bandsaw blade dimensions	2360 x 20 x 0,9 mm
Cutting speeds	24 / 41 / 61 / 82 m/min
Coolant tank	13 liter
Coolant pump	0,03 HP
Motor power output S₁ 100%	1,1 kW
Motor power input S₆ 40%	1,5 kW
Voltage	400 V
Machine dimensions (L x D x H)	1200 x 625 x 1240 mm
Weight approx.	190 kg
