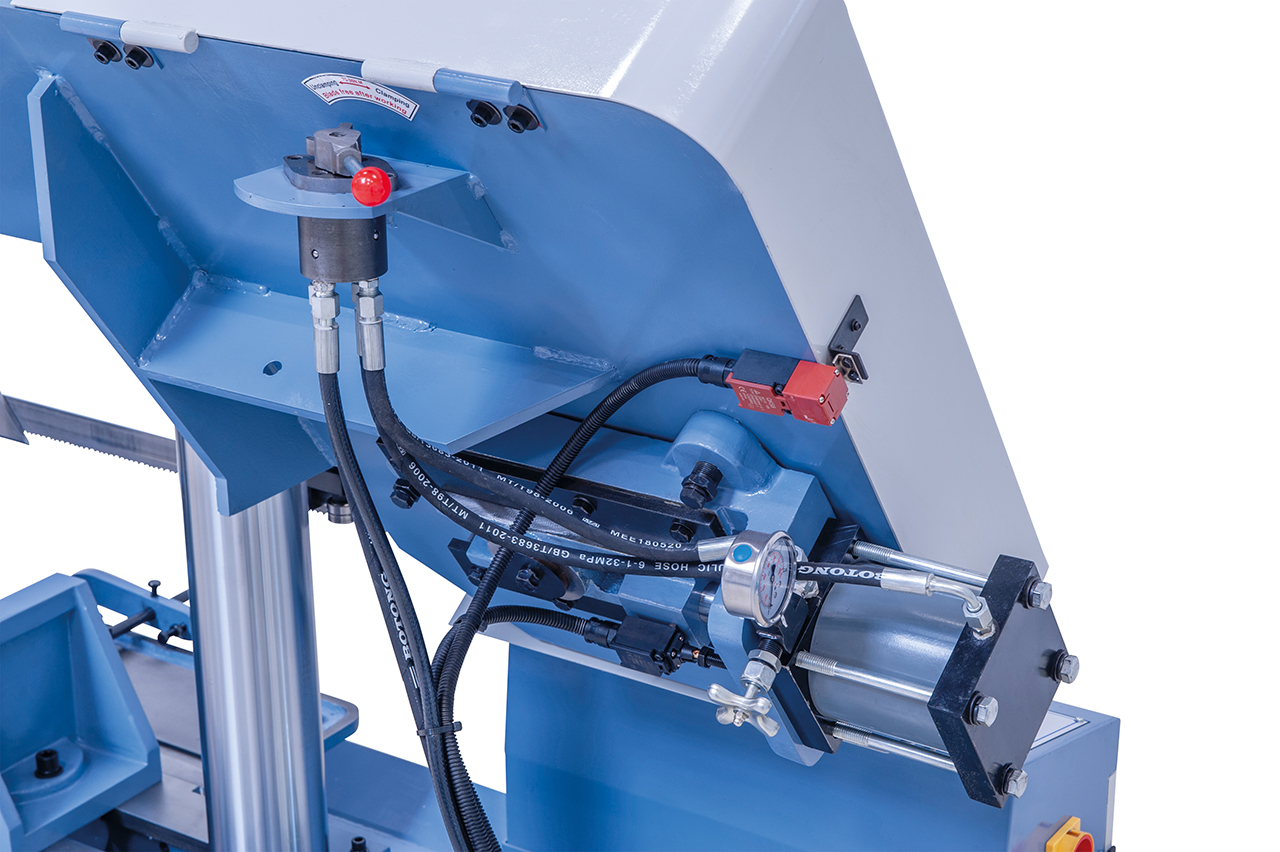

Equipped with hydraulic saw blade tensioning as standard

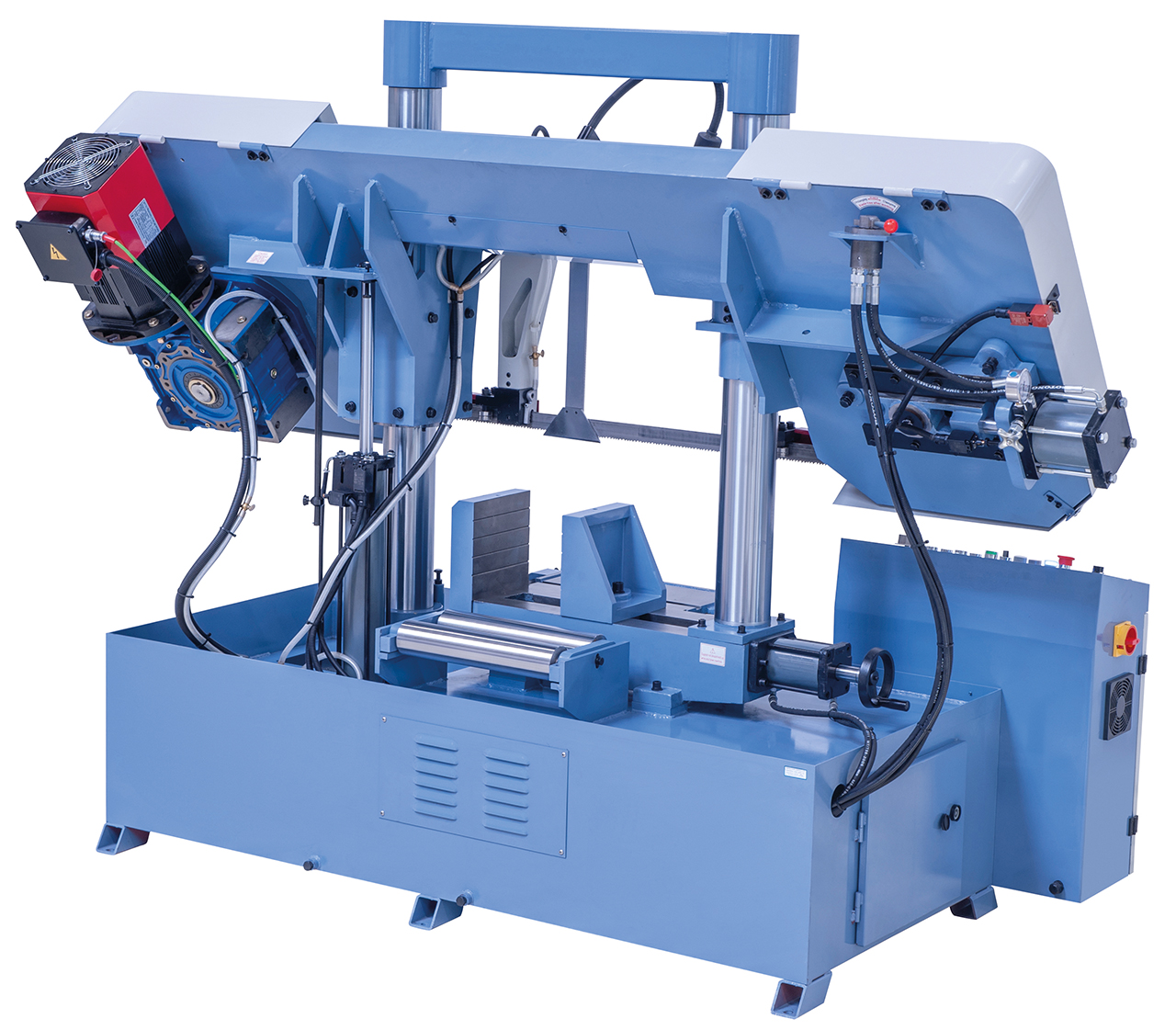

Stepless adjusteable cutting speed and high torque thanks to the powerful servo motor

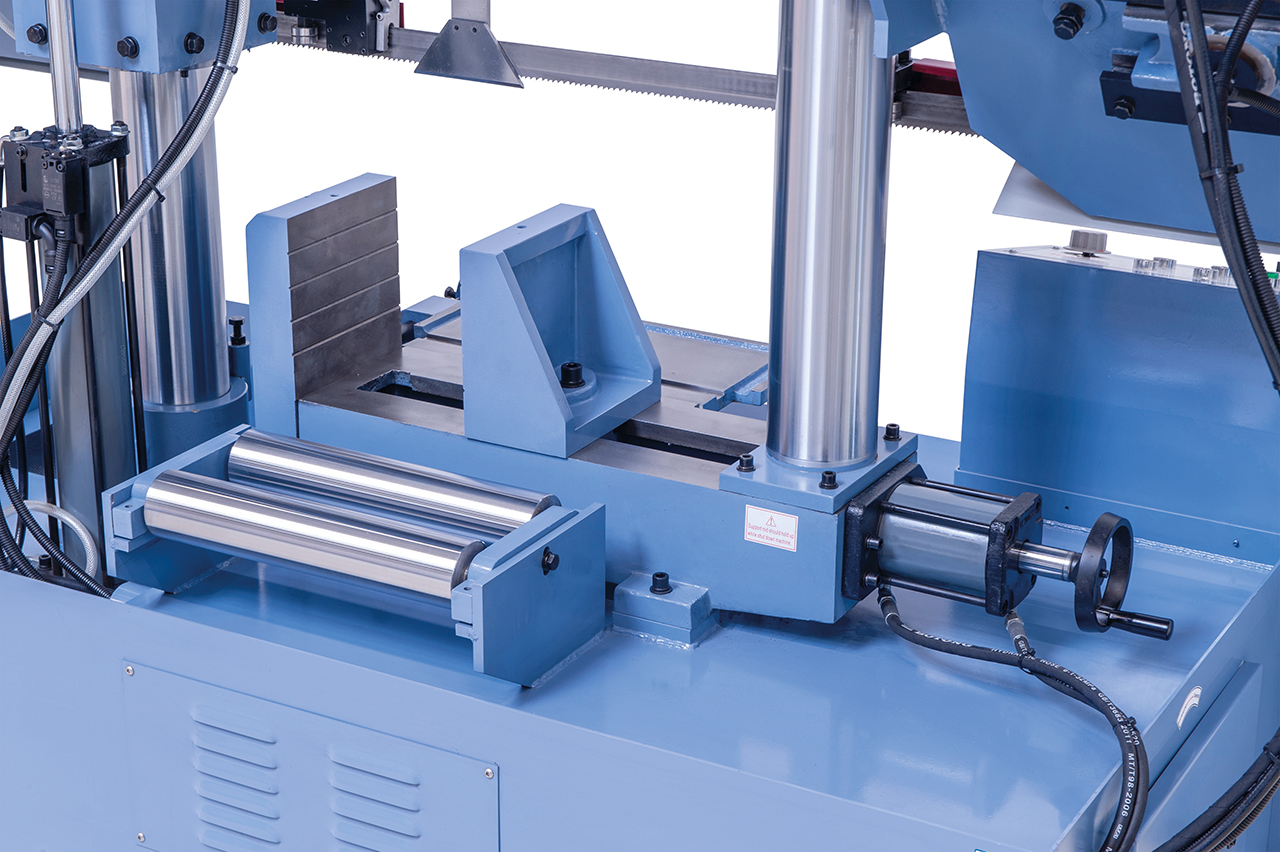

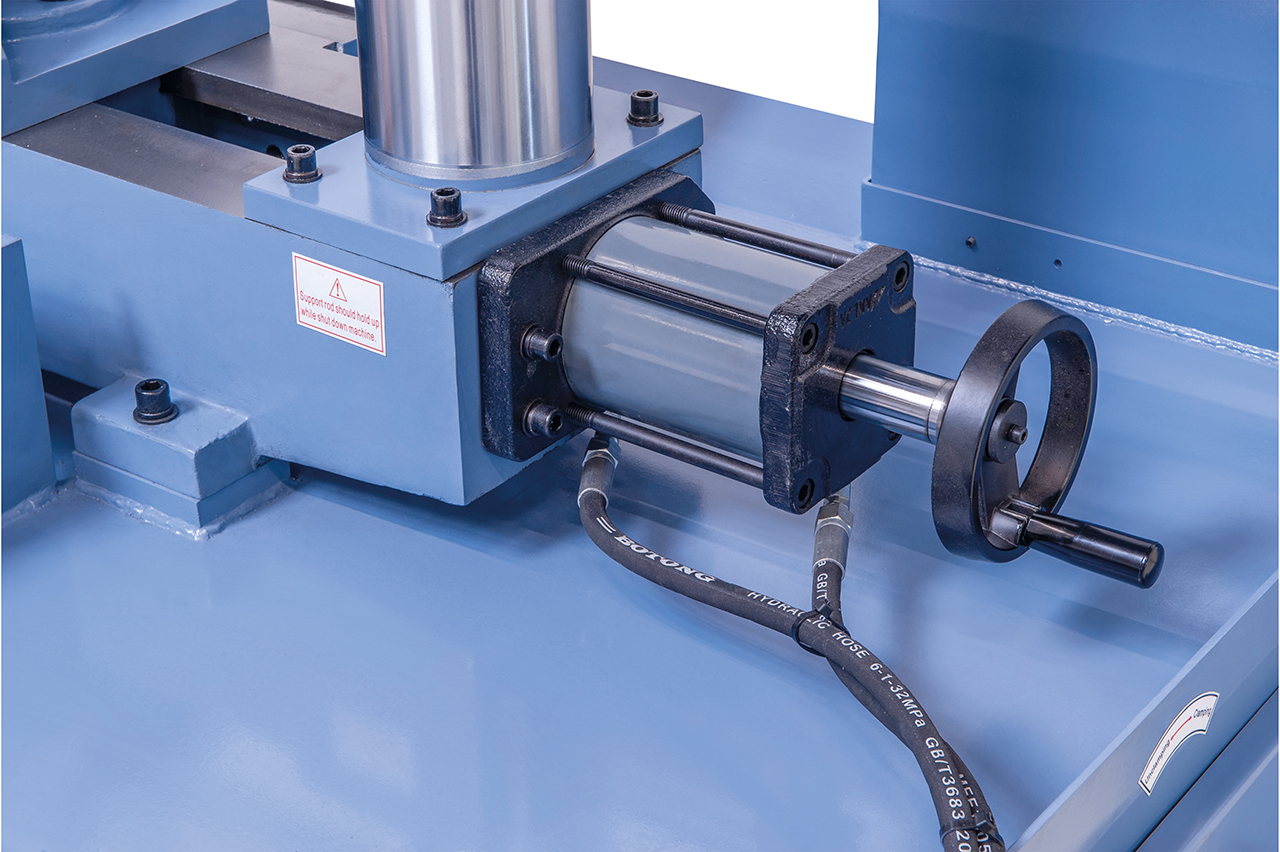

Robust, cast-iron vice with hydraulic clamp.

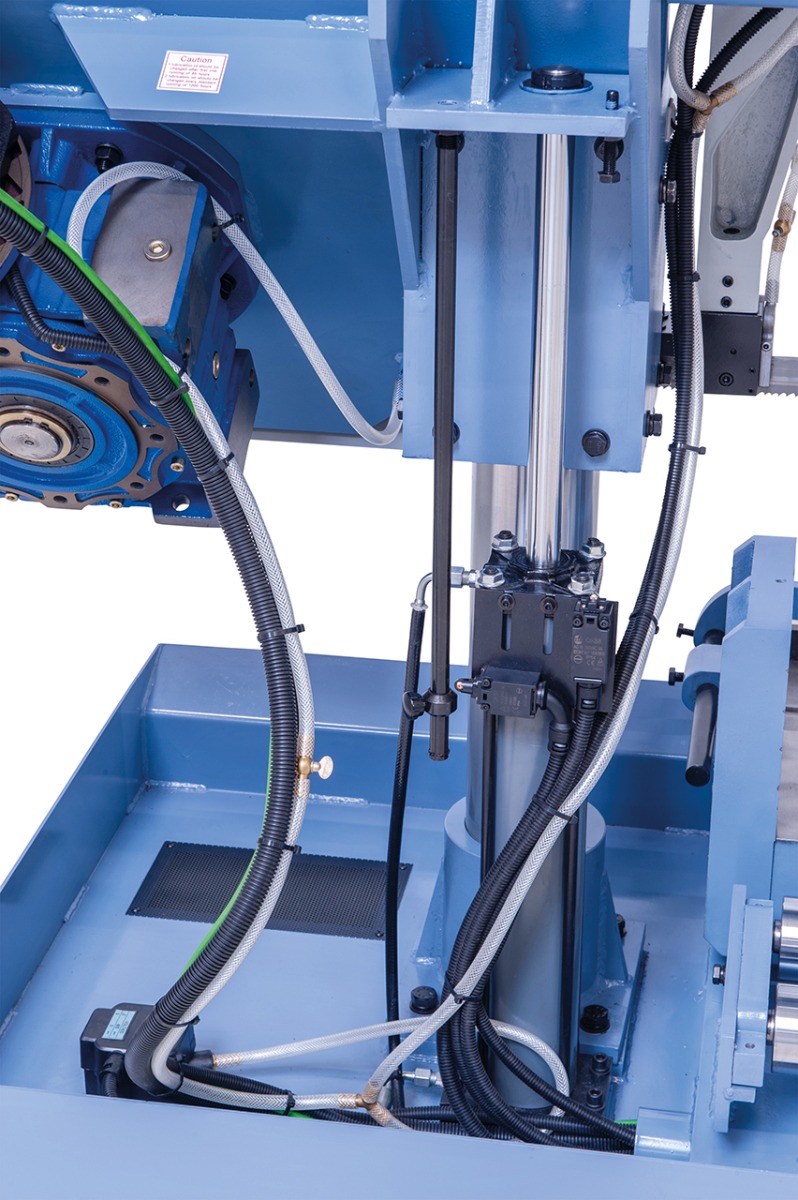

Stable hydraulic cylinder for sensitive lowering of the saw frame.

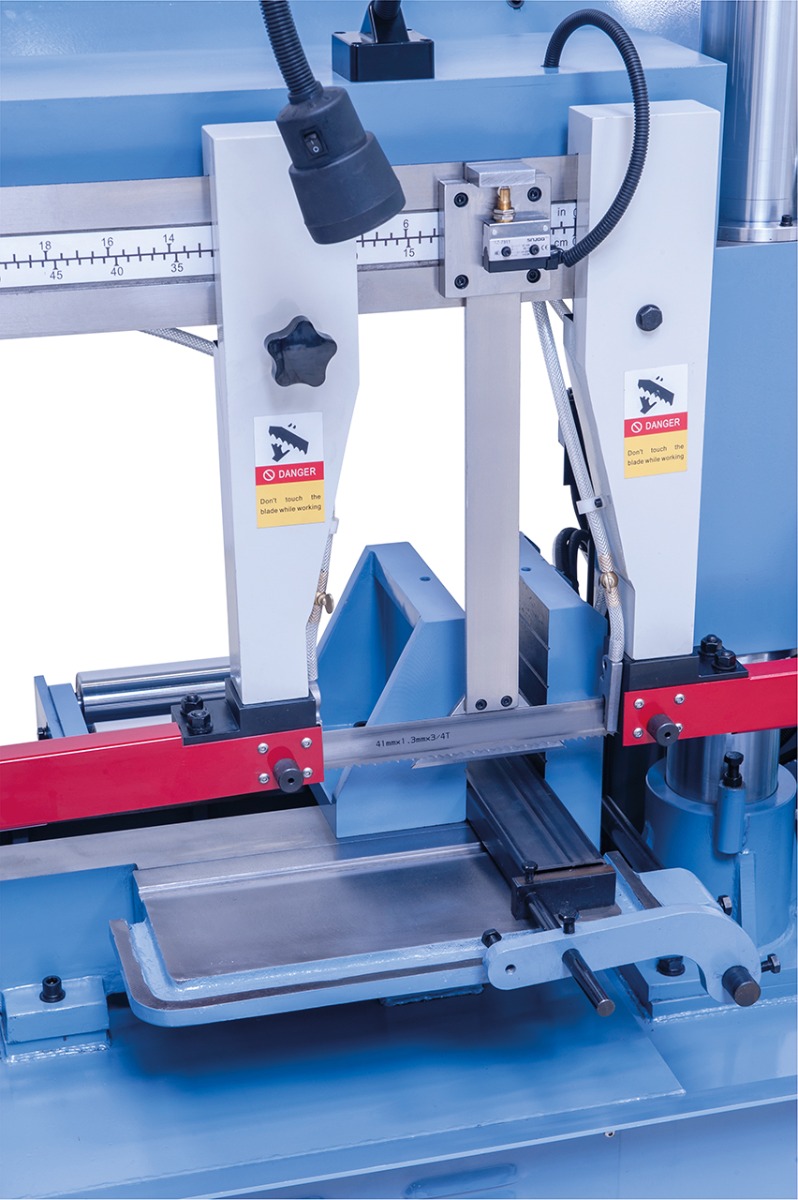

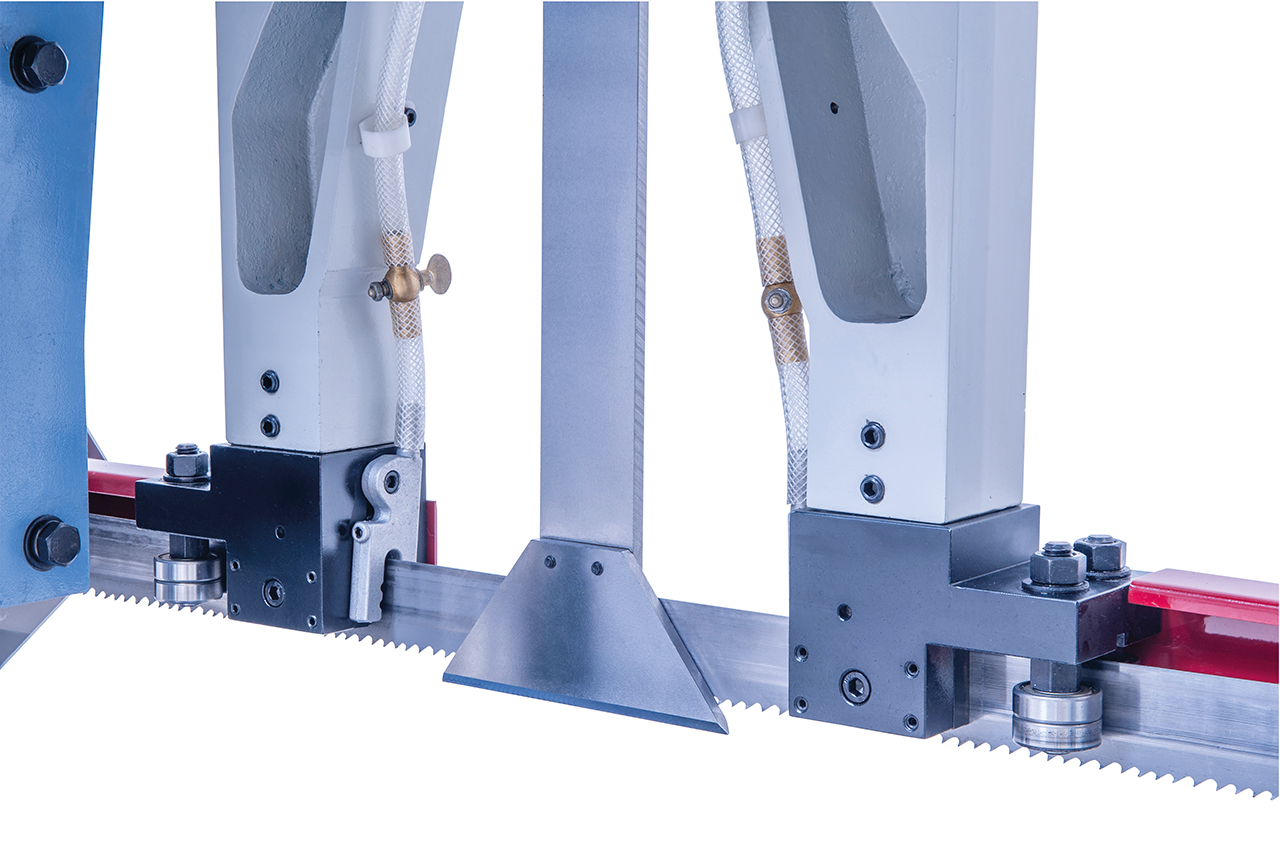

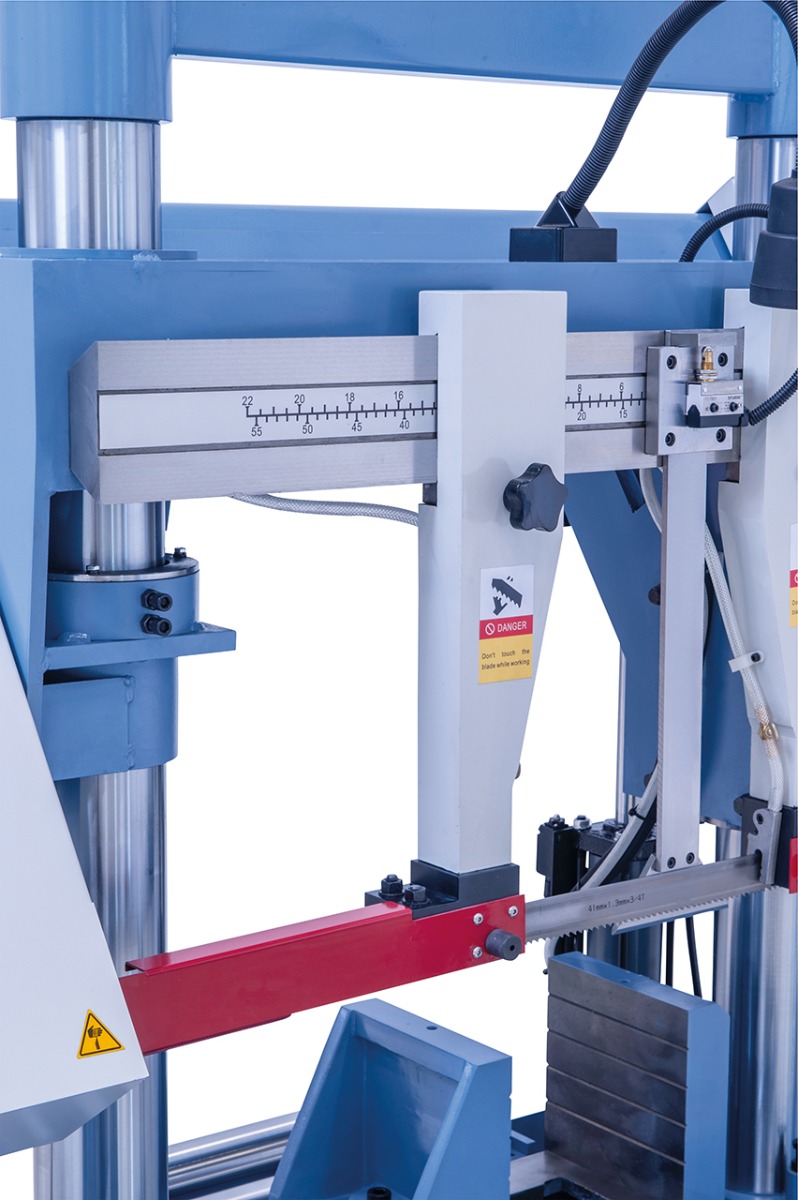

The adjustable bandsaw blade guide prevents the bandsaw blade from running sideways or tilting.

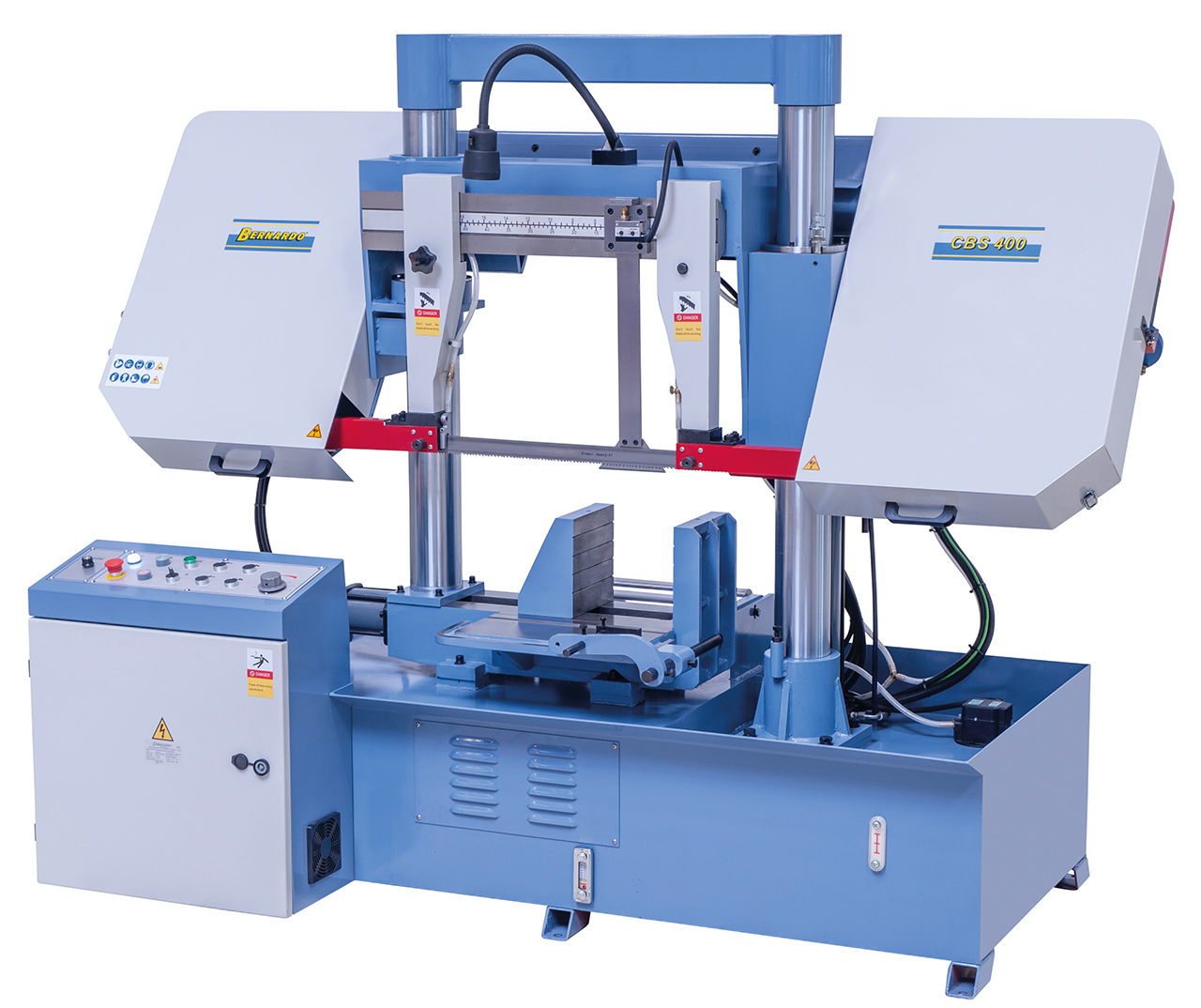

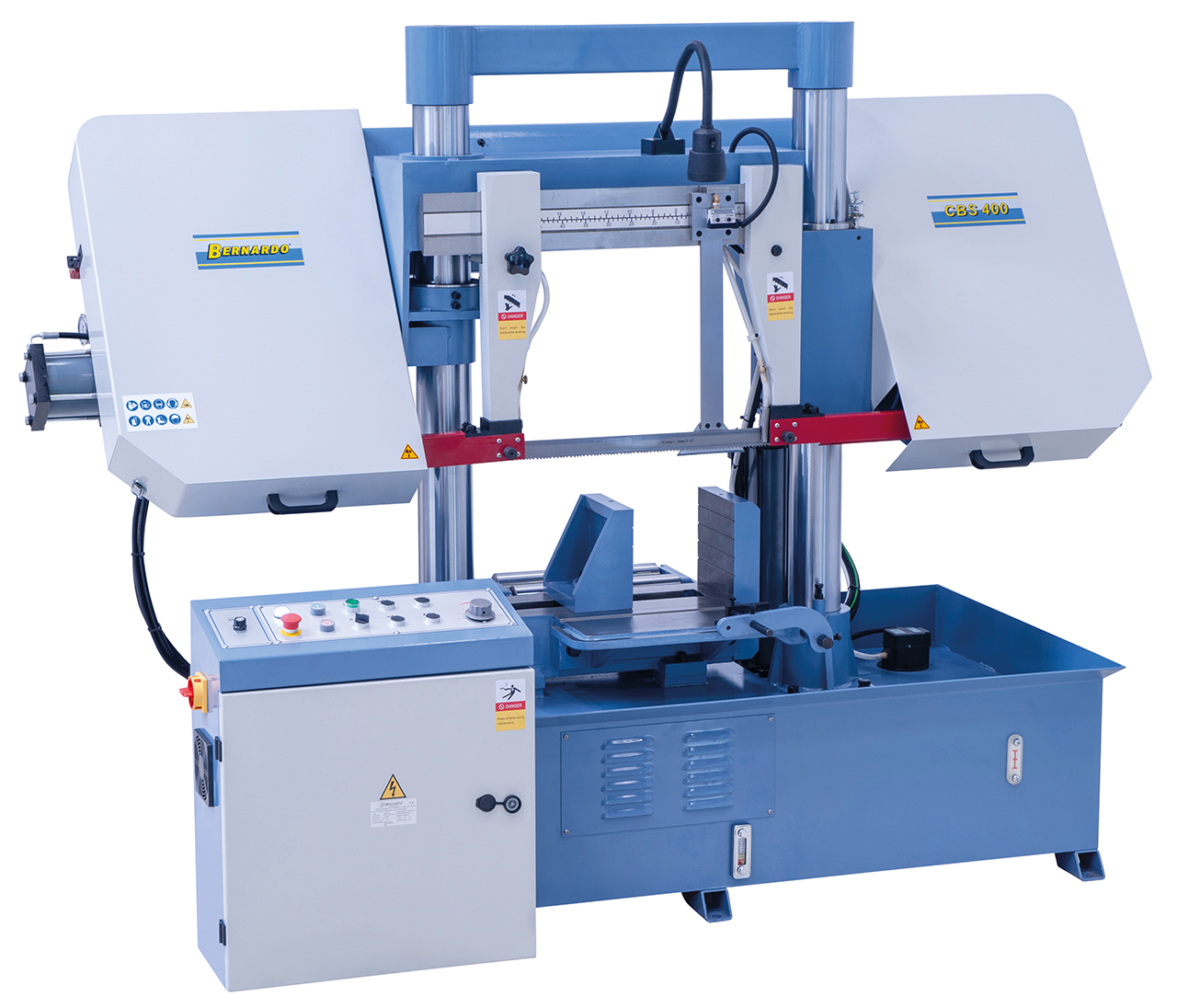

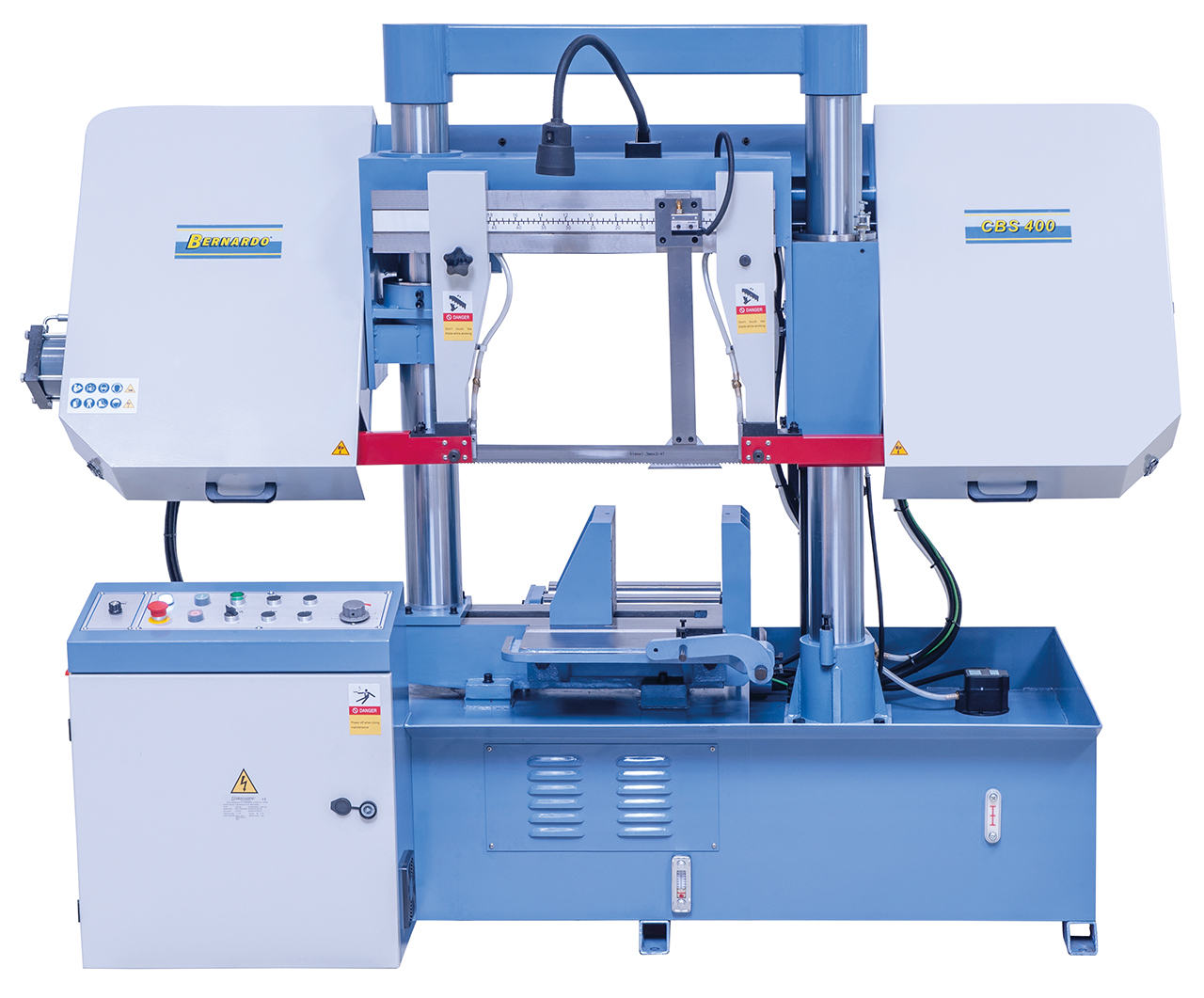

Double column horizontal bandsaw CBS 400 *

Art.Nr.: 04-1727XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The semi-automatic double-column horizontal band saw CBS 400 has the significant advantage that the saw frame is fed in via a precision-ground column guide. This makes this machine ideal for processing blocks made of solid material. In addition, this model is equipped with a servo motor as standard and offers a steplessly adjustable cutting speed.

€11,760.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Cutting of profiles, pipes, full rivet iron and non-ferrous materials

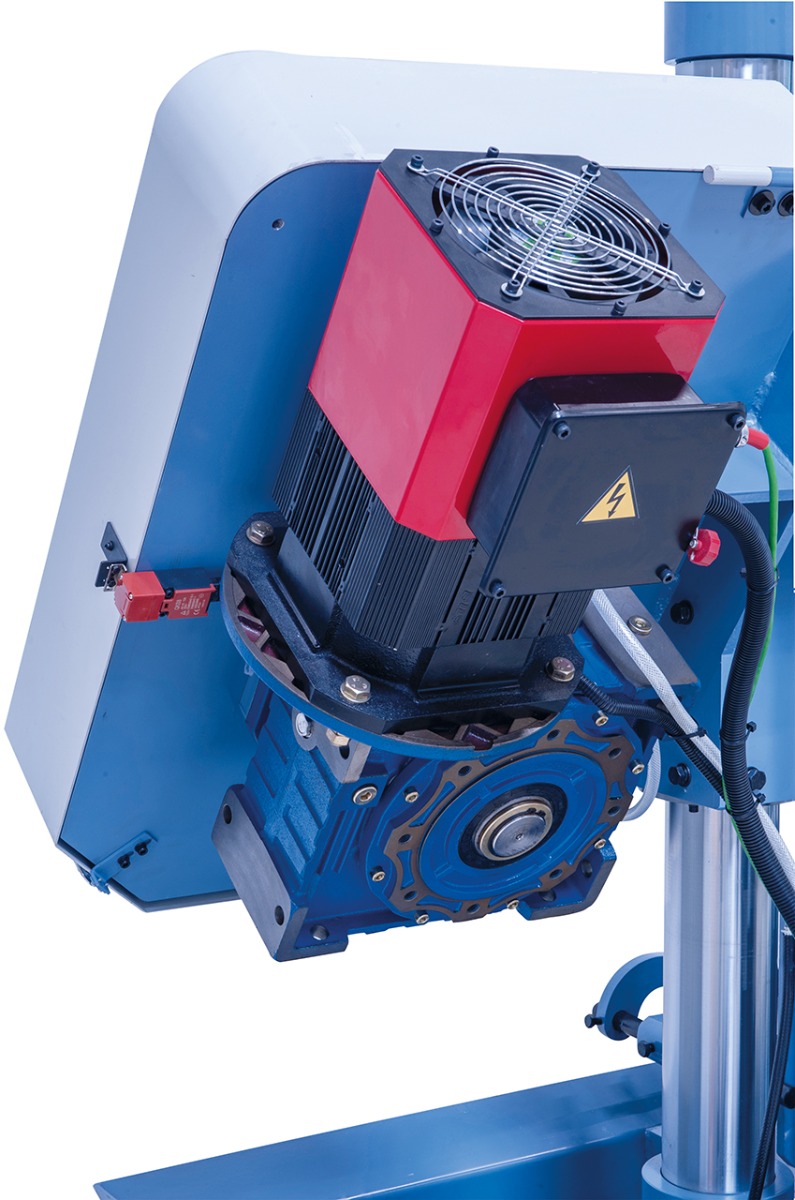

It is driven by a gearbox and servomotor with a steplessly adjustable cutting speed

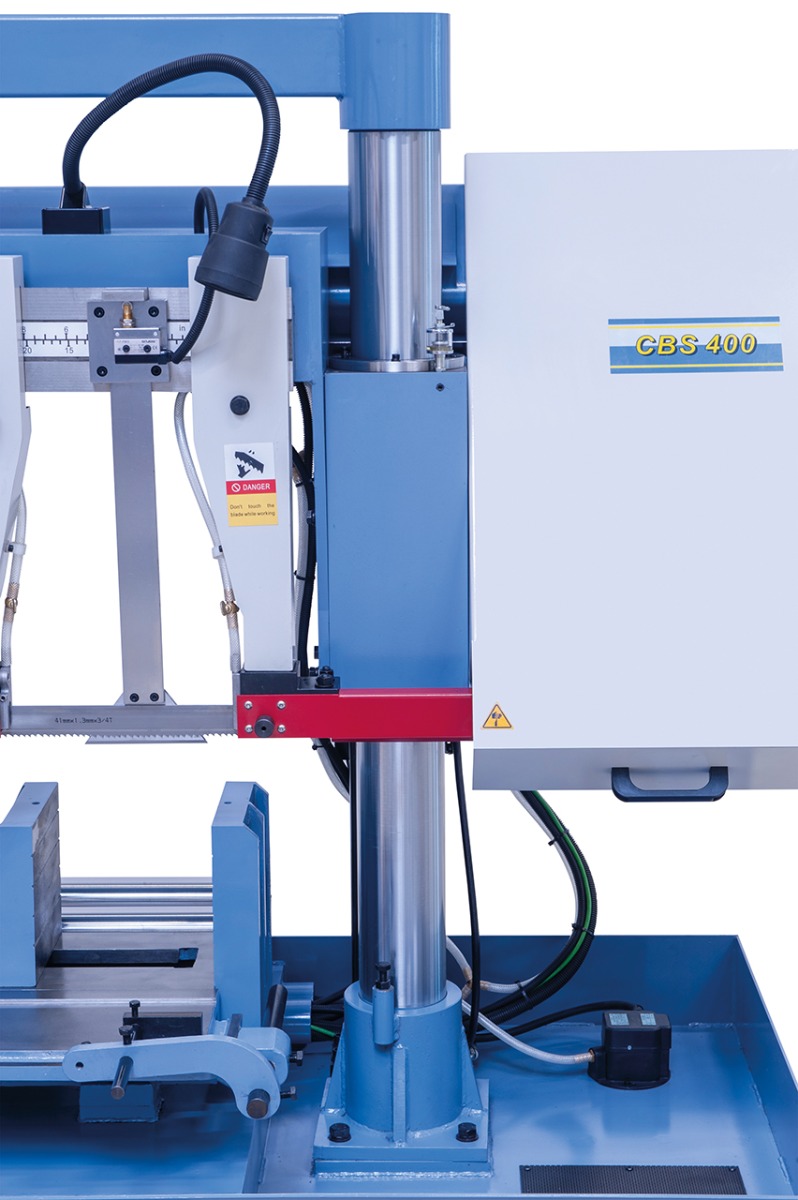

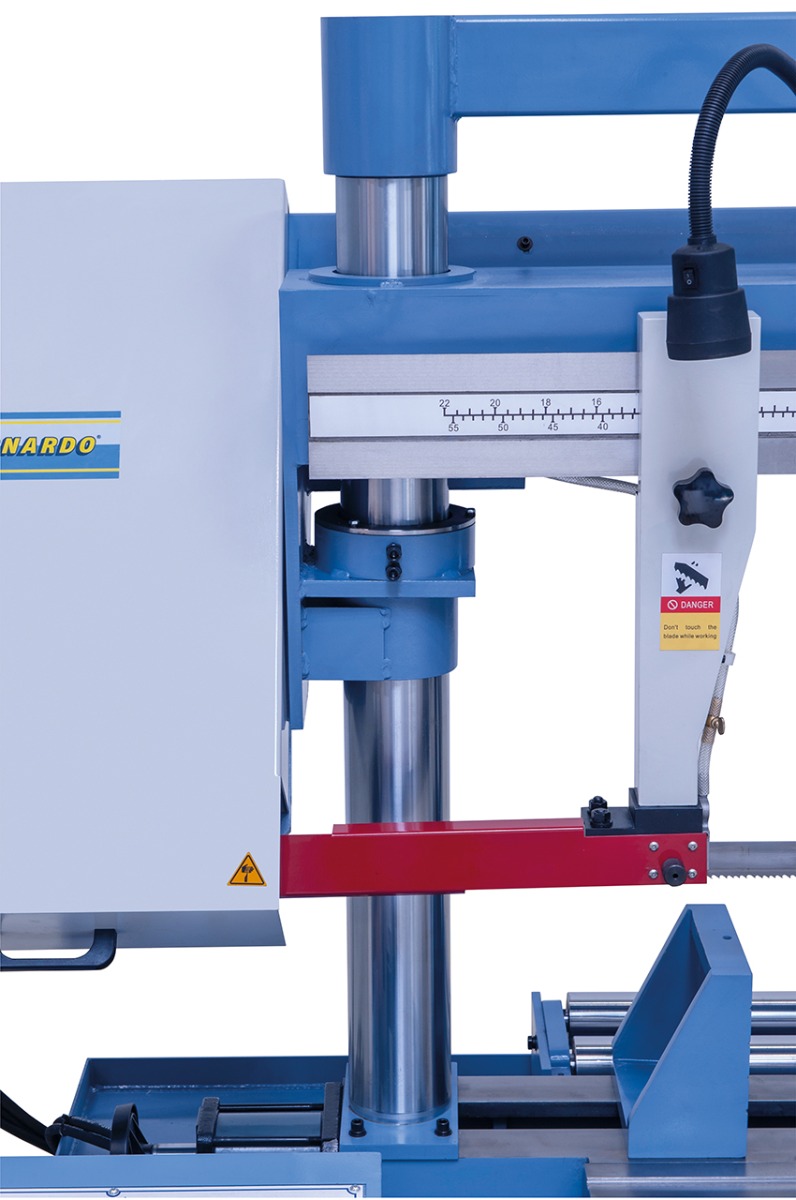

Low-vibration running thanks to robust double-column guidance and heavy machine body

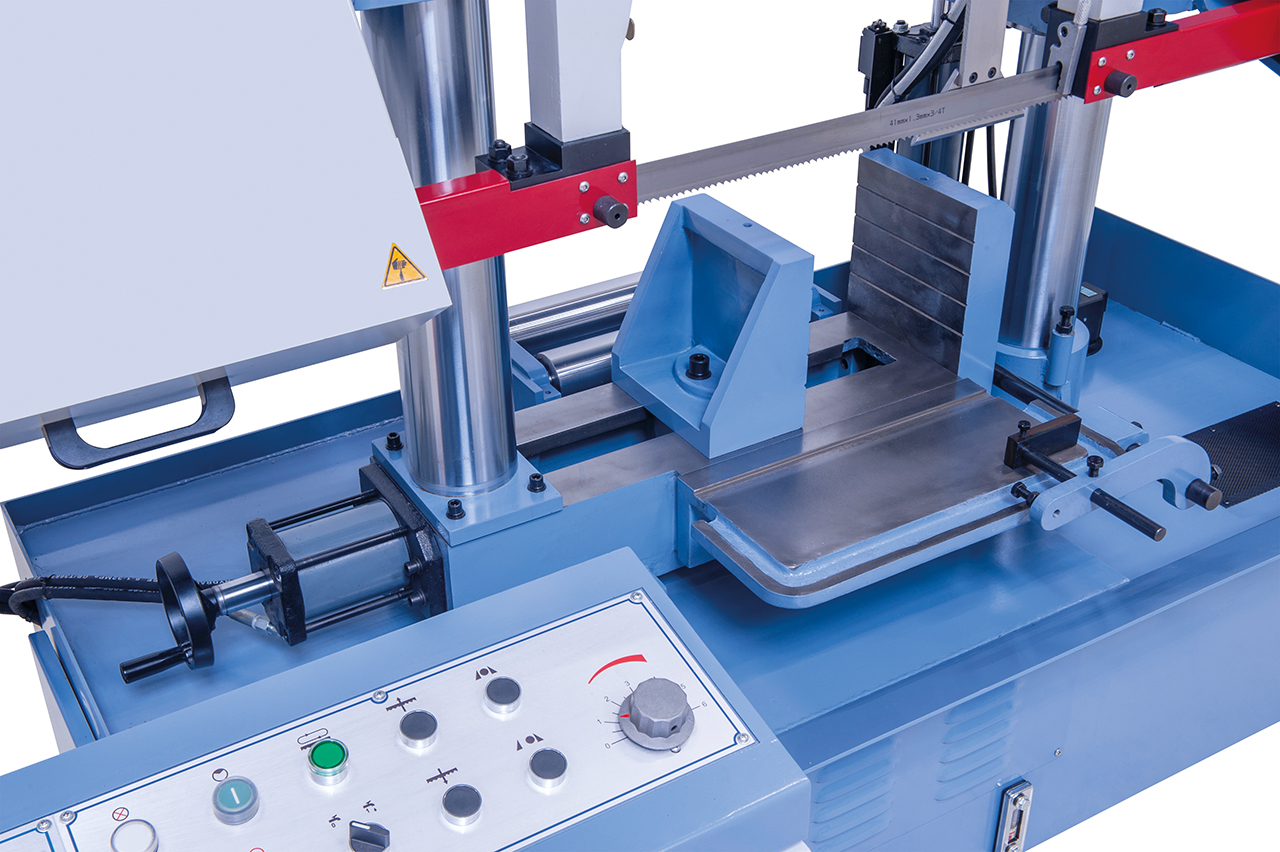

Hydraulic vise for easy clamping of the workpiece, additionally with handwheel for fine adjust-ment
Robust and vibration-free construction for professional use
Equipped with hydraulic saw blade tensioning as standard
Torsion-free, strong spheroidal cast iron saw frame
Automatic shut-down at cutting end, the saw frame moves back to the adjustable height

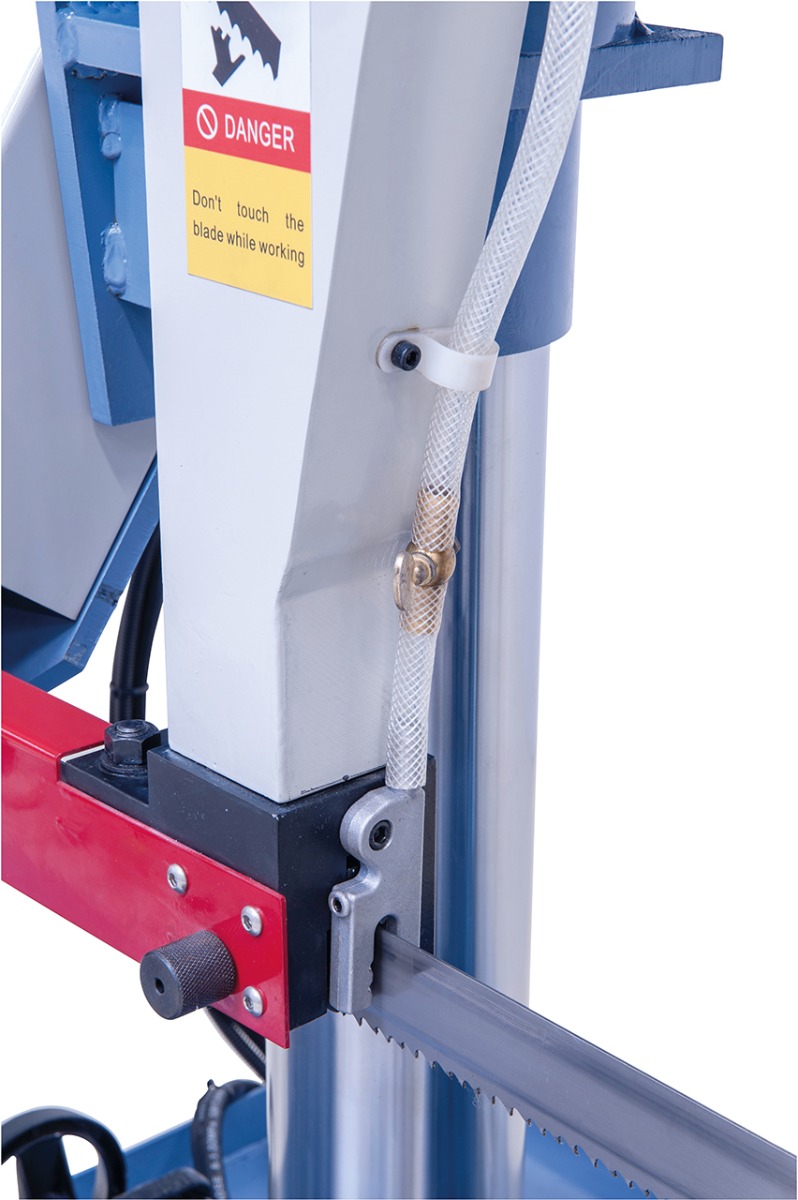

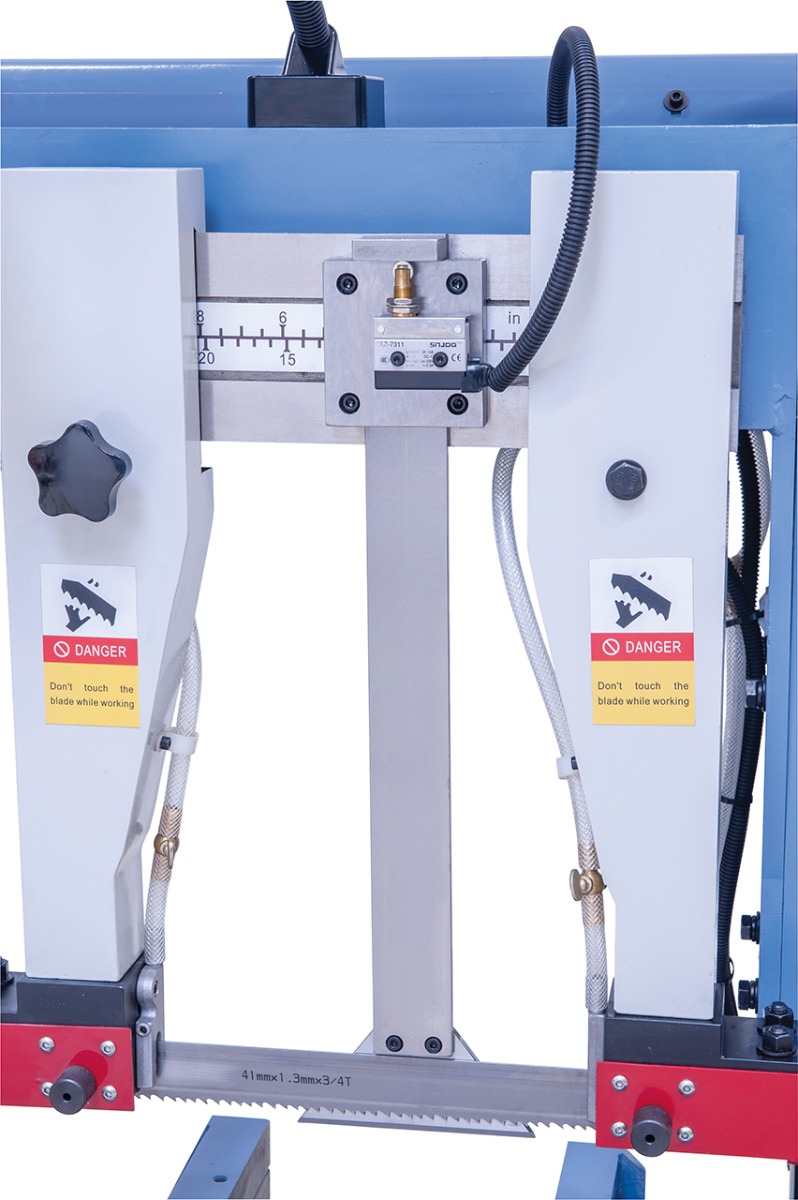

Ball bedded bandsaw blade guide with quick adjustment to the workpiece width guarantees optimal results
Adjustable hydraulic cylinder for pressure regulation of the saw frame

Product Specifications

Cutting capacity round 90°	400 mm
Cutting capacity flat 90°	400 x 400 mm
Cutting capacity square 90°	400 x 400 mm
Working height	610 mm
Cutting speed, stepless	19 - 94 m/min
Bandsaw blade dimension	5000 x 41 x 1,3 mm
Coolant pump	0,045 kW
Motor power of hydraulic pump	0,55 kW
Motor power	3,7 kW
Machine dimension (L x D x H)	2500 x 1160 x 1830 mm
Weight approx.	1355 kg
