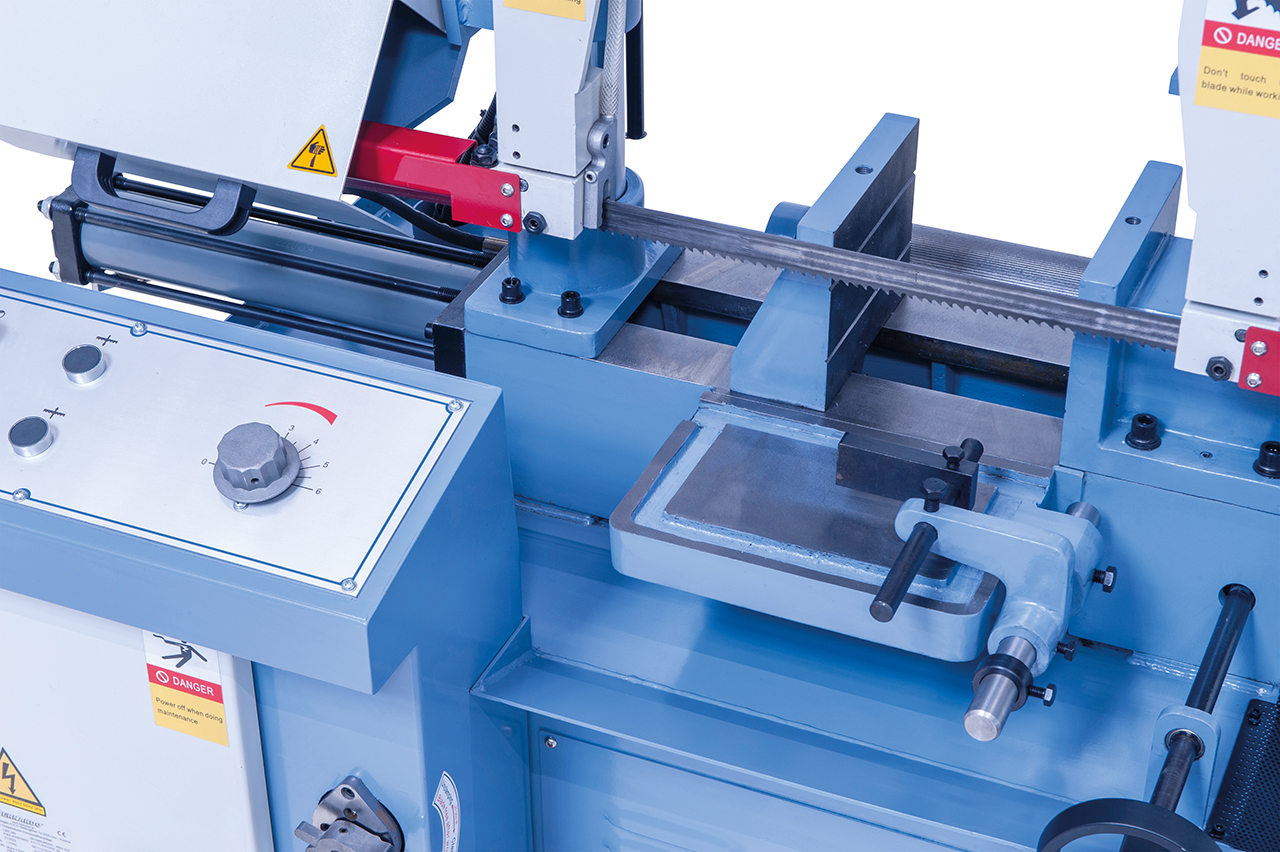

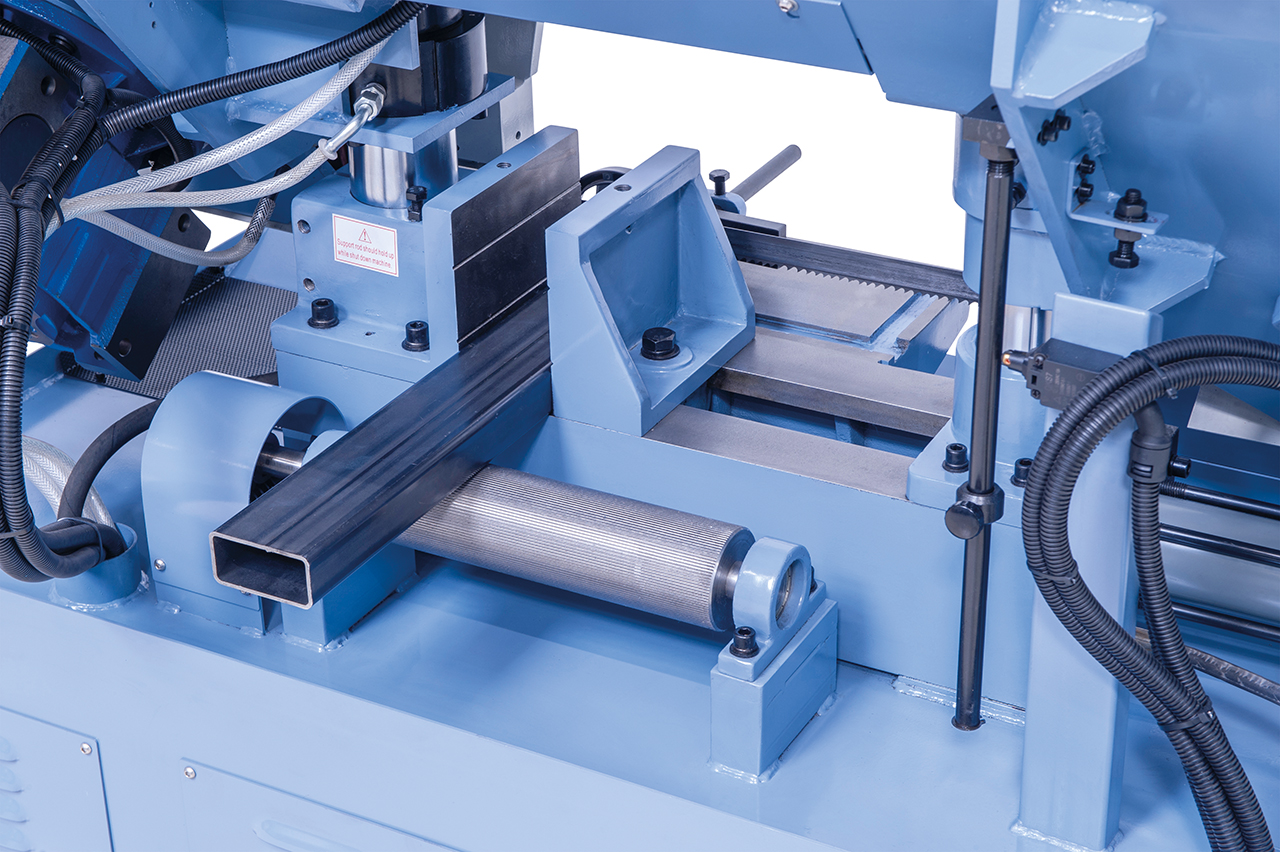

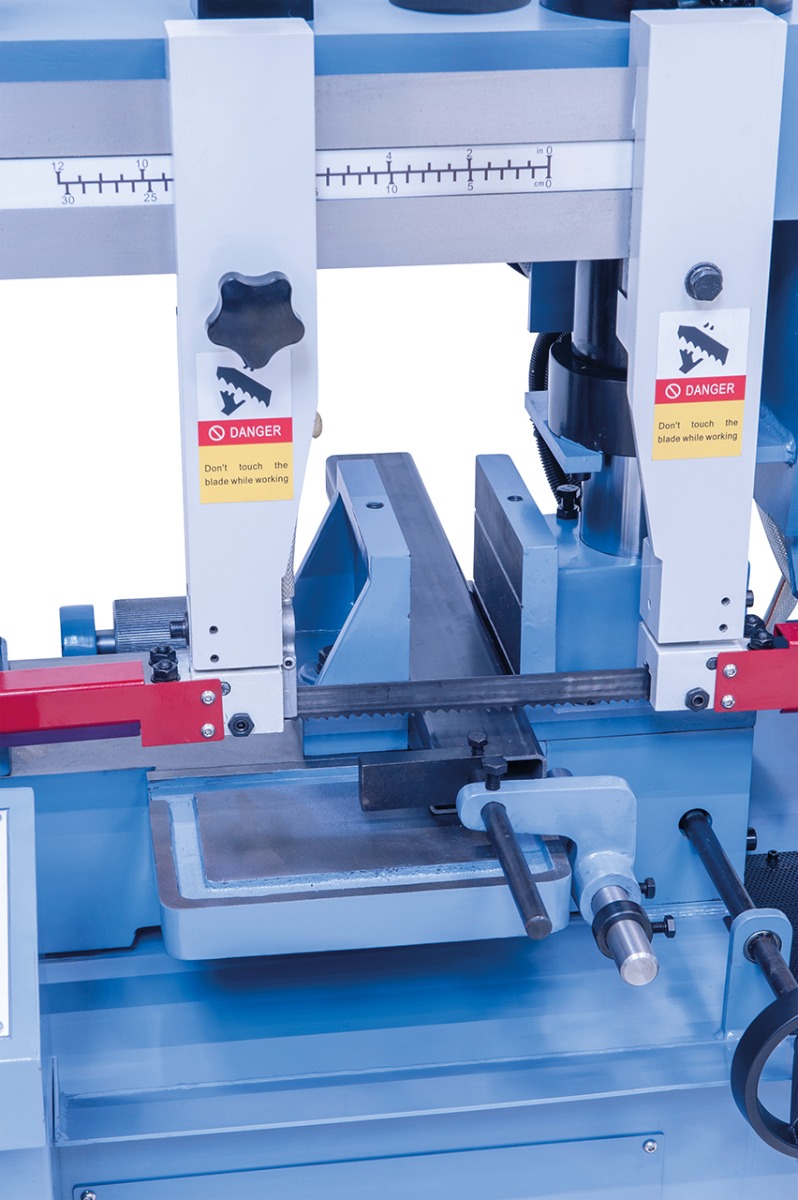

Robust, cast-iron vice with hydraulic clamp.

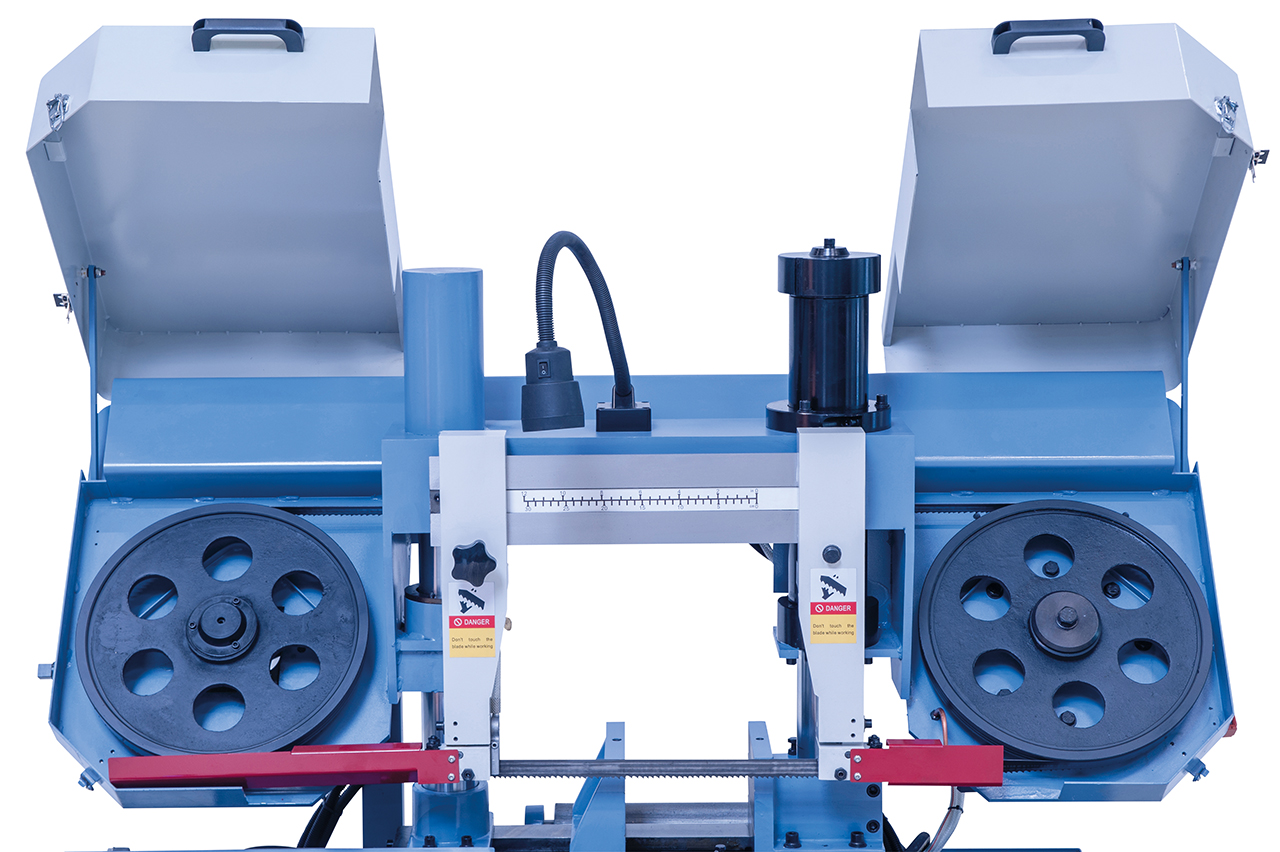

The dynamically balanced cast iron wheels assure smooth running.

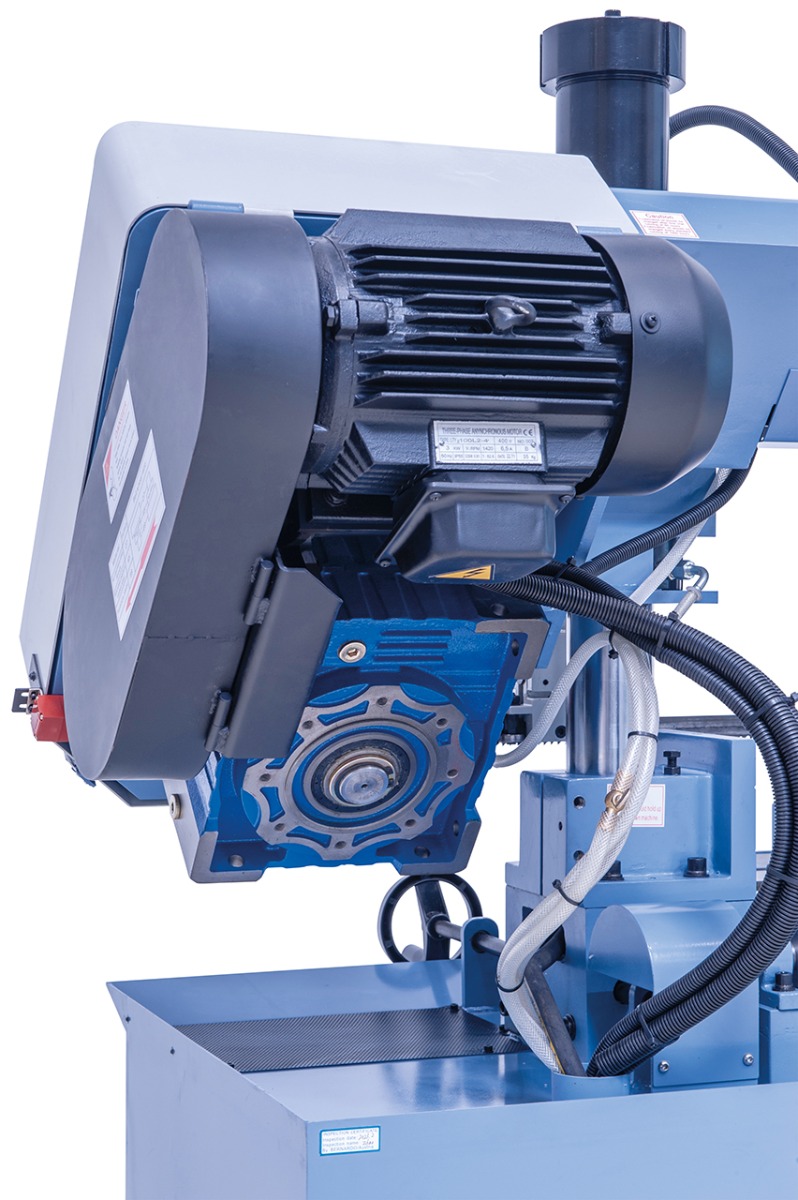

Belt drive with 3 adjustable cutting speeds

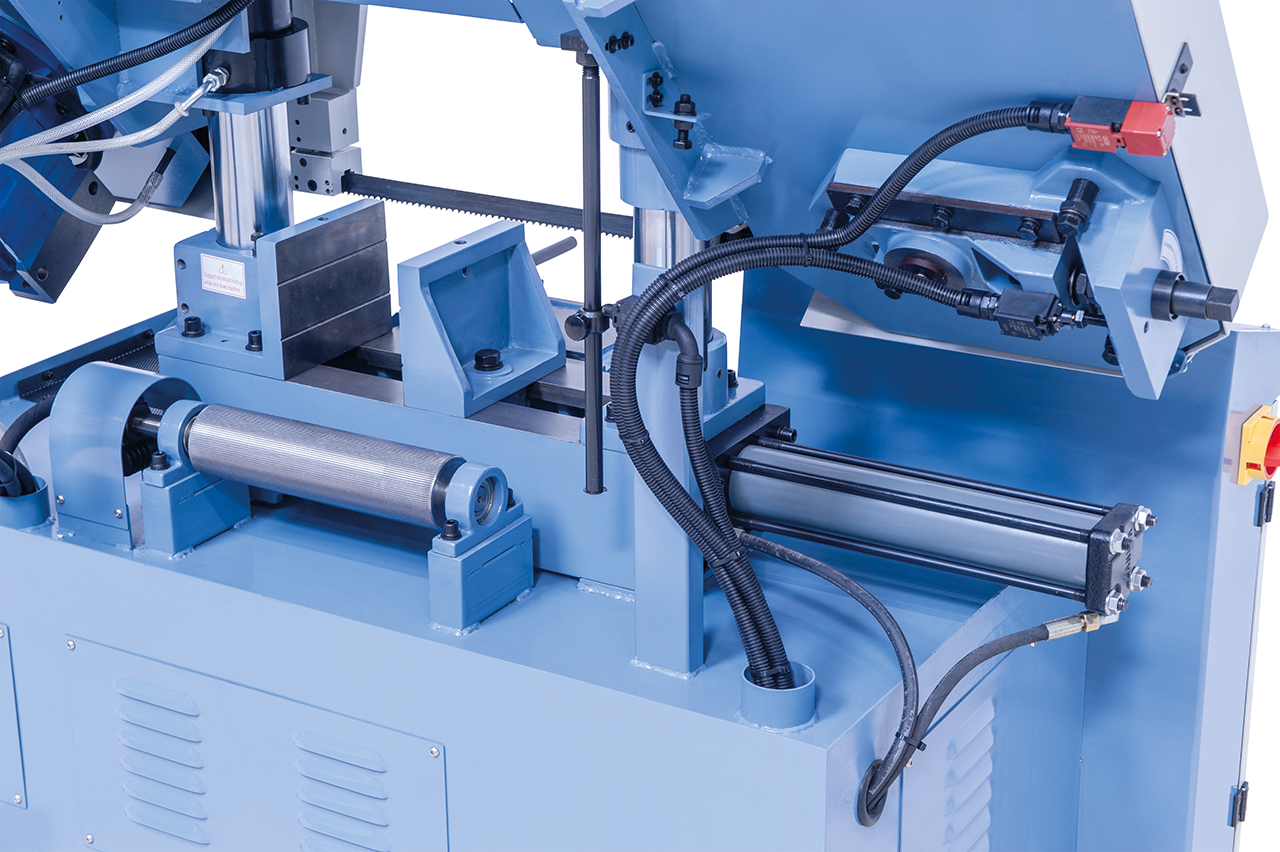

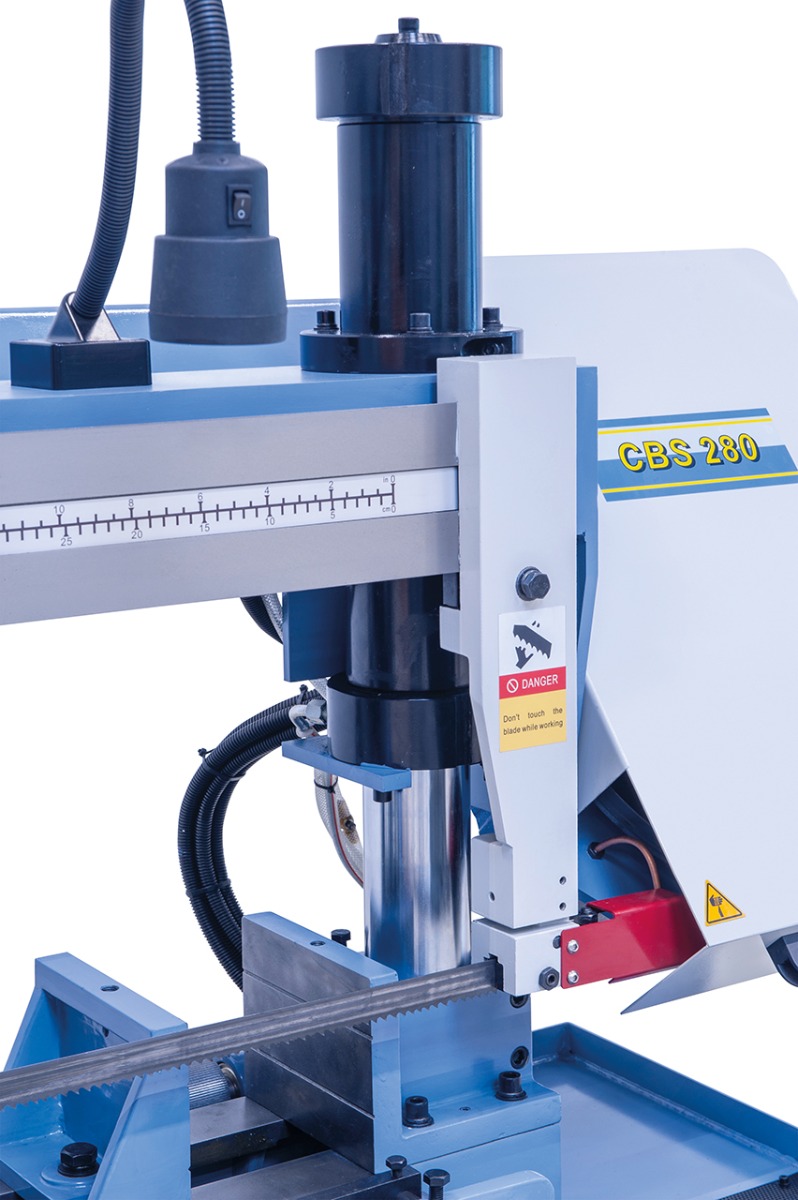

Stable hydraulic cylinder for sensitive lowering of the saw frame.

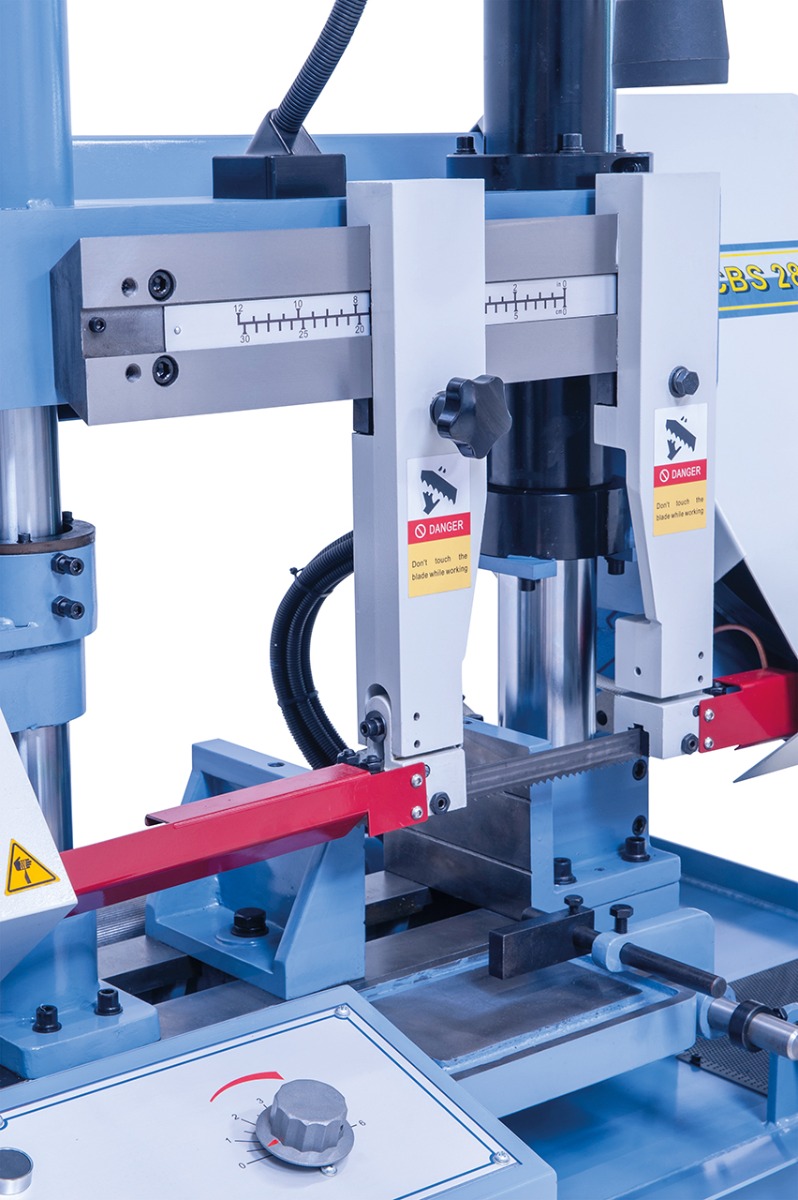

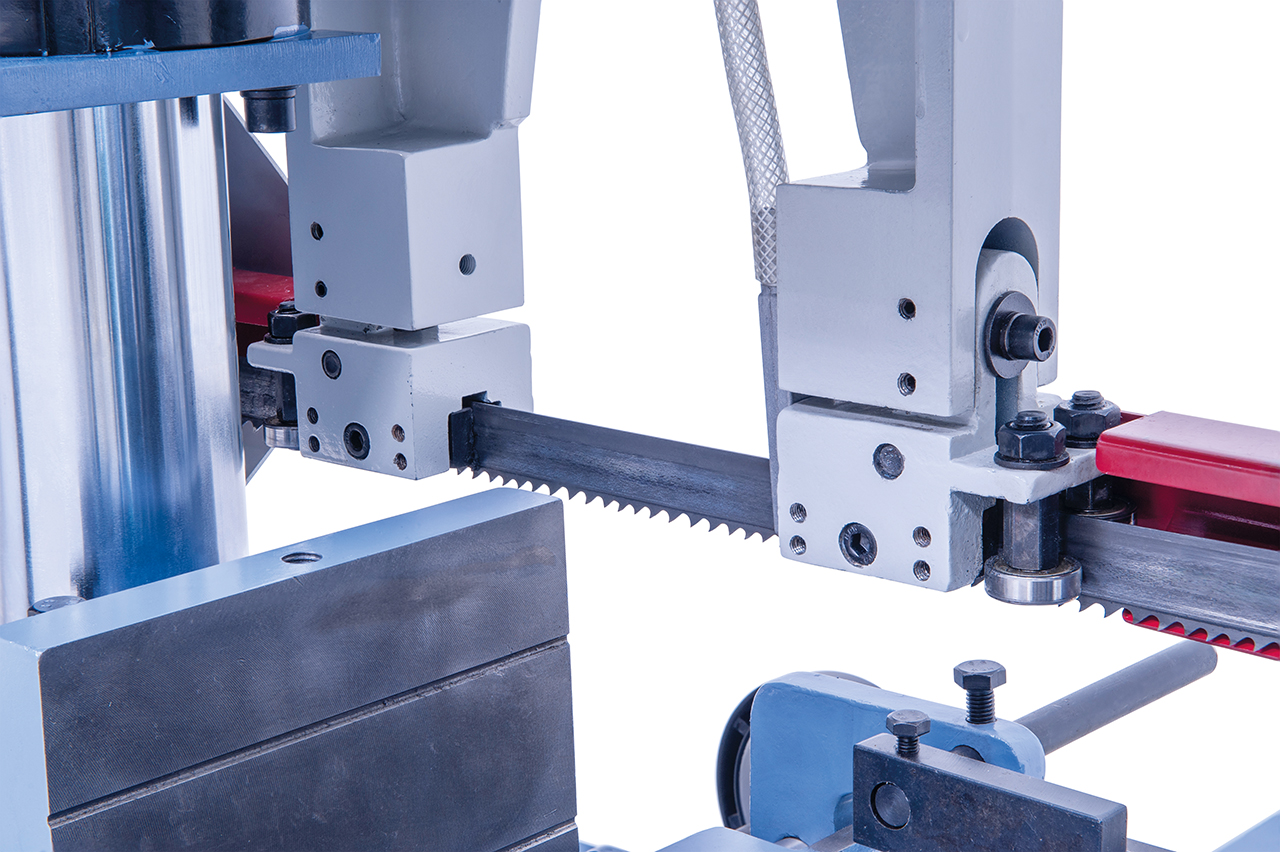

The adjustable bandsaw blade guide prevents the bandsaw blade from running sideways or tilting.

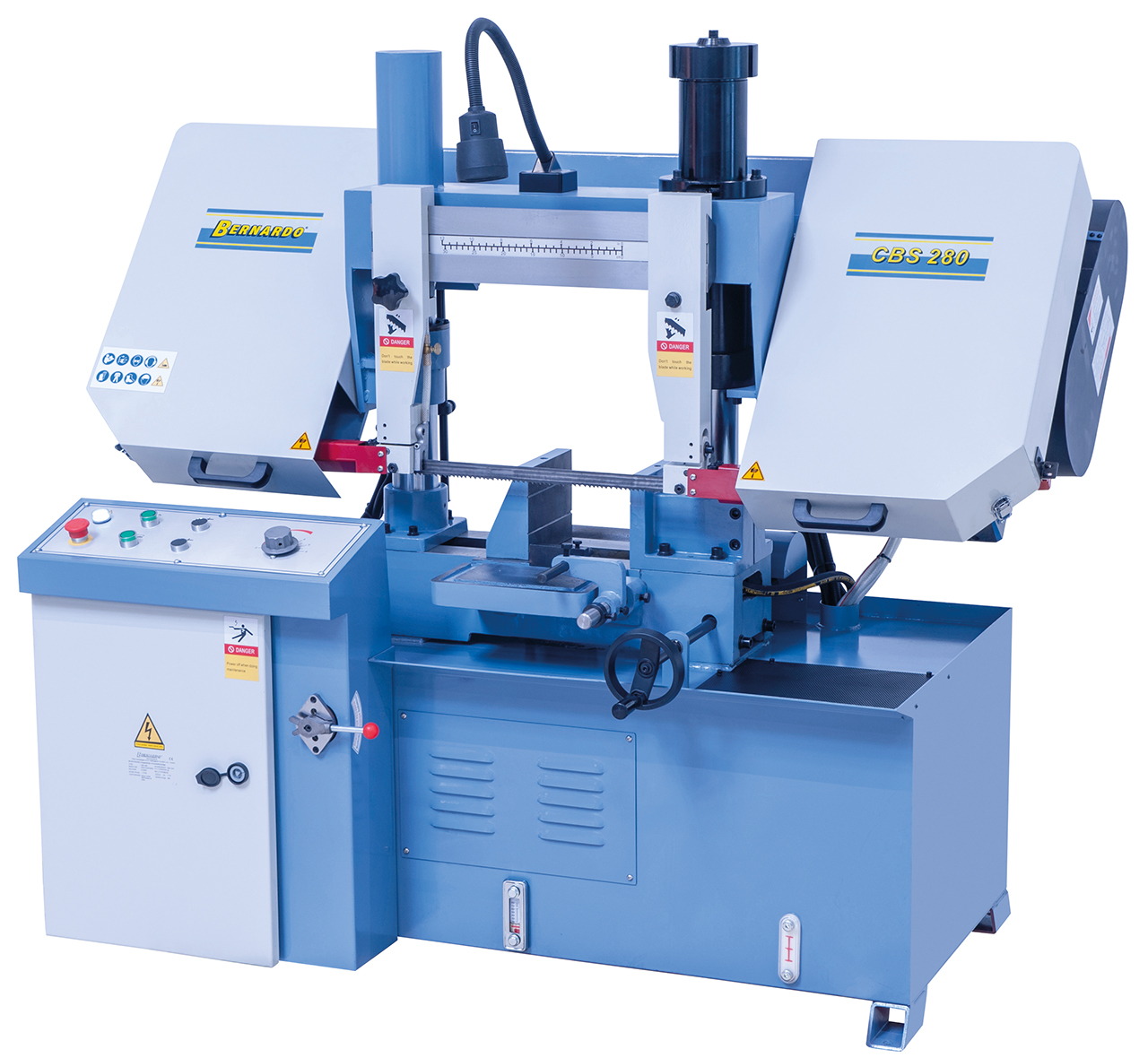

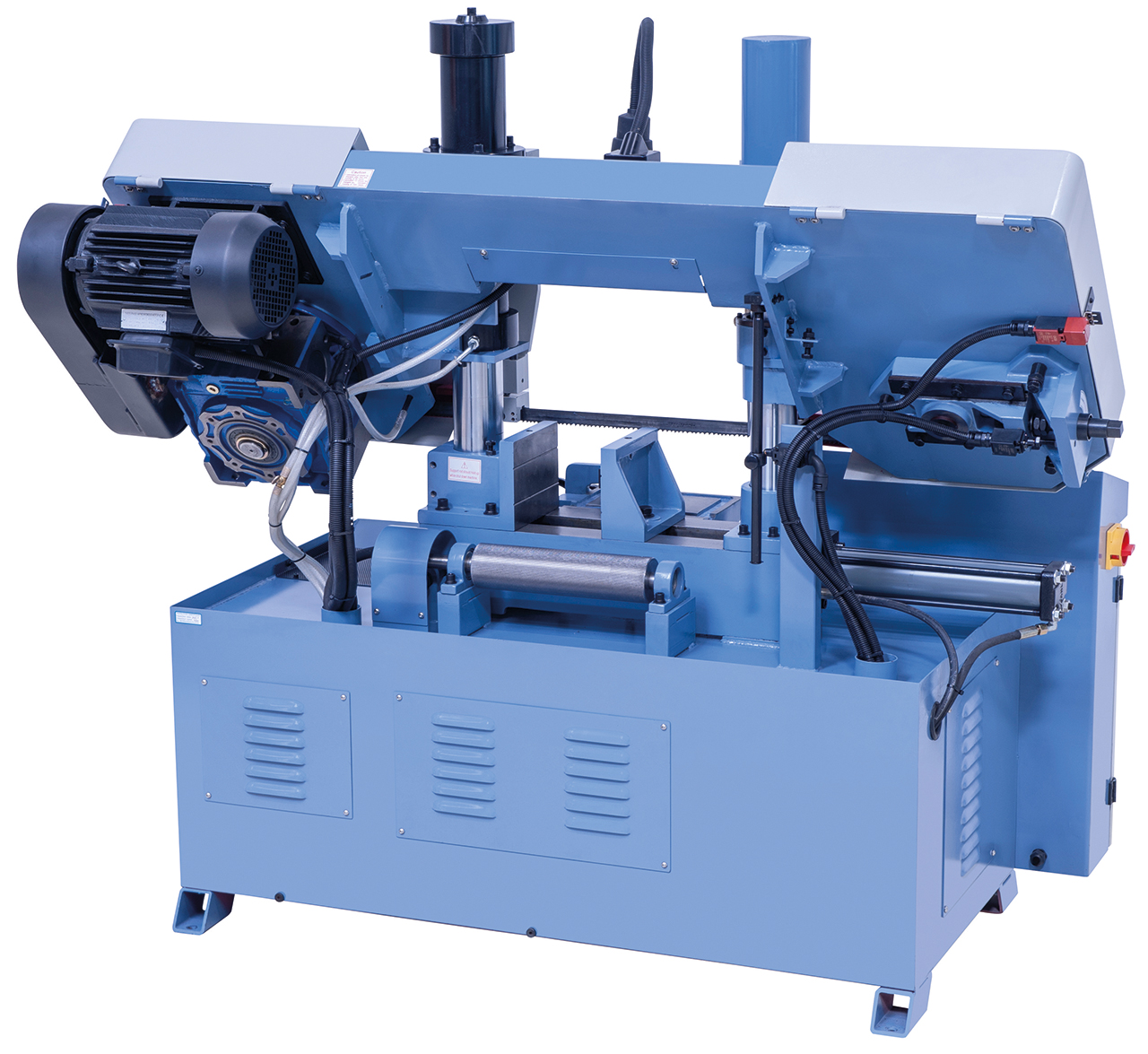

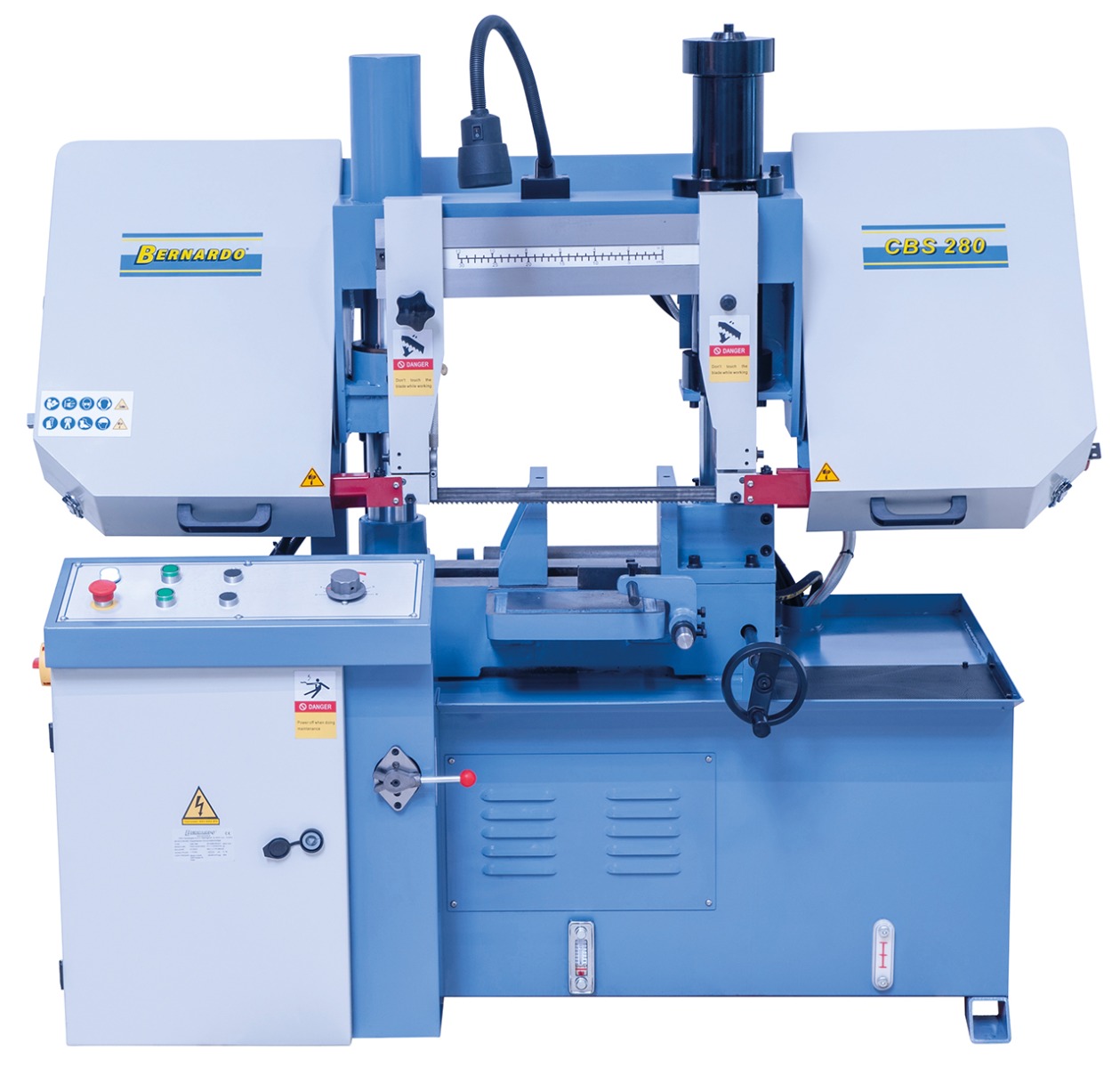

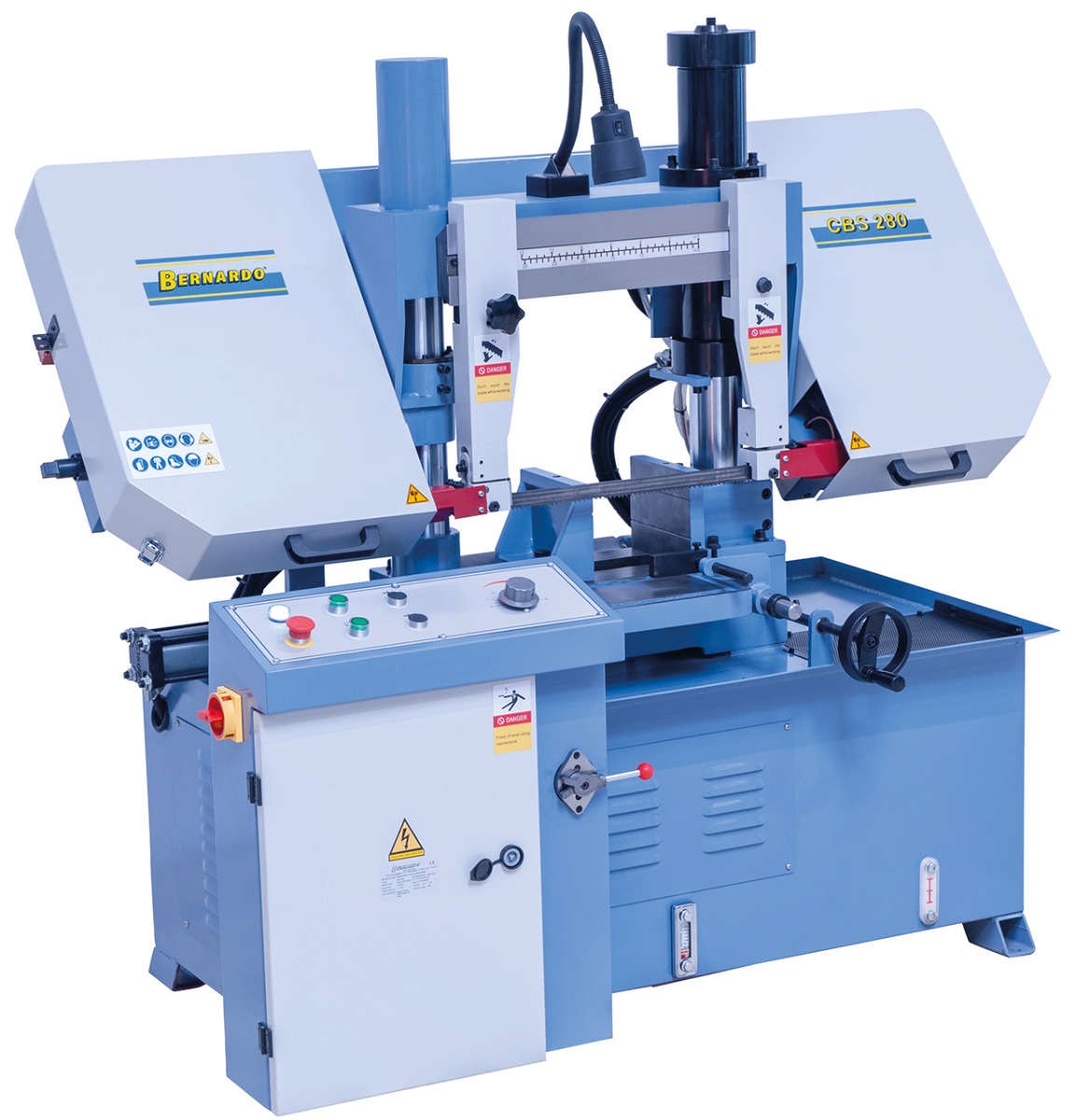

Double column horizontal bandsaw CBS 280 *

Art.Nr.: 04-1726XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

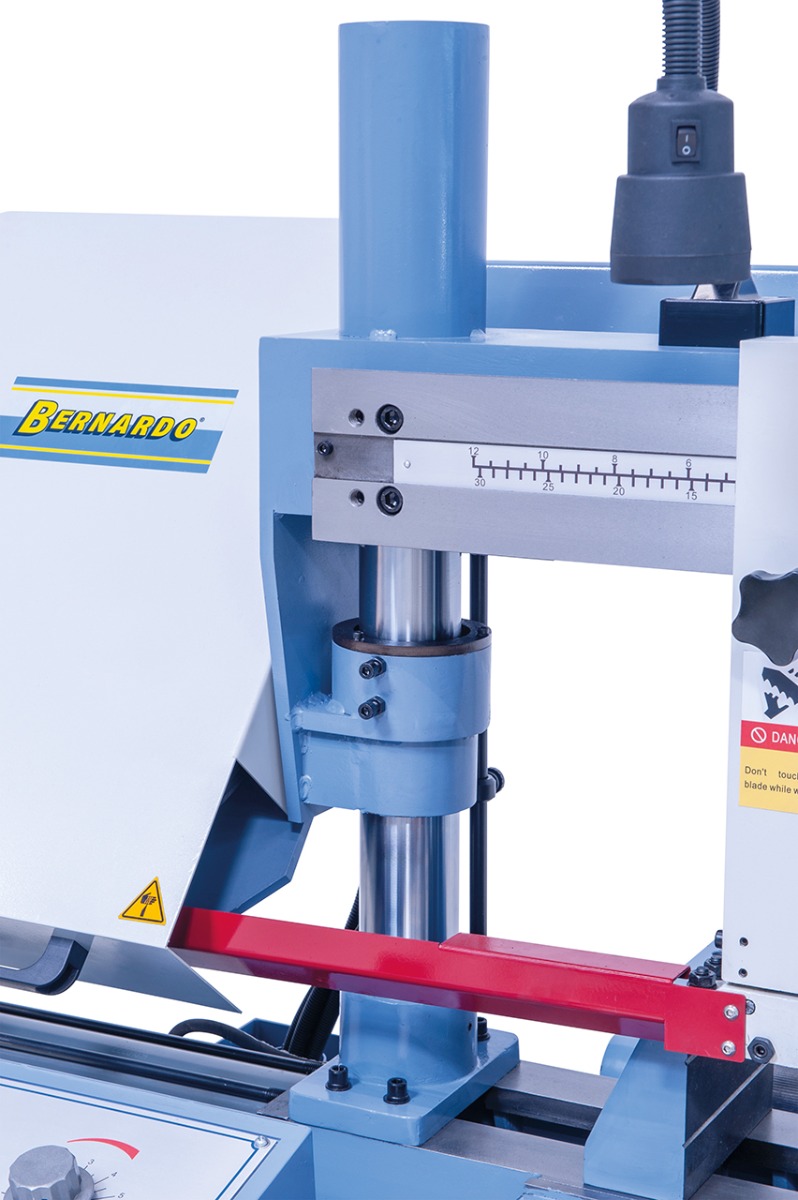

The double-column horizontal bandsaw CBS 280 has the significant advantage that the saw frame is fed via precision-ground column guides. This makes this machine ideal for processing blocks made of solid material.

€6,120.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

Cutting of profiles, pipes, full rivet iron and non-ferrous materials
The drive is via a V-belt drive with 3 cutting speeds (27 / 45 / 69 m/min)
Low-vibration running thanks to robust double-column guidance and heavy machine body
Complete with hydraulic vice for easy clamping of the workpiece
Torsion-free, strong spheroidal cast iron saw frame
Automatic shut-down at cutting end
Ball bedded bandsaw blade guide with quick adjustment to the workpiece width guarantees optimal results
Adjustable hydraulic cylinder for pressure regulation of the saw frame
Robust and vibration-free construction for professional use

Product Specifications

Cutting capacity round 90°	280 mm
Cutting capacity flat 90°	280 x 280 mm
Cutting capacity square 90°	280 x 280 mm
Working height	670 mm
Cutting speed	27 / 45 / 69 m/min
Bandsaw blade dimension	3505 x 27 x 0,9 mm
Coolant pump	0,045 kW
Motor power of hydraulic pump	0,55 kW
Motor power	3,0 kW
Machine dimension (L x D x H)	1670 x 1130 x 1640 mm
Weight approx.	670 kg
