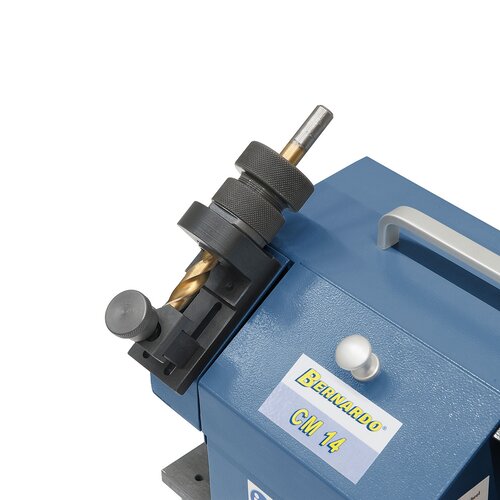

Pre-setting
Pre-setting

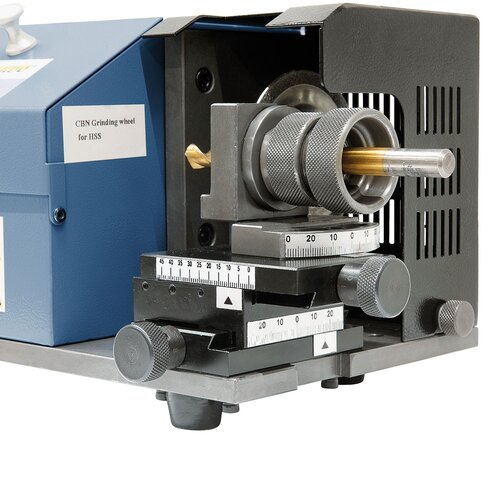

Adjustable grinding angle from -30° to +30°
Adjustable grinding angle from -30° to +30°

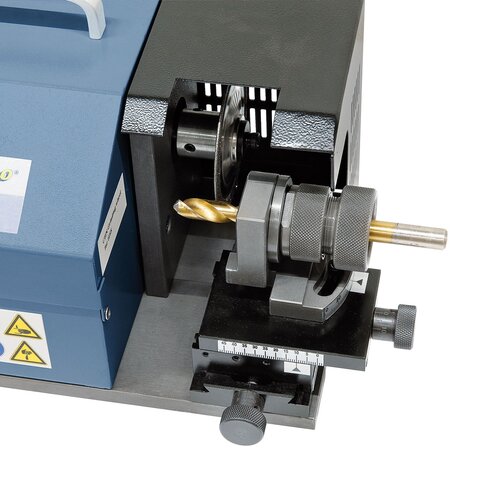

Example of use
Example of use

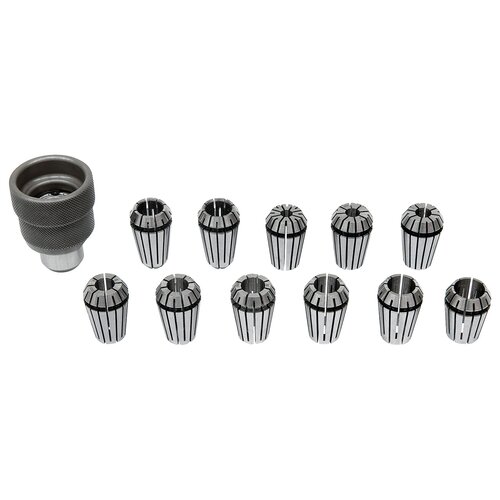

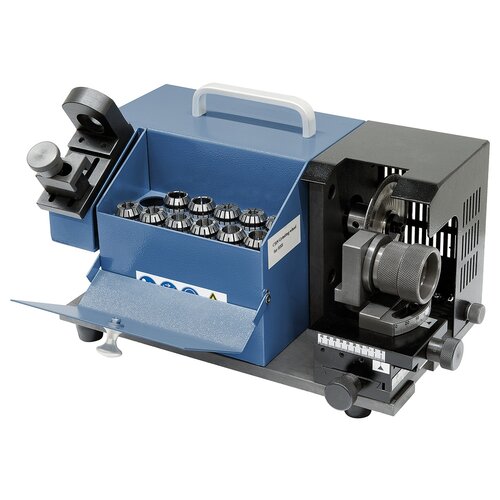

ER 20 collets from 4 – 14 mm comes standard
ER 20 collets from 4 – 14 mm comes standard
Pre-setting
Adjustable grinding angle from -30° to +30°
Example of use
ER 20 collets from 4 – 14 mm comes standard

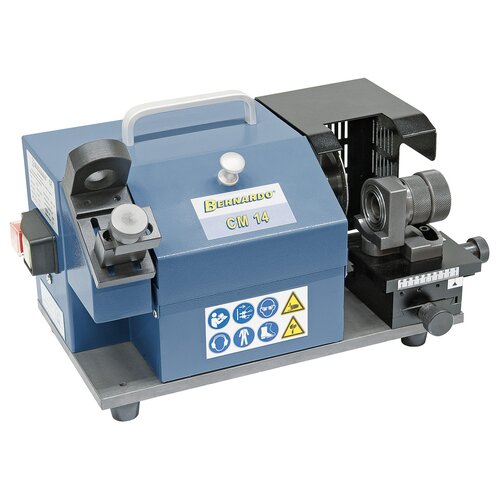

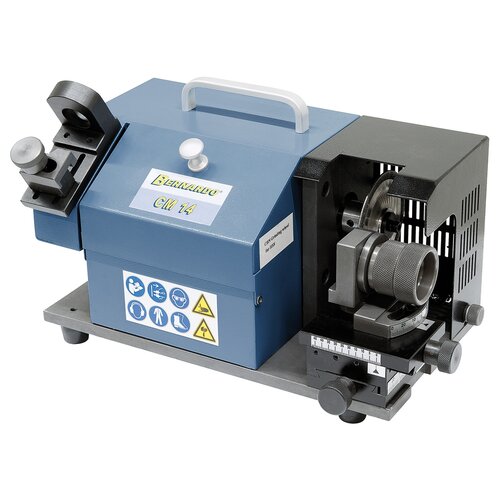

Cutting machine CM 14

Art. No.: 05-1631
Wishlist Comparison List

The cutting machine CM 14 is the ideal machine for trimming of cylindrical tools from 4 – 14 mm (e.g. ejector pins), face grinding the front surface of drills and mills, grooving …

€850.00

excl. VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Quick and precise working results through the easy handling
  • Rotor features precise ball bearings to guarantee smooth operation
  • Heavy machine construction and rubber feet minimize vibrations
  • 11 pcs. ER 20 ollets are part of the standard equipment, also suitable for clamping of intermediate sizes
  • For cutting workpieces made of HSS or carbide

Product Specifications

Clamping range

4 – 14 mm

Angle adjustment

-30° to +30°

Speed

4400 rpm

Motor power

0,16 kW

Voltage

230 V

Length

320 mm

Width

190 mm

Height

200 mm

Weight approx.

11 kg

Delivery Contents

  • Grinding wheel CBN
  • Collets ER 20, 4 – 14 mm, 11 pcs. (4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 mm)
  • Collet holder ER 20

Suitable accessories

Diamond grinding wheel SDC f. CM 14
Diamond grinding wheel SDC f. CM 14
Art. No. : 05-1735

€105.00

excl. VAT

Out of Stock
Grinding wheel CBN f. CM 14
Grinding wheel CBN f. CM 14
Art. No. : 05-1734

€105.00

excl. VAT

In Stock
Deliverable in 2-3 business days
