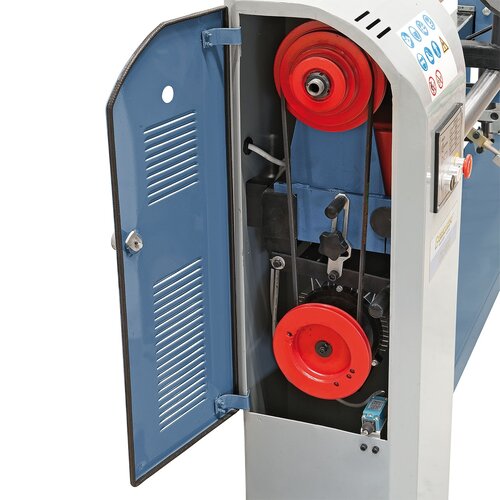

Balanced drive wheels and high-quality belt ensure extremely smooth operation

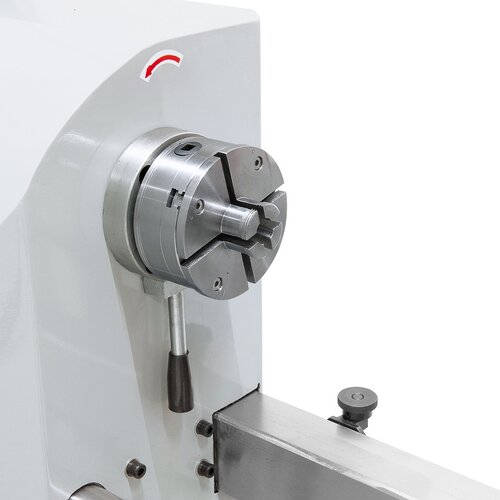

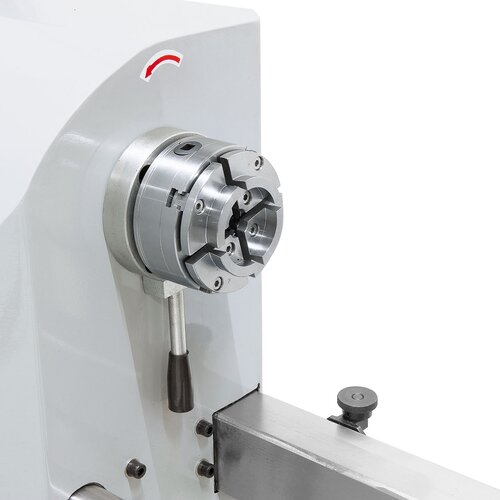

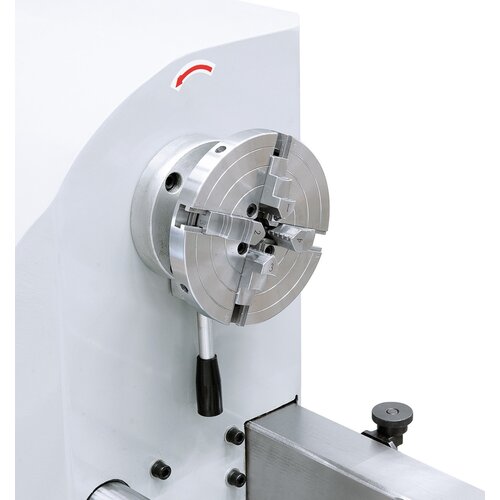

Solid headstock guarantees thorough processing free from vibrations. Picture shows 4-jaw chuck 150 mm / M 33 (optional)

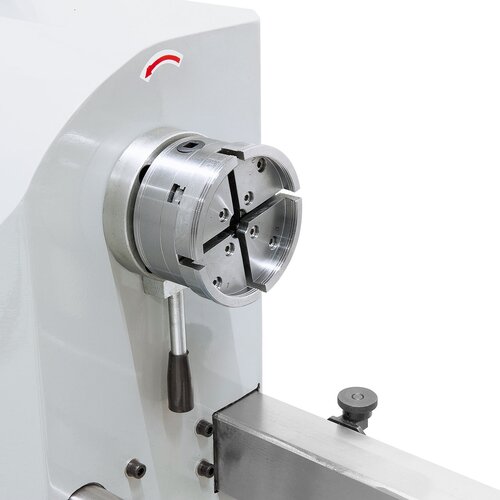

Power chuck set Premium, M 115, Flat jaws

Power chuck set Premium M 115, Pin jaws 25 mm

Power chuck set Premium M 115, Dovetail jaws type A

Power chuck set Premium M 115, Stepped jaws

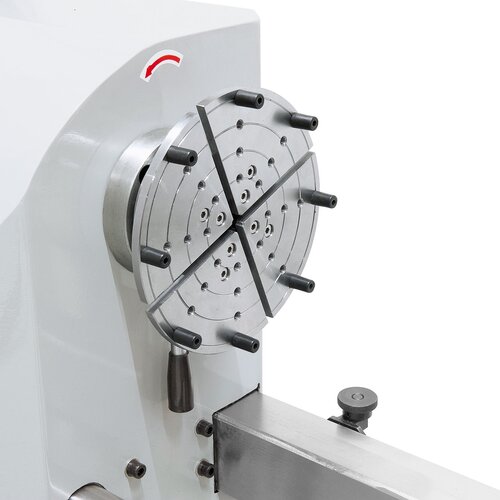

Power chuck set Premium M 115, Wide jaws striated inside/outside

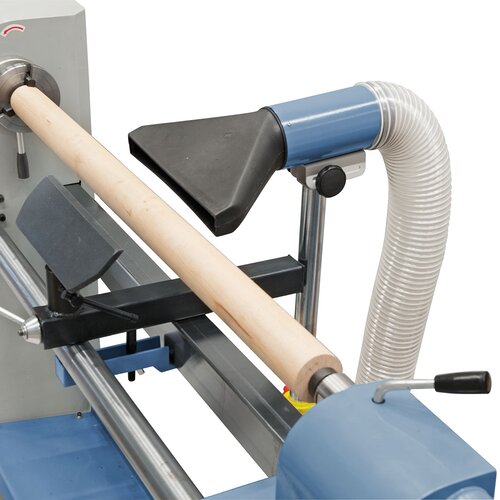

The optionally available dust extractor allows for clean working conditions.

The power-chuck set, consisting of 4-jaw chuck and several other chuck devices increases the number of applications significantly (optional extra).

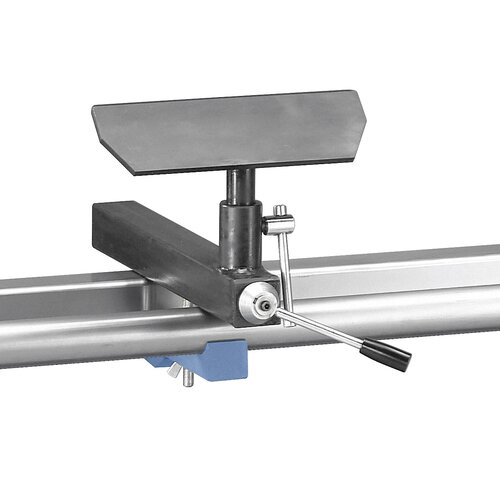

Quick clamping lever allows for easy clamping of tool rest.

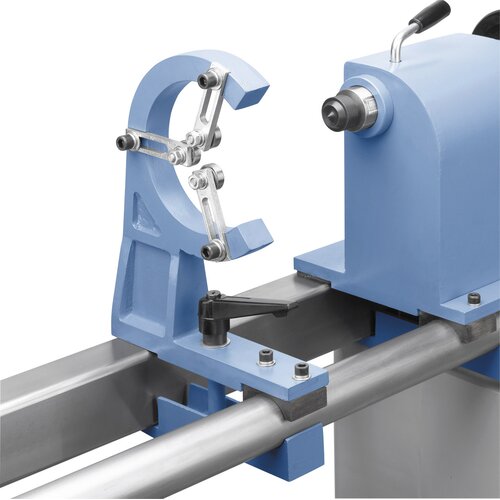

Steady rest for shaft diameters up to 90 mm as standard.

Single-hand lever allows for convenient clamping of tailstock to machine bed.

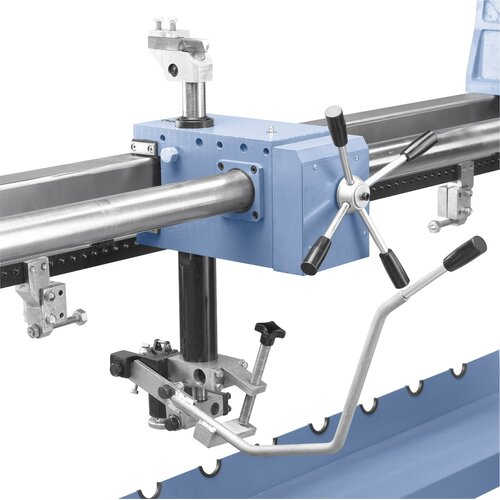

Complete with integrated copying device to allow copying of original parts or templates.

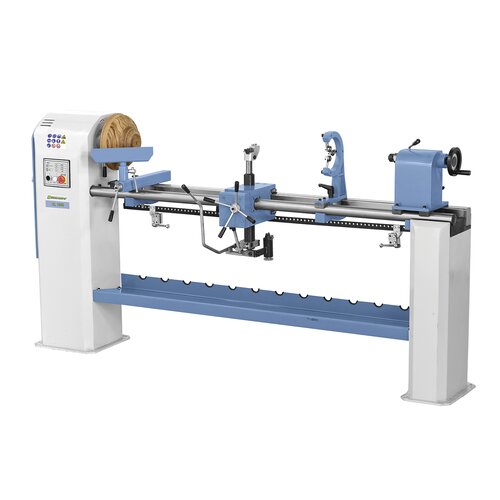

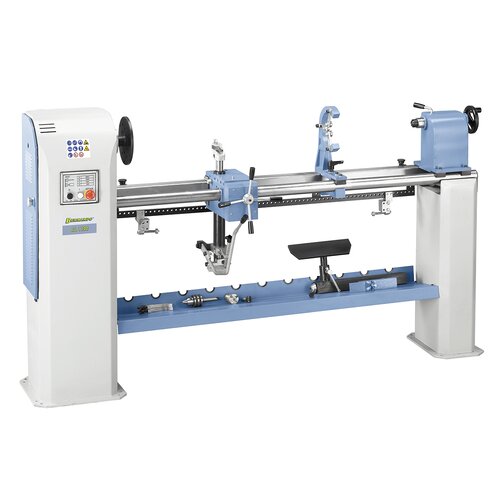

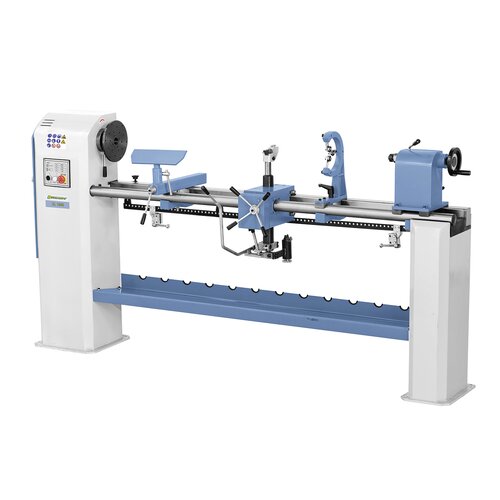

Copying woodturning lathe CL 1500 / 400 V *

Art.Nr.: 10-1155

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The powerful copying woodturning lathe CL 1500 for the experienced turners combine: optimal performance, state-of-the-art design, high safety and accuracy. The solid spindle is precisely bedded, features four compatible speed settings and guarantees optimal torque even when processing large workpieces.

€2,088.00

incl. 20% VAT

Availability

In Stock

Deliverable in 2-3 business days

Product Properties

The extensive range of accessories includes: 290 mm tool rest, 200 mm face plate, live centre and spore drive centre
Copying device for copying of original parts or from templates
Tailstock sleeve features drilled passageway bore to process long workpieces
Powerful drive motor designed for challenging operations
High-quality belt drive, featuring four speed settings, allows for optimal transmission
Solid, grey cast-iron construction allows for operating without vibrations
Ergonomically arranged switches and control elements on front of machine
Solid, precisely bedded spindle ensures high concentricity
Extensive range of accessories guarantees optimal price to performance ratio

Product Specifications

Distance between centers	1500 mm
Working diameter
- over guideway	430 mm
- over support	160 mm
- at copying*	160 mm
Spindle speeds	500 / 1000 / 1950 / 2800 rpm
Spindle thread	M 33 x 3,5 mm
Tailstock
Taper of tailstock sleeve	MT 2
Travel of tailstock sleeve	100 mm
Copy attachment
Copying length	1500 mm
Max. copying depth	45 mm
Motor power output S₁ 100%	1,1 kW (1,5 HP)
Motor power input S₆ 40%	1,5 kW (2,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	2300 x 700 x 1170 mm
Weight approx.	228 kg
