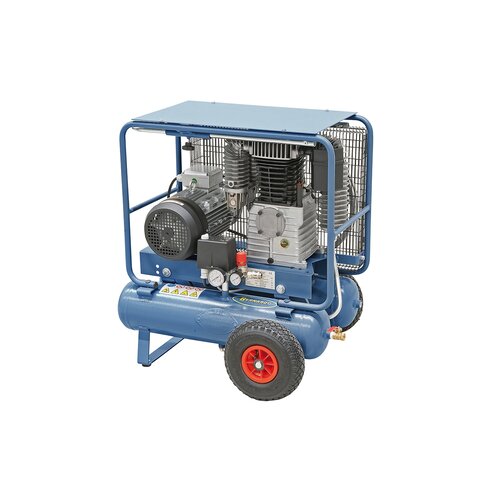

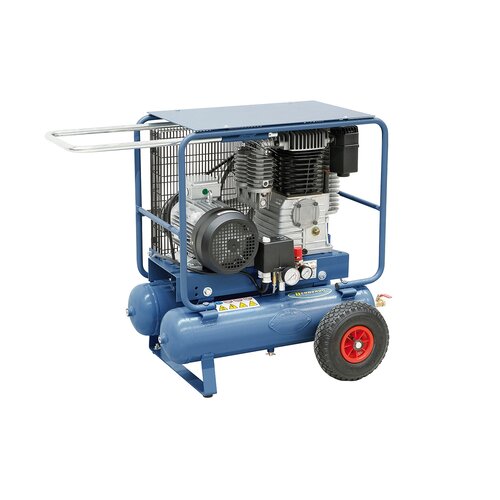

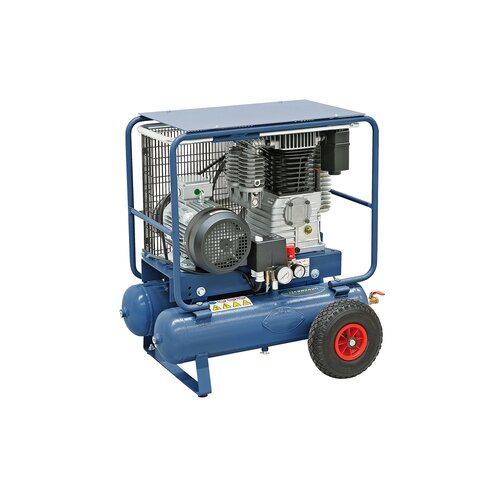

Compressor movable AC35/DUO/F/D
Art.Nr.: 70-1050Compressor movable AC35/DUO/F/D
Price on request
Request product nowAvailability
In Stock
Deliverable in 2-3 business days
Product Specifications
|
Tank capacity |
11 + 11 l/min |
|
Suction capacity |
600 l |
|
Fill capacity approx.* |
430 l/min |
|
Speed |
1450 rpm |
|
Cylinder / stages |
2 / 2 |
|
Maximum pressure |
10 bar |
|
Motor power |
4,0 kW (5,5 HP) |
|
Voltage |
400 V / 50 Hz |
|
Sound pressure level |
78 dB(A) |
|
Machine dimension (L x W x H) |
780 x 640 x 810 mm |
|
Weight approx. |
88 kg |
|
* according VDMA 4362, measured at 70% of the maximum pressure |
|
