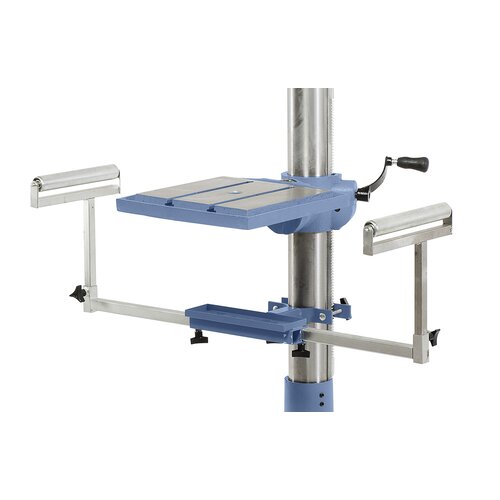

The additionally available, extractable drill support allows processing of oversize workpieces
The additionally available, extractable drill support allows processing of oversize workpieces

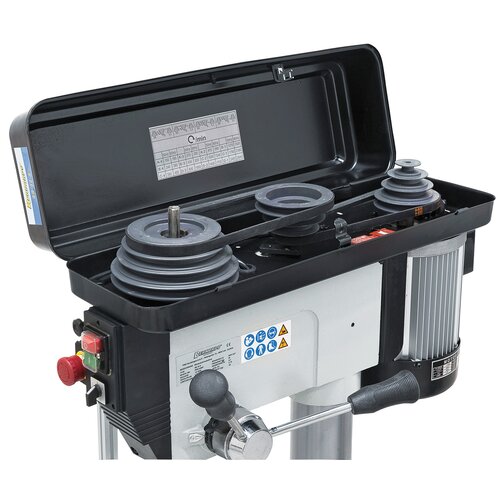

Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allows for most efficient transmission.
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allows for most efficient transmission.

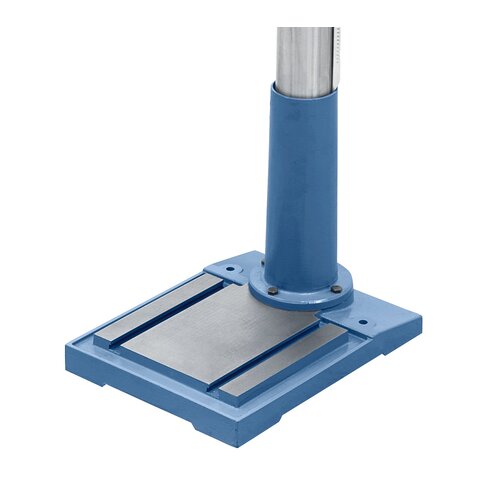

Treated base features T-slots
Treated base features T-slots

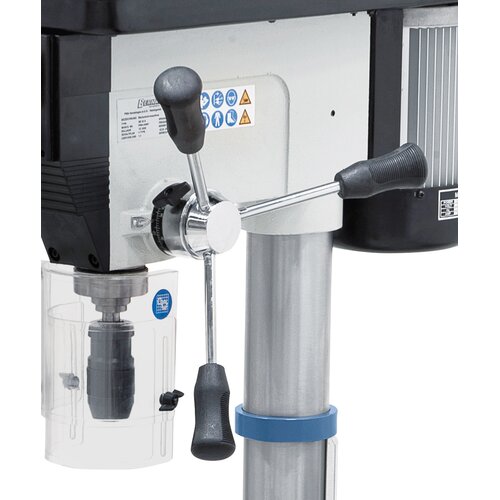

Ergonomically arranged handless allow for easy spindle feed
Ergonomically arranged handless allow for easy spindle feed

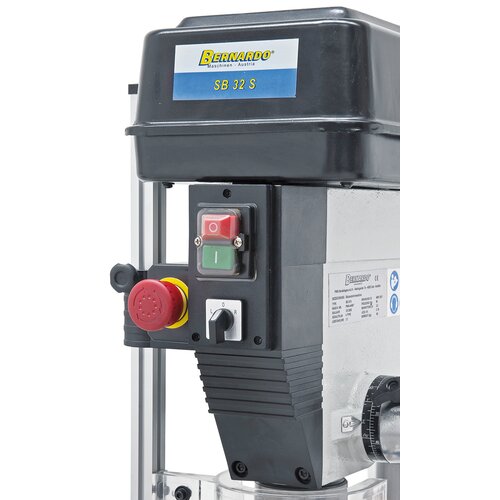

Control elements are conveniently positioned on machine head
Control elements are conveniently positioned on machine head

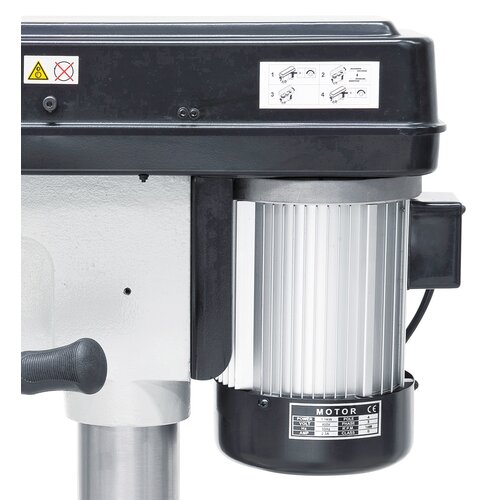

The high-grade aluminium motor features a top performance at smooth run
The high-grade aluminium motor features a top performance at smooth run

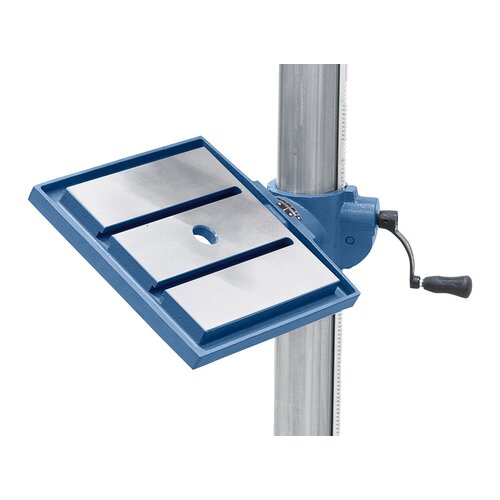

Drill table can be tilted form -45° to +45° and can be turned 360° around the column
Drill table can be tilted form -45° to +45° and can be turned 360° around the column

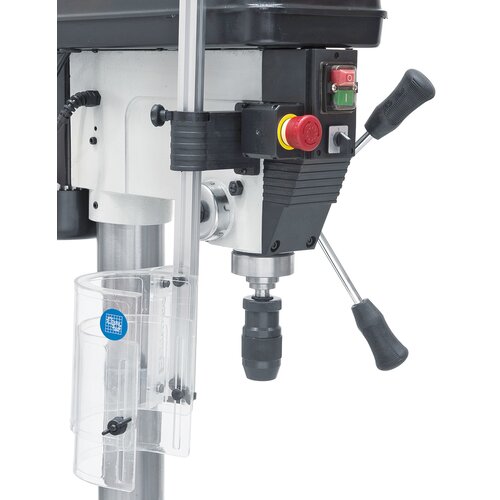

Standard: Keyless drill chuck 1 - 16 mm / B 18
Standard: Keyless drill chuck 1 - 16 mm / B 18
The additionally available, extractable drill support allows processing of oversize workpieces
Balanced grey cast-iron drive pulleys ensure smooth running. The top quality V-belts allows for most efficient transmission.
Treated base features T-slots
Ergonomically arranged handless allow for easy spindle feed
Control elements are conveniently positioned on machine head
The high-grade aluminium motor features a top performance at smooth run
Drill table can be tilted form -45° to +45° and can be turned 360° around the column
Standard: Keyless drill chuck 1 - 16 mm / B 18

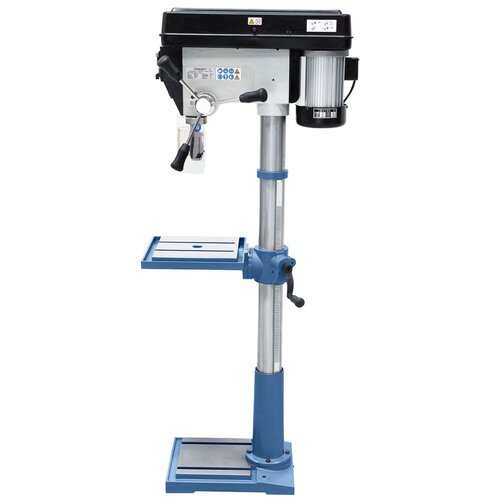

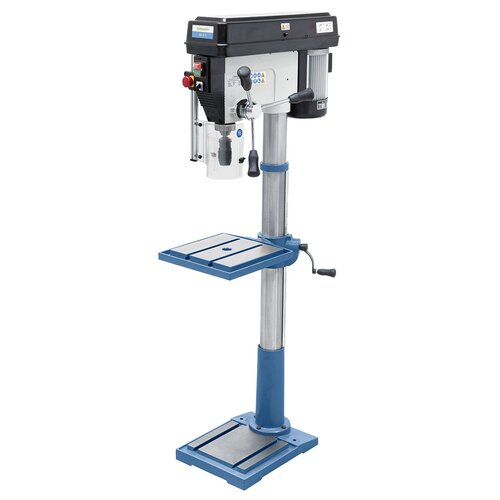

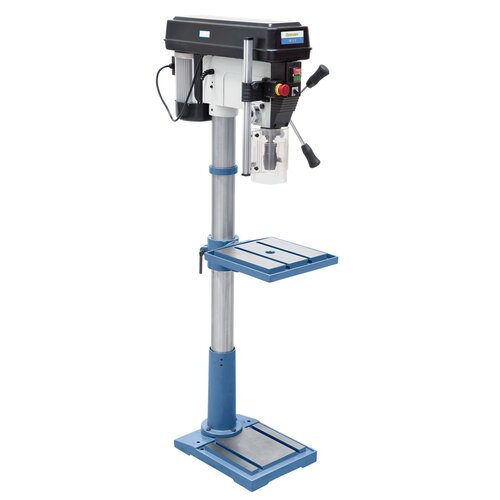

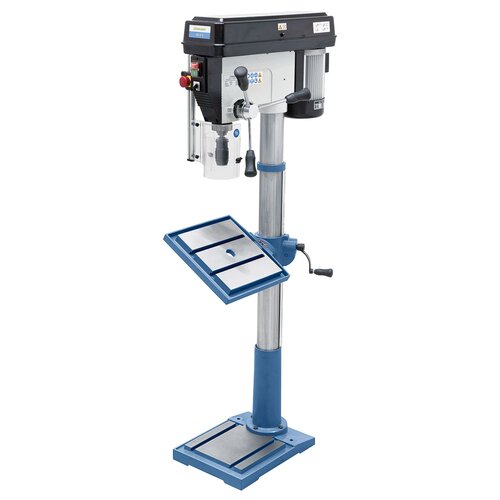

Column drilling machine SB 32 S / 400 V, R/L

Art.Nr.: 01-1051
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The solid, state of the art column drilling machine is available with 32 mm drilling capacity, larger diameter holes can easily be achieved when core drilling. This model is equipped with right and left turning switch. The optimal price to performance ratio makes these models immensely popular among model makers ans amateurs and they are widly used in the agricultural sector and repair shops.



€948.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • High-quality ball bearings ensure high spindle concentricity
  • Surface treated work table can be adjusted in height via gear rack and crank
  • Switch for left and right turning
  • Powerful, high torque aluminium motor according to IP 54 standard
  • Precise keyless drill chuck comes standard
  • Treated base allows clamping of oversize workpieces
  • Drill table (±45°), height adjustable via gear rack
  • Large drill table features T-slots and coolant groove

Product Specifications

Drilling capacity max.

32 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 4

Spindle speeds

(12) 150 - 2450 rpm

Distance spindle to column

215 mm

Drilling table tiltable

-45° to +45°

Distance spindle to table max.

760 mm

Distance spindle to base

1125 mm

Spindle stroke

120 mm

Column diameter

92 mm

Table size / T-slot size

300 x 290 mm / 14 mm

Working surface of base

295 x 270 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,6 kW / 400 V

Machine dimension (W x D x H)

400 x 720 x 1700 mm

Weight approx.

95 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 4 / B 18
  • Height adjustable protective cover
  • Separate emergency stop switch
  • Switch for left and right turning
  • T-slot nuts
  • Tools
