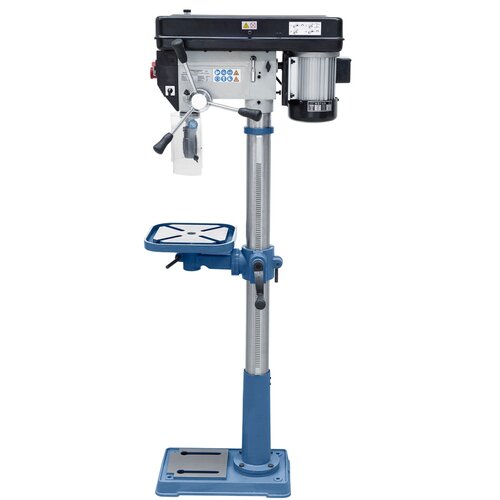

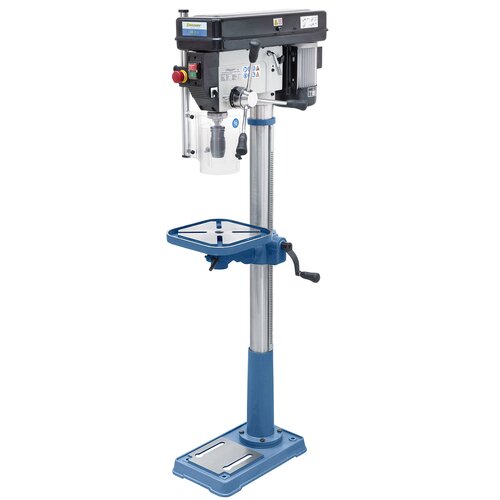

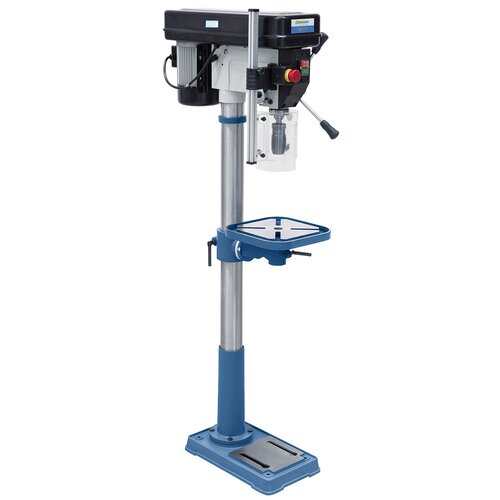

Column drilling machine SB 25 S / 400 V, R/L

Art.Nr.: 01-1046
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

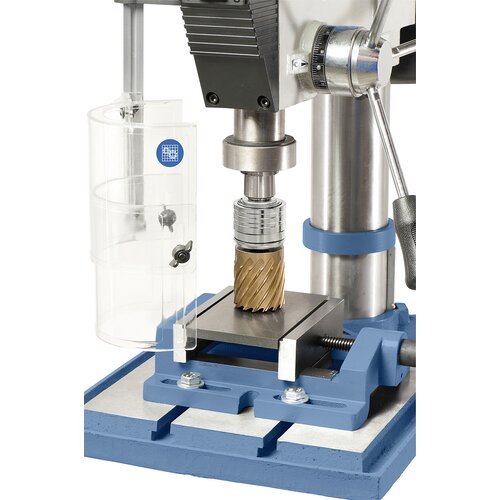

The solid, state of the art column drilling machine is available with 25 mm drilling capacity, larger diameter holes can easily be achieved when core drilling. This model is equipped with right and left turning switch. The optimal price to performance ratio makes these models immensely popular among model makers ans amateurs and they are widly used in the agricultural sector and repair shops.



€696.00

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • High-quality ball bearings ensure high spindle concentricity
  • Surface treated work table can be adjusted in height via gear rack and crank

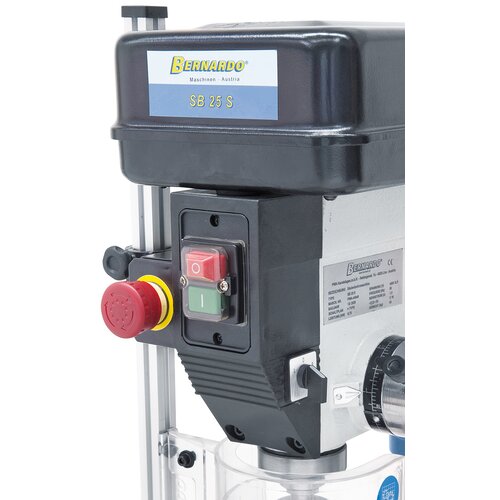

  • Switch for left and right turning

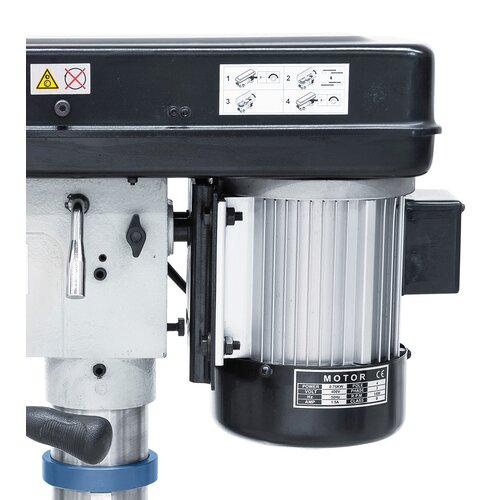

  • Powerful, high torque aluminium motor according to IP 54 standard

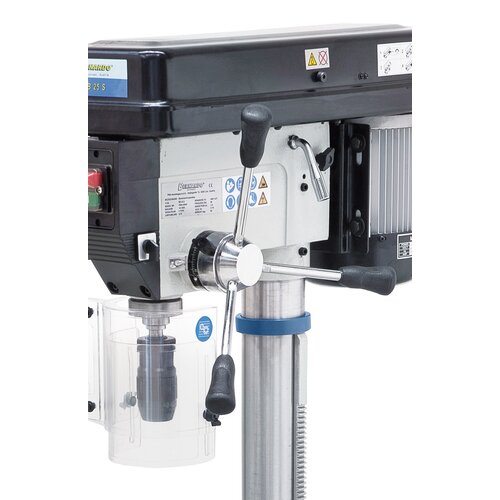

  • Precise keyless drill chuck comes standard
  • Treated base allows clamping of oversize workpieces

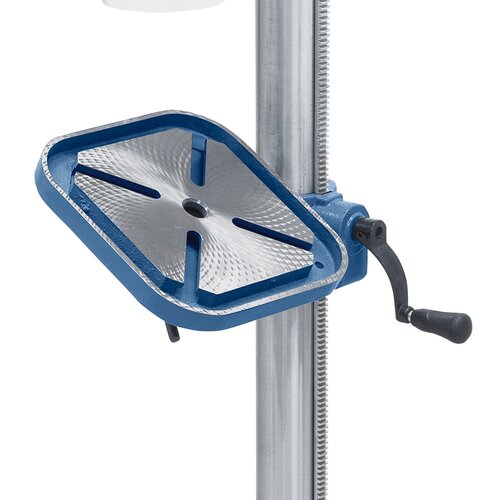

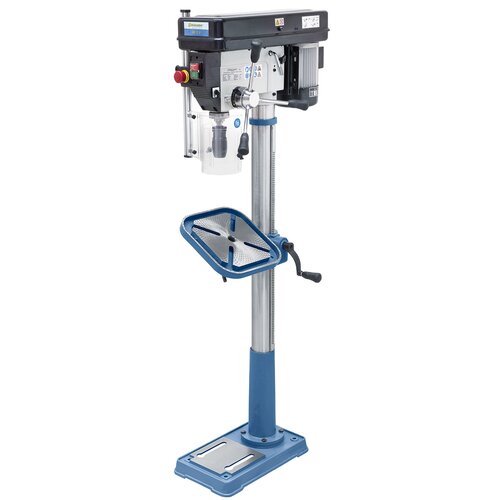

  • Drill table (±45°), height adjustable via gear rack
  • Large drill table features T-slots and coolant groove

Product Specifications

Drilling capacity max.

25 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 3

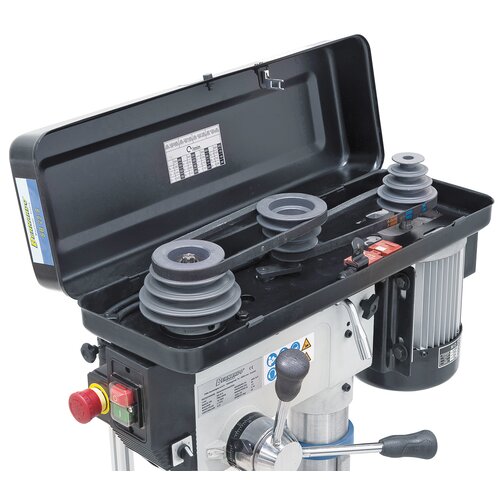

Spindle speeds

(12) 280 - 2380 rpm

Distance spindle to column

175 mm

Table tiltable

-45° to +45°

Distance spindle to table max.

685 mm

Distance spindle to base

1175 mm

Spindle stroke

85 mm

Column diameter

80 mm

Table size / T-slot size

290 x 290 mm / 16 mm

Working surface of base

205 x 205 mm

Motor power output S1 100%

0,75 kW / 400 V

Motor power input S6 40%

1,1 kW / 400 V

Machine dimension (W x D x H)

380 x 660 x 1560 mm

Weight approx.

65 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18

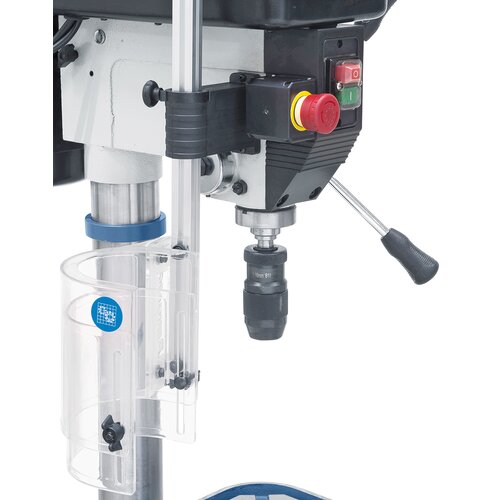

  • Height adjustable protective cover
  • Separate emergency stop switch
  • Switch for left and right turning
  • T-slot nuts
  • Tools

Suitable accessories

Safety guard round for drills size 2 / 400 V
Safety guard round for drills size 2 / 400 V
Art.Nr. : 57-1001A

€93.60

incl. 20% VAT
Power clean-up magnet
Power clean-up magnet
Art.Nr. : 51-1050

€55.20

incl. 20% VAT
Drilling machine vise BMH 125
Drilling machine vise BMH 125
Art.Nr. : 28-2011

€114.00

incl. 20% VAT
Industry-driling machine vise BMI 125
Industry-driling machine vise BMI 125
Art.Nr. : 28-2016

€177.60

incl. 20% VAT
Deluxe clamping kit set 58 pcs., 16 mm, M 14
Deluxe clamping kit set 58 pcs., 16 mm, M 14
Art.Nr. : 28-1002
52 pcs. assortment with the most needed clamping...

€133.20

incl. 20% VAT
Aut. reversible tapping chuck set SUPER M 5 - M 12
Aut. reversible tapping chuck set SUPER M 5 - M 12
Art.Nr. : 24-1096

€396.00

incl. 20% VAT
Keyless drill chuck 1 - 16 mm / B 18
Keyless drill chuck 1 - 16 mm / B 18
Art.Nr. : 24-1083

€67.20

incl. 20% VAT
Keyless drill chuck 1 - 16 mm / B 16
Keyless drill chuck 1 - 16 mm / B 16
Art.Nr. : 24-1082

€67.20

incl. 20% VAT
Morse taper extension socket MT 3 / 3
Morse taper extension socket MT 3 / 3
Art.Nr. : 24-1044

€39.60

incl. 20% VAT
Morse taper extension socket MT 3 / 2
Morse taper extension socket MT 3 / 2
Art.Nr. : 24-1043

€34.80

incl. 20% VAT
Keyless drill chuck with direct mount MT 3, 1 - 16 mm
Keyless drill chuck with direct mount MT 3, 1 - 16 mm
Art.Nr. : 24-1072

€120.00

incl. 20% VAT
LED - lamp LED 1 / 230 V with flexible arm and magnet
LED - lamp LED 1 / 230 V with flexible arm and magnet
Art.Nr. : 52-1017

€118.80

incl. 20% VAT
Drilling machine vise BM 150 with prismatic jaws
Drilling machine vise BM 150 with prismatic jaws
Art.Nr. : 28-2001

€66.00

incl. 20% VAT
HSS-core drill-set CDL, TiN-coated, 14 - 24 mm, drilling depth 50 mm
HSS-core drill-set CDL, TiN-coated, 14 - 24 mm, drilling depth 50 mm
Art.Nr. : 41-11042
The TiN- and nACO-coated core drill-sets are out of...

€198.00

incl. 20% VAT
HSS-core drill-set CDS, TiN-coated, 14 - 24 mm, drilling depth 25 mm
HSS-core drill-set CDS, TiN-coated, 14 - 24 mm, drilling depth 25 mm
Art.Nr. : 41-11041
The TiN- and nACO-coated core drill-sets are out of...

€164.40

incl. 20% VAT
41 pcs. drill set, 6 - 10 mm
41 pcs. drill set, 6 - 10 mm
Art.Nr. : 41-1018

€126.00

incl. 20% VAT
High-performance lubrication spray BDS 5200 / 1 x 400 ml can
High-performance lubrication spray BDS 5200 / 1 x 400 ml can
Art.Nr. : 54-1210
Application mainly at over head or horizontal work,...

€22.80

incl. 20% VAT
Keyless quick-change toolholder with autom. coolant feed MT 3
Keyless quick-change toolholder with autom. coolant feed MT 3
Art.Nr. : 53-1097

€180.00

incl. 20% VAT
Arbor with coolant feed MT 3 / Weldon 19 mm
Arbor with coolant feed MT 3 / Weldon 19 mm
Art.Nr. : 53-1090

€93.60

incl. 20% VAT
Drilling machine vise BMO 150 with prismatic jaws
Drilling machine vise BMO 150 with prismatic jaws
Art.Nr. : 28-2009

€114.00

incl. 20% VAT
Drilling machine vise BMO 120 with prismatic jaws
Drilling machine vise BMO 120 with prismatic jaws
Art.Nr. : 28-2008

€86.40

incl. 20% VAT
Metric size taper shank drills HSS, MT 2, 10 pcs. - 14,5-23 mm, Tin-coated, set A
Metric size taper shank drills HSS, MT 2, 10 pcs. - 14,5-23 mm, Tin-coated, set A
Art.Nr. : 41-1046

€134.40

incl. 20% VAT
Morse taper drill sleeve MT 3 / 2
Morse taper drill sleeve MT 3 / 2
Art.Nr. : 24-1022

€21.60

incl. 20% VAT
Morse taper drill sleeve MT 3 / 1
Morse taper drill sleeve MT 3 / 1
Art.Nr. : 24-1021

€21.60

incl. 20% VAT
Morse taper drill chuck arbor MT 3 - B 22
Morse taper drill chuck arbor MT 3 - B 22
Art.Nr. : 24-1007

€21.60

incl. 20% VAT
51 pcs. set TiN-coated HSS drills, 1 - 6 mm
51 pcs. set TiN-coated HSS drills, 1 - 6 mm
Art.Nr. : 41-1015

€58.80

incl. 20% VAT
25 pcs. set TiN-coated HSS drills, 1 - 13 mm
25 pcs. set TiN-coated HSS drills, 1 - 13 mm
Art.Nr. : 41-1010

€81.60

incl. 20% VAT
19 pcs. set TiN-coated HSS drills, 1 - 10 mm
19 pcs. set TiN-coated HSS drills, 1 - 10 mm
Art.Nr. : 41-1000

€39.60

incl. 20% VAT
Professional measuring tool system 4 pcs.
Professional measuring tool system 4 pcs.
Art.Nr. : 31-1046
Vernier caliper, micrometer, edge square adn steel...

€67.20

incl. 20% VAT
Digital caliper 150 mm x 0,01 mm with large display
Digital caliper 150 mm x 0,01 mm with large display
Art.Nr. : 31-1005

€54.00

incl. 20% VAT
Dial caliper 150 mm / 0,02 mm
Dial caliper 150 mm / 0,02 mm
Art.Nr. : 31-1000

€34.80

incl. 20% VAT
Aut. reversible tapping chuck set SUPER M 2 - M 7
Aut. reversible tapping chuck set SUPER M 2 - M 7
Art.Nr. : 24-1095

€354.00

incl. 20% VAT
118 pcs. set HSS drills, 1-13 mm
118 pcs. set HSS drills, 1-13 mm
Art.Nr. : 41-1020

€116.40

incl. 20% VAT
170 pcs. set TiN-coated HSS drills
170 pcs. set TiN-coated HSS drills
Art.Nr. : 41-1025

€118.80

incl. 20% VAT
3 pcs. TiN-coated HSS step drill set, 4-12 / 6-20 / 6-30 mm
3 pcs. TiN-coated HSS step drill set, 4-12 / 6-20 / 6-30 mm
Art.Nr. : 41-1060

€72.00

incl. 20% VAT
Morse taper drill chuck arbor MT 3 - B 18
Morse taper drill chuck arbor MT 3 - B 18
Art.Nr. : 24-1006

€20.40

incl. 20% VAT
Morse taper drill chuck arbor MT 3 - B 16
Morse taper drill chuck arbor MT 3 - B 16
Art.Nr. : 24-1005

€20.40

incl. 20% VAT

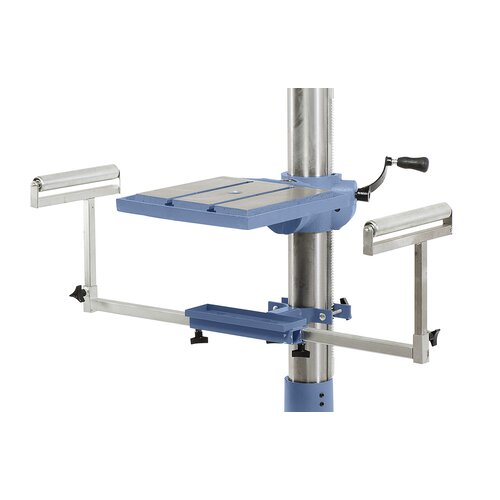

Drill press support
