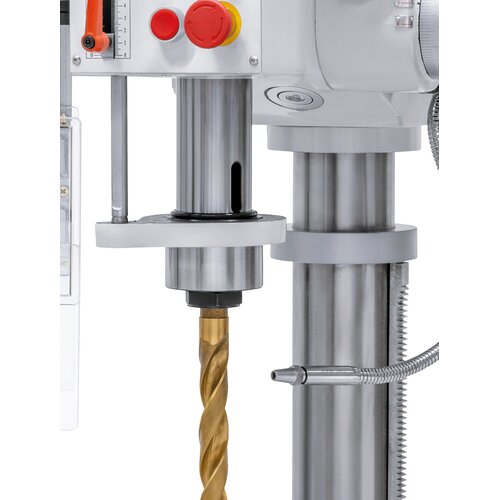

Solidly designed spindle with tapered roller bearings ensures absolute concentricity.

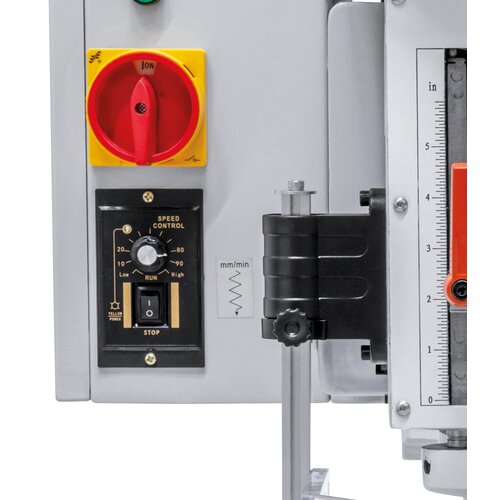

The desired feed speed is set using a potentiometer.

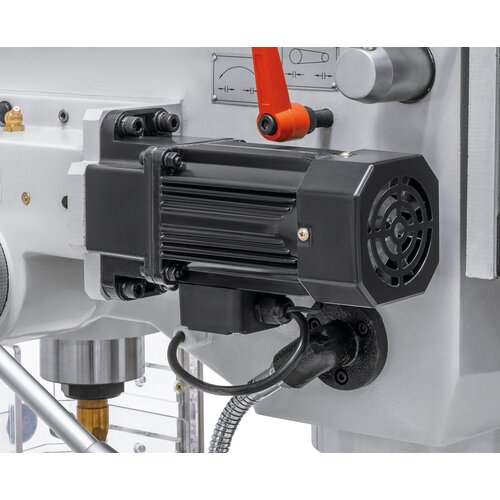

Stepless adjustable spindle feed with separate drive motor

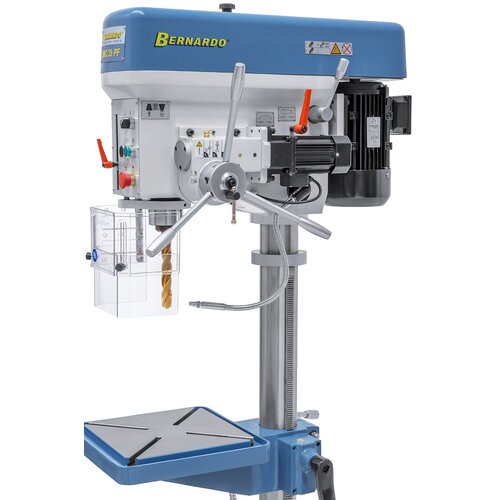

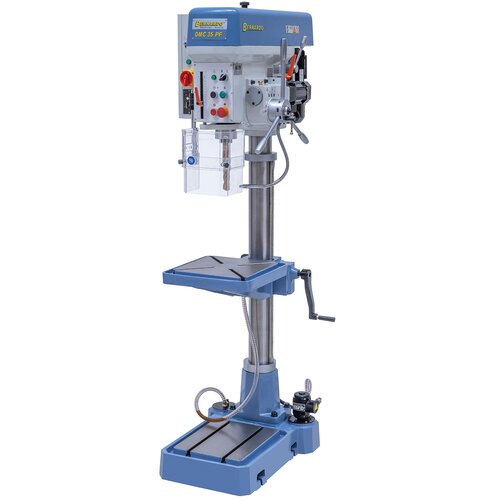

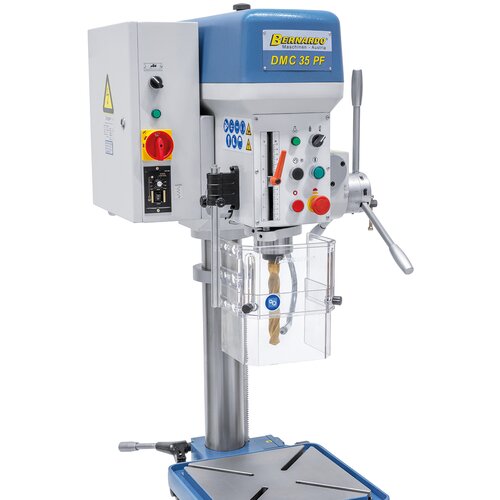

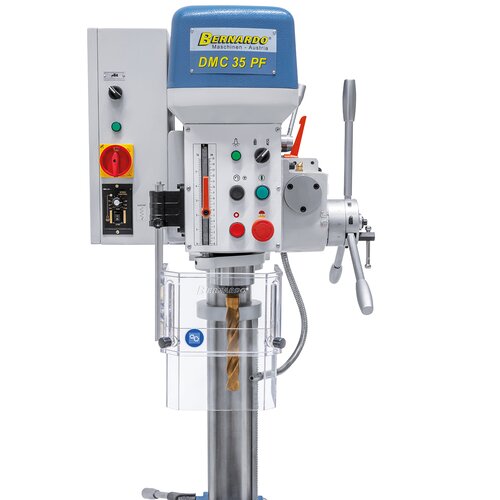

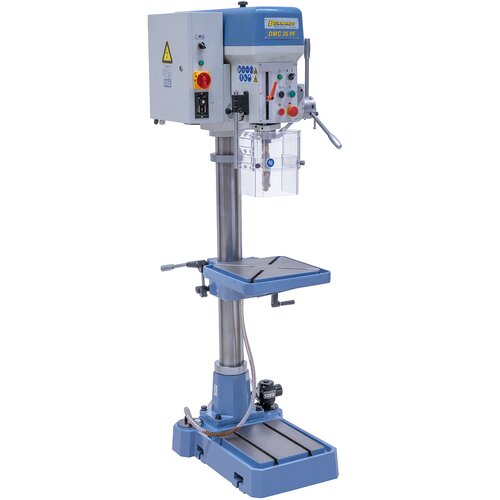

Column drilling machine DMC 35 PF

Art.Nr.: 01-11871

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The column drilling machine DMC 35 PF is equipped with a thread-cutting device and an automatic spindle feed as standard. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

€3,108.00

incl. 20% VAT

Availability

Out of Stock

Product Properties

Protective cover in accordance to CE standards, adjustable to various drill bit sizes
Surface treated work table, height adjustable via gear rack and crank
Precisely treated base includes T-slots and integrated coolant device
Serially with automatic spindle feed
Adjustable drill depth stop allows accurate spindle feed
High concentricity ≤ 0,02 mm measured at spindle

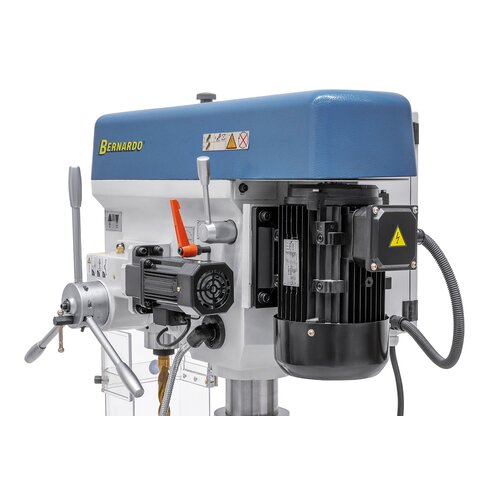

Powerful motor even at continuous operation
Solid and powerful drilling machine for high demands
Including automatic reverse rotation for thread cutting
Solid, polished steel column suitable for heavy workload

Product Specifications

Drilling capacity max.	32 mm
Thread cutting capacity max.	M 24
Morse taper	MT 3

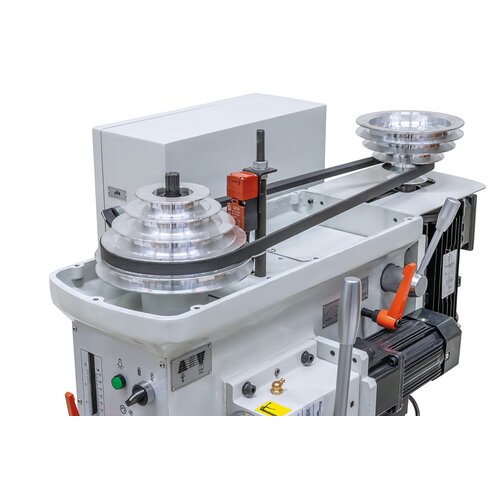

Spindle speed	(5) 320 - 1820 rpm
Distance spindle to column	265 mm
Distance spindle to table max.	815 mm
Distance spindle to base	1240 mm
Spindle stroke	150 mm
Spindle feed	0 - 100 mm/min
Column diameter	100 mm
Table size / T-slot size	332 x 332 mm / 14 mm
Working surface of base	382 x 312 mm
Motor power output S₁ 100%	1,5 kW / 400 V
Motor power input S₆ 40%	2,2 kW / 400 V
Machine dimension (W x D x H)	570 x 940 x 1870 mm
Weight approx.	326 kg
