Machine vise 155 mm (Art. no. 28-2004) mounted on the base of the work table (optional)
Machine vise 155 mm (Art. no. 28-2004) mounted on the base of the work table (optional)

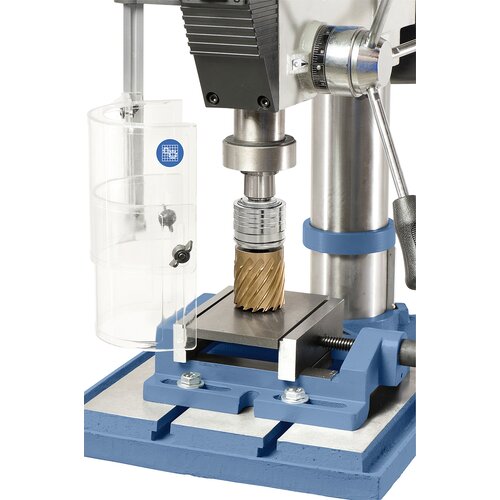

The optionally available quick release arbor enables use of core drills
The optionally available quick release arbor enables use of core drills

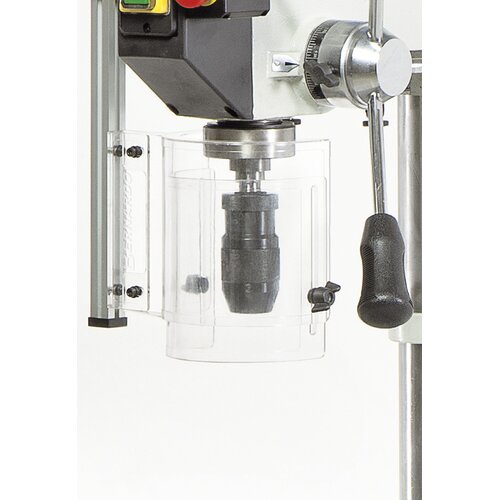

Comes complete with keyless drill chuck (1 - 16 mm)
Comes complete with keyless drill chuck (1 - 16 mm)

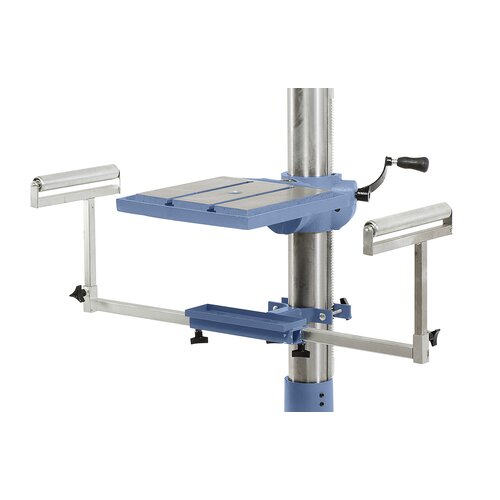

An extendable drill support can be added to stabilize long workpieces
An extendable drill support can be added to stabilize long workpieces

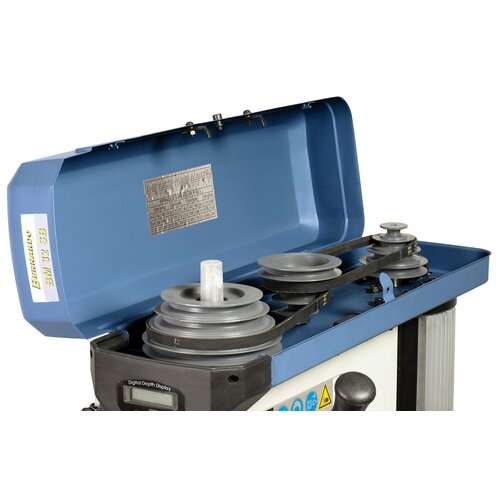

Top-quality belts allow for optional transmission
Top-quality belts allow for optional transmission

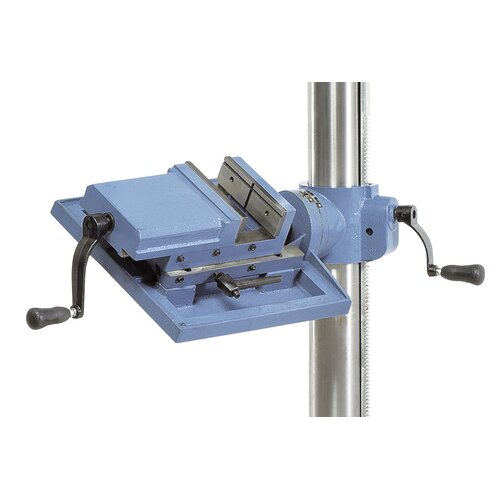

Optional machine vice (155 mm) mounted on the base of the work table.
Optional machine vice (155 mm) mounted on the base of the work table.

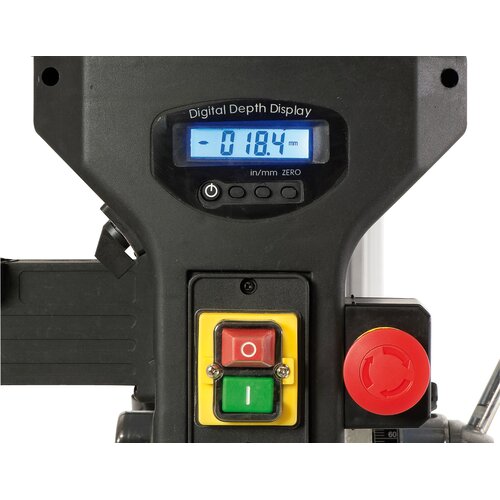

Digital display for drill depth ensures high comfort
Digital display for drill depth ensures high comfort

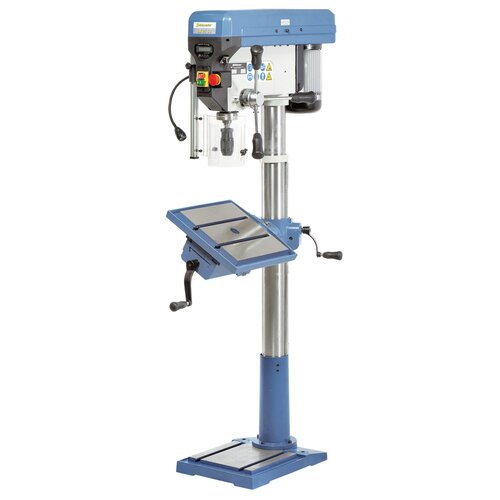

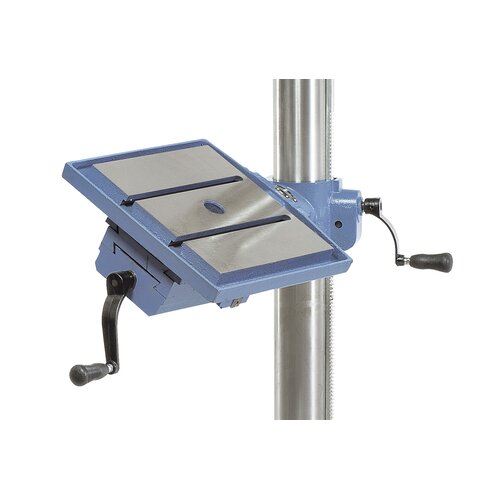

Drill table can be tilted 360° and rotates around the column
Drill table can be tilted 360° and rotates around the column

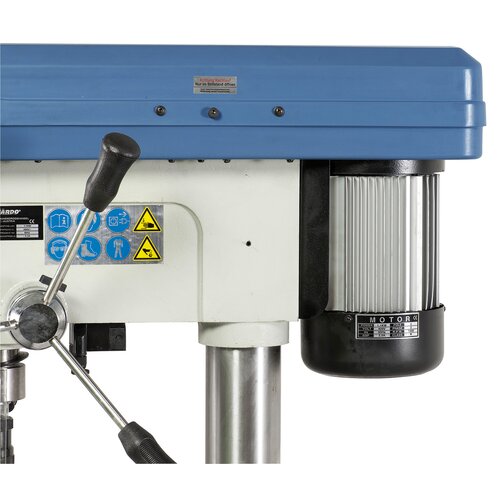

Powerful aluminium motor in accordance with the IP 54 standard
Powerful aluminium motor in accordance with the IP 54 standard

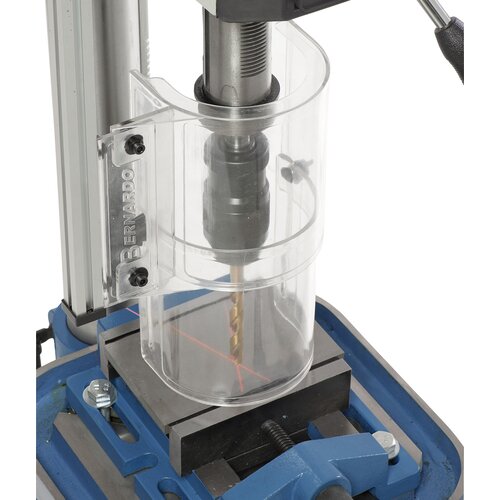

Includes cross line laser device for high accuracy
Includes cross line laser device for high accuracy
Machine vise 155 mm (Art. no. 28-2004) mounted on the base of the work table (optional)
The optionally available quick release arbor enables use of core drills
Comes complete with keyless drill chuck (1 - 16 mm)
An extendable drill support can be added to stabilize long workpieces
Top-quality belts allow for optional transmission
Optional machine vice (155 mm) mounted on the base of the work table.
Digital display for drill depth ensures high comfort
Drill table can be tilted 360° and rotates around the column
Powerful aluminium motor in accordance with the IP 54 standard
Includes cross line laser device for high accuracy

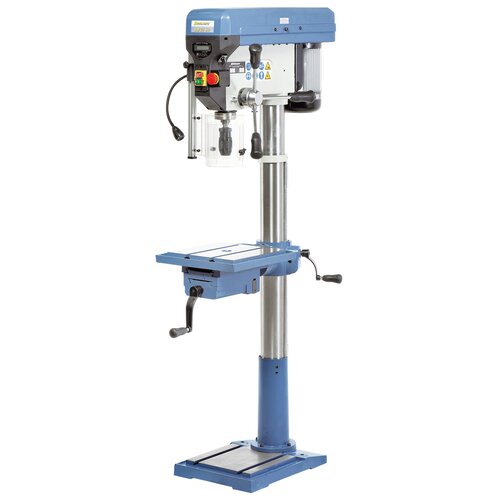

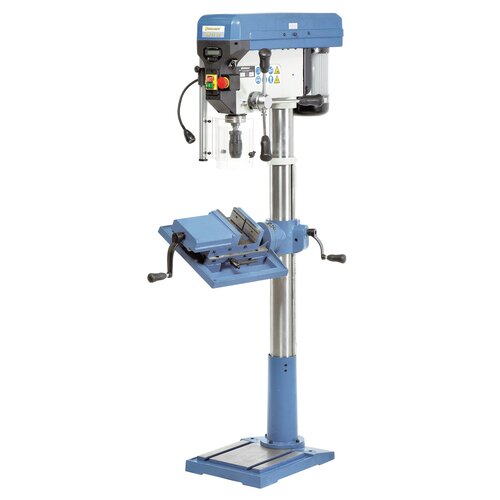

Column drilling machine BM 25 SB / 400 V, R/L

Art.Nr.: 01-1122
Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

The powerful and state-of-the-art column drilling machine BM 25 SB featuring a cross line laser device, a digital display for the spindle stroke and right and left rotation. This model is widely used by experienced craftsmen or in work and repair shops.



€1,003.20

incl. 20% VAT

Availability

In Stock
Deliverable in 2-3 business days

Product Properties

  • Digital display for spindle stroke and LED-lamp comes standard
  • Grey cast iron pulleys ensure smooth operation
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots and coolant grooves
  • Drill table turns 360°, gear rack allows height adjustment
  • Switch controls right and left rotation
  • Powerful, high-torque aluminium motor in accordance with the IP 54 standard
  • Keyless drill chuck included
  • Comes with T-slots in polished machine base
  • User-friendly handles allow for high comfort when working

Product Specifications

Drilling capacity max.

25 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 3

Spindle speeds

(12) 150 - 2450 rpm

Distance spindle to column

220 mm

Table tiltable

360°

Distance spindle to table max.

765 mm

Distance spindle to base

1230 mm

Spindle stroke

120 mm

Column diameter

92 mm

Table size / T-slot size

300 x 300 mm / 14 mm

Working surface of base

290 x 270 mm

Motor power output S1 100%

1,1 kW / 400 V

Motor power input S6 40%

1,6 kW / 400 V

Machine dimension (W x D x H)

450 x 750 x 1680 mm

Weight approx.

110 kg

Delivery Contents

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18
  • Switch fot left and right turning
  • LED working light
  • Cross line laser device
  • T-slot nuts
  • Digital spindle stroke indication
  • Height adjustable protective cover
  • Separate emergency stop switch
