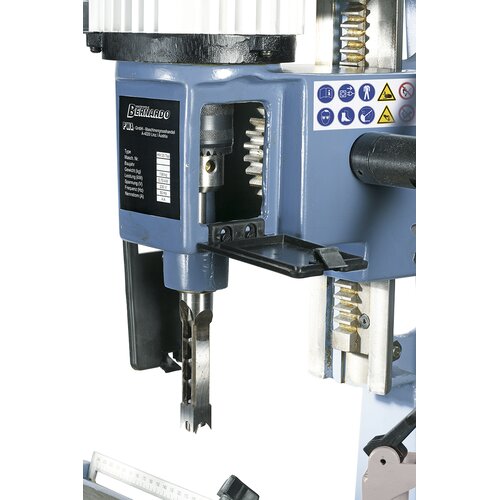

Drill chuck accessible from both sides for convenientchange of mortising chisels.

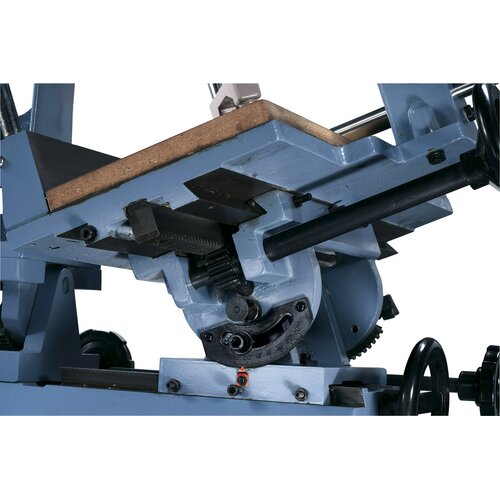

Work table tilts to front and back, which increases the range of applications significantly.

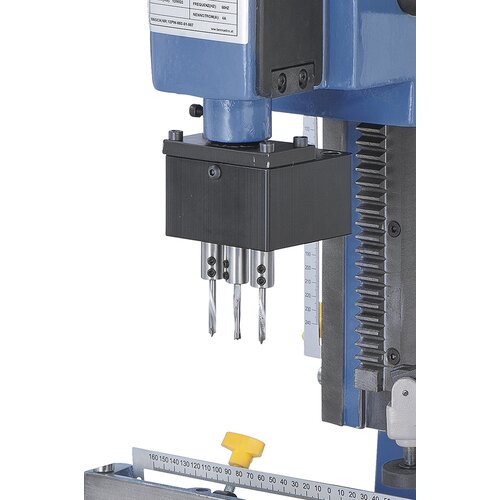

Choice of drill heads are optionally available.

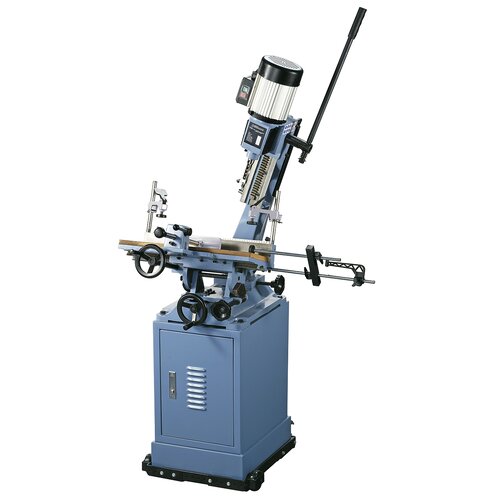

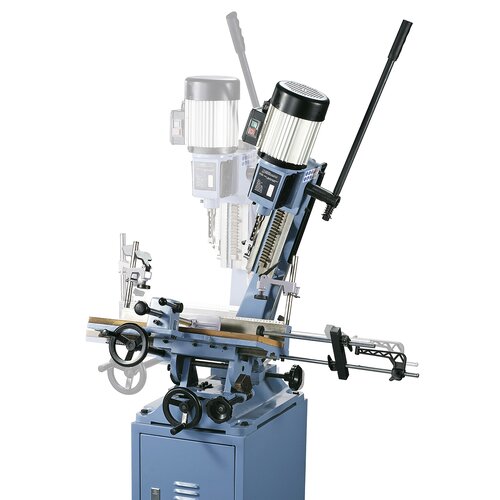

Spindle head tilts to the right and to the left up to 22.5°.

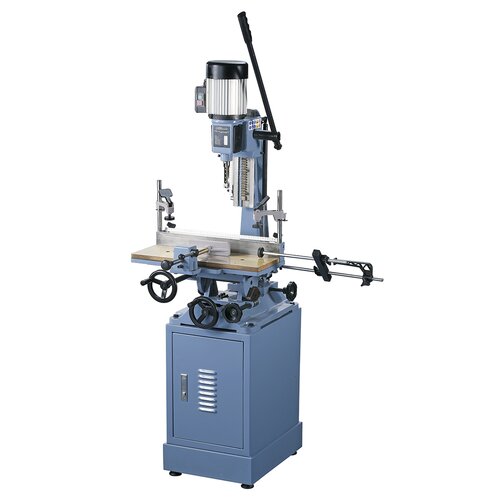

Chisel mortising machine HM 25 TOP
Art.Nr.: 14-2105The HM 25 Top is an enhancement of the HM 25 mortising machine. The spindle head can be tilted to the right and to the left up to 22.5°. The work table tilts to the front and the back.
€1,152.00
incl. 20% VATAvailability
In Stock
Deliverable in 2-3 business days
Product Properties
- For mortising of rectangular shaped holes for tenon joints etc.
- Adjustable drill depth stop ensures repeat accuracy when mortising
- Eccentric clamp can be adjusted quickly to secure workpiece to table
- Includes gas pressure cylinder to support mortising
- Ideal for slotting and mortising of hard and soft timbers
Product Specifications
|
Chisel size max. |
25,4 mm |
|
Drill stroke |
230 mm |
|
Max. mortising depth |
76 mm |
|
Max. workpiece height |
270 mm |
|
Max. workpiece width |
185 mm |
|
Table size |
540 x 190 mm |
|
Tilting range work table forward / backward |
22,5° / 22,5° |
|
Tilting range spindle head |
22,5° / 22,5° |
|
Travel (x / y) |
280 / 135 mm |
|
Speed |
1400 rpm |
|
Motor power |
0,75 kW (1,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
570 x 650 x 1115 mm |
|
Weight approx. |
110 kg |
Delivery Contents
- Drill chuck 16 mm
- 2 pcs. eccentric holder

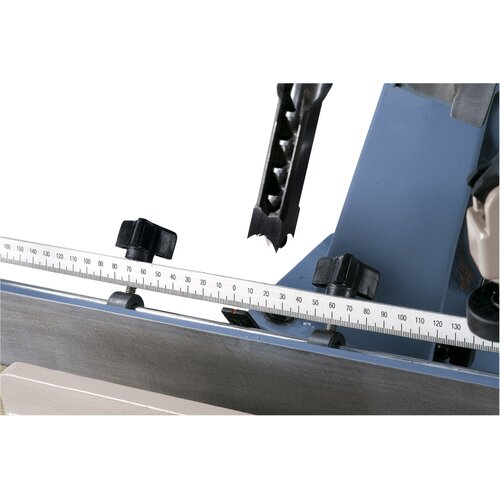

- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Mortising chisel 15,87 mm
- Gas pressure balancing cylinder
- Tiltable coordinate table
