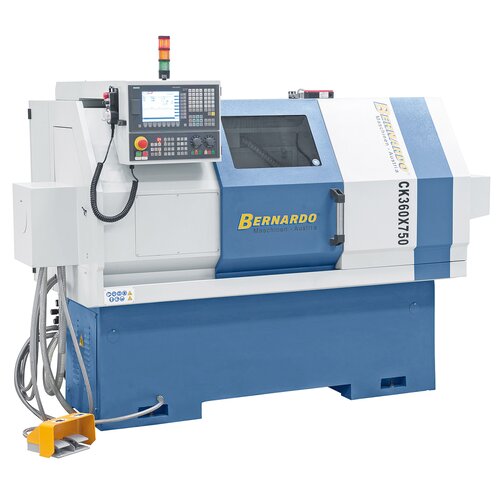

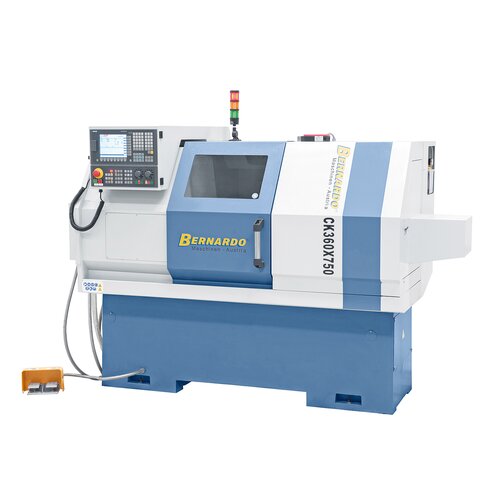

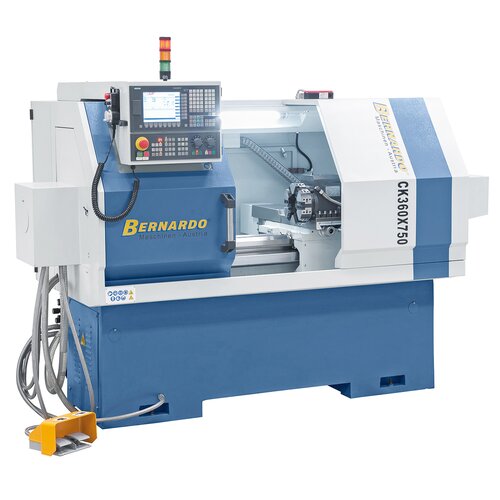

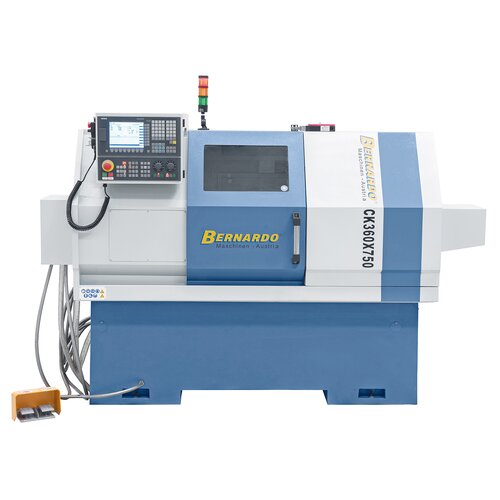

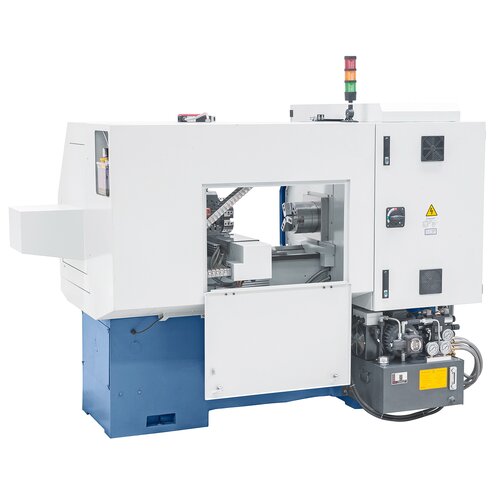

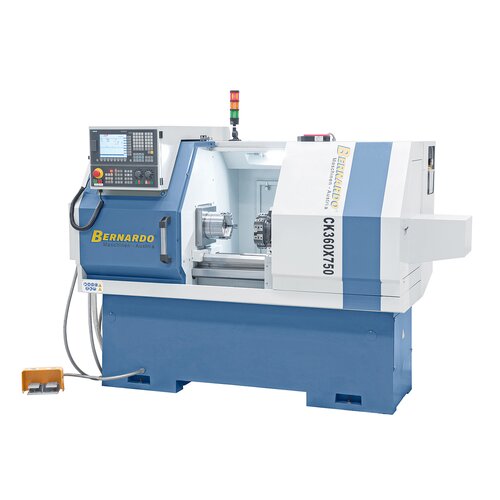

Picture of CK 360 x 750

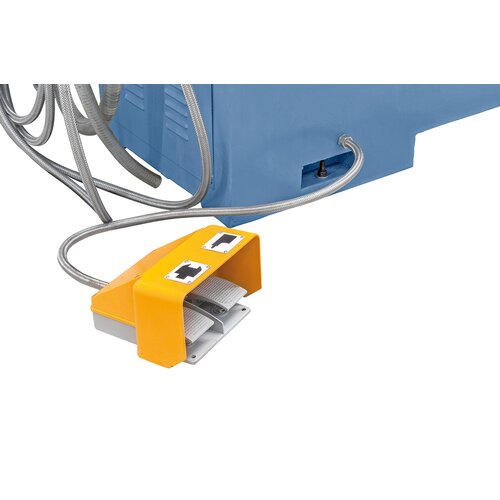

Serially with foot pedal for clamping the chuck or moving the tailstock sleeve

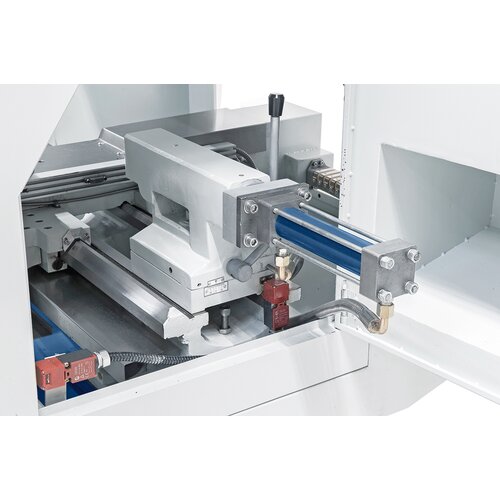

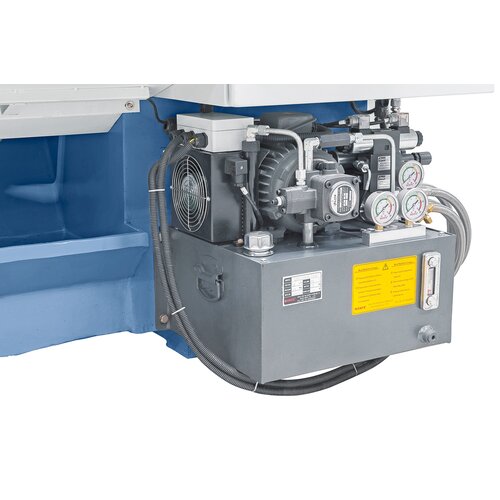

Hydraulic adjustment of the tailstock sleeve

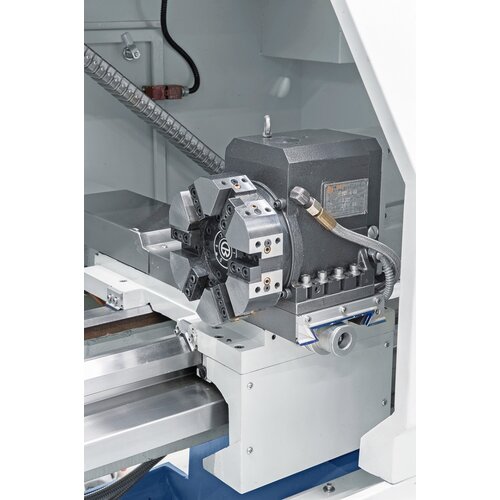

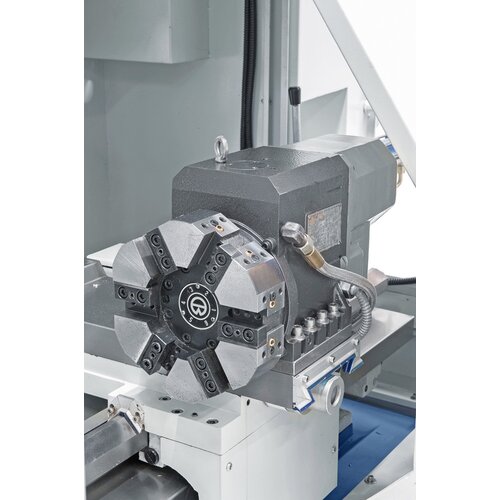

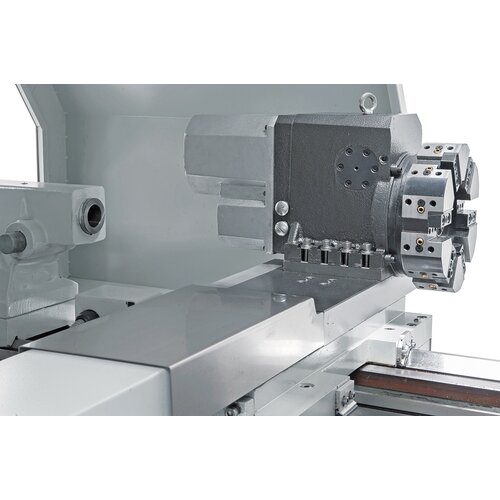

Robust turret with 6 stations.

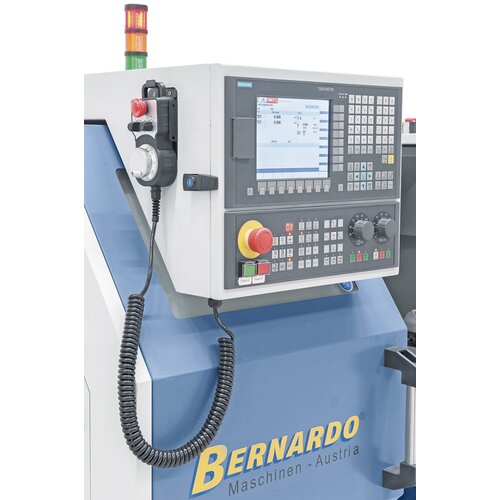

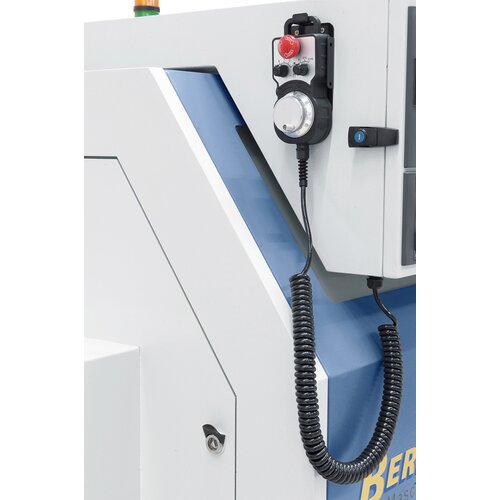

Including electronic handwheel

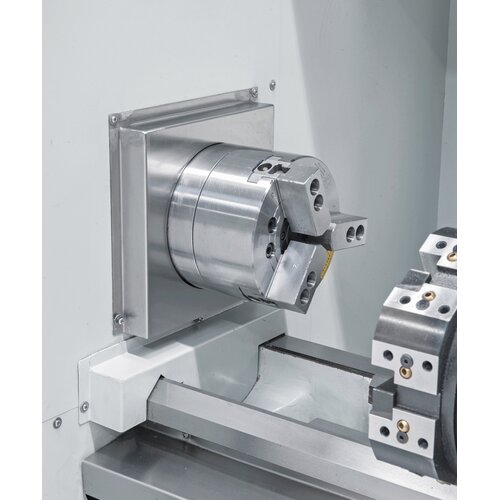

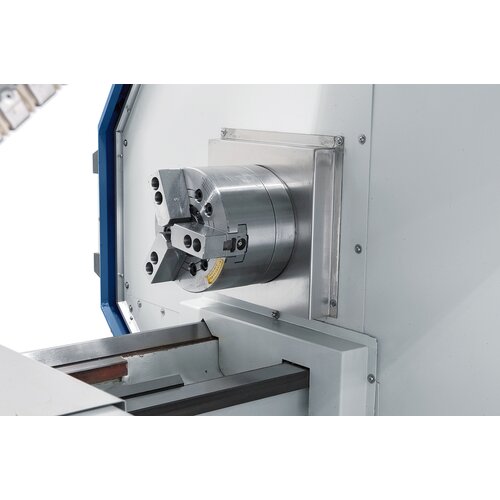

Hydraulic 3-jaw chuck diam. 200 mm

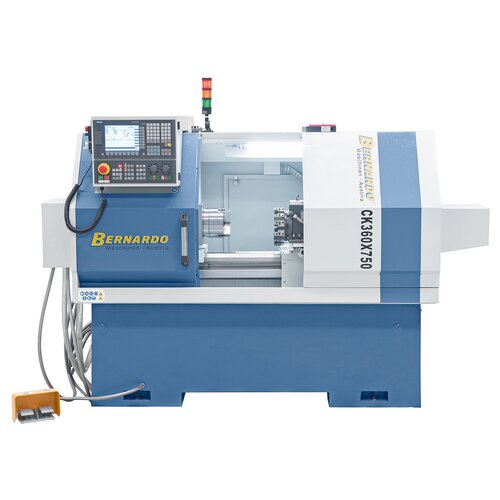

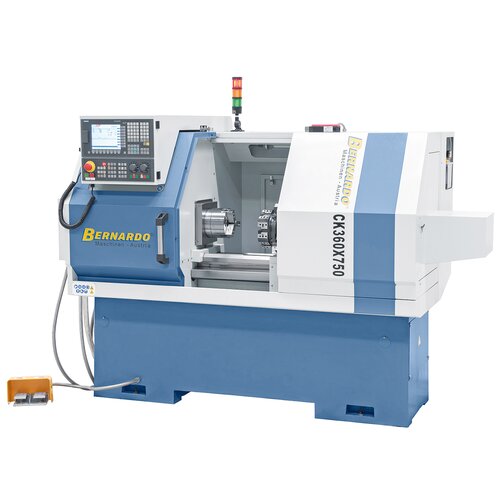

Picture of CK 360 x 750

CNC-lathe CK 360 x 500 *

Art.Nr.: 03-1403XL

Zu Favoriten hinzufügen Zur Vergleichsliste hinzufügen

€25,776.00

incl. 20% VAT

In Stock

Deliverable in 2-3 business days

Electronic handwheel for manual travel of x- and y-axis come standard

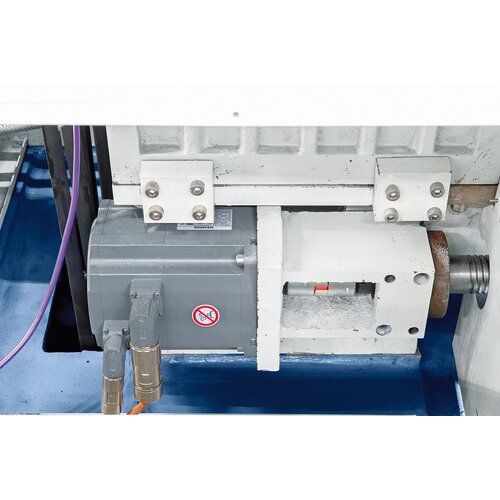

Both axis feature AC-servo motors and ball screw
Wide cross slide allows mounting of various tool post holders
Stable tailstock with hydraulically adjustable tailstock spindle
High rapid feed allows significant reduction of downtime
Brushless AC-motor drive and feed drive
Main spindle features pre-tightened high-quality angular bearings, guarantees best possible accuracy
User-friendly, easy-to-understand Siemens control 808D Advanced
Solid headstock features precisely bedded main spindle (spindle bore 60 mm)

Distance between centers	500 mm
Center height	180 mm
Swing over bed	360 mm
Swing over cross slide	150 mm
Bed width	260 mm
Spindle bore	60 mm
Spindle nose fixture	A2-6
Speed range, stepless	150 - 2500 rpm
Travel x-axis / z-axis	180 mm / 500 mm
Rapid feed x- / z-axis	4 / 7 m/min
Number of tool stations	6 pcs.
Dimension tool shank	16 x 16 mm
Positioning accuracy	± 0,01 mm
Diameter of tailstock sleeve	50 mm
Travel of tailstock sleeve	100 mm
Taper of tailstock sleeve	MK 4
Motor power	3,7 kW
Machine dimension (W x D x H)	2200 x 1150 x 1835 mm
Weight approx.	1390 kg
