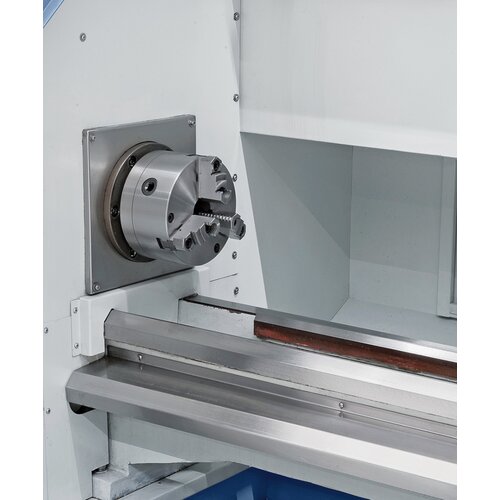

3-jaw chuck 160 mm comes standard.

Siemens 808D Advanced control features numerous programmed functions (standard).

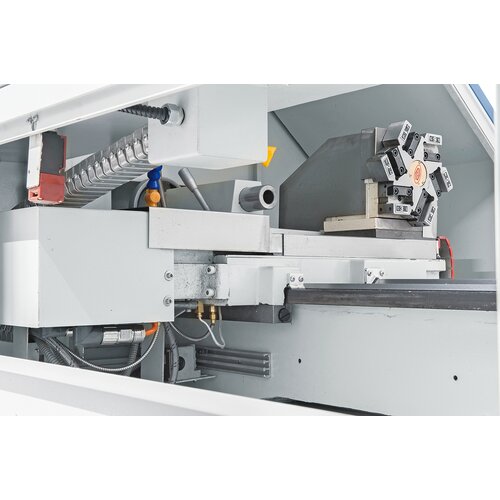

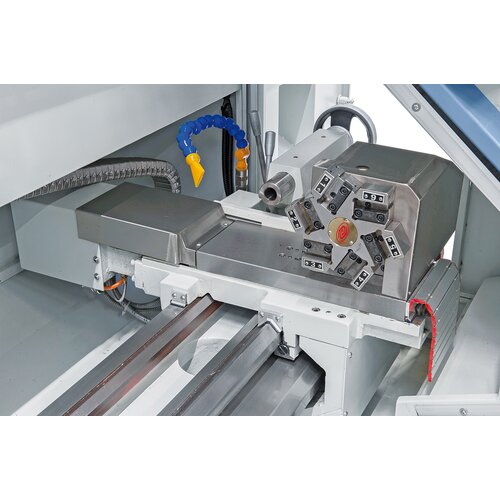

Serially with automatic 6-station turret.

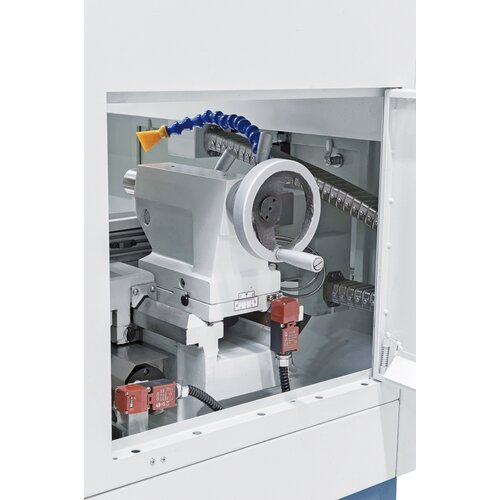

The solid tailstock with spindle taper MT 4 can be adjusted for taper turning.

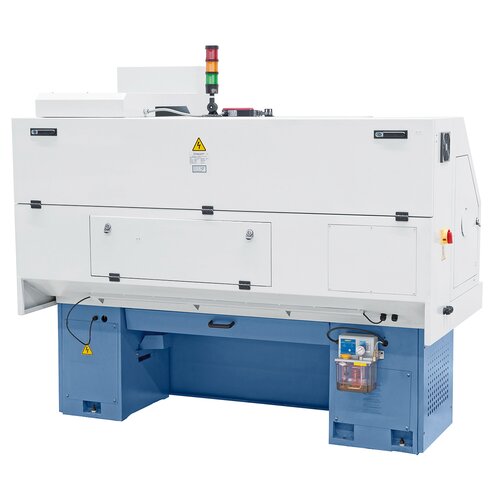

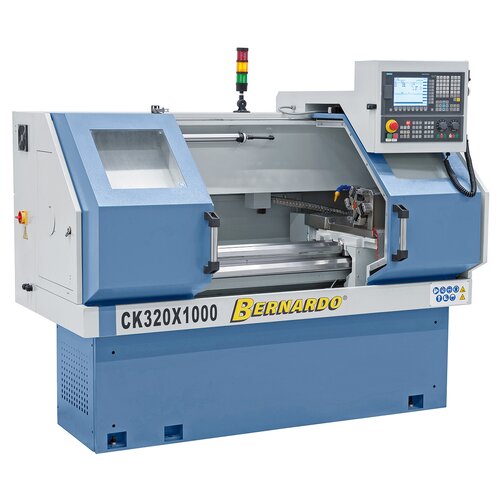

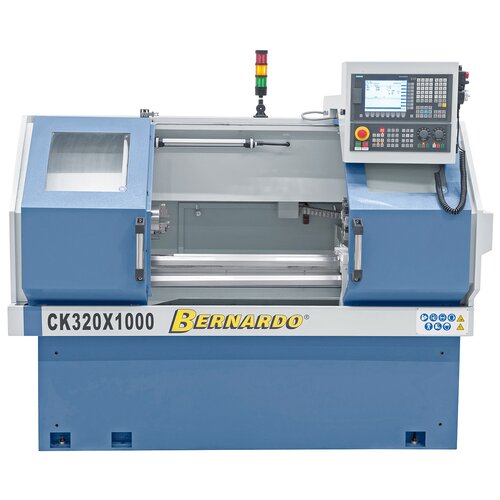

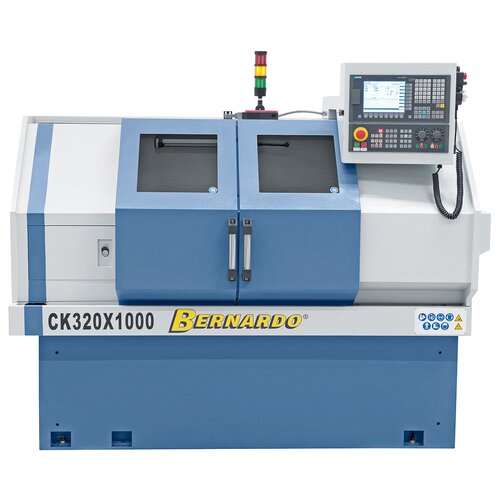

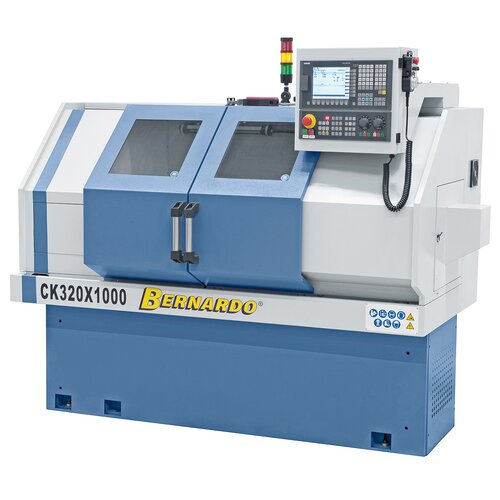

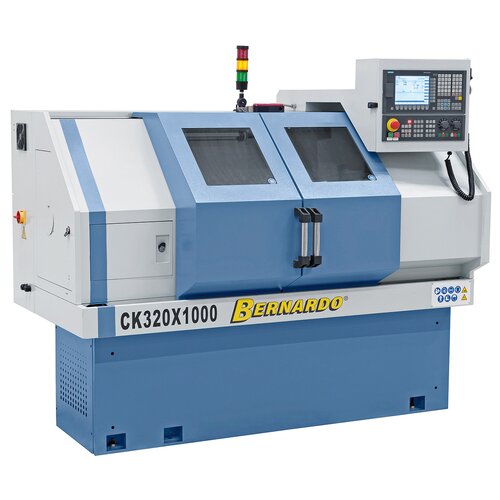

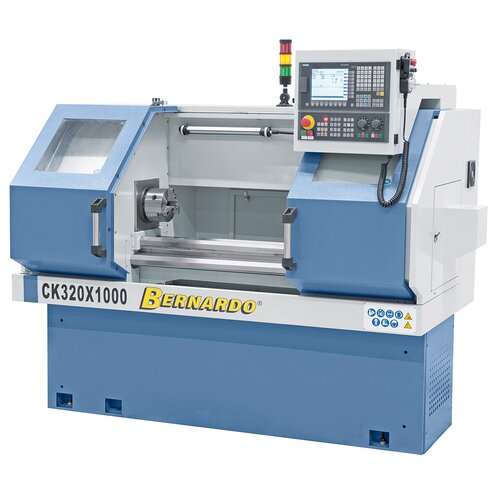

CNC-lathe CK 320 x 1000 *

Art.Nr.: 03-1402XL1

Wishlist Comparison List

€21,060.00

incl. 20% VAT

Out of Stock

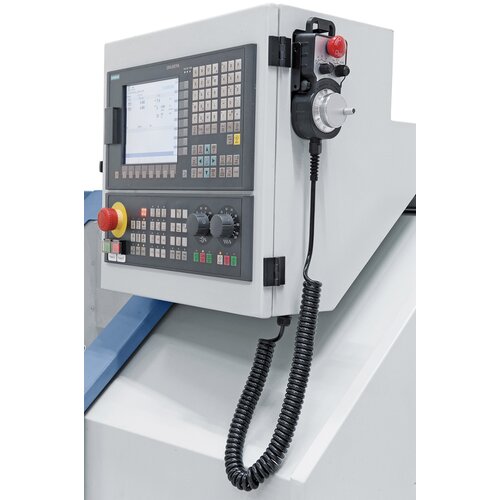

Electronic handwheel for manual travel of x- and y-axis come standard

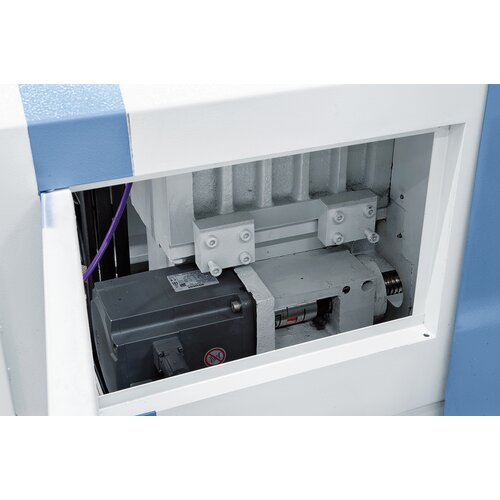

Both axis feature AC-servo motors and ball screw
Wide cross slide allows mounting of various tool post holders
High rapid feed allows significant reduction of downtime

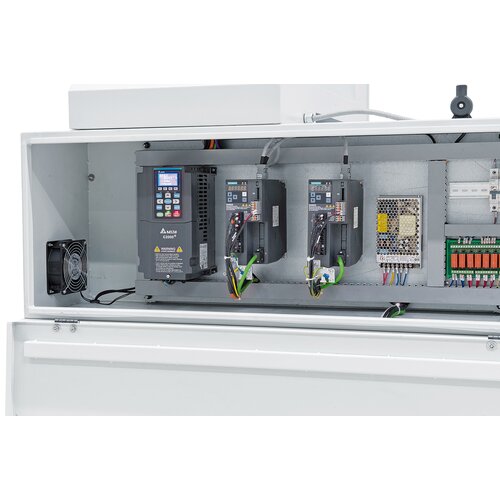

Brushless AC-motor drive and feed drive
Main spindle features pre-tightened high-quality angular bearings, guarantees best possible accuracy

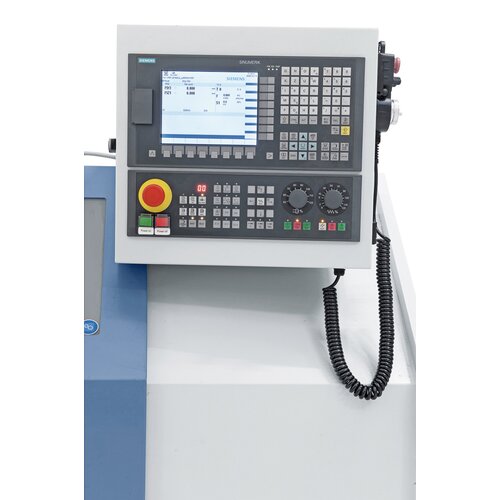

User-friendly, easy-to-understand Siemens control 808D Advanced

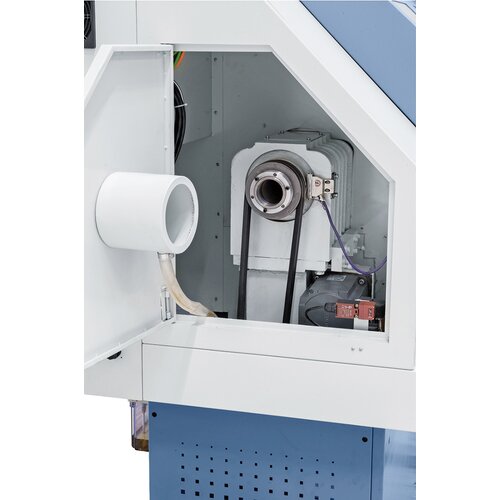

Solid headstock features precisely bedded main spindle (spindle bore 56 mm)

Distance between centers	1000 mm
Center height	160 mm
Swing over bed	320 mm
Swing over cross slide	150 mm
Bed width	215 mm
Spindle bore	56 mm
Spindle nose fixture	A2-5
Speed range, stepless	150 - 2500 rpm
Travel x-axis / z-axis	160 mm / 1000 mm
Rapid feed x- / z-axis	4 / 7 m/min
Number of tool stations	6 pcs.
Dimension tool shank	16 x 16 mm
Positioning accuracy	± 0,01 mm
Diameter of tailstock sleeve	45 mm
Travel of tailstock sleeve	100 mm
Taper of tailstock sleeve	MT 4
Motor power	3,7 kW
Machine dimension (W x D x H)	2160 x 1150 x 1840 mm
Weight approx.	1190 kg
